腰部运动损伤防护智能服装的研发

李柽安1, 鲁虹1,2()

  1. 1.东华大学 服装与艺术设计学院, 上海 200051
    2.东华大学 现代服装设计与技术教育部重点实验室,上海 200051
  • 收稿日期:2019-02-01 修回日期:2019-08-28 出版日期:2020-02-15 发布日期:2020-02-21
  • 通讯作者: 鲁虹
  • 作者简介:李柽安(1996—),女,硕士生。主要研究方向为服装设计与技术、服装智能制造、服装感性工程。

Research and development of smart garments for waist muscle injury protection

LI Cheng'an1, LU Hong1,2()

  1. 1. College of Fashion and Design, Donghua University, Shanghai 200051, China
    2. Key Laboratory of Clothing Design and Technology, Ministry of Education, Donghua University, Shanghai 200051, China
  • Received:2019-02-01 Revised:2019-08-28 Online:2020-02-15 Published:2020-02-21
  • Contact: LU Hong

摘要:

针对硬拉项目初学者易出现腰部肌肉损伤的问题,研发了穿戴肌肉疲劳度检测系统,使穿戴者实时掌握竖脊肌疲劳度情况,从而避免肌肉过度疲劳。系统以可穿戴Myoware肌电传感器与Arduino UNO开发板为基础,完成对表面肌电脉冲信号的采集和计算,并将计算得到的表面肌电平均功率频率与肌电疲劳阈进行比较,判定是否达到肌肉疲劳。通过测量4名男性大学生硬拉运动过程中肌肉电信号从开始到疲劳恢复过程中的变化数据,将150 Hz作为该目标群体的肌电疲劳阈。同时,考虑各电子模块的可穿戴性和运动紧身衣的可洗涤性,以可拆卸式风琴袋作为载体,实现电子模块与运动紧身衣的结合。

关键词: 智能服装, 可穿戴肌肉疲劳度检测系统, 肌电信号, 肌肉疲劳度指标, 竖脊肌

Abstract:

In view of the problem that the beginners of the deadlift project are prone to waist muscle damage, this study developed a wearable muscle fatigue detection system enabling the wearer to grasp the fatigue of the erector spinae in real time, thereby avoiding excessive muscle fatigue. Based on the wearable Myoware electromyography (EMG) sensor and the Arduino UNO development board, the system completed the acquisition and calculation of surface electromyography pulse signals and calculated the surface electrical power frequency. The fatigue threshold value of EMG signal was compared to determine whether muscle fatigue was reached. In this paper, 150 Hz was used as the myoelectric fatigue threshold of the target group by measuring the change data of muscle electrical signals during the deadlift exercise of four male college students. This topic fully considers the wear ability of each electronic module and the wash ability of the sports tights. The detachable organ bag is used as a carrier to realize the combination of the electronic module and the sports tights.

Key words: smart garment, wearable muscle fatigue detection system, electromyography signal, muscle fatigue index, erector spinae

中图分类号:

  • TS941.17

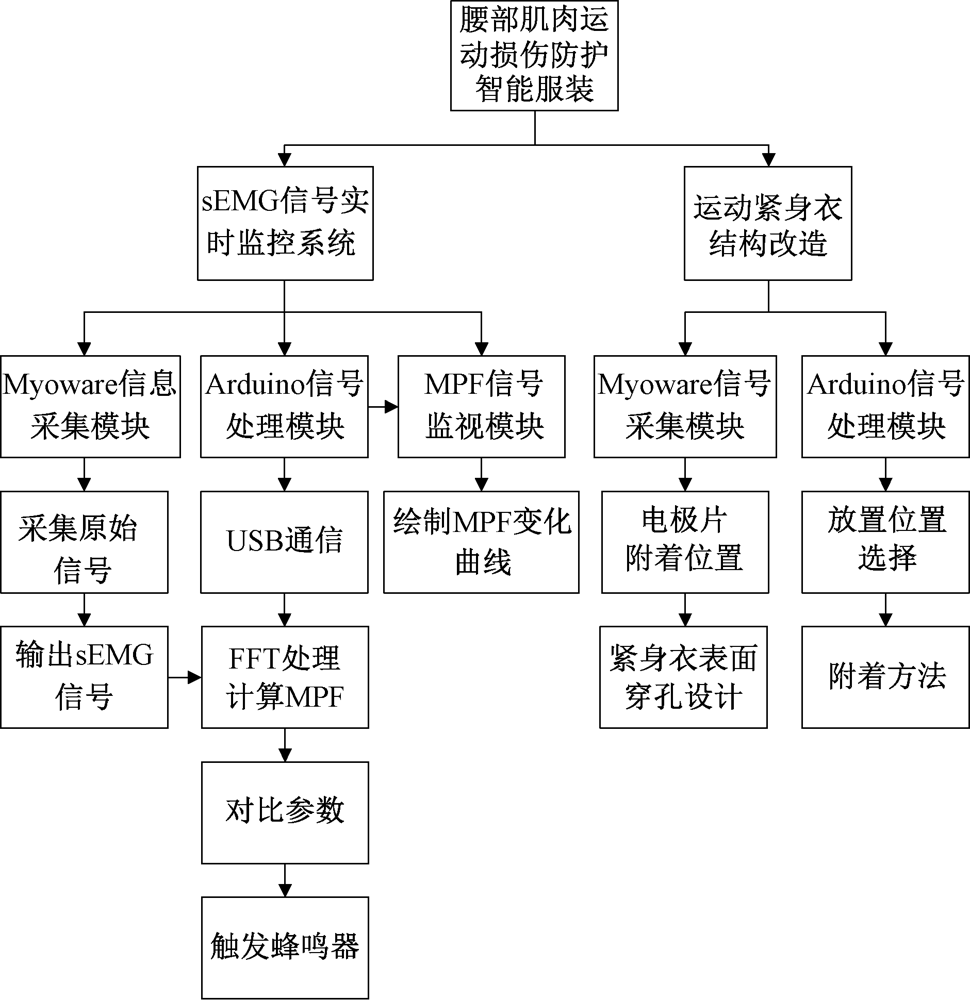

图1

系统结构框图"

图2

Myoware肌电传感器功能模块"

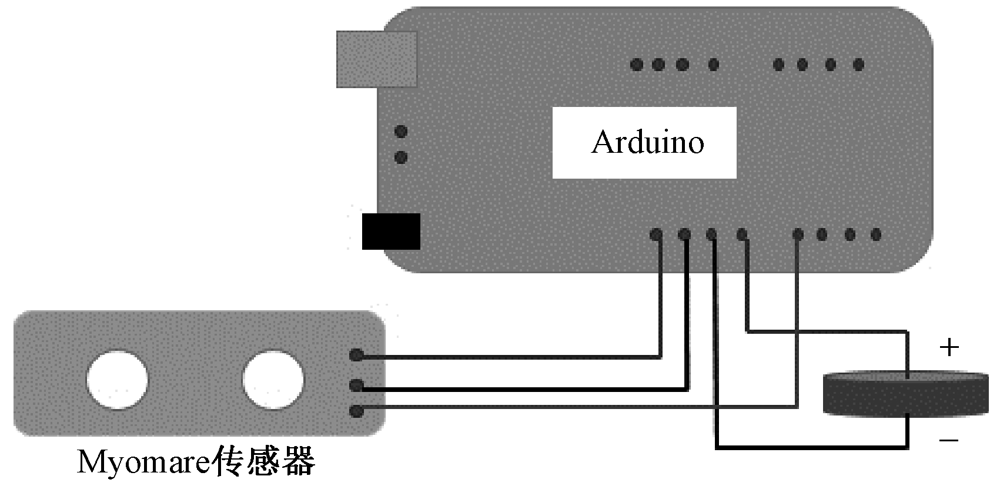

图3

传感器与开发板的接线图"

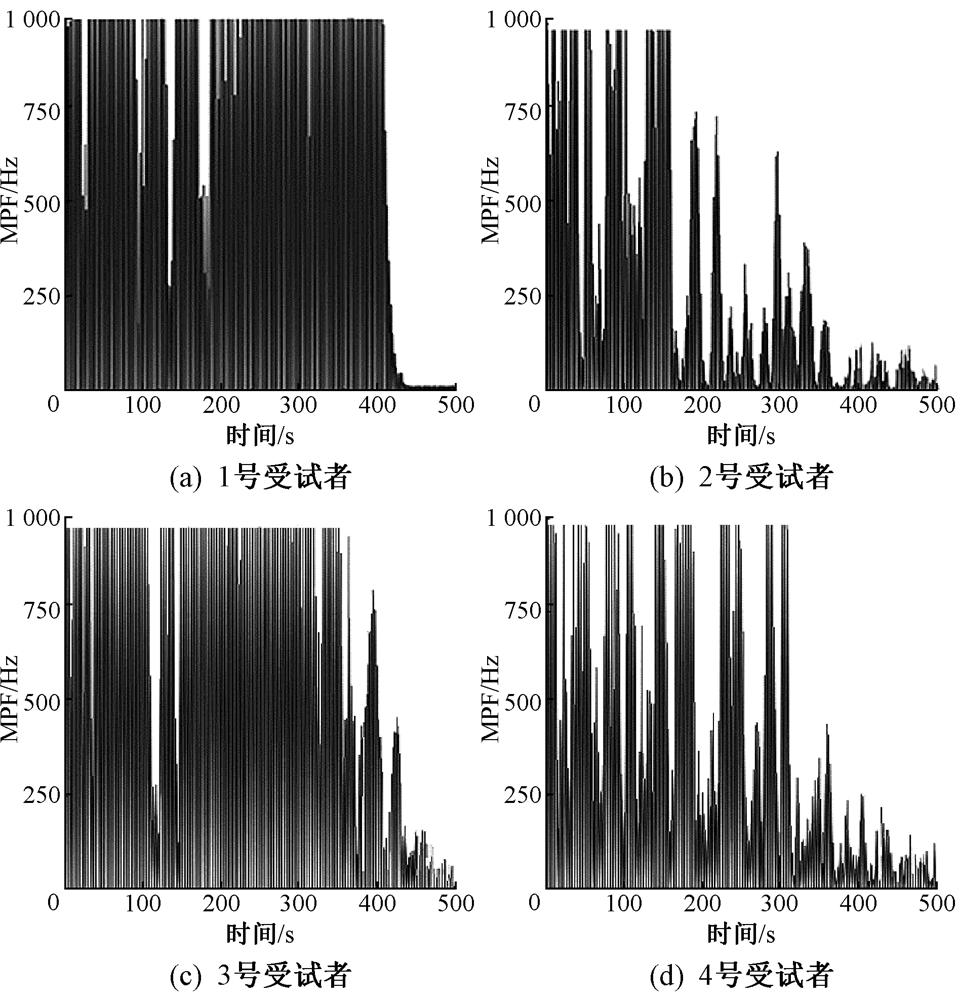

图4

肌肉疲劳时受试者的MPF变化图"

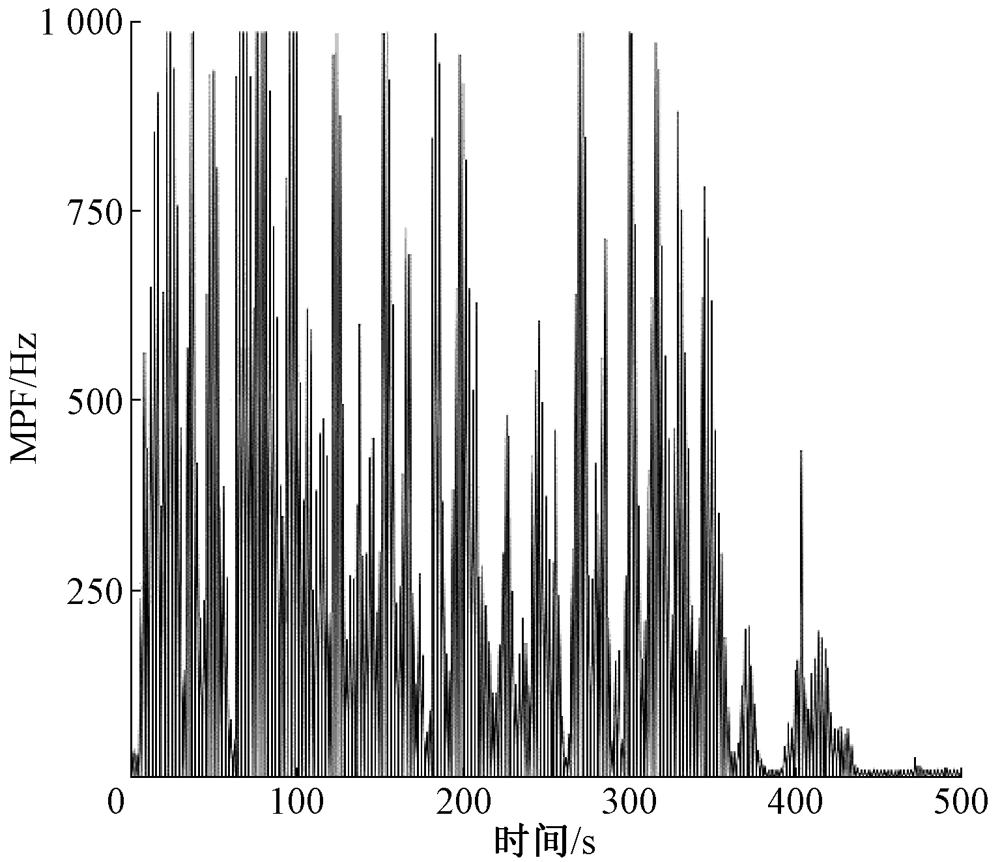

图5

第1组硬拉结束后MPF变化图"

图6

肌肉疲劳时受试者的MPF波动对比"

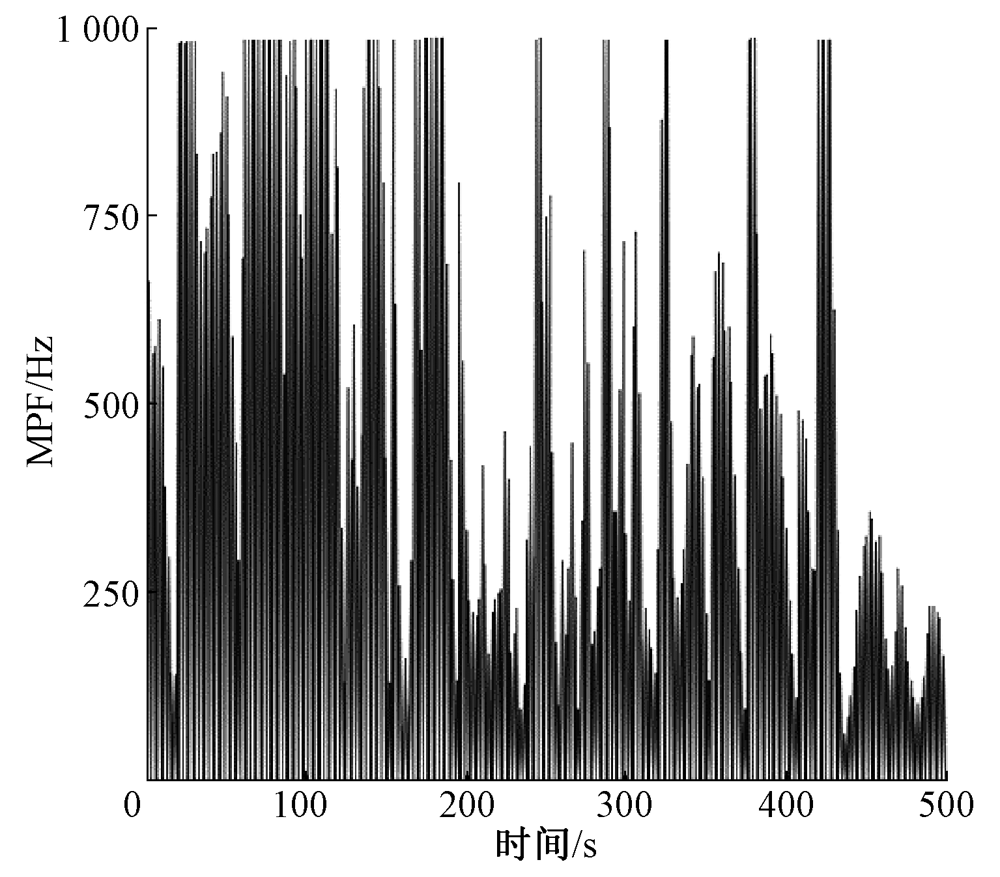

图7

疲劳时MPF变化图"

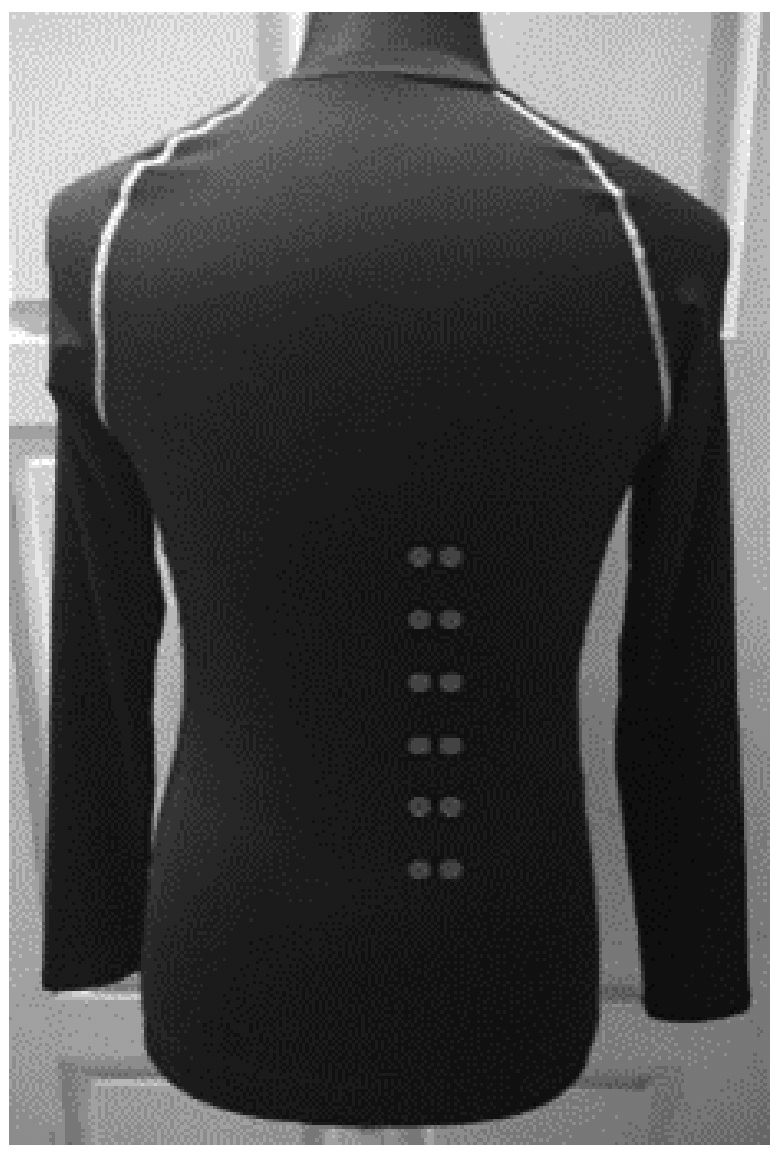

图8

电极片插孔位置"

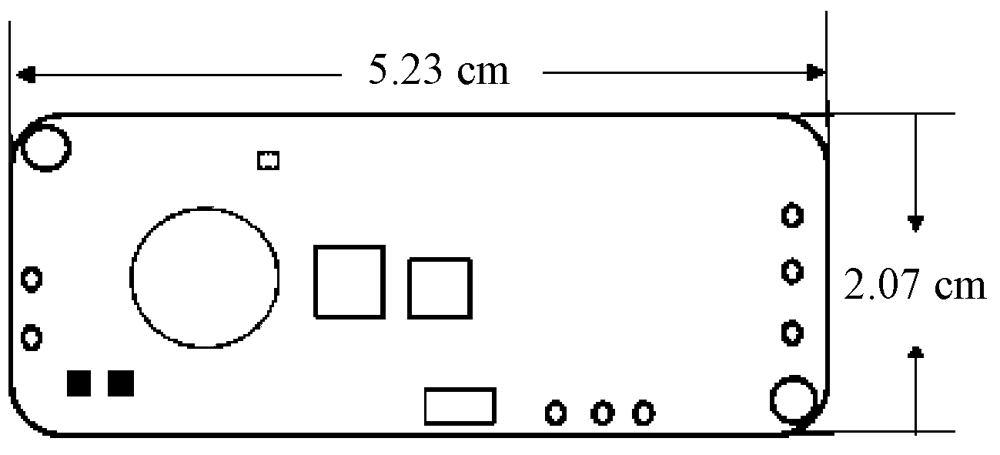

图9

Myoware传感器平面尺寸"

图10

Arduino信号处理模块位置"

图11

穿着正侧背视图"

[1] 蔡明明, 徐建中, 王凌云, 等. 体操运动员腰部竖脊肌疲劳过程中sEMG的变化[J]. 首都体育学院学报, 2006,18(4):47-48.
CAI Mingming, XU Jianzhong, WANG Lingyun, et al. On the change of sEMG signal in the course of sacropinal muscle fatigue for gymnastic athletes[J]. Journal of Capital University of Physical Education and Sports, 2006,18(4):47-48.
[2] HOGAN M C, KURDAK S S, ARTHUR P G. Effect of gradual reduction in O2 delivery on intracellular homeostasis in contracting skeletal muscle[J]. Journal of Applied Physiology, 1996,80:1313-1321.
doi: 10.1152/jappl.1996.80.4.1313 pmid: 8926261
[3] SUNNERBRAGEN K S, CARLSSON U, SANDBERG A, et al. Electrophysiologic evaluation of muscle fatigue development and recovery in late polio[J]. Arch Phys Med, 2000,81:770-776.
pmid: 10857522
[4] NG J K, RICHARDSON C A. Electromyogaphic amplitude and frequency changes in the iliocostalis lumborum and multifidus muscles during a trunk holding test[J]. Phys Therapy, 1997,77:954-961.
[5] 陈伟婷, 王志中, 胡晓, 等. 基于熵的动态收缩sEMG信号疲劳特征分析[J]. 中国医学物理学杂志, 2006,23(3):204-208.
CHEN Weiting, WANG Zhizhong, HU Xiao, et al. Entropy analysis of sEMG signal during dynamic contractions for assessing muscle fatigue[J]. Chinese Journal of Medical Physics, 2006,23(3):204-208.
[6] 叶伟, 王健, 刘红. 静态负荷诱发肌肉疲劳后恢复期sEMG信号变化规律[J]. 中国应用生理学杂志, 2005,21(2):216-219.
YE Wei, WANG Jian, LIU Hong. sEMG signal change characteristics during the short period of recovery after muscular fatigue with isometric contractions[J]. Chinese Journal of Applied Physiology, 2005,21(2):216-219.
[7] WANG Y, QI C, ZHU S, et al. Surface EMG based analysis of recovery from lumbar fatigue for driver on prairie highway[J]. China Safety Science Jour-nal(CSSJ), 2018,28(5):6-11.
[8] 张非若, 陶鑫, 王波, 等. 驾驶人背部肌肉负荷定量研究[J]. 中国生物医学工程学报, 2013,32(6):685-691.
ZHANG Feiruo, TAO Xin, WANG Bo, et al. Qualification study on driver's back muscle load[J]. Chinese Journal of Biomedical Engineering, 2013,32(6):685-691.
[9] ZHOU W, LI Y, LIU S, et al. Impedance and electromyographic properties of metal dry bioelectrode with non-uniform surface microstructure[J]. Applied Physics A, 2018,124(11):754.
[10] CHRISTOV Ivaylo, ROSITSA Raikova, SILVIJA Angelova. Separation of electrocardiographic from electromyographic signals using dynamic filtration[J]. Medical Engineering & Physics, 2018,57:1-10.
pmid: 29699890
[11] 戴孝林, 朱婷婷, 王曼红, 等. 户外服装衣袖结构功能的分析与设计[J]. 纺织导报, 2017(9):74-76.
DAI Xiaolin, ZHU Tingting, WANG Manhong, et al. Analysis and design of sleeves for outdoor clothing[J]. Chinese Textile Leader, 2017(9):74-76.
