分散黄6GSL晶型与其分散体热稳定性的关系

doi:10.13475/j.fzxb.20200707107

纺织学报 ›› 2021, Vol. 42 ›› Issue (05): 96-102.doi: 10.13475/j.fzxb.20200707107

分散黄6GSL晶型与其分散体热稳定性的关系

王瑞丰¹^,², 李敏¹^,², 田安丽¹^,², 王春霞², 付少海¹^,²()

1.江苏省纺织品数字喷墨印花工程技术研究中心, 江苏无锡 214122
2.生态纺织教育部重点实验室(江南大学), 江苏无锡 214122

收稿日期:2020-07-30 修回日期:2021-02-10 出版日期:2021-05-15 发布日期:2021-05-20
通讯作者: 付少海
作者简介:王瑞丰(1995—),女,硕士生。主要研究方向为分散染料晶型结构及性能。
基金资助:
江苏省自然科学基金基础研究计划面上项目(BK20191334)

Relationship between Disperse Yellow 6GSL crystal form and thermal stability of its dispersions

WANG Ruifeng¹^,², LI Min¹^,², TIAN Anli¹^,², WANG Chunxia², FU Shaohai¹^,²()

1. Jiangsu Engineering Research Center for Digital Textile Inkjet Printing, Wuxi, Jiangsu 214122, China
2. Key Laboratory of Eco-Textiles (Jiangnan University), Ministry of Education, Wuxi, Jiangsu 214122, China

Received:2020-07-30 Revised:2021-02-10 Online:2021-05-15 Published:2021-05-20
Contact: FU Shaohai

摘要/Abstract

摘要：

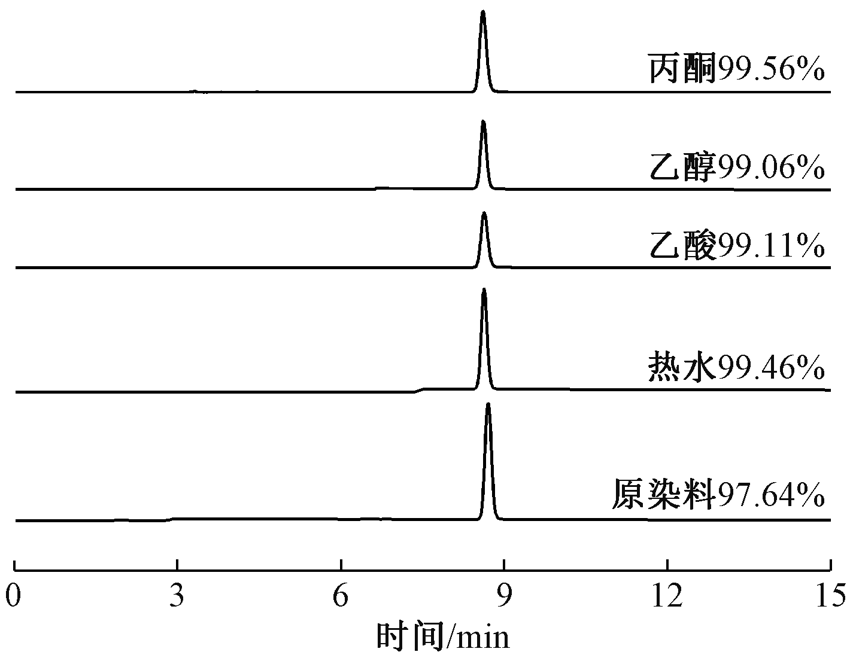

针对分散染料喷墨印花直喷墨水存在高温条件下稳定性不好的问题,研究了提纯溶剂与分散黄6GSL晶体结构的关系,探讨了研磨工艺对分散体粒径大小及研磨效率的影响,考察了分散黄6GSL晶体结构与其分散体在高温条件下的稳定性和过滤性能之间的关系。结果表明:采用60 ℃热水对分散黄6GSL提纯,其纯度可达99.46%;分散黄6GSL与自制分散剂4600W质量比为1∶1.5的分散染料,在分散研磨机转速为2 500 r/min条件下初研磨5 h,再在砂磨机转速为4 000 r/min条件下研磨14 h,制备的分散体平均粒径为90.39 nm;分散体在60 ℃条件下放置72 h前后,在绝对孔径为1 μm的聚偏氟乙烯滤膜中的过滤流量分别为428和333 g/min,具有良好的过滤性能和热稳定性,可用于制备高热稳定性分散染料直喷墨水。

关键词: 直喷式喷墨印花, 染料分散体, 提纯, 晶体结构, 热稳定性, 直喷墨水

Abstract:

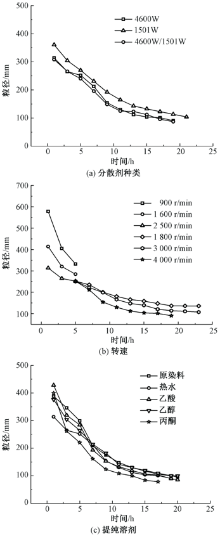

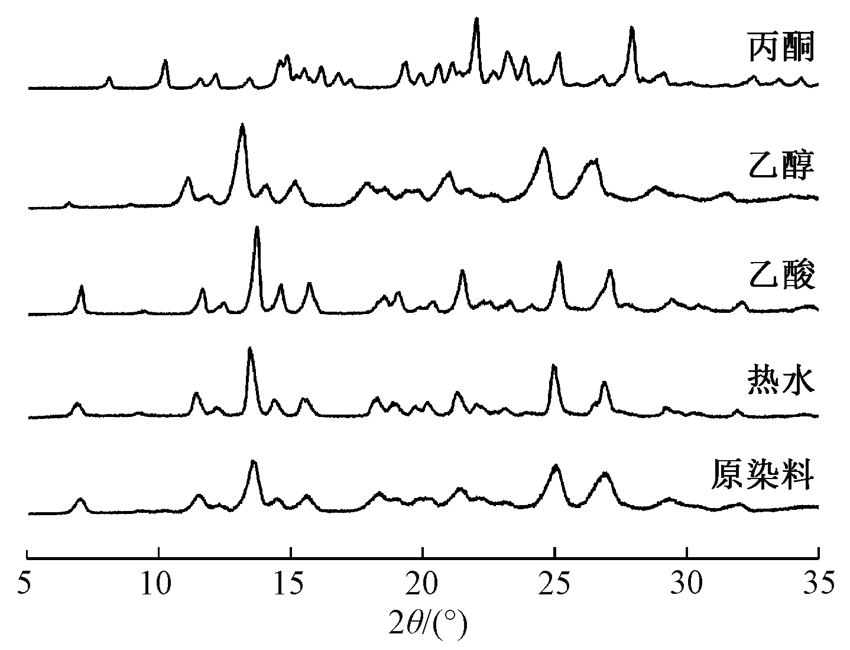

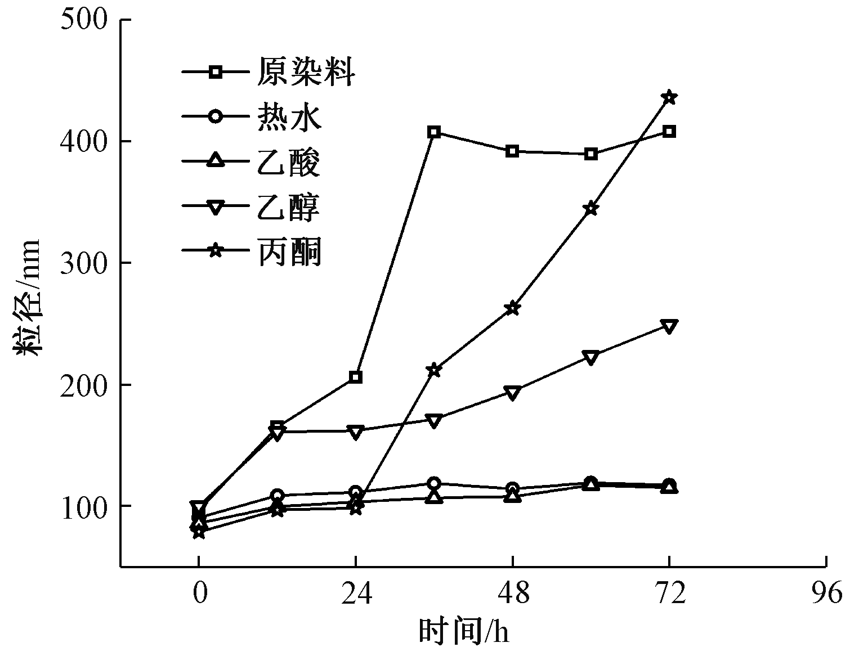

To address the problem of poor stability of ink-jet printing direct ink under high temperature conditions, this study focused on the relationship between the purification solvent and Disperse Yellow 6GSL crystal form. The effects of grinding process conditions on the particle size and grinding efficiency of the dye dispersion were investigated. The relationship between the crystal form of Disperse Yellow 6GSL and the stability and filtration performance of their dispersions under high temperature conditions was investigated. The results show that the purity of the dye filter cake purified by hot water at 60 ℃ is 99.46%, and the mass ratio of Disperse Yellow 6GSL to home made dispersant 4600W is 1∶1.5. Under the condition that the dispersing machine rotation at 2 500 r/min for initial grinding for 5 h and then grinding for 14 h at a speed of 4 000 r/min, the average particle size of the dye dispersion is 90.39 nm. Before and after the dispersion is conditioned at 60 ℃ for 72 h, the filtration flow rates in the polyvinglidene membrane with an absolute pore size of 1 μm are 428 g/min and 333 g/min. The dispersion have good filtration performance and thermal stability.The dispersions can endow high thermal stability of the disperse dye ink with direct ink-jet printing.

Key words: direct ink-jet printing, dye dispersion, purification, crystal form, thermal stability, ink for direct ink-jet printing

中图分类号:

TS194.2

王瑞丰, 李敏, 田安丽, 王春霞, 付少海. 分散黄6GSL晶型与其分散体热稳定性的关系[J]. 纺织学报, 2021, 42(05): 96-102.

WANG Ruifeng, LI Min, TIAN Anli, WANG Chunxia, FU Shaohai. Relationship between Disperse Yellow 6GSL crystal form and thermal stability of its dispersions[J]. Journal of Textile Research, 2021, 42(05): 96-102.

图/表 10

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

参考文献 21

[1]	林虹, JIN Haiyun. 数码印花与纺织品个性化定制C2B模式[J]. 纺织学报, 2015,36(2):164-168.
	LIN Hong, JIN Haiyun. Digital printing and textile personalized customization C2B mode[J]. Journal of Textile Research, 2015,36(2):164-168.
[2]	徐谷仓. 对发展我国数码喷墨印花的看法和建议[J]. 纺织导报, 2015(4):28,30-31.
	XU Gucang. Views and suggestions on the development of digital inkjet printing in my country[J]. China Textile Leader, 2015 (4):28,30-31.
[3]	艾丽, 曹红梅, 朱亚伟, 等. 基于液体分散染料的微量印花技术[J]. 纺织学报, 2018,39(9):77-83.
	AI Li, CAO Hongmei, ZHU Yawei, et al. Ultralow pollution micro-printing method based on liquid disperse dyes[J]. Journal of Textile Research, 2018,39(9):77-83.
[4]	葛慧德, 王吉祥, 李慧. 一种高温直喷分散色浆:2017100084602[P]. 2017-01-05.
	GE Huide, WANG Jixiang, LI Hui. A high temperature direct spray dye dispersion: 2017100084602[P]. 2017-01-05.
[5]	ZHAO Ying, LI Min, ZHANG Liping, et al. Influence of diffusion behavior ofdisperse dye ink on printing accuracyfor warp-knitted polyester fabrics[J]. Textile Research Journal, 2019,89(2):162-171. doi: 10.1177/0040517517741158
[6]	楚善润, 张悦, 邢铁玲, 等. 涤/棉织物喷墨印花用分散红/活性红染料墨水的制备[J]. 印染, 2020,46(7):1-5,15.
	CHU Shanrun, ZHANG Yue, XING Tieling, et al. Preparation of disperse red/reactive red ink for ink jet printing of T/C fabric[J]. China Dyeing & Finishing, 2020,46(7):1-5,15.
[7]	秦国胜, 王齐振, 孙志国, 等. 一种水性纳米数码印花直喷墨水、生产工艺及打印方法: 107904984A[P]. 2017-12-28.
	QIN Guosheng, WANG Qizhen, SUN Zhiguo, et al. Water-based nano digital printing direct inkjet,production process and printing method:107904984A[P]. 2017-12-28.
[8]	谢强, 罗荣, 邱伟伟. 高温分散直喷黑色墨水及其制备方法: 110358364 A[P]. 2019-08-15.
	XIE Qiang, LUO Rong, QIU Weiwei. High temperature dispersion direct injection black ink and its preparation method: 110358364 A[P]. 2019-08-15.
[9]	赵涛. 染整工艺与原理:下[M]. 北京: 中国纺织出版社, 2009: 174-175.
	ZHAO Tao. Dyeing and finishing technology and principle: Ⅱ[M]. Beijing: China Textile & Apparel Press, 2009: 174-175.
[10]	CHU Runshan, ZHANG Yue, XING Tieling, et al. The stability of disperse red/reactive-red dye inks[J]. RSC Advances, 2020,10(70):42633-42643. doi: 10.1039/D0RA07333D
[11]	梁静, 钟毅, 毛志平, 等. 晶型对分散染料染色性能的影响[J]. 纺织学报, 2018,39(7):69-73.
	LIANG Jing, ZHONG Yi, MAO Zhiping, et al. Effect of crystal form on the dyeing performance of disperse dyes[J]. Journal of Textile Research, 2018,39(7):69-73.
[12]	冯欢, 王祥荣. 分散剂对液状分散橙30性能的影响[J]. 印染助剂, 2016,33(8):52-56.
	FENG Huan, WANG Xiangrong. Effect of dispersant on the properties of the liquid disperse orange 30[J]. Textile Auxiliaries, 2016,33(8):52-56.
[13]	艾丽, 朱亚伟. 液体分散染料的技术进步及应用[J]. 印染, 2019,45(24):47-52.
	AI Li, ZHU Yawei. The development of liquid disperse dye and its application[J]. China Dyeing & Finishing, 2019,45(24):47-52.
[14]	QIAN Tao, ZHONG Yi, MAO Zhiping, et al. The comb-like modified styrene-maleic anhydride copolymer dispersant for disperse dyes[J]. Journal of Applied Polymer Science, 2019,136(16):47330. doi: 10.1002/app.v136.16
[15]	罗孝勇, 付少海, 王春霞, 等. 超细分散染料的制备及影响转移印花效果的因素[J]. 纺织学报, 2012,33(11):86-90.
	LUO Xiaoyong, FU Shaohai, WANG Chunxia, et al. Preparation of ultrafine disperse dye and influence factors on transfer printing effect[J]. Journal of Textile Research, 2012,33(11):86-90.
[16]	刘媛媛, 钟毅, 徐红, 等. 液体分散染料的超细化制备工艺[J]. 印染, 2021,47(1):6-10.
	LIU Yuanyuan, ZHONG Yi, XU Hong, et al. Ultrafine preparation of liquid disperse dyestuff[J]. China Dyeing & Finishing, 2021,47(1):6-10.
[17]	YOON Chun, CHOI Jae Hong. Synjournaling polymeric dispersants to apply to carbon black pigmented mill bases for use in ink-jet inks[J]. Coloration Technology, 2020,136(1):60-74. doi: 10.1111/cote.12446
[18]	张曙光. 液状超细染料的性能研究[D]. 无锡:江南大学, 2007: 22-25.
	ZHANG Shuguang. Study on the performance of liquid ultrafine dyes[D]. Wuxi:Jiangnan University, 2007: 22-25.
[19]	齐宝坤, 赵城彬, 江连洲, 等. 不同热处理温度下大豆11S球蛋白Zeta电位、粒径和红外光谱分析[J]. 食品科学, 2018,39(24):54-58.
	QI Baokun, ZHAO Chengbin, JIANG Lianzhou, et al. Analysis of zeta potential, particle size and infrared spectroscopy of 11S glycinin at different heat treatment temperatures[J]. Food Scienct, 2018,39(24):54-58.
[20]	何永峰. 分散染料碱性染色与印花及糊料流变性研究[D]. 上海:东华大学, 2016: 53-54.
	HE Yongfeng. Studies on alkaline dyeing and printing of disperse dyees a rheological properties of paste[D]. Shanghai: Donghua University, 2016: 53-54.
[21]	FU Shaohai, ZHANG Guifang, DU Changsen, et al. Preparation of encapsulated disperse dye dispersion for polyester inkjet printing ink[J]. Journal of Applied Polymer Science, 2011,121(3):1616-1621. doi: 10.1002/app.33728
