氯胺接枝涤纶/锦纶超细纤维针织物的抗菌性能

熊坦平1, 谭飞2, 黄成2, 阎克路2, 邹妮3, 王政1, 叶敬平4, 纪柏林2()

  1. 1.上海利以德特种丝有限公司, 上海 201508
    2.东华大学 化学化工与生物工程学院, 上海 201620
    3.上海市第一人民医院, 上海 201620
    4.福建百宏聚纤科技实业有限公司, 福建 泉州 362200
  • 收稿日期:2021-03-03 修回日期:2022-05-03 出版日期:2022-08-15 发布日期:2022-08-24
  • 通讯作者: 纪柏林
  • 作者简介:熊坦平(1976—),男,工程师。主要研究方向为印染加工技术。
  • 基金资助:
    福建“百人计划”(第四批)项目(闵委人才(2015) 8号)

Antimicrobial properties of chloramine-grafted polyester/polyamide microfiber knitted fabrics

XIONG Tanping1, TAN Fei2, HUANG Cheng2, YAN Kelu2, ZOU Ni3, WANG Zheng1, YE Jingping4, JI Bolin2()

  1. 1. Shanghai Leader Specific-Silk Co., Ltd., Shanghai 201508, China
    2. College of Chemistry, Chemical Engineering and Biotechnology, Donghua University, Shanghai 201620, China
    3. Shanghai General Hospital, Shanghai 201620, China
    4. Fujian Billion Polymerization Technology Industrial Co., Ltd., Quanzhou, Fujian 362200, China
  • Received:2021-03-03 Revised:2022-05-03 Published:2022-08-15 Online:2022-08-24
  • Contact: JI Bolin

RichHTML

19

PDF (PC)

86

摘要：

为评价氯胺抗菌织物在公共卫生领域作为清洁布的实用抗菌效果,采用3–烯丙基–5,5–二甲基乙内酰脲(ADMH)处理涤纶/锦纶超细纤维针织物,以活性氯含量为指标,确定了制备氯胺织物的最佳活化工艺:次氯酸钠溶液活性氯含量3 000 mg/kg,浸泡时间20 min,60 ℃下烘干20 min。测试了氯胺织物对金黄色葡萄球菌和大肠杆菌的抗菌性能以及对甲型流感病毒H1N1的抗病毒性能,并将其用于医院重症加强护理病房(ICU)设施和公共食堂餐桌擦拭清洁。结果表明:活化氯胺织物对金黄色葡萄球菌和大肠杆菌接触3 min时,抑菌率均达到99.999％,对H1N1的抗病毒活性率达到99.94％;经过擦拭的ICU设施表面细菌量为零,氯胺抗菌织物连续擦拭30张桌面后桌面和擦拭织物均不带菌,且氯胺抗菌织物具有良好的活化再生功能。

关键词: 功能性纺织品, 抗菌织物, 卤胺接枝, 抗菌性能, 活化再生, 活性氯

Abstract:

In order to evaluate the practical antimicrobial effect of chloramine fabrics as wiping cloths in the field of public health,the optimal chloramine fabric activation process of polyester/polyamide microfiber fabric grafted with 3–allyl–5,5–dimethylhydantoin (ADMH) was investigated based on the content of active chlorine on the fabric. The optimal activation process was reached when the active chlorine concentration of sodium hypochlorite solution was 3 000 mg/kg, the soaking time was 20 min, and the fabric was dried at 60 ℃ for 20 min. The chloramine fabric was tested for antibacterial performance against Staphylococcus aureus (S. aureus) and Escherichia coli (E. coli), and for antivirus property against influenza A virus H1N1. The treated fabric was used for wiping the intensive care unit (ICU) ward facilities in a hospital and public canteen dining tables. The results show that the antibacterial ratio against both S. aureus and E. coli reaches 99.999％, and the antiviral activity ratio against H1N1 is 99.94％. The amount of residual bacteria on the surface of the cleaned ICU facility is zero. After wiping thirty dining tables successively with the same chloramine fabric, neither the surfaces of the wiped 30 dining tables nor the wiping fabrics were found to be contaminated with bacteria. Moreover, the chloramine fabric shows a good activation and regeneration property of active chlorine when it is treated with sodium hypochlorite solution.

Key words: functional textiles, antibacterial fabric, N-halamine grafting, antimicrobial property, activation and regeneration, active chlorine

中图分类号:

  • TS195.5

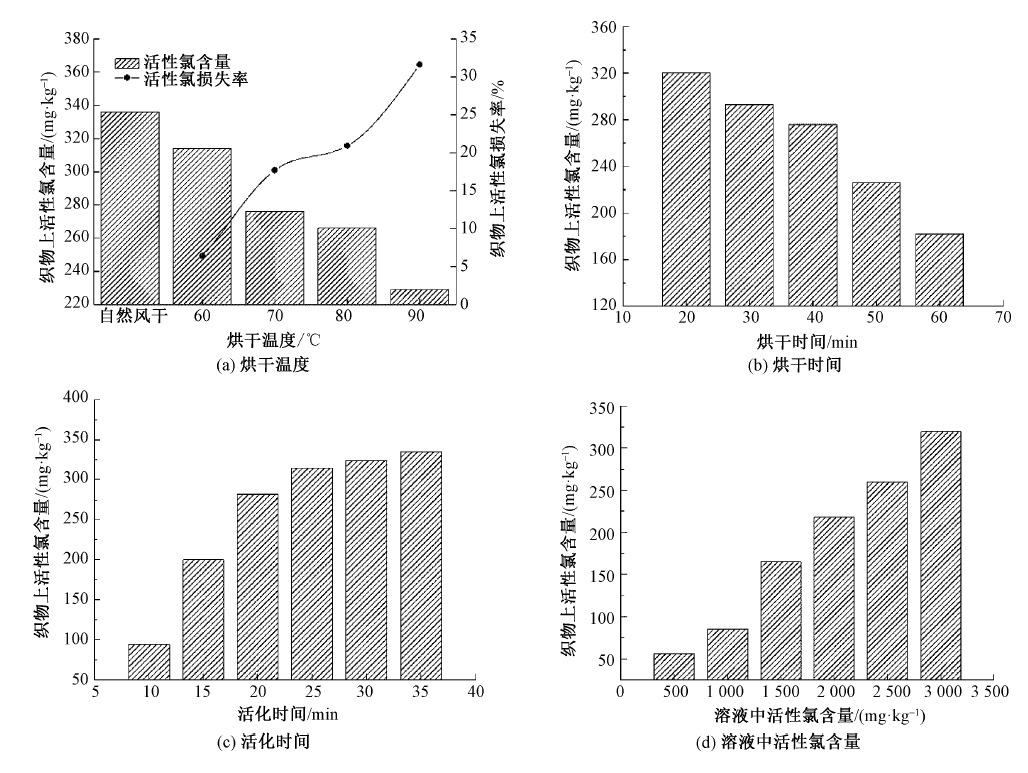

图1

活化工艺条件对织物上活性氯含量的影响"

表1

氯胺抗菌织物对金黄色葡萄球菌和大肠杆菌的抗菌能力"

接触时间/
min		 抑菌率/％
对金黄色葡萄球菌① 对大肠杆菌②
0.5 84.864 87.977
1 94.988 93.974
3 99.999 99.999
5 99.999 99.999
10 99.999 99.999
30 99.999 99.999

表2

氯胺抗菌织物的抗H1N1病毒性能"

试样 感染病毒滴
度的对数值		 抗病毒
活性值		 抗病毒活
性率/％
对照样(接种孵育0 h) 6.66
对照样(接种孵育2 h) 6.04 3.22 99.94
测试样(接种孵育2 h) 2.82

表3

氯胺抗菌织物擦拭床栏和边柜的抗菌性能"

床号 床栏 边柜
擦拭前 擦拭后 擦拭前 擦拭后
1 有菌 无菌 有菌 无菌
2 有菌 无菌 有菌 无菌
3 有菌 无菌 有菌 无菌
4 有菌 无菌 有菌 无菌

图2

氯胺抗菌织物擦拭餐桌表面的抗菌情况"

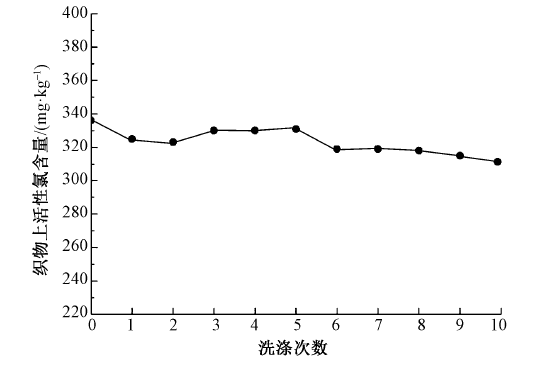

图3

氯胺抗菌织物经不同次数洗涤及活化后的活性氯含量"

[1] DING F, ZHANG S, REN X, et al. Development of PET fabrics containing N-halamine compounds with durable antibacterial property[J]. Fibers and Polymers, 2022, 23(2): 413-422.
doi: 10.1007/s12221-021-0448-5
[2] 周青青, 陈嘉毅, 祁珍明, 等. 阻燃抗菌棉织物的制备及其性能表征[J]. 纺织学报, 2020, 41(5): 112-120.
ZHOU Qingqing, CHEN Jiayi, QI Zhenming, et al. Preparation and characterization of flame retardant and bacterial cotton fabric[J]. Journal of Textile Research, 2020, 41(5): 112-120.
[3] 郑宏飞, 汪瑞琪, 汪庆, 等. 氧化壳聚糖改性抗菌蚕丝织物的制备及其性能[J]. 纺织学报, 2020, 41(5): 121-128.
ZHENG Hongfei, WANG Ruiqi, WANG Qing, et al. Preparation and properties of antibacterial silk fabric modified with oxidized chitosan[J]. Journal of Textile Research, 2020, 41(5): 121-128.
[4] MA Y, WISUTHIPHAE N, BOLT H, et al. N-halamine polypropylene nonwoven fabrics with rechargeable antibacterial and antiviral functions for medical applications[J]. ACS Biomaterials Science & Engineering, 2021, 7(6): 2329-2336.
[5] SUN G. Chemistry of durable and regenerable biocidal textiles[J]. Journal of Chemical Education, 2005, 82(1): 60-64.
doi: 10.1021/ed082p60
[6] NEOH K G, LI M, KANG E T, et al. Surface modification strategies for combating catheter-related complications: recent advances and challenges[J]. Journal of Materials Chemistry B, 2017, 5(11): 2045-2067.
doi: 10.1039/C6TB03280J
[7] SINHA P, LOCKLIN J, HANDA H. A review of the recent advances in antimicrobial coatings for urinary catheters[J]. Acta Biomaterialia, 2017, 50: 20-40.
doi: 10.1016/j.actbio.2016.11.070
[8] WEI T, TANG Z C, YU Q, et al. Smart antibacterial surfaces with switchable bacteria-killing and bacteria-releasing capabilities[J]. ACS Applied Materials & Interfaces, 2017, 9(43): 35711-37523.
[9] HUANG C, CHEN Y, SUN G, et al. Disinfectant performance of a chlorine regenerable antibacterial microfiber fabric as a reusable wiper[J]. Materials, 2019, 12(1): 127-140.
doi: 10.3390/ma12010127
[10] LIU S, SUN G. Radical graft functional modification of cellulose with allyl monomers: chemistry and structure characterization[J]. Carbohydrate Polymers, 2008, 71(4): 614-625.
doi: 10.1016/j.carbpol.2007.07.006
[11] 谭飞. 涤/棉复合超细纤维清洁布抗菌整理[D]. 上海: 东华大学, 2020: 15-20.
TAN Fei. Antibacterial finishing for cleaning cloth of polyester/polyamide composite microfiber[D]. Shanghai: Donghua University, 2020: 15-20.
[12] 黄成. 卤胺单体接枝聚酯及槐糖脂交联棉织物抗菌性能研究[D]. 上海: 东华大学, 2020: 53-57.
HUANG Cheng. Research on the antibacterial properties of polyester microfiber fabrics grafted with halamine monomer and cotton fabrics crosslinked with sophorolipids[D]. Shanghai: Donghua University, 2020: 53-57.
