捻度对锦纶/棉混纺纱质量指标的影响

doi:10.13475/j.fzxb.20211104206

摘要/Abstract

摘要：

为进一步提升锦纶/棉混纺纱质量,针对捻度与锦纶/棉混纺纱质量指标的关系问题进行了分析。在其它工艺相同的条件下调整细纱工序捻度的设置,纺制了16种锦纶/棉混纺纱,对其质量指标进行测试,并通过SPSS软件对捻度与混纺纱质量指标之间的关系进行拟合与回归分析,建立了混纺纱质量指标随捻度变化的回归预测模型。结果表明,捻度与锦纶/棉混纺纱强伸性能、粗细节和毛羽指标显著相关,测试组数据与预测值间残差绝对值均在3倍残差标准差以内,验证了模型的有效性。捻度大小直接影响锦纶/棉混纺纱的强伸性能、粗细节和毛羽指标,预测模型反映了捻度对混纺纱强伸性能、粗细节和毛羽指标影响的数量相关关系,为锦纶/棉混纺纱生产中捻度设计和快速调整提供了参考依据。

关键词: 捻度, 锦纶/棉, 混纺纱, 纺纱质量, 质量指标, 回归分析, 预测模型

Abstract:

Objective Polyamide /cotton blended yarns not only possess outstanding wear resistance, elasticity, fatigue resistance and impact properties of polyamide fiber, but also moisture absorption and permeability, soft and warm characteristics of cotton fiber. In order to further improve its quality, the relationship between twist and each quality index of a polyamide/cotton blended yarn was analyzed to predict the blended yarn quality based on the yarn twist. The study provides theoretical basis for twist design and rapid adjustment in spinning production.
Method The polyamide/cotton blended yarns with linear density of 27.9 tex and blending ratio of 50:50 was spun from polyamide 66 with linear density of 1.67 dtex and length of 38 mm and Xinjiang cotton fiber 229 with a linear density of 1.64 dtex by conventional ring spinning. 16 polyamide/cotton blended yarns were spun on FA506 spinning frame by changing the twist gear and setting 16 twist levels. In the spinning process, the sliver blending was adopted, where polyamide sliver and cotton sliver were produced by blowing-carding process respectively, three blending, roving and spinning.
Results The relationship between twist and quality indexes of polyamide /cotton blended yarns was analyzed by the SPSS software. Twist was significantly correlated with 6 quality indexes, i.e., breaking strength, breaking strength CV, breaking elongation, thick places, thin places and hairiness. However, it has little correlation with elongation CV, evenness and neps index of blended yarn (Tab.2). By using the SPSS software, the scatter plot of twist and the above-mentioned six quality indexes was drawn, and the regression curve was plotted. The regression curve shows that the six quality indexes of polyamide/cotton blended yarn do not show linear distribution against twist variation trend (Fig.1, Fig.2). Therefore, the best fitting equation between twist and these six quality indexes was obtained by the curve estimation and fitting analysis method provided by the SPSS software (Tab.3).

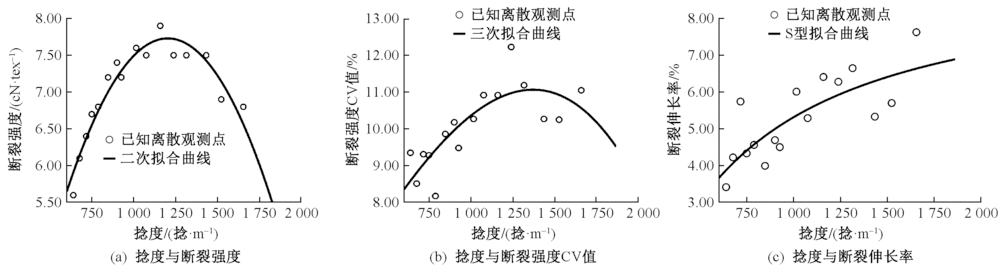

The breaking strength of polyamide /cotton blended yarns increases first and then decreases with the increase of twist (Fig.1, Fig.2 and Tab.3). The fitted model judgment coefficient is 0.919, the critical twist is 1 228 twist/m, and the corresponding maximum breaking strength is 8.1 cN/tex. The fitting curve of the breaking strength CV of the blended yarn shows a trend of rising first and then falling, the fitted model judgment coefficient is 0.653, and at the twist of 1 307 twist/m the curve demonstrates a maximum value. The breaking elongation of blended yarns increases with the increase of twist, and the fitted model judgment coefficient of regression equation is 0.627.

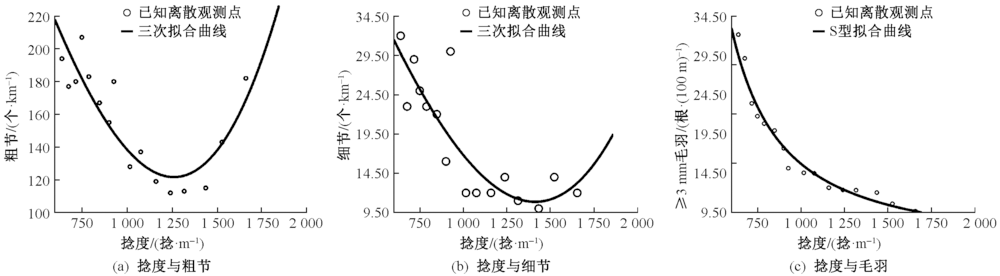

The thick places and thin places of polyamide /cotton blended yarn decrease with the increase of twist, and increase with the increase of twist when it decreases to a certain extent. The judging coefficients of the cubic fitting curve are 0.790 and 0.748, when the minimum value of fitting curve appears, the twist is 1 259 and 1 407 twist/m, respectively. The hairiness of blended yarn decreases with the increase of twist, and then tends to level off. The judging coefficient of the cubic fitting curve is 0.971. In order to further verify the validity of the fitting equation model, the residuals between the test data and the predicted values of 6 quality indexes of blended yarn are calculated, the absolute value of the residual value between the test group data and the predicted value was within 3 standard deviations of the residual value, and there is no abnormal point (Tab.4).
Conclusion In this paper, a regression model presenting the relationship between breaking strength and elongation, thick places, thin places, hairiness and twist of polyamide /cotton blended yarn was established using SPSS software, and the validity of the model was verified by the residual error between the test group data and the predicted value with good forecasting capability. It shows that twist can reasonably reflect the tensile properties, thick places, thin places and hairiness of polyamide/cotton blended yarn.
The significance of this model is that it can predict and control the tensile properties, thick places,thin places and hairiness of polyamide/cotton blended yarn based on the twist of process parameters during spinning. The twist of the yarn could be designed and adjusted according to customer requirements to reduce the test cost and to achieve high efficiency and energy saving.

Key words: twist, polyamide/cotton, blended yarn, spinning quality, quality index, regression analysis, prediction model

中图分类号:

TS114.5

于学智, 张明光, 曹继鹏, 张月, 王晓燕. 捻度对锦纶/棉混纺纱质量指标的影响[J]. 纺织学报, 2023, 44(01): 106-111.

YU Xuezhi, ZHANG Mingguang, CAO Jipeng, ZHANG Yue, WANG Xiaoyan. Influence of twist on quality indexes of polyamide/cotton blended yarns[J]. Journal of Textile Research, 2023, 44(01): 106-111.

图/表 6

表1

表2

图1

图2

表3

表4

参考文献 14

[1]	李凯乐, 高鑫. 全自动纱线捻度仪的设计及应用[J]. 纺织器材, 2015, 42(5): 63-66.
	LI Kaile, GAO Xin. The design and application of automatic yarn twist tester[J]. Textile Accessories, 2015, 42(5): 63-66.
[2]	唐洁. ME100系列更高捻度还是更高毛羽[J]. 江苏纺织, 2011(11): 28.
	TANG Jie. The ME100 series has higher twist or higher hairiness[J]. Jiangsu Textile, 2011(11): 28.
[3]	吴宁, 杨宏宇, 朱超, 等. 捻度对石英纤维缝合线磨损行为的影响[J]. 天津工业大学学报, 2021, 40(4): 45-51.
	WU Ning, YANG Hongyu, ZHU Chao, et al. Effect of twist on wear behavior of quartz sewing thread[J]. Journal of Tiangong University, 2021, 40(4): 45-51.
[4]	倪洁, 杨建平, 郁崇文. 股线与单纱捻系数比对粘胶股线性能的影响[J]. 纺织学报, 2021, 42(5): 46-50.
	NI Jie, YANG Jiangping, YU Chongwen. Effect of ratio of strands twist factor to single yarn twist factor on properties of viscose plied yarns[J]. Journal of Textile Research, 2021, 42(5): 46-50.
[5]	郭呵呵, 李惠军. 不同捻度紧密赛络纺纱与紧密纺纱性能对比[J]. 化纤与纺织技术, 2014, 43(4): 18-21.
	GUO Hehe, LI Huijun. Comparison of performance between compact Siro spinning and compact spinning with different twist[J]. Chemical Fiber & Textile Technology, 2014, 43(4): 18-21.
[6]	吴波, 汪泽幸, 吴璠, 等. 捻度对聚酰亚胺纳米纤维纱线拉伸与耐磨性能的影响[J]. 产业用纺织品, 2021, 39(1): 57-61.
	WU Bo, WANG Zexing, WU Fan, et al. Effect of twist on tensile performance and abrasion resistance of polyimide nanofiber yarns[J]. Technical Textiles, 2021, 39(1): 57-61.
[7]	ATALIE D, FEREDE A, ROTICH G K. Effect of weft yarn twist level on mechanical and sensorial comfort of 100% woven cotton fabrics[J]. Fashion and Textiles, 2019, 6(1): 1-12. doi: 10.1186/s40691-018-0160-2
[8]	申美丽, 徐伯俊, 刘新金, 等. 纱线捻度对纯棉机织物保形性能的影响研究[J]. 现代纺织技术, 2019, 27(6): 47-51.
	SHEN Meili, XU Bojun, LIU Xinjin, et al. Study on the effect of yarn twist on shape preservation of cotton woven fabric[J]. Advanced Textile Technology, 2019, 27(6): 47-51.
[9]	杨晓勇, 田金家, 孙红梅, 等. 纱线捻度测试方法分析与建议[J]. 中国纤检, 2021(3): 80-83.
	YANG Xiaoyong, TIAN Jinjia, SUN Hongmei, et al. Analysis and suggestion of yarn twisting test method[J]. China Fiber Inspection, 2021(3): 80-83.
[10]	田金家, 王璐璐, 付娟娟. 环锭纺纱捻度测试方法分析[J]. 棉纺织技术, 2021, 49(5): 80.
	TIAN Jinjia, WANG Lulu, FU Juanjuan. Analysis of twist test method for ring spinning[J]. Cotton Textile Technology, 2021, 49(5): 80.
[11]	武银飞, 姜为青, 黄素平, 等. 基于数字图像处理技术的股线捻度自动识别方法[J]. 上海纺织科技, 2021, 49(7): 61-63.
	WU Yinfei, JING Weiqing, HUANG Suping, et al. Automatic recognition method of twist based on digital image processing technology[J]. Shanghai Textile Science & Technology, 2021, 49(7): 61-63.
[12]	钟智丽, 王玉新. 聚丙烯长丝/芳纶包缠纱捻度的优化[J]. 纺织学报, 2014, 35(6): 40-44.
	ZHONG Zhili, WANG Yuxin. Twist optimization of polypropylene filament / aramid wrapped yarn[J]. Journal of Textile Research, 2014, 35(6): 40-44.
[13]	CHATTOPADHYAY S K, GURUPRASAD R. Blending of cotton and poly(lactic acid) fiber: combined optimization of blend ratio and yarn twist using mixture-process design[J]. Journal of Natural Fibers, 2021, 18(5): 631-640. doi: 10.1080/15440478.2019.1642825
[14]	张梦黎, 张瑞, 张传杰, 等. 捻度与后区牵伸对海藻纤维混纺纱质量的影响[J]. 棉纺织技术, 2018, 46(7):59-61.
	ZHANG Mengli, ZHANG Rui, ZHANG Chuanjie, et al. Effect of twist and draft in back zone on alginate fiber blended yarn quality[J]. Cotton Textile Technology, 2018, 46(7):59-61.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

样品编号	捻度/ (捻·m^-1)	断裂强度/ (cN·tex^-1)	断裂强度CV值/%	断裂伸长率/%	断裂伸长率 CV值/%	条干CV 值/%	细节/ (个·km^-1)	粗节/ (个·km^-1)	棉结/ (粒·km^-1)	≥3 mm毛羽/ (根·(100 m)^-1)
1^#	639	5.6	9.35	3.41	34.31	15.89	32	194	236	1 122
2^#	676	6.1	8.51	4.22	32.93	15.75	23	177	241	1 026
3^#	716	6.4	9.31	5.74	17.94	15.77	29	180	242	843
4^#	749	6.7	9.28	4.33	23.09	15.88	25	207	267	791
5^#	788	6.8	8.17	4.56	20.61	15.68	23	183	240	761
6^#	847	7.2	9.86	3.99	22.05	15.52	22	167	241	733
7^#	900	7.4	10.18	4.69	22.81	15.26	16	155	255	661
8^#	926	7.2	9.48	4.50	22.00	17.36	30	180	296	580
9^#	1 015	7.6	10.27	6.01	14.30	15.02	12	128	203	561
10^#	1 075	7.5	10.92	5.29	21.55	15.10	12	137	203	559
11^#	1 159	7.9	10.92	6.41	18.40	15.01	12	119	199	501
12^#	1 239	7.5	12.23	6.28	20.06	14.88	14	112	178	492
13^#	1 315	7.5	11.19	6.65	21.05	15.05	11	113	185	491
14^#	1 434	7.5	10.27	5.33	26.64	14.96	10	115	191	481
15^#	1 524	6.9	10.25	5.70	24.56	15.29	14	143	219	436
16^#	1 656	6.8	11.05	7.63	23.85	15.38	12	182	259	406

指标	项目	断裂强度/ (cN·tex^-1)	断裂强度 CV值/%	断裂伸长率/%	断裂伸长率 CV值/%	条干CV 值/%	细节/ (个·km^-1)	粗节/ (个·km^-1)	棉结/ (粒·km^-1)	≥3mm毛羽/ (根·(100 m)^-1)
捻度	相关性	0.502^*	0.705^**	0.782^**	-1.81	-0.472	-0.786^**	-0.580^*	-0.419	-0.876^**
捻度	显著性	0.048	0.002	0.000	0.501	0.065	0.000	0.018	0.106	0.000

自变量	因变量	回归模型(方程)	判定系数R²	回归方程显著性检验(F检验)P值
捻度	断裂强度	y=(-5.702×10^-6)x²+0.014x-0.535	0.919	0.000
	断裂强度CV值	y=(-1.380×10^-9)x³+0.008x+3.987	0.653	0.001
	断裂伸长率	y=exp(2.232-561.048/x)	0.627	0.000
	粗节	y=(7.134×10^-8)x³-0.339x+405.750	0.790	0.000
	细节	y=(9.088×10^-9)x³-0.054x+62.208	0.748	0.000
	≥3 mm毛羽	y= exp(5.413+979.414/x)	0.971	0.000

样品编号	断裂强度残差	断裂强度CV值残差	断裂伸长率残差	细节残差	粗节残差	≥3 mm毛羽残差
1^#	-0.3	0.77	-0.46	2	-14	112
2^#	0.0	-0.29	0.16	-5	-22	70
3^#	0.0	0.28	1.49	2	-9	-58
4^#	0.2	0.06	-0.07	0	25	-66
5^#	0.1	-1.25	-0.01	-1	9	-47
6^#	0.2	0.14	-0.81	0	5	-7
7^#	0.2	0.22	-0.30	-4	2	-23
8^#	-0.1	-0.59	-0.58	11	31	-79
9^#	0.1	-0.15	0.65	-4	-9	-21
10^#	-0.1	0.31	-0.24	-3	7	21
11^#	0.2	0.09	0.67	-1	-5	12
12^#	-0.2	1.26	0.36	2	-10	37
13^#	-0.2	0.14	0.57	0	-10	57
14^#	0.1	-0.77	-0.97	-1	-15	58
15^#	-0.2	-0.67	-0.75	3	1	3
16^#	0.2	0.48	0.99	-1	13	-70
残差标准差	0.2	0.60	0.68	4	14	55
