纺织学报 ›› 2023, Vol. 44 ›› Issue (03): 11-18.doi: 10.13475/j.fzxb.20220103808

• 纤维材料 • 上一篇    下一篇


张少月1,2, 岳江昱1,2, 杨家乐1,2, 柴晓帅1,2, 冯增国1,2, 张爱英1,2()

  1. 1.北京理工大学 材料学院, 北京 100081
    2.北京理工大学 结构可控先进功能材料与绿色应用北京市重点实验室, 北京 100081
  • 收稿日期:2022-01-17 修回日期:2022-09-20 出版日期:2023-03-15 发布日期:2023-04-14
  • 通讯作者: 张爱英(1968—),女,副教授,博士。主要研究方向为功能高分子材料。E-mail:zhay@bit.edu.cn
  • 作者简介:张少月(1998—),女,硕士生。主要研究方向为静电纺复合相变纤维。
  • 基金资助:

Preparation and properties of eco-friendly polycaprolactone-based composite phase change fibrous membranes

ZHANG Shaoyue1,2, YUE Jiangyu1,2, YANG Jiale1,2, CHAI Xiaoshuai1,2, FENG Zengguo1,2, ZHANG Aiying1,2()

  1. 1. School of Materials Science and Engineering, Beijing Institute of Technology, Beijing 100081, China
    2. Beijing Key Laboratory of Construction-Tailorable Advanced Functional Materials and Green Applications, Beijing Institute of Technology, Beijing 100081, China
  • Received:2022-01-17 Revised:2022-09-20 Published:2023-03-15 Online:2023-04-14


为实现聚已内酯(PCL)环境友好高分子材料在相变储能领域的应用,以PCL为壳层支撑材料,聚乙二醇(PEG)为核层相变材料,羟基化多壁碳纳米管(MWCNTs-OH)作为导热增强材料分散至核层溶液中,采用同轴静电纺丝法制备了PCL/PEG/MWCNTs-OH复合相变纤维膜,并对其结构和性能进行分析。结果表明:复合相变纤维表面光滑,具有较为完善的核-壳结构;复合相变纤维膜呈现较高的断裂应力和断裂应变,添加质量分数为4%的MWCNTs-OH时复合相变纤维膜的断裂应力为7.43 MPa,断裂应变为132.2%;核层中MWCNTs-OH的加入,提高了复合相变纤维膜的导热性能和热稳定性,而其相变温度和焓值则无明显变化,相变温度在38.85~39.35 ℃之间,略高于人体的正常温度,在储能调温生物医用材料领域具有潜在的应用价值。

关键词: 聚已内酯, 聚乙二醇, 羟基化多壁碳纳米管, 同轴静电纺丝, 复合相变纤维膜, 相变材料


Objective Latent heat energy storage materials absorb and release the latent heat during phase change, which could provide a kind of efficient and clean energy storage method. Electrospun fibrous membranes have potential application prospects in various latent heat energy storage materials. However, challenges remain in the development of eco-friendly phase change materials (PCMs) with high thermal conductivity and no leakage. Hence, the study of efficient latent heat energy storage materials as green energy carrier has essential scientific significance and potential application prospects.

Method Polycaprolactone (PCL) has been widely used as a medical biodegradable material and drug release system because of its good biodegradability and biocompatibility. However, few studies of the PCM composite based on PCL matrix were carried out. In order to explore polycaprolactone (PCL) as a kind of eco-friendly polymer in the application of phase change energy storage fibers, this paper proposes a new type of composite phase change fibers consisting of PCL as sheaths, polyethylene glycol (PEG) and hydroxylated multiwall carbon nanotubes (MWCNTs-OH) as cores by coaxial electrospinning.

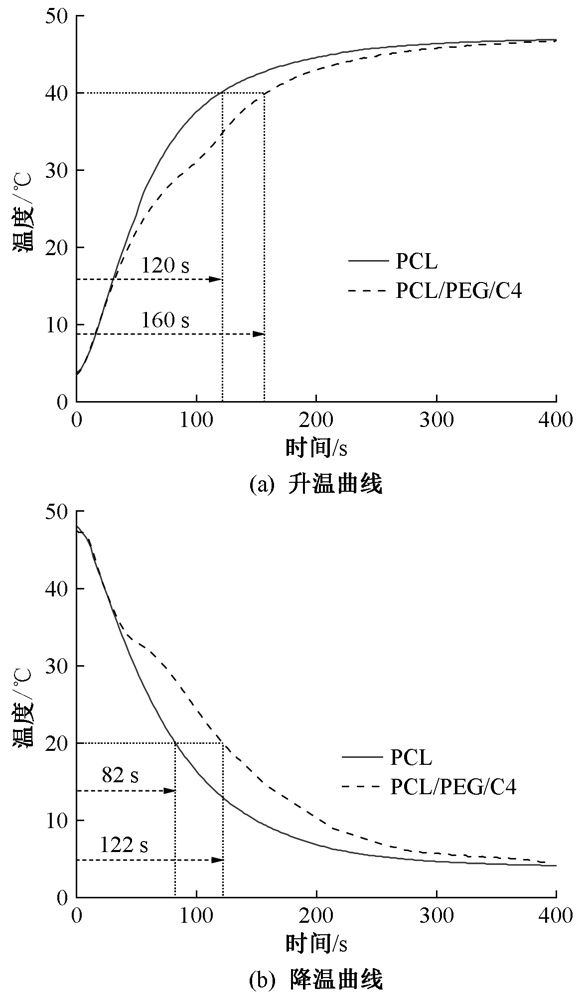

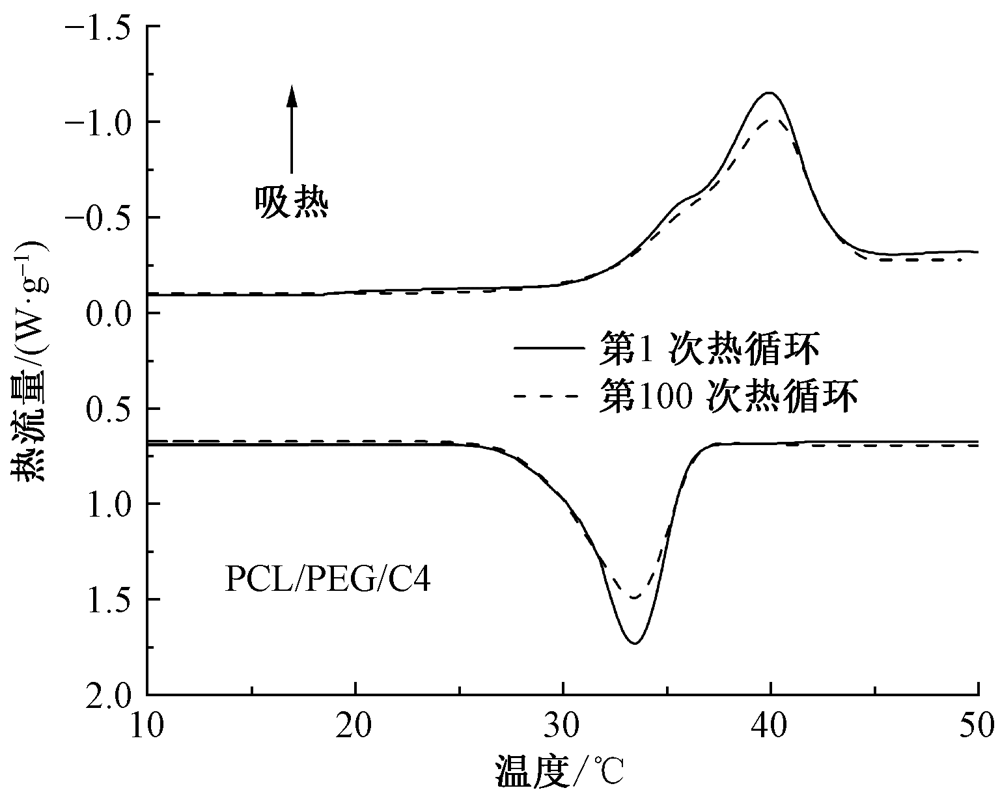

Results The obtained PCL/PEG/MWCNTs-OH phase change composite fibers have smooth surface and core-shell structure, and the introduction of MWCNTs-OH did not affect the core-sheath structure of the fiber (Fig.3), and the thermal conductivity of the fiber is greatly improved. When the mass fraction of MWCNTs-OH reaches 4%, the thermal conductivity of PCL/PEG/C4 fiber membrane increases to 0.121 8 W/(m·K) (Fig.4). Compared with PCL/PEG membrane without MWCNTs-OH, the thermal conductivity of PCL/PEG/C4 fiber membrane increases by 9.53%. Meanwhile, the thermal stability of PCL/PEG/MWCNTs-OH enhance remarkably because of the addition of MWCNTs-OH in the core layer. Moreover, the PCM composites display the desirable thermal reliability as well as the effective temperature regulation capacity. It is almost no change of latent heat for the PCL/PEG/C4 after 100 thermal cycles (Fig.7). It is clear that PCL sample presents much faster temperatare rise and decrease rates than PCL/PEG/C4 PCM composite (Fig.8). The thermal energy storage and release time of PCL/PEG /C4 are 33.3% and 48.8% longer than that of PCL, suggesting the existence of PEG in the PCM composite could realize the effective thermal energy regulation. Derived from the excellent mechanical properties of PCL and MWCNTs-OH, composite phase change fibrous membranes exhibit higher tensile strength and elongation at break, and the composite phase change fibrous membrane containing 4% MWCNTs-OH has a tensile strength of 7.43 MPa and elongation at break of 132.2%. Compared with PCL/PEG, the tensile strength and elongation at break of the composite phase change fibrous membranes with MWCNTs-OH are significantly improved, showing excellent mechanical properties that are conducive to its repeated use in practical applications.

Conclusion In summary, a series of PCL/PEG/MWCNTs-OH composite phase change fibrous membranes have been prepared by coaxial electrospun in this research, exhibiting perfect thermal conductivity and thermal stability by virtue of the addition of MWCNTs-OH. Since the components of composite phase change fiber are physically mixed, the phase change characteristics of PEG remain unchanged, and the melting temperatures of composite phase change fibrous membranes have no obvious change, ranging between 38.85 ℃ and 39.35 ℃, slightly higher than the normal temperature of human body. Therefore, the composite phase change fibrous membranes are promising for the biomedical materials with temperature regulation. The proposed method provides a new avenue for degradable phase change fibrous membrane to simultaneously achieve robust mechanical properties and leakage-free.

Key words: polycaprolactone, polyethylene glycol, hydroxylated multiwalled carbon nanotubes, coaxial electrospinning, composite phase change fibrous membrane, phase change material


  • TQ342.94















样品编号 熔融温度/
PCL/PEG 38.36 27.85 33.58 -23.13
PCL/PEG/C1 38.85 25.74 33.58 -19.91
PCL/PEG/C2 38.46 24.55 33.17 -19.38
PCL/PEG/C4 39.35 23.62 33.05 -18.73
39.75 22.63 33.70 -19.03
