原子层沉积技术对纤维素膜功能化的影响

doi:10.13475/j.fzxb.20200407406

纺织学报 ›› 2020, Vol. 41 ›› Issue (12): 26-30.doi: 10.13475/j.fzxb.20200407406

原子层沉积技术对纤维素膜功能化的影响

黎俊妤¹, 蒋培清², 张文奇³, 李文斌¹()

1.武汉纺织大学湖北省纺织新材料与先进加工技术省部共建国家重点实验室培育基地, 湖北武汉 430200
2.惠州学院旭日广东服装学院, 广东惠州 516007
3.湖北三江航天红阳机电有限公司, 湖北孝感 432000

收稿日期:2020-04-28 修回日期:2020-09-16 出版日期:2020-12-15 发布日期:2020-12-23
通讯作者: 李文斌
作者简介:黎俊妤(1995—),女,硕士生。主要研究方向为功能纺织品。

Effect of atomic layer deposition technology on functionalization of cellulose membrane

LI Junyu¹, JIANG Peiqing², ZHANG Wenqi³, LI Wenbin¹()

1. State Key Laboratory of Textile New Materials and Advanced Processing Technology in Hubei Province, Wuhan Textile University, Wuhan, Hubei 430200, China
2. Glorious Sun Guangdong School of Fashion, Huizhou University, Huizhou, Guangdong 516007, China
3. Hubei Sanjiang Boats Science & Technology Co., Ltd., Xiaogan, Hubei 432000, China

Received:2020-04-28 Revised:2020-09-16 Online:2020-12-15 Published:2020-12-23
Contact: LI Wenbin

摘要/Abstract

摘要：

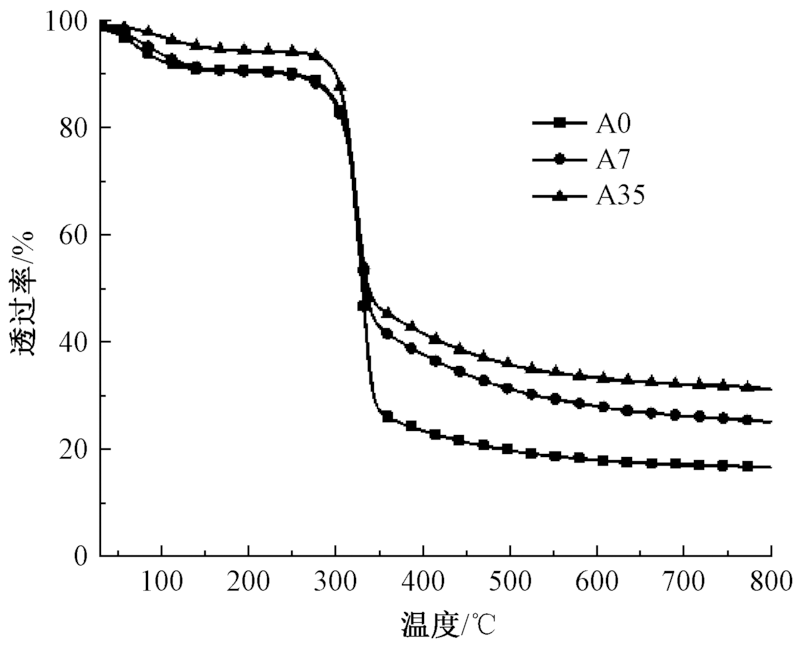

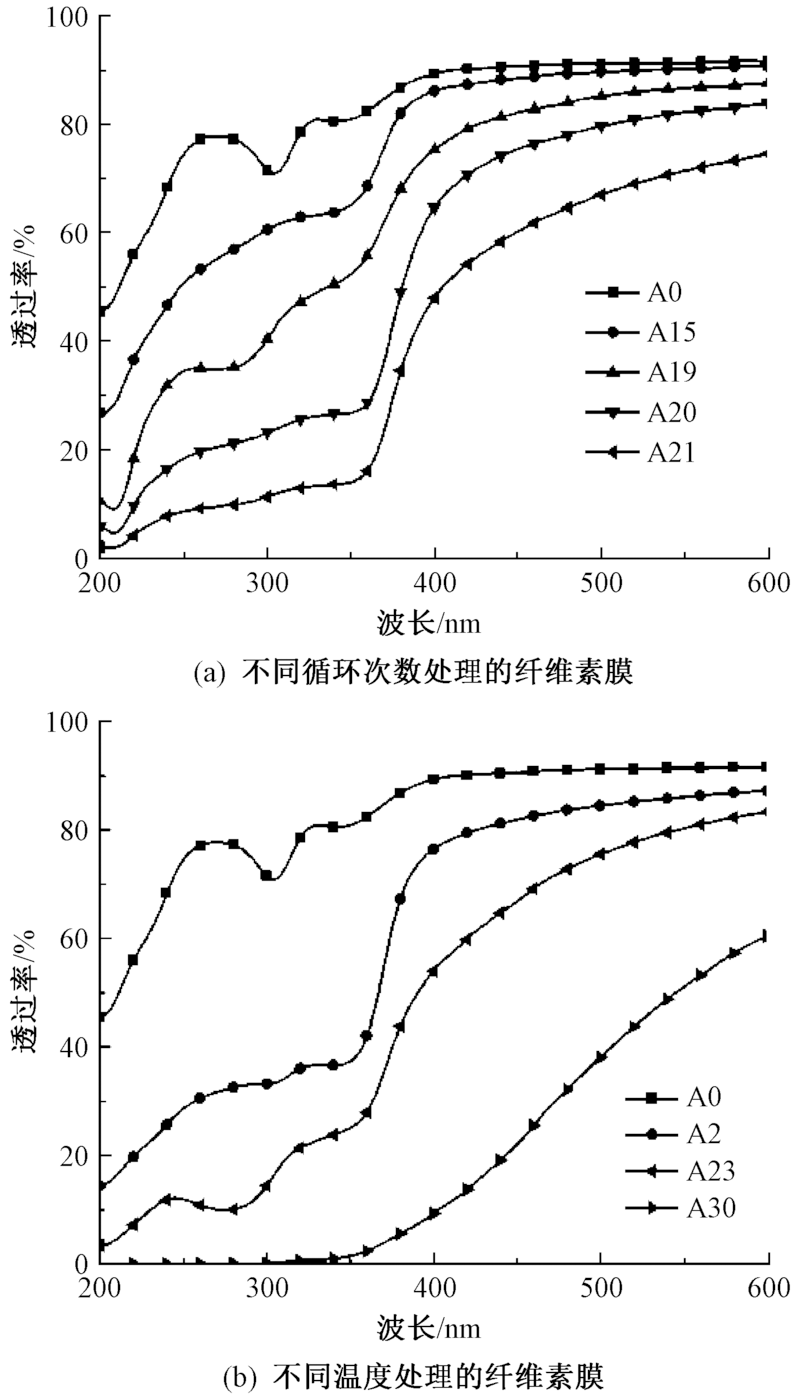

为扩大纤维素膜的使用范围,使其可应用于医用、建筑等领域,利用纳米氧化锌具有紫外线屏蔽、抗菌等特性,采用原子层沉积(ALD)技术在纤维素膜表面沉积纳米氧化锌,制备具有紫外线阻隔以及抗菌功能的纤维素膜,并探讨不同ALD温度和循环次数对纤维素膜性能的影响。借助紫外分光光度计、扫描电子显微镜、X射线衍射仪、热重分析仪等对纤维素膜的结构和性能进行分析。结果表明:随着ALD温度和循环次数的增加,纤维素膜的紫外线透过率由74.50%下降至1.46%; ALD功能化纤维素膜对金黄色葡萄球菌的抑菌率高达99.9%;经改性的纤维素膜表面附着了六方晶系纤锌矿结构的纳米氧化锌层,残碳率由16.61%增加至31.20%。

关键词: 纤维素膜, 原子层沉积技术, 纳米氧化锌, 紫外线阻隔, 抗菌性能

Abstract:

In order to expand the use of cellulose membranes into medical, construction and other fields, with the characteristics of ultraviolet shielding, antibacterial of nano-zinc oxide, atomic layer depos-ition technology (ALD) were used to deposit nano-zinc oxide on the surface of cellulose membrane. The cellulose membrane was prepared to offer UV-blocking and antibacterial functions, and the effects of different temperatures and cycle numbers on the membrane properties were discussed. The structure and performance of the cellulose membranes treated with ALD were analyzed using ultraviolet spectrophotometer, scanning electron microscopy, X-ray diffraction, thermogravimetric analysis and other analytical tools. The results show that as the temperature and the number of cycles increase, the UV transmittance of the cellulose membrane treated with ALD is reduced from 74.50% to 1.46%, and the antibacterial rate of ALD functionalized cellulose membrane against Staphylococcus aureus reaches 99.9%. In addition, on the surface of the treated cellulose membrane with nano-zinc oxide with hexagonal wurtzite structure, the residual carbon rate increases from 16.61% to 31.20%.

Key words: cellulose membrane, atomic layer deposition technology, nano-zinc oxide, UV-blocking, antibacterial property

中图分类号:

TS101

黎俊妤, 蒋培清, 张文奇, 李文斌. 原子层沉积技术对纤维素膜功能化的影响[J]. 纺织学报, 2020, 41(12): 26-30.

LI Junyu, JIANG Peiqing, ZHANG Wenqi, LI Wenbin. Effect of atomic layer deposition technology on functionalization of cellulose membrane[J]. Journal of Textile Research, 2020, 41(12): 26-30.

图/表 7

表1

图1

图2

表2

图3

图4

图5

参考文献 17

[1]	黄方千, 李强林, 杨东洁, 等. 有机紫外线吸收剂研究进展[J]. 印染, 2011,37(20):47-52.
	HUANG Fangqian, LI Qianglin, YANG Dongjie, et al. Research progress of organic ultraviolet absorbers[J]. China Dyeing & Finishing, 2011,37(20):47-52.
[2]	孙晓晨, 张放, 邵华. 紫外线对人体健康影响[J]. 中国职业医学, 2016(3):380-383.
	SUN Xiaochen, ZHANG Fang, SHAO Hua. Effects of ultraviolet radiation on human health[J]. Chinese Occupational Medicine, 2016(3):380-383.
[3]	MANCEBO S E, WANG S Q. Skin cancer: role of ultraviolet radiation in carcinogenesis[J]. Reviews on Environmental Health, 2014,29(3):265-273. pmid: 25252745
[4]	EHSAN S, SAJJAD M. Bioinspired synjournal of zinc oxide nanoparticle and its combined efficacy with different antibiotics against multidrug resistant bac-teria[J]. Journal of Biomaterials and Nanobiotech-nology, 2017,8:159-175.
[5]	洪晓东, 邓恩燕, 杨东旭. PMMA/纳米ZnO薄膜的紫外屏蔽性能研究[J]. 中国塑料, 2013,27(1):48-51.
	HONG Xiaodong, DENG Enyan, YANG Dongxu. Study on the UV shielding performance of PMMA/nano-ZnO thin film[J]. China Plastics, 2013,27(1):48-51.
[6]	WANG C X, LV J C, REN Y, et al. Cotton fabric with plasma pretreatment and ZnO/Carboxymethyl chitosan composite finishing for durable UV resistance and antibacterial property[J]. Carbohydrate Polymers, 2015,138:106-113. doi: 10.1016/j.carbpol.2015.11.046 pmid: 26794743
[7]	KLEMM D, HEUBLEIN B, FINK H P, et al. Cellulose: fascinating biopolymer and sustainable raw material[J]. Angewandte Chemie International Edition, 2005,44(22):3358-3393. pmid: 15861454
[8]	李琳, 赵帅, 胡红旗. 纤维素溶解体系的研究进展[J]. 纤维素科学与技术, 2009,17(2):69-75.
	LI Lin, ZHAO Shuai, HU Hongqi. Research progress of cellulose dissolution system[J]. Journal of Cellulose Science and Technology, 2009,17(2):69-75.
[9]	CHIELLINI E, SOLARO R. Biodegradable polymeric materials[J]. Advanced Material, 1996,8:305-313. doi: 10.1002/(ISSN)1521-4095
[10]	SHANKAR S, TENG X, LI G, et al. Preparation, characterization, and antimicrobial activity of gelatin/ZnO nanocomposite films[J]. Food Hydrocolloids, 2015,45:264-271. doi: 10.1016/j.foodhyd.2014.12.001
[11]	毋伟, 蔡意文, 陈建峰, 等. 表面改性方式对纳米氧化锌紫外吸收性能影响研究[J]. 功能材料, 2004,35:2522-2525, 2529.
	WU Wei, CAI Yiwen, CHEN Jianfeng, et al. Study on effects of UV absorption of nano zinc oxide by different surface modification methods[J]. Journal of Functional Materials, 2004,35:2522-2525, 2529.
[12]	SIRELKHATIM A, MAHMUD S, SEENI A, et al. Review on zinc oxide nanoparticles: antibacterial activity and toxicity mechanism[J]. Nano-Micro Letters, 2015,7(3):219-242. doi: 10.1007/s40820-015-0040-x pmid: 30464967
[13]	ILLIBERI A, ROOZEBOOM F, POODT P. Spatial atomic layer deposition of zinc oxide thin films[J]. ACS Applied Materials & Interfaces, 2012,4(1):268-272. doi: 10.1021/am2013097 pmid: 22171693
[14]	WANG X H, LI R B, FAN D H. Control growth of catalyst-free high-quality ZnO nanowire arrays on transparent quartz glass substrate by chemical vapor deposition[J]. Applied Surface Science, 2011,257(7):2960-2964. doi: 10.1016/j.apsusc.2010.10.100
[15]	PUURUNEN R L. Surface chemistry of atomic layer deposition: a case study for the trimethylaluminum/water process[J]. Journal of Applied Physics, 2005,97(12):9.
[16]	ZHANG C. High-quality oriented ZnO films grown by sol-gel process assisted with ZnO seed layer[J]. Journal of Physics & Chemistry of Solids, 2010,71(3):364-369.
[17]	项荣, 丁栋博, 范亮亮, 等. 氧化锌的抗菌机制及其安全性研究进展[J]. 中国组织工程研究, 2014,18(3):470-475.
	XIANG Rong, DING Dongbo, FAN Liangliang, et al. Research progress on antibacterial mechanism and safety of zinc oxide[J]. Chinese Journal of Tissue Engineering Research, 2014,18(3):470-475.

相关文章 15

[1]	姜兴茂, 刘奇, 郭琳. 二氧化硅包覆银铜纳米颗粒的结构及其抗菌性能[J]. 纺织学报, 2020, 41(11): 102-108.
[2]	张艳艳, 詹璐瑶, 王培, 耿俊昭, 付飞亚, 刘向东. 用无机纳米粒子制备耐久性抗菌棉织物的研究进展[J]. 纺织学报, 2020, 41(11): 174-180.
[3]	秦益民. 含银海藻酸盐医用敷料的临床应用[J]. 纺织学报, 2020, 41(09): 183-190.
[4]	贾琳, 王西贤, 陶文娟, 张海霞, 覃小红. 聚丙烯腈抗菌复合纳米纤维膜的制备及其抗菌性能[J]. 纺织学报, 2020, 41(06): 14-20.
[5]	王婷婷, 刘梁, 曹秀明, 王清清. 竹红菌素-聚( 甲基丙烯酸甲酯-co-甲基丙烯酸)纳米纤维的制备及其光敏抗菌性能[J]. 纺织学报, 2020, 41(05): 1-7.
[6]	刘艳春, 白刚. 小檗碱在聚丙烯腈/ 醋酸纤维素复合纤维染色中的应用[J]. 纺织学报, 2020, 41(05): 94-98.
[7]	王晓菲, 万爱兰. 紫外线辐照聚吡咯/银导电涤纶织物的制备[J]. 纺织学报, 2020, 41(04): 112-116.
[8]	吴倩倩, 李珂, 杨立双, 付译鋆, 张瑜, 张海峰. 载药聚偏氟乙烯伤口敷料的制备及其性能 [J]. 纺织学报, 2020, 41(01): 26-31.
[9]	张治斌, 李刚, 毛森贤, 厉巽巽, 陈玉霜, 毛青山, 李翼, 潘志娟, 王晓沁. 丝素蛋白/壳聚糖微球制备及其抗菌性能[J]. 纺织学报, 2019, 40(10): 7-12.
[10]	王文聪, 范静静, 丁超, 王鸿博. 多功能复合导电毛织物的制备及其性能[J]. 纺织学报, 2019, 40(08): 117-123.
[11]	吴娇, 于湖生, 万兴云, 田平, 李慧敏, 侯晓欣. 抗菌防螨防霉功能改性粘胶纤维的制备及其性能[J]. 纺织学报, 2019, 40(07): 19-23.
[12]	黄程博, 任学宏. 静电纺抗菌聚丙烯腈纳米纤维膜制备及其性能[J]. 纺织学报, 2019, 40(05): 7-11.
[13]	孙辉, 张恒源, 咸玉龙, 周传凯, 于斌. TiO₂-Ag/聚乳酸纳米复合纤维的制备及其抗菌性能[J]. 纺织学报, 2019, 40(04): 1-6.
[14]	魏娜康卫民孙诚程博闻. 静电纺核-壳纳米包装膜的制备及其抗菌性能[J]. 纺织学报, 2018, 39(12): 13-17.
[15]	付译鋆安琪张伟张瑜柯惠珍. 壳聚糖基纳米纤维载药体系及其缓释行为[J]. 纺织学报, 2018, 39(12): 7-12.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

样品编号	温度/ ℃	循环次数	稀释倍数	菌落数	抑菌率/%
A0	25	0	1 000	401	—
A1	60	10	100	161	96.0
A15	110	10	100	134	96.7
A5	60	50	10	12	99.9
A19	110	50	10	19	99.9

原子层沉积技术对纤维素膜功能化的影响

Effect of atomic layer deposition technology on functionalization of cellulose membrane

RichHTML

PDF (PC)

摘要/Abstract

引用本文

使用本文

图/表 7

参考文献 17

相关文章 15

Metrics

本文评价

推荐阅读 0

样品编号	温度/ ℃	循环次数	样品编号	温度/ ℃	循环次数
A0	25	0	A18	110	40
A1	60	10	A19	110	50
A2	60	20	A20	110	100
A3	60	30	A21	110	200
A4	60	40	A22	130	10
A5	60	50	A23	130	20
A6	60	100	A24	130	30
A7	60	200	A25	130	40
A8	90	10	A26	130	50
A9	90	20	A27	130	100
A10	90	30	A28	130	200
A11	90	40	A29	160	10
A12	90	50	A30	160	20
A13	90	100	A31	160	30
A14	90	200	A32	160	40
A15	110	10	A33	160	50
A16	110	20	A34	160	100
A17	110	30	A35	160	200

样品编号	温度/ ℃	循环次数	样品编号	温度/ ℃	循环次数
A0	25	0	A18	110	40
A1	60	10	A19	110	50
A2	60	20	A20	110	100
A3	60	30	A21	110	200
A4	60	40	A22	130	10
A5	60	50	A23	130	20
A6	60	100	A24	130	30
A7	60	200	A25	130	40
A8	90	10	A26	130	50
A9	90	20	A27	130	100
A10	90	30	A28	130	200
A11	90	40	A29	160	10
A12	90	50	A30	160	20
A13	90	100	A31	160	30
A14	90	200	A32	160	40
A15	110	10	A33	160	50
A16	110	20	A34	160	100
A17	110	30	A35	160	200

样品编号	温度/ ℃	循环次数	样品编号	温度/ ℃	循环次数
A0	25	0	A18	110	40
A1	60	10	A19	110	50
A2	60	20	A20	110	100
A3	60	30	A21	110	200
A4	60	40	A22	130	10
A5	60	50	A23	130	20
A6	60	100	A24	130	30
A7	60	200	A25	130	40
A8	90	10	A26	130	50
A9	90	20	A27	130	100
A10	90	30	A28	130	200
A11	90	40	A29	160	10
A12	90	50	A30	160	20
A13	90	100	A31	160	30
A14	90	200	A32	160	40
A15	110	10	A33	160	50
A16	110	20	A34	160	100
A17	110	30	A35	160	200
