Testing method for permethrin content in cotton fabrics based on use of ultraviolet spectroscopy

WANG Zongqian1(), CHENG Lüzhu1, JIN Xianhua2, XIA Liping2

  1. 1. School of Textile and Garment, Anhui Polytechnic University, Wuhu, Anhui 241000, China
    2. Chemical Test Center of Chuanhua Zhilian Co., Ltd., Hangzhou, Zhejiang 311215, China
  • Received:2021-09-22 Revised:2022-01-10 Online:2022-06-15 Published:2022-07-15

RichHTML

8

PDF (PC)

66

Abstract:

To establish a more efficient method for detecting the content of permethrin in textiles, cotton fabrics containing different concentrations of permethrin were fabricated by padding process, and a comparative analysis of the permethrin-finished fabrics was presented in detail, using micromorphology, spectral characteristics and the loading of permethrin, scanning electron microscopy, ultraviolet-visible (UV-Vis) spectrometer with integrating sphere and the conventional gas chromatography. Further, the indices such as testing time, sample size and the testing cost were compared and evaluated. A strong absorption characteristic peak at 280 nm was observed, corresponings to the ultraviolet characteristic absorption of permethrin molecules. The value of absorbency is proportional to the loading of permethrin within the as-prepared fabric, which is consistent with the permethrin loading within the same fabric tested by using gas chromatography. The relative error and the value of variation detected by using UV-Vis spectroscopy are similar to the results achieved using gas chromatography. However, the UV-Vis spectroscopy testing method has obvious advantages of high efficiency and low cost.

Key words: permethrin, ultraviolet-visible spectrum, gas chromatography, pure cotton fabric

CLC Number:

  • TS195.5

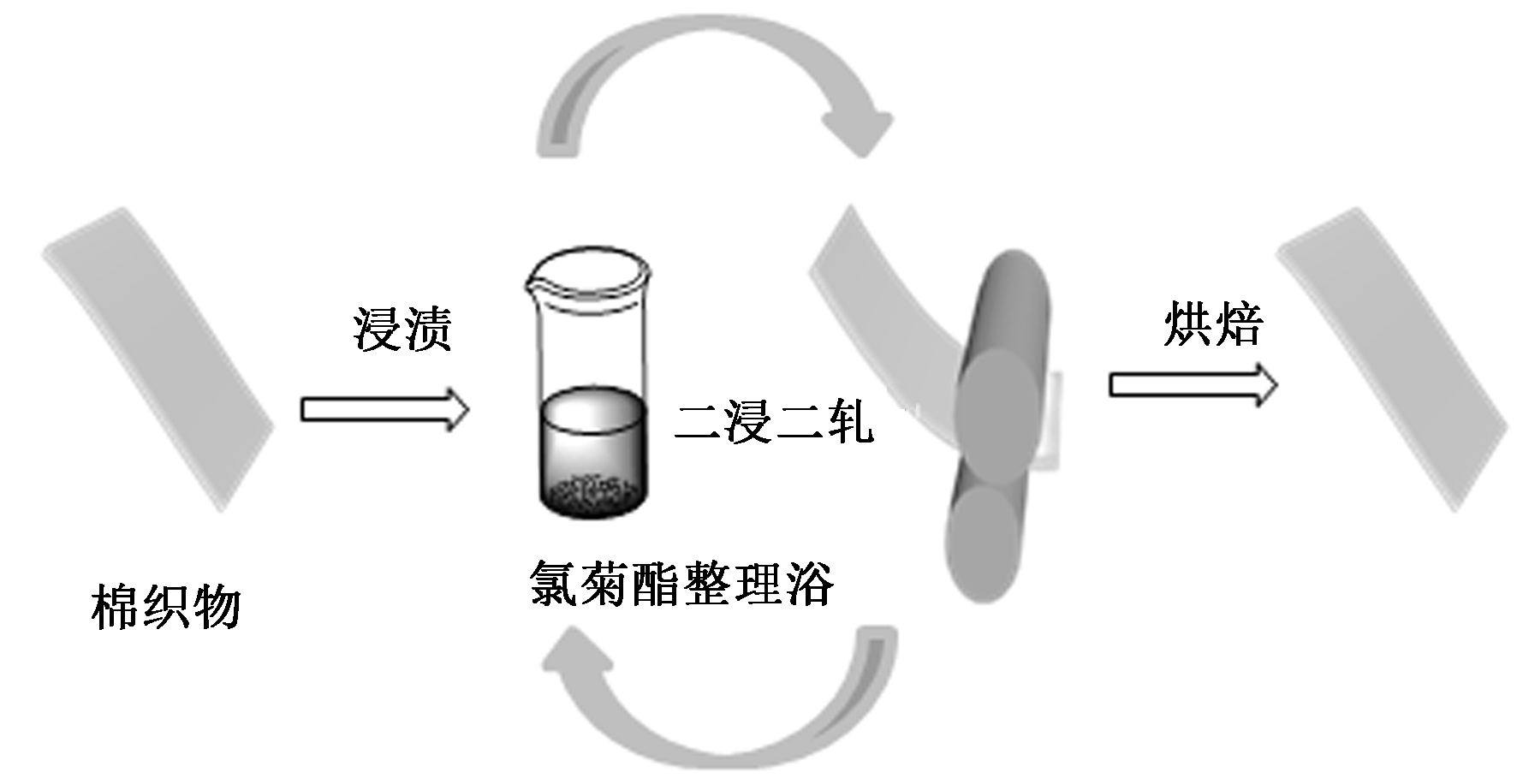

Fig.1

Diagram of permethrin finishing cotton fabric"

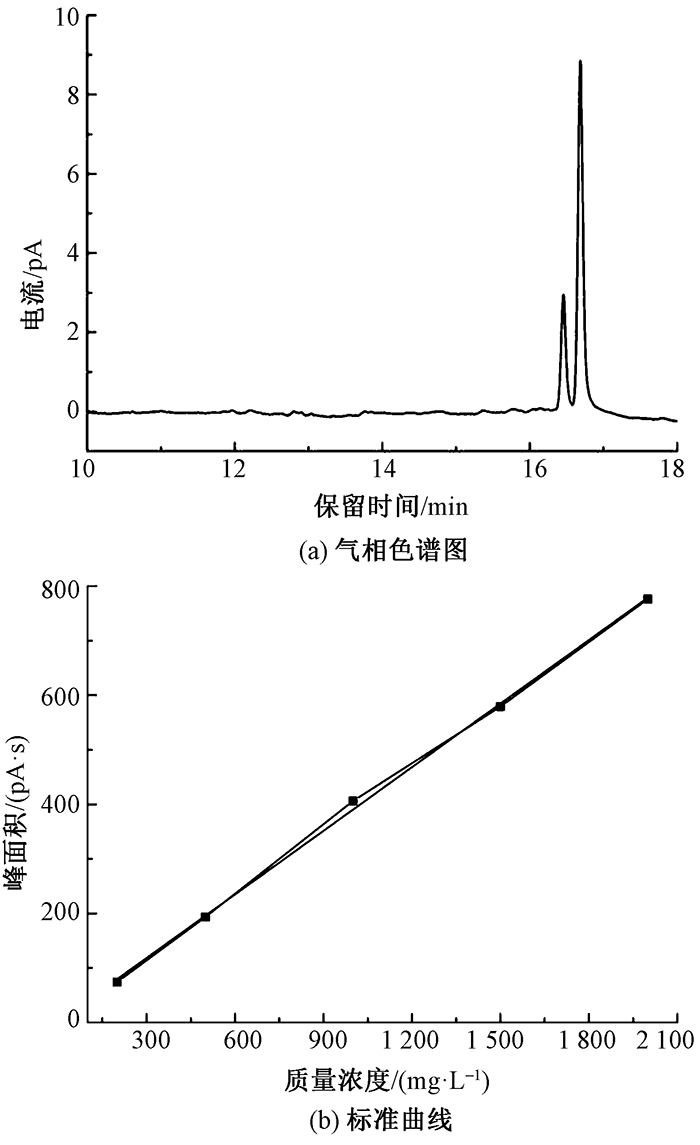

Fig.2

Gas chromatographic spectrum and standard curve of permethrin standard. (a) Gas chromatographic spectrum; (b) Standard curve"

Fig.3

SEM images of different concentrations permethrin treated cotton fabric. (a) Original cotton;(b) 0.5 g/L; (c) 1.0 g/L; (d) 2.0 g/L; (e) 2.5 g/L; (f) 3.0 g/L (e) 2.5 g/L; (f) 3.0 g/L"

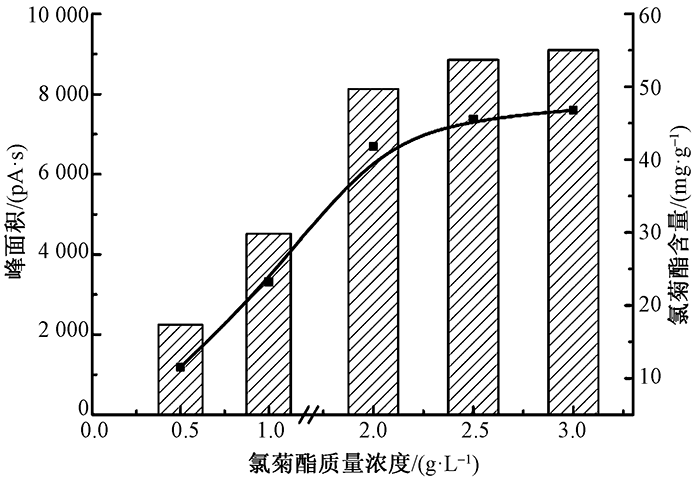

Fig.4

Peak area and content of permethrin in finished cotton fabric"

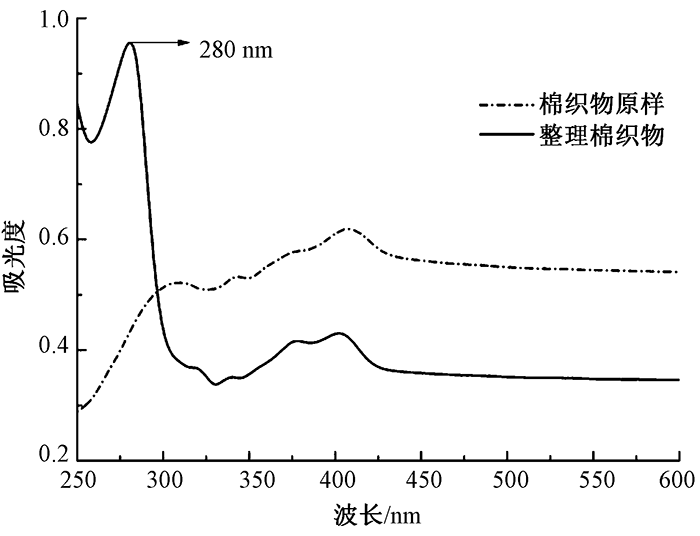

Fig.5

UV-Vis spectra of cotton fabric before and after permethrin treatment"

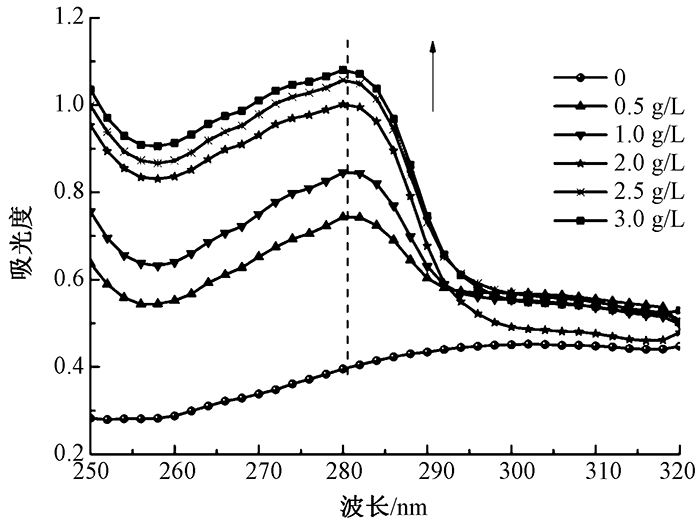

Fig.6

UV spectra of cotton fabric before and after permethrin treatment"

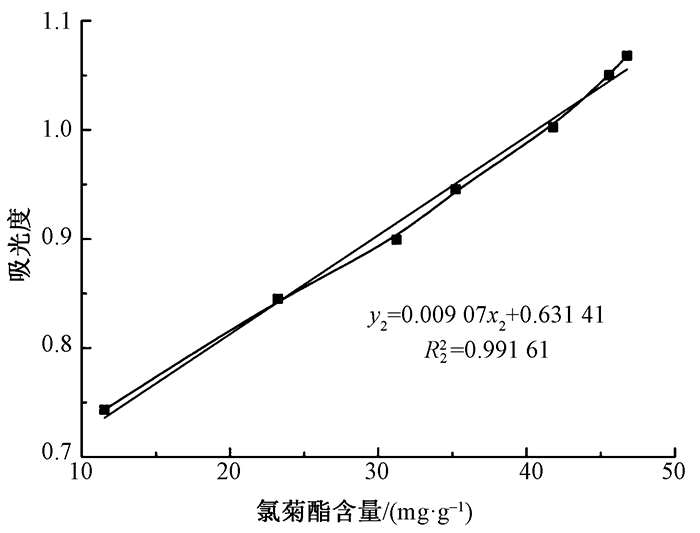

Fig.7

Fitting curve between permethrin content and spectral intensity in finished cotton fabric"

Tab.1

Measurement accuracy and other indicators of permethrin content using different test methods"

测试
方法		 样品
编号		 平均相
对误差
值×100		 离散系
数CV
值/%		 单次测
试耗
时/min		 单次测
试所需
量/g		 测试
成本
紫外光
谱法		 1 4.2 3.7 ≤ 2 0.1 低
2 3.9 2.9
3 2.5 2.2
气相色
谱法		 1 2.9 2.9 ≥ 70 5.0 高
2 4.0 3.4
3 3.0 2.9
[1] TVRKOGLU G, SARIISIK M, ERKAN G, et al. Micro- and nano-encapsulation of limonene and permethrin for mosquito repellent finishing of cotton textiles[J]. Iranian Polymer Journal, 2020, 29: 321-329.
doi: 10.1007/s13726-020-00799-4
[2] RICHARDS S L, AGADA N, BALANAY J A G, et al. Permethrin treated clothing to protect outdoor workers: evaluation of different methods for mosquito exposure against populations with differing resistance status[J]. Pathogens and Global Health, 2018, 112(1): 13-21.
doi: 10.1080/20477724.2018.1437692
[3] BONADIES I, LONGO A, ANDROSCH R, et al. Biodegradable electrospun PLLA fibers containing the mosquito-repellent DEET[J]. European Polymer Journal, 2019, 113: 377-384.
doi: 10.1016/j.eurpolymj.2019.02.001
[4] HALBKAT L, LUAN K, CAVE G, et al. Fabric infused with a botanical repellent for protection against mosquitoes[J]. The Journal of The Textile Institute, 2019, 110(10): 1468-1474.
doi: 10.1080/00405000.2019.1603576
[5] ANUAR A A, YUSOF N. Methods of imparting mosquito repellent agents and the assessing mosquito repellency on textile[J]. Fashion and Textiles, 2016, 3(1): 1-14.
doi: 10.1186/s40691-015-0053-6
[6] BANKS S D R, ORSBORNE J, GEZAN S A, et al. Permethrin-treated clothing as protection against the dengue vector, Aedes aegypti: extent and duration of protection[J]. Plos Negl Trop Dis, 2015, 9(10): e0004109.
doi: 10.1371/journal.pntd.0004109
[7] MARTINS T G, CHIAPETTA S C, CASSELLA R J. Extraction of permethrin from impregnated fabrics for determination by ultra-high performance liquid chromatography with diode array detection[J]. Journal of Environmental Science and Health, Part B, 2021: 56(5): 483-489.
doi: 10.1080/03601234.2021.1913014
[8] ATTALLAH E R, HAMDY ABDELWAHED M, ABO-ALY M M. Development and validation of multi-residue method for determination of 412 pesticide residues in cotton fiber using GC-MS/MS and LC-MS/MS[J]. Journal of the Textile Institute, 2018:1-18.
[9] 张宪胜, 王然, 王锐, 等. 基于锥形量热仪的纤维集合体燃烧性能测试方法[J]. 纺织学报, 2017, 38(2): 47-52.
ZHANG Xiansheng, WANG Ran, WANG Rui, et al. Testing method of combustion behavior of loose fibrousassembly by cone calorimeter[J]. Journal of Textile Research, 2017, 38(2): 47-52.
[10] 管丽媛, 王钟, 祁宁, 等. 基于近红外光谱技术的亚麻纤维化学成分含量快速测定[J]. 分析测试学报, 2020, 39(6): 795-799.
GUAN Liyuan, WANG Zhong, QI Ning, et al. Rapid determination of chemical composition of flax fiber by near infrared spectroscopy[J]. Journal of Instrumental Analysis, 2020, 39(6): 795-799.
[11] WANG Z, YANG H, XING J, et al. Robust color fastness of dyed silk fibroin film by coupling modification dyeing with aniline diazonium Salt[J]. Journal of Polymer Materials, 2019, 36(2):147-157.
[12] WANG Z, FANG Y, LI J. Enhanced UV photo-stabilization of tyrosine with benzotriazole structure formed through chemical modification[J]. Journal of the Chemical society of Pakistan, 2019, 41 (5), 750-757.
doi: 10.52568/000800/JCSP/41.05.2019
[13] WANG Z, LI C, ZHANG H, et al. 1-Aminoanthraquinone diazonium salt on the coupling modification dyeing of silk fibroin with enhanced color fastness[J]. Fibers and Polymers, 2018, 19 (10), 2134-2138.
doi: 10.1007/s12221-018-1101-9
[14] WANG D, WANG Z, ZHANG X, et al. Activated carbon fiber derived from the seed hair fibers of metaplexis japonica: novel efficient adsorbent for methylene blue[J]. Industrial Crops & Products, 2020, 148: 112319.
[15] NISSEN M, DOHERTY B, HAMPERL J, et al. UV absorption spectroscopy in water-filled antiresonant hollow core fibers for pharmaceutical detection[J]. Sensors, 2018, 18(2): 478.
doi: 10.3390/s18020478
[16] MABROUK MM, EL-MAGHRABY WH, EL-MALLA SF. UV spectrophotometric methods for quantitative determination of masitinib; extraction of qualitative information[J]. Spectrochimica Acta Part A Molecular and Biomolecular Spectroscopy, 2021, 248: 119175.
doi: 10.1016/j.saa.2020.119175
[17] MADEJ K, SEKIEWICZ A, KALENIK T K, et al. Cloud-point extraction followed by high pressure liquid chromatography with UV spectrophotometric detection for determination of permethrin in urine samples[J]. Analytical Methods, 2015, 7(18): 7758-7764.
doi: 10.1039/C5AY01396H
[18] ZHANG Y, ZHANG G, LI Y, et al. Probing the binding of insecticide permethrin to calf thymus DNA by spectroscopic techniques merging with chemometrics method[J]. Journal of Agricultural and Food Chemistry, 2013, 61(11): 2638-2647.
doi: 10.1021/jf400017f
[19] TIAN J, RUSTUM A. Development and validation of a fast static headspace GC method for determination of residual solvents in permethrin[J]. Journal of Pharmaceutical and Biomedical Analysis, 2016, 128: 408-415.
doi: 10.1016/j.jpba.2016.06.020
[20] DONG Y, WANG P, GAN L, et al. Enhanced removal of aqueous Cr (VI) using optimized Fe complex on EDTA modified cotton fiber via photocatalytic reduction and adsorption hybrid functions[J]. Cellulose, 2019, 26(12): 7383-7397.
doi: 10.1007/s10570-019-02598-4
[21] WANG P, DONG Y, LI B, et al. A sustainable and cost effective surface functionalization of cotton fabric using TiO2 hydrosol produced in a pilot scale: condition optimization, sunlight-driven photocatalytic activity and practical applications[J]. Industrial Crops and Products, 2018, 123: 197-207.
doi: 10.1016/j.indcrop.2018.06.067
[22] GARCLA E, GARCLA A, BARBAS C. Validated HPLC method for quantifying permethrin in pharmaceutical formulations[J]. Journal of Pharmaceutical and Biomedical Analysis, 2001, 24(5/6): 999-1004.
doi: 10.1016/S0731-7085(00)00544-6
[23] ARAYNE M S, SULTANA N, HUASAIN F. Validated RP-HPLC method for determination of permethrin in bulk and topical preparations using UV-vis detector[J]. Journal of Chromatographic Science, 2011, 49(4): 287-291.
doi: 10.1093/chrsci/49.4.287
[24] 张月, 王蕾, 刘建立, 等. 织物折皱回复角测试方法比较[J]. 纺织学报, 2015, 36(1): 60-63, 71.
ZHANG Yue, WANG Lei, LIU Jianli, et al. Comparison of test methods for fabric wrinkle recovery angle[J]. Journal of Textile Research, 2015, 36(1): 60-63, 71.
