Journal of Textile Research ›› 2023, Vol. 44 ›› Issue (06): 57-65.doi: 10.13475/j.fzxb.20220103301

• Fiber Materials • Previous Articles     Next Articles

Fabrication and properties of antibacterial polypropylene melt-blown nonwoven fabrics by reactive extrusion

CHEN Zhuo1, DAI Junming2, PAN Xiaodi2, LI Mufang1,3, LIU Ke1,3, ZHAO Qinghua1,3()

  1. 1. Technology and Research Institute, Wuhan Textile University, Wuhan, Hubei 430200, China
    2. Sinopec Yizheng Chemical Fibre Co., Ltd., Yangzhou, Jiangsu 211900, China
    3. Key Laboratory of Textile Fiber and Products, Ministry of Education, Wuhan, Hubei 430200, China
  • Received:2022-01-14 Revised:2022-10-09 Online:2023-06-15 Published:2023-07-20
  • Contact: ZHAO Qinghua E-mail:zhaoqh108@126.com

Abstract:

Objective Because of the different biological structure of virus and bacteria, traditional antibacterial polypropylene melt-blown nonwoven fabric is difficult to have good killing effect on virus. Hypochlorite or chlorine-containing disinfectant that can release active chlorine has been reported to have excellent inactivation effect on bacteria and viruses. Therefore, the design of a polypropylene melt-blown nonwoven fabric was carried out to release active chlorine in order to effectively solve the problem of poor inactivity of air filter materials on viruses.
Method Modified polypropylene (PP) grafted methyl acrylamide (MAM) resin was prepared by using reactive extrusion process to graft the halogen amine precursor onto the PP molecular chain through a free radical initiator, before the PP-g-MAM resin was added to the melt-blowing machine. The PP-g-MAM melt-blown nonwoven fabric for chlorination and re-electret was fabricated, in order to obtain polypropylene melt-blown nonwoven fabric with high efficiency filtration and sterilization and antiviral function. Scanning electron microscope was used to characterize the average diameter of PP-g-MAM melt-blown nonwoven fibers and the fiber diameter distribution.
Results The average diameter of PP-g-MAM melt-blown nonwoven fibers is 7.24 μm, and the fiber diameter distribution is concentrated in 1-3 μm (Fig. 7). Compared with the pure PP resin, two new characteristic peaks appeared in the wavelength range of 1 700-1 500 cm-1 for the purified PP-g-MAM resin, corresponding to the C=O bond stretching vibration peak of 1 668 cm-1 and the N—H bond bending vibration peak of 1 600 cm-1 (Fig. 4). The grafting efficiency and grafting rate of MAM was 43.02% and 1.01% by organic element content detection. In the thermal weight loss behavior, the thermogravimetric (TG) curves of PP resin and PP-g-MAM resin almost coincided, and so did the differential thermogravimetric (DTG) curves (Fig. 5), where the initial and termination decomposition temperatures of PP-g-MAM resin were 427.9 and 469.2 ℃, respectively. In terms of mechanical properties, the tensile stress at break of PP-g-MAM melt-blown nonwoven fabric is between 1.14-1.19 MPa, and the elongation at break is about 70% (Fig. 6). The filtration effect of PP-g-MAM melt-blown nonwoven fabric on 0.3 μm particles is 98.6% (Fig. 8). After chlorination, the filtration effect decreases by 4%-14%, and the longer the chlorination time, the more the filtration performance decreases. After chlorination re-electret, the filtration performance of PP-g-MAM melt-blown nonwoven fabric is restored to more than 98%. The pore size of PP-g-MAM melt-blown nonwoven fabric has a certain increase compared with PP melt-blown nonwoven fabric(Fig. 9). In the chlorination process, PP-g-MAM melt-blown nonwoven fabrics chlorinated in acidic environment have more active chlorine content, and the longer the chlorination time, the higher the active chlorine content(Fig. 10). Under the condition of chlorinated solution pH value of 5 and chlorination time of 15 min, the content of active chlorine in chlorinated PP-g-MAM melt-blown nonwoven fabric is 0.038%. The antibacterial rate of chlorinated PP-g-MAM melt-blown nonwoven fabric against Escherichia coli and Staphylococcus aureus was more than 98% (Fig. 12), and the antibacterial rate against Escherichia coli was more than 99% under the contact time of 20 min (Fig. 13).
Conclusion MAM was successfully grafted into the polypropylene molecular chain. However, PP-g-MAM melt-blown materials and PP melt-blown materials have little difference in performance, so the grafting of MAM has little effect on the heat resistance, mechanical properties and fiber morphology of PP melt-blown materials. Due to chlorinated solution immersion reasons, PP-g-MAM electret melt-blown nonwoven fabric electrostatic charge is lost with the solution, which leads to significant decrease in the chlorination of nonwoven fabric filtration performance, and in the electret again, nonwoven fabric filtration performance restored to the level before chlorination. In the chlorination process, the acidic condition of chlorinated solution is more likely to improve the content of active chlorine in PP-g-MAM melt-blown nonwoven fabrics, which may be due to the high content of hypochlorous acid in the acidic environment solution, which is easier to transform the halo amine precursor, and the longer the chlorination time, the more the grafted halo amine precursor is transformed. Chlorinated PP-g-MAM melt-blown nonwoven fabrics can effectively kill Escherichia coli and Staphylococcus aureus.

Key words: polypropylene melt-blown material, grafted, methyl acrylamide, melt reactive extrusion, active chlorine content, medical material, antibacterial textiles

CLC Number:

  • TS176.4

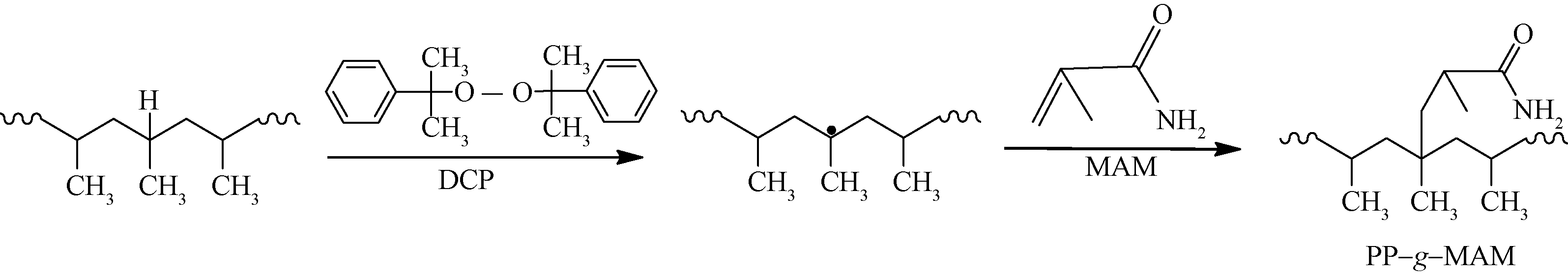

Fig. 1

Reaction mechanism of PP-g-MAM prepared by melt graft copolymerization"

Fig. 2

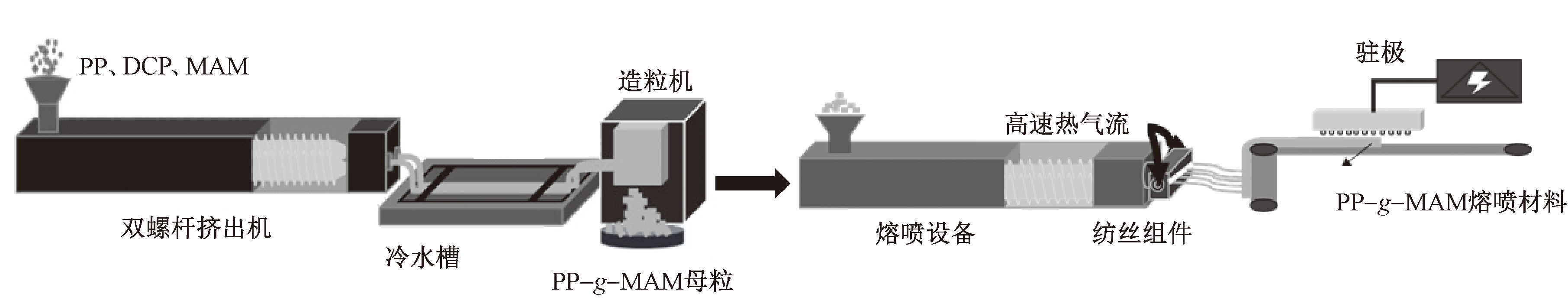

Schematic diagram of preparation of PP-g-MAM masterbatch and its melt-blown material"

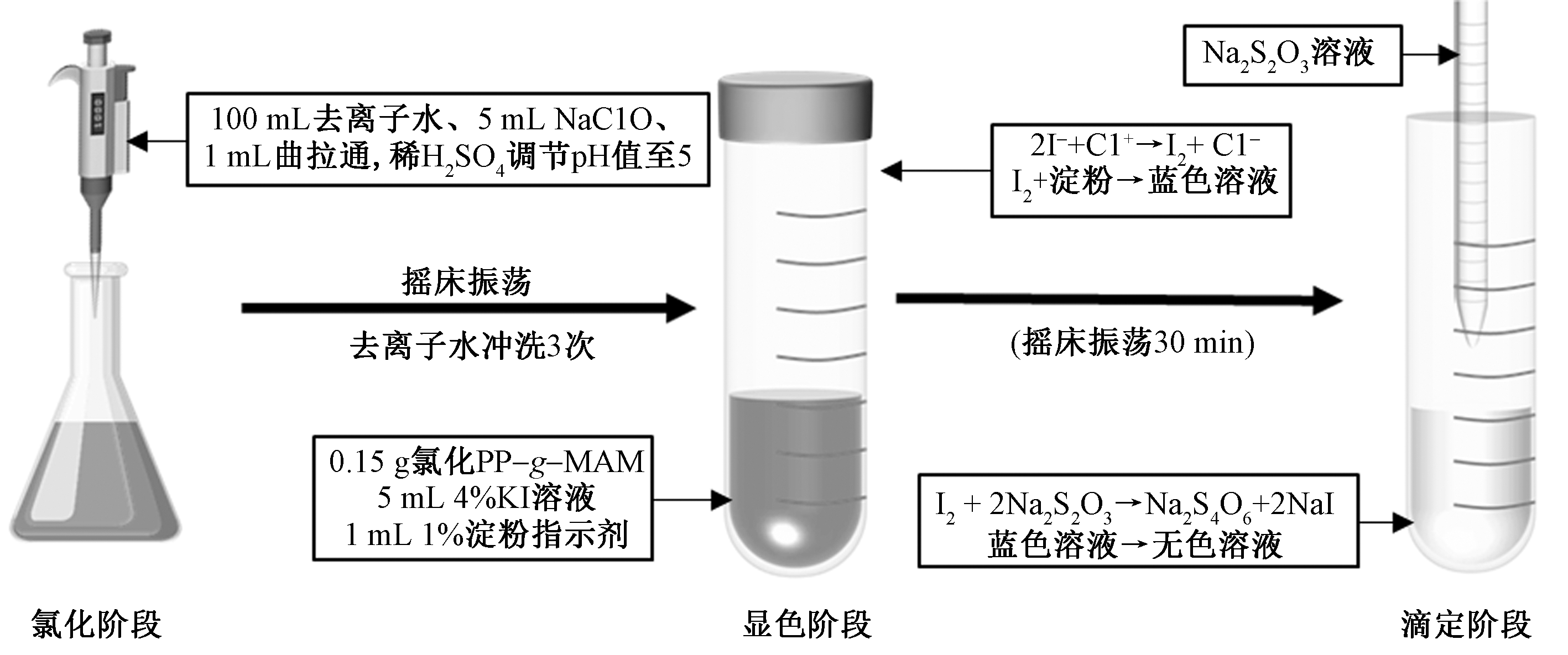

Fig. 3

Schematic diagram of chlorination and active chlorine titration of PP-g-MAM melt-blown materials"

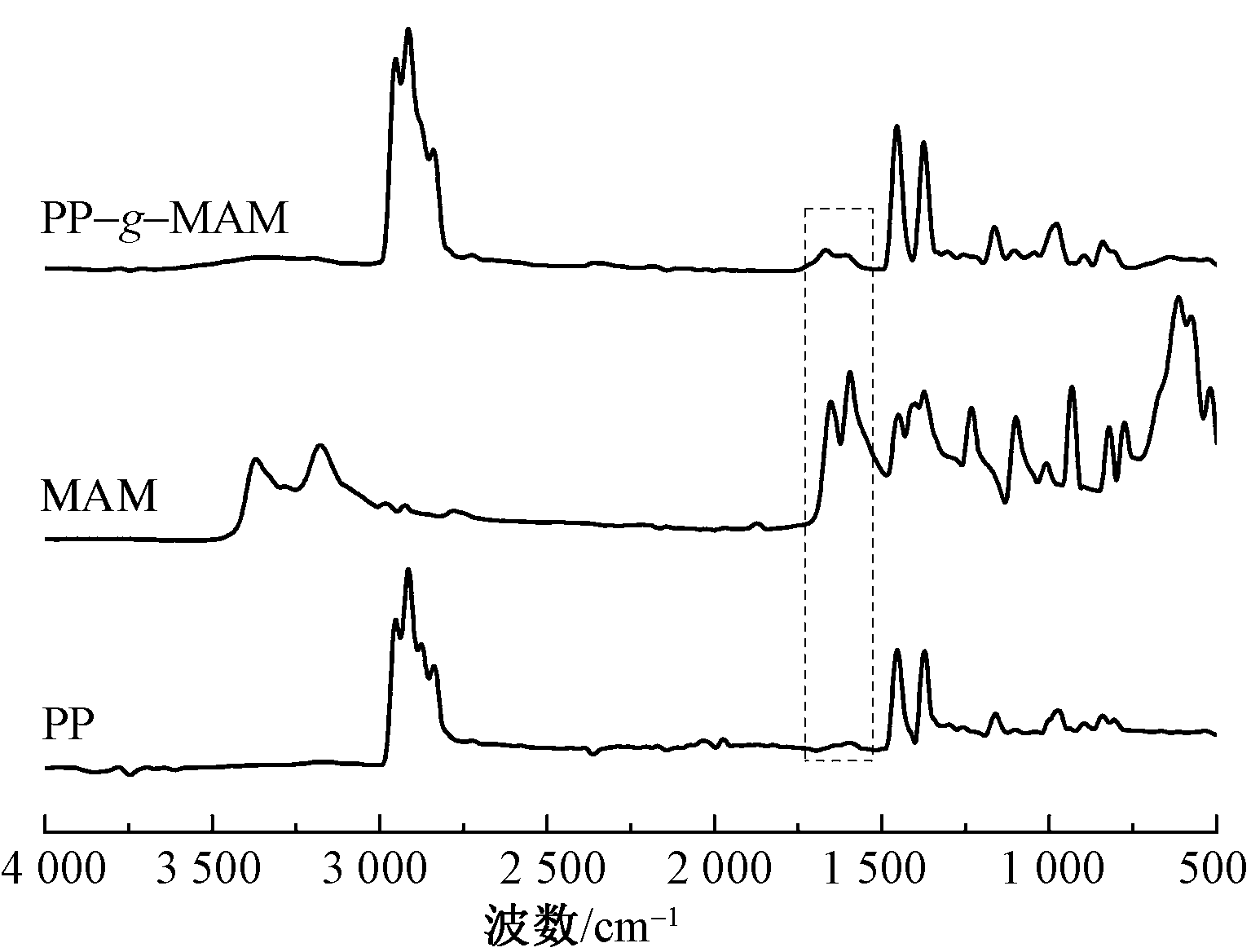

Fig. 4

FT-IR spectra of PP-g-MAM,MAM and PP masterbatch"

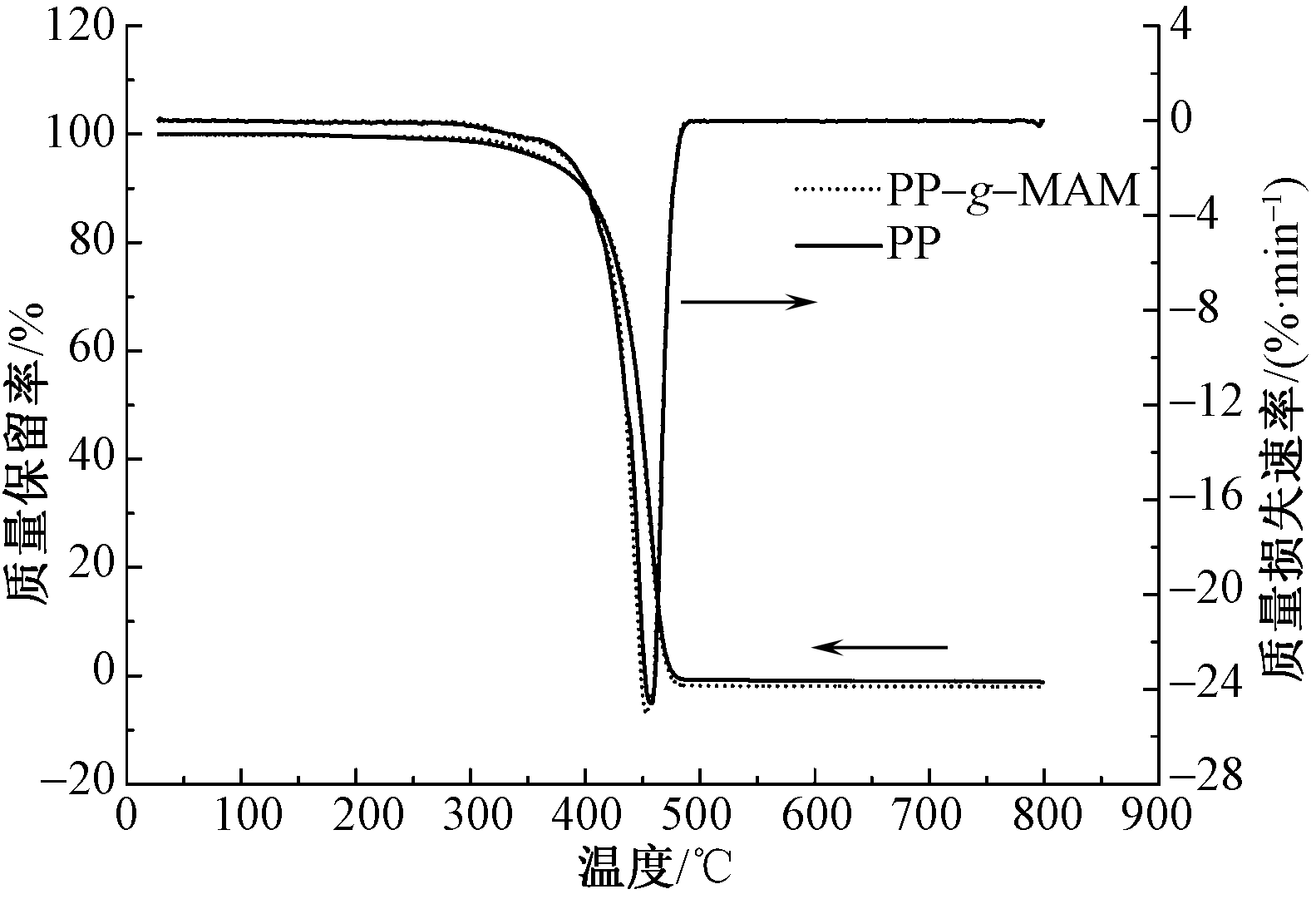

Fig. 5

TG and DTG curves of pure PP and PP-g-MAM masterbatch"

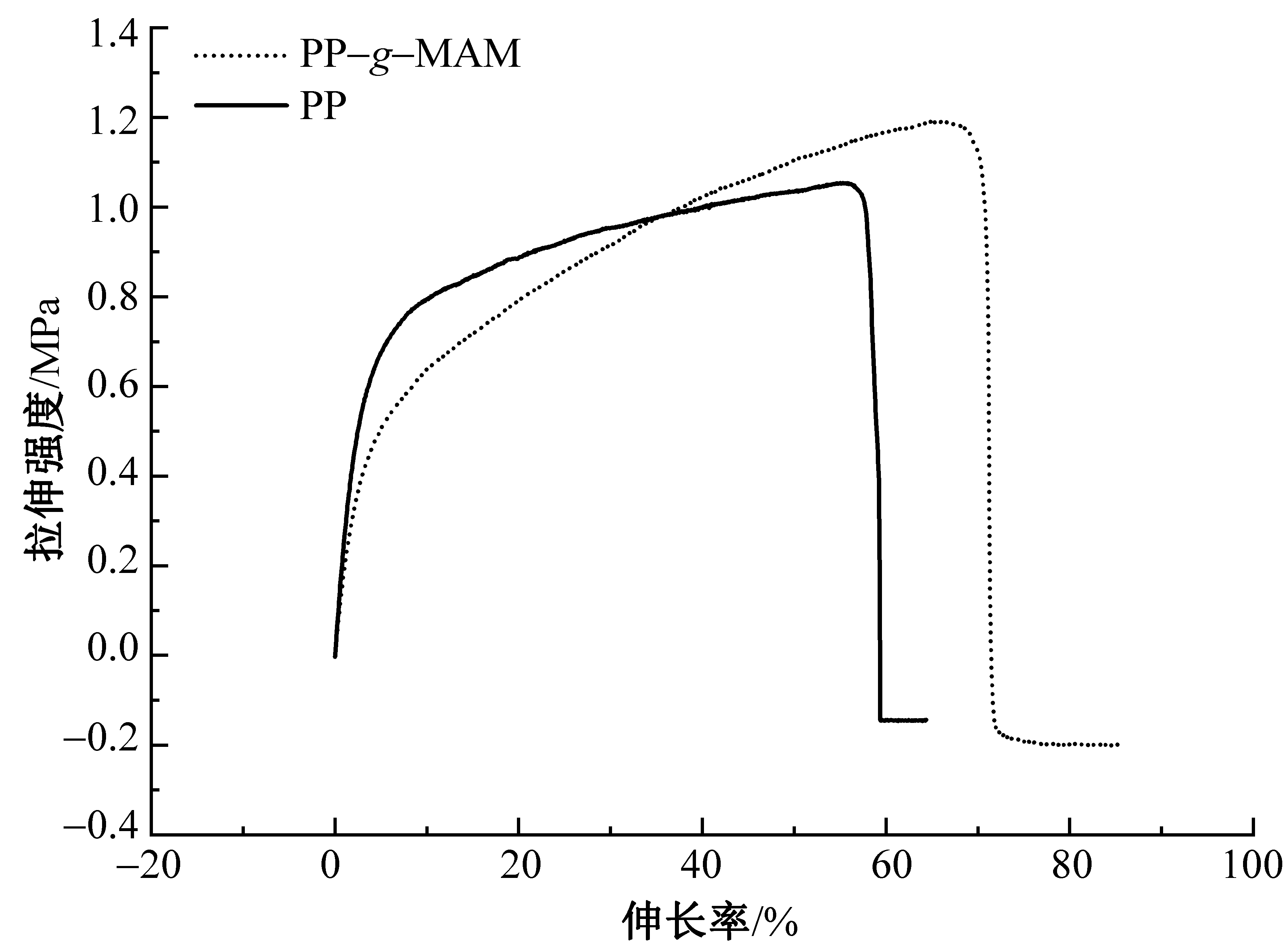

Fig. 6

Tensile stress-elongation curves of pure PP and PP-g-MAM melt-blown materials"

Fig. 7

SEM images and fiber diameter distribution of PP (a) and PP-g-MAM (b) melt-blown materials"

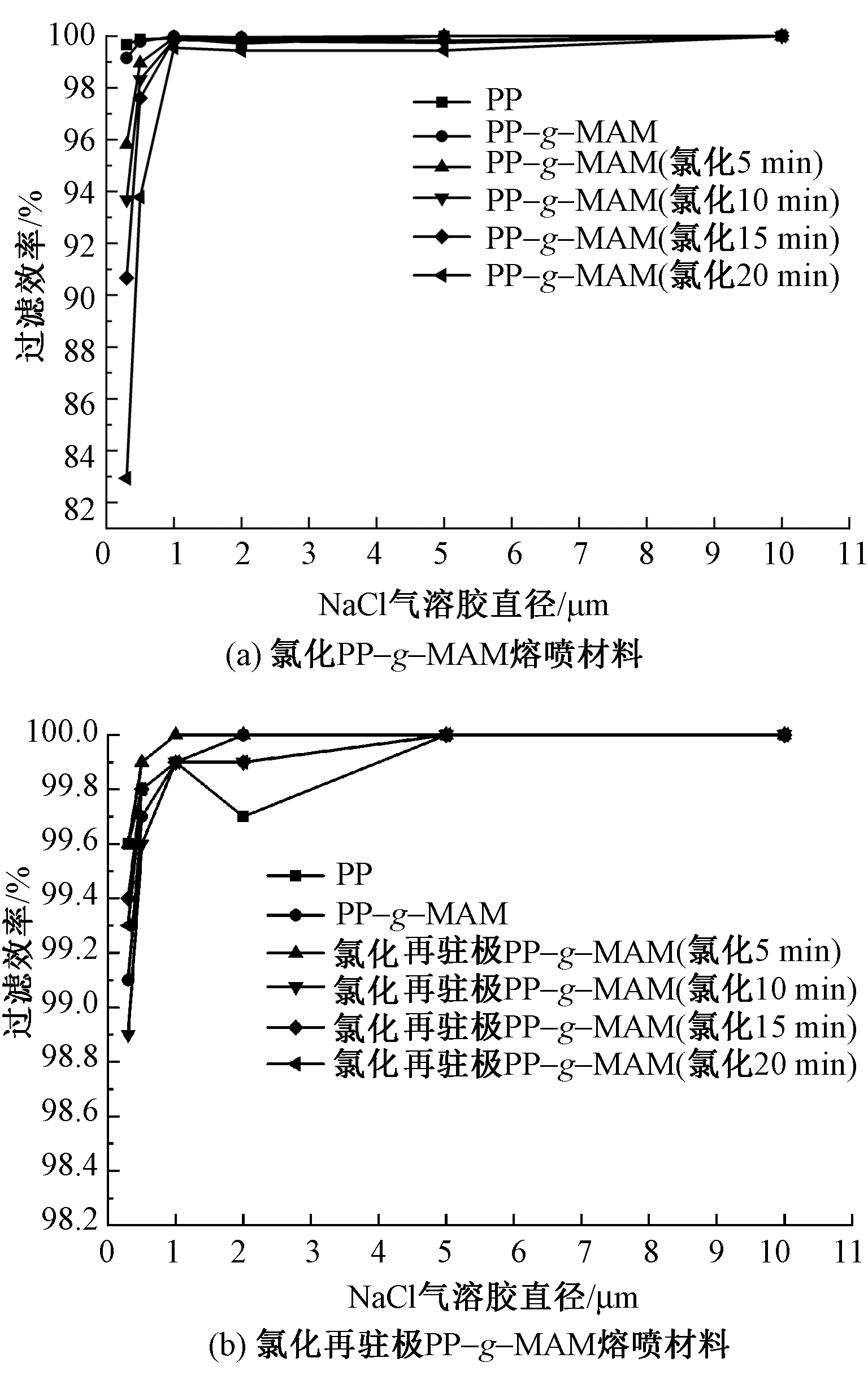

Fig. 8

Filtration properties of PP-g-MAM after chlorination (a) and re-electret PP-g-MAM melt-blown materials after chlorination (b)"

Fig. 9

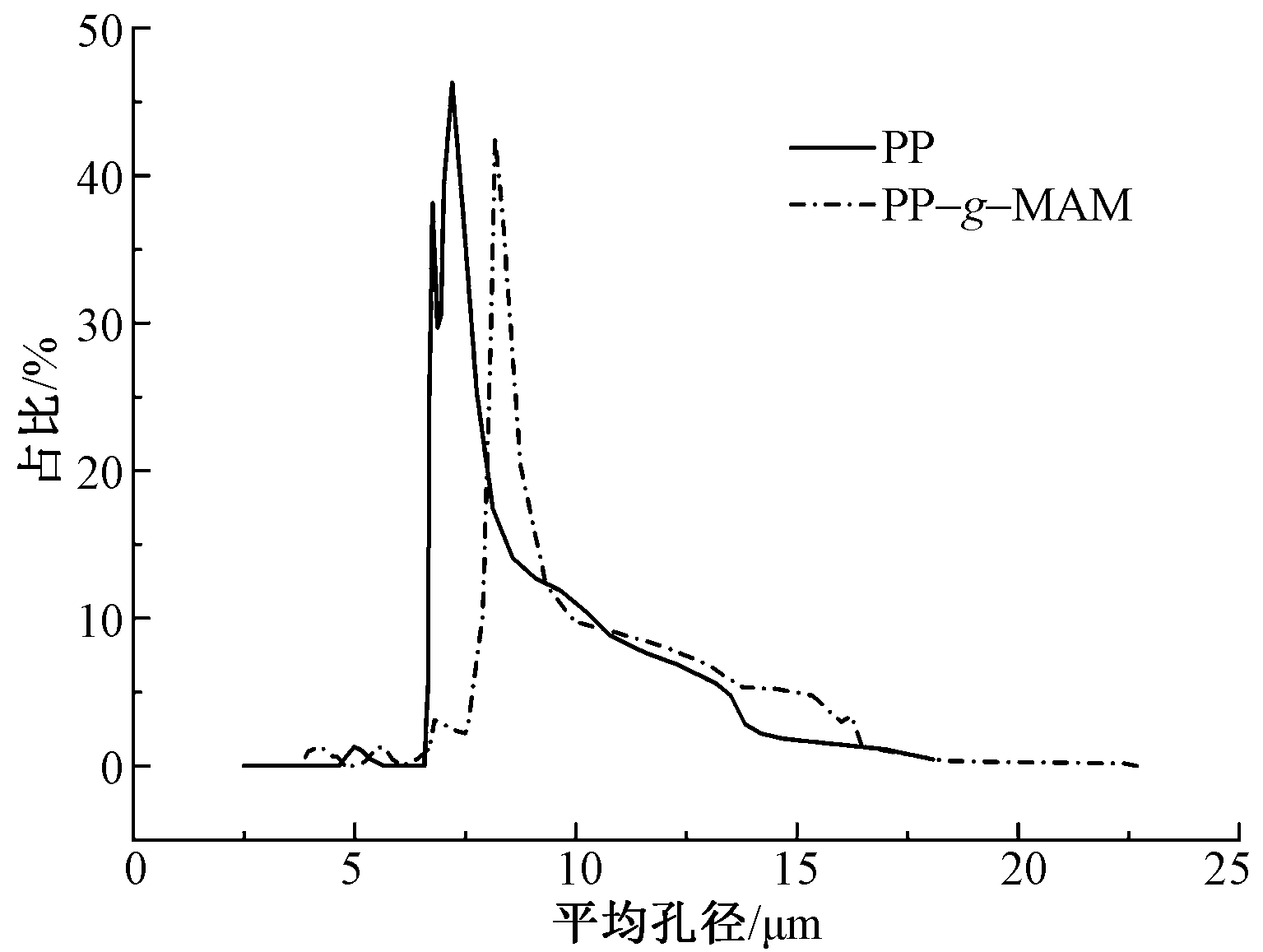

Pore size distribution fibers in PP and PP-g-MAM melt-blown materials"

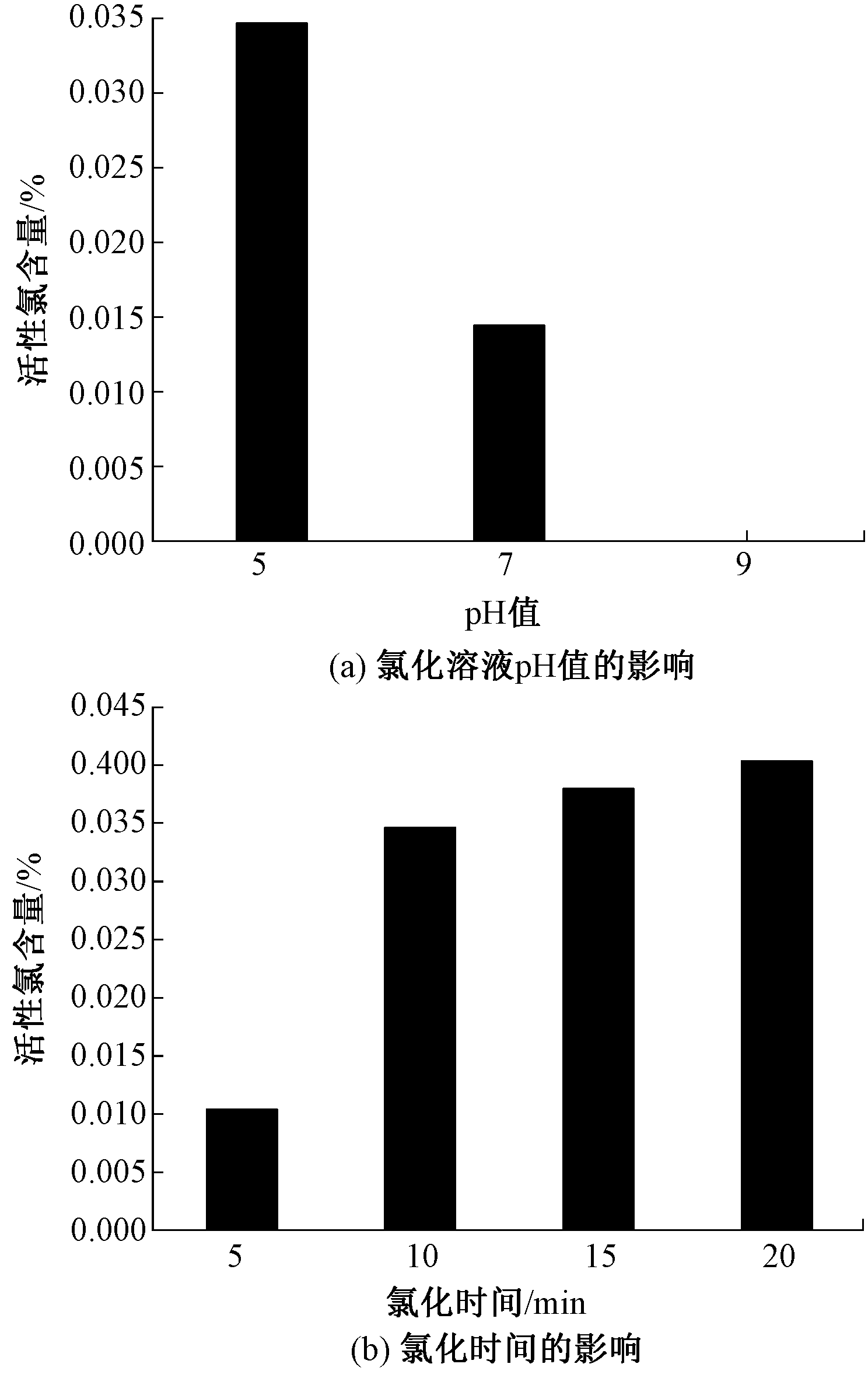

Fig. 10

Effect of pH value chlorinated solution (a) and chlorination time (b) on active chlorine in PP-g-MAM melt-blown materials"

Fig. 11

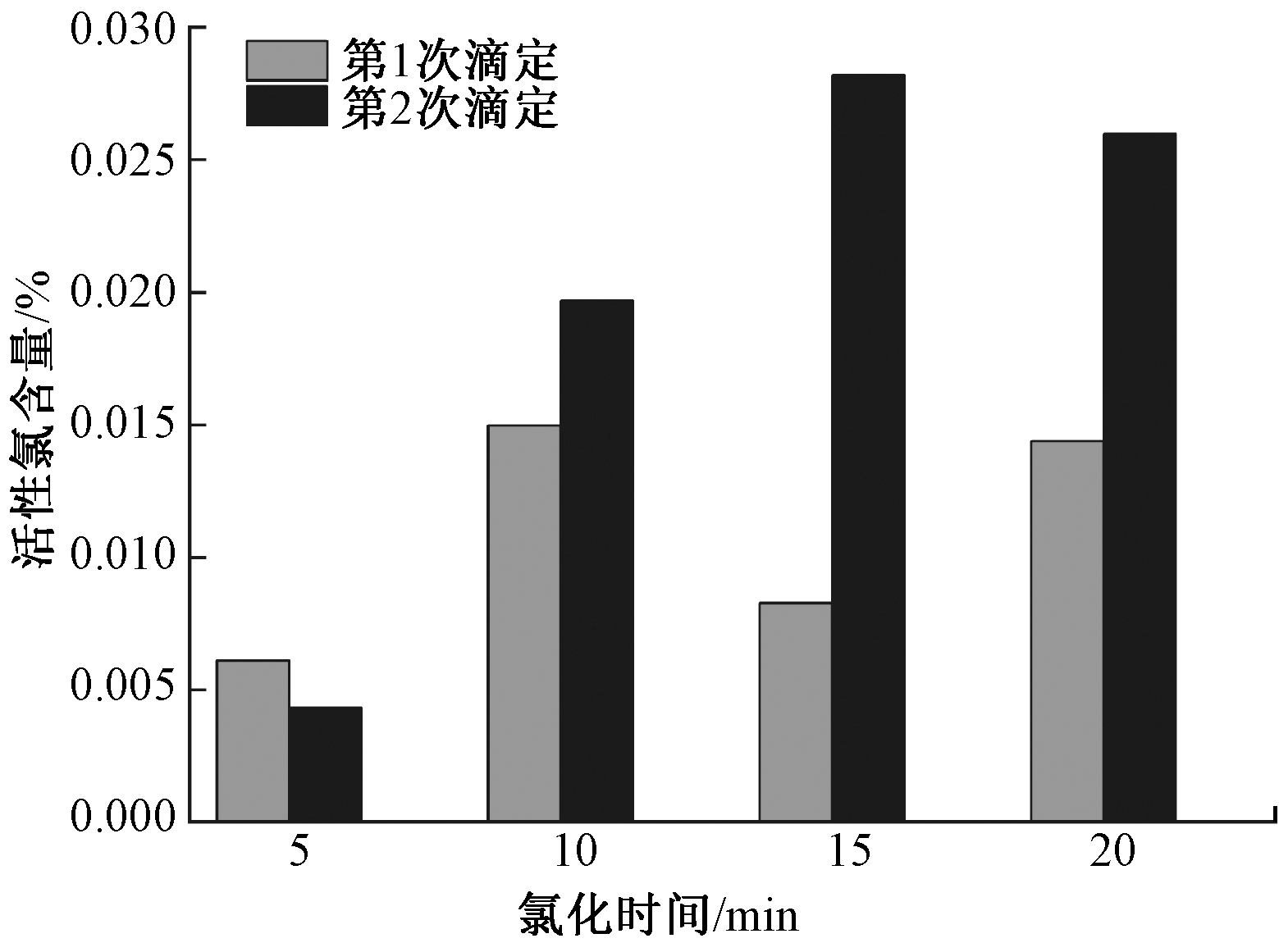

Active chlorine content of PP-g-MAM melt-blown materials corresponding to two titrations under different chlorination time"

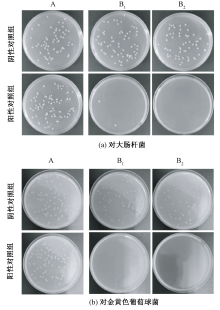

Fig. 12

Antibacterial effect of chlorinated PP-g-MAM melt-blown materials on Escherichia coli (a) and Staphylococcus aureus (b)"

Fig. 13

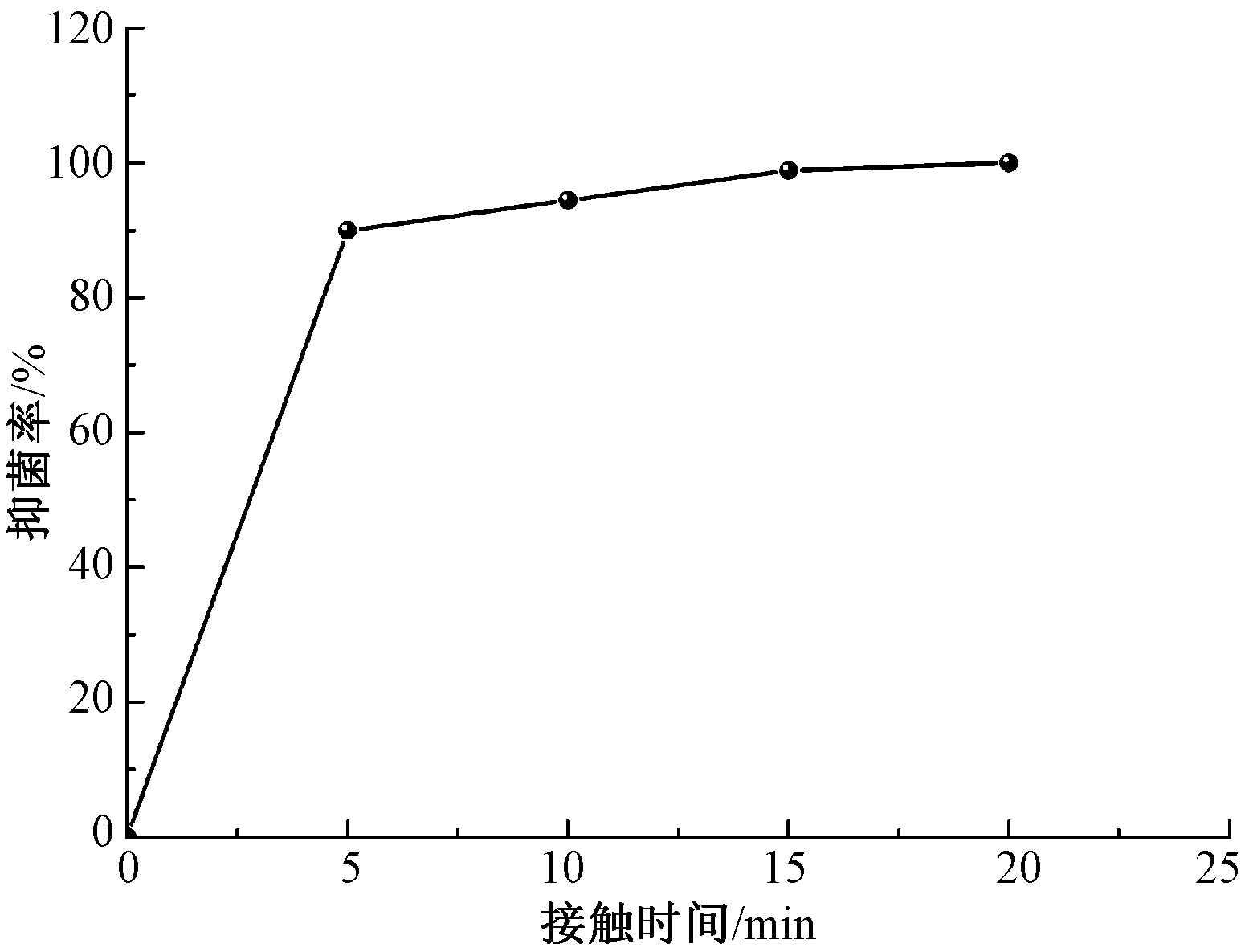

Change of antibacterial rate of chlorinated PP-g-MAM meltblown material on Escherichia coli under different contact times"

[1] 陈凤翔, 翟丽莎, 刘可帅, 等. 防护口罩研究进展及其发展趋势[J]. 西安工程大学学报, 2020, 34(2): 1-12.
CHEN Fengxiang, ZHAI Lisha, LIU Keshuai, et al. Reaearch progress and its developing trend of protective masks[J]. Journal of Xi'an Polytechnic University, 2020, 34(2):1-12.
[2] KRAMER A, SCHWEBKE I, KAMPF G. How long do nosocomial pathogens persist on inanimate surfaces?a systematic review[J]. BMC Infect Dis, 2006. DOI: 10.1186/1471-2334-6-130.
doi: 10.1186/1471-2334-6-130
[3] 杨然, 王佳宝, 张晶, 等. 聚丙烯无纺布表面功能化及其抗菌性能[J]. 纸和造纸, 2020, 39(2): 19-24.
YANG Ran, WANG Jiabao, ZHANG Jing, et al. Surface functionalization and antibacterial properties of polypropylene nonwovens[J]. Paper and Paper Making, 2020, 39(2):19-24.
[4] DEMIR B, CERKEZ I, WORLEY S D, et al. N-halamine-modified antimicrobial polypropylene nonwoven fabrics for use against airborne bacteria[J]. ACS Appl Mater Interfaces, 2015, 7(3): 1752-1757.
doi: 10.1021/am507329m
[5] 王兴雪, 刘峻, 张瑜, 等. 聚丙烯/无机纳米抗菌剂共混纤维的研制[J]. 金山油化纤, 2004(2): 14-17.
WANG Xingxue, LIU Jun, ZHANG Yu, et al. Development of polypropylene/inorganic nano antibacterial agent blend fiber[J]. Jinshan Oil Chemical Fiber, 2004(2):14-17.
[6] LIU C, DAI Z, ZHOU R, et al. Fabrication of polypro-pylene-g-(diallylamino triazine) bifunctional nonwovens with antibacterial and air filtration activities by reactive extrusion and melt-blown technology[J]. Journal of Chemistry, 2019( 2019): 1-11.
[7] KENAWY E R, WORLEY S D, BROUGHTON R. The chemistry and applications of antimicrobial polymers:a state-of-the-art review[J]. Biomacromolecules, 2007, 8(5): 1359-1384.
doi: 10.1021/bm061150q
[8] WANG D, XU W, SUN G, et al. Radical graft polymeriz-ation of an allyl monomer onto hydrophilic polymers and their antibacterial nanofibrous membranes[J]. ACS Appl Mater Interfaces, 2011, 3(8): 2838-2844.
doi: 10.1021/am200286a
[9] BADROSSAMAY M R, SUN G. Preparation of recharge-able biocidal polypropylene by reactive extrusion with diallylamino triazine[J]. European Polymer Journal, 2008, 44(3): 733-742.
doi: 10.1016/j.eurpolymj.2007.12.005
[10] BADROSSAMAY M R, SUN G. Durable and rechargeable biocidal polypropylene polymers and fibers prepared by using reactive extrusion[J]. J Biomed Mater Res B Appl Biomater, 2009, 89(1): 93-101.
[11] DEWAR E J, WAYMAN M. Diffusion of positive chlorine in macroreticular resins[J]. The Canadian Journal of Chemical Engineering, 1971, 49(6): 758-766.
doi: 10.1002/cjce.v49:6
[1] YANG Yao, CHENG Wei, YU Yuanyuan, WANG Qiang, WANG Ping, ZHOU Man. Application of antibacterial and antibacterial adhesion finishing agents in cotton fabric modification [J]. Journal of Textile Research, 2022, 43(07): 104-110.
[2] FANG Shuaijun, ZHENG Peixiao, CHENG Shuangjuan, LI Huanhuan, QIAN Hongfei. Establishment of mathematical model and quantitative analysis for grafting rate of methylacrylamide grafted silk [J]. Journal of Textile Research, 2022, 43(02): 156-161.
[3] LI Wei, ZHANG Zhengqiao, XU Zhenzhen, ZHANG Chaohui. Preparation and sizing properties of amphiphilic diblock grafted starch sizing agent [J]. Journal of Textile Research, 2022, 43(01): 141-146.
[4] ZHAI Lisha, WANG Zonglei, ZHOU Jingyi, GAO Chong, CHEN Fengxiang, XU Weilin. Research progress of antibacterial materials for textiles and their applications [J]. Journal of Textile Research, 2021, 42(09): 170-179.
[5] LIU Hao, LU Minglei, HUANG Xiaowei, WANG Na, WANG Xuefang, NING Xin, MING Jinfa. Preparation and characterization of silk fibroin hydrogel in acid-alcohol system [J]. Journal of Textile Research, 2021, 42(08): 41-48.
[6] WANG Shudong, MA Qian, WANG Ke, QU Caixin, QI Yu. Structure and biocompatibility of silk fibroin/gelatin blended hydrogels [J]. Journal of Textile Research, 2020, 41(11): 41-47.
[7] YAN Jia, LI Gang. Research progress on medical textiles [J]. Journal of Textile Research, 2020, 41(09): 191-200.
[8] QIN Yimin. Clinical applications of silver containing alginate wound dressings [J]. Journal of Textile Research, 2020, 41(09): 183-190.
[9] LIN Yongjia, YANG Dongchao, ZHANG Peihua, GU Yan. Preparation and properties of regenerated silk fibroin/acellular dermal matrix blended nanofiber membrane [J]. Journal of Textile Research, 2019, 40(07): 13-18.
[10] QIN Yimin. Physicochemical properties and bioactivities of chitosan fibers [J]. Journal of Textile Research, 2019, 40(05): 170-176.
[11] . Film properties of starch sizing grafted by quaternary ammonium cations [J]. Journal of Textile Research, 2018, 39(11): 68-72.
[12] . Preparation and antibacterial and dyeing properties of chitosan grafted antibacterial viscose fiber  [J]. JOURNAL OF TEXTILE RESEARCH, 2018, 39(04): 9-13.
[13] . Bioactivities and applications of alginate fibers [J]. JOURNAL OF TEXTILE RESEARCH, 2018, 39(04): 175-180.
[14] . Preparation and characterization of drug-loading regenerated bacterial cellulose fiber [J]. JOURNAL OF TEXTILE RESEARCH, 2017, 38(05): 14-18.
[15] . Current development and future trend of bioactive fibers [J]. JOURNAL OF TEXTILE RESEARCH, 2017, 38(03): 174-180.
Viewed
Full text


Abstract

Cited

  Shared
  Discussed
No Suggested Reading articles found!
