Preparation and properties of hyperplastic aerogel based on waste linen fabrics

ZHANG Wenli1,2, LIU Xin1,2, ZHANG Qiaoqiao1,2, ZHI Chao1,2, LI Jianwei2,3, FAN Wei1,2()

  1. 1. School of Textile Science and Engineering, Xi'an Polytechnic University, Xi'an, Shaanxi 710048, China
    2. Key Laboratory of Functional Textile Material and Product, Ministry of Education, Xi'an Polytechnic University, Xi'an, Shaanxi 710048, China
    3. School of Materials Engineering, Xi'an Polytechnic University, Xi'an, Shaanxi 710048, China
  • Received:2024-06-13 Revised:2024-11-18 Online:2025-04-15 Published:2025-06-11
  • Contact: FAN Wei E-mail:fanwei@xpu.edu.cn

RichHTML

3

PDF (PC)

11

Abstract:

Objective Aerogel is a solid material with an extremely low density that can fulfill various demands, including fireproofing, waterproofing, heat insulation and sound insulation. However, the current problem of high preparation costs, low strength, low toughness, and weak structural stability due to their preparation costs have seriously limited their promotion and application. To address this issue, cellulose aerogels were created using recycled fibers from reprocessed wast linen fabrics. The linen fibers were pre-treated to obtain a well-dispersed fiber suspension, followed by freeze-drying and high-temperature cross-linking.

Method The mixture of polyamide epoxy resin (PAE) with a mass fraction of 0.3% and pretreated linen fiber with water with a mass fraction of 0.1%-0.4% was first stirred in a magnetic stirrer at a speed of 300 r/min for 8 h at room temperature to obtain a well-dispersed fiber suspension. Then it was poured into a plastic mold and then placed into a freeze dryer at a temperature of -80 ℃ for freeze drying. Finally, the freeze-dried samples were put into a vacuum drying oven at a temperature of 120 ℃ and a pressure of half an atmosphere for 3 h.

Results The density test showed that as the mass fraction of linen fibers increased from 0.1% to 0.4%, and the average density of cellulose aerogel increased from 4.78 mg/cm3 to 5.75 mg/cm3. The unidirectional compression test showed that as the mass fraction of linen fibers increased from 0.1% to 0.4%, and the average degree of recovery of cellulose aerogel after unidirectional compression decreased from 88.9% to 86.7%. The cyclic compression test showed that when the number of cyclic compressions was increased from 0 to 60 times, the height of deformation recovery of the cellulose aerogel increased as the mass fraction of linen fibers was increased from 0.1% to 0.2%. However, the deformation recovery height of cellulose aerogels gradually decreased as the mass fraction of linen fibers continued to increase from 0.2% to 0.4%. The morphological characterization showed that before uncompressed, the pore size of the aerogels with 0.1% and 0.2% mass fraction of linen fibers was uniform, and the reticular structure was more complete in comparison with the aerogels with 0.3% and 0.4% mass fraction of linen fibers. After compression, the reticular structure and holes of the aerogel with a mass fraction of 0.4% of linen fibers were the most severely damaged, while the other aerogels with different mass fractions of linen fibers all maintained relatively intact reticular structures and cavities, with the aerogel with a mass fraction of 0.2% of linen fibers having the best structural retention. As can be seen from the thermal insulation performance test, the linen fiber mass fraction of 0.2%, the thickness of 10 mm of the aerogel in the 80 ℃ heating table, the heating time of 5 min within the temperature of the aerogel appeared to decline. The temperature of the aerogel can be maintained at 53 ℃ for a long time after the heating time is more than 5 min. As shown by the thermal conductivity test, the thermal conductivity of the cellulose aerogel gradually increased with the increase of the mass fraction of linen fiber from 0.1% to 0.4%, in which the thermal conductivity of the aerogel with the mass fraction of linen fiber of 0.1% was the lowest, reaching (0.038 2 ± 0.000 2)W/(m·K).

Conclusion In this study, aerogels with different characteristics were prepared by adjusting the concentration of linen fiber, thus changing the density of linen fiber aerogel. Compared with the high-density aerogel, the low-density aerogel has more uniform and dense pores, and the air filled in the pores can effectively reduce the thermal conductivity of the aerogel, realizing the excellent performance of aerogel thermal insulation. This will promote the development of linen fiber aerogel in the field of thermal insulation.

Key words: linen fiber, aerogel, freeze drying, super elasticity, thermal insulation, reuse of waste linen fabric

CLC Number:

  • TS102.6

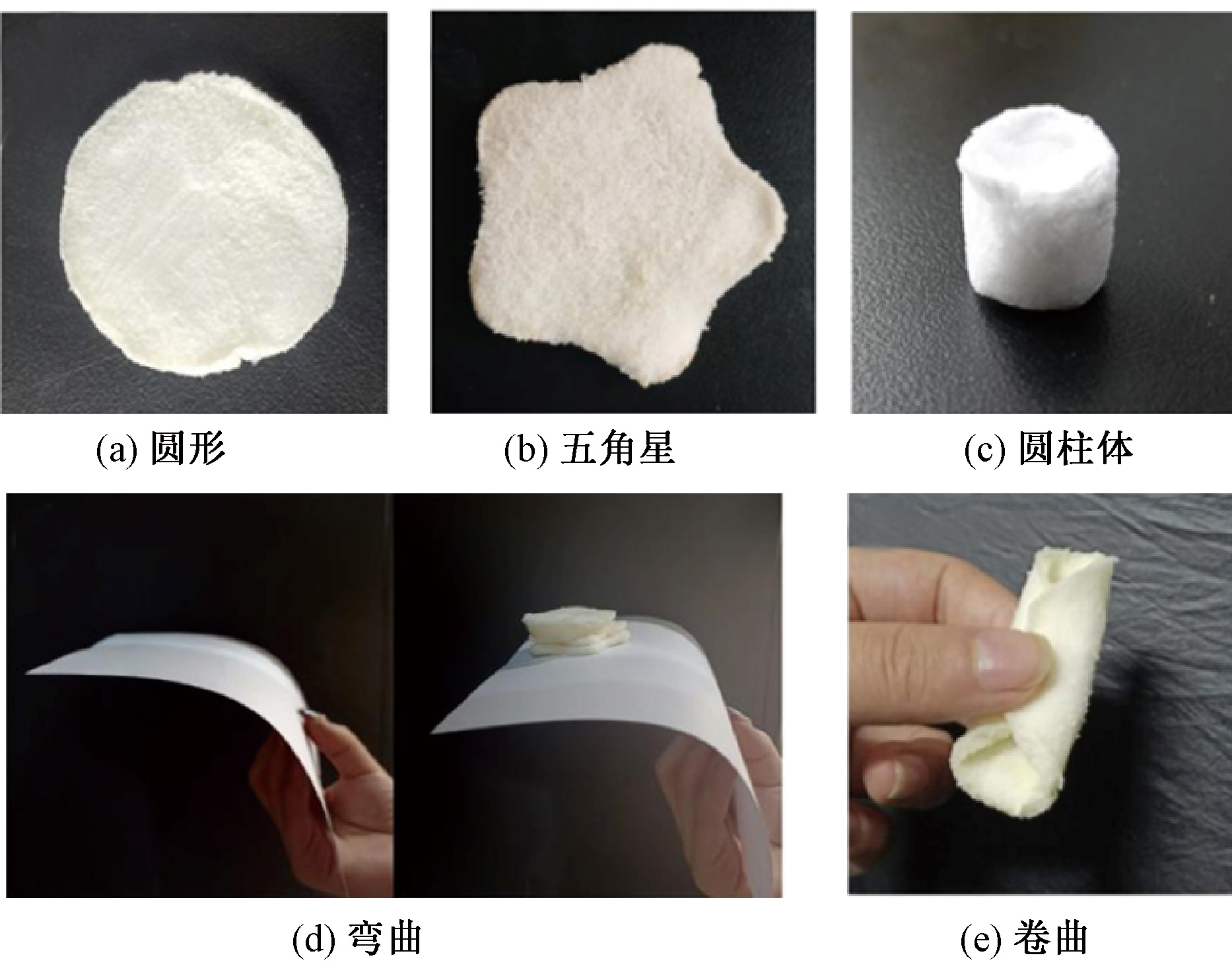

Fig.1

Presentation of flax cellulose aerogel samples. (a) Circle shaped; (b) Pentagram shaped; (c) Cylinder shaped; (d) Bend; (e) Curl"

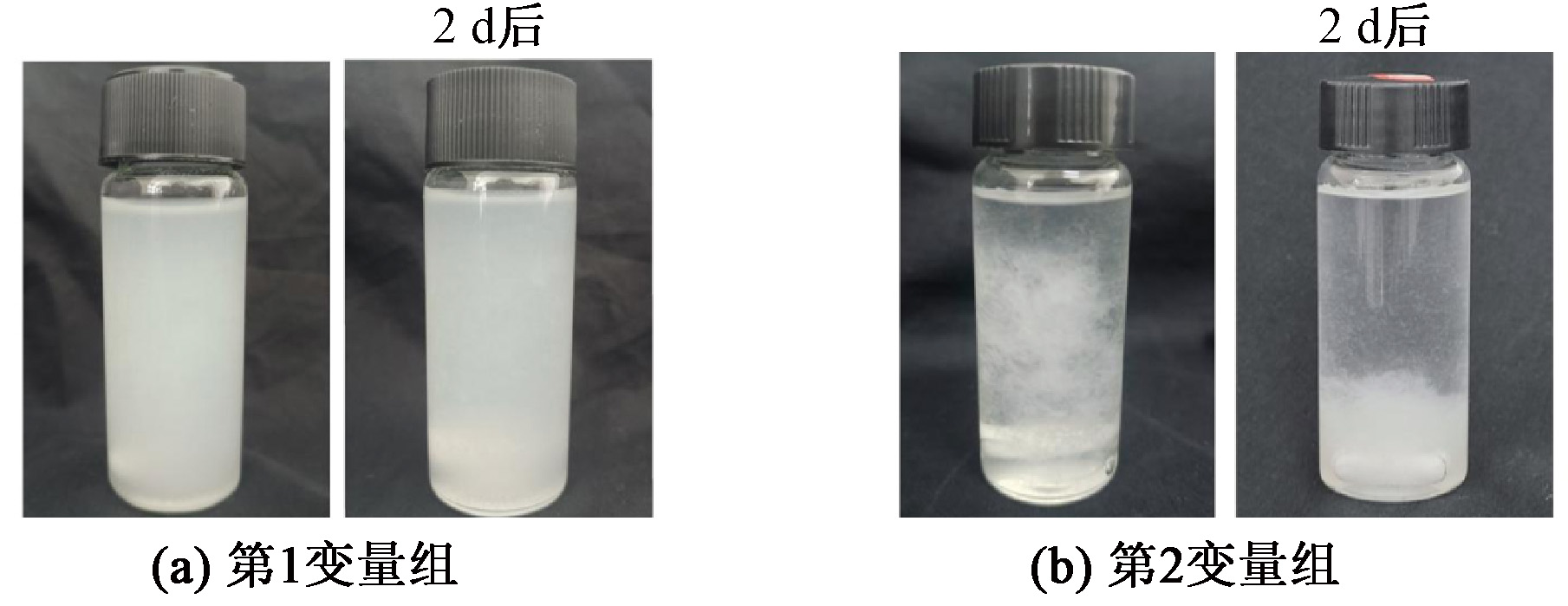

Fig.2

Cellulose suspensions. (a) First vaniable groups; (b) Second variable group"

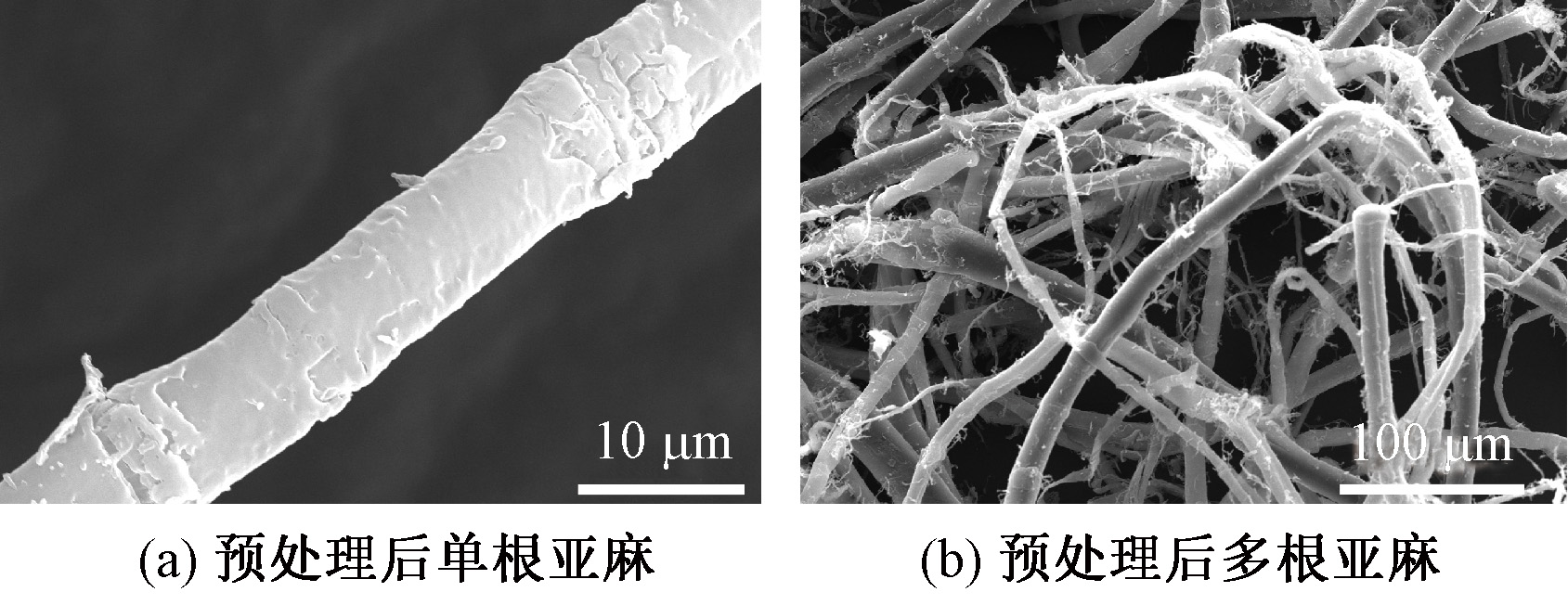

Fig.3

Morphology of waste flax fibers after pretreatment. (a) Single flax after pretreatment; (b) Multiple flax roots after pretreatment"

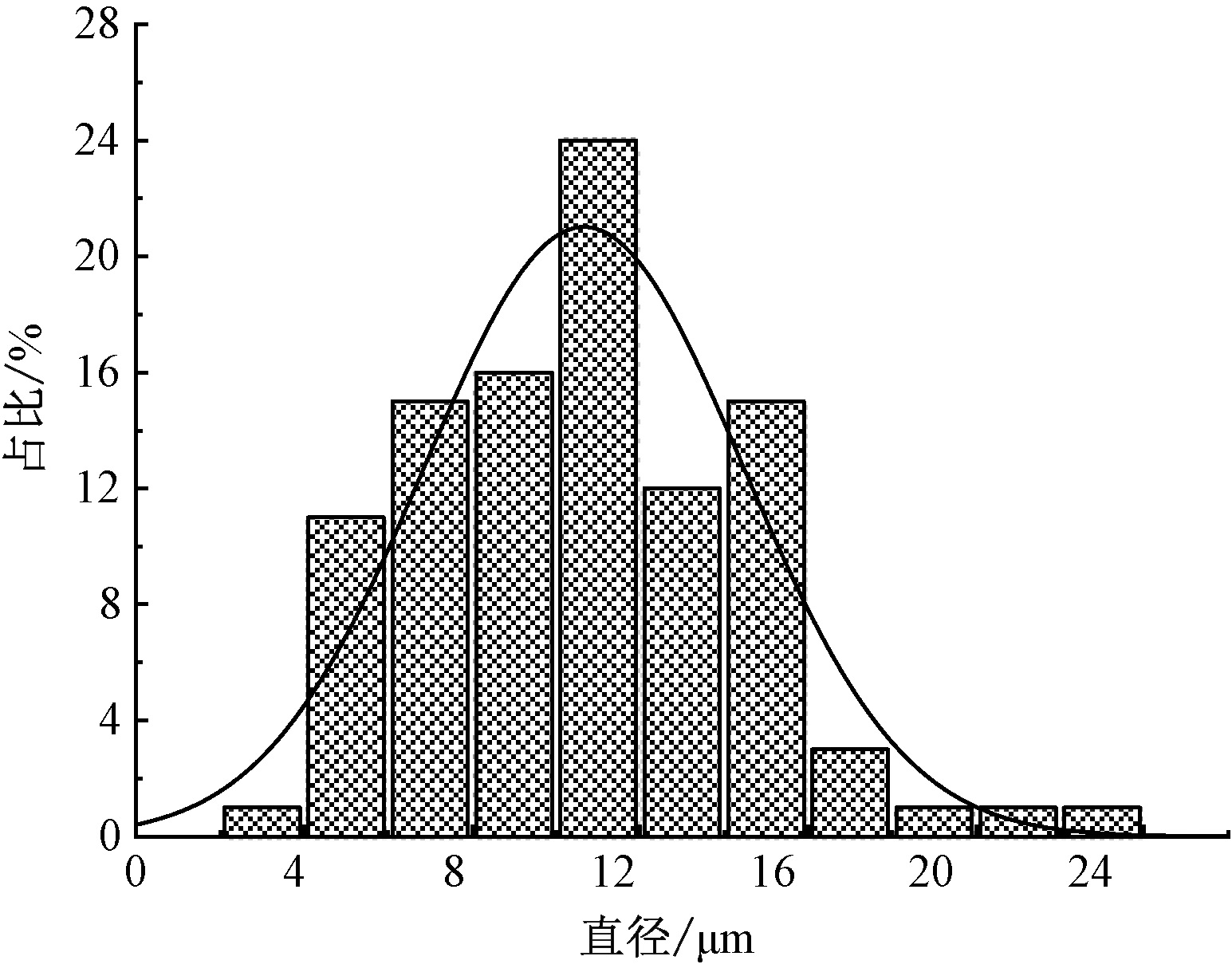

Fig.4

Diameter distribution of waste flax fibers after pretreatment"

Fig.5

Density of aerogels with different fiber concentrations"

Fig.6

Porosity of aerogels with different fiber concentrations"

Tab.1

Height and degree of recovery of aerogel after unidirectional compression"

纤维溶液
质量分
数/%		 横向 纵向
原始高
度/cm		 压缩高
度/cm		 回复程
度/%		 原始高
度/cm		 压缩高
度/cm		 回复程
度/%
0.1 1.8 1.6 88.9 2.3 2.05 89.1
0.2 1.8 1.61 89.4 2.3 2.08 90.4
0.3 1.8 1.57 87.2 2.3 2.03 88.3
0.4 1.8 1.56 86.7 2.3 2.01 87.4

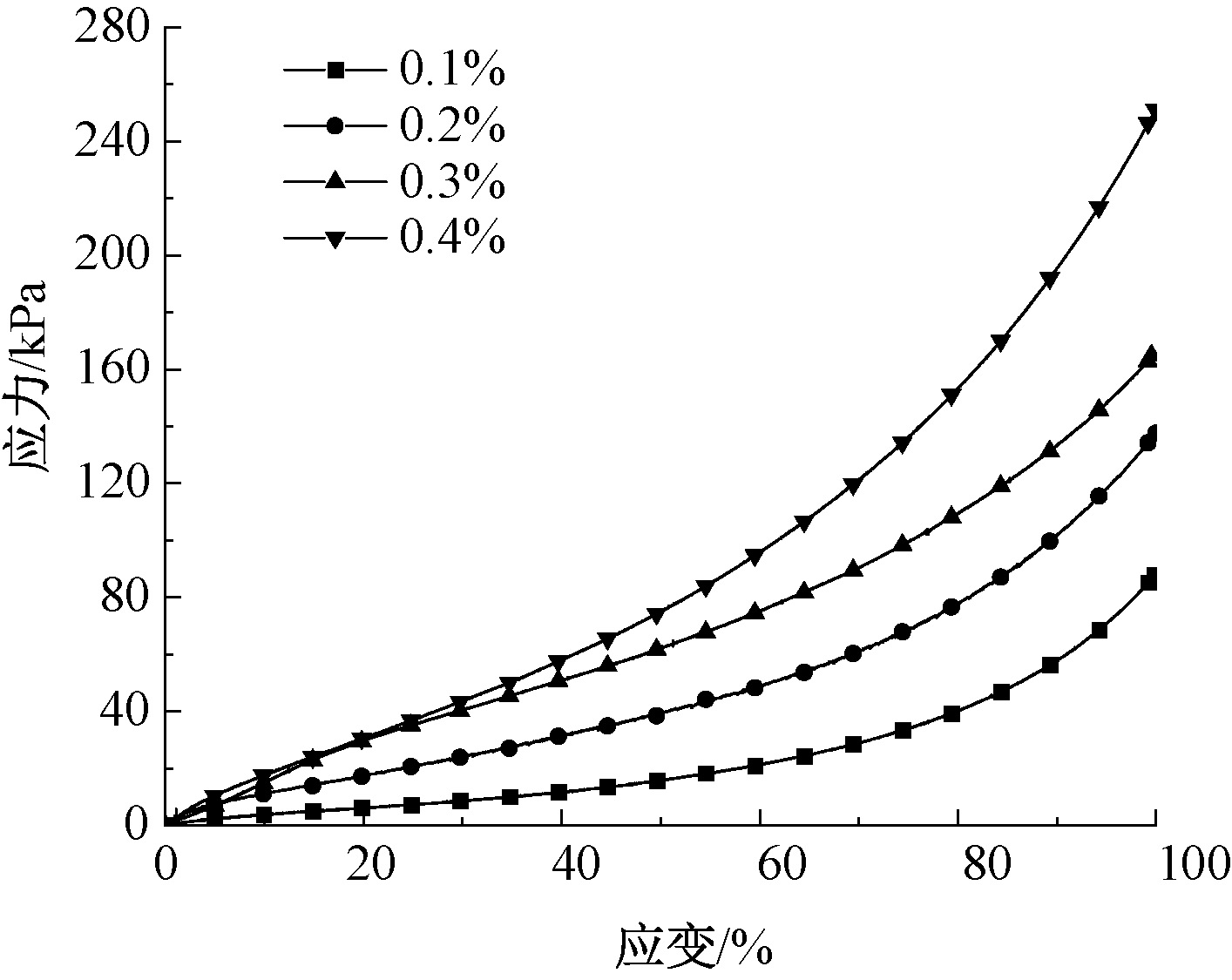

Fig.7

Compressive stress-strain curves for different fiber concentrations"

Fig.8

Effect of number of compressions on thickness of aerogels with different fiber concentrations"

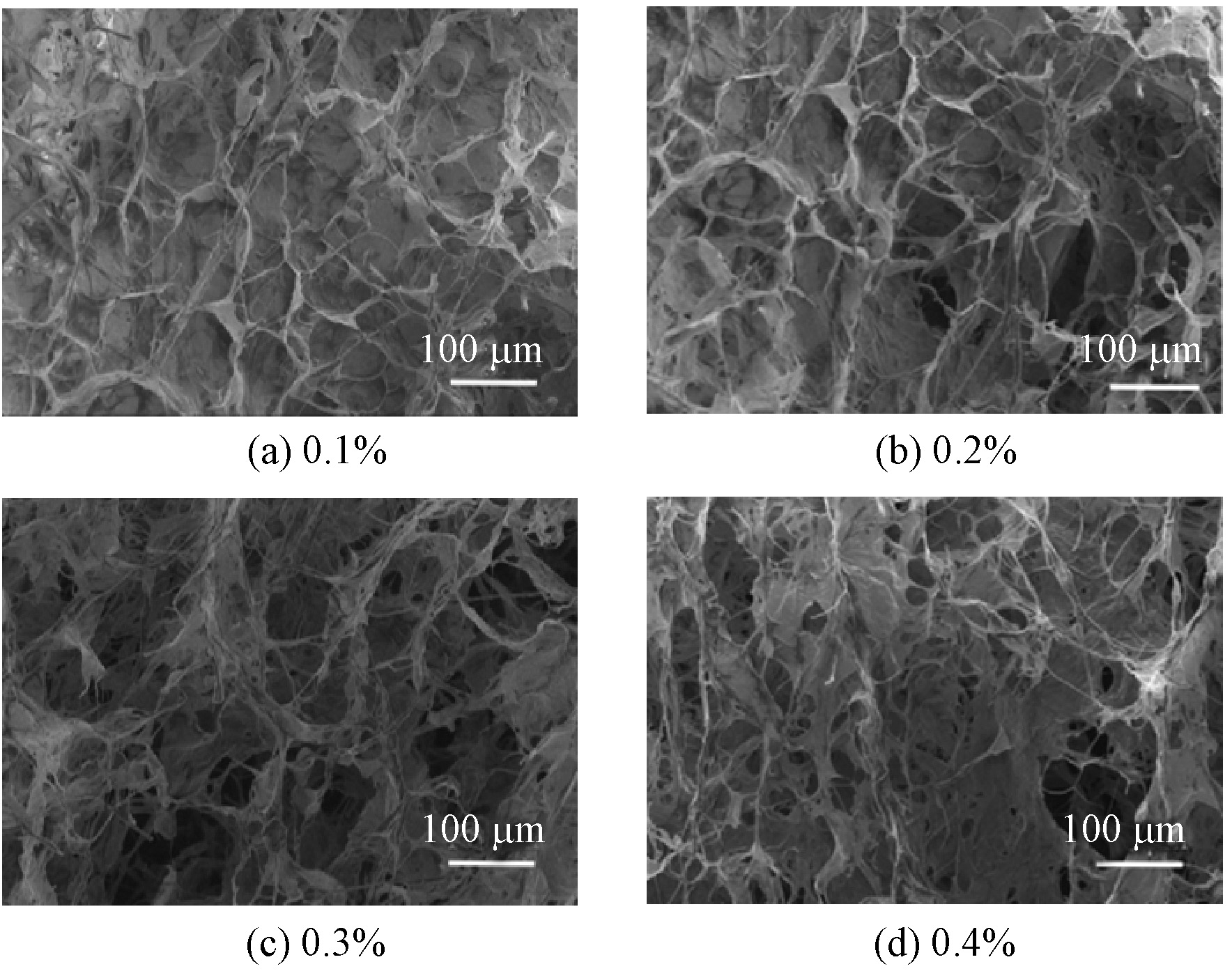

Fig.9

Morphology of uncompressed aerogels with different fiber concentrations"

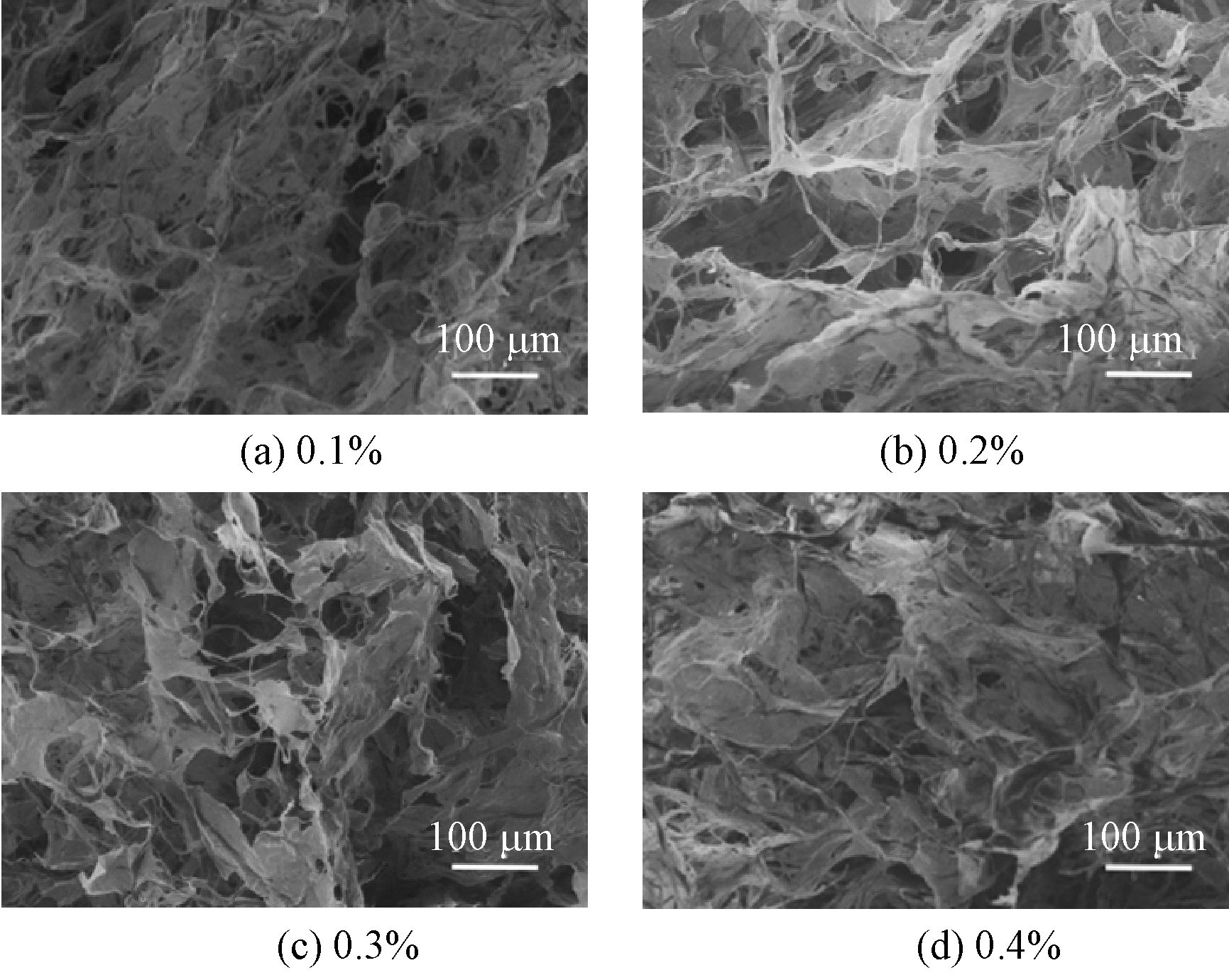

Fig.10

Morphology of aerogels with different fiber concentrations after 60 compression cycles"

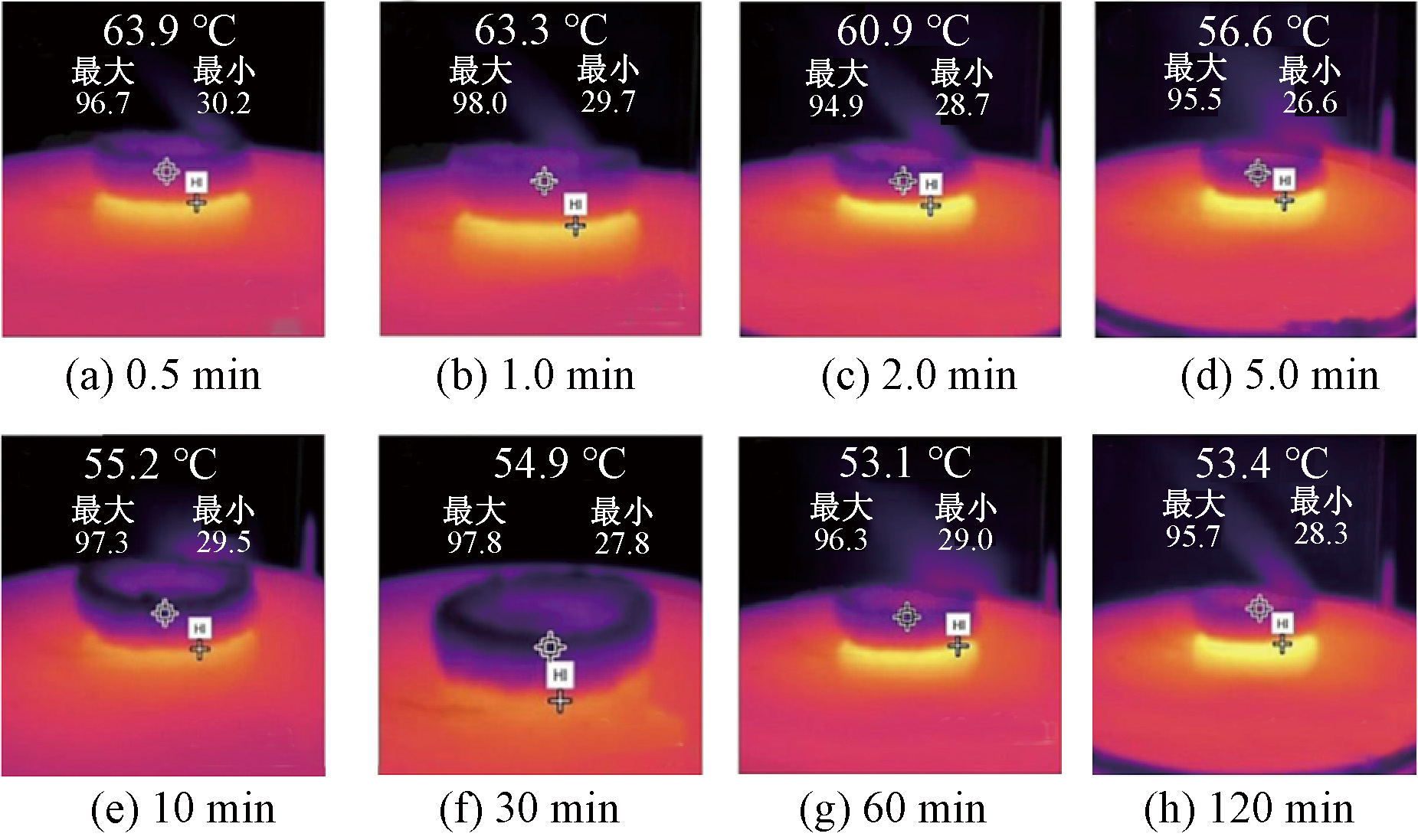

Fig.11

Infrared thermography of aerogels of different durations heated at same position"

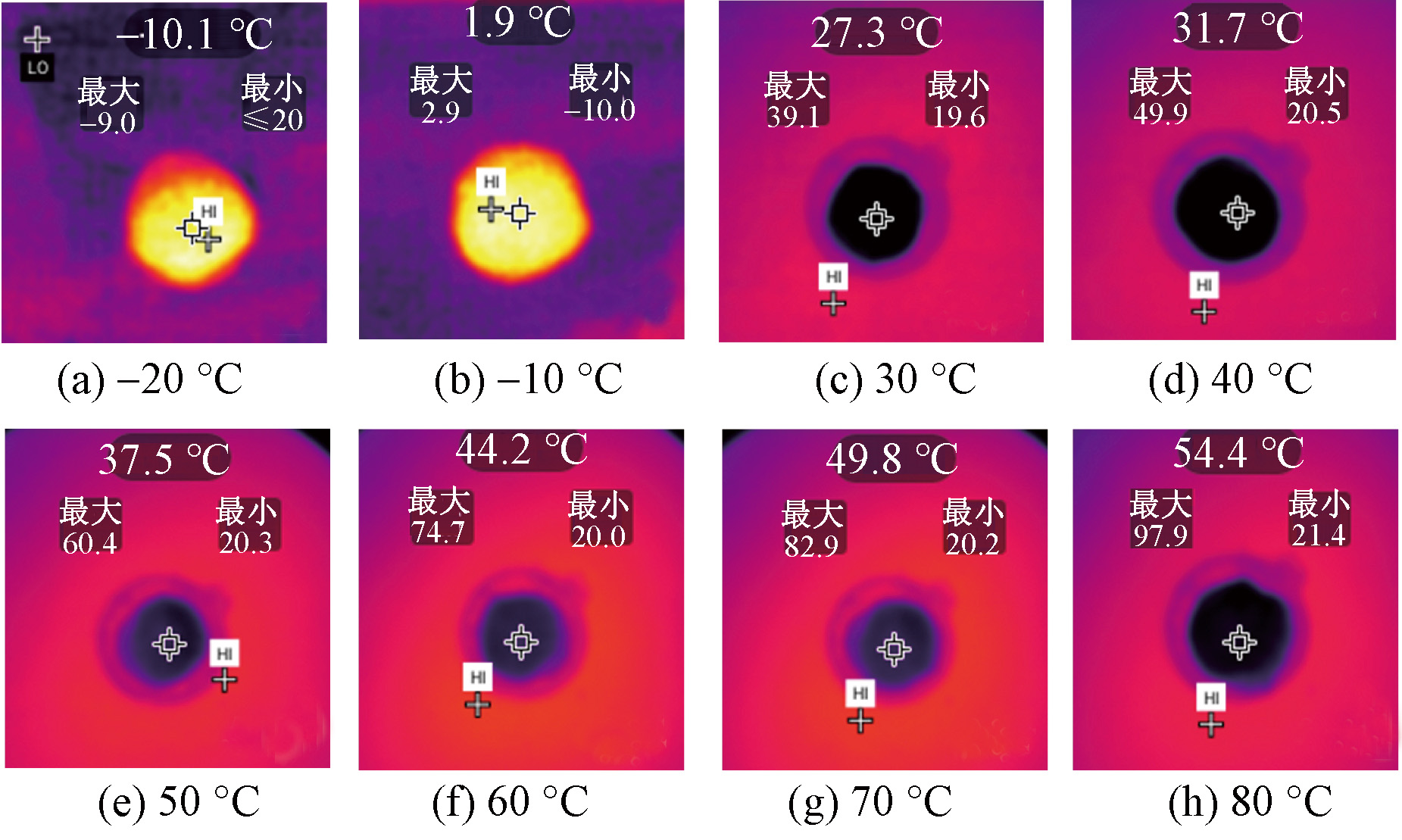

Fig.12

Infrared thermography of aerogels tested at different temperatures in same location"

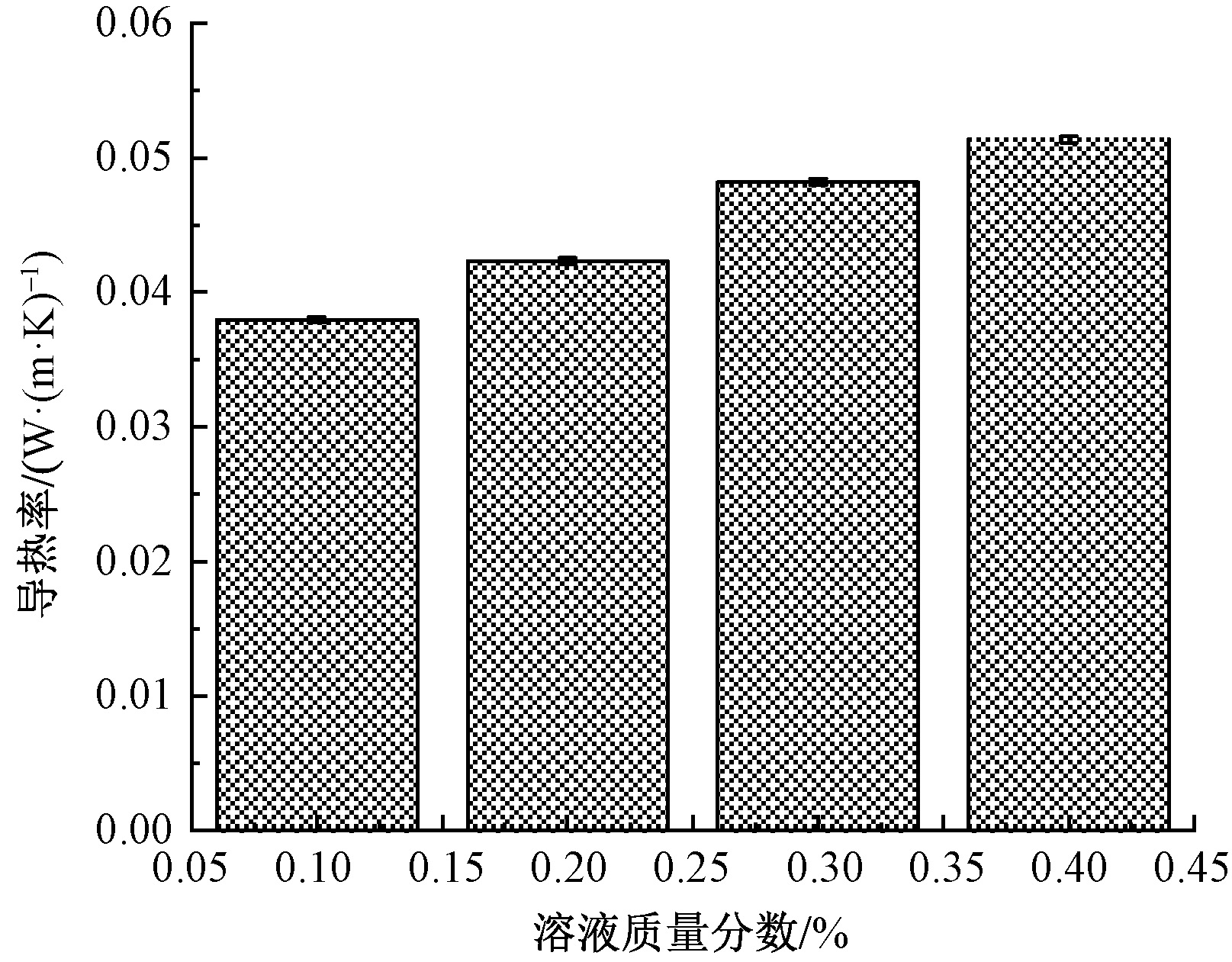

Fig.13

Thermal conductivity of aerogels with different fiber concentrations"

Tab.2

Comparison between thermal conductivity of flax cellulose aerogels and previously reported aerogels"

文献 导热系数/
(W·m-1·K-1)		 材料
[31] 0. 060 大麻
[32] 0.592 导热环氧树脂/石墨烯
[33] 0.056 二氧化硅
[34] 0.060 羽绒纤维
[35] 0.042 羧基纤维素
[36] 0.043 氮化硼纤维
[37] 0.052 甘蔗渣
[38] 0.057 废竹纤维
本文结果 0.038 2±0.000 2 废旧亚麻
