Journal of Textile Research ›› 2026, Vol. 47 ›› Issue (1): 20-28.doi: 10.13475/j.fzxb.20250404201

• Fiber Materials • Previous Articles     Next Articles

Preparation and properties of polyacrylonitrile-Prussian blue/lactic acid/ciprofloxacin photothermal responsive antibacterial dressings

ZHAO Jingwen, YUAN Xiangnan, GAO Jing(), WANG Lu

  1. College of Textiles, Donghua University, Shanghai 201620, China
  • Received:2025-04-25 Revised:2025-10-24 Online:2026-01-15 Published:2026-01-15
  • Contact: GAO Jing E-mail:gao2001jing@dhu.edu.cn

Abstract:

Objective In order to address the clinical challenges of increasing antibiotic resistance and the growing demand for precise antibacterial strategies in infected wound treatment, an intelligent dressing with high antibacterial efficacy and low resistance risk was developed. By integrating photothermal therapy (PTT) with controlled drug release technology, a photothermally responsive antibacterial nanofiber membrane was constructed. Near-infrared (NIR) light was utilized to trigger localized hyperthermia and synergistic drug release, achieving efficient antibacterial action while minimizing damage to healthy tissues.

Method The polyacrylonitrile-Prussian blue/lactic acid/ciprofloxacin (PAN-PB/LA/CIP) nanofiber membrane was prepared by electrospinning PAN with PB, LA, and CIP. A three-factor and three-level orthogonal experiment was adopted to optimize spinning parameters (concentration, voltage, distance). Morphology and photothermal properties were analyzed by scanning electron microscopy (SEM), Fourier transform infrared spectroscopy (FT-IR), and thermal imaging, while drug release profiles were obtained by measuring cumulative release rates. Antibacterial activity against S.aureus and E.coli with/without NIR irradiation was tested. Cytotoxicity was assessed via CCK-8.

Results The optimum electrospinning process parameters for preparing PAN-PB/LA/CIP fiber film were determined by three-factor and three-level orthogonal experiment, which are 14% spinning solution concentration, 15 cm receiving distance and 16 kV voltage. The fiber membrane prepared under these conditions showed a uniform structure, the average fiber diameter was stable at 270 nm without obvious beading phenomenon, and good air permeability. The SEM and FT-IR characterization results revealed that the average particle size of the prepared PB nanoparticles was (137.5±24.6) nm, which was consistent with the document. FT-IR analysis confirmed that all components of PAN-PB/LA/CIP fiber membrane were successfully prepared, PB, CIP, and PAN were physically mixed with each other and LA with chemical bonding reaction, ensuring the functional stability and better quality of the material. The fiber membrane showed good photothermal synergistic antibacterial properties: under the near-infrared light irradiation of 0.5 W/cm2, the fiber membrane temperature rapidly rose to 48.5 ℃ within 20 min and remained stable, which was significantly better than the pure PAN fiber membrane in the control group (the temperature rose by only 1.9 ℃), and had good photothermal activity. The photothermal conversion performance of the fiber membrane remained stable after three light cycles. When triggered by near-infrared light, the drug release behavior of the fiber membrane changed significantly, and the cumulative drug release at 24 h and 72 h reached 12.15% and 17.83%, respectively, compared to the non-light group (4.95% and 5.67%), indicating that the increase rate was more than three times, and the drug release rate was significantly accelerated and that the photothermal therapy dominated by the fiber membrane can significantly improve the therapeutic efficiency. The results of antibacterial experiment further confirmed its excellent antibacterial performance: under near-infrared light irradiation, the clearance rate of PAN-PB/LA/CIP fiber membrane against S.aureus and E.coli reached 100%. Multiple comparison results demonstrated that the incorporation of CIP significantly enhanced the antibacterial efficacy of the fiber membrane against both S.aureus and E.coli, with a statistically significant difference (P<0.05) between the NIR-irradiated group and the control group. The PAN-PB/LA/CIP nanofiber membrane, which combines photothermal and antibacterial effects, exhibited outstanding antibacterial performance under NIR irradiation. Moreover, cytotoxicity assessment (cell viability > 90%) confirmed its excellent biocompatibility.

Conclusion A photothermally responsive PAN-PB/LA/CIP composite antibacterial dressing was successfully developed, which achieves synergistic antibacterial action through localized hyperthermia and controlled drug release. Optimized spinning parameters ensured structural stability and air permeability. NIR-triggered heating (48.5 ℃) combined with rapid drug release significantly enhanced antibacterial efficiency (100% clearance) while avoiding thermal damage to tissues. The dressing demonstrates potential for constructing antibacterial microenvironments in infected wounds, providing a foundation for self-adaptive wound treatment systems.In the future, it is necessary to further optimize the ratio of materials, explore in vivo experiments and long-term biocompatibility, and promote its clinical development.

Key words: antibacterial dressing, photothermal response, electrospinning, phase change material, drug controlled release, nanofiber membrane, smart dressing

CLC Number:

  • TS106.6

Tab.1

Level table of orthogonal test factors"

水平 纺丝液质量分数/% 纺丝电压/kV 接收距离/cm
1 10 12 12
2 12 14 15
3 14 16 18

Tab.2

Table of process experiment schemes"

试验序号 纺丝液质量分数/% 纺丝电压/kV 接收距离/cm
#1 10 12 12
#2 10 14 15
#3 10 16 18
#4 12 12 15
#5 12 14 18
#6 12 16 12
#7 14 12 18
#8 14 14 12
#9 14 16 15

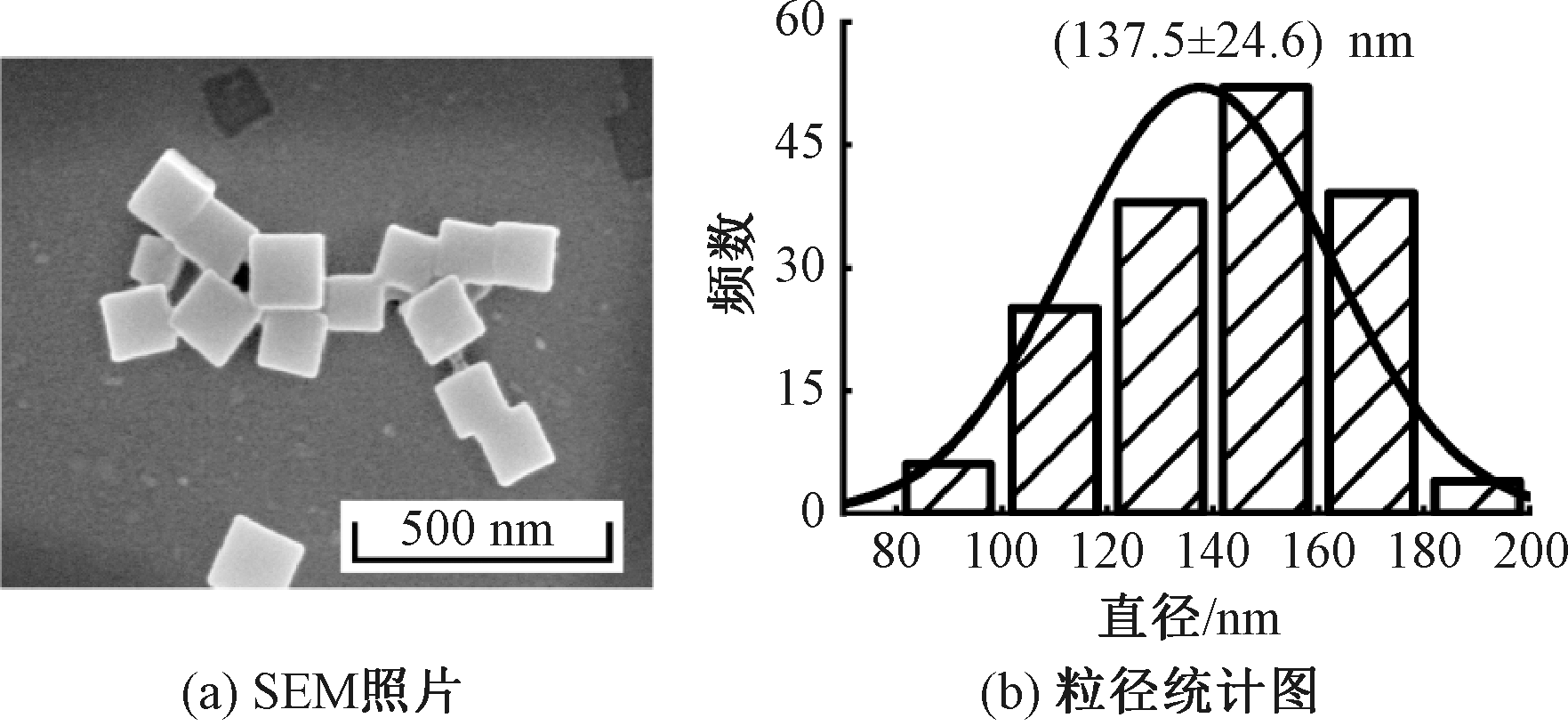

Fig.1

PBNPs morphology and particle size distribution. (a) SEM image; (b) Statistical chart of particle size"

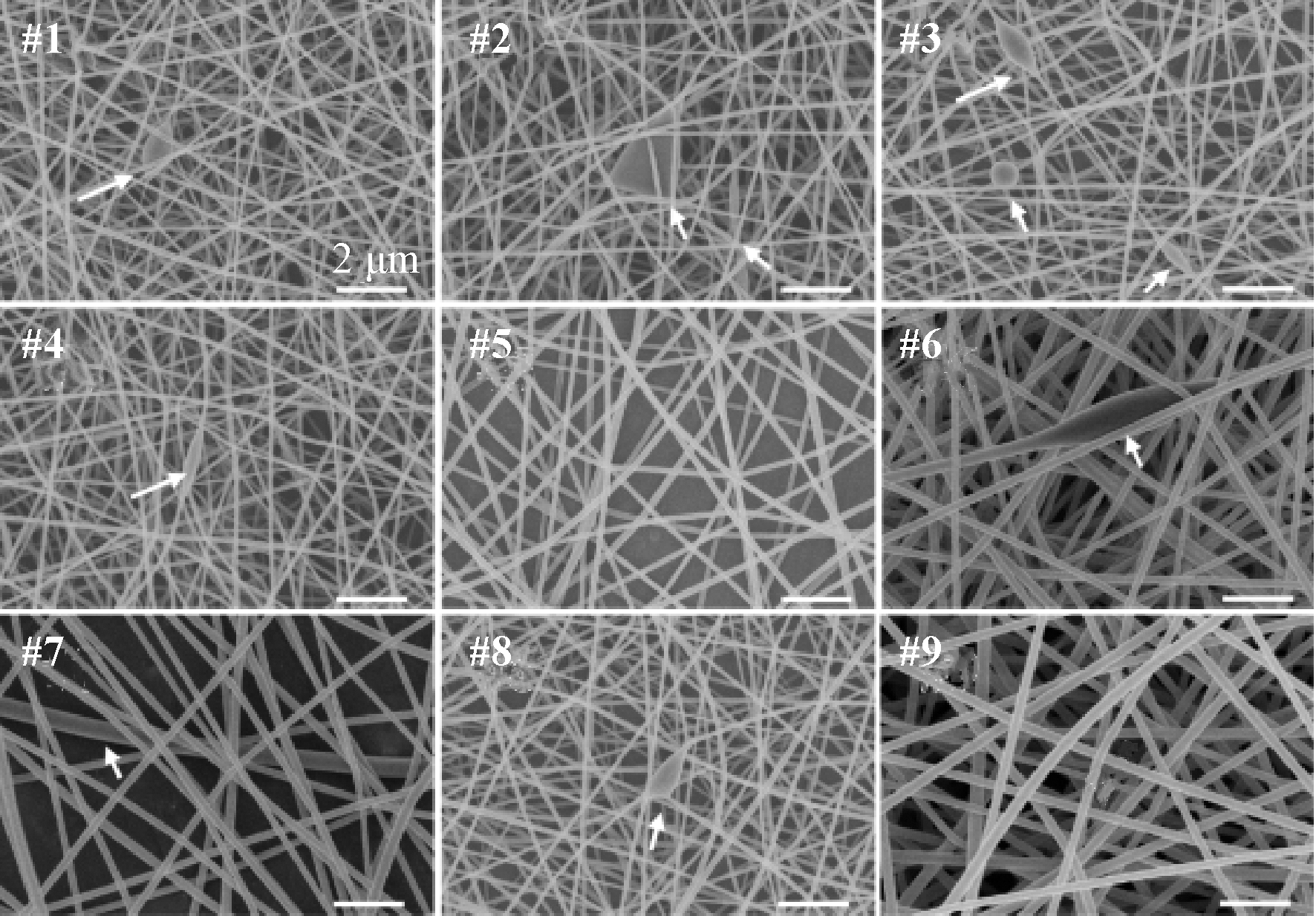

Fig.2

SEM images of orthognal test samples(×5 000)"

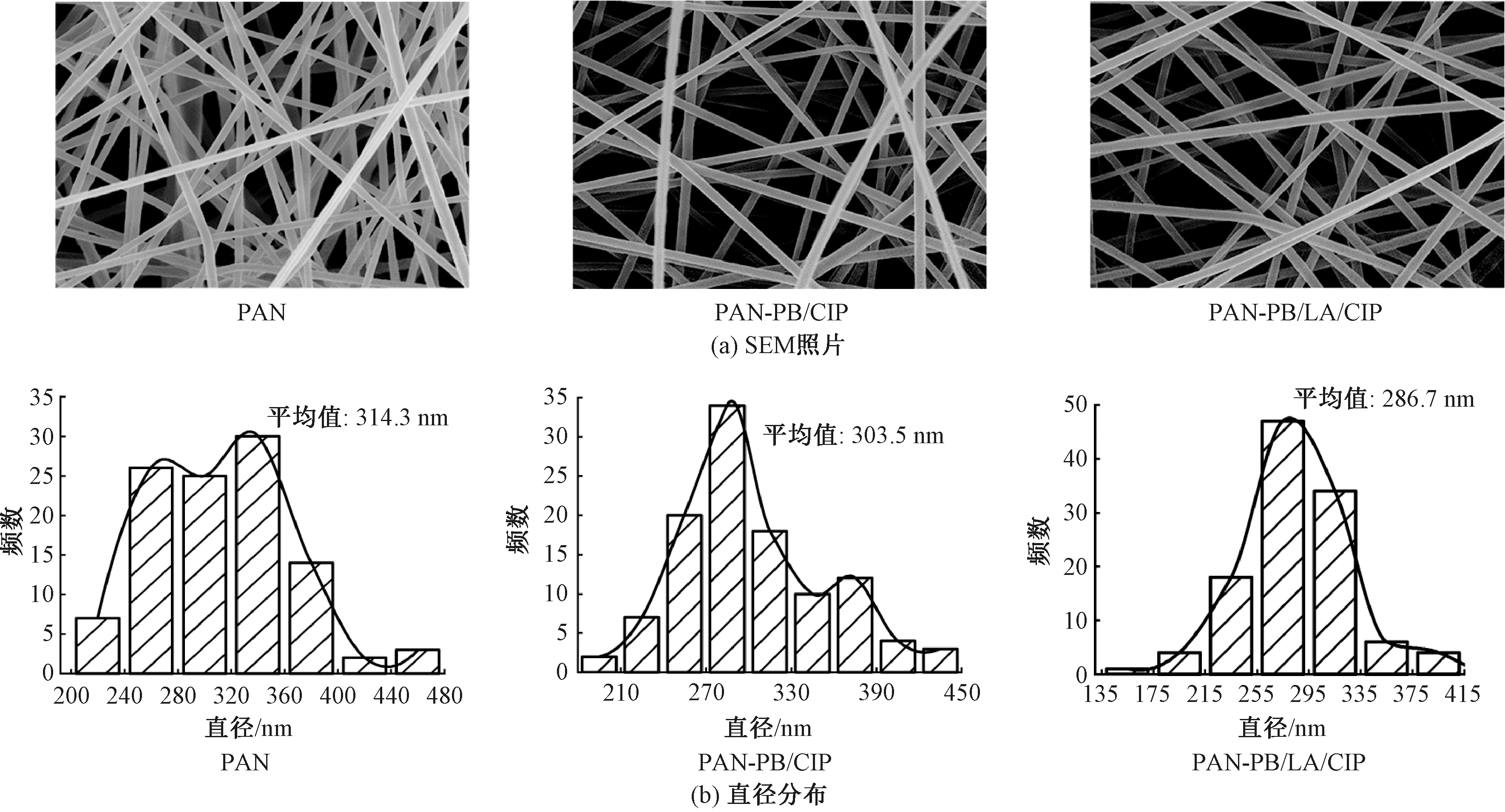

Fig.3

SEM images (a) and diameter distribution (b) of different fibers prepared under optimal process conditions"

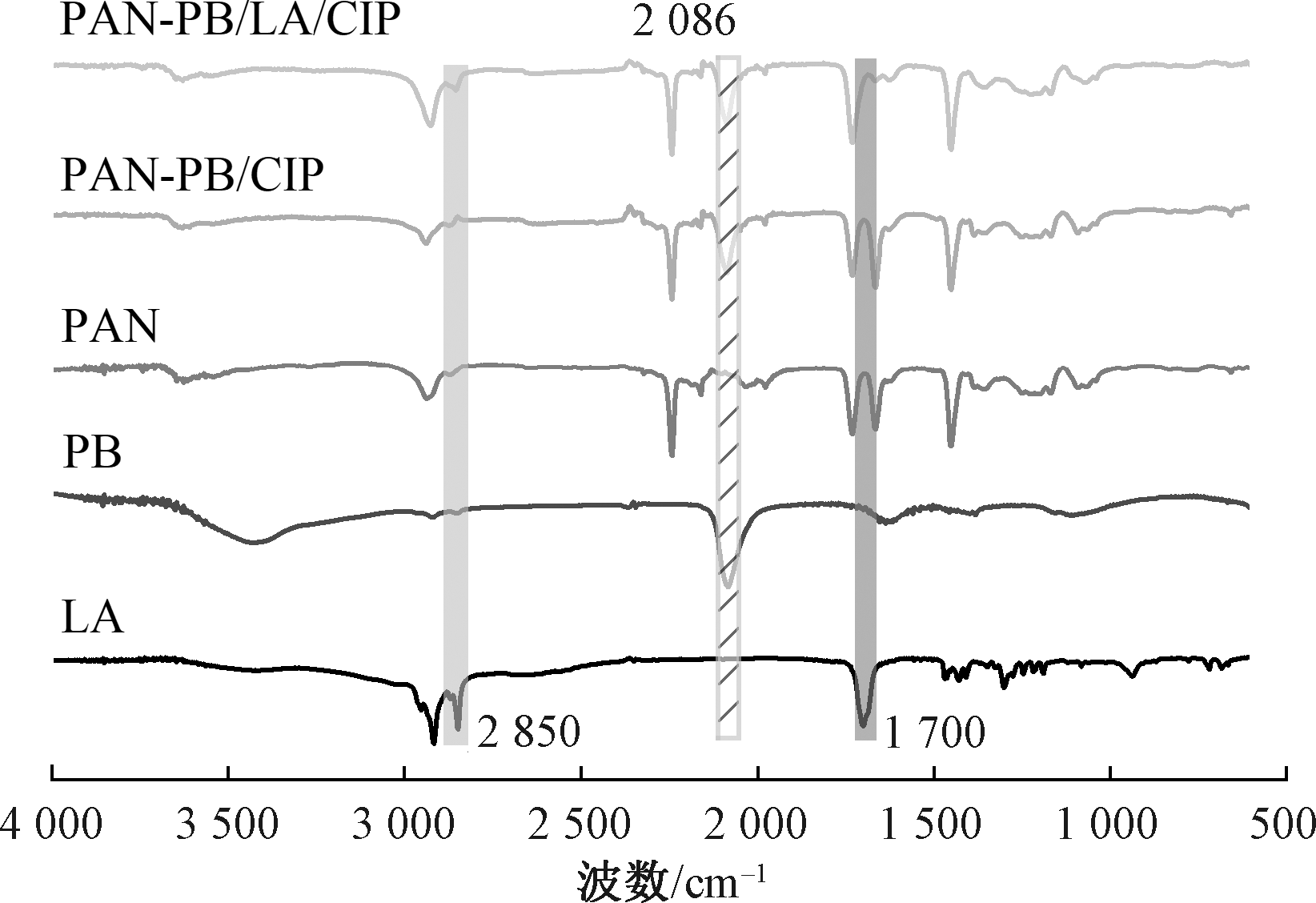

Fig.4

FT-IR spectra of different particles and fiber membranes"

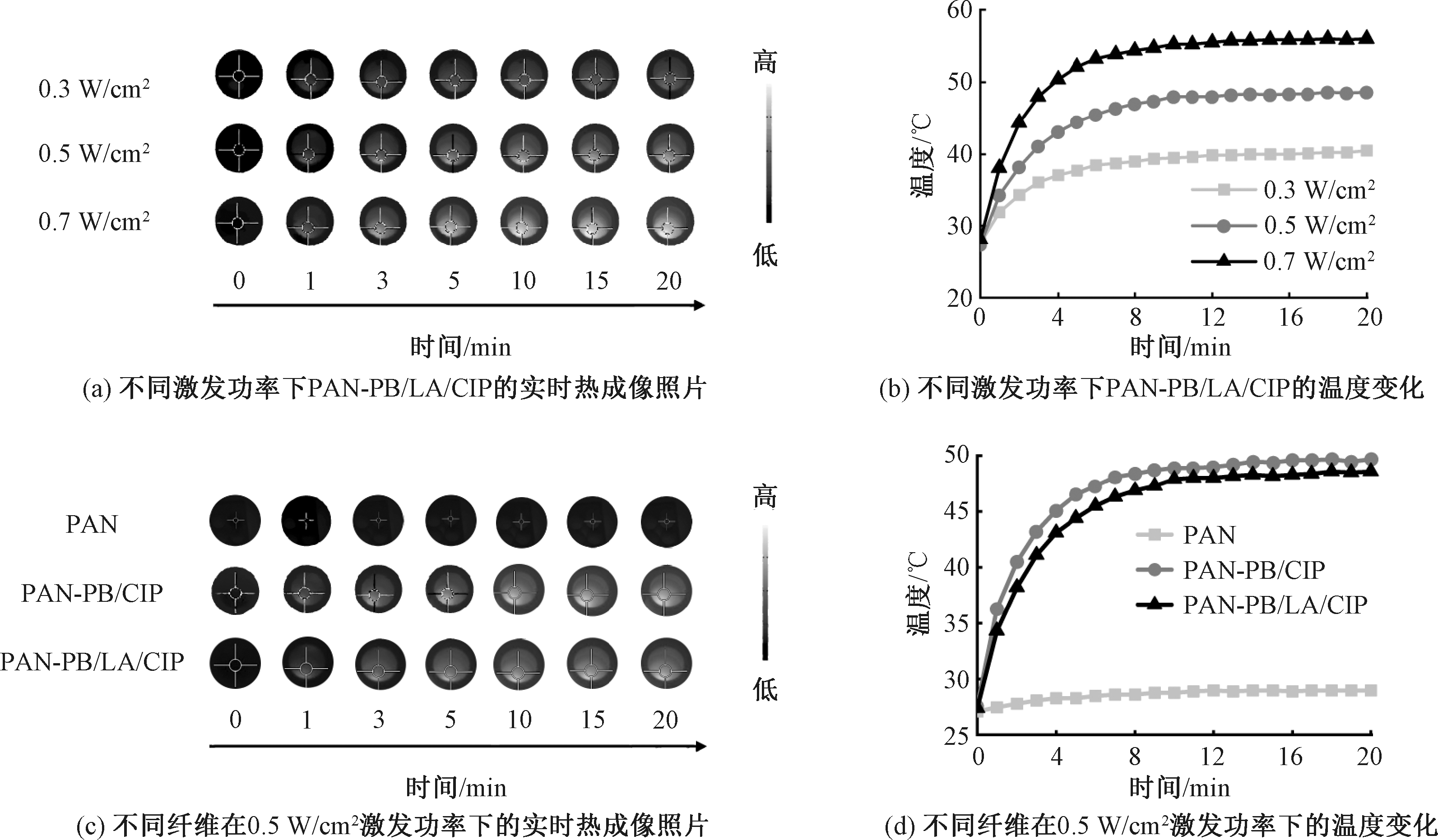

Fig.5

Photothermal properties of fiber membranes. (a) Real-time thermal imaging photos of PAN-PB/LA/CIP under different excitation powers; (b) Temperature changes of PAN-PB/LA/CIP under different excitation powers; (c) Real-time thermal imaging photos of different fibers under 0.5 W/cm2 excitation power; (d) Temperature changes of different fibers under 0.5 W/cm2 excitation power"

Fig.6

Photothermal repetition curves of PAN-PB/LA/CIP fiber membrane"

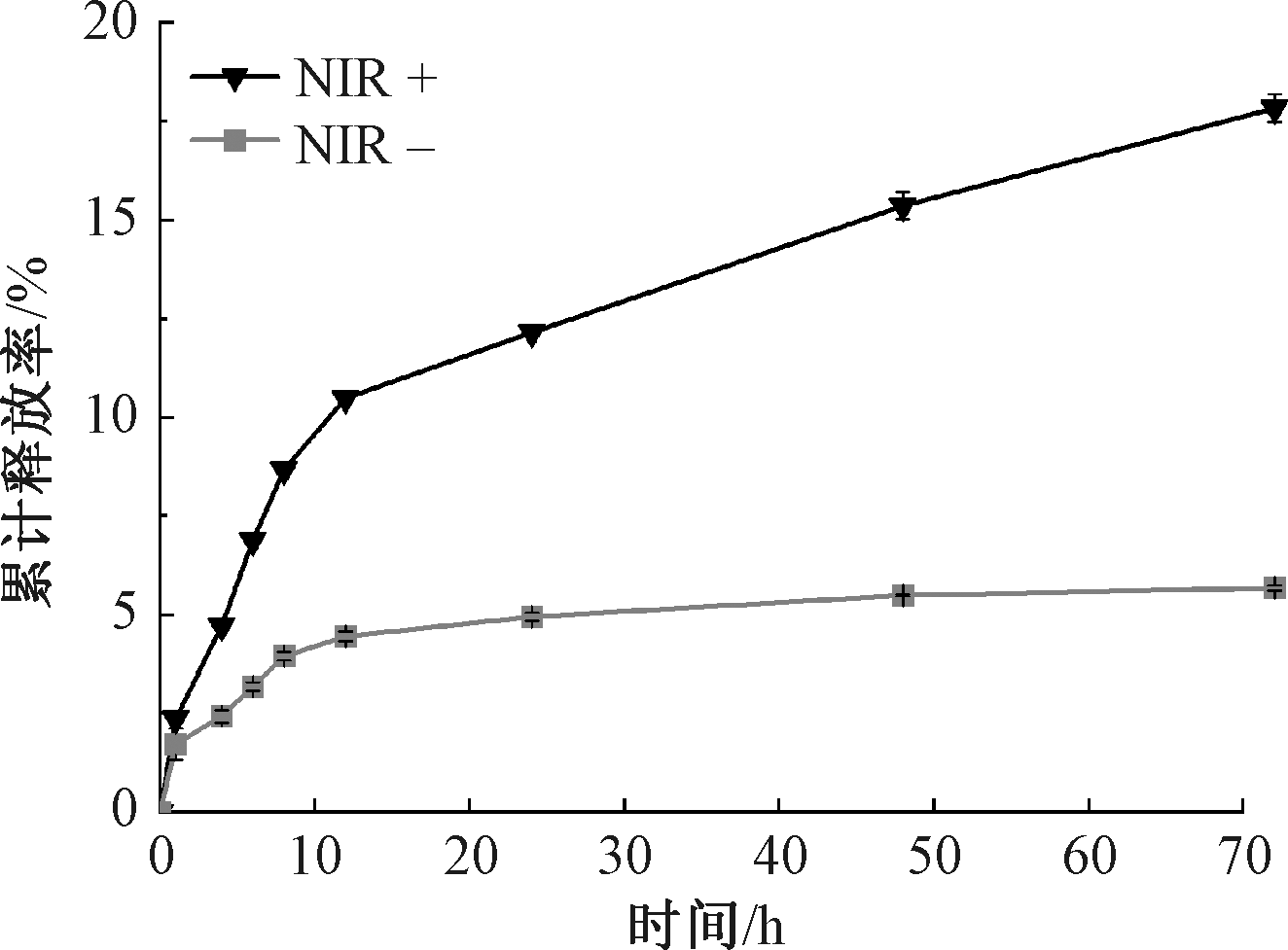

Fig.7

Drug release properties of PAN-PB/LA/CIP"

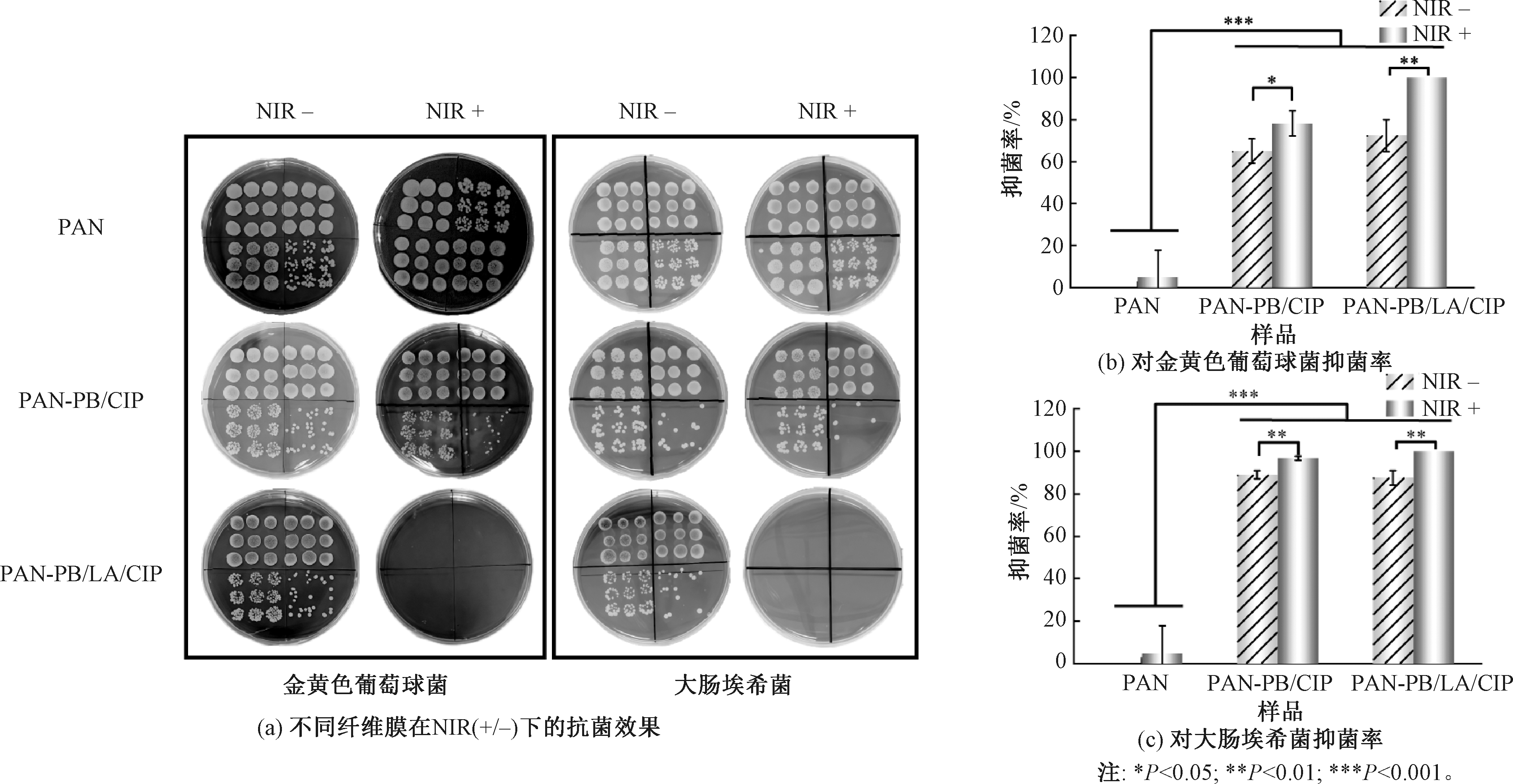

Fig.8

Antibacterial properties of fiber membrane. (a) Antibacterial effect of different fiber membranes under NIR(+/-) irradiation; (b) Antibacterial rate against S.aureus; (c) Antibacterial rate against E.coli"

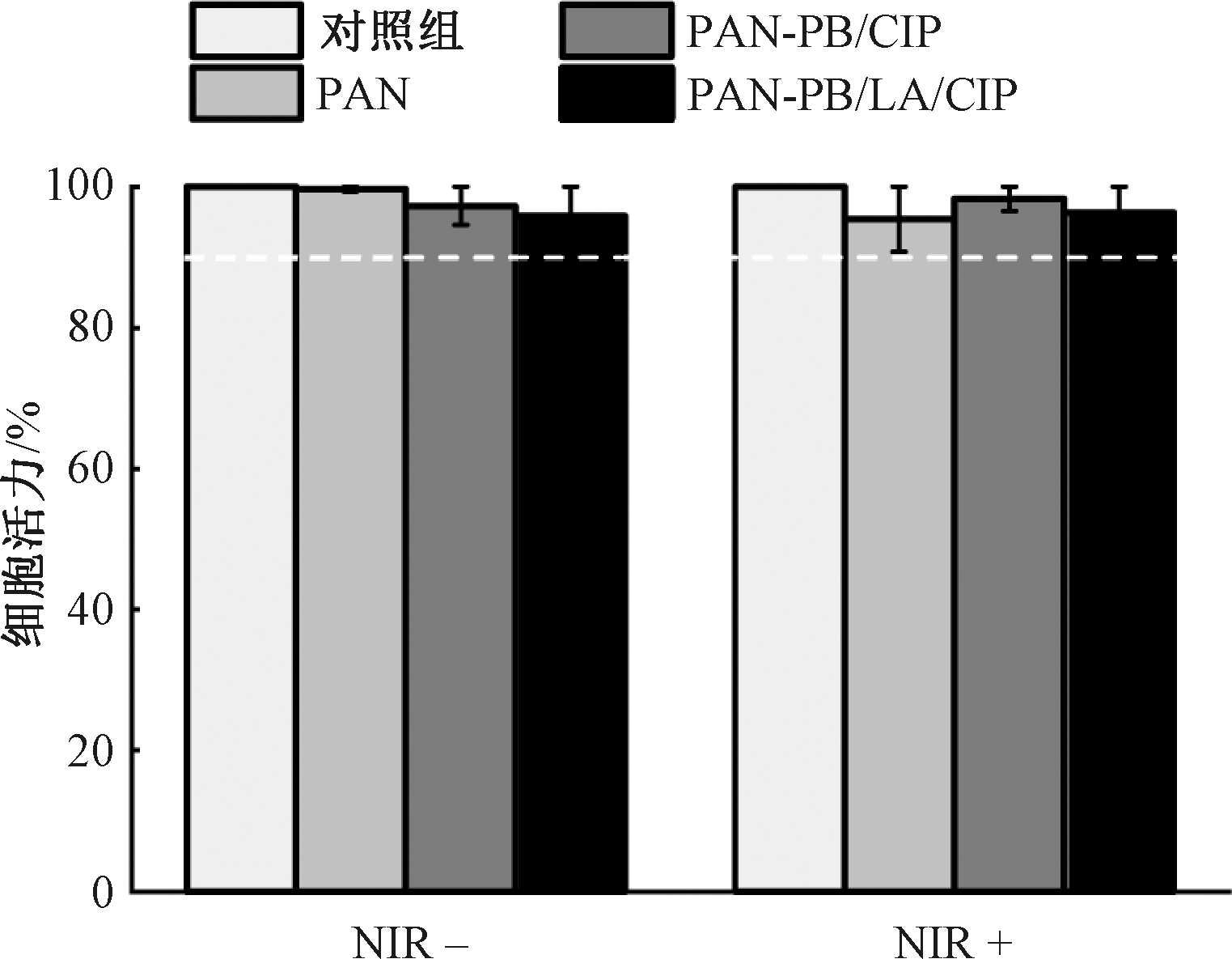

Fig.9

Cytotoxicities of fiber membranes"

[1] WANG C R, SHIRZAEI SANI E, SHIH C D, et al. Wound management materials and technologies from bench to bedside and beyond[J]. Nature Reviews Materials, 2024, 9(8): 550-566.
doi: 10.1038/s41578-024-00693-y pmid: 40535534
[2] 胡晨晨, 艾金伟, 李德胜. 慢性创面治疗的研究进展[J]. 数理医药学杂志, 2024, 37(4): 293-302.
HU Chenchen, AI Jinwei, LI Desheng. Research progress in the treatment of chronic wounds[J]. Journal of Mathematical Medicine, 2024, 37(4): 293-302.
[3] 袁香楠, 谭绍洁, 高晶, 等. 靶向光热抗菌纳米材料及其在伤口愈合中的应用研究进展[J]. 生物医学工程学杂志, 2022, 39(1): 207-216.
YUAN Xiangnan, TAN Shaojie, GAO Jing, et al. Research progress about photothermal nanomaterials with targeted antibacterial properties and their applications in wound healing[J]. Journal of Biomedical Engineering, 2022, 39(1): 207-216.
doi: 10.7507/1001-5515.202103022 pmid: 35231983
[4] YAN S R, XU S, WANG Y, et al. A hydrogel dressing comprised of silk fibroin, Ag nanoparticles, and reduced graphene oxide for NIR photothermal-enhanced antibacterial efficiency and skin regeneration[J]. Advanced Healthcare Materials, 2024, 13(23): 2400884.
doi: 10.1002/adhm.v13.23
[5] LIN P R, HE K T, LUO J H, et al. Multifunctional nanofiber system with photothermal-controlled drug delivery and motion monitoring capabilities as intelligent wound dressing[J]. Chemical Engineering Journal, 2025, 503: 158544.
doi: 10.1016/j.cej.2024.158544
[6] 张晓宇, 韦善文, 方佳炜, 等. 普鲁士蓝纳米粒子抗氧化恢复退变髓核细胞线粒体功能[J]. 中国组织工程研究, 2025, 29(34): 7318-7325.
ZHANG Xiaoyu, WEI Shanwen, FANG Jiawei, et al. Prussian blue nanoparticles restore mitochondrial function in nucleus pulposus cells through anti-oxidation[J]. Chinese Journal of Tissue Engineering Research, 2025, 29(34): 7318-7325.
[7] 梁家玮, 孙婉莹, 罗刘睿麒, 等. 刺激响应型纳米酶及其原位催化增强肿瘤治疗[J]. 广西师范大学学报(自然科学版), 2022, 40(5): 300-306.
LIANG Jiawei, SUN Wanying, LUO Liuruiqi, et al. Stimulus-responsive nanozymes and their in situ catalytic enhancement of tumor therapy[J]. Journal of Guangxi Normal University (Natural Science Edition), 2022, 40(5): 300-306.
[8] 吴洋, 刘方恬, 曹孟杰, 等. 生物质纤维医用敷料研究进展[J]. 纺织学报, 2022, 43(3): 8-16.
WU Yang, LIU Fangtian, CAO Mengjie, et al. Progress in biomass fiber medical dressings[J]. Journal of Textile Research, 2022, 43(3): 8-16.
[9] 王诗雨, 赵玲, 古雅洁, 等. 生物医用伤口敷料的材料及结构设计研究进展[J]. 纺织科学与工程学报, 2025, 42(3): 69-78.
WANG Shiyu, ZHAO Ling, GU Yajie, et al. Research progress in materials and structural design of biomedical wound dressing[J]. Journal of Textile Science and Engineering, 2025, 42(3): 69-78.
[10] YANG J, YANG F L, XU W H, et al. Composite hydrogel dressing with drug-release capability and enhanced mechanical performance[J]. Biomacromolecules, 2025, 26(9): 5715-5726.
doi: 10.1021/acs.biomac.5c00505
[11] 徐德军. 基于静电纺丝技术的纳米纤维抗菌伤口敷料的研究[D]. 长春: 吉林大学, 2024:3-10.
XU Dejun. Study on antibacterial wound dressing of nanofiber based on electrospinning technology[D]. Changchun: Jilin University, 2024:3-10.
[12] 张博亚, 李佳慧, 张如全, 等. 静电纺聚丙烯腈/硫酸铜纳米纤维膜的制备及其性能[J]. 纺织学报, 2018, 39(7): 15-20.
ZHANG Boya, LI Jiahui, ZHANG Ruquan, et al. Preparation and properties of electrospun polyacrylonitrile/copper sulfate nanofibrous membrane[J]. Journal of Textile Research, 2018, 39(7): 15-20.
doi: 10.1177/004051756903900103
[13] 张书鹏, 程友星, 任磊, 等. 不同形貌普鲁士蓝纳米粒子的合成及光热性能[J]. 高等学校化学学报, 2018, 39(2): 359-366.
doi: 10.7503/cjcu20170116
ZHANG Shupeng, CHENG Youxing, REN Lei, et al. Reparation and photothermal properties of Prussian blue nanoparticles with different morphologies†[J]. Chemical Journal of Chinese Universities, 2018, 39(2): 359-366.
doi: 10.7503/cjcu20170116
[14] 徐瑞芳, 谢晓静, 高晶, 等. 敷料用介孔硅基盐酸环丙沙星缓释颗粒的制备及性能[J]. 东华大学学报(自然科学版), 2019, 45(2): 256-262, 269.
XU Ruifang, XIE Xiaojing, GAO Jing, et al. Preparation and properties of control-released particles of ciprofloxacin hydrochloride loaded mesoporous silica for wound dressing[J]. Journal of Donghua Univer-sity (Natural Science), 2019, 45(2): 256-262, 269.
[15] JIA X Q, CAI X J, CHEN Y, et al. Perfluoropentane-encapsulated hollow mesoporous Prussian blue nanocubes for activated ultrasound imaging and photothermal therapy of cancer[J]. ACS Applied Materials & Interfaces, 2015, 7(8): 4579-4588.
[16] LI D Y, LIU M, LI W Y, et al. Synthesis of Prussian blue nanoparticles and their antibacterial, antiinflammation and antitumor applications[J]. Pharmaceuticals, 2022, 15(7): 769.
doi: 10.3390/ph15070769
[17] MING H, TORAD N L K, CHIANG Y D, et al. Size-and shape-controlled synthesis of Prussian Blue nanoparticles by a polyvinylpyrrolidone-assisted crystallization process[J]. CrystEngComm, 2012, 14(10): 3387-3396.
doi: 10.1039/c2ce25040c
[18] 张帅. 高性能聚醚砜超滤膜的制备及其性能研究[D]. 上海: 上海工程技术大学, 2020.
ZHANG Shuai. Preparation and properties of high performance polyethersulfone ultrafiltration membrane[D]. Shanghai: Shanghai University of Engineering Science, 2020.
[19] 段红梅, 汪希铭, 黄子欣, 等. 纤维基介孔SiO2药物载体的构建及其释药性能[J]. 纺织学报, 2020, 41(7): 15-22.
DUAN Hongmei, WANG Ximing, HUANG Zixin, et al. Construction and drug release properties of fiber-based mesoporous SiO2 drug carrier[J]. Journal of Textile Research, 2020, 41(7): 15-22.
[20] 王粉粉, 王芃, 牛洪瑶, 等. 固体NMR研究PAA/PEO共混物中氢键相互作用与结构演化[J]. 物理化学学报, 2020, 36(4): 130-139.
WANG Fenfen, WANG Peng, NIU Hongyao, et al. Solid-state NMR studies on hydrogen bonding interactions and structural evolution in PAA/PEO blends[J]. Acta Physico-Chimica Sinica, 2020, 36(4): 130-139.
[21] ZHANG J Y, WANG F, SUN Z G, et al. Multidimensional applications of Prussian blue-based nanoparticles in cancer immunotherapy[J]. Journal of Nanobiotechnology, 2025, 23(1): 161.
doi: 10.1186/s12951-025-03236-x pmid: 40033359
[22] QIANG L, JIN H S, FENG Y H, et al. Apoptosis-like bacterial death modulated by photoactive hyperthermia nanomaterials and enhanced wound disinfection application[J]. Nanoscale, 2021, 13(35): 14785-14794.
doi: 10.1039/d1nr02881b pmid: 34533172
[23] LIU Q Y, SHI S S, LIU S L, et al. Antibacterial activity and mechanism of lauric acid against Staphylococcus aureus and its application in infectious cooked chicken[J]. Foodborne Pathogens and Disease, 2024, 21(12): 766-773.
doi: 10.1089/fpd.2024.0063
[24] WANG Y M, YANG P L, WANG Y Y, et al. Thrombin-anchored bacterial cellulose dressing for advanced burn wound care[J]. Advanced Materials, 2025, 37(41): e20338.
doi: 10.1002/adma.v37.41
[25] 吴先睿, 邱晓慧, 李伟栋, 等. Cu-Fe-Zn合金微丝敷料抗菌性能、生物相容性的实验研究及其对伤口愈合的疗效观察[J]. 中国医师杂志, 2023, 25(7): 1034-1040.
WU Xianrui, QIU Xiaohui, LI Weidong, et al. Experimental study on antibacterial properties and biocompatibility of Cu-Fe-Zn alloy microfilament dressings and their therapeutic effects on wound heal-ing[J]. Journal of Chinese Physician, 2023, 25(7): 1034-1040.
