Journal of Textile Research ›› 2026, Vol. 47 ›› Issue (06): 131-139.doi: 10.13475/j.fzxb.20251103901

• Dyeing and Finishing Engineering • Previous Articles     Next Articles

Preparation and antibacterial activity of copper(I) oxide-loaded aminated polyacrylonitrile fibers

LI Qingyuan1,2, PANG Xiwei1, DUAN Wenjie1, KOU Lidong1,3, WANG Jing1(), ZHANG Zhongliang2

  1. 1 Henan International Joint Laboratory of Environmental Functional FibersHenan Academy of Sciences Chemical Research Institute Co., Ltd., ZhengzhouHenan 450008, China
    2 School of Materials Science and EngineeringZhengzhou University, ZhengzhouHenan 450001, China
    3 School of Environmental EconomicsHenan University of Finance and Economics, ZhengzhouHenan 450046, China
  • Received:2025-11-24 Revised:2026-04-21 Online:2026-06-15 Published:2026-08-19
  • Contact: WANG Jing E-mail:wangj12@163.com

Abstract:

Objective The threat posed by bacterial and drug-resistant infections necessitates advanced antibacterial materials. This study enhances the efficacy of aminated polyacrylonitrile fibers through loading copper oxide nanoparticles, aiming to achieve high performance against MRSA and to elucidate the associated antibacterial mechanisms.

Method Aminated polyacrylonitrile fibers were functionalized with copper ions and in-situ reduced using ascorbic acid to deposit copper oxide nanoparticles. The composites were characterized by SEM, FT-IR, XRD and XPS. Antibacterial activity against E. coliS. aureusK. pneumoniaeE. faecalisC. albicans and MRSA was evaluated via shaking flask assays. Mechanism studies included copper release measurement, Zeta potential analysis, bacterial morphology observation (SEM/TEM) and extracellular K+ detection.

Results A series of Cu2O-loaded aminated polyacrylonitrile fibers were successfully synthesized. SEM analysis revealed that the smooth surface of pristine APAN fibers became progressively rougher with the incorporation of irregular spherical nanostructures upon Cu2O loading. The sample with the best antibacterial performance was labeled as APC-30, and it exhibited the most homogeneous distribution of Cu2O nanoparticles, with sizes ranging between 50-100 nm. FT-IR and XRD confirmed the successful coordination of copper and the presence of crystalline Cu2O, with XRD peaks corresponding to (110), (111), (200), (220), and (311) planes. XPS analysis indicated the co-existence of both Cu(I) and Cu(II) species on the fiber surface, with APC-30 showing an optimal balance. Antibacterial assessments demonstrated outstanding performance. Within 2 h, the APC-30 fiber achieved inhibition rates of 97.65% against E. coli, 95.75% against S. aureus, 99.46% against K. pneumoniae, 99.35% against E. faecalis, 95.20% against C. albicans, and 93.96% against MRSA. Notably, against the high-risk pathogen MRSA at a concentration of 7×108 CFU/mL, a dose of only 2.5 g/L of APC-30 resulted in a 99.98% reduction. Durability tests affirmed excellent wash resistance; after 30 laundering cycles, APC-30 retained antibacterial rates above 91% for E. coli and 88% for S. aureus. Mechanistic studies revealed a multi-modal action. APC-30 demonstrated a controlled copper ion release (up to 4.385 mg/L in solution), which directly compromised bacterial membrane integrity as visualized via SEM/TEM, showing cell shrinkage, rupture, and deformation. The fiber surface possessed a positive Zeta potential (+18.7 mV), facilitating electrostatic attraction with negatively charged bacterial cells. Furthermore, a significant increase in extracellular K+ concentration was detected after contact with APC-30, confirming cytoplasmic leakage and loss of membrane integrity. The synergistic effect between released copper ions and surface electrostatic interaction is proposed as the core antibacterial mechanism.

Conclusion This study successfully developed a high-performance antibacterial fiber composite by grafting amination and in-situ loading of Cu2O nanoparticles onto polyacrylonitrile fibers. The optimized APC-30 fiber exhibited exceptional, rapid, and broad-spectrum antibacterial activity, including potent efficacy against drug-resistant MRSA, while maintaining remarkable durability through repeated washing. The antibacterial function is attributed to a synergistic mechanism involving controlled release of bactericidal copper ions, direct physical damage to microbial membranes, and electrostatic adhesion between fiber and cells. These findings underscore the potential of Cu2O/APAN c

Key words: functional fiber, cuprous oxide, polyacrylonitrile, antibacterial property, antibacterial mechanism, broad-spectrum antibacterial, modified fiber

CLC Number:

  • TS102

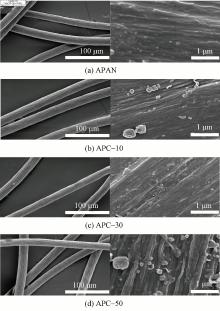

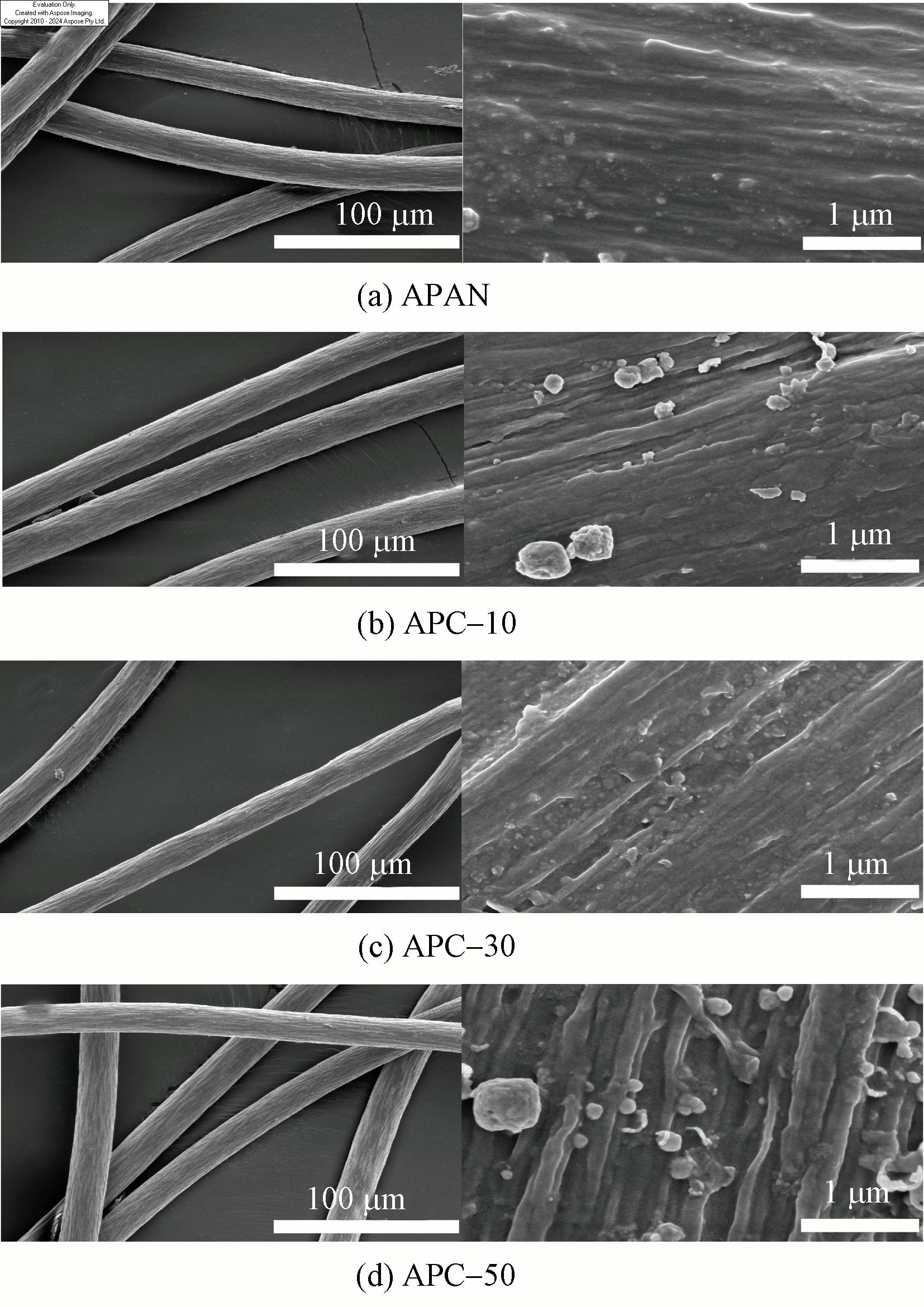

Fig.1

Surface SEM images of composite fiber"

Fig.2

FT-IR spectra(a), XRD pattern(b), overall graph of full-scan XPS spectra(c), and high-resolution Cu 2p energy spectrum(d)of composite fibers"

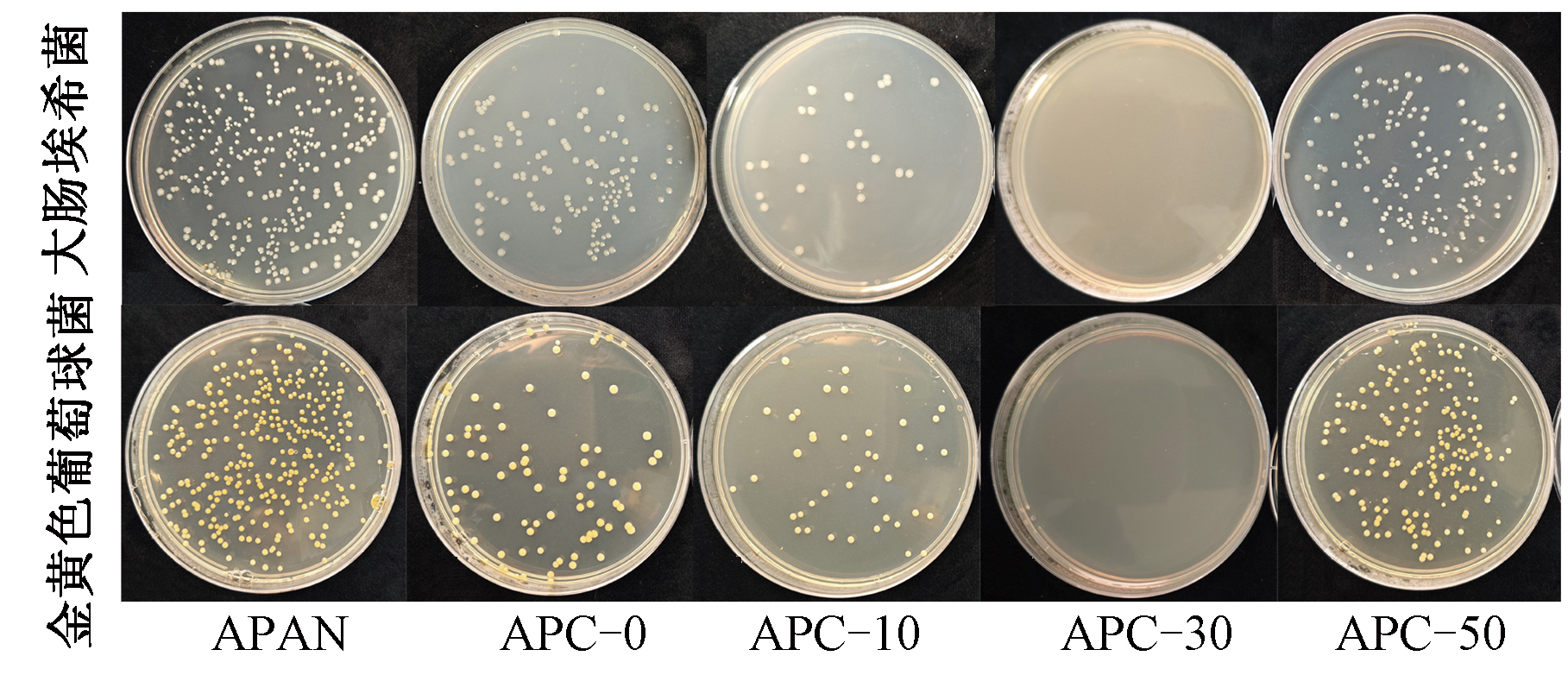

Fig.3

Plate counting results of E. coli and S. aureus after co-culture with different samples for 18 h"

Tab.1

Antibacterial rate of composite fibers"

菌种 抗菌率/%
APAN APC-0 APC-10 APC-30 APC-50
大肠埃希菌 78.3 93.9 98.3 100 95.1
金黄色葡萄球菌 81.3 92.5 98.5 100 95.7

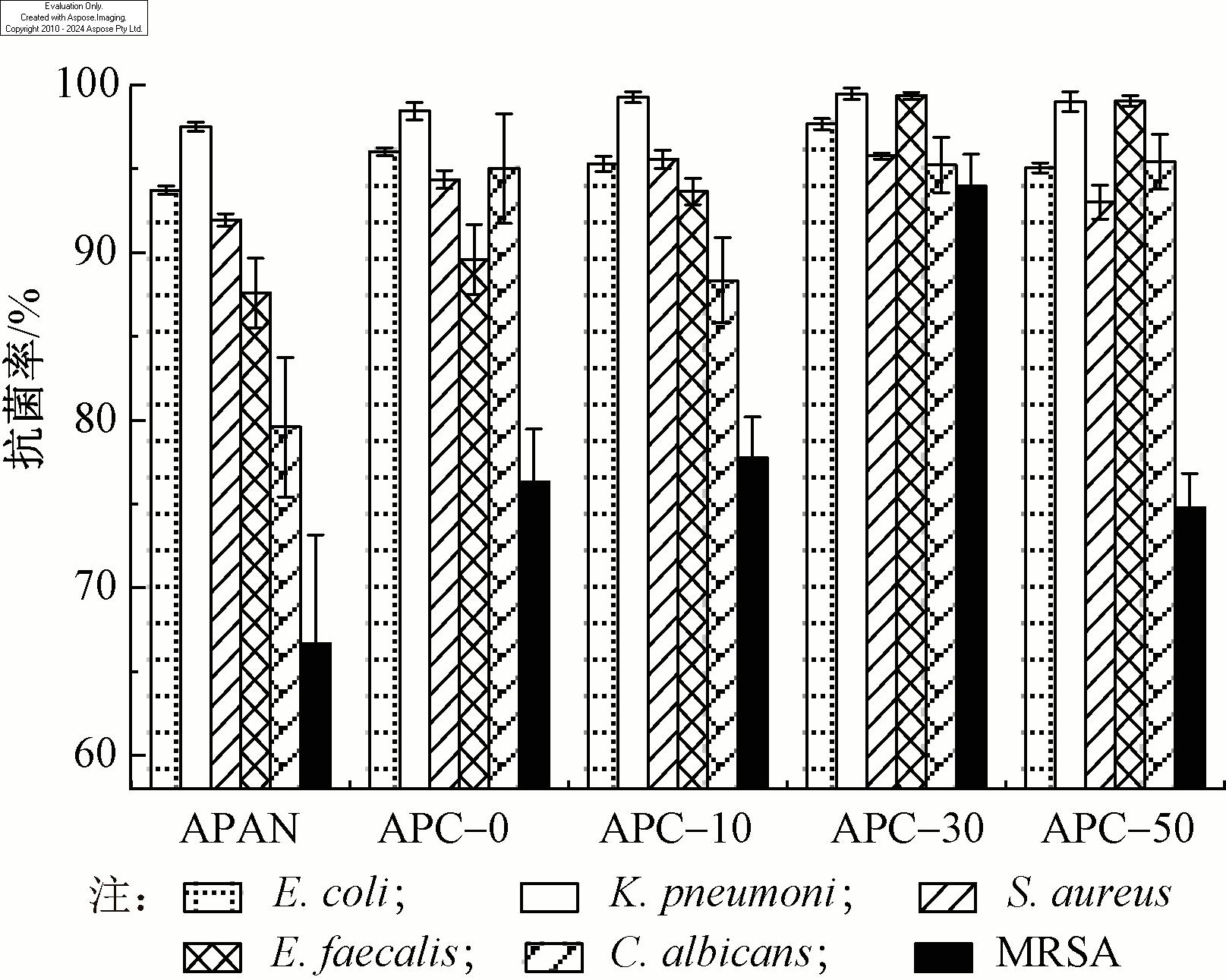

Fig.4

Antibacterial activity of composite fibers against different bacteria for 2 h"

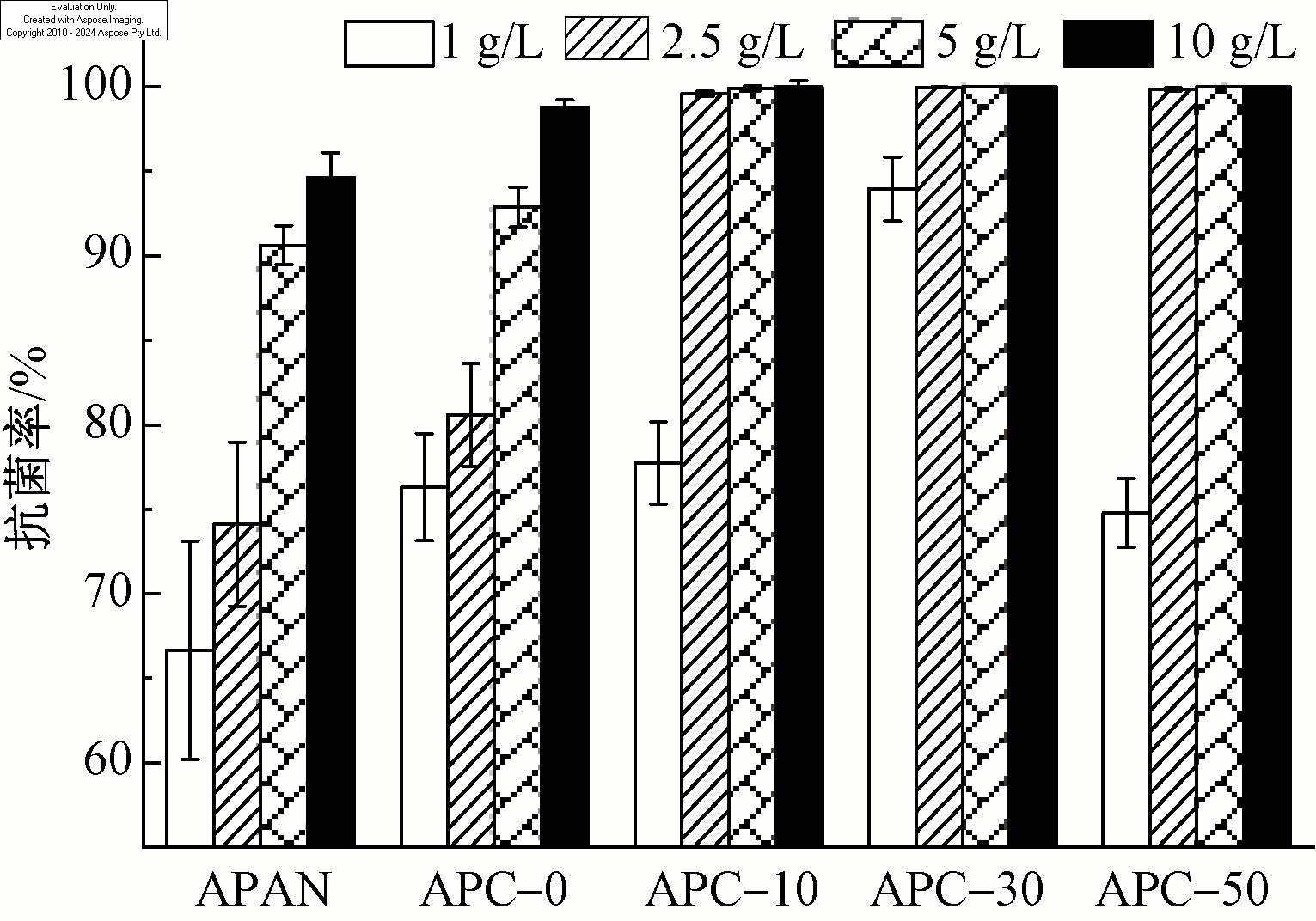

Fig.5

Antibacterial rates of different samples against MRSA as amount of fibers added changes"

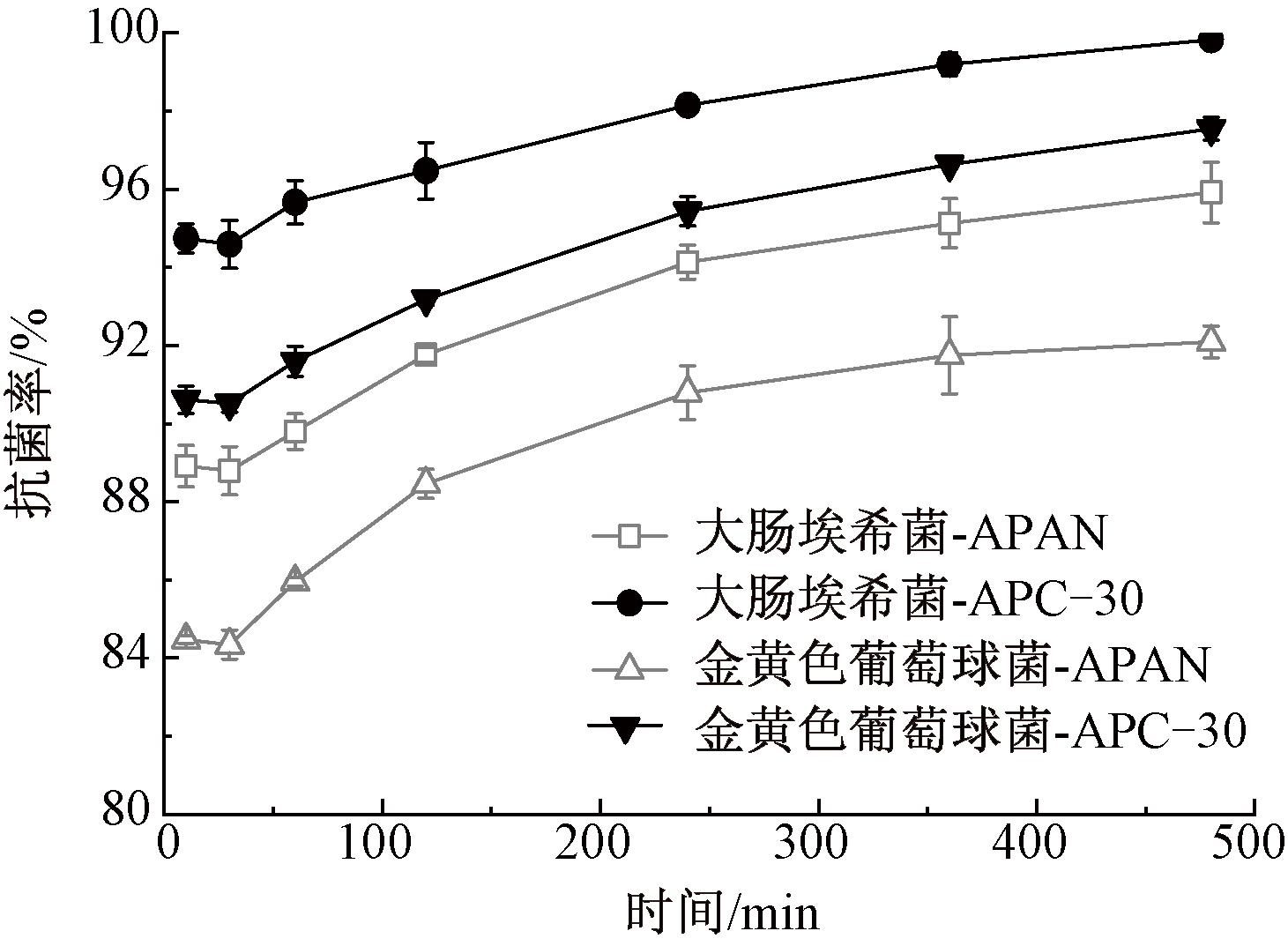

Fig.6

Antibacterial kinetic curves of fibers"

Tab.2

Antibacterial rate of APC-30 after washing"

菌种 不同洗涤次数下的抗菌率/%
0次 5次 10次 20次 30次
大肠埃希菌 97.66 92.34 91.52 91.24 91.25
金黄色葡萄球菌 95.75 93.7 91.42 89.15 88.37

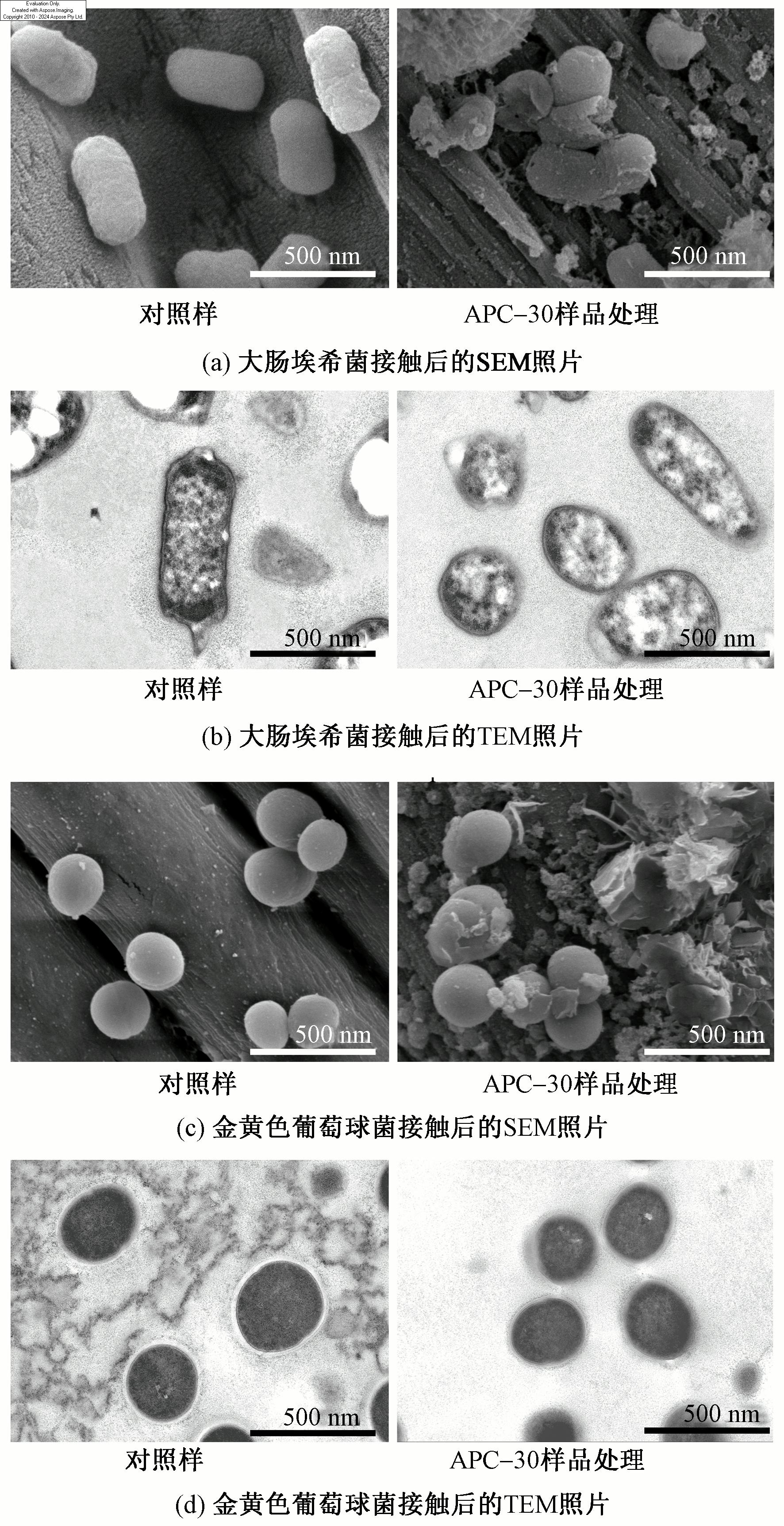

Fig.7

SEM and TEM images of bacteria before and after contact with fibers. (A) SEM image for contacting E.coli; (b) TEM image for contacting E.coli; (c) SEM image for S. aureus; (d) TEM image for contacting S.aureus"

Tab.3

Concentration of K+ in extracellular fluid"

时间/
h
K+的质量浓度/(mg·L-1
E.coli
(APC-30)
E.coli
(对照组)
S.aureus
(APC-30)
S.aureus
(对照组)
0.25 5.004 4.978 5.013 4.975
2 5.221 4.951 5.214 4.711
4 5.609 4.982 5.797 4.975
6 6.032 4.993 5.938 4.982
8 6.210 4.986 6.105 4.983
24 6.516 5.010 6.503 5.009
[1] SANCHEZ E, DORON S. Bacterial infections: overview[M]//International encyclopedia of public health. Amsterdam: Elsevier, 2025: 223-235.
[2] CHEN X Y, DING F, HOU X L, et al. Halloysite-based inorganic-organic hybrid coatings for durable flame retardant, hydrophobic and antibacterial properties of cotton fabrics[J]. International Journal of Biological Macromolecules, 2024, 277: 134357.
[3] CHOKESAWATANAKIT N, JUTAKRIDSADA P, BOONLUE S, et al. Ag-doped Cobweb-like structure of TiO2 nanotubes for antibacterial activity against Methicillin-resistant Staphylococcus aureus (MRSA)[J]. Journal of Environmental Chemical Engineering, 2021, 9(5): 105843.
[4] 王光耀. 聚丙烯腈基抗菌纤维膜的制备及其空气过滤性能研究[D]. 大连: 大连理工大学, 2024:1-10.
WANG Guangyao. Preparation and air filtration performance of polyacrylonitrile-based antibacterial fibrous membranes[D]. Dalian: Dalian University of Technology, 2024::1-10.
[5] LI Q Y, PANG X W, XING X, et al. Facile synthesis of copper sulfide nanoflower decorated amine-grafted polyacrylonitrile fibers for rapid and long-lasting antimicrobial performance mediated by photothermal and photocatalytic effects[J]. Materials Today Communications, 2025, 44: 112201.
[6] 翟丽莎, 王宗垒, 周敬伊, 等. 纺织用抗菌材料及其应用研究进展[J]. 纺织学报, 2021, 42(9): 170-179.
ZHAI Lisha, WANG Zonglei, ZHOU Jingyi, et al. Research progress of antibacterial materials for textiles and their applications[J]. Journal of Textile Research, 2021, 42(9): 170-179.
[7] 王雅萍. 氧化亚铜基微纳杂化材料构筑及其抗菌纤维应用[D]. 上海: 东华大学, 2021:1-10.
WANG Yaping. Construction of cuprous oxide-based micro-nano hybrid materials and application of antibacterial fibers[D]. Shanghai: Donghua University, 2021:1-10.
[8] 胡定军, 刘朝军, 章浩荣. 聚丙烯单原子铜抗菌纤维的制备及其性能[J]. 工程塑料应用, 2023, 51(5): 51-55.
HU Dingjun, LIU Chaojun, ZHANG Haorong. Preparation and properties of polypropylene/single copper atoms antibacterial fiber[J]. Engineering Plastics Application, 2023, 51(5): 51-55.
[9] KUMAR A, SHARMA A, CHEN Y, et al. Copper@ZIF-8 core-shell nanowires for reusable antimicrobial face masks[J]. Advanced Functional Materials, 2021, 31(10): 2008054.
[10] DENG S S, WANG F, WANG M H, et al. Integrating multifunctional highly efficient flame-retardant coatings with superhydrophobicity, antibacterial property on cotton fabric[J]. International Journal of Biological Macromolecules, 2023, 253: 127022.
[11] ZHOU J L, ZHAI M, WANG R X, et al. High metal-loaded Cu2O@TM hybrids for melt-spun antibacterial fibers engineered towards medical protective fabrics[J]. Composites Part A: Applied Science and Manufacturing, 2022, 161: 107080.
[12] 秦益民. Cupron铜基抗菌纤维的性能和应用[J]. 纺织学报, 2009, 30(12): 134-136.
QIN Yimin. Properties and applications of Cupron copper containing antimicrobial fibers[J]. Journal of Textile Research, 2009, 30(12): 134-136.
[13] ZHANG G Y, XIAO Y, YIN Q T, et al. In situ synthesis of silver nanoparticles on amino-grafted polyacrylonitrile fiber and its antibacterial activity[J]. Nanoscale Research Letters, 2021, 16(1): 36.
[14] CASCHERA D, TORO R G, FEDERICI F, et al. Green approach for the fabrication of silver-oxidized cellulose nanocomposite with antibacterial properties[J]. Cellulose, 2020, 27(14): 8059-8073.
[15] WANG J, LV X H, ZHAO L, et al. Preparation and characterization of a novel strong-base anion exchange fiber[J]. Journal of Applied Polymer Science, 2013, 128(2): 934-940.
[16] ZHU N, ZHOU S J, GONG J Y, et al. In situ synthesis of cuprous oxide on cotton fiber for developing functional textile with broad-spectrum antibacterial activity[J]. Industrial Crops and Products, 2022, 187: 115442.
[17] YANG Y, HAN J, NING X H, et al. Controllable morphology and conductivity of electrodeposited Cu2O thin film: effect of surfactants[J]. ACS Applied Materials & Interfaces, 2014, 6(24): 22534-22543.
[18] PARK E, SELVARAJ R, KIM Y. High-efficiency photothermal sterilization on PDMS film with Au@CuS yolk-shell nanoparticles[J]. Journal of Industrial and Engineering Chemistry, 2022, 113: 522-529.
[19] WANG Y, WANG W, LIU B J, et al. Preparation of durable antibacterial and electrically conductive polyacrylonitrile fibers by copper sulfide coating[J]. Journal of Applied Polymer Science, 2017, 134(44): 45496.
[20] ZHU X F, CHEN J J, WU B H, et al. Polyvalent copper oxide nanozymes: co-delivery of ROS and NO for inducing cuproptosis-like bacterial death against MRSA infections[J]. Chemical Engineering Journal, 2024, 499: 156507.
[21] HUANG Y L, WAN X F, SU Q, et al. Ultrasound-activated piezo-hot carriers trigger tandem catalysis coordinating cuproptosis-like bacterial death against implant infections[J]. Nature Communications, 2024, 15: 1643.
[22] LIU T, MA M M, ALI A, et al. Self-assembled copper tannic acid nanoparticles: a powerful nano-bactericide by valence shift of copper[J]. Nano Today, 2024, 54: 102071.
[23] WOŹNIAK-BUDYCH M, ZGÓRZYŃSKA U, PRZYSIECKA Ł, et al. Copper oxide(I) nanoparticle-modified cellulose acetate membranes with enhanced antibacterial and antifouling properties[J]. Environmental Research, 2024, 252: 119068.
[24] WOŃNIAK-BUDYCH M J, PRZYSIECKA Ł, LANGER K, et al. Green synthesis of rifampicin-loaded copper nanoparticles with enhanced antimicrobial activity[J]. Journal of Materials Science: Materials in Medicine, 2017, 28(3): 42.
[25] 孙鹤情, 赵聪颖, 吴冰雪, 等. 长效型抗菌聚酰胺66纤维的制备及其性能[J]. 纺织学报, 2025, 46(9): 66-73.
SUN Heqing, ZHAO Congying, WU Bingxue, et al. Preparation and properties of long-lasting antimicrobial polyamide 66 fibers[J]. Journal of Textile Research, 2025, 46(9): 66-73.
[26] WANG Y P, WANG Q Q, WU G Y, et al. Ultra-fast bacterial inactivation of Cu2O@halloysite nanotubes hybrids with charge adsorption and physical piercing ability for medical protective fabrics[J]. Journal of Materials Science & Technology, 2022, 122: 1-9.
[27] MARAKHOVA I I, YURINSKAYA V E, DOMNINA A P. The role of intracellular potassium in cell quiescence, proliferation, and death[J]. International Journal of Molecular Sciences, 2024, 25(2): 884.
[28] WANG L, MA X M, CAI K T, et al. Morphological effect of copper sulfide nanoparticles on their near infrared laser activated photothermal and photodynamic performance[J]. Materials Research Express, 2019, 6(10): 105406.
