Journal of Textile Research ›› 2022, Vol. 43 ›› Issue (05): 136-142.doi: 10.13475/j.fzxb.20210204807

• Dyeing and Finishing & Chemicals • Previous Articles     Next Articles

Application of cutinase in polyester surface modification

WANG Yanping1, CHEN Xiaoqian2, XIA Wei2, FU Jiajia1(), GAO Weidong1, WANG Hongbo1, ARTUR Cavaco-Paulo3

  1. 1. Jiangsu Engineering Technology Research Center of Function Textiles, Jiangnan University, Wuxi, Jiangsu 214122, China
    2. State Key Laboratory of Food Science and Technology, Jiangnan University, Wuxi, Jiangsu 214122, China
    3. Centre of Biological Engineering, University of Minho, Braga 4710-057, Portugal
  • Received:2021-02-22 Revised:2021-08-10 Online:2022-05-15 Published:2022-05-30
  • Contact: FU Jiajia E-mail:kathyfjj@126.com

RichHTML

21

PDF (PC)

44

Abstract:

Polyester fabrics present poor hydrophilic property. This research uses cutinase from H.insolens to modify the surface of polyester fabrics. The UV absorbance of the residual reaction liquid was evaluated and the treatment condition was determined based on the single-factor test. A suitable treatment condition for polyester fabrics was achieved under the cutinase concentration of 100 U/mL at 60 ℃ and pH 8.5 for 72 h. Under these conditions, Trition X-100 surfactant, with a dosage of 0.1%, was added to the reaction system, leading to significantly increase in the yield of cutinase-catalyzed hydrolysis of polyester fabrics. The type of product in the reaction residue, the hydrophilicity and dyeing properties of the treated and untreated fabric were measured, and the surface morphology and surface chemical composition of polyester were characterized. The mechanism of enzymatic modification of polyester was proposed. The results show that two main products yield from cutinase hydrolysis of polyester, namely mono-terephthalic acid 2-hydroxyethyl ester (MHET) and terephthalic acid (TPA). The surface of the polyester fabric became rough and the contact angle of polyester fabric was reduced from 93.4° to 83.1°. The dyeing depth value of the methylene blue dyed polyester fabric was significantly increased after the cutinase treatment, and the strength of C=O and C—O bands in the infrared spectrum corresponding to ester bond of cutinase-treated polyester fabric was decreased. It is indicated that the cutinase is able to catalyze the hydrolysis of ester bond on the surface of the polyester fabric, thus effectively improving the hydrophilicity of the polyester fabric.

Key words: cutinase, polyester fabric, hydrolysis, terephthalic acid, wettability, surface modification

CLC Number:

  • TS156

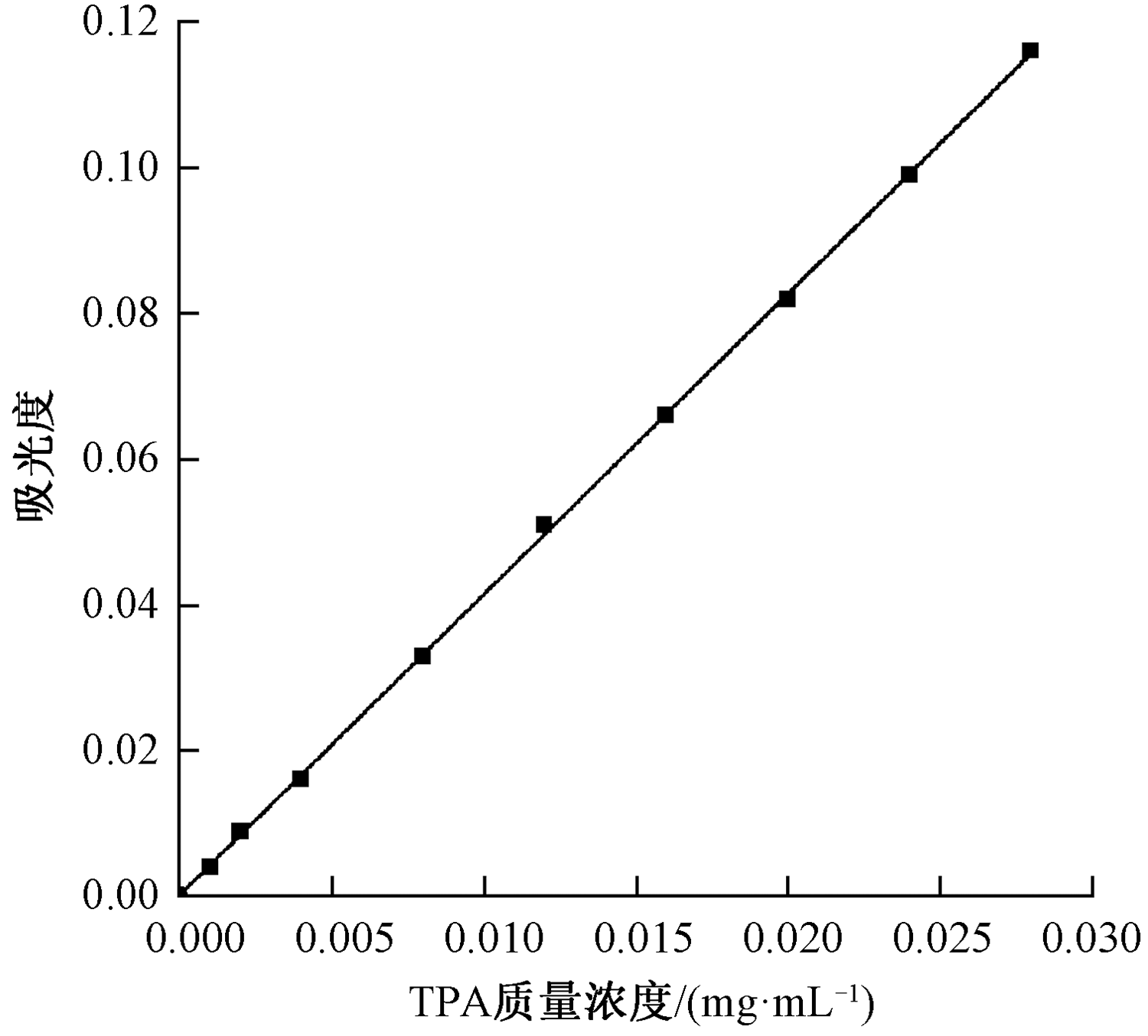

Fig.1

Standard curve of TPA concentration and absorbance"

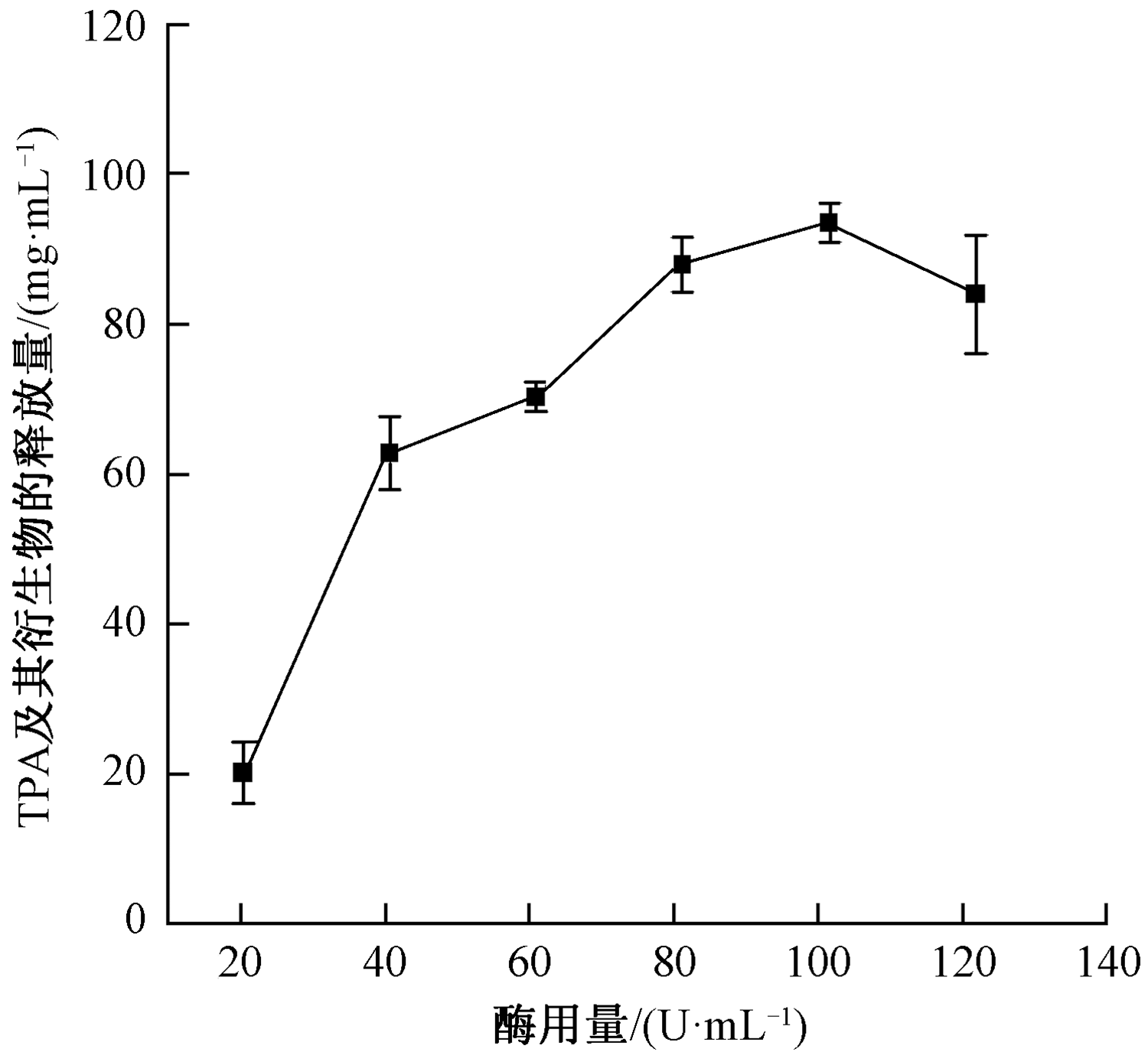

Fig.2

Influence of cutinase dosage on release of TPA and its derivatives"

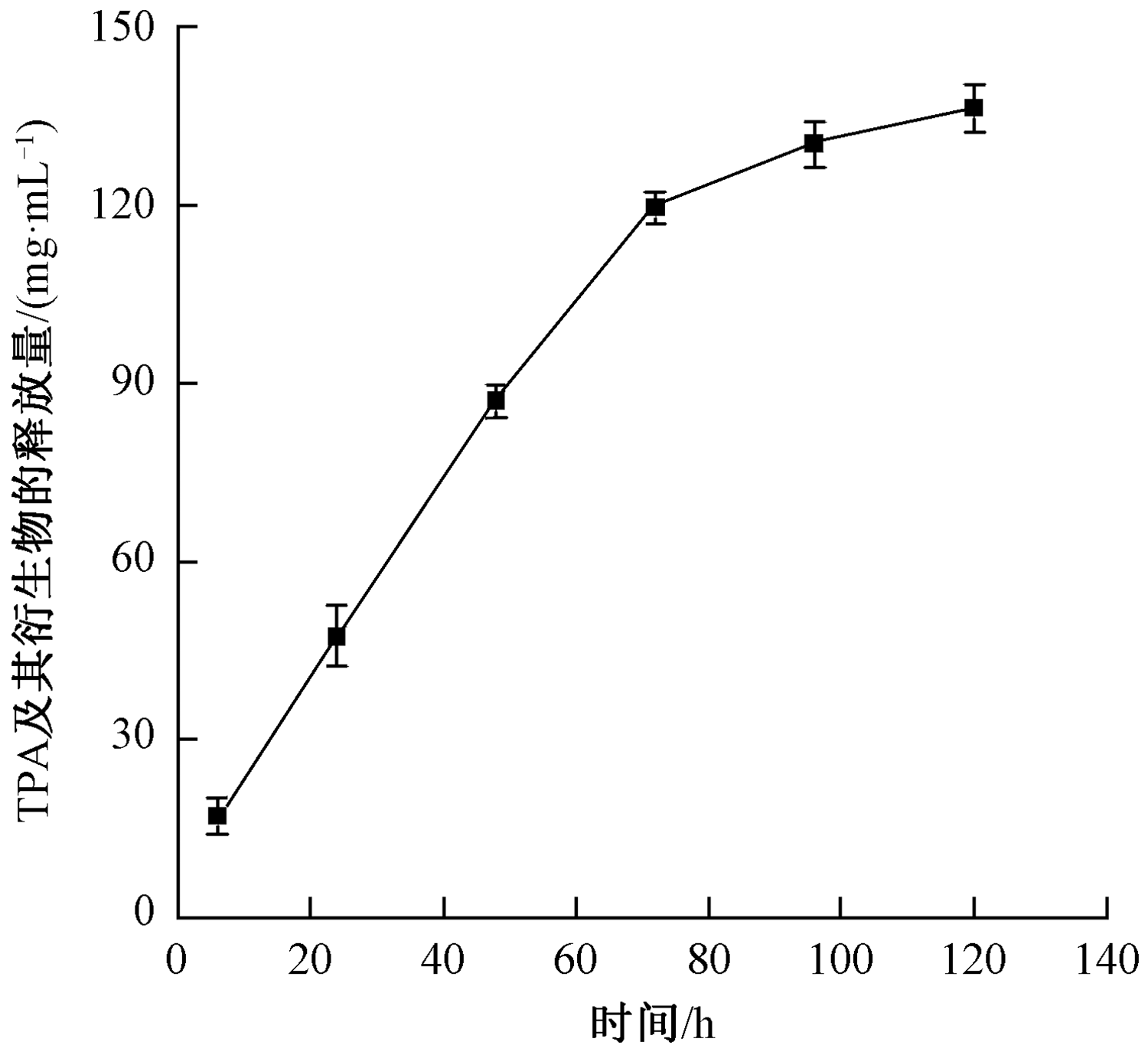

Fig.3

Influence of reaction time on release of TPA and its derivatives"

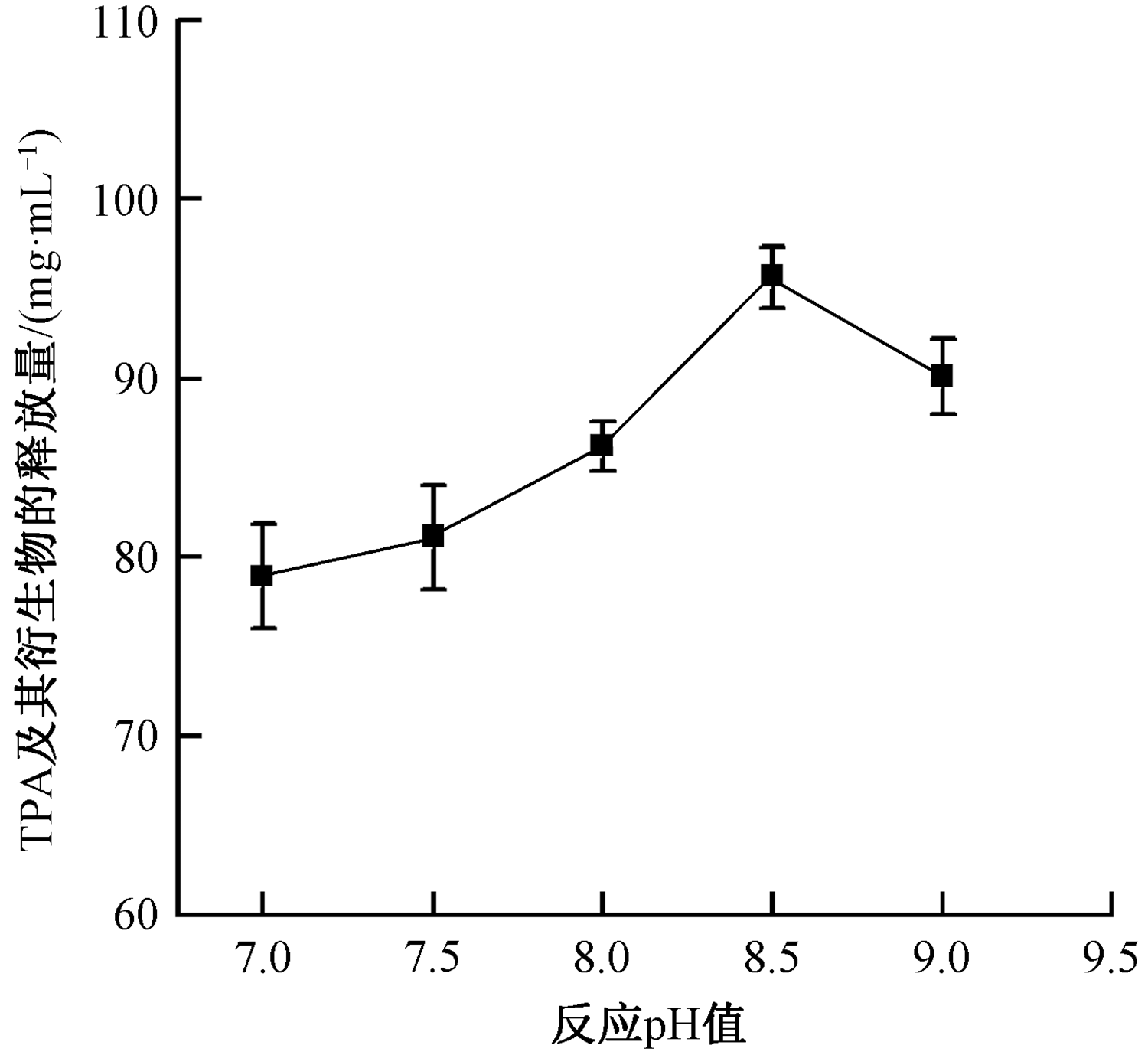

Fig.4

Influence of pH on release of TPA and its derivatives"

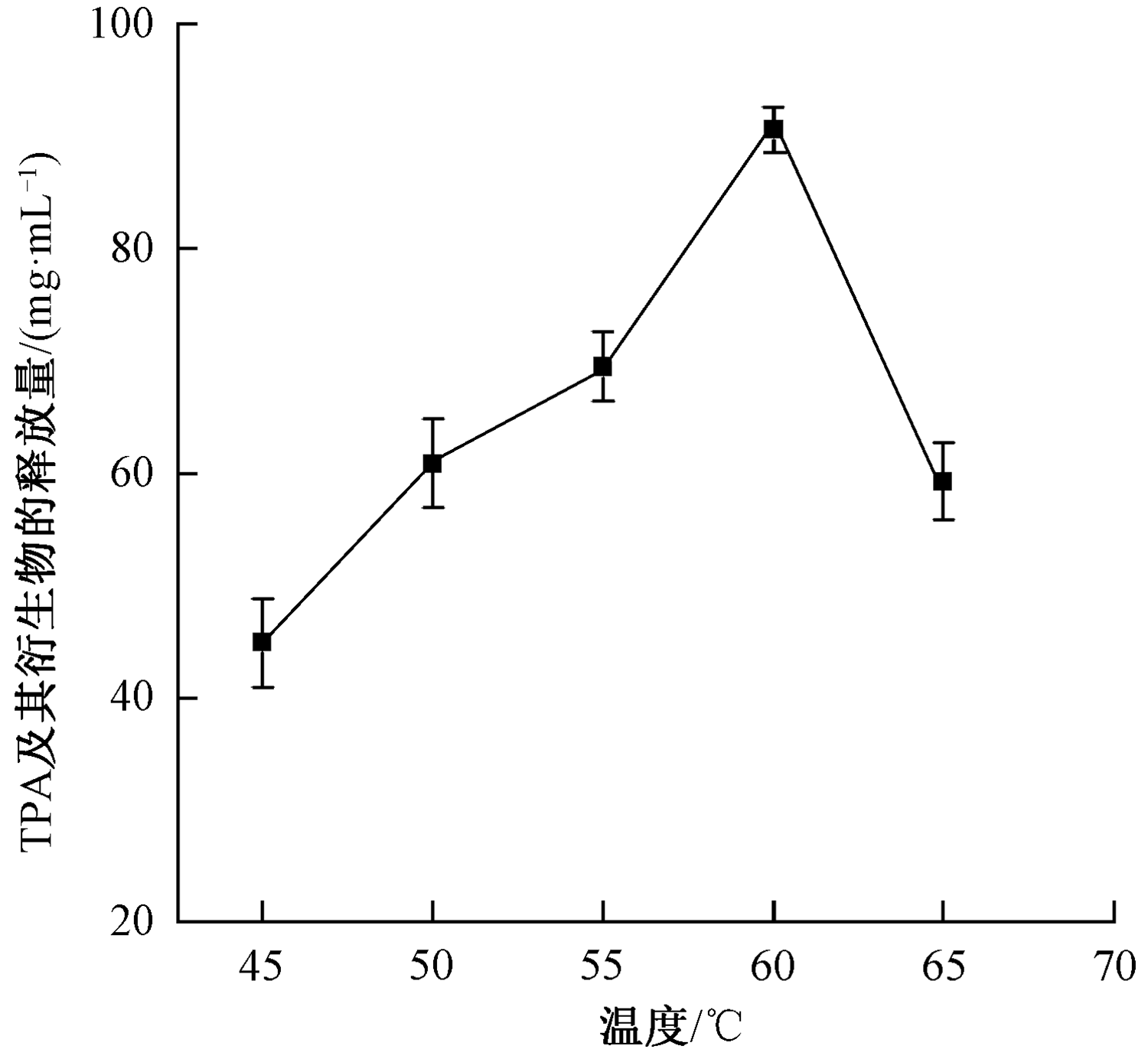

Fig.5

Influence of reaction temperature on release of TPA and its derivatives"

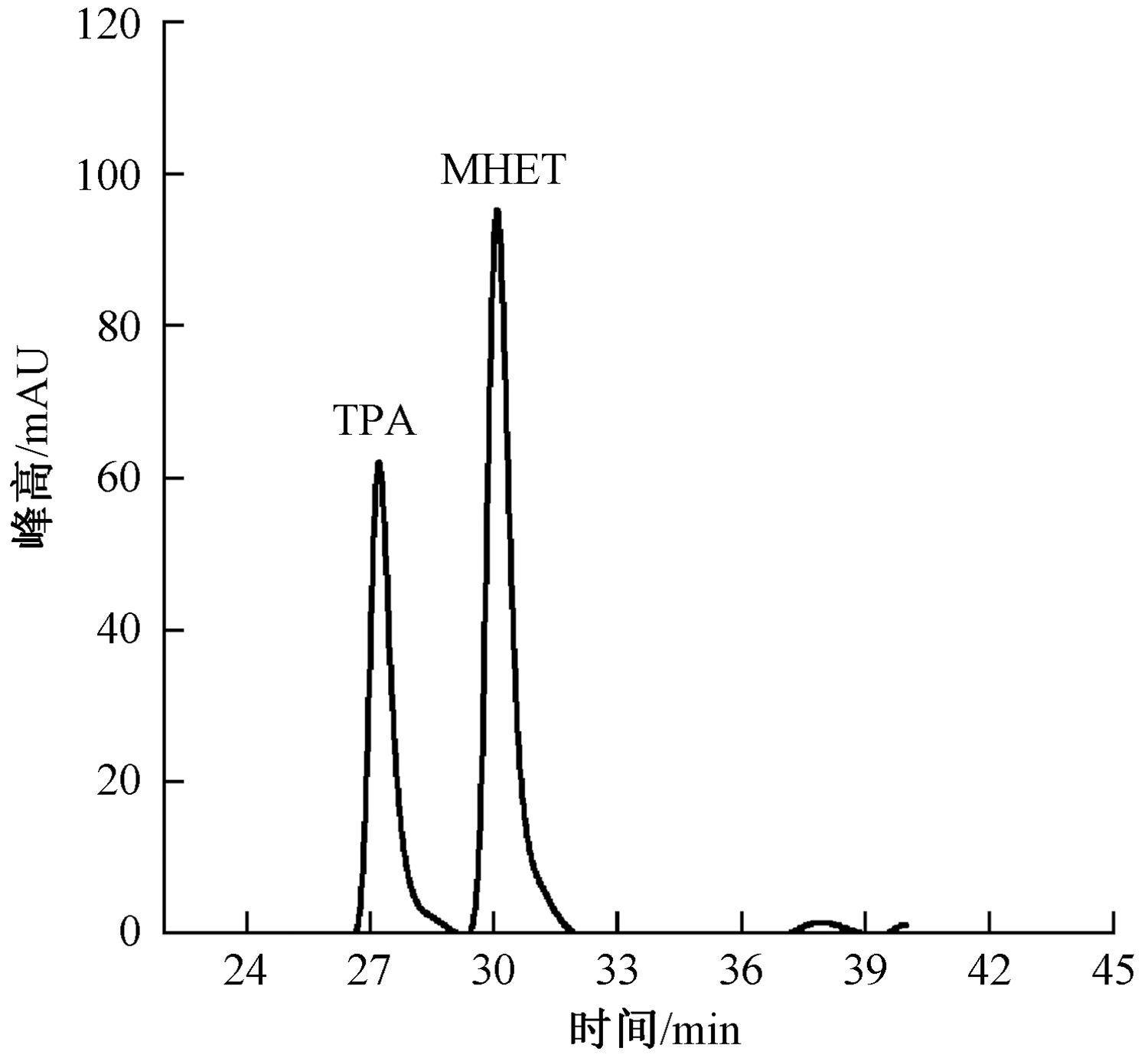

Fig.6

High performance liquid chromatography diagram of residual reaction liquid from enzymatic treatment of polyester fabric"

Fig.7

SEM images of polyester before (a) and after (b) cutinase treatment"

Fig.8

Infrared spectrum of polyester fabric before and after cutinase treatment"

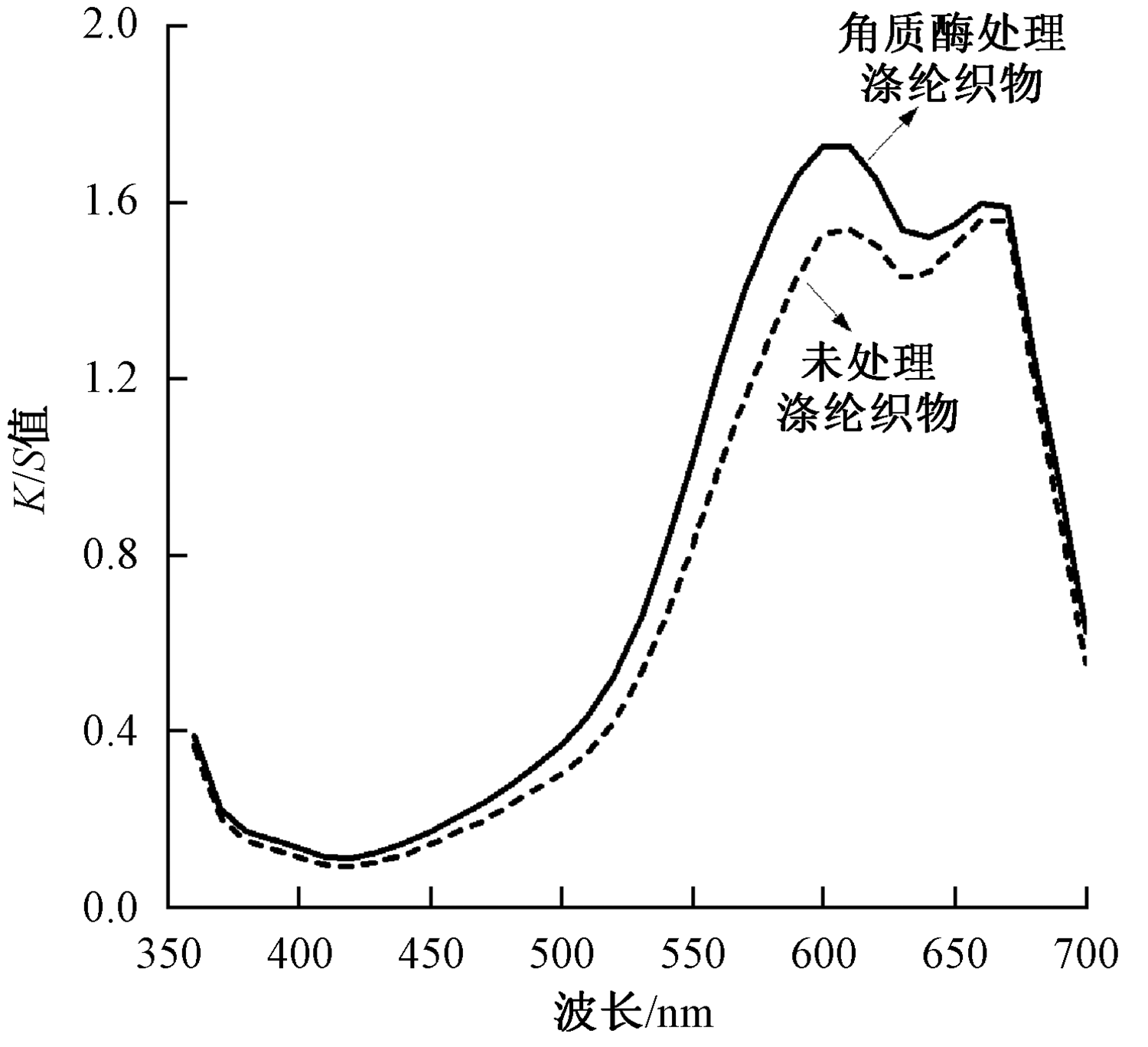

Fig.9

K/S curve of polyester fabric before and after cutinase treatment"

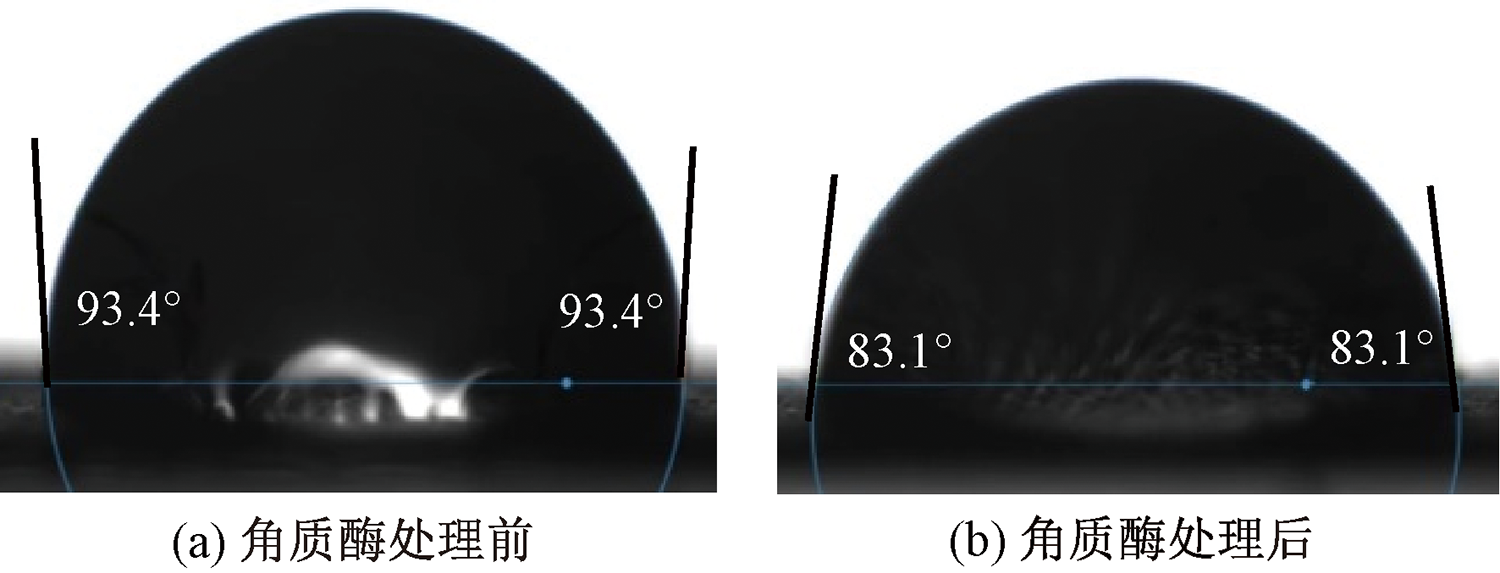

Fig.10

Change of contact angle of polyester fabric before (a) and after (b) cutinase treatment"

[1] 王小花, 洪枫, 陆大年, 等. 脂肪酶在纺织工业中的应用[J]. 毛纺科技, 2005, 33(6): 22-24.
WANG Xiaohua, HONG Feng, LU Danian, et al. Application of lipase in textile industry[J]. Wool Textile Journal, 2005, 33(6): 22-24.
[2] 李旭明, 师利芬, 钱志华, 等. 脂肪酶处理对涤纶织物亲水性能的改善[J]. 纺织学报, 2012, 33(4):91-94.
LI Xuming, SHI Lifen, QIAN Zhihua, et al. Improvement of wettability of PET fabrics treated bylipase[J]. Journal of Textile Research, 2012, 33(4):91-94.
[3] REHMAN A, RAZA Z A, MASOOD R. Optimization of lipase activity under various chemo-physical conditions for hydrolysis of polyester fabric using multiple statistical approaches[J]. Journal of The Textile Institute, 2019(6): 826-834.
[4] 代国亮, 肖红, 施楣梧. 涤纶表面亲水改性研究进展及其发展方向[J]. 纺织学报, 2015, 36(8): 156-164.
DAI Guoliang, XIAO Hong, SHI Meiwu. Research progress and development direction of hydrophilic modification of polyester surface[J]. Journal of Textile Research, 2015, 36(8): 156-164.
[5] 冯冠晨, 胡柳. 脂肪酶的催化性能及其在涤纶改性中的应用[J]. 染整技术, 2017, 39(4): 37-43.
FENG Guanchen, HU Liu. The catalytic performance of lipase and its application in polyester modification[J]. Textile Dyeing and Finishing Journal, 2017, 39(4): 37-43.
[6] 王新, 王进美, 周娅楠. 涤纶表面亲水改性研究进展[J]. 合成纤维, 2021, 50(7): 27-30.
WANG Xin, WANG Jinmei, ZHOU Ya'nan. Research progress on hydrophilic modification of polyester surface[J]. Synthetic Fiber in China, 2021, 50(7): 27-30.
[7] HARSHITA C. Environment friendly technologies of biochemical and physical hydrolysis for polyester modification: a comparative study[J]. Man-made Textiles in India, 2018, 46(1):10-18.
[8] WU J, CAI G, LIU J, et al. Eco-friendly surface modification on polyester fabrics by esterase treatment[J]. Applied Surface Science, 2014, 295: 150-157.
doi: 10.1016/j.apsusc.2014.01.019
[9] 张欢, 闫俊, 王晓武, 等. 低温等离子体在涤纶表面改性中的应用[J]. 纺织学报, 2019, 40(7):103-107.
ZHANG Huan, YAN Jun, WANG Xiaowu, et al. Application of low temperature plasma in surface modification of polyester[J]. Journal of Textile Research, 2019, 40(7):103-107.
[10] GAO A. Hydrophilic modification of polyester fabric by synergetic effect of biological enzymolysis and non-ionic surfactant, and applications in cleaner production[J]. Journal of Cleaner Production, 2017(164): 277-287.
[11] DONELLI I, FREDDI G, NIERSTRASZ V A, et al. Surface structure and properties of poly(ethylenetereph-thalate)hydrolyzed by alkali and cutinase[J]. Polymer Degradation and Stability, 2010, 95(9):1542-1550.
doi: 10.1016/j.polymdegradstab.2010.06.011
[12] MARIA K, SOZON V. Surface modification of poly(ethylene terephthalate) (PET) fibers by acutinase from Fusariumoxysporum[J]. Process Biochemistry, 2015:1359-5113.
[13] CARNIEL A, JOSE Nicomedes Junior. Lipase from Candida antarctica (CALB) and cutinase from Humicolainsolens act synergistically for PET hydrolysis to terephthalic acid[J]. Process Biochemistry, 2017, 59:84-90.
doi: 10.1016/j.procbio.2016.07.023
[14] KARACA B, DEMIR A, ÖZDOAĞAN E, et al. Environmentally benign alternatives: plasma and enzymes to improve moisture management properties of knitted PET fabrics[J]. Fibers & Polymers, 2010, 11(7):1003-1009.
[15] 张瑶, 陈晟, 吴丹, 等. 重组角质酶的发酵制备及其对涤纶纤维的表面改性[J]. 生物工程学报, 2011, 27(7):1057-1064.
ZHANG Yao, CHEN Sheng, WU Dan, et al. Fermentation preparation of recombinant cutinase and its surface modification on polyester fiber[J]. Journal of Bioengineering, 2011, 27(7):1057-1064.
[16] 杨正富. 精对苯二甲酸排放污水中对苯二甲酸的测定[J]. 工业水处理, 2002, 22(2):38-39.
YANG Zhengfu. Determination of terephthalic acid in wastewater discharged by refined terephthalic acid[J]. Industrial Water Treatment, 2002, 22(2):38-39.
