纺织学报 ›› 2019, Vol. 40 ›› Issue (05): 1-6.doi: 10.13475/j.fzxb.20180607806

• 纤维材料 •    下一篇

改性菠萝叶纤维结构及其吸附甲醛性能

#br#


  • 收稿日期:2018-06-25 修回日期:2019-01-04 出版日期:2019-05-15 发布日期:2019-05-21
  • 基金资助:


Structure and formaldehyde adsorption properties of modified pineapple leaf fiber

  • Received:2018-06-25 Revised:2019-01-04 Online:2019-05-15 Published:2019-05-21

摘要:

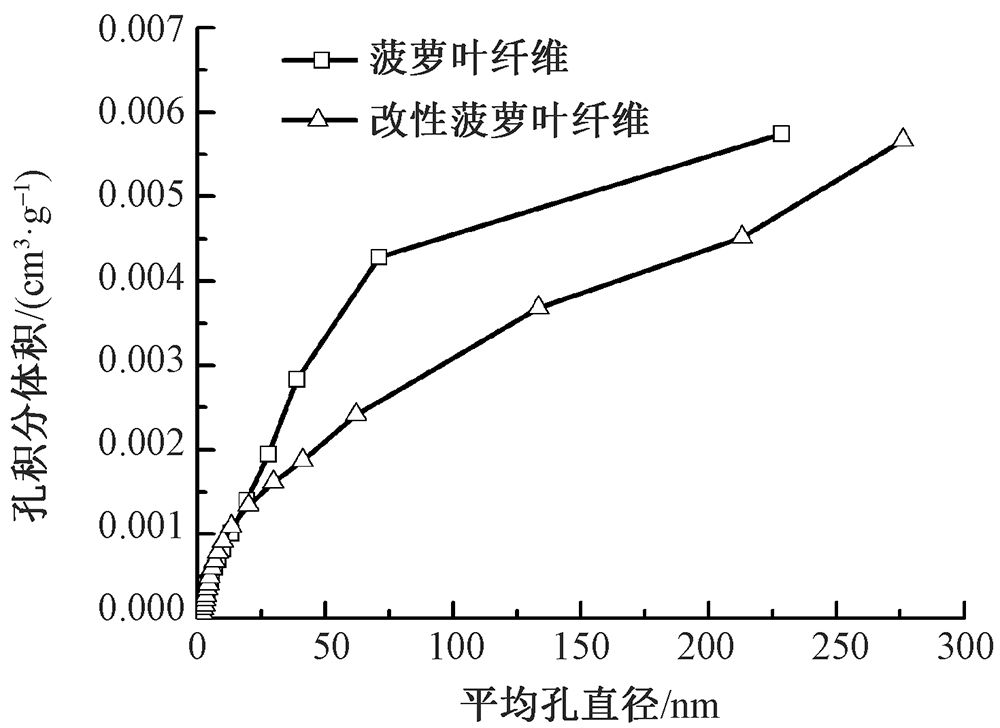

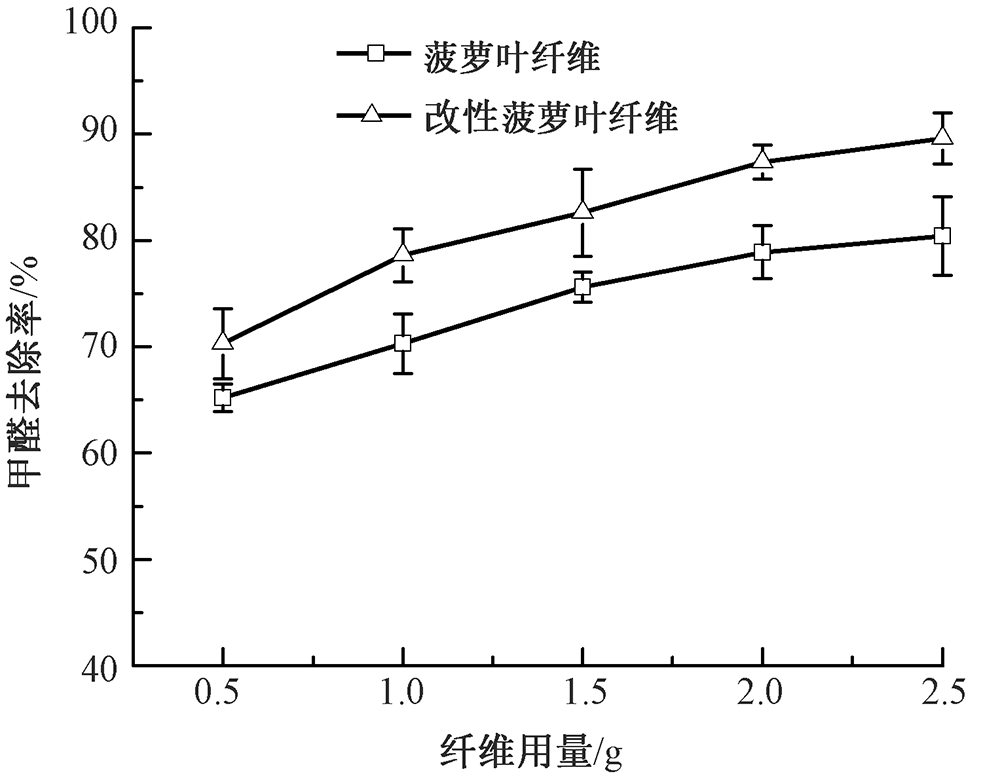

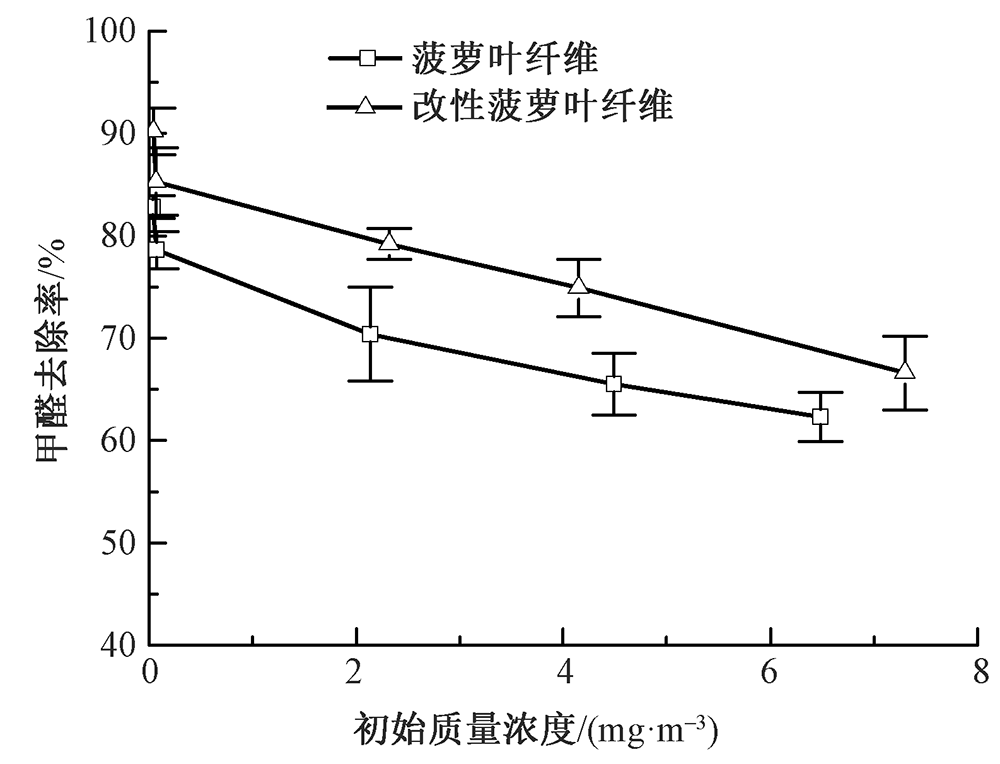

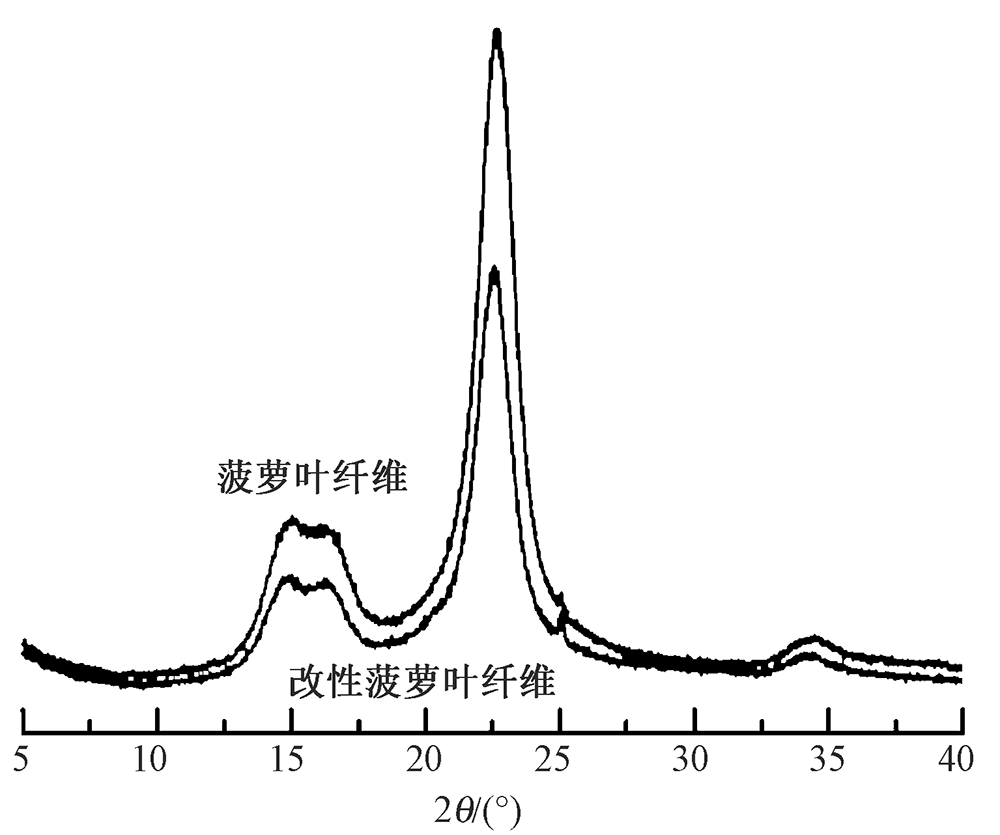

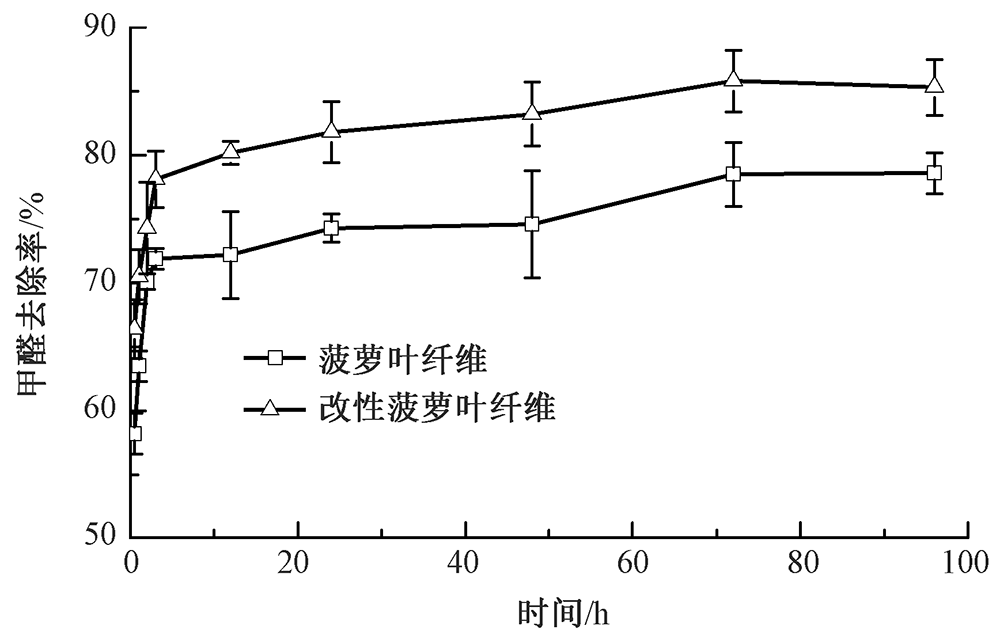

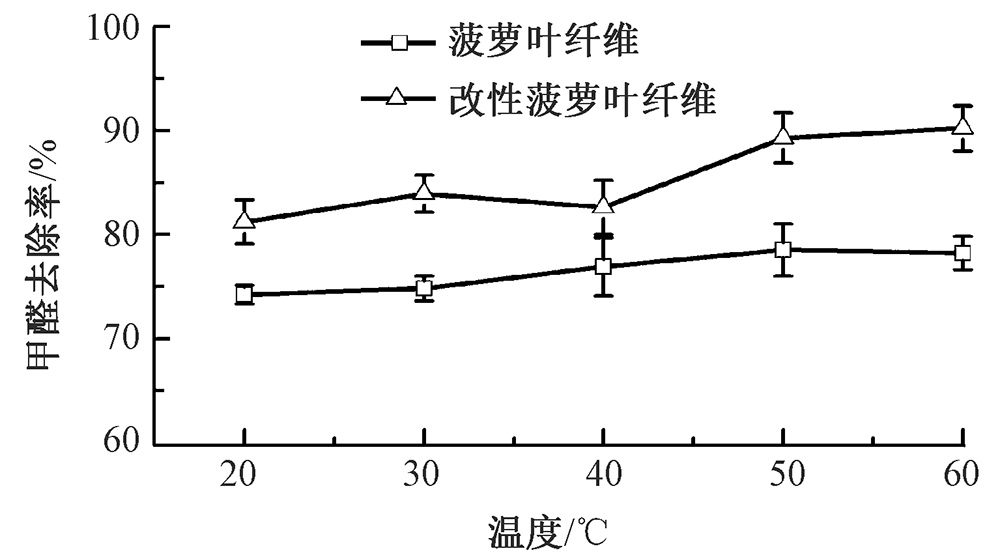

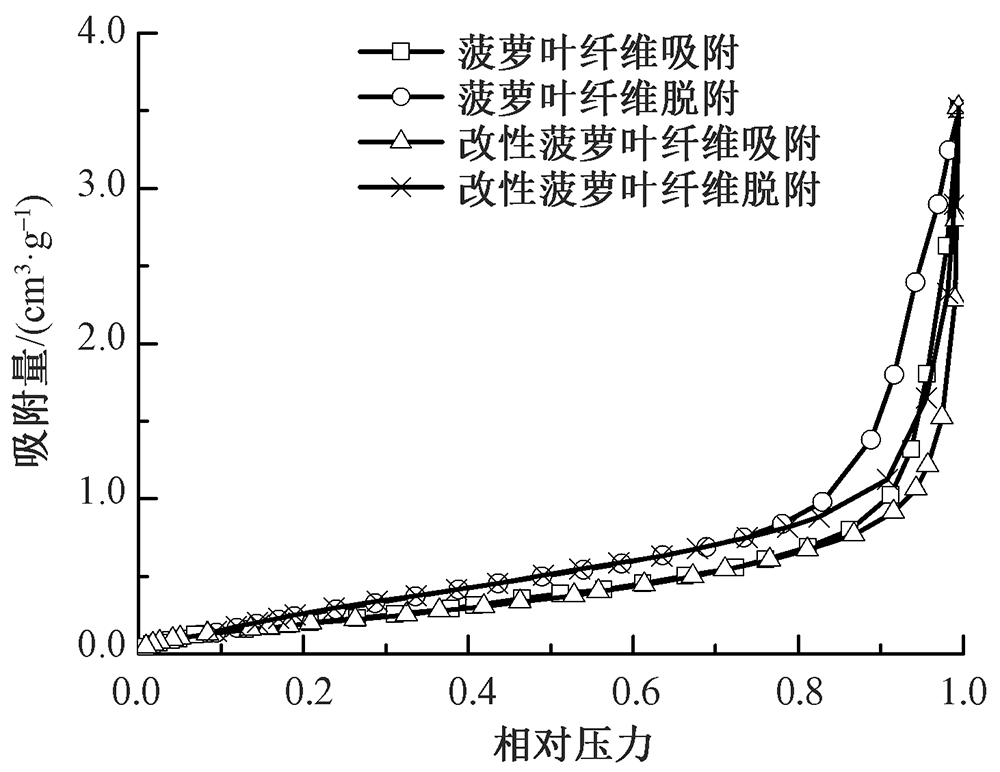

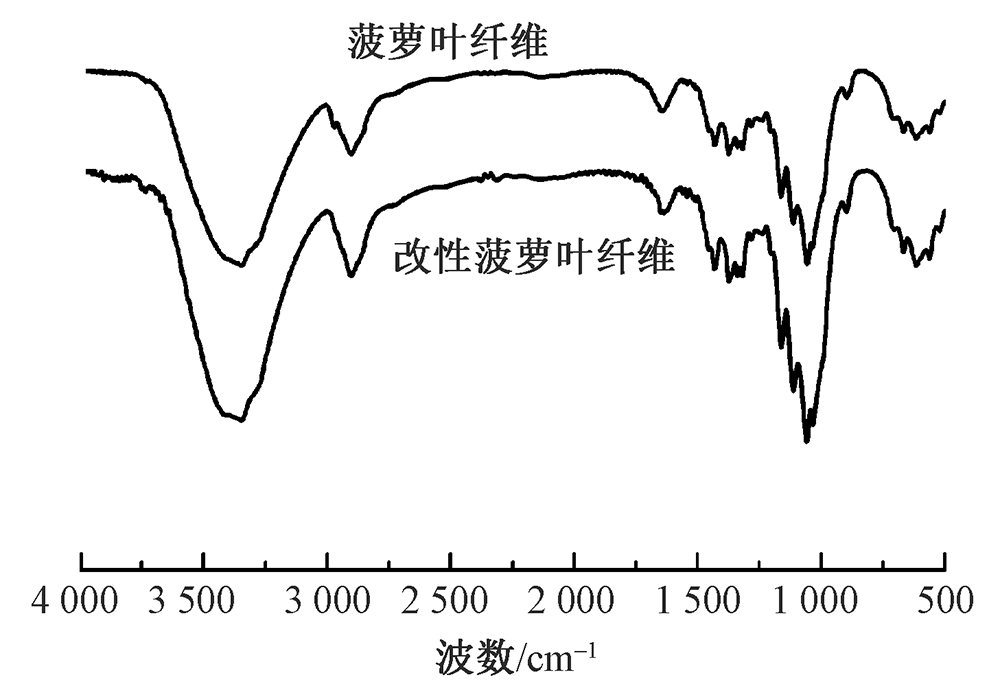

为获得具有高吸附性能的纺织材料,以脱胶菠萝叶纤维为吸附载体,氯化血红素为改性剂,经酯化反应制备了改性菠萝叶纤维。借助扫描电子显微镜、傅里叶红外光谱仪、X 射线衍射仪、比表面积及孔径分析仪对改性菠萝叶纤维结构进行表征,并研究其吸附甲醛性能。结果表明:改性菠萝叶纤维表面接枝了氯化血红素,属于Ⅰ型纤维素,其相对结晶度由69. 3%下降到66. 2%;改性菠萝叶纤维的氮气吸附等温线属于Ⅲ型吸附,有少量孔径为2. 0~276. 1 nm 的中孔与大孔,其比表面积、氮气吸附量、滞后环均变小;改性菠萝叶纤维对甲醛的吸附性好于菠萝叶纤维,其吸附甲醛性能随着甲醛初始浓度的增加而降低,随着纤维用量、反应温度和反应时间的增加而提高。

关键词: 脱胶菠萝叶纤维, 接枝改性, 氯化血红素, 吸附性能, 甲醛

Abstract:

In order to obtain high-absorption textile materials, the modified materials of degummed pineapple leaf fiber were prepared by esterification reaction using degummed pineapple leaf fiber as an adsorption carrier and hemin as modifier. The structure of the fiber was characterized by scanning electron microscopy, Fourier transform infrared spectroscopy, X-ray diffractometer, surface area and porosimetry analyzer, and the formaldehyde adsorption properties were also studied. The results show that the surface of the modified fiber is grafted with hemin. It has the crystal structure of cellulose I. The relative crystallinity is decreased from 69. 3% to 66. 2%. The N2 adsorption isotherm belongs to type III adsorption. The modified fibers have a small number of mesopores and macropores with pore size ranged from 2. 0 to 276. 1 nm. The specific surface area, nitrogen adsorption and hysteresis loop are all decreased after modification. The modified degummed pineapple leaf fiber has better formaldehyde adsorption performance than the unmodified fiber. The formaldehyde adsorption capability of modified fiber decreases with the increase of the initial formaldehyde concentration, and increases with the increase of fiber dosage, reaction temperature and reaction time.

Key words: degummed pineapple leaf fiber, grafting modification, hemin, adsorption, formaldehyde

[1] Klepeis N E, Nelson W C, Ott W R, et al. The National Human Activity Pattern Survey (NHAPS): a resource for assessing exposure to environmental pollutants[J]. Journal of Exposure Analysis and Environmental Epidemiology, 2001, 11(3): 231-252.
[2] 陈冰冰.甲醛的“存储-氧化”脱除与室温催化氧化[D].大连:大连理工大学,2013.
CHEN Bingbing. Catalytic formaldehyde removal by “storage-oxidation” cycling process and catalytic oxidation at room temperature[D]. Dalian: Dalian University of Technology, 2013.
[3] 姜传佳,李申屾,张彭义,等.北京市某家具城室内空气污染水平与特征[J].环境科学,2010,31(12):2860-2865.
JIANG Chuanjia, LI Shenshen, ZHANG Pengyi, et al. Level and characteristics of indoor air pollutants in a furniture mall in Beijing[J]. Environmental Science, 2010, 31(12): 2860-2865.
[4] 王琨,李文朴,欧阳红,等.室内空气污染及其控制措施的比较研究[J].哈尔滨工业大学学报,2004,36(4): 493-496.
WANG Kun, LI Wenpu, OUYANG Hong, et al. Indoor air pollution and it’s control strategies[J]. Journal of Harbin Institute of Technology, 2004, 36(4): 493-496.
[5] TANG X J, BAI Y, Duong A, et al. Formaldehyde in China: Production, consumption, exposure levels, and health effects[J]. Environment International. 2009(35): 1210-1224.
[6] 李新茹.浅谈室内甲醛污染的危害与防治[J].焦作大学学报,2007(4): 83-84.
LI Xinru. Discussion on hazards and prevention of indoor formaldehyde pollution[J]. Journal of Jiaozuo University, 2007(4): 83-84.
[7] 沈海蓉.室内甲醛气体净化功能纤维的制备与表征[D].上海:东华大学,2009.
SHEN Hairong. Preparation and characterization of functional fibers in indoor formaldehyde decontamination [D]. Shanghai: Donghua University, 2009.
[8] HU M C, YAO Z H, LIU X G, et al. Enhancement mechanism of hydroxyapatite for photocatalytic degradation of gaseous formaldehyde over TiO2/ hydroxyapatite[J]. Journal of the Taiwan Institute of Chemical Engineers, 2018(85): 91-97.
[9] YANG D, LIU Y K, ZHANG J P, et al. Experimental Study on Microwave Modified AC and Its Adsorption on Formaldehyde[J]. Procedia Engineering, 2017(25): 3755-3762.
[10] 刘恩平,郭安平,郭运玲.菠萝叶纤维酶法脱胶技术[J].纺织学报,2006,27(12):41-43.
LIU Enping, GUO Anping, GUO Yunling. Study on enzymatic degumming of pineapple leaf fiber[J]. Journal of Textile Research, 2006, 27(12): 41-43.
[11] 郁崇文,张元明, 姜繁昌.菠萝纤维的纺纱工艺研究[J].纺织学报,2000,21(6):352-354.
YU Chongwen, ZHANG Yuanming, JIANG Fanchang. Study on spinning process of pineapple leaf fiber[J]. Journal of Textile Research, 2000, 21(6): 352-354.
[12] 连文伟,张劲,刘恩平,等.脱胶方法对菠萝叶纤维结构和性能的影响[J].上海纺织科技,2011,39(4):56-59.
LIAN Wenwei, ZHANG Jin, LIU Enping, et al. Study on the effect of degumming methods on structure and properties of pineapple leaf fiber[J]. Shanghai Textile Science & Technology, 2011, 39(4): 56-59.
[13] 黄涛,张劲,刘恩平,等.菠萝叶纤维生化脱胶纤维性质研究[J].江苏农业科学,2011,39(4):329-331.
HUANG Tao, ZHANG Jin, LIU Enping, et al. Study on the properties of pineapple leaf fiber by biochemical degumming[J]. Jiangsu Agricultural Sciences, 2011, 39(4): 329-331.
[14] 黄小华,沈鼎权.菠萝叶纤维脱胶工艺及染色性能[J].纺织学报,2006,27(1):75-77.
HUANG Xiaohua, SHEN Dingquan. Degumming and dyeing of pineapple leaf fiber[J]. Journal of Textile Research, 2006, 27(1): 75-77.
