聚酰胺6/共聚酰胺偏心皮芯复合纤维的制备与性能

doi:10.13475/j.fzxb.20240908501

纺织学报 ›› 2025, Vol. 46 ›› Issue (07): 53-61.doi: 10.13475/j.fzxb.20240908501

聚酰胺6/共聚酰胺偏心皮芯复合纤维的制备与性能

廖梦蝶¹, 肖汪洋¹, 李鸿鑫¹, 赵漫¹, 张须臻¹, 王秀华¹^,²()

¹ 浙江理工大学纺织纤维材料与加工技术国家地方联合工程实验室, 浙江杭州 310018
² 现代纺织技术创新中心(鉴湖实验室), 浙江绍兴 312030

收稿日期:2024-09-30 修回日期:2025-03-28 出版日期:2025-07-15 发布日期:2025-08-14
通讯作者: 王秀华(1964—),女,正高级工程师。主要研究方向为改性聚酯合成与差别化纤维加工。E-mail:wxiuhua@126.com。
作者简介:廖梦蝶(1999—),女,硕士生。主要研究方向为聚酰胺复合纤维的制备与性能。
基金资助:
浙江省现代纺织技术创新中心定向项目(CXZX2022010HD)

Preparation and properties of polyamide 6/copolyamide eccentric sheath-core composite fibers

LIAO Mengdie¹, XIAO Wangyang¹, LI Hongxin¹, ZHAO Man¹, ZHANG Xuzhen¹, WANG Xiuhua¹^,²()

¹ National Engineering Laboratory for Textile Fiber Materials and Processing Technology, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
² Modern Textile Technology Innovation Center (Jianhu Laboratory), Shaoxing, Zhejiang 312030, China

Received:2024-09-30 Revised:2025-03-28 Published:2025-07-15 Online:2025-08-14

摘要/Abstract

摘要：

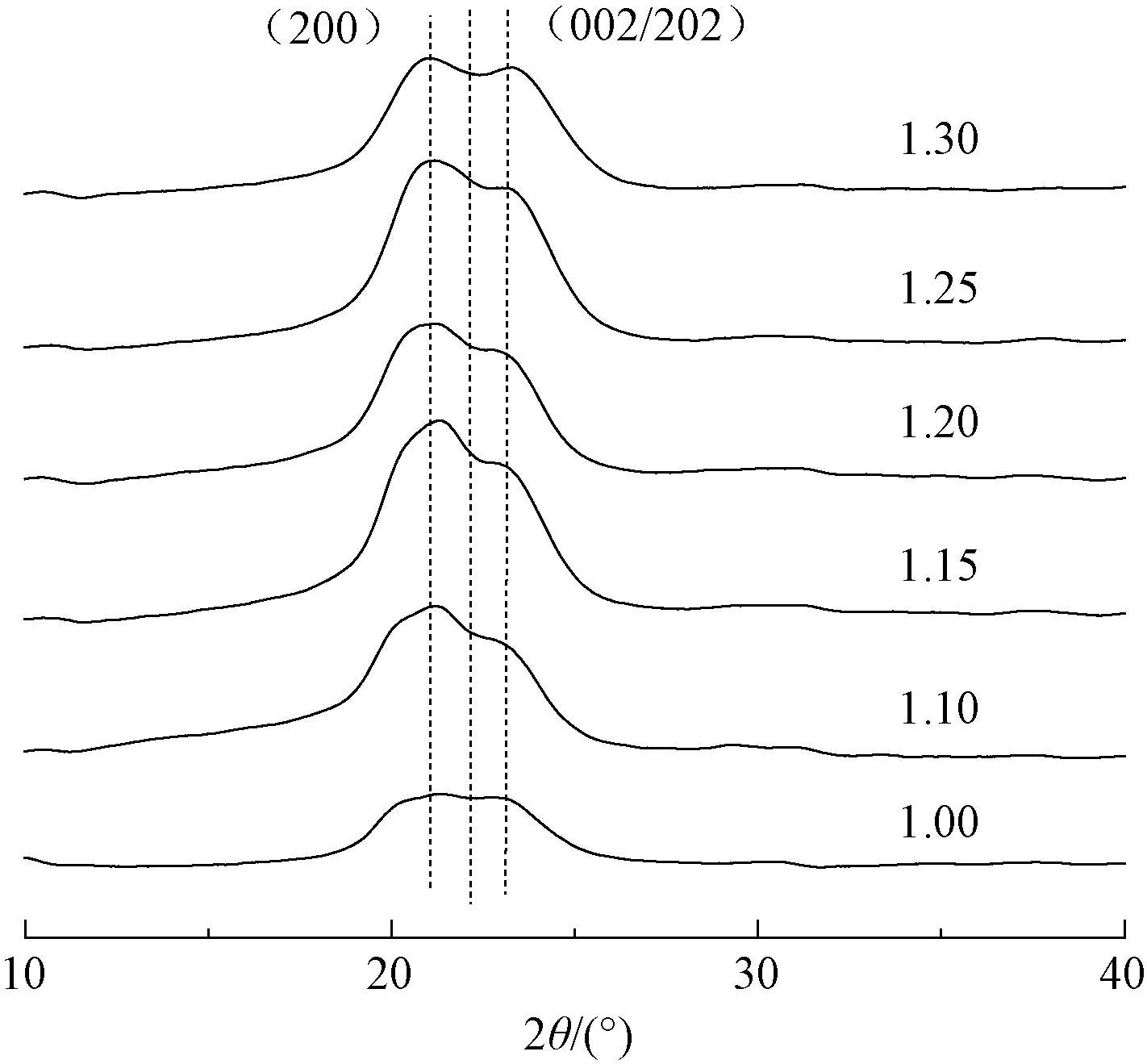

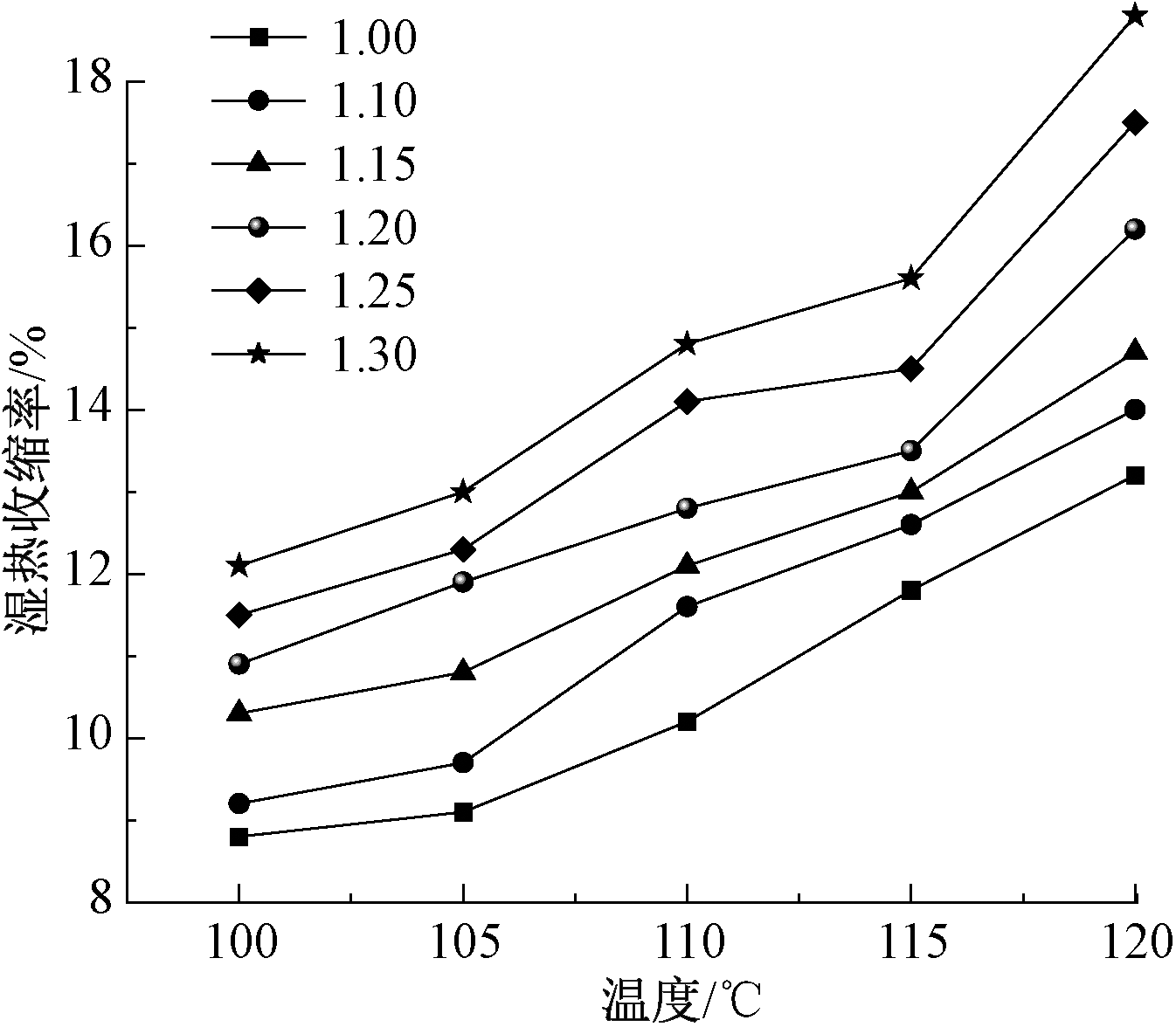

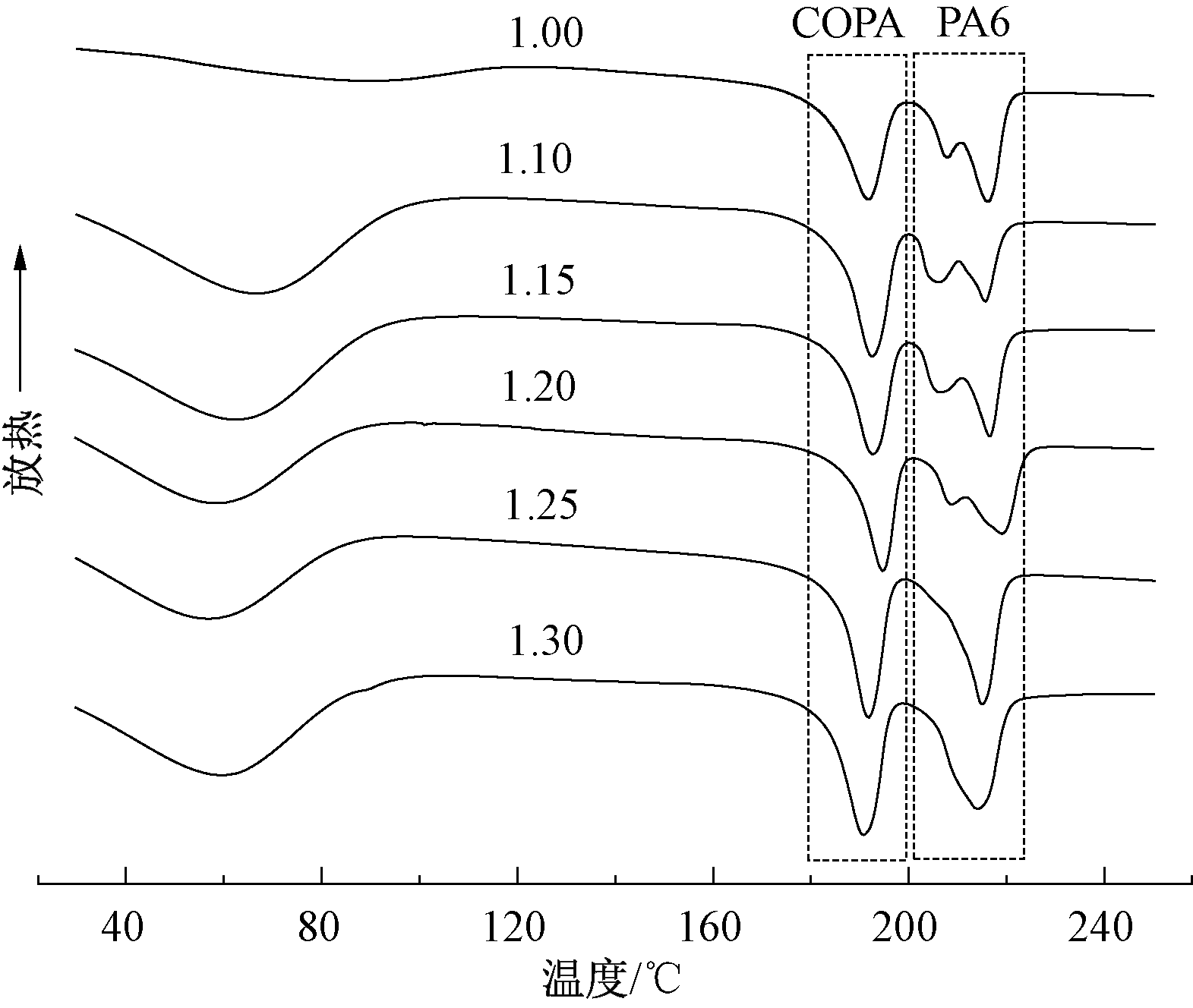

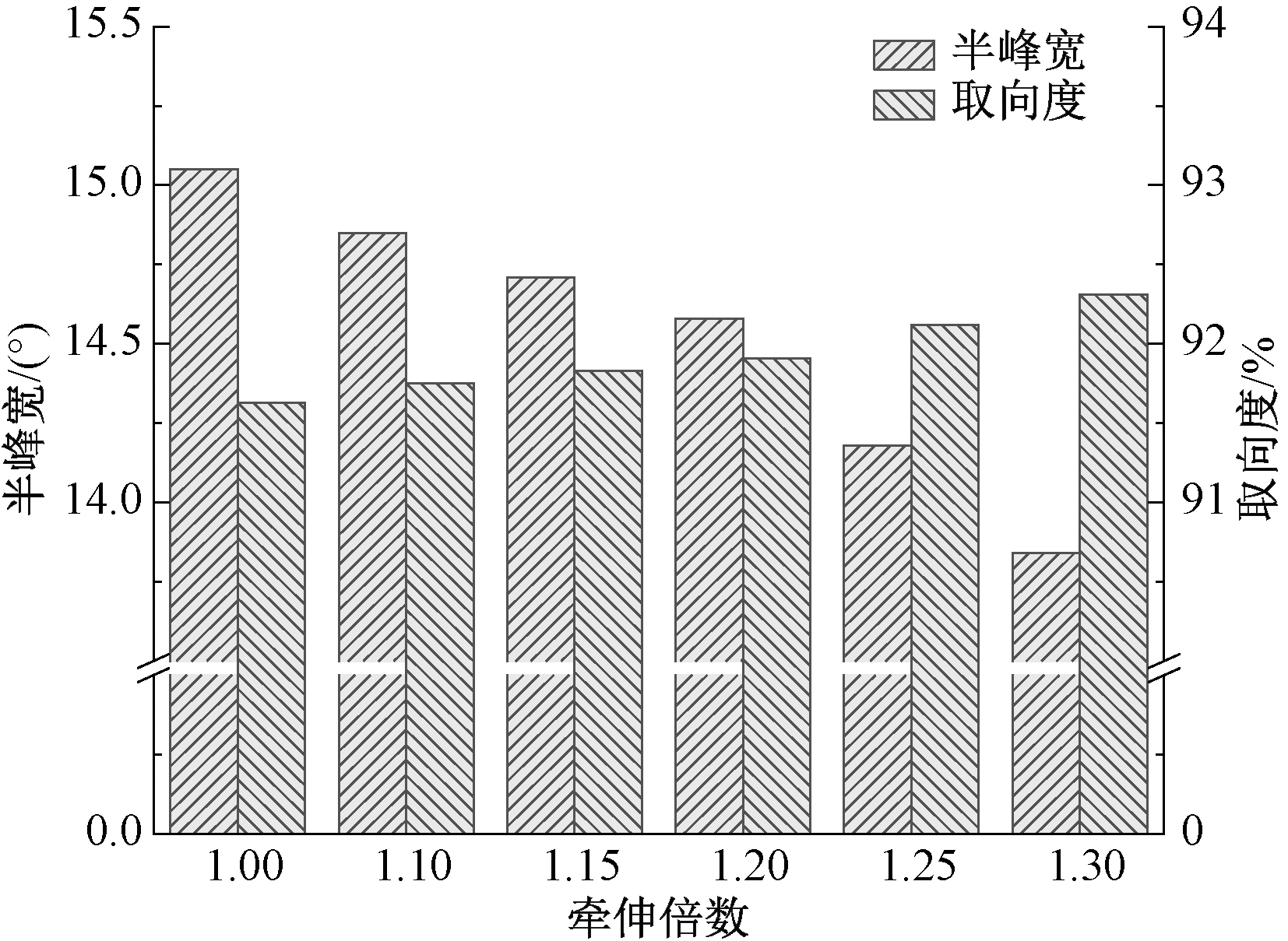

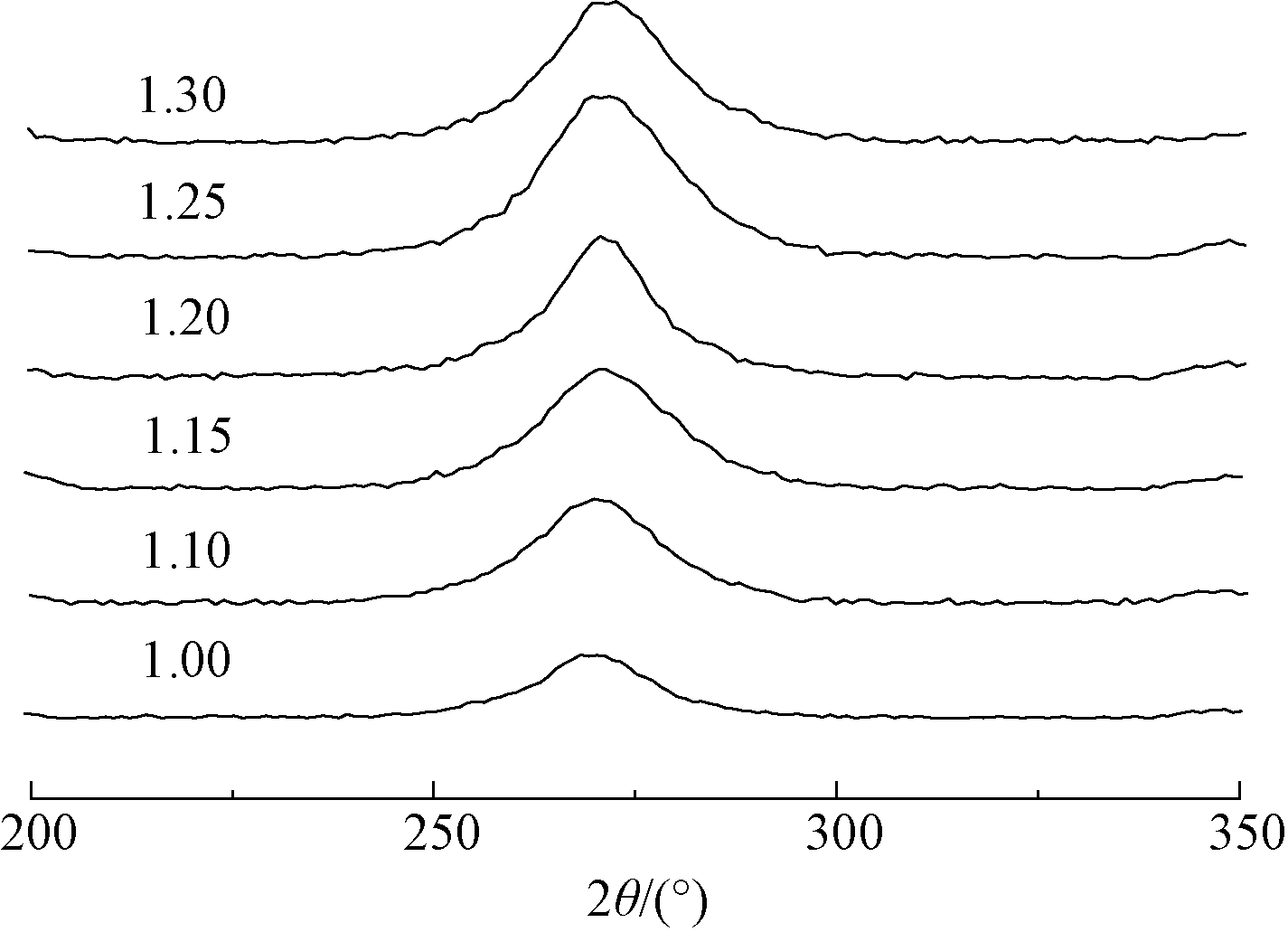

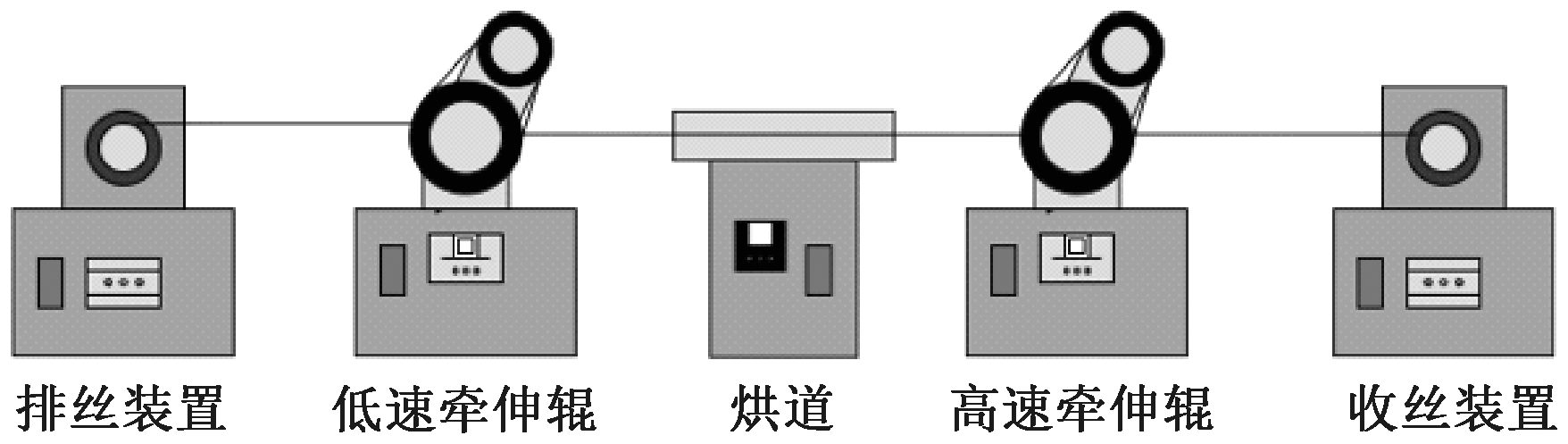

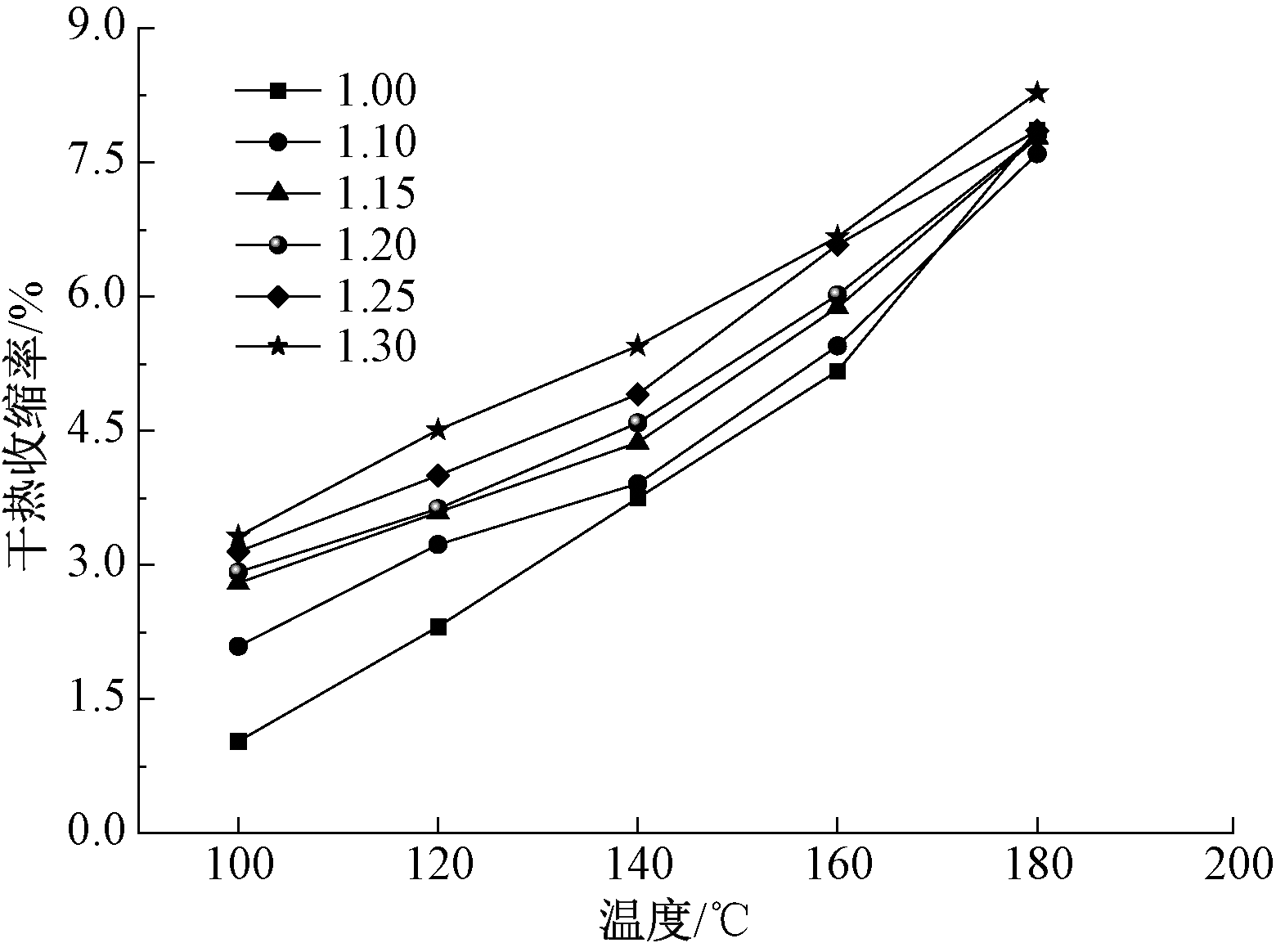

为研究牵伸倍数对聚酰胺6(PA6)/共聚酰胺(COPA)偏心皮芯复合纤维性能的影响,以PA6和COPA为原料,制得了PA6/COPA偏心皮芯复合预取向丝(POY),再通过实验室小型牵伸设备对初生纤维进行牵伸和热定形。借助差示扫描量热法、声速取向测定仪、广角二维X射线衍射仪、电子单纱强力机对纤维的结晶性能、取向性能、力学性能、收缩性能和卷曲性能进行测试与分析。结果表明:当热定形温度为160 ℃ 时,随着牵伸倍数的增加,PA6/COPA偏心皮芯复合纤维的结晶度、取向度均呈增长趋势,断裂强度由3.67 cN/dtex增加至4.63 cN/dtex,断裂伸长率由56.44% 降低至38.46%;当热处理温度一定时,随着牵伸倍数的增加,PA6/COPA偏心皮芯复合纤维的干热收缩率和湿热收缩率均呈增长趋势;当牵伸倍数一定时,随着热处理温度的升高,复合纤维的干热收缩率和湿热收缩率也均呈增长趋势;当湿热处理温度为120 ℃ 时,复合纤维表现出优异的卷曲形貌,当牵伸倍数从1.10增加至1.30时,复合纤维的卷曲数从 14个/(25 mm)增加至 21个/(25 mm)、卷曲率从 11.3% 增长至 13.81%、卷曲弹性率从 83.2% 增长至 88.52%。

关键词: 聚酰胺6, 共聚酰胺, 偏心皮芯复合, 牵伸, 结晶, 取向, 收缩性能

Abstract:

Objective In order to expand the application field of polyamide fiber, polyamide 6/copolyamide eccentric sheath-core composite fiber composed of polyamide 6 (PA6) and copolyamide (COPA) was developed. This composite fiber combines the excellent mechanical properties, dyeing performance and wear resistance of polyamide fiber with the excellent crimp elasticity and soft handfeeling of the composite fiber. The influence of the drafting and heat-setting processes on the properties of the composite fibers was investigated, aiming to provide valuable insights for the development and application of polyamide-based composite fibers.

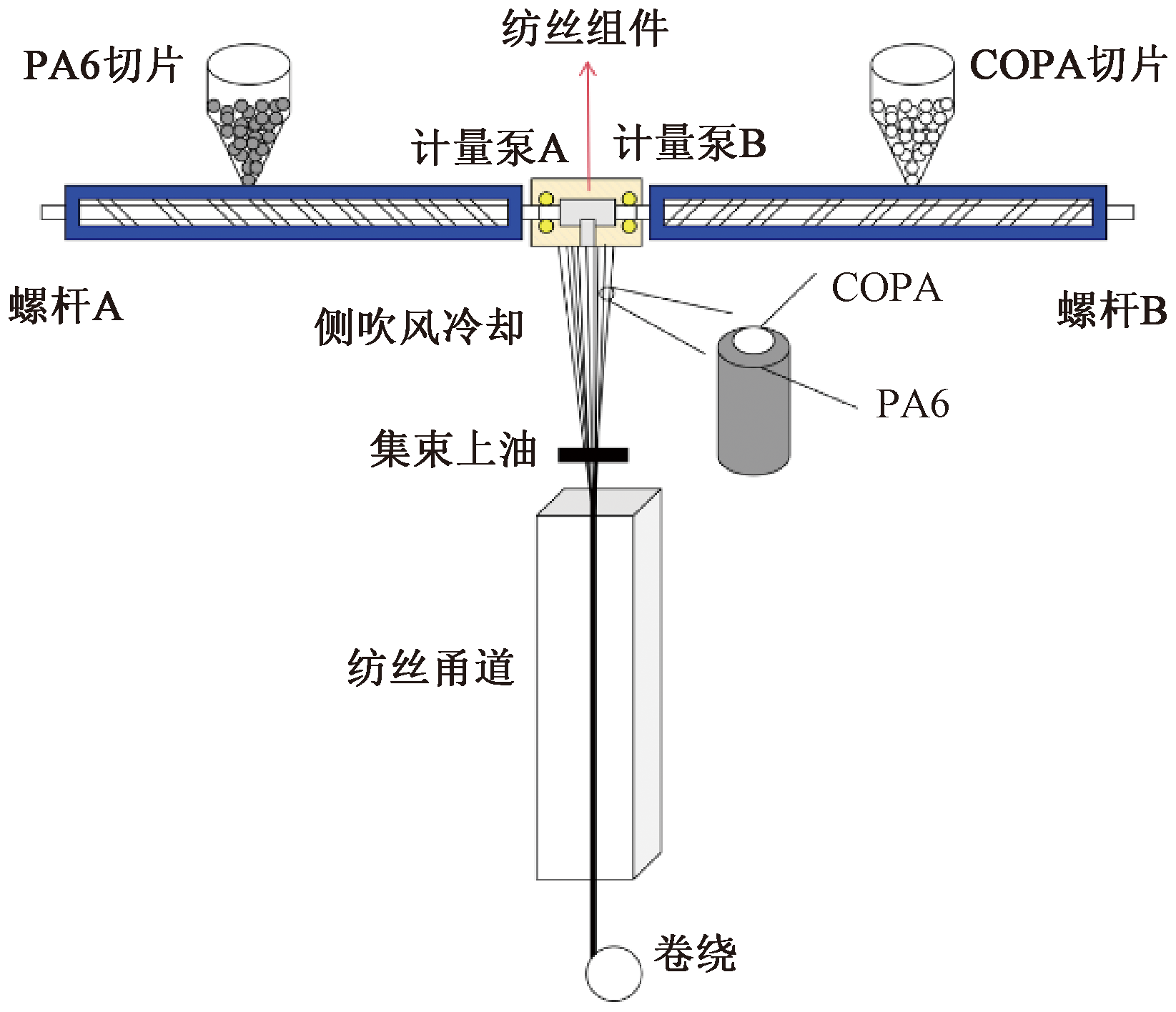

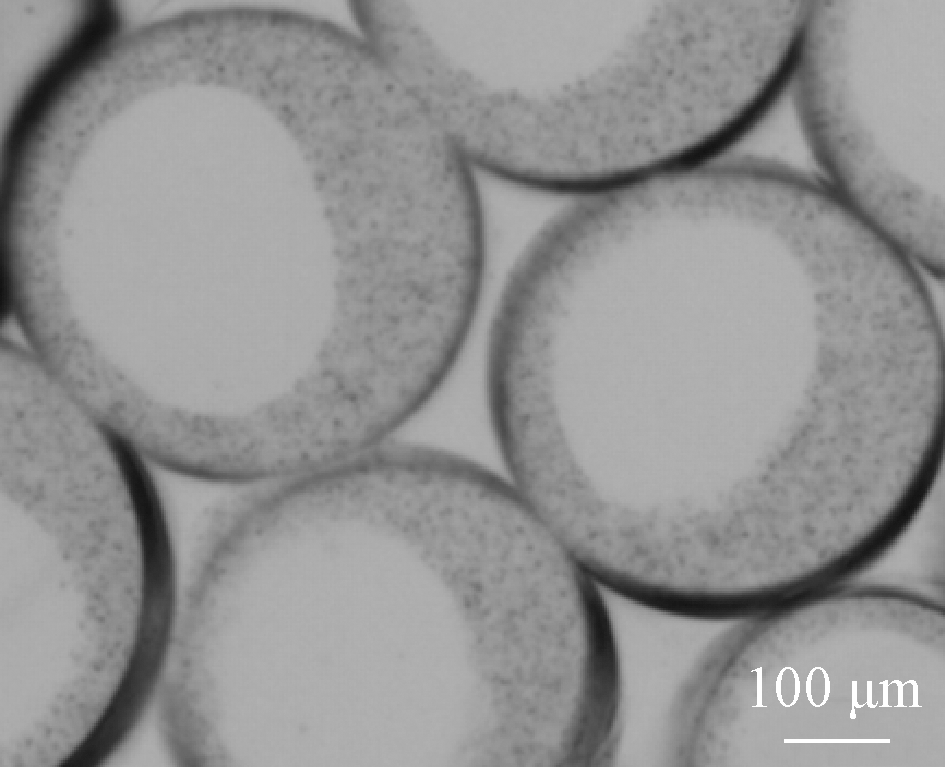

Method The PA6/COPA eccentric sheath-core composite pre-oriented yarn (POY) was successfully produced using melt spin-ning technology, employing PA6 and COPA as raw materials through a customized spinneret. Subsequently, the as-spun fiber was drafted and heat-set using specialized drafting equipment in the laboratory. The crystallization, orientation, mechanical, shrinkage, and crimp characteristics of the composite fibers, subjected to various draft multiples, were tested and analyzed using differential scanning calorimetry, a two-dimensional wide-angle X-ray diffractometer, a sound velocity orientation instrument, and an electronic single yarn strength tester.

Results The influence of draft ratio on the structure and properties of PA6/COPA eccentric sheath-core composite fibers was investigated by varying the draft ratio. The results indicated that when the heat setting temperature was 160 ℃, the crystallinity and orientation degree of the PA6/COPA eccentric sheath-core composite fibers increased with the increase of draft ratio from 1.10 to 1.30. The breaking strength increased from 3.67 cN/dtex to 4.63 cN/dtex, while the elongation at break decreased from 56.44% to 38.46%. When the heat treatment temperature is constant, the dry heat shrinkage and wet heat shrinkage of the composite fibers increased with the increase of the draft ratio. When the drafting ratio was constant, the dry heat shrinkage and wet heat shrinkage of the composite fibers increased with the heat treatment temperature. After heat treatment at 120 ℃, the composite fibers exhibited excellent crimp morphology. When the draft ratio was increased from 1.10 to 1.30, the crimp number of the composite fibers was risen from 14 curls/(25 mm) to 21 curls/(25 mm), the crimp rate was increased from 11.36% to 13.81%, and the crimp elasticity was improved from 83.32% to 88.52%.

Conclusion With the increase in draft ratio, the mechanical strength and crimp shrinkage of PA6/COPA eccentric sheath-core composite fibers are improved significantly. When the heat treatment temperature is 100 ℃, the shrinkage difference between the two components of the composite fiber is small, preventing the formation of self-crimping. As the temperature increases from 100 ℃ to 120 ℃, the composite fiber develops a complete and distinct crimp morphology. Thus, increasing the heat treatment temperature facilitates the crimp formation in composite fibers. The study provides a reference for expanding the application of polyamide in self-crimping composite fibers.

Key words: polyamide 6, copolyamide, eccentric skin-core composite, drafting, crystallization, orientation, shrinkage performance

中图分类号:

TS102.6

廖梦蝶, 肖汪洋, 李鸿鑫, 赵漫, 张须臻, 王秀华. 聚酰胺6/共聚酰胺偏心皮芯复合纤维的制备与性能[J]. 纺织学报, 2025, 46(07): 53-61.

LIAO Mengdie, XIAO Wangyang, LI Hongxin, ZHAO Man, ZHANG Xuzhen, WANG Xiuhua. Preparation and properties of polyamide 6/copolyamide eccentric sheath-core composite fibers[J]. Journal of Textile Research, 2025, 46(07): 53-61.

导出引用管理器 EndNote|Reference Manager|ProCite|BibTeX|RefWorks

链接本文: http://www.fzxb.org.cn/CN/10.13475/j.fzxb.20240908501

http://www.fzxb.org.cn/CN/Y2025/V46/I07/53

图/表 16

图1

表1

图2

图3

图4

表2

图5

图6

图7

图8

图9

表3

图10

图11

图12

表4

参考文献 20

[1]	朱建民. 聚酰胺纤维[M]. 北京: 化学工业出版社, 2014:1.
	ZHU Jianmin. Polyamide fiber[M]. Beijing: Chemical Industry Press, 2014:1.
[2]	孙振华. 聚酰胺改性技术及改性产品研究进展[J]. 纺织科学与工程学报, 2018, 35(4):163-166,121.
	SUN Zhenhua. Research progress of polyamide modification technology and modified products[J]. Journal of Textile Science and Engineering, 2018, 35(4):163-166,121.
[3]	中国化纤工业协会. 我国锦纶工业"十二五"发展目标、发展重点及主要任务[J]. 纺织导报, 2011(12):79-81.
	China Chemical Fibers Association. Aim and development priorities of China PA fiber industry during the 12^th five-year plan period[J]. China Textile Leader, 2011(12):79-81.
[4]	周卫东. 改性聚酰胺纤维的开发现状及发展趋势[J]. 合成纤维工业, 2014, 37(1):60-65.
	ZHOU Weidong. Development status and trend of modified polyamide fiber[J]. China Synthetic Fiber Industry, 2014, 37(1):60-65.
[5]	纪晓寰, 方彦雯, 孙宾, 等. 双组分聚酯纤维技术和产品应用进展[J]. 合成纤维工业, 2022, 45(1): 74-80.
	JI Xiaohuan, FANG Yanwen, SUN Bin, et al. Technology and product application progress of bicomponent polyester fiber[J]. China Synthetic Fiber Industry, 2022, 45(1):74-80.
[6]	魏纯香, 倪冰选. 复合纤维的相关标准及鉴别技术进展[J]. 合成纤维工业, 2021, 44(2):75-79.
	WEI Chunxiang, NI Bingxuan. Progress of composite fiber related standards and identification technology[J]. China Synthetic Fiber Industry, 2021, 44(2):75-79.
[7]	沈千林, 全潇, 孟超群. 并列型复合纤维纺丝组件的研究[J]. 化纤与纺织技术, 2010, 39(4):44-47.
	SHEN Qianlin, QUAN Xiao, MENG Chaoqun. Spinning pack of parallel composite fiber[J]. Chemical Fiber & Textile Technology, 2010, 39(4):44-47.
[8]	ZHU Shufang, MENG Xin, TAN Xu, et al. Evidence for bicomponent fibers: a review[J]. E-Polymers, 2021, 21: 636-653. doi: 10.1515/epoly-2021-0067
[9]	郎嘉瑞. 聚酰胺基并列复合纤维的制备及其性能研究[D]. 上海: 东华大学, 2023:1-50.
	LANG Jiarui. Preparation and properties of polyamide parallel composite fibers[D]. Shanghai: Donghua University, 2023:1-50.
[10]	刘雅丽, 袁如超, 俞建勇, 等. PA6/PBTE并列复合弹性纤维的制备及其性能研究[J]. 东华大学学报(自然科学版), 2025, 51(1):1-10.
	LIU Yali, YUAN Ruchao, YU Jianyong, et al. Preparation of PA6/PBTE side-by-side composite elastic fibers and study of their properties[J]. Journal of Donghua University(Natural Science Edition), 2025, 51(1):1-10.
[11]	杨倩. PA/TPAE偏心皮芯复合纤维的制备和性能研究[D]. 杭州: 浙江理工大学, 2023:11-39.
	YANG Qian. Preparation and properties of PA/TPAE eccenentric sheath-core composite fibers[D]. Hangzhou: Zhejiang Sci-Tech University, 2023:11-39.
[12]	WANG F M, GU F, XU B G. Elastic strain of PTT/PET self-crimping fibers[J]. Journal of Engineered Fibers and Fabrics, 2013, 8(2):1-6.
[13]	张梦茹, 王灿, 肖汪洋, 等. 聚醚酯弹性纤维的制备及其结构与性能[J]. 纺织学报, 2024, 45(8):81-88.
	ZHANG Mengru, WANG Can, XIAO Wangyang, et al. Preparation of polyether ester elastic fiber and its structure and properties[J]. Journal of Textile Research, 2024, 45(8):81-88.
[14]	BOONLERTSAMUT J, THUMSORN S, UMEMURA T, et al. Spinnability and characteristics of polyoxymethylene-based core-sheath bicomponent fibers[J]. Journal of Engineered Fibers and Fabrics, 2019, 14(1):1-7.
[15]	魏馨, 朱瑞淑, 胡红梅, 等. PA6/PA66共聚酰胺纤维的制备及结构性能研究[J]. 产业用纺织品, 2023, 41(1):22-29.
	WEI Xin, ZHU Ruishu, HU Hongmei, et al. Study on the preparation and structural properties of PA6/PA66 copolyamide fibers[J]. Technical Textiles, 2023, 41(1):22-29.
[16]	张颖, 宋明根, 姬洪, 等. 热定形工艺对高强型聚酯工业丝结构性能的影响[J]. 纺织学报, 2023, 44(9):43-51.
	ZHANG Ying, SONG Minggen, JI Hong, et al. Influence of heat-setting process on structure and properties of high-tenacity polyester industrial yarns[J]. Journal of Textile Research, 2023, 44(9):43-51.
[17]	ZHANG Jiacheng, LI Yonggang, MA Gang, et al. Study of the microstructure formation mechanisms of poly(etherether-ketone) monofilaments via melt spin-ning[J]. Journal of Applied Polymer Science, 2023, 140(4):1-13.
[18]	高峰, 孙燕琳, 肖顺立, 等. 不同牵伸倍率下聚酯复合纤维的微观结构与性能[J]. 纺织学报, 2022, 43(8):34-39.
	GAO Feng, SUN Yanlin, XIAO Shunli, et al. Microstructure and properties of polyester composite fibers with different drafting ratios[J]. Journal of Textile Research, 2022, 43(8):34-39.
[19]	王莉莉, 董侠, 朱平, 等. 长碳链聚醚酰胺弹性纤维开发及其弹性机理[J]. 高分子学报, 2017(5):752-760.
	WANG Lili, DONG Xia, ZHU Ping, et al. Research and development of long chain poly(amide-co-ether) elastic fibers and the corresponding elastic mechan-ism[J]. Acta Polymerica Sinica, 2017(5):752-760.
[20]	王宇, 吉鹏, 王朝生, 等. PEGT/PTT并列复合弹性纤维的制备及性能研究[J]. 合成纤维工业, 2020, 43(2):19-25.
	WANG Yu, JI Peng, WANG Chaosheng, et al. Preparation and properties of PEGT/PTT side-by-side composite elastic fiber[J]. China Synthetic Fiber Industry, 2020, 43(2):19-25.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

材料	干燥温度/℃	干燥时间/h	螺杆温度/℃	POY线密度	断裂强度/(cN·dtex^-1)	断裂伸长率/%
PA6	100	16	240/253/253/253	32 dtex(24 f)	3.1	73.26
COPA	90	24	260/282/282/280	32 dtex(24 f)	3.1	73.26

牵伸倍数	COPA		PA6
牵伸倍数	熔融焓/ (J·g^-1)	结晶度/%	熔融焓/ (J·g^-1)	结晶度/%
1.00	22.93	21.95	21.89	25.60
1.10	24.06	23.03	22.95	26.84
1.15	25.18	24.09	23.86	27.91
1.20	26.23	25.11	24.44	28.58
1.25	27.40	26.22	25.60	29.93
1.30	28.49	27.27	27.41	32.07

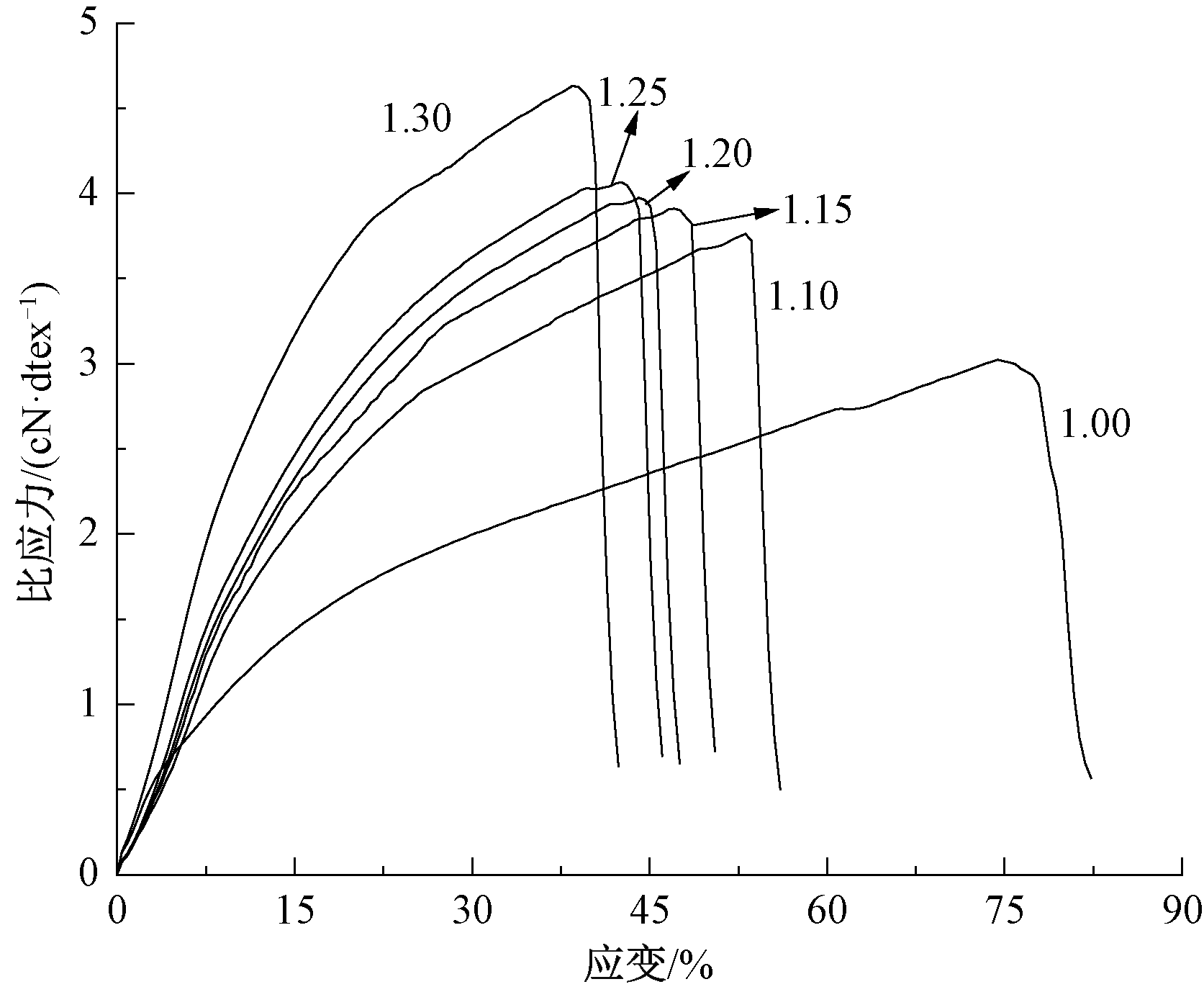

牵伸倍数	线密度/ dtex	断裂强度/ (cN·dtex^-1)	断裂伸长率/%
1.00	32.02	3.02	74.43
1.10	28.12	3.67	56.44
1.15	26.81	3.81	49.18
1.20	26.13	3.94	45.13
1.25	25.31	4.06	40.11
1.30	24.12	4.63	38.46

牵伸倍数	卷曲数/ (个·(25 mm)^-1)	卷曲率/%	卷曲弹性率/%
1.00	9	8.52	73.33
1.10	14	11.36	83.32
1.15	17	11.85	85.30
1.20	18	12.17	86.57
1.25	20	13.31	87.81
1.30	21	13.81	88.52
