Application of low/non-ammonia additives in reactive deep printing

XIAN Yongfang, WANG Hongmei, WU Minghua, WANG Lili()

  1. Engineering Research Center for Eco-Dyeing and Finishing of Textiles, Ministry of Education, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
  • Received:2020-11-06 Revised:2021-08-12 Online:2021-11-15 Published:2021-11-29
  • Contact: WANG Lili E-mail:liliwang@zstu.edu.cn

RichHTML

10

PDF (PC)

88

Abstract:

In order to develop the low/non-ammonia additives with high color performances in reactive deep printing, this research started by comparing the hygroscopicity, ability to swell, and ability to solubilize reactive dyes of different printing additives, and the internal relationships between the structures of additives and the above properties were explored. The additives with the above-mentioned properties were compounded for reactive deep printing on cotton fabrics. The results showed that among different types of additives, glycerol demonstrated the best hygroscopicity, 1,4-butanediol showed the best swellability to cotton fiber, and the amides exhibited the best solubility to Reactive Turquoise K-GL. When the mass ratio of glycerol and 1,4-butanediol was 2∶8, the color performances of the non-ammonia nitrogen compound on the reactive turquoise deep printing of cotton fabrics were much higher than those of the commercial alternative 391-H and slightly higher than using urea as additive. Good printing performances with reactive red, orange, blue and black dyes were achieved, enabling the reduction of the ammonia-nitrogen content in the printing wastewater.

Key words: reactive dyes, printing, urea substitute, printing additive, cotton fabric, ammonia-nitrogen

CLC Number:

  • TS194.4

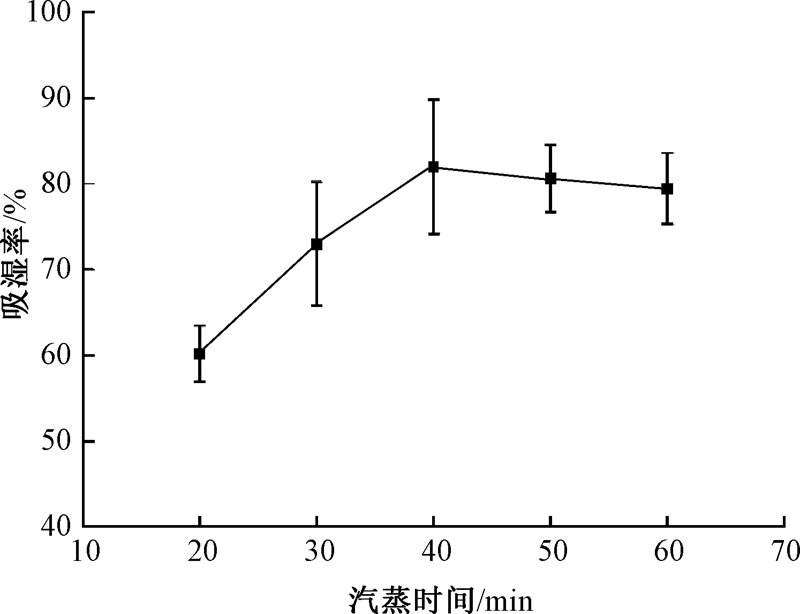

Fig.1

Moisture absorption performances of sodium alginate film in different steaming time"

Fig.2

Hygroscopicity of different printing additives in sodium alginate film during steaming"

Fig.3

Images of cotton fibers before and after swelling in different printing additives solutions"

Tab.1

Swelling properties of cotton fibers in different printing additives solutions"

助剂 相对分子质量 D ¯ 2/μm CV2值/% S/%
1,2-丙二醇 76.09 20.19 1.586 31.69
1,4-丁二醇 90.12 21.61 2.560 40.98
三乙二醇 150.17 19.14 1.256 24.86
丙三醇 92.09 20.03 4.402 30.65
木糖醇 152.16 20.02 3.587 30.57
尿素 60.06 20.63 3.868 34.59
乙酰胺 59.07 19.70 2.239 28.53
己内酰胺 113.16 19.90 3.398 29.78
3-氨基丙醇 75.11 20.29 1.676 32.34
PEG-200 200.00 20.94 3.328 36.59

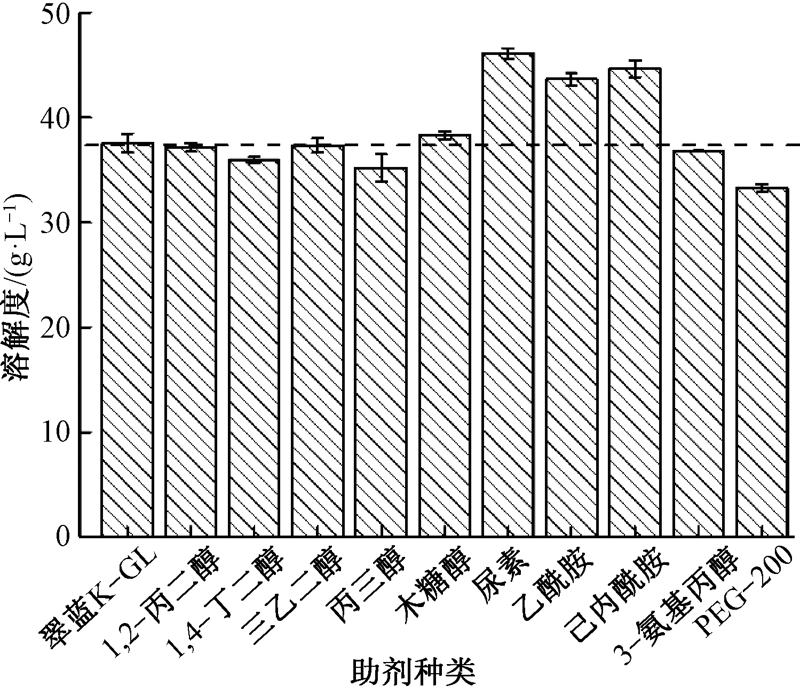

Fig.4

Solubility of different auxiliaries to Reactive Turquoise K-GL"

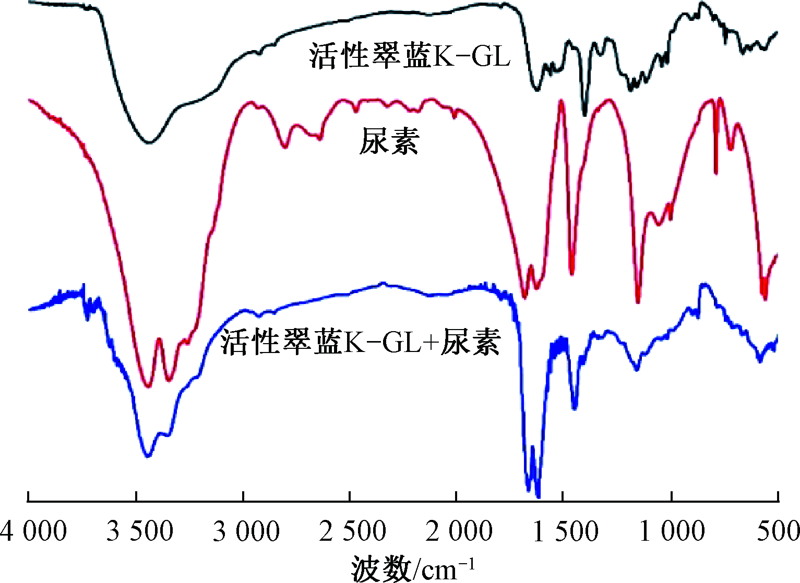

Fig.5

Infrared spectra of urea and Reactive Turquoise K-GL"

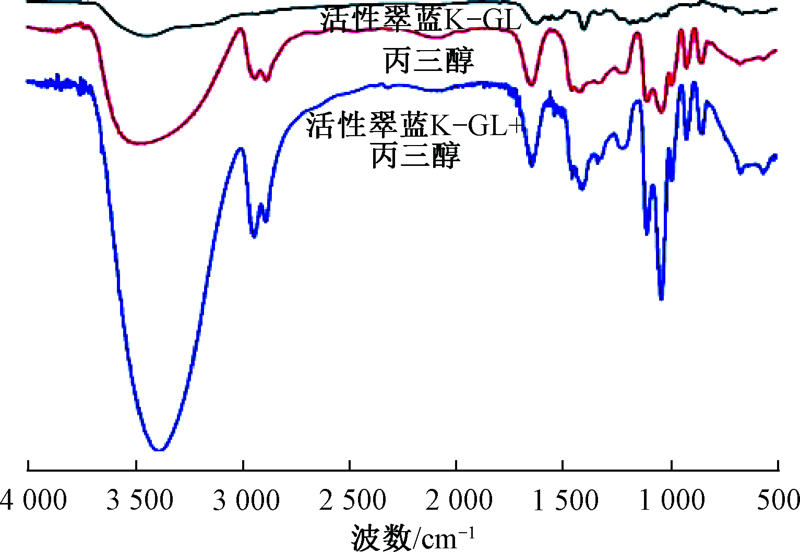

Fig.6

Infrared spectra of glycerol and Reactive Turquoise K-GL"

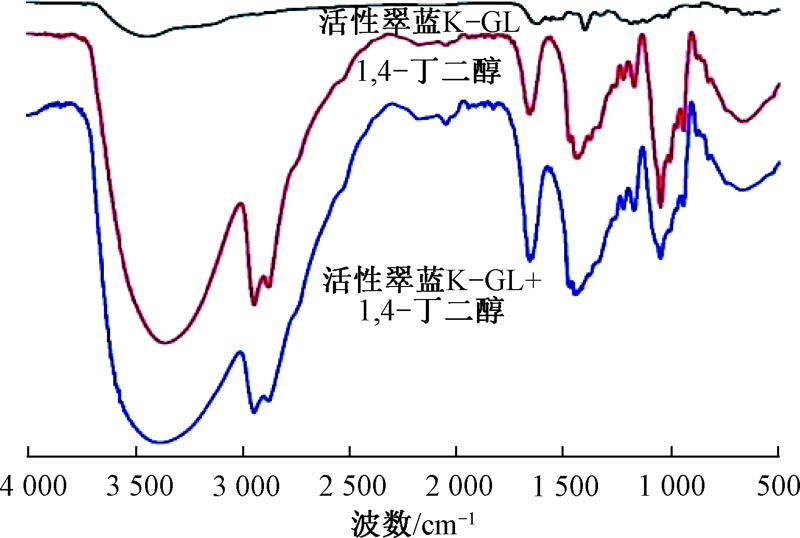

Fig.7

Infrared spectra of 1,4-butanediol and Reactive Turquoise K-GL"

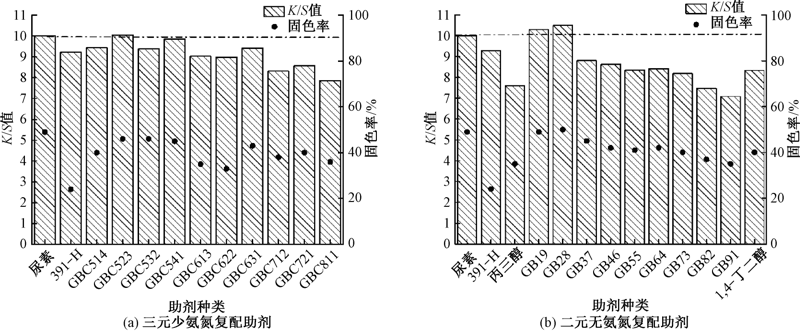

Fig.8

Color performances of low/non-ammonia compounds in Reactive Turquoise K-GL deep printing of cotton fabrics. (a)Ternary low-ammonia compounds; (b) Binary non-ammonia compounds"

Tab.2

Color performances of printed cotton fabrics using urea and GB28 with different reactive dyes"

活性染料 印花助剂 K/S值 渗透率/% 色泽不匀度/%
艳红K-2BP 尿素 22.2 38.0 0.9
GB28 21.2 47.6 2.9
橙K-7R 尿素 21.8 44.8 0.6
GB28 20.3 33.6 1.6
艳蓝P-3R 尿素 11.7 45.5 3.2
GB28 9.7 56.2 2.9
黑WNN 尿素 21.6 45.1 1.1
GB28 21.7 37.0 0.7

Fig.9

Fine patterns of cotton fabrics using urea (a) and GB28 (b) with different reactive dyes"

Tab.3

Color fastness of printed cotton fabrics"

活性染料 印花助剂 耐摩擦色牢度 耐皂洗色牢度
干 湿 沾色 变色
艳红K-2BP 尿素 5 5 5 5
GB28 5 5 4~5 5
橙K-7R 尿素 5 5 4~5 4~5
GB28 4~5 4~5 4 4~5
艳蓝P-3R 尿素 4~5 4~5 4~5 4~5
GB28 4~5 4~5 4~5 4~5
黑WNN 尿素 5 5 5 5
GB28 5 5 4~5 5
[1] XIE K L, LIU H D, WANG X J. Surface modification of cellulose with triazine derivative to improve printability with reactive dyes[J]. Carbohydrate Polymers, 2009, 78:538-542.
doi: 10.1016/j.carbpol.2009.05.013
[2] NI K, PACHOLSKIA, KAGE H. Ammonia volatilization after application of urea to winter wheat over 3 years affected by novel urease and nitrification inhibitors[J]. Agriculture, Ecosystems & Environment, 2014, 197:184-194.
doi: 10.1016/j.agee.2014.08.007
[3] KHATRI A, PEERZADA MH, MOHSIN M, et al. A review on developments in dyeing cotton fabrics with reactive dyes for reducing effluent pollution[J]. Journal of Cleaner Production, 2015, 87:50-57.
doi: 10.1016/j.jclepro.2014.09.017
[4] 李慧霞, 张庆. 代尿素DN-0516在黏胶针织物印花上的应用[J]. 针织工业, 2018(9):44-46.
LI Huixia, ZHANG Qing. The application of urea substitution DN-0516 in the printing of viscose knitted fabrics[J]. Knitting Industries, 2018(9):44-46.
[5] AHMED N S E, YOUSSEFY A, El-SHISHTAWY R M, et al. Urea/alkali-free printing of cotton with reactive dyes[J]. Coloration Technology, 2010, 122(6):324-328.
doi: 10.1111/cte.2006.122.issue-6
[6] DING C Y, WANG L, LIN J X, et al. Application of TEG replacing urea in silk printing with reactive dyes[J]. Advanced Materials Research, 2011, 175- 176:691-695.
[7] 张红娟, 高爱芹, 谢孔良. 棉织物的PEG-400无尿素活性印花[J]. 印染, 2015(7):12-16.
ZHANG Hongjuan, GAO Aiqin, XIE Kongliang. PEG-400 urea-free reactive printing of cotton fabrics[J]. China Dyeing & Finishing, 2015(7):12-16.
[8] ZHANG H J, GAO A Q, SONG X Y, et al. Cleaner production applied to urea-free printing of cotton fabrics using polyethylene glycol polymers as alternative additives[J]. Journal of Cleaner Production, 2016, 124:126-131.
doi: 10.1016/j.jclepro.2016.02.090
[9] 高方容. 活性染料印花中尿素及其替代品应用的研究[D]. 上海:东华大学, 2014: 20.
GAO Fangrong. Research on the application of urea and its substitutes in reactive dye printing[D]. Shanghai: Donghua University, 2014: 20.
[10] LI R M, WANGL L, HAO B R, et al. New thickener based on s-triazine di-sulfanilicxan than for reactive printing of silk fabric with double-sided patterns[J]. Textile Research Journal, 2019, 89(11):2209-2218.
doi: 10.1177/0040517518790979
[11] 张永兴, 钱红飞. 纯棉织物的预施碱活性染料印花工艺[J]. 印染, 2021(7):12-16.
ZHANG Yongxing, QIAN Hongfei. Reactive printing of cotton fabric with alkaline-pretreated method[J]. China Dyeing & Finishing, 2021 (7):12-16.
[12] 叶嘉浩, 王莉莉, 吴明华, 等. 蚕丝织物同花同色双面数码喷墨印花上浆工艺[J]. 纺织学报, 2019, 40(10):92-97.
YE Jiahao, WANG Lili, WU Minghua, et al. Double-sided digital inkjet printing sizing process for silk fabrics in the same pattern and color[J]. Journal of Textile Research, 2019, 40(10):92-97.
[13] CAMP P J, JONES A C, NEELY R K, et al. Aggregation of copper (II) tetrasulfonated phthalocyanine in aqueous salt solutions[J]. The Journal of Physical Chemistry A, 2002, 106(44):10725-10732.
doi: 10.1021/jp026551o
[14] 魏晓明, 石振, 王荣青, 等. 二元伯醇对活性染料墨水理化性能的影响[J]. 印染, 2019, 45(3):6-9.
WEI Xiaoming, SHI Zhen, WANG Rongqing, et al. The effect of primary dihydric alcohols on the physical and chemical properties of reactive dye inks[J]. China Dyeing & Finishing, 2019, 45(3):6-9.
