Journal of Textile Research ›› 2022, Vol. 43 ›› Issue (06): 9-14.doi: 10.13475/j.fzxb.20210804806

• Manufacture and Application of High Performance Flexible Textile Composites • Previous Articles     Next Articles

Preparation of metal phenolic network/zwitterionic polymer coated polypropylene mesh and its resistance to protein adsorption

WANG Qian1,2, QIAO Yansha1,2, WANG Junshuo1, LI Yan1,2,3(), WANG Lu1,2,3

  1. 1. College of Textiles, Donghua University, Shanghai 201620, China
    2. Key Laboratory of Textile Science & Technology of Ministry of Education, Donghua University, Shanghai 201620, China
    3. Key Laboratory of Textile Industry for Biomedical Textile Materials and Technology, Donghua University, Shanghai 201620, China
  • Received:2021-08-10 Revised:2022-01-14 Online:2022-06-15 Published:2022-07-15
  • Contact: LI Yan E-mail:yanli@dhu.edu.cn

RichHTML

22

PDF (PC)

70

Abstract:

In order to combine hydrophilic zwitterions with inert polypropylene (PP) mesh and reduce the adsorption of protein on the mesh surface, poly(carboxybetaine methacrylate) (PCBMA) was deposited on PP mesh through Fe(Ⅲ) and tannic acid (TA) layer-by-layer self-assembly of metal phenolic network (MPN). The micro-morphology, surface composition, contact angle, surface potential, mechanical properties, protein adsorption properties and cytotoxicity of the meshes before and after modification were characterized and analyzed. The results show that PCBMA can wrap evenly on the surface of PP monofilament assisted by MPN, and the surface chemical composition of the mesh is changed. Moreover, PCBMA-Fe/TA coating reduces the water contact angle of the mesh to 37° and the surface zeta potential is increased from -55.7 mV to -5.14 mV. In addition, the mechanical properties of PP mesh are not affected by the coating, but the coating brings significant protein adsorption resistance to the mesh. Furthermore, the relative cell viability of the modified mesh reaches 89%, which shows excellent biocompatibility. In general, the study provides a reference basis for the antifouling modification of inert medical devices.

Key words: polypropylene mesh, tannic acid, metal phenolic network, layer-by-layer, zwitterionic, protein adsorption resistance

CLC Number:

  • R318.0

Fig.1

SEM images of PP, Fe/TA-PP and PCBMA-Fe/TA-PP"

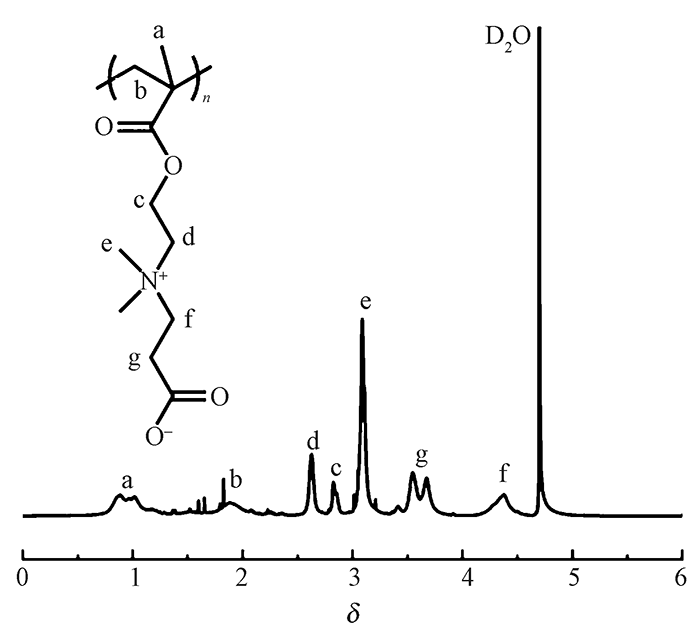

Fig.2

1H NMR spectra of PCBMA"

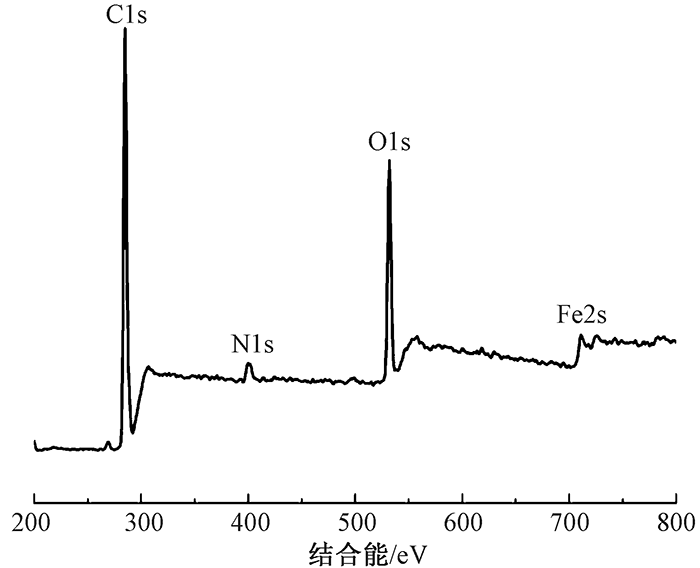

Fig.3

XPS spectra of PCBMA-Fe/TA-PP"

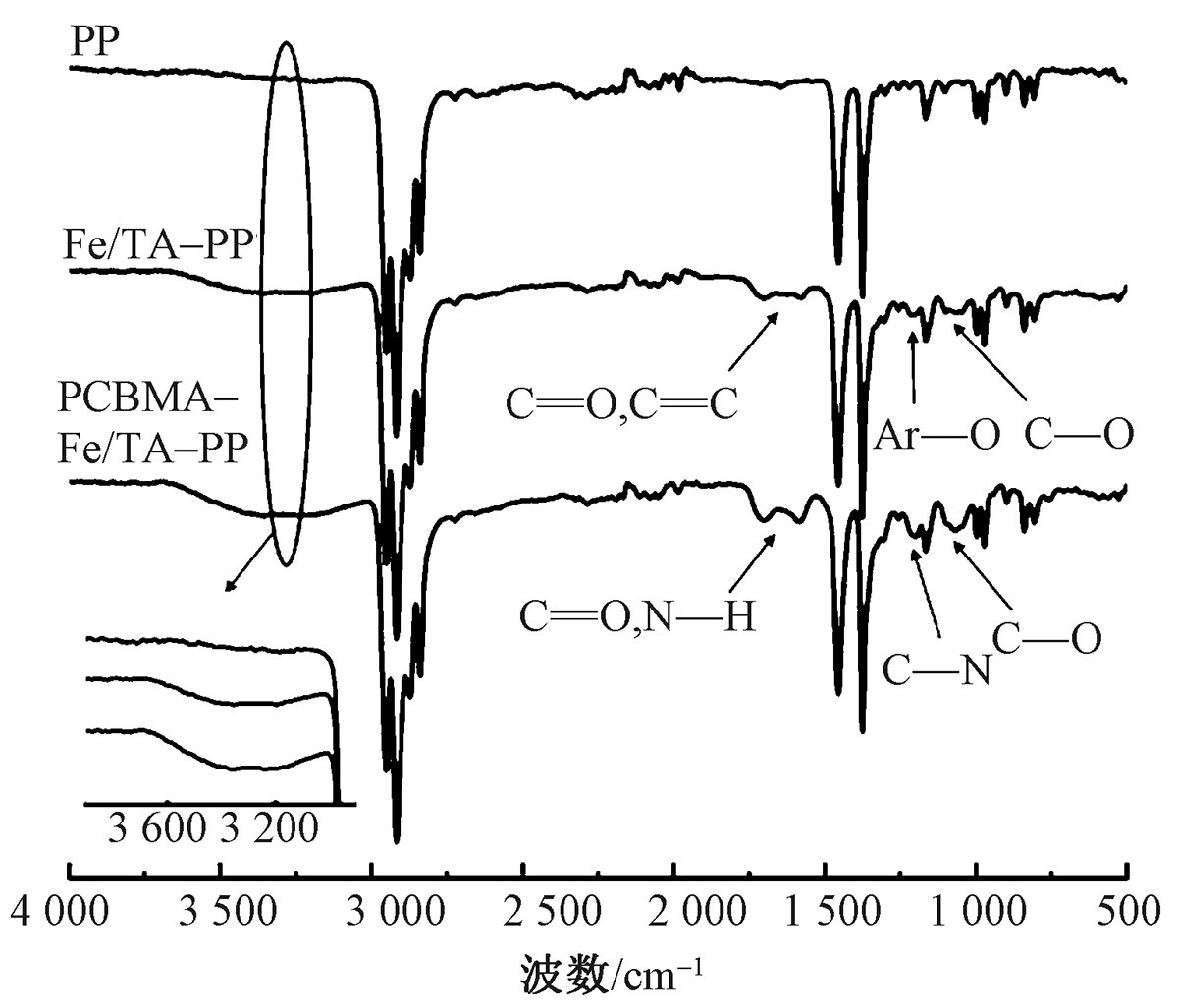

Fig.4

FT-IR spectra of PP, Fe/TA-PP and PCBMA-Fe/TA-PP"

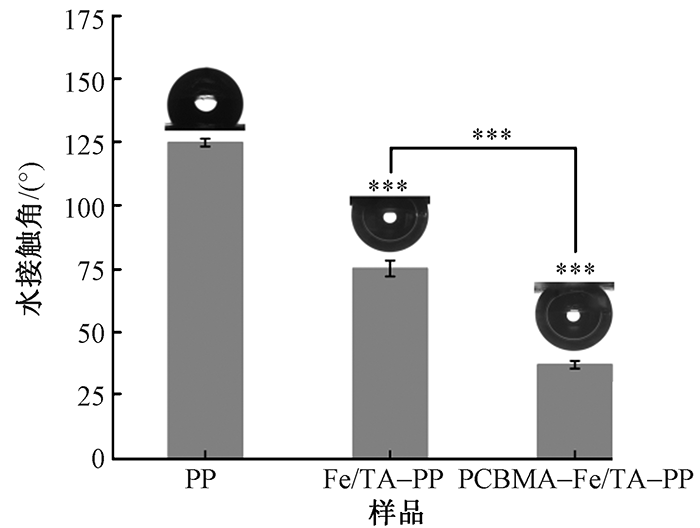

Fig.5

Change in water contact angle of meshes before and after modification"

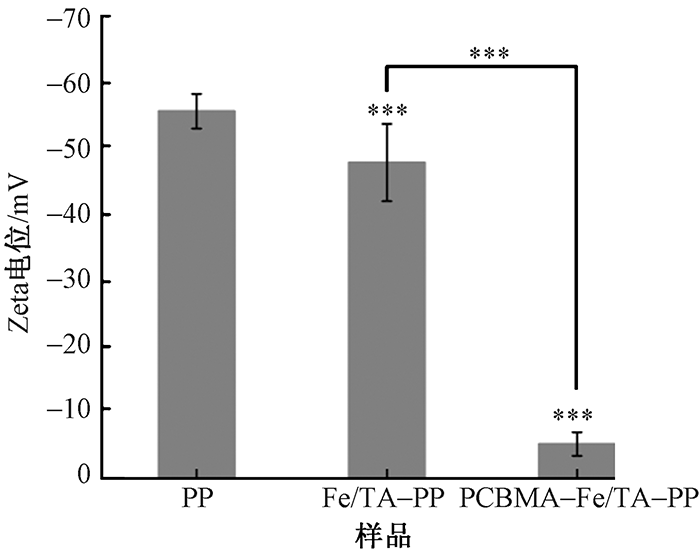

Fig.6

Change in surface Zeta potential of meshes before and after modification"

Tab.1

Mechanical properties of meshes before and after modification"

试样名称 断裂强度/(N·cm-1) 断裂伸长率/%
横向 纵向 横向 纵向
PP 50.9±0.6 48.1±2.3 61.8±0.8 90.0±1.7
Fe/TA-PP 51.1±0.5 50.3±1.6 59.8±1.3 92.4±1.4
PCBMA-Fe/TA-PP 53.2±0.8 50.8±1.9 61.9±1.4 93.1±1.2

Fig.7

Fluorescence images labeled by BSA-FITC of meshes"

Tab.2

CCK-8 absorbance value of L929 at 24 h"

试样名称 CCK-8吸光度值
空白对照 0.53±0.05
PP 0.51±0.06
PCBMA-Fe/TA-PP 0.47±0.06
[1] 段先召, 王婉东, 陈洪流. 腹股沟疝修补术后慢性疼痛的最新研究进展[J]. 世界最新医学信息文摘, 2018, 18(72): 78-82.
DUAN Xianzhao, WANG Wandong, CHEN Hongliu. Recent advances in chronic pain after inguinal hernia repair[J]. World Latest Medicine Information, 2018, 18(72): 78-82.
[2] SANDERS D L, KINGSNORTH A N. Prosthetic mesh materials used in hernia surgery[J]. Expert Review of Medical Devices, 2012, 9(2): 159-179.
doi: 10.1586/erd.11.65
[3] SANBHAL N, MIAO L L, XU R, et al. Physical structure and mechanical properties of knitted hernia mesh materials: a review[J]. Journal of Industrial Textiles, 2018, 48(1): 333-360.
doi: 10.1177/1528083717690613
[4] NIEBUHR H, WEGNER F, HUKAUF M, et al. What are the influencing factors for chronic pain following TAPP inguinal hernia repair: an analysis of 20004 patients from the Herniamed Registry[J]. Surgical Endoscopy, 2018, 32(4): 1971-1983.
doi: 10.1007/s00464-017-5893-2
[5] LIU W B, XIE Y J, ZHENG Y D, et al. Regulatory science for hernia mesh: current status and future perspectives[J]. Bioactive Materials, 2021, 6(2): 420-432.
doi: 10.1016/j.bioactmat.2020.08.021
[6] CHEN Q, ZHANG D, GU J, et al. The impact of antifouling layers in fabricating bioactive surfaces[J]. Acta Biomaterialia, 2021, 126: 45-62.
doi: 10.1016/j.actbio.2021.03.022
[7] ZHANG D H, CHEN Q, SHI C, et al. Dealing with the foreign-body response to implanted biomaterials: strategies and applications of new materials[J]. Advanced Functional Materials, 2021, 31(6): 2007226.
doi: 10.1002/adfm.202007226
[8] NADIZADEH Z, MAHDAVI H. Grafting of zwitterion polymer on polyamide nanofiltration membranes via surface-initiated RAFT polymerization with improved antifouling properties as a new strategy[J]. Separation and Purification Technology, 2021, 254: 117605.
doi: 10.1016/j.seppur.2020.117605
[9] ZHANG H R, ZHANG X M, KUANG Z, et al. Bionic antibacterial modification of IOL through SI-RAFT polymerization of P(TOEAC-co-MPC) brushes to prevent PCO and endophthalmitis[J]. Polymer Testing, 2020, 88: 106553.
doi: 10.1016/j.polymertesting.2020.106553
[10] LIN Y, WANG L, ZHOU J, et al. Surface modification of PVA hydrogel membranes with carboxybetaine methacrylate via PET-RAFT for anti-fouling[J]. Polymer, 2019, 162: 80-90.
doi: 10.1016/j.polymer.2018.12.026
[11] KIM S Y, SEO H J, KIM S, et al. Formation of various polymeric films via surface-initiated ARGET ATRP on silicon substrates[J]. Bulletin of the Korean Chemical Society, 2021, 42(5): 761-766.
doi: 10.1002/bkcs.12256
[12] LORUSSO E, ALI W, LENIART M, et al. Tuning the density of zwitterionic polymer brushes on PET fabrics by aminolysis: effect on antifouling performances[J]. Polymers, 2020, 12(1): 6.
doi: 10.3390/polym12010006
[13] XIE W, TIRAFERRI A, JI X, et al. Green and sustainable method of manufacturing anti-fouling zwitterionic polymers-modified poly(vinyl chloride) ultrafiltration membranes[J]. Journal of Colloid and Interface Science, 2021, 591: 343-351.
doi: 10.1016/j.jcis.2021.01.107
[14] LIN Y C, CHAO C M, WANG D K, et al. Enhancing the antifouling properties of a PVDF membrane for protein separation by grafting branch-like zwitterions via a novel amphiphilic SMA-HEA linker[J]. Journal of Membrane Science, 2021, 624: 119126.
doi: 10.1016/j.memsci.2021.119126
[15] EJIMA H, RICHARDSON J J, CARUSO F. Metal-phenolic networks as a versatile platform to engineer nanomaterials and biointerfaces[J]. Nano Today, 2017, 12: 136-148.
doi: 10.1016/j.nantod.2016.12.012
[16] QIAO Y S, LI Y, ZHANG Q, et al. Dopamine-mediated zwitterionic polyelectrolyte-coated polypropylene hernia mesh with synergistic anti-inflammation effects[J]. Langmuir, 2020, 36(19): 5251-5261.
doi: 10.1021/acs.langmuir.0c00602
[17] JAHNERT T, HAGER M D, SCHUBERT U S. Application of phenolic radicals for antioxidants, as active materials in batteries, magnetic materials and ligands for metal-complexes[J]. Journal of Materials Chemistry A, 2014, 2(37): 15234-15251.
doi: 10.1039/C4TA03023K
[18] CHEN S, LI L, ZHAO C, et al. Surface hydration: principles and applications toward low-fouling/nonfouling biomaterials[J]. Polymer, 2010, 51(23): 5283-5293.
doi: 10.1016/j.polymer.2010.08.022
[19] WANG F, ZHANG H, YU B, et al. Review of the research on anti-protein fouling coatings materials[J]. Progress in Organic Coatings, 2020, 147: 105860.
doi: 10.1016/j.porgcoat.2020.105860
[20] TANAKA M, MORITA S, HAYASHI T. Role of interfacial water in determining the interactions of proteins and cells with hydrated materials[J]. Colloids and Surfaces B: Bio Interfaces, 2021, 198: 111449.
