Journal of Textile Research ›› 2025, Vol. 46 ›› Issue (09): 94-103.doi: 10.13475/j.fzxb.20240500901

• Fiber Materials • Previous Articles     Next Articles

Aromatic and antibacterial linalool/polyamide/zein micro-nano nonwovens with double envelope structure

WANG Haopeng1,2, ZHANG Jiawen1,2, NIU Yunwei3, KE Qinfei3, ZHAO Yi1,2()

  1. 1. College of Textiles, Donghua University, Shanghai 201620, China
    2. Engineering Research Center of Technical Textile, Ministry of Education, Donghua University, Shanghai 201620, China
    3. Collaborative Innovation Center of Fragrance, Flavor and Cosmetics, Shanghai Institute of Technology, Shanghai 201418, China
  • Received:2024-05-06 Revised:2025-06-21 Online:2025-09-15 Published:2025-11-12
  • Contact: ZHAO Yi E-mail:zhaoyi@dhu.edu.cn

RichHTML

2

PDF (PC)

5

Abstract:

Objective Linalool, a primary constituent of lavender essential oil, is renowned for its versatile properties, including anti-inflammatory and anti-bacterial effects, as well as its sedative and hypnotic qualities. Additionally, it exhibits potent anti-oxidation capabilities. Owing to these beneficial attributes, linalool is extensively utilized in various health-related fields, such as sleep aids, antibacterial products, and anxiety relief. Its natural calming effects make it a valuable component in aromatherapy and other wellness practices.Despite these advantages, linalool's inherent volatility and poor thermal stability present significant challenges that can limit its application efficiency and effectiveness. Its tendency to evaporate quickly can lead to a loss of potency, while its instability at higher temperatures can affect its shelf life and reliability in various formulations. In order to overcome these drawbacks and harness linalool's full potential, a novel hierarchical envelope stabilization strategy for fiber microcapsules is introduced.

Method A sophisticated hierarchical envelope stabilization strategy for fiber microcapsules is presented, which is a groundbreaking approach in the field of encapsulation technology.Micro-nano composite nonwowens were developed, which was meticulously crafted using the electrospinning technique. Polyamide-amine dendrimers (carefully designed organic molecules known for their high branching and functionality) were chose as the main material for building molecular microcapsules. Through electrospinning technology, zein-coated molecular microcapsules are prepared to achieve the sustained release of linalool.

Results The inclusion mechanism of polyamide-amine dendrimers and linalool was verified by molecular dynamics simulation, and the optimal loading rate (64.9% for polyamide-amine dendrimers) was investigated.Besides, the long-active antibacterial aromatic micro-nano nowowens (the loading rate of linalool increased from 2.61% to 13.9%) was formed, and the mechanical properties (breaking strength 21.23 cN, elongation at break 6.25%) were improved by 90.52% and 53.56%, respectively.

Conclusion The micro-nano scaffolds developed through the electrospinning of zein and polyamide-amine dendrimers have significantly improved the storage stability of linalool when kept at room temperature.Encapsulating linalool within the fibrous matrices of the micro-nano nonwowen not only protected the compound from degradation but also prolonged its antibacterial efficacy over an extended period. This advancement in encapsulation technology has allowed linalool to retain its potent antibacterial activity, making it a viable candidate for a wide range of application in the field of medical dressing, the sustained release of linalool from these micro-nano scaffolds can provide a continuous antimicrobial effect, reducing the risk of infection in wound healing environments. Furthermore, in food packaging, the integration of linalool-containing microcapsules into packaging materials can serve as a natural preservative, prolonging the shelf life of perishable goods by inhibiting the growth of bacteria and fungi.

Key words: aromatic and antibacterial, functional nonwowen, electrospun micro-nano material, linalool, polyamide-amine dendrimer

CLC Number:

  • TS174.1

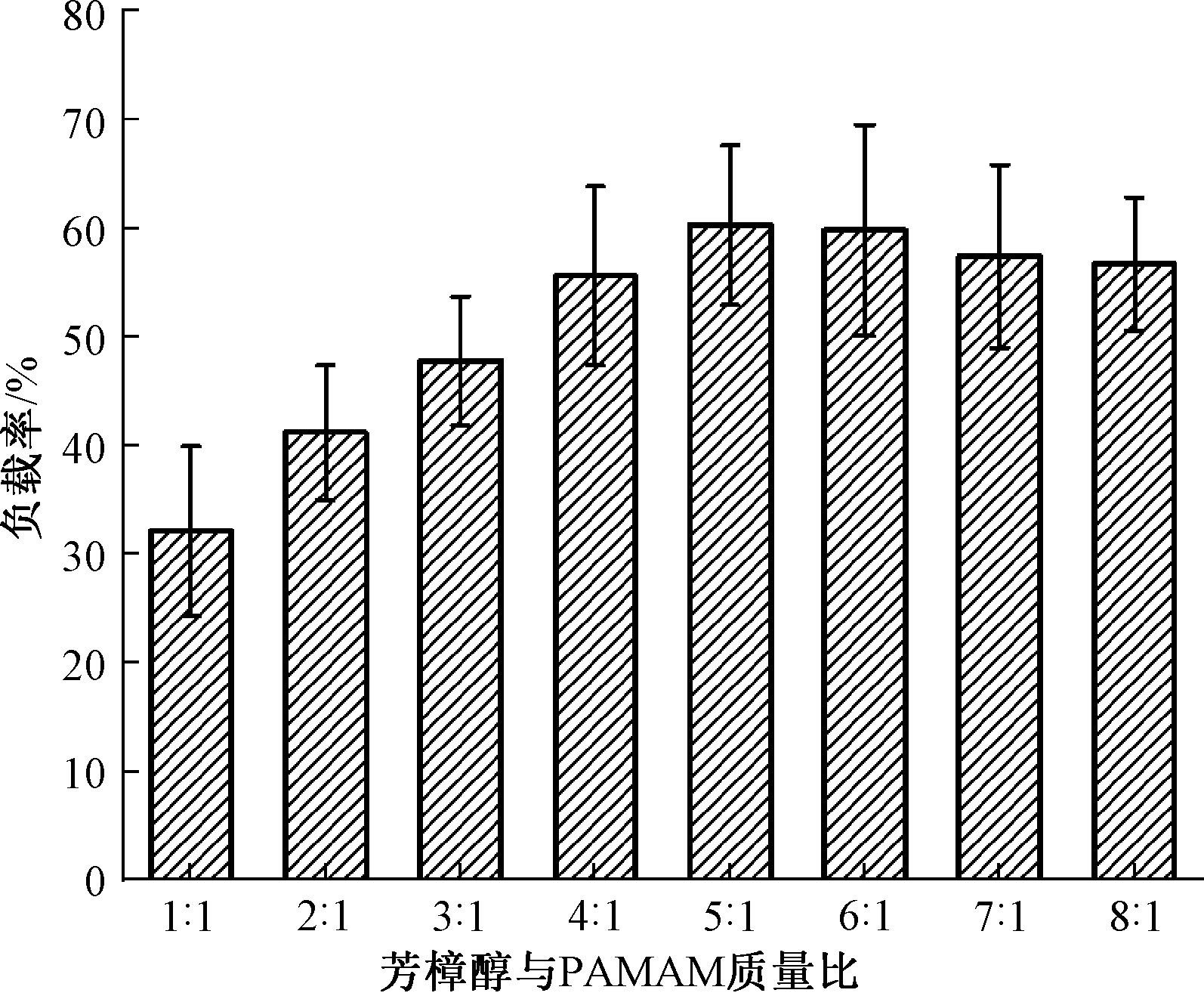

Fig.1

Loading rates of linalool by PAMAM at different mass ratios"

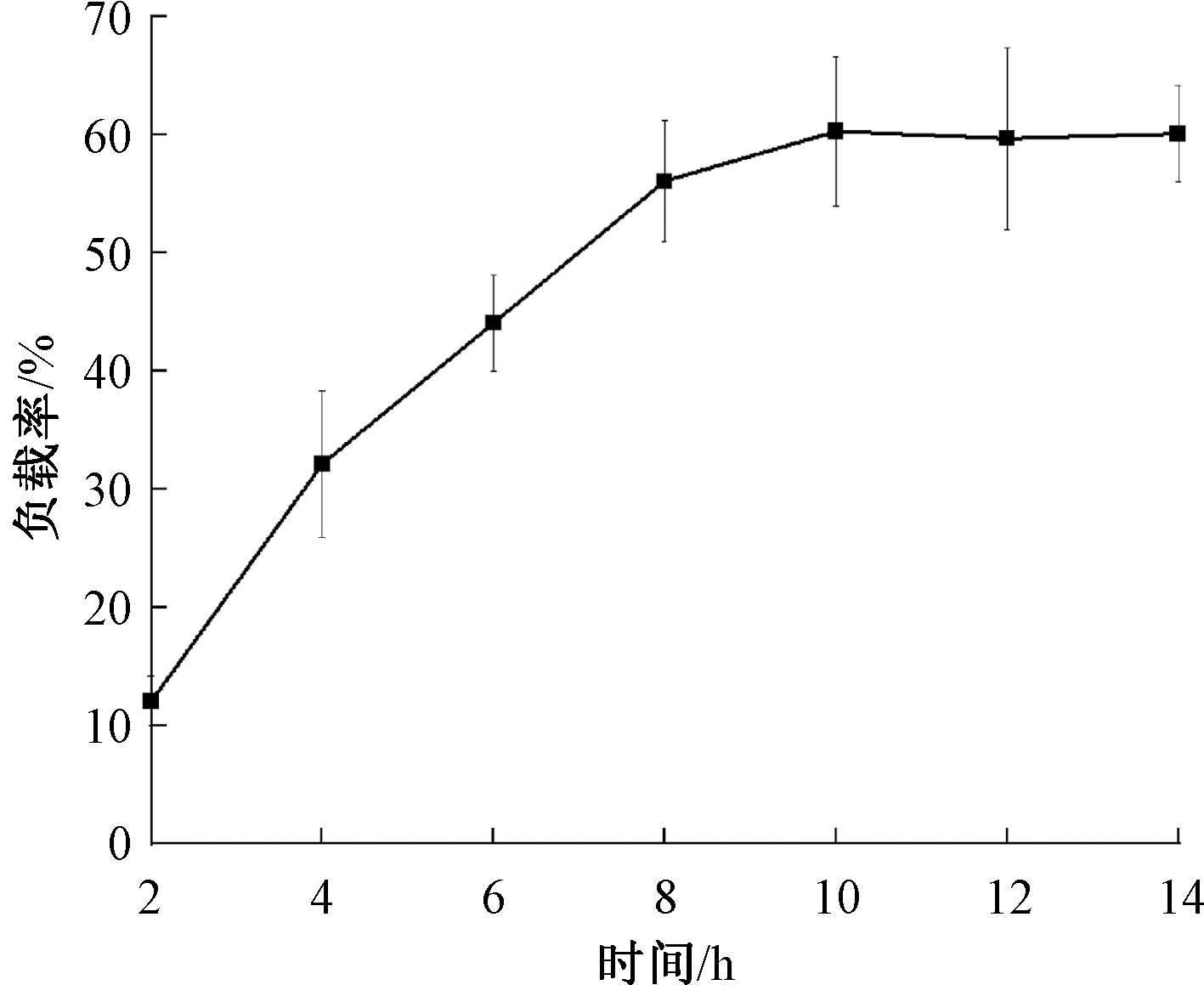

Fig.2

Loading rates of linalool by PAMAM at different strring time periods"

Fig.3

PAMAM enveloping linalool in aqueous solution"

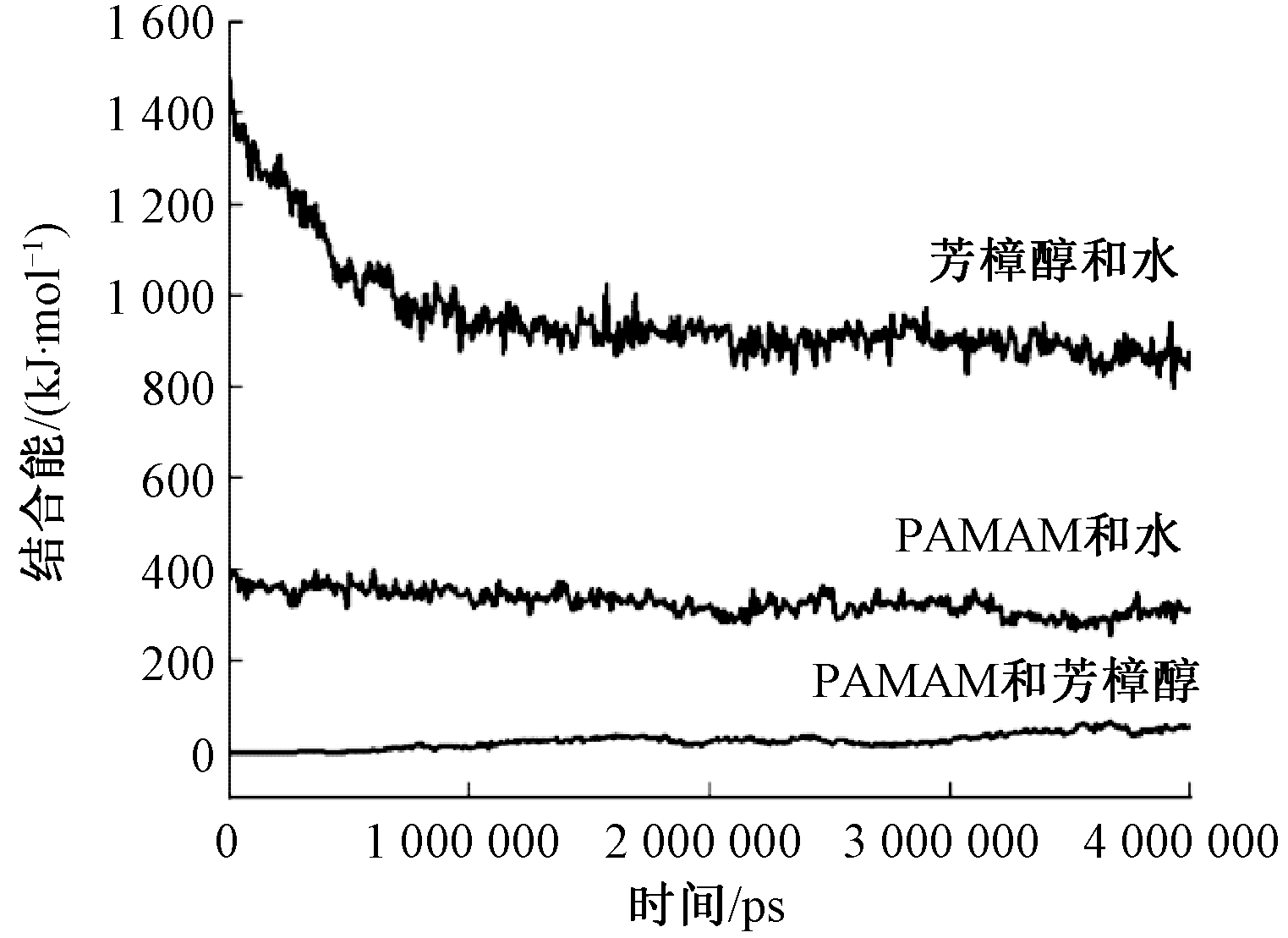

Fig.4

Binding energy between molecules"

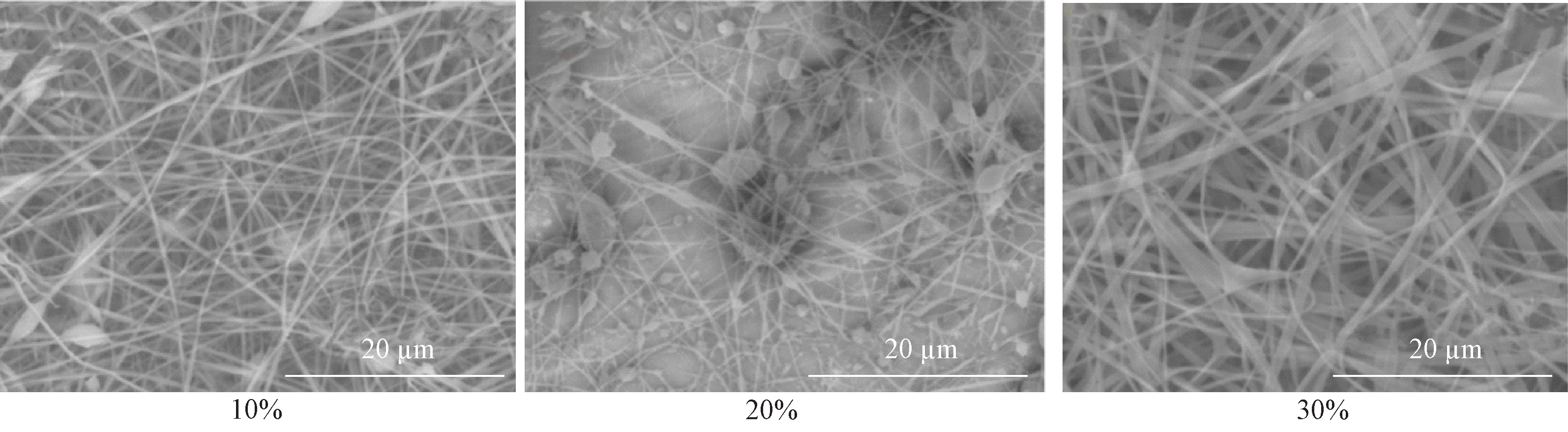

Fig.5

SEM images of zein nonwoven fabrics"

Fig.6

SEM images of nonwoven fabrics"

Fig.7

Infrared spectra of different samples"

Tab.1

Mechanical properties of materials"

试样名称 断裂强力/cN 断裂伸长率/%
玉米醇溶蛋白 15.49±2.11 4.07±0.35
芳樟醇/玉米醇溶蛋白 11.19±1.65 2.70±0.22
芳樟醇/PAMAM/玉米醇溶蛋白 21.23±1.78 6.25±0.77

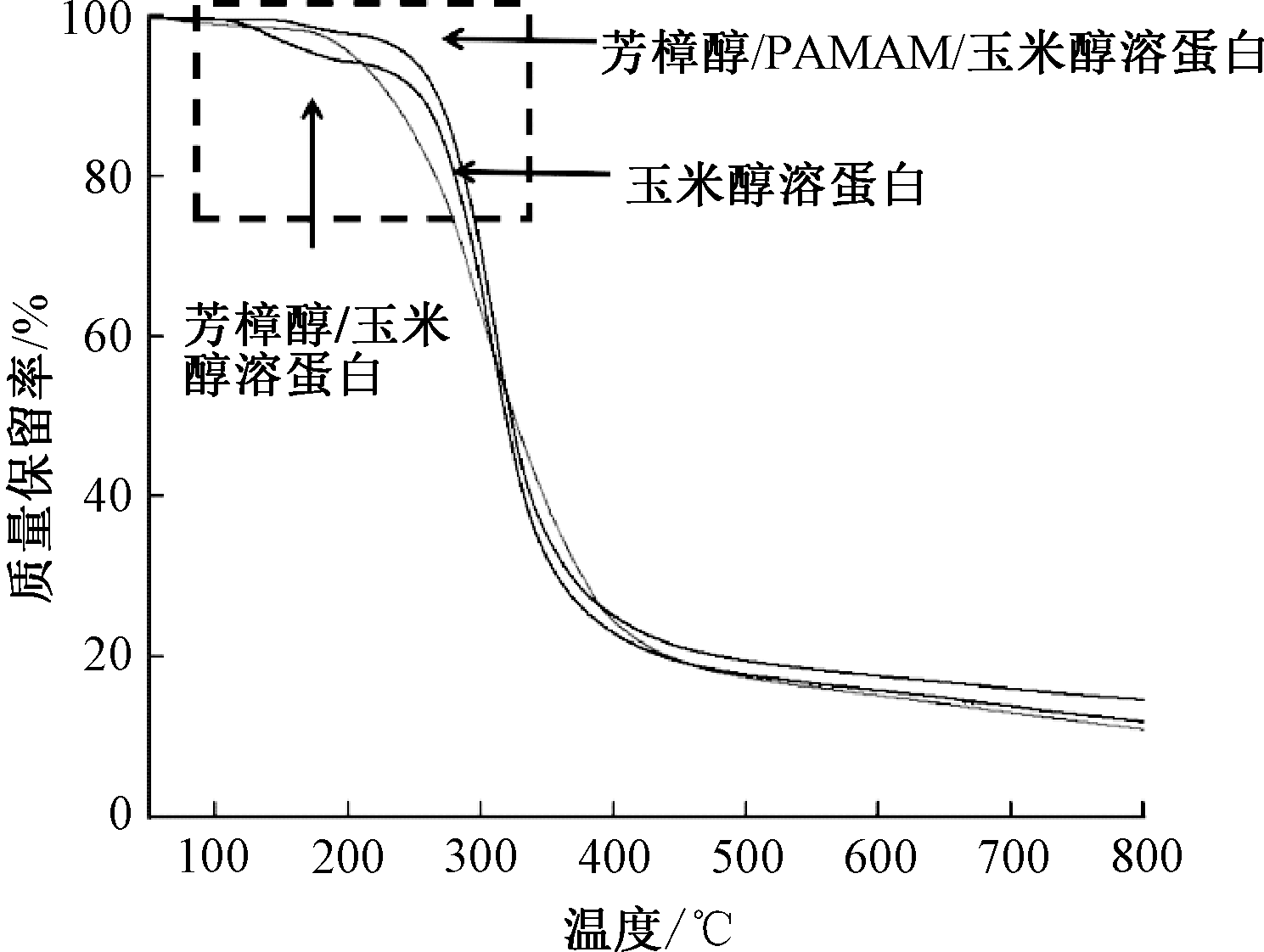

Fig.8

TGA curves of zein, linalool/zein and linalool/PAMAM/zein micro-nano nonwovens"

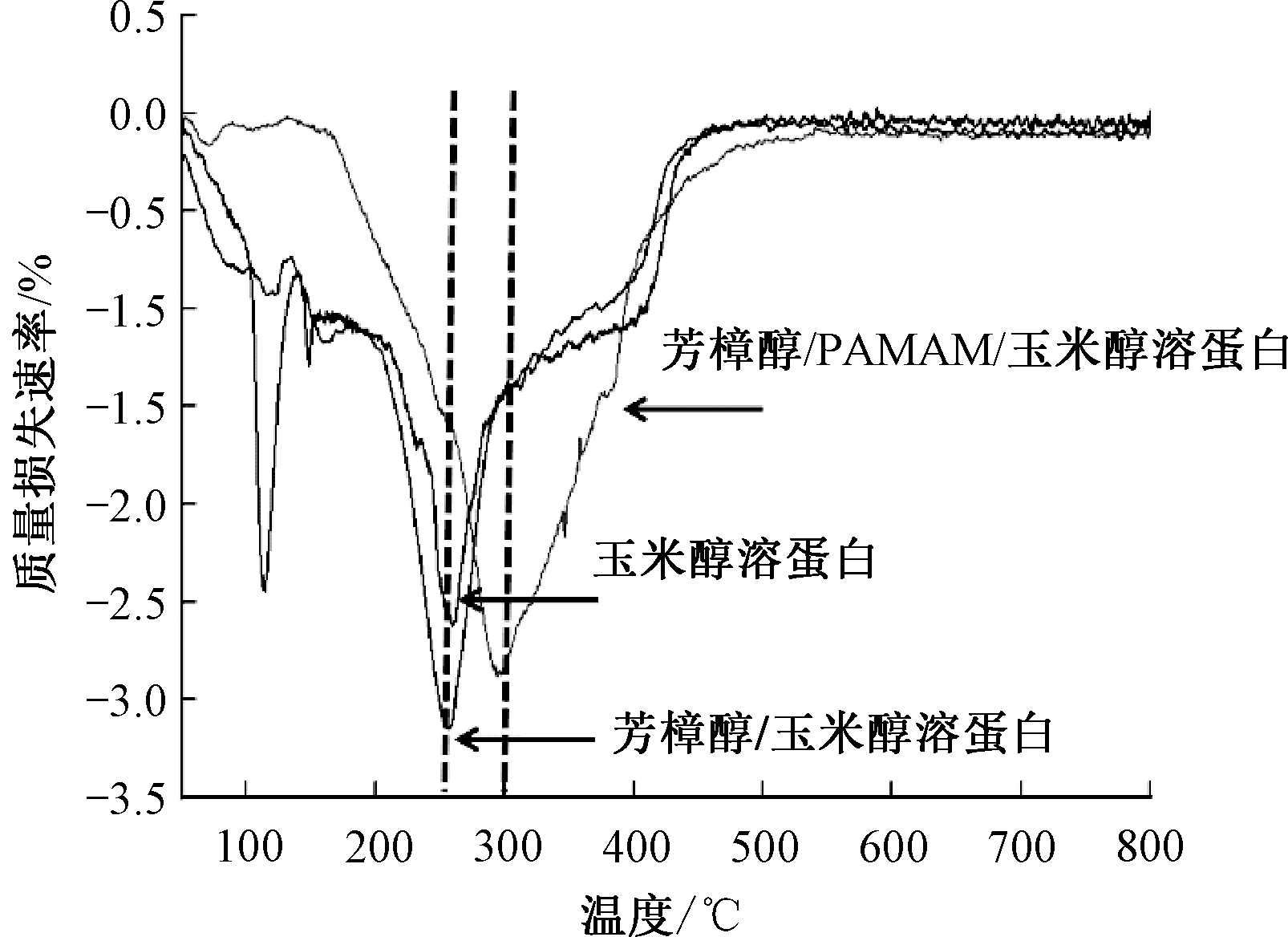

Fig.9

DTG curves of zein, linalool/zein and linalool/PAMAM/zein micro-nano nonwovens"

Fig.10

Schematic diagram of evaluation of experimental samples against E. coli"

Fig.11

Schematic diagram of evaluation of performance against E.coli of experimental samples placed for different time periods"

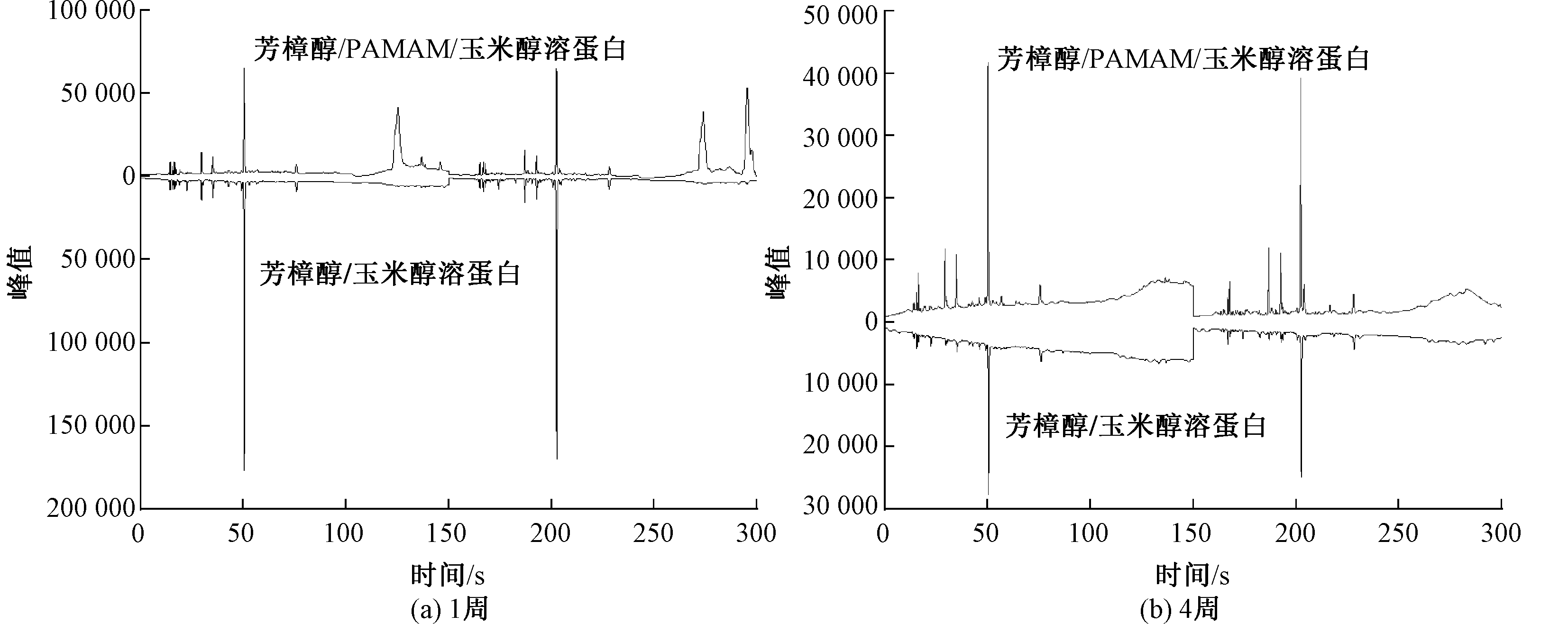

Fig.12

Aromatic properties of test samples placed for 1 week (a) and 4 weeks (b)"

[1] 孙锦程, 郝蕙玲. 不同缓释性芳樟醇制剂的活性效应比较[J]. 中国媒介生物学及控制杂志, 2009, 20(1): 42-44.
SUN Jincheng, HAO Huiling. The efficacy of different slow-releasing linalool formulation to Blattella germanica[J]. Chinese journal of vector blology and control, 2009, 20 (1): 42-44.
[2] 陈耕. 左旋芳樟醇的小鼠体内抗氧化及抗皮肤衰老活性研究[J]. 食品与机械, 2021, 37(2)169-172,185.
CHEN geng. The anti-oxidation activity of linalool and its effect on the skin aging[J]. Food & Machinery 2021, 37(2):169-172,185.
[3] KIM Min Gu, KIM Seong Man, MIN Jae Hong. Anti-inf lammatory effects of linalool on ovalbumin-induced pulmonary inflammation[J]. International lmmunophar Macology, 2019, 74:1567-1569.
[4] MALCOLM B J, TALLIAN K. Essential oil of lavender in anxiety disorders: ready for prime time[J]. Ment Health Clin, 2017, 7(4):147-155.
[5] 郭俸钰, 陈文学, 陈海明, 等. 芳樟醇对大肠埃希菌的抑菌作用机制[J]. 现代食品科技, 2020, 36(4):113-118.
GUO Fengyü, CHEN Wenxue, CHEN Haiming, et al. Antibacte rial mechanism of linalool against Escherichia coli[J]. Modern Food Science and Technology 2020, 36(4):113-118.
[6] 叶娇. 基于芳樟醇/β-环糊精静电纺微纳米纤维的制备及性能研究[D]. 上海: 东华大学, 2020:15-17.
YE Jiao. Preparation and properties of electrospinning micronanofiber based on linalool/β-cyclodextri[D]. Shanghai: Donghua University,2020:15-17.
[7] MUSCHIOLIKk G, Dickinson E. Double emulsions relevant to food systems: preparation, stability, and applications[J]. Comprehensive Reviews in Food Science & Food Safety, 2017, 16(3): 532-555.
[8] TONG W, SONG X, GAO C. Layer-by-layer assembly of microcapsules and their biomedical applications[J]. Chemical Society Reviews, 2012, 41(18): 6103-6124.
doi: 10.1039/c2cs35088b pmid: 22695830
[9] ARANTZAZU V, MARINA R, ANA B, et al. Recent trends in microencapsulation for smart and active innovative textile products[J]. Current Organic Chemistry, 2018, 22(12): 1237-1248.
doi: 10.2174/1385272822666180430130528
[10] MARTINS I M, BARREIRO M F, COELHO M, et al. Microencapsulation of essential oils with biodegradable polymeric carriers for cosmetic applications[J]. Chemical Engineering Journal, 2014, 245(6): 191-200.
doi: 10.1016/j.cej.2014.02.024
[11] GREEN B K, LOWELL S. Oil-containing microscopic capsules and method of making them: US,2800457A[P].1957-7-23.
[12] SANCHEZ-REINOSO Z, OSORIO C, HERRERA A. Effect of microencapsulation by spray drying oncocoa aroma compound and physicochemical characterisation of microencapsulates[J] Powder Technology, 2017, 318:110-119.
doi: 10.1016/j.powtec.2017.05.040
[13] ROSSI W, BONET-ARACIL M, BOU-BELDA, et al. Characterization of orange oil microcapsules for application in textiles[J]. IOP Conference Series:Materials Science and Engineering, 2012, 54(2): 022007.
[14] 卢亚会, 张维, 皇甫志杰. 壳聚糖聚氨酯双层壳香味微胶囊的研发[J]. 针织工业, 2018(4):40-43.
LU Yahui, ZHANG Wei, HUANGFU Zhijie. Development of chitosan and polyurethane double-shell fragrant micr ocapsule[J]. Knitting Industries, 2018(4):40-43.
[15] 王一萌, 阳建军, 崔贞超, 等. 正十六烷在芳香微胶囊中的应用研究[J]. 现代纺织技术, 2020, 28(3):67-71.
WANG Yimeng, YANG Jianjun, CUN Zhenchao, et al. Research on the application of n-hexadecane in aromatic microcapsules[J]. Advanced Textile Technology, 2020, 28(3):67-71.
[16] KENAWY E R, BOWLIN G L, MANSFIELD K, et al. Release of tetracycline hydrochloride from electrospun poly(ethyl ene-co-vinylacetate), poly (lactic acid),and a blend[J]. Journal of Controlled Release, 2002, 81(1/2): 57-64.
doi: 10.1016/S0168-3659(02)00041-X
[17] LU Y, SLOMBERG D L, SHAH A, et al. Nitric oxide-releasing amphiphilicpoly(amidoamine) (PAMAM) dendrimers as antibacterial agents[J]. Biomacromolecules, 2013, 14: 3589-3598.
doi: 10.1021/bm400961r
[18] SONUÇ KARABOĞA M N, SEZGINTÜRK M K. Determination of C-reactive rotein by PAMAM decorated ITO based disposable biosensing system: A new immunosensor design from an old molecule[J]. Talanta, 2018, 186: 162-168.
doi: 10.1016/j.talanta.2018.04.051
[19] XIONG Z, SHEN M, SHI X. Dendrimer-based strategies for cancer therapy: recent advances and future perspe ctives[J]. Sci China Mater, 2018, 61: 1387-1403.
doi: 10.1007/s40843-018-9271-4
[20] RAEMDONCK K, DEMEESTER J, DE SMEDT S. Advanced nanogel engineering for drug delivery[J]. Soft Matter, 2009, 5(4):707-715.
doi: 10.1039/B811923F
[21] 邓昌月. 基于分子动力学模拟研究β-环糊精对C10芳香分子的包合机理[D]. 合肥: 安徽农业大学, 2022:5-10.
DENG changyue. Study on the inclusion mechanism of β-cyclodextrin with C10 Aroma molecules based on molecular dynamics simulation[D]. Hefei: Anhui Agricultural University,2020:5-10.
[22] ZHOU L, LI J, YU B, et al. The drug loading behavior of PAMAM dendrimer: insights from experi mental and simulation study[J]. Science China(Technological Sciences), 2023, 66(4): 1129-1140.
[23] FAN X, WANG Y, ZHENG M, et al. Morphology engineering of protein fabrics for advanced and sustainable filtration[J]. Journal of Materials Chemistry A, 2018, 6(43): 21585-21595.
doi: 10.1039/C8TA08717B
[24] 鲁谦之. 多效空气净化用三维结构玉米蛋白非织造材料的制备与研究[D]. 上海: 东华大学, 2022:1-30.
LU qianzhi. Preperation and research of zein nonwovens with 3D structure for multi-efficiency air purific-ation[D]. Shanghai: Donghua University,2022:1-30.
[25] 郭胜利. 基于玉米醇溶蛋白的复合纤维敷料制备及抗菌性能[D]. 广州: 暨南大学, 2022:4-15.
GUO Shengli. Preparation and antibacterial properties of compound fiber dressing based on zein[D]. Guangzhou: Jinan University,2022:4-15.
[26] ALUIGI A, VINEIS C, TONIN C, et al. Wool keratin-based nanofibres for active filtration of air and water[J]. Journal of Biobased Materials and Bioenergy, 2009, 3(3): 311-319.
doi: 10.1166/jbmb.2009.1039
