Journal of Textile Research ›› 2025, Vol. 46 ›› Issue (02): 170-179.doi: 10.13475/j.fzxb.20240805101

• Dyeing and Finishing Engineering • Previous Articles     Next Articles

Preparation of covalent organic framework/viscose spunlaced nonwoven fabrics and adsorption properties for dyestuff

LI Fengchun1,2, SUN Hui1,2(), YU Bin1,2, XIE Youxiu1,2, ZHANG Dewei1,2

  1. 1. College of Textile Science and Engineering (International Institute of Silk), Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. Zhejiang Provincial Innovation Center of Advanced Textile Technology, Shaoxing, Zhejiang 312000, China
  • Received:2024-08-27 Revised:2024-11-03 Online:2025-02-15 Published:2025-03-04
  • Contact: SUN Hui E-mail:sunhui@zstu.edu.com

RichHTML

6

PDF (PC)

20

Abstract:

Objective Viscose spunlaced nonwoven fabrics (VSN) are a kind of nonwoven material prepared by spunlacing regenerated cellulose fibers and have the advantages of high strength and abrasion resistance, good air permeability and water wettability, and environmental friendliness and recyclability. Due to a large specific surface area and abundant reactive groups on the macromolecular chain, VSN has the potential to be used in the wastewater treatment field. However, in the face of complex water pollution system, VSN itself is difficult to achieve the efficient adsorption of organic dyes in water. It is necessary for VSN to be functionally modified for high adsorption of organic dyestuffs. Covalent organic frameworks (COFs) possess the advantages of high porosity, low density, customizable structural design, precise pore size, ease of functionalization, and excellent chemical stability, and have great potential as adsorbents for pollutant removal in water. Therefore, the functional modification of VSN using COFs is expected not only to enhance the organic dyestuffs adsorption efficiency of VSN, but also realize the effective recovery and recycling of COFs.

Method VSN was first pretreated with dilute hydrochloric acid. Pyridine-COF was then synthesized on the surface of VSN by in-situ solvothermal method using 1, 3, 5-tris(4-aminophenyl)benzene (TAP) and 2, 6-pyridinedicarboxaldehyde (DFP) as raw materials, and acetic acid as catalyst, obtaining Pyridine-COF/VSN. The morphology and structure of Pyridine-COF/VSN were studied, and the adsorption properties of organic dyestuffs were analyzed. Furthermore, the adsorption mechanism was explored by the adsorption kinetics and thermodynamics.

Results After in-situ solvothermal synthesis, Pyridine-COF uniformly covered the surface of the viscose fibers, showing a complete and regular spherical structure with a particle size of about 400 nm. In the FT-IR spectra of Pyridine-COF/VSN, the characteristic peaks of C=N of COF appeared besides the characteristic peaks attributed to VSN. The XPS spectra of Pyridine-COF/VSN showed that three peaks attributed to C, O, and N elements. The nuclear energy level N1s of Pyridine-COF/VSN were fitted, two peaks at 399.15 eV and 399.6 eV attributed to pyridine N (Pyridine-N) and —C—N=C. These phenomena verified that Pyridine-COF has been fixed on the surface of VSN. Compared with VSN, Pyridine-COF/ VSN showed a significant improvement in the adsorption efficiency of RhB in water. Pyridine-COF/VSN had adsorption capacity for both cationic organic dyestuffs including methylene blue (MB) and rhodamine (RhB) and anionic organic dyestuffs including congo red (CR) and methyl orange (MO). When the adsorption temperature was 25 ℃ and the pH of adsorption solution was 7, the adsorption efficiency of Pyridine-COF/VSN for RhB reached maximum, and was 98.06%, and the adsorption equilibrium time was 120 min. Compared with the quasi-primary kinetic model, the quasi-secondary kinetic model could better fit the adsorption process of Pyridine-COF/VSN for RhB, indicating that the whole adsorption process was mainly controlled by the chemical adsorption mechanism. The result from adsorption thermodynamics indicated that the adsorption process of Pyridine-COF/VSN for RhB was endothermic and spontaneous process. After six cycles, the adsorption efficiency of Pyridine-COF/VSN for RhB was still 64.60%. Compared with VSN, the tensile strength of the fabricated Pyridine-COF/VSN decreased, but the elongation at break increased.

Conclusion Compared with VSN, Pyridine-COF has outstanding adsorption for organic dyestuffs in water, and good reusable performance. When the adsorption temperature was 25 ℃ and the pH of adsorption solution was 7, the adsorption efficiency of Pyridine-COF/VSN for RhB was 98.06%. After six cycles, the adsorption efficiency of Pyridine-COF/VSN for RhB still kept 64.60%. It is hoped that our studies can expand the application of VSN on water treatment, and may provide some theoretical references for the preparation of nonwoven materials with high adsorption property.

Key words: covalent organic framework, viscose spunlaced nonwoven material, adsorption property, adsorption mechanism, dyestuff wastewater, wastewater treatment

CLC Number:

  • TS176

Fig.1

Pyridine-COF/VSN experimental procedure (a) and synthetic mechanism diagram of Pyridine-COF (b)"

Fig.2

SEM images(a) of VSN,pre-treated VSN and Pyridine-COF/VSN and mapping profiles(b) of Pyridine-COF/VSN"

Fig.3

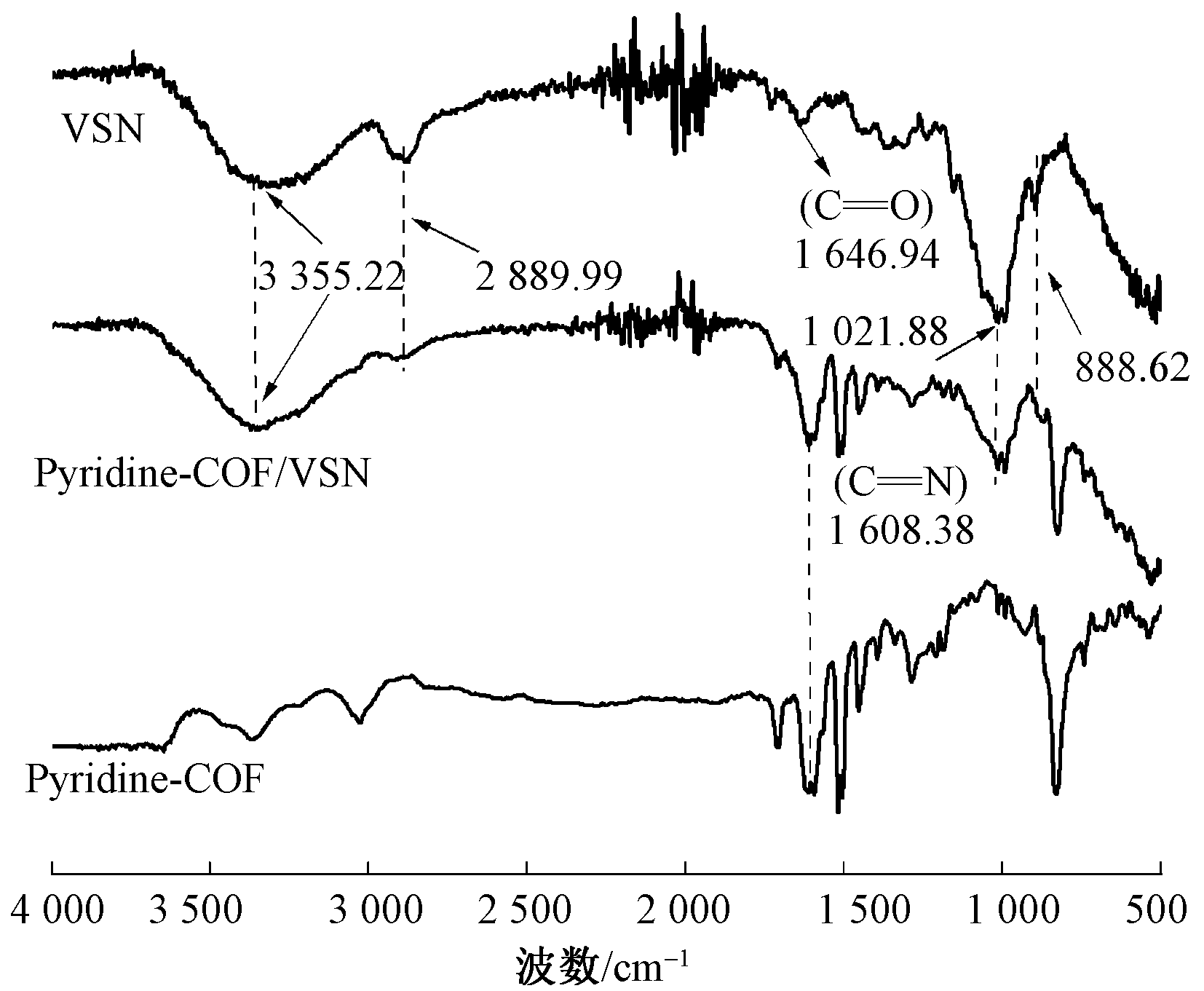

FT-IR spectra of VSN,Pyridine-COF/VSN and Pyridine-COF"

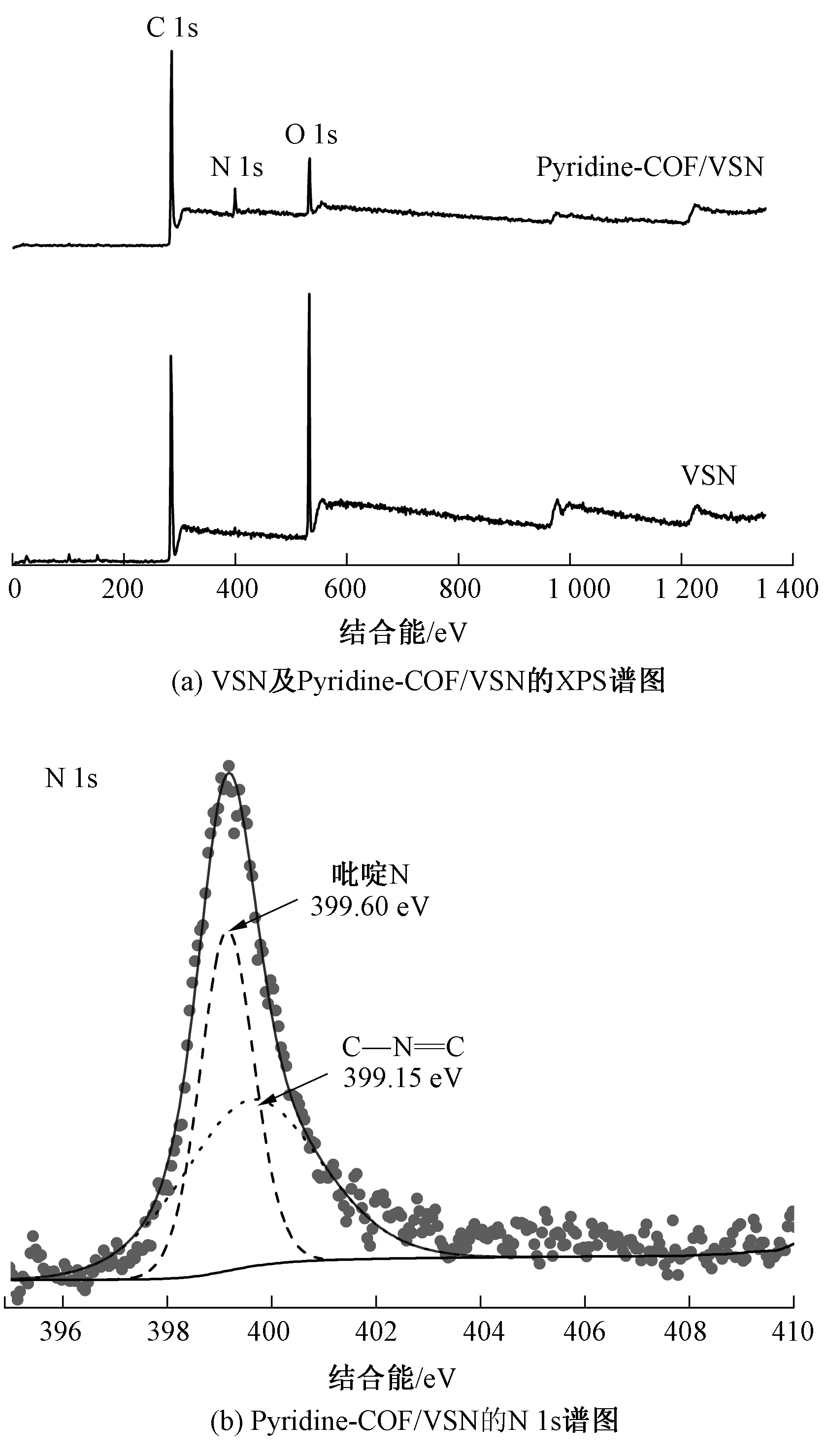

Fig.4

XPS survey spectra of VSN and Pyridine-COF/VSN (a) and N 1s spectrum of Pyridine-COF/VSN (b)"

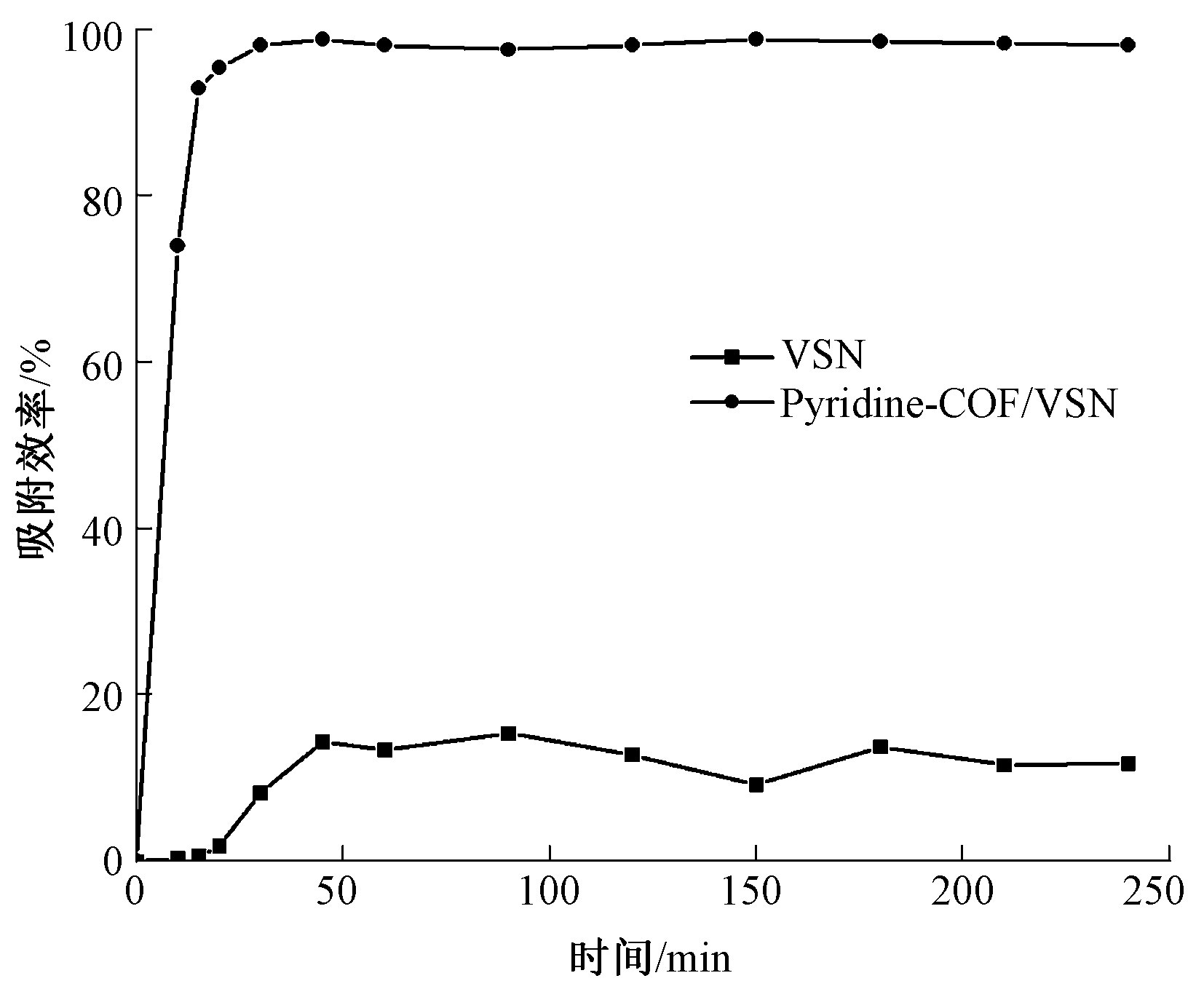

Fig.5

Adsorption efficiency of Pyridine-COF/VSN and VSN for RhB"

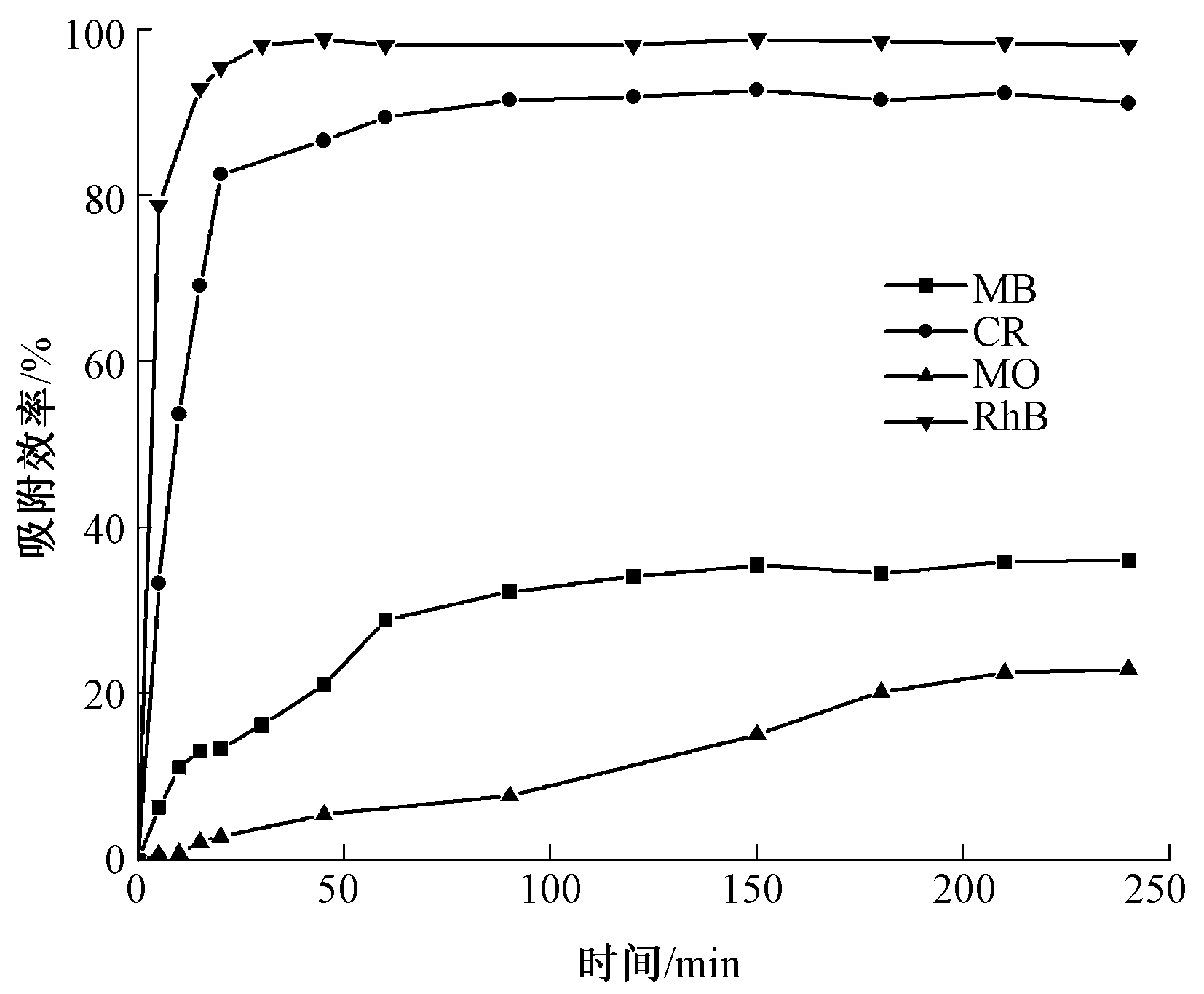

Fig.6

Adsorption efficiency of Pyridine-COF/VSN for four organic dyes"

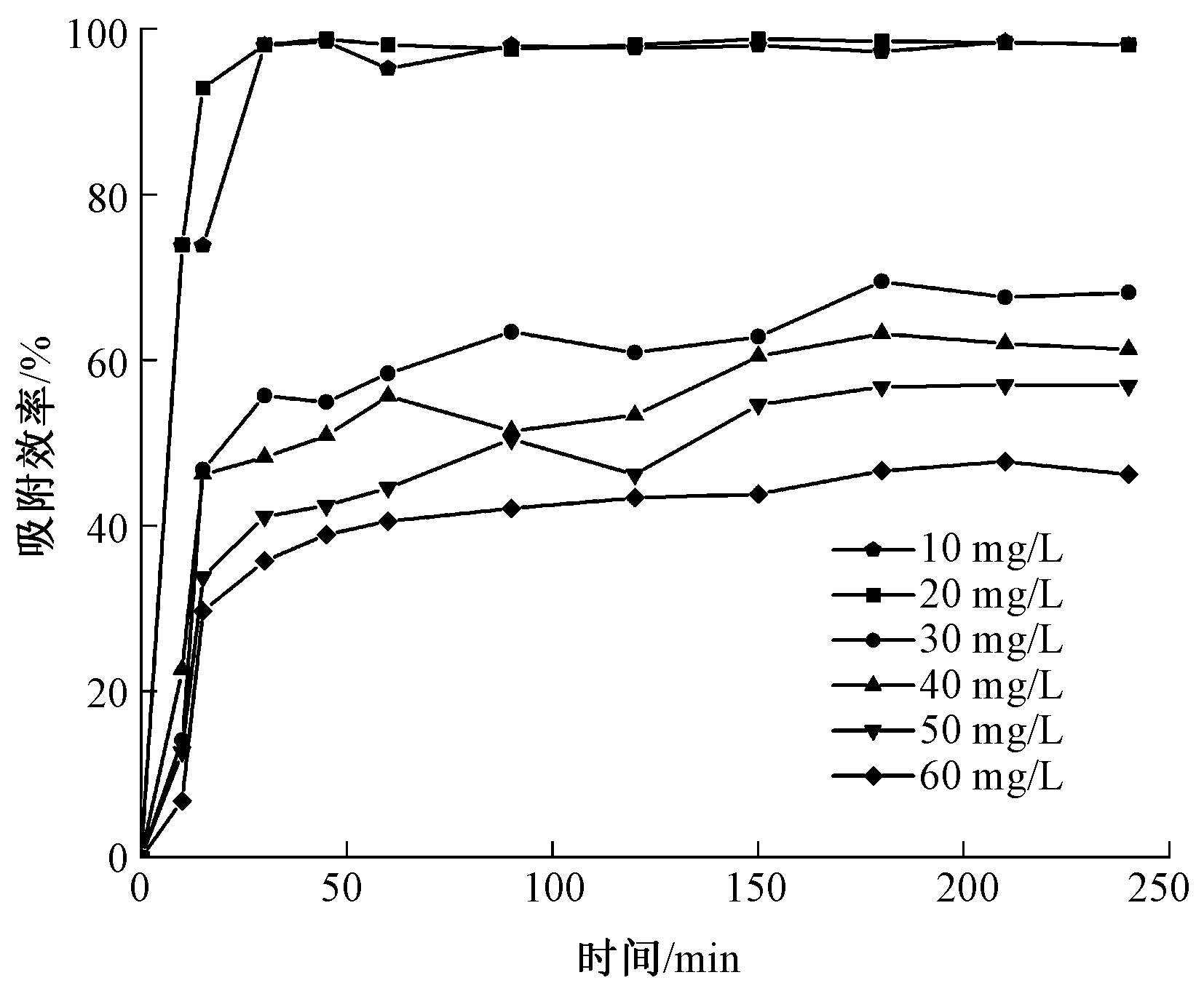

Fig.7

Adsorption efficiency of Pyridine-COF/VSN at different initial concentrations of RhB solution"

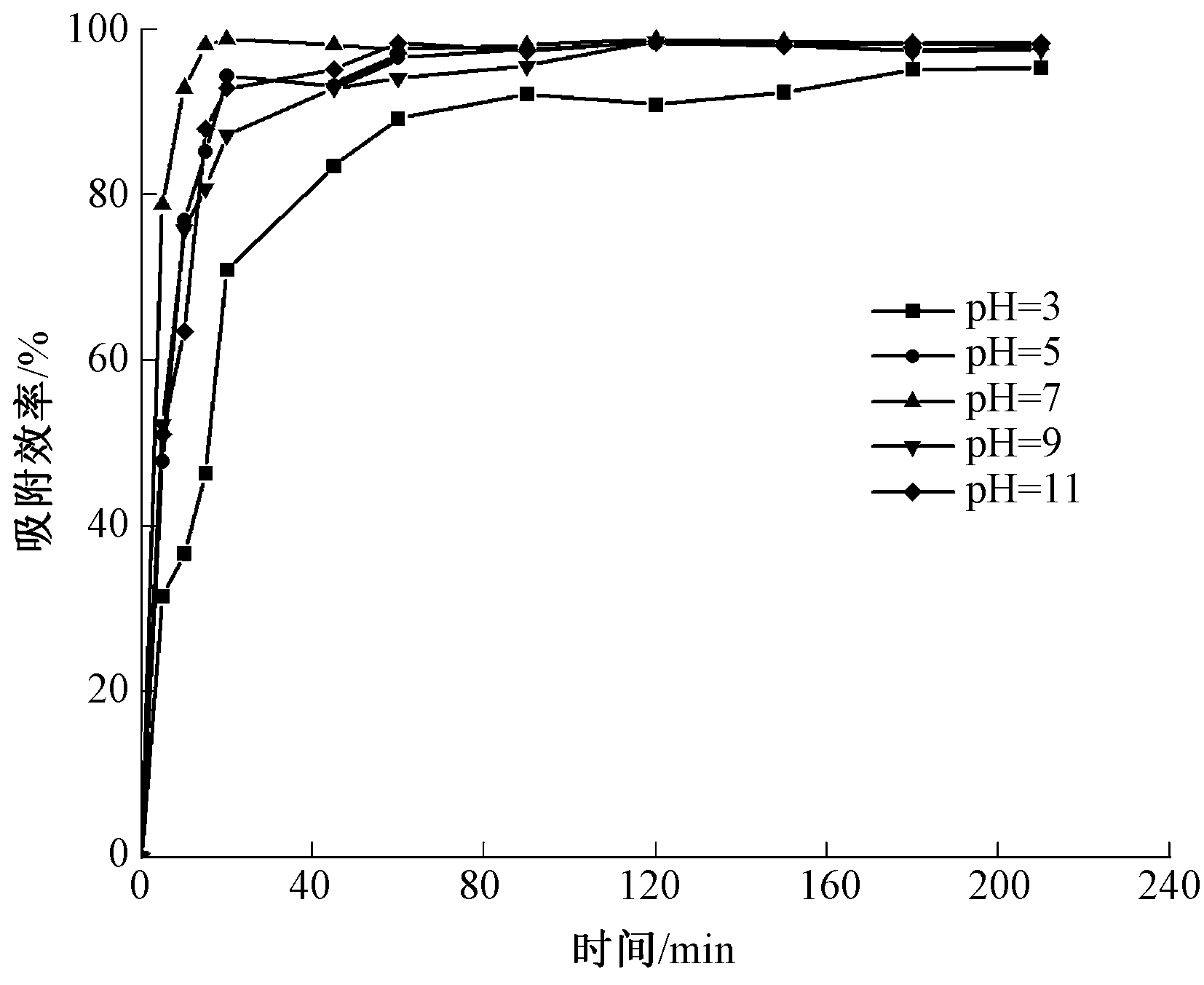

Fig.8

Adsorption efficiency of Pyridine-COF/VSN for RhB at different pH values"

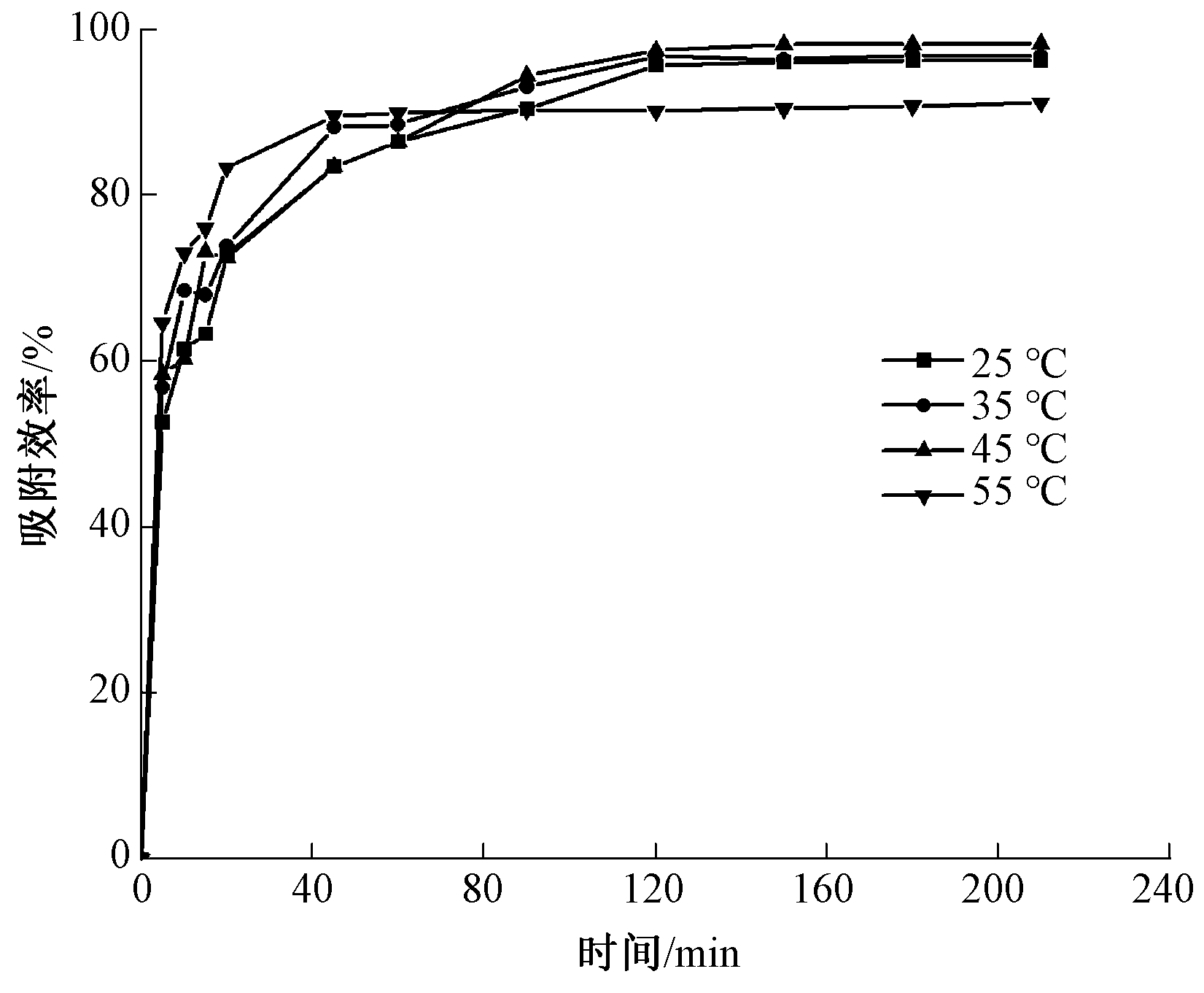

Fig.9

Adsorption efficiency of Pyridine-COF/VSN for RhB at different adsorption temperatures"

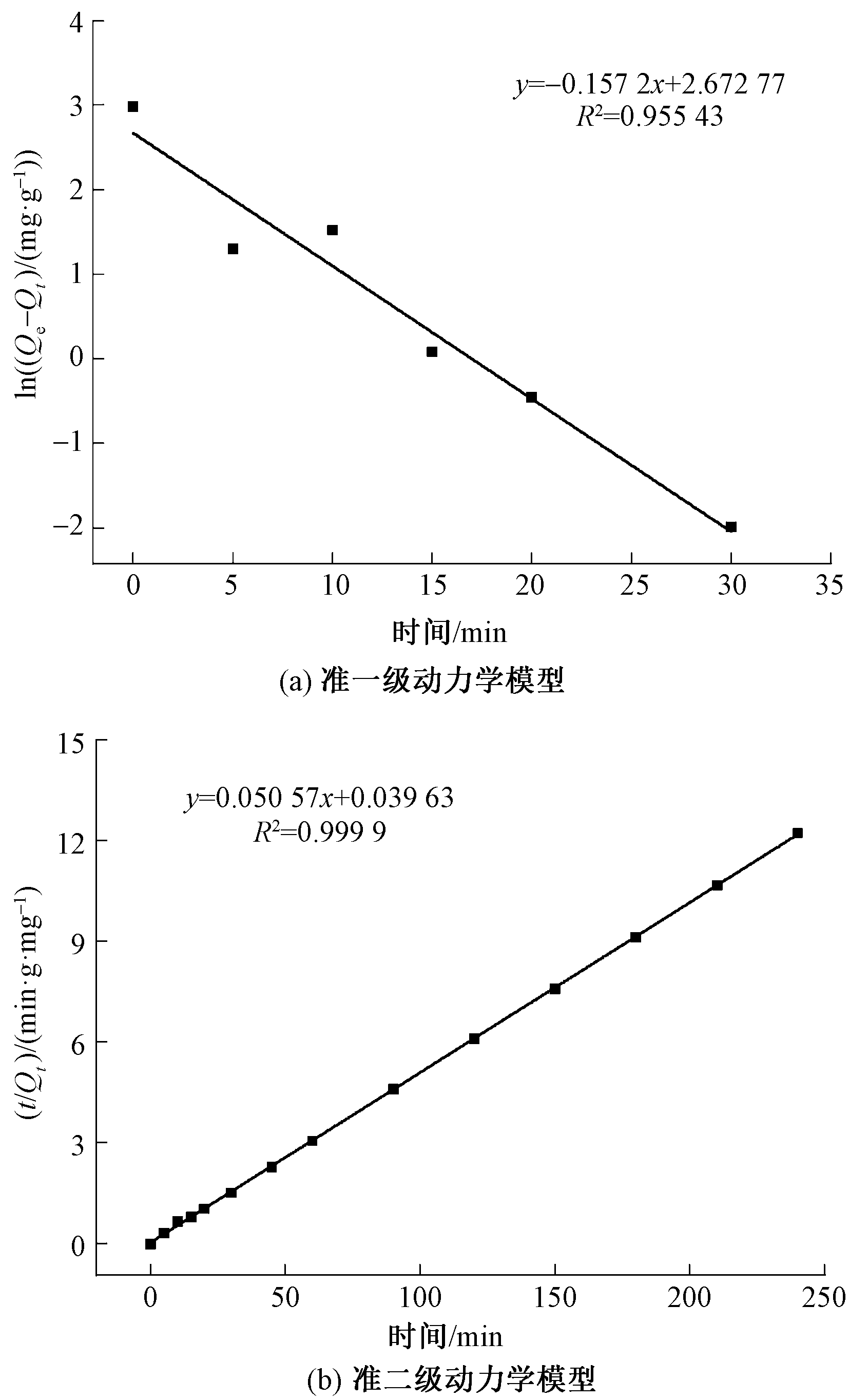

Fig.10

Adsorption kinetic fitting curve of Pyridine-COF/VSN for RhB.(a)Linear fitting curve of pseudo first-order; (b) Pseudo second-order adsorption kinetic models"

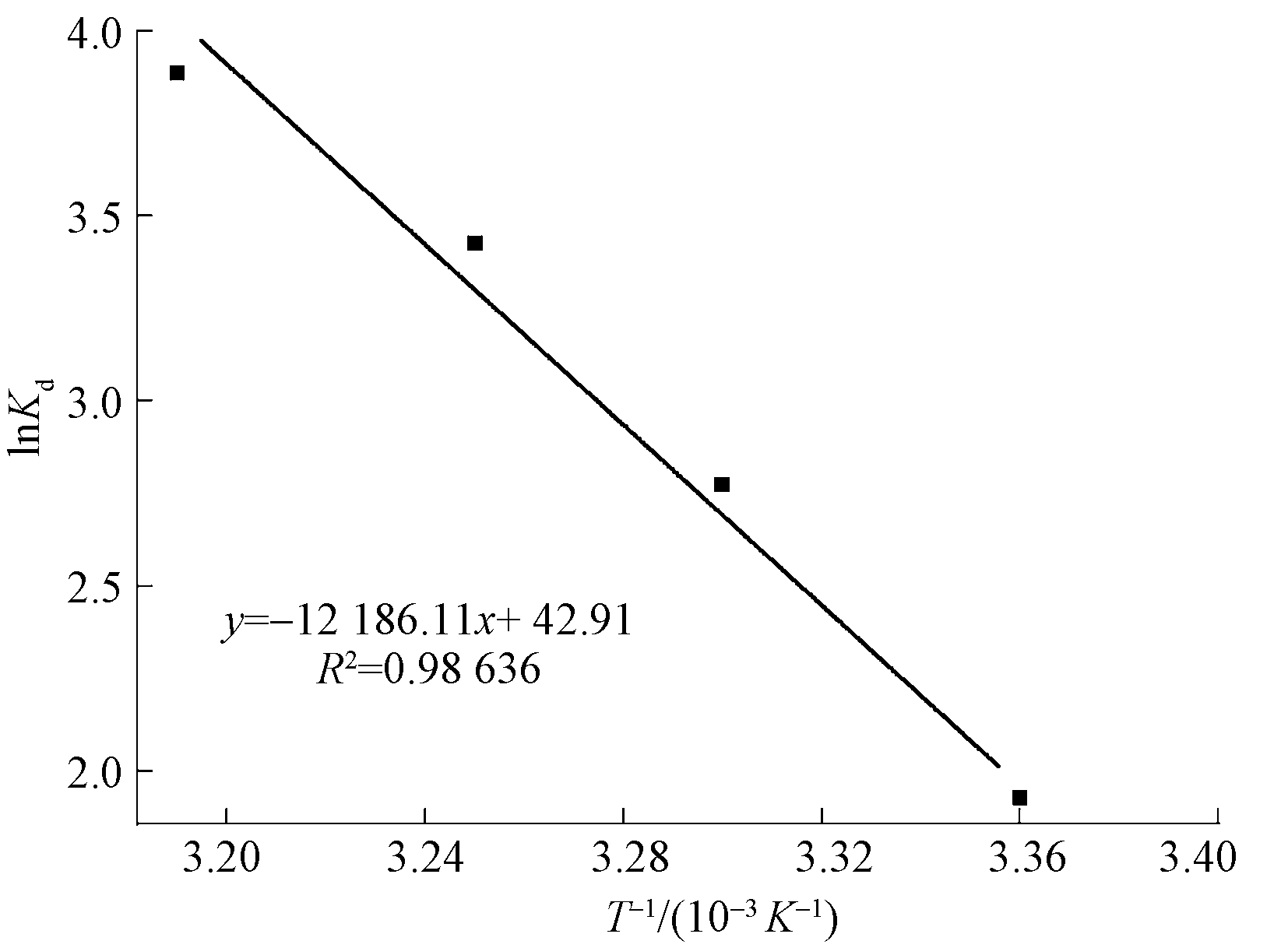

Fig.11

Adsorption thermodynamic fitting curve of Pyridine-COF/VSN for RhB"

Tab.1

Adsorption thermodynamic parameters of Pyridine-COF/VSN for RhB at different temperatures"

ΔHθ/
(kJ·mol-1)		 ΔSθ/
(J·mol-1·K-1)		 ΔGθ/(kJ·mol-1)
298 K 303 K 308 K 313 K
101.32 356.72 -4.98 -6.77 -8.55 -10.33

Tab.2

Repeated adsorption efficiency of Pyridine-COF/VSN for RhB"

循环次数 1 2 3 4 5 6
吸附效率/% 98.06 97.08 95.94 89.58 81.86 64.60

Fig.12

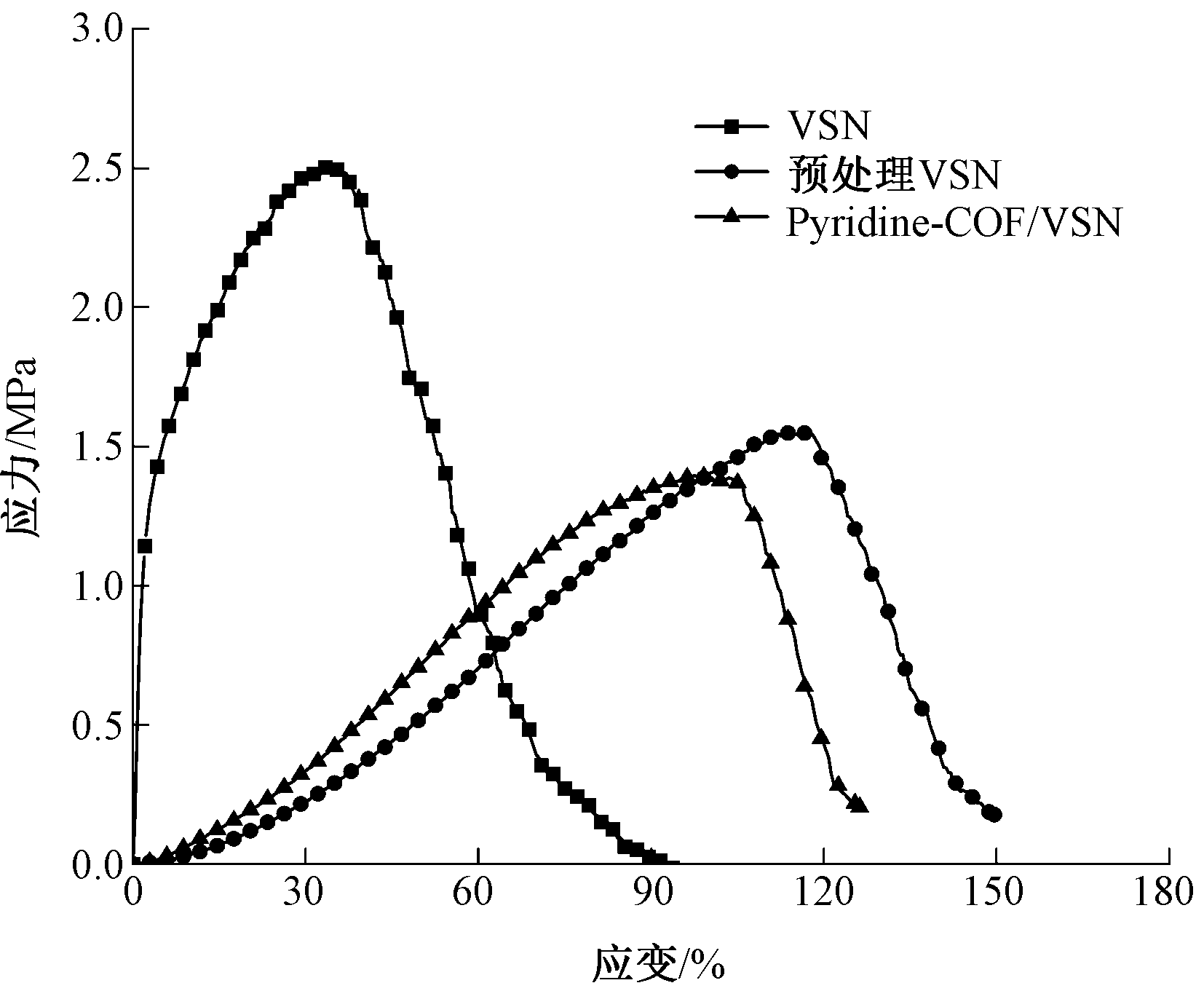

Stress-strain curves of VSN,pre-treated VSN and Pyridine-COF/VSN"

[1] GHORAI S, SARKAR A, RAOUFI M, et al. Enhanced removal of methylene blue and methyl violet dyes from aqueous solution using a nanocomposite of hydrolyzed polyacrylamide grafted xanthan gum and incorporated nanosilica[J]. Applied Materials & Interfaces, 2014, 6(7): 4766-4777.
[2] LIU G, XU S, LI W, et al. Preparation of three-dimensional porous spherical TiO2@g-C3N4 composites and visible light catalytic degradation on organic dyes[J]. Journal of Solid State Chemistry, 2023. DOI: 10.1016/j.jssc.2023.124223.
[3] WANG X, JIANG C, HOU B, et al. Carbon composite lignin-based adsorbents for the adsorption of dyes[J]. Chemosphere, 2018, 206: 587-596.
doi: S0045-6535(18)30837-3 pmid: 29778084
[4] 黄彪, 郑莉娜, 秦妍, 等. 多孔型TiO2微粒的制备及其对离子型染料的吸附[J]. 纺织学报, 2023, 44(11): 167-175.
doi: 10.13475/j.fzxb.20221103501
HUANG biao, ZHENG Li'na, QIN Yan, et al. Preparation of porous TiO2 particles and their adsorption for ionic dyes[J]. Journal of Textile Research, 2023, 44(11): 167-175.
doi: 10.13475/j.fzxb.20221103501
[5] MA J, YU F, ZHOU L, et al. Enhanced adsorptive removal of methyl orange and methylene blue from aqueous solution by alkali-activated multiwalled carbon nanotubes[J]. Applied Materials & Interfaces, 2012, 4(11): 5749-5760.
[6] HUSSAIN Z, CHANG N, SUN J, et al. Modification of coal fly ash and its use as low-cost adsorbent for the removal of directive, acid and reactive dyes[J]. Journal of Hazardous Materials, 2022. DOI: 10.1016/j.jhazmat.2021.126778.
[7] RUAN C, MA Y, SHI G, et al. Self-assembly cellulose nanocrystals/SiO2 composite aerogel under freeze-drying: adsorption towards dye contaminant[J]. Applied Surface Science, 2022. DOI: 10.1016/j.apsusc.2022.153280.
[8] ABDELHAMID H N, MATHEW A P. Cellulose-metal organic frameworks (CelloMOFs) hybrid materials and their multifaceted applications: a review[J]. Coordination Chemistry Reviews, 2022. DOI: 10.1016/j.ccr.2021.214263.
[9] KULDEYEV E, SEITZHANOVA M, TANIRBERGENOVA S, et al. Modifying natural zeolites to improve heavy metal adsorption[J]. Water, 2023. DOI: 10.3390/w15122215.
[10] JUAN Z, YONGKE Z, YAPING Z, et al. Influence of the acid groups on activated carbon on the adsorption of bilirubin[J]. Materials Chemistry and Physics, 2021. DOI: 10.1016/j.matchemphys.2020.124133.
[11] LUO X P, FU S Y, DU Y M, et al. Adsorption of methylene blue and malachite green from aqueous solution by sulfonic acid group modified MIL-101[J]. Microporous and Mesoporous Materials, 2017, 237: 268-274.
[12] JEJURKAR V P, YASHWANTRAO G, SAHA S. Tröger's base functionalized recyclable porous covalent organic polymer (COP) for dye adsorption from water[J]. New Journal of Chemistry, 2020, 44(28): 12331-12342.
[13] GONG Y N, GUAN X, JIANG H L. Covalent organic frameworks for photocatalysis: synthesis, structural features, fundamentals and performance[J]. Coordination Chemistry Reviews, 2023. DOI: 10.1016/j.ccr.2022.214889.
[14] GENG K, HE T, LIU R, et al. Covalent organic frameworks: design, synthesis, and functions[J]. Chemical Reviews, 2020, 120(16): 8814-8933.
doi: 10.1021/acs.chemrev.9b00550 pmid: 31967791
[15] SEGURA J L, ROYUELA S, MAR RAMOS M. Post-synthetic modification of covalent organic frame-works[J]. Chemical Society Reviews, 2019, 48(14): 3903-3945.
[16] DA SILVA V D, ZALEWSKA K, PETROVSKI Z, et al. Covalent organic frameworks as promising materials for the removal of metal and organic pollutants from water[J]. Materials Today Sustainability, 2023. DOI: 10.1016/j.mtsust.2022.100279.
[17] DEY K, PAL M, ROUT K C, et al. Selective Molecular Separation by interfacially crystallized covalent organic framework thin films[J]. Journal of The American Chemical Society, 2017, 139(37): 13083-13091.
doi: 10.1021/jacs.7b06640 pmid: 28876060
[18] KARAK S, DEY K, TORRIS A, et al. Inducing disorder in order: hierarchically porous covalent organic framework nanostructures for rapid removal of persistent organic pollutants[J]. Journal of The American Chemical Society, 2019, 141(18): 7572-7581.
doi: 10.1021/jacs.9b02706 pmid: 31017396
[19] FU Q, ZHANG T, SUN X, et al. Pyridine-based covalent organic framework for efficient and selective removal of Hg(II) from water: adsorption behavior and adsorption mechanism investigations[J]. Chemical Engineering Journal, 2023. DOI: 10.1016/j.cej.2022.140154.
[20] REHAN M, MOWAFI S, ABDELMOEZ ALY S, et al. Microwave-heating for in-situ AgNPs preparation into viscose fibers[J]. European Polymer Journal, 2017, 86: 68-84.
[21] CIESLAK M, KOWALCZYK D, BARANOWSKA-KORCZYC A, et al. Viscose nonwoven fabric with copper and its multifunctional properties[J]. Cellulose, 2023, 30(15): 9843-9859.
[22] BENYETTOU F, DAS G, NAIR A R, et al. Covalent organic framework embedded with magnetic nanoparticles for MRI and chemo-thermotherapy[J]. Journal of The American Chemical Society, 2020, 142(44): 18782-18794.
doi: 10.1021/jacs.0c05381 pmid: 33090806
[23] DING S Y, GAO J, WANG Q, et al. Construction of covalent organic framework for catalysis: Pd/COF-LZU1 in suzuki-miyaura coupling reaction[J]. Journal of The American Chemical Society, 2011, 133(49): 19816-19822.
[24] SAKTHIVEL R, KULANDAIVEL T, VENKATESAN SAVUNTHARI K, et al. Rapid oil-water separation using modified nonwoven viscose fabrics[J]. Materials Chemistry and Physics, 2024. DOI: 10.1016/j.matchemphys.2023.128645.
[25] IP A W M, BARFORD J P, MCKAY G. Reactive black dye adsorption/desorption onto different adsorbents: effect of salt, surface chemistry, pore size and surface area[J]. Journal of Colloid and Interface Science, 2009, 337(1): 32-38.
doi: 10.1016/j.jcis.2009.05.015 pmid: 19523648
[26] MA Z, LIU F, LIU N, et al. Facile synthesis of sulfhydryl modified covalent organic frameworks for high efficient Hg(II) removal from water[J]. Journal of Hazardous Materials, 2021. DOI: 10.1016/j.jhazmat.2020.124190.
[27] 赵红丽, 琚行松, 和芹, 等. 纳米MoO2@MoS2的制备及其对RhB的高吸附性能[J]. 南开大学学报(自然科学版), 2023, 56(6): 85-93.
ZHAO Hongli, JU Xingsong, HE Qin, et al. Preparation of nano MoO2@MoS2 and its high adsorption performance for RhB[J]. Acta Scientiarum Naturalium Universitatis Nankaiensis, 2023, 56(6): 85-93.
[28] OROZCO S, MONTIEL E, VALENCIA J E, et al. Effective RhB dye removal using sustainable natural bioadsorbents synthesized from avocado seed and skin[J]. Water, Air, & Soil Pollution, 2024. DOI: 10.1007/s11270-024-06952-6.
[29] FAN H, MA Y, WAN J, et al. Removal of gentian violet and rhodamine B using banyan aerial roots after modification and mechanism studies of differential adsorption behaviors[J]. Environmental Science and Pollution Research, 2020, 27(9): 9152-9166.
[30] CHANG K, HUANG H, MENG Y, et al. Synthesis of a pyridine-based covalent organic framework as an efficient adsorbent for rhodamine B removal[J]. RSC Advances, 2023, 13(34): 23682-23690.
doi: 10.1039/d3ra04184k pmid: 37555096
[31] FAN S, WANG Y, WANG Z, et al. Removal of methylene blue from aqueous solution by sewage sludge-derived biochar: adsorption kinetics, equilibrium, thermodynamics and mechanism[J]. Journal of Environmental Chemical Engineering, 2017, 5(1): 601-611.
[32] TANG X, ZHANG Q, LIU Z, et al. Removal of Cu(II) by loofah fibers as a natural and low-cost adsorbent from aqueous solutions[J]. Journal of Molecular Liquids, 2014, 199: 401-407.
[33] CHANG Y H, LIN C L, HSU Y H, et al. Medium effect on acid degradation of cotton and wood cellu-loses[J]. Industrial Crops and Products, 2021. DOI: 10.1016/j.indcrop.2021.113540.
