Transformation rule of polyester glycolysis products in methanol transesterification

XU Wenhao1, CHEN Lin2, XU Shimei2, WANG Xiuli2, WANG Yuzhong2()

  1. 1. School of Chemical Engineering, Sichuan University, Chengdu, Sichuan 610046, China
    2. College of Chemistry, Sichuan University, Chengdu, Sichuan 610046, China
  • Received:2024-12-06 Revised:2025-03-12 Online:2025-06-15 Published:2025-07-02
  • Contact: WANG Yuzhong E-mail:yzwang@scu.edu.cn

RichHTML

24

PDF (PC)

156

Abstract:

Objective Polyester is the most widely used fiber material in waste textiles, and its efficient recycling is the key to solving the problem of waste textiles. At present, the combined glycolysis-methanol transesterification process is widely used in industry. In this process, the methanol transesterification reaction of glycolysis products into dimethyl terephthalate (DMT)is the key step. Therefore, the transformation rule of glycolysis products in methanol transesterification can provide theoretical guidance for the efficient chemical recycling of waste polyester.

Method In this paper, the chemical recycling of polyester was studied according to the industrial combined glycolysis-methanol transesterification process. The depolymerization products of polyester textile during glycolysis and methanol transesterification were qualitatively and quantitatively studied by high performance liquid chromatography-mass spectrometry (HPLC-MS).

Results In the first step of glycolysis, the glycolysis products of polyester are mainly bis(2-hydroxyethyl) terephthalate (BHET) monomer, dimer, trimer, tetramer, and pentamer. The oligomer content can be controlled by reducing the ethylene glycol ratio and shortening the depolymerization time. Firstly, the glycolysis solution with a mass ratio of polyethylene terephthalate (PET) to ethylene glycol (EG) of 1∶1 and depolymerized at 190 ℃ for 1 h was selected for methanol transesterification. HPLC-MS showed that BHET monomer, dimer, and trimer could be completely converted into DMT within 3 h, while tetramer and pentamer could not be completely converted into DMT due to their large molecular weight and low reaction activity. The intermediate 2-hydroxyethyl methyl terephthalate is generated during the conversion of BHET and oligomers to DMT. The conversion rate of BHET and oligomers to DMT was very fast (within 5 min), and then remain at a very low content. The BHET in the PET glycolysis products was separated by water washing, and the conversion process of BHET oligomers to DMT was studied in detail. HPLC-MS confirmed that the separated oligomer products were mainly BHET dimer, tetramer, pentamer and trace trimer. The separated BHET oligomers were subjected to methanol transesterification reaction. It was found that the BHET dimer and trimer completely disappeared after methanol transesterification, which again showed that dimer and trimer were completely converted into DMT. However, BHET tetramer and pentamer still exist, proving that it was difficult to completely convert them into DMT. This is because BHET tetramer and pentamer have larger molecular weights and lower reactivity. They have fewer effective collisions with methanol in the transesterification reaction and cannot be completely converted into DMT. Since DMT is the final recycled monomer of polyester in this combined process, the depolymerization of polyester into BHET monomer, dimer, and trimer during glycolysis is the ″effective″ depolymerization.

Conclusion Aiming at the glycolysis-methanol transesterification combined process used in industry, the methanol transesterification process of the glycolysis depolymerization products of polyester was researched and revealed. In the first step of glycolysis, the glycolysis products of polyester are mainly BHET monomer, dimer, trimer, tetramer, and pentamer. In the second step of methanol transesterification, BHET monomer, dimer, and trimer can be completely converted into DMT at 65 ℃ for 3 h. However, BHET tetramers and pentamers exhibit low reactivity due to their large molecular weight and are difficult to be completely converted into DMT. The depolymerization of polyester into BHET monomer, dimer, and trimer during glycolysis represents the ″effective″ depolymerization. Therefore, the content of BHET monomer and its dimer and trimer can be increased by increasing the proportion of ethylene glycol and prolonging the depolymerization time, thereby improving the final DMT yield and achieving efficient chemical recycling of polyester fibers. The transformation rules of BHET and its oligomers to DMT in the glycolysis products of polyester were determined, which provides theoretical guidance for the chemical recycling of polyester textiles in glycolysis-methanol transesterification combined process.

Key words: waste textile, recycling, polyester, glycolysis, methanol transesterification, oligomer, transformation rule

CLC Number:

  • TS102.9

Fig.1

Combined glycolysis-methanol transesterification process for polyester chemical recycling"

Fig.2

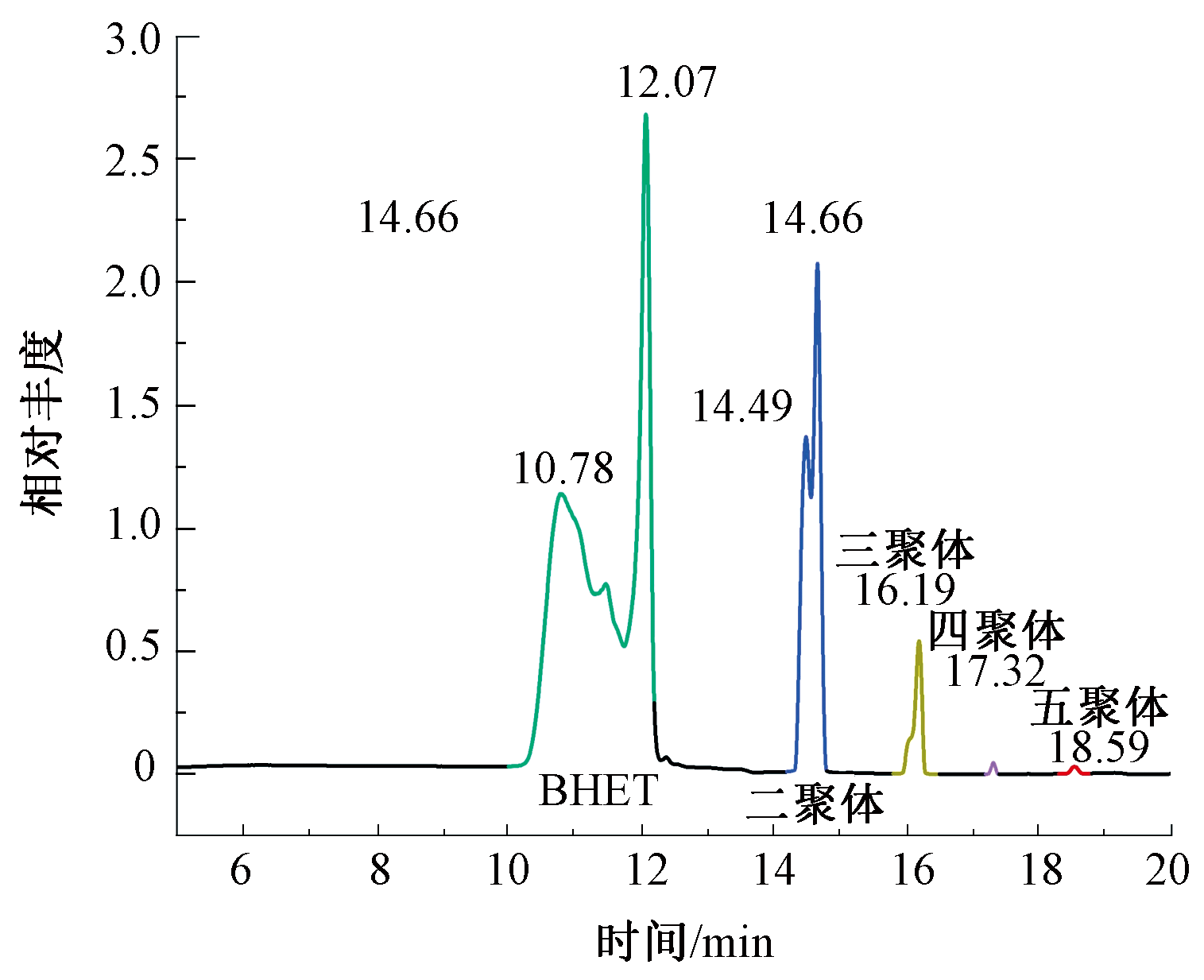

HPLC chromatogram of polyester glycolysis solution (m(PET)∶m(EG)=1∶1.5)"

Fig.3

Mass spectrum of polyester glycolysis solution. (a) Mass spectrum of BHET; (b) Mass spectrum of BHET dimer; (c) Mass spectrum of BHET trimer"

Fig.4

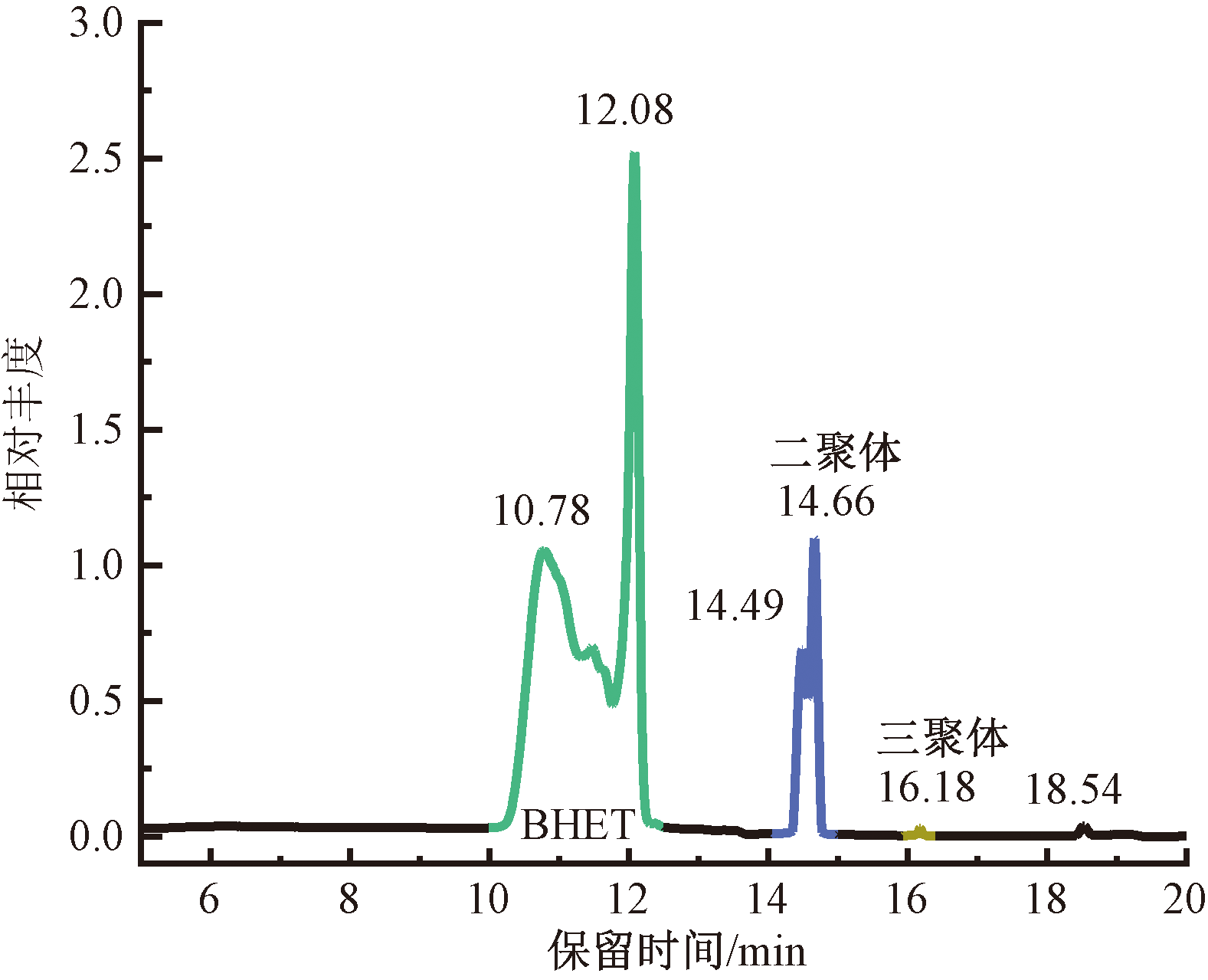

HPLC chromatogram of polyester glycolysis solution (m(PET)∶m(EG)=1∶1)"

Tab.1

Composition analysis of methanol transesterification at different reaction times"

反应
时间/
min		 相对含量/%
BHET 二
聚体		 三
聚体		 四
聚体		 五
聚体		 DMT MHET
0 70.68 17.16 8.06 1.82 0.90 0 0
1 2.85 0 3.21 0.39 0.70 68.19 13.36
5 0.12 0 0 0.19 0.26 84.98 14.45
10 0.29 0 0 0.18 0.55 84.00 11.60
30 0.10 0 0 0.17 0.65 80.40 18.40
60 0.41 0 0 0.10 0.24 82.84 12.78
90 0.09 0 0 0.14 0.30 90.67 8.80

Fig.5

Separation process of polyester glycolysis products"

Fig.6

HPLC chromatogram of filter residue from glycolysis products of polyester (a) and methanol transesterification product of residue in glycolysis product of polyester (b)"

[1] 赵国樑. 我国废旧纺织品综合再利用技术现状及展望[J]. 北京服装学院学报(自然科学版), 2019, 39(1): 94-100.
ZHAO Guoliang. Present situation and prospect of comprehensive recycling technologies of waste textiles in China[J]. Journal of Beijing Institute of Fashion Technology(Natural Science Edition), 2019, 39(1): 94-100.
[2] 孙瑞, 王晓映, 薛菁雯, 等. 国内废旧服装回收再利用的调查与分析[J]. 纺织导报, 2021(1): 44-47.
SUN Rui, WANG Xiaoying, XUE Jingwen, et al. Investigation and analysis of waste clothing recycling and reuse in China[J]. China Textile Leader, 2021(1): 44-47.
[3] 崔晓雪, 魏文静, 张立东, 等. 化学降解废旧聚酯生产有色涤纶短纤维工艺探讨[J]. 合成纤维工业, 2018, 41(2): 71-73.
CUI Xiaoxue, WEI Wenjing, ZHANG Lidong, et al. Production process of colored polyester staple fiber through chemical degradation of polyester waste[J]. China Synthetic Fiber Industry, 2018, 41(2): 71-73.
[4] 陈龙, 周哲, 张军, 等. 废旧棉与涤纶纺织品化学法循环再生利用的研究进展[J]. 纺织学报, 2022, 43(5): 43-48.
CHEN Long, ZHOU Zhe, ZHANG Jun, et al. Research progress in chemical recycling of waste cotton and polyester textile[J]. Journal of Textile Research, 2022, 43(5): 43-48.
[5] 刘雪辉, 徐世美, 张帆, 等. 高分子材料的化学升级回收[J]. 高分子学报, 2022, 53(9): 1005-1022.
LIU Xuehui, XU Shimei, ZHANG Fan, et al. Chemical upcycling of polymeric materials[J]. Acta Polymerica Sinica, 2022, 53(9): 1005-1022.
[6] XU Wenhao, CHEN Lin, ZHANG Shun, et al. New insights into urethane alcoholysis enable chemical full recycling of blended fabric waste[J]. Green Chemistry, 2023, 25(1): 245-255.
[7] KOSLOSKI-OH Sophia C, WOOD Zachary A, MANJARREZ Yvonne, et al. Catalytic methods for chemical recycling or upcycling of commercial polymers[J]. Materials Horizons, 2021, 8(4): 1084-1129.
[8] ZHANG Shun, XU Wenhao, DU Rongcheng, et al. Cosolvent-promoted selective non-aqueous hydrolysis of PET wastes and facile product separation[J]. Green Chemistry, 2022, 24(8): 3284-3292.
[9] HIDEKI Kurokawa, MASA-AKI Ohshima, KAZUO Sugiyama, et al. Methanolysis of polyethylene terephthalate (PET) in the presence of aluminium tiisopropoxide catalyst to form dimethyl terephthalate and ethylene glycol[J]. Polymer Degradation and Stability, 2003, 79(3): 529-533.
[10] WANG Tianlin, SHEN Chuanchao, YU Guangren, et al. The upcycling of polyethylene terephthalate using protic ionic liquids as catalyst[J]. Polymer Degradation and Stability, 2022. DOI:10.1016/j.polymdegradstab.2022.110050.
[11] 汪少朋, 吴宝宅, 何洲. 废旧纺织品回收与资源化再生利用技术进展[J]. 纺织学报, 2021, 42(8): 34-40.
WANG Shaopeng, WU Baozhai, HE Zhou. Technology progress in recycling and reuse of waste textiles[J]. Journal of Textile Research, 2021, 42(8): 34-40.
[12] 鲍青青, 孙海钰, 陈卓, 等. 涤纶化学降解单体产物的高效结晶提纯研究[J]. 高分子学报, 2023, 54(3): 346-355.
BAO Qingqing, SUN Haiyu, CHEN Zhuo, et al. Efficient purification of the glycolysis monomer of polyester enabled by its unique phase transition property[J]. Acta Polymerica Sinica, 2023, 54(3): 346-355.
[13] 余新健, 叶建荣, 徐允武, 等. 废旧涤纶纺织品的化学解聚工艺[J]. 合成纤维, 2018, 47(6): 34-36.
YU Xinjian, YE Jianrong, XU Yunwu, et al. Chemical depolymerization technology of waste polyester textiles[J]. Synthetic Fiber in China, 2018, 47(6): 34-36.
[14] 张瑞芝, 梁帅童, 张红娟, 等. 再生与原生涤纶醇解液的液相色谱检测及鉴别[J]. 印染, 2023, 49(3): 63-67.
ZHANG Ruizhi, LIANG Shuaitong, ZHANG Hongjuan, et al. Determination and identification of regenerated and virgin polyester alcoholysis liquor by liquid chromatography[J]. China Dyeing & Finishing, 2023, 49(3): 63-67.
