Structural regulation of basalt fiber/cotton interwoven fabric-based evaporators and their photothermal evaporation performance

HUA Kerun1,2, LI Jiugang2, QIAO Haoran1,2, HE Jiahao2, LI Wenbin1,2(), XU Weilin2

  1. 1. College of Textile Science and Engineering, Wuhan Textile University, Wuhan, Hubei 430200, China
    2. State Key Laboratory of New Textile Materials and Advanced Processing Technology, Wuhan Textile University, Wuhan, Hubei 430200, China
  • Received:2025-05-12 Revised:2025-07-29 Online:2025-12-15 Published:2026-02-06
  • Contact: LI Wenbin E-mail:wenbin_li@wtu.edu.cn

RichHTML

16

PDF (PC)

24

Abstract:

Objective This study addresses the poor processability and structural inflexibility of conventional photothermal materials by integrating basalt fibers (with high photothermal efficiency) with hydrophilic cotton yarns through weaving. Three fabric structures (plain, twill, satin) were engineered to optimize solar-driven interfacial evaporation (SDIE) performance, focusing on enhancing light absorption, water transport, and vapor release. The research highlights textile-based solutions for scalable and sustainable seawater desalination, offering a cost-effective alternative to energy-intensive methods like reverse osmosis.

Method Basalt fibers (98 tex) and cotton yarns (60 tex) were woven into plain fabric (PF), twill fabric (TF), and satin fabric (SF) using a semi-automatic loom. The warp density of all three fabrics was 50 roots/(10 cm), while the weft densities were 48, 44, and 40 roots/(10 cm), respectively. The SF featured extended weft floats (0.8-1.2 mm) to maximize basalt exposure. The post-machine cleaning of fabrics involved ultrasonic treatment with ethanol and water. Key analyses encompassed surface morphology (3-D microscopy), wettability (contact angle), light absorption (UV-Vis-NIR spectroscopy, 200-2 400 nm), evaporation rates under simulated sunlight (1-2 kW/m2), salt resistance (3.5%-15% NaCl), and water purification efficacy (ICP analysis).

Results Satin fabric (SF) exhibited superior performance achieving 94.5% photothermal efficiency and an evaporation rate of 1.59 kg/(m2·h) under 1.0 kW/m2 by continuous basalt floats, outperforming PF (1.25 kg/(m2·h)) and TF (1.32 kg/(m2·h)). SF demonstrated near-linear scalability, reaching 2.74 kg/(m2·h) at 2.0 kW/m2. In 15% NaCl, SF maintained an evaporation rate of 1.34 kg/(m2·h) (15% decline vs. freshwater), with less than 5% efficiency loss after 10 h in 5% NaCl. Post-treatment seawater showed 2-4 orders of magnitude reduction in Na+, Mg2+, Ca2+, and K+ concentrations, meeting standards. The condensate collection system achieved 98% salt rejection.

Conclusion Satin-woven basalt/cotton fabric represents a breakthrough in textile-based SDIE systems, synergizing light absorption, water supply, and vapor diffusion. Its structural design ensures high salt tolerance and scalability, enabling deployment in off-grid coastal regions. This work advances sustainable desalination by eliminating fossil fuel dependence and reducing costs. Future research should explore 3-D hybrid structures, integration with waste heat recovery, and real-world field validation to enhance practical applications in clean water production and renewable energy systems.

Key words: basalt fiber, fabric weave, photothermal evaporation property, structural control, desalination, cotton yarn, composite fabric, photothermal material

CLC Number:

  • TS540.2

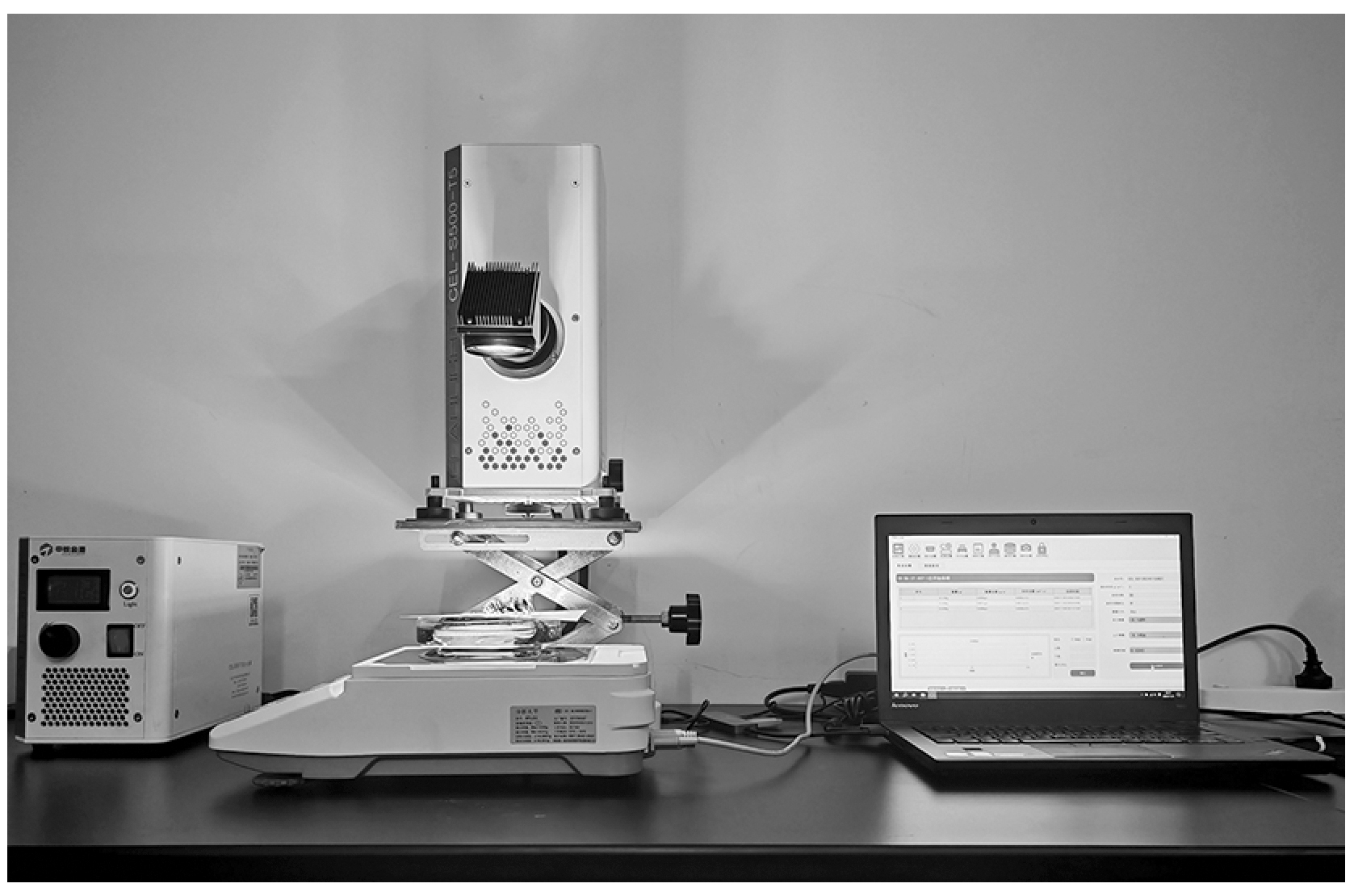

Fig.1

Physical picture of solar water evaporation experimental test device"

Fig.2

Microstructure of different fabrics (a) and corresponding 3-D microscope photos (b)"

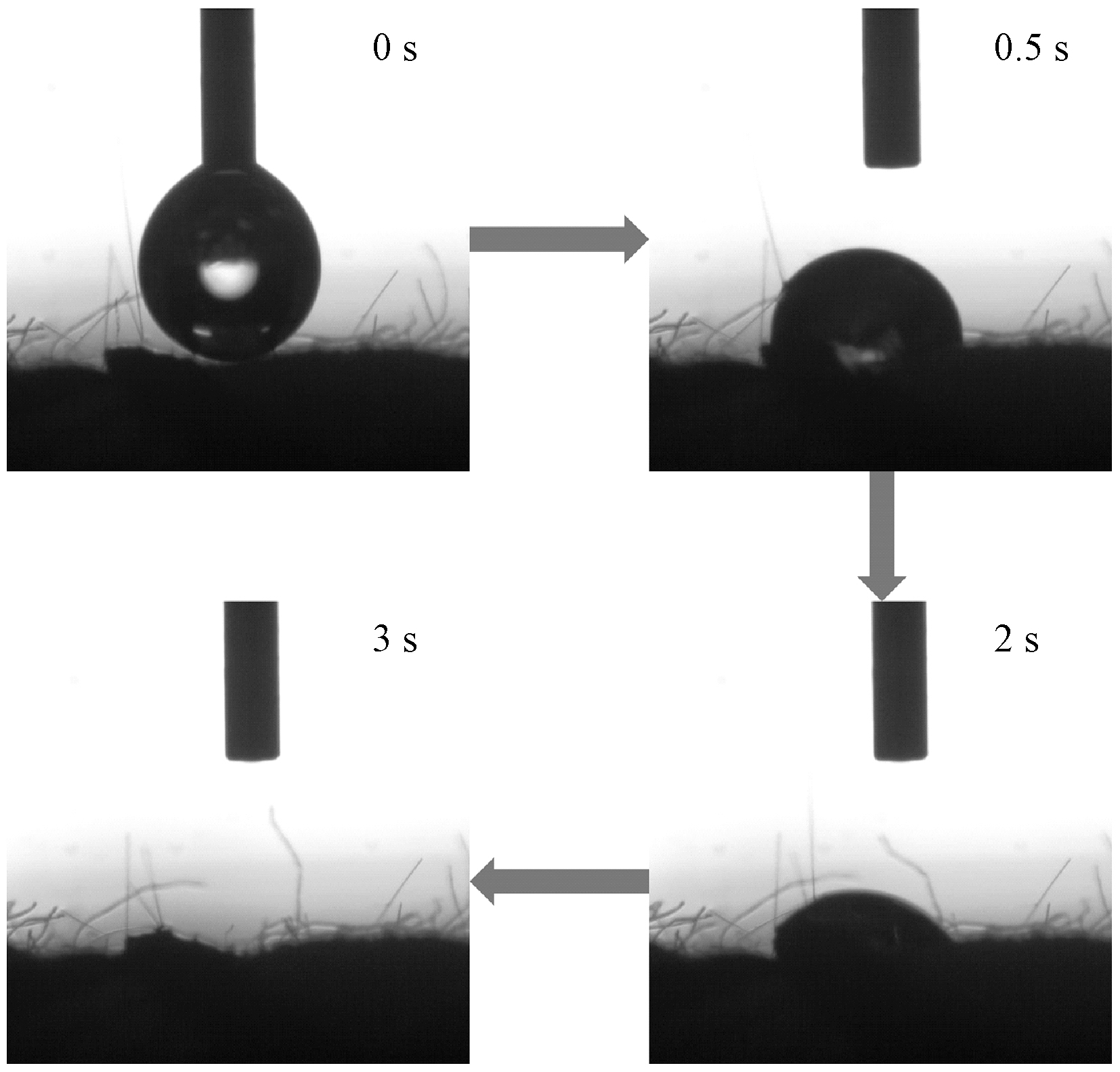

Fig.3

Static water contact angle photographs of satin fabric"

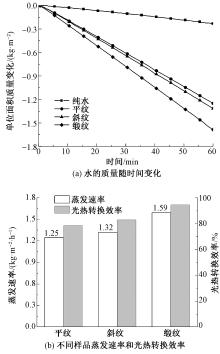

Fig.4

Water mass of different samples under 1.0 kW/m2 light condition changes with time (a) and corresponding evaporation rate and photothermal conversion efficiency (b)"

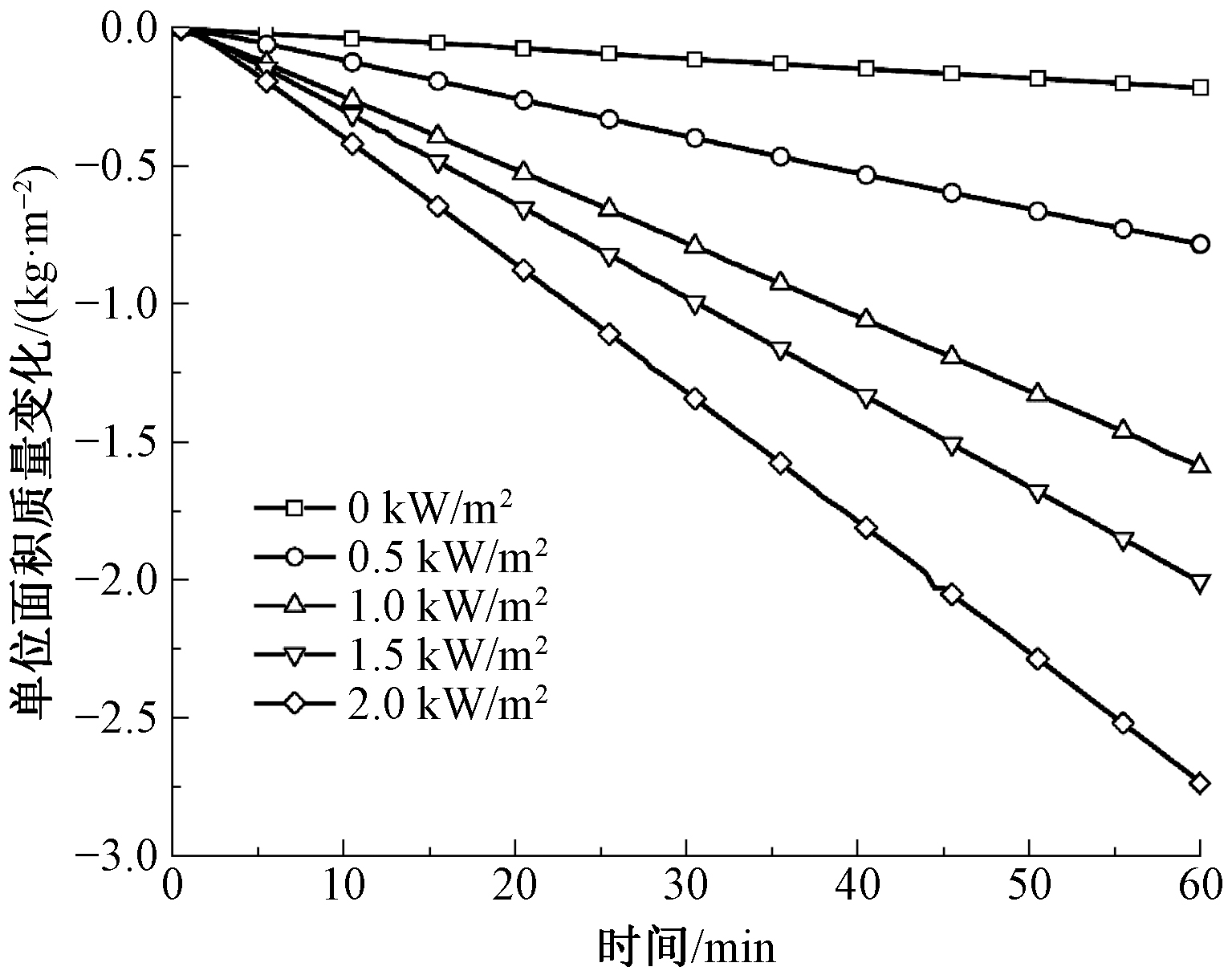

Fig.5

Water quality of satin fabric-based evaporator varies with time under different light intensity"

Fig.6

Mass change of satin fabric-based evaporator in brine with different mass fraction"

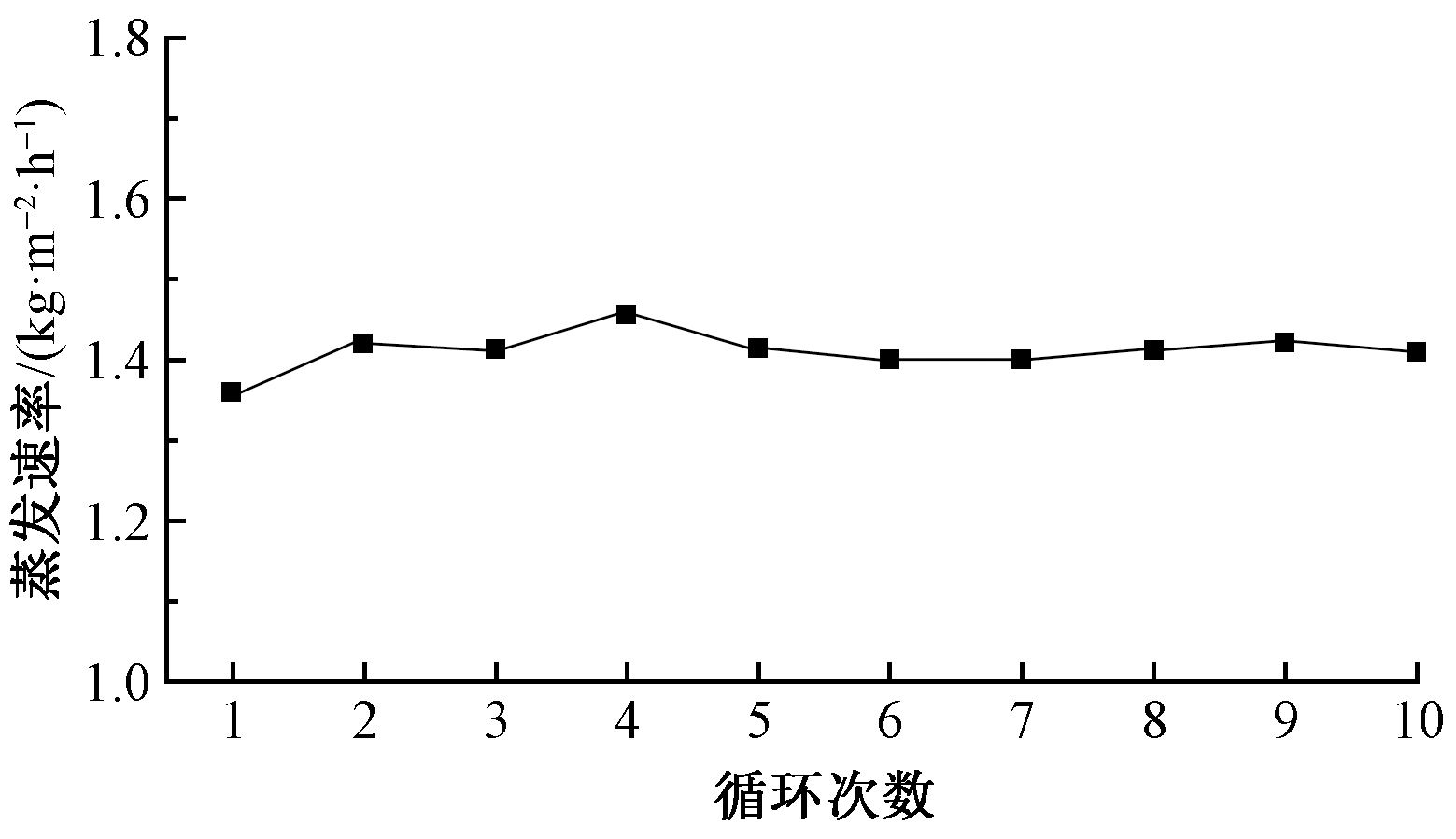

Fig.7

Cyclic evaporation performance of stin fabric evaporator in 5% NaCl solution"

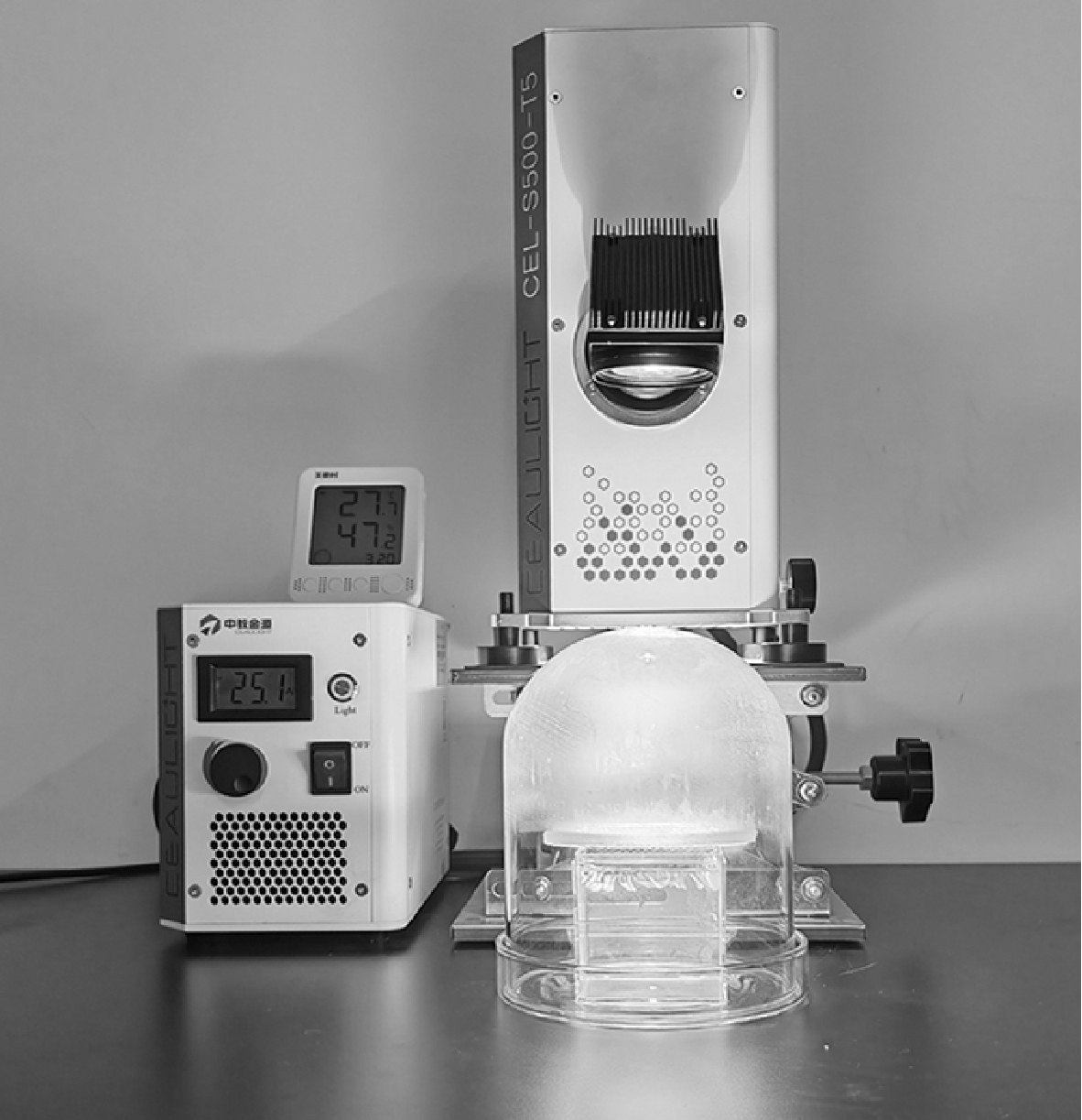

Fig.8

Condensate collection device physical diagram"

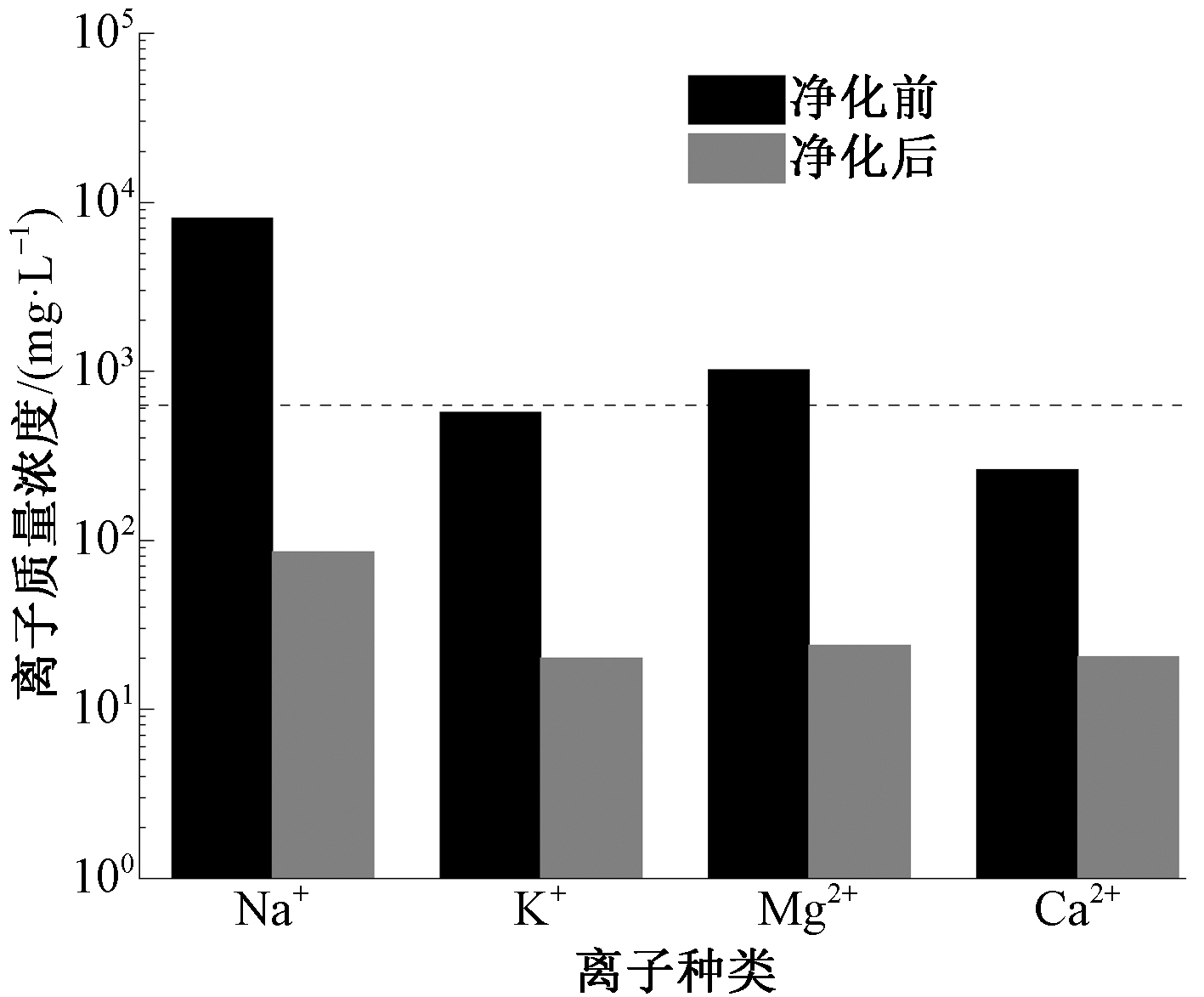

Fig.9

Changes of ion concentration before and after purification"

[1] REN L P, ZHANG Q, ZHAO G M, et al. Interconnected porous fabric-based scalable evaporator with asymmetric wetting properties for high-yield and salt-rejecting solar brine treatment[J]. Advanced Fiber Materials, 2024, 6(4): 1162-1173.
doi: 10.1007/s42765-024-00409-5
[2] 杜恒, 方剑, 葛灿, 等. 界面光热水蒸发用碳基纤维材料的研究进展[J]. 复合材料学报, 2023, 40(6): 3115-3124.
DU Heng, FANG Jian, GE Can, et al. Research progress in carbon-based fibrous materials for interfacial photothermal steam generation[J]. Acta Materiae Compositae Sinica, 2023, 40(6): 3115-3124.
[3] 齐路漫, 孟家光, 余灵婕, 等. 异形针织间隔结构界面太阳能蒸汽发生器的制备及其性能[J]. 纺织学报, 2025, 46(2): 122-129.
QI Luman, MENG Jiaguang, YU Lingjie, et al. Preparation and properties of interfacial solar steam generators with special-shaped spacer knitted struc-tures[J]. Journal of Textile Research, 2025, 46(2): 122-129.
[4] BU Y M, ZHOU Y H, LEI W W, et al. A bioinspired 3D solar evaporator with balanced water supply and evaporation for highly efficient photothermal steam generation[J]. Journal of Materials Chemistry A, 2022, 10(6): 2856-2866.
doi: 10.1039/D1TA09288J
[5] 葛灿, 雍楠, 杜恒, 等. 开放热管理式三维织物基光热海水淡化系统[J]. 纺织学报, 2024, 45(2): 153-161.
GE Can, YONG Nan, DU Heng, et al. Three-dimensional fabric-based solar desalination system with open thermal management[J]. Journal of Textile Research, 2024, 45(2): 153-161.
[6] XU D, GE C, CHEN Z, et al. Composite braided fabric coupled with photothermal and electrothermal processes for stable and continuous all-day desalination[J]. ACS Applied Materials & Interfaces, 2022, 14(46): 52087-52095.
[7] 蒋逸飞, 田焰宽, 戴俊, 等. 太阳能驱动多级海水淡化器件的设计及其集水率探究[J]. 纺织学报, 2023, 44(8): 9-17.
JIANG Yifei, TIAN Yankuan, DAI Jun, et al. Design of solar-driven multistage desalination device and investigation of water collection rate[J]. Journal of Textile Research, 2023, 44(8): 9-17.
[8] 张志伟, 郭振彩, 孙心铭, 等. 界面蒸发驱动的光热水凝胶在脱盐净化中的应用[J]. 印染, 2025, 51(4): 17-21.
ZHANG Zhiwei, GUO Zhencai, SUN Xinming, et al. Interfacial evaporation-driven photo-hydrothermal gels for desalination and purification[J]. China Dyeing and Finishing, 2025, 51(4): 17-21.
[9] 何满堂, 王黎明, 覃小红, 等. 静电纺纳米纤维在界面太阳能蒸汽转化应用中的研究进展[J]. 纺织学报, 2023, 44(3): 201-209.
HE Mantang, WANG Liming, QIN Xiaohong, et al. Research progress in electrospun nanofibers in interfacial solar steam generation[J]. Journal of Textile Research, 2023, 44(3): 201-209.
[10] 李团章, 郭晓丽, 邹淑萍, 等. 太阳能海水淡化界面材料应用研究及发展现状[J]. 云南化工, 2024, 51(8): 43-48.
LI Tuanzhang, GUO Xiaoli, ZOU Shuping, et al. Research and development of interface materials for solar desalination[J]. Yunnan Chemical Industry, 2024, 51(8): 43-48.
[11] FU Z, ZHONG D D, ZHOU S J, et al. Scalable asymmetric fabric evaporator for solar desalination and thermoelectricity generation[J]. Advanced Science, 2024, 11(45): e2406474.
[12] 吴浩, 王洪杰, 王赫, 等. 碳纤维基太阳能驱动界面水蒸发器件研究进展[J]. 复合材料学报, 2025, 42(2): 692-703.
WU Hao, WANG Hongjie, WANG He, et al. Progress of carbon fiber-based solar-powered interfacial water evaporation devices[J]. Acta Materiae Compositae Sinica, 2025, 42(2): 692-703.
[13] HUA K R, LI J G, QIAO H R, et al. Tree-inspired fabric-based of carbon fiber photothermal evaporator for highly efficient water-evaporation desalination[J]. Journal of Water Process Engineering, 2024, 65: 105878.
doi: 10.1016/j.jwpe.2024.105878
[14] WAN P, GU X B, OUYANG X L, et al. A versatile solar-powered vapor generating membrane for multi-media purification[J]. Separation and Purification Technology, 2021, 260: 117952.
doi: 10.1016/j.seppur.2020.117952
[15] ZHANG R C, ZHANG W Q, REN H P, et al. A current-adaptive evaporator with optimized energy utilization for self-cleaning high-salinity desalina-tion[J]. Advanced Functional Materials, 2025, 35(5): 2414427.
doi: 10.1002/adfm.v35.5
[16] 潘露琪, 任李培, 肖杏芳, 等. 纤维基界面光热蒸发器表面除盐的研究进展[J]. 纺织学报, 2023, 44(11): 225-231.
doi: 10.13475/j.fzxb.20220703602
PAN Luqi, REN Lipei, XIAO Xingfang, et al. Research progress on salt removal from surface of fiber-based interfacial photothermal evaporators[J]. Journal of Textile Research, 2023, 44(11): 225-231.
doi: 10.13475/j.fzxb.20220703602
[17] XIONG J, YI J, PENG S, et al. Plant transpiration-inspired environmental energy-enhanced solar evaporator fabricated by polypyrrole decorated polyester fiber bundles for efficient water purification[J]. Journal of Cleaner Production, 2022, 379: 134683.
doi: 10.1016/j.jclepro.2022.134683
[18] CHENG S J, HE E Y, ZHANG P P, et al. Scallion-inspired environmental energy enhanced solar evaporator with integrated water transport and thermal manage-ment[J]. Advanced Functional Materials, 2025, 35(26): 2423011.
doi: 10.1002/adfm.v35.26
