Journal of Textile Research ›› 2026, Vol. 47 ›› Issue (04): 17-25.doi: 10.13475/j.fzxb.20250705101

• Fiber Materials • Previous Articles     Next Articles

Development of regenerated wool keratin-based composite fibers with photothermal transformation

ZHAO Meining1,2, LI Bo1,2(), SUN Yanli1,2, WU Hailiang1,2, TIAN Shiyi1,2

  1. 1 School of Textile Science and Engineering, Xi'an Polytechnic University, Xi'an, Shaanxi 710048, China
    2 Key Laboratory of Functional Textile Materials and Products, Ministry of Education, Xi'an Polytechnic University, Xi'an, Shaanxi 710048, China
  • Received:2025-07-21 Revised:2026-01-15 Online:2026-04-15 Published:2026-06-24
  • Contact: LI Bo E-mail:libo1988@xpu.edu.cn

Abstract:

Objective This study aims to develop high-performance functional regenerated keratin-based composite fibers by incorporating MXene into keratin/polyamide 6 (PA6) blends, addressing the critical drawbacks of low utilization efficiency, poor mechanical properties, and single functionality of existing regenerated keratin materials. It further seeks high-value recycling of waste wool resources, responding to global demands for green sustainability and circular economy in the textile industry, where waste textiles are mostly landfilled or incinerated, causing resource waste and environmental pollution.

Method Wool keratin was extracted via the reduction pretreatment-formic acid method using tris(2-carboxyethyl)phosphine hydrochloride as the reducing agent (80 ℃, 2 h reduction; 60 ℃, 5 h dissolution in 90% formic acid). Laboratory-synthesized MXene was compounded with keratin/PA6 (5: 5 mass ratio) spinning solution through wet spinning (30% ZnSO4 coagulation bath, 0.5% glutaraldehyde, 40 ℃ spinning temperature). Process parameters (MXene content: 0.1%-1.2%, temperature: 40-70 ℃, time: 1-4 h) were optimized, and materials were characterized by SEM, XPS, FT-IR, XRD, electronic single-fiber strength testing, and xenon lamp-induced photothermal evaluation.

Results The optimal compounding conditions were confirmed as MXene mass fraction 0.6%, temperature 60 ℃, and time 3 h, which balanced MXene dispersion and keratin structural integrity. Consistent with MXene's intrinsic photothermal property reported in literatures, the composite fiber exhibited exceptional photothermal conversion performance. Infrared thermal imaging showed a temperature rise of 42.3 ℃ after 5 min of 1 000 W xenon lamp irradiation, while the MXene-free control only increased by 20.3 ℃. This efficiency surpassed many photothermal biopolymer composites due to MXene's conductive network accelerating photon-to-heat conversion. Mechanical tests demonstrated a breakthrough compared to conventional regenerated keratin fibers. Literatures show that most have breaking strength below 20 cN, but composite fiber generated in this research reached 40.44 cN, with elongation at break of 12.65%. This well outperforms the pure keratin/PA6 fiber (15.36 cN, 21.18%) and aligns with the β-sheet reinforcement mechanism reported in keratin fiber studies. SEM observations revealed MXene eliminated surface grooves and reduced internal pores at 0.6% content, forming a compact structure. However, MXene content >0.6% caused agglomeration, as seen in similar MXene/polymer systems. XPS analysis detected 0.12% Ti element, confirming successful MXene incorporation, with the composite retaining keratin's characteristic C, N, O, S elements. FT-IR spectra showed no shifts in amide A (3 282 cm-1) and amide I (1 640 cm-1) peaks, verifying physical bonding which avoid chemical modification that impairs keratin's biocompatibility. XRD results indicated MXene induced a 37% increase in keratin's β-sheet diffraction peak (20°), enhancing crystallinity from 18.2% to 29.1%, which directly contributed to mechanical improvement. Compounding at above 70 ℃ led to keratin hydrolysis (observed via reduced amide peaks), while time longer than 3 h caused uneven MXene dispersion, both resulting in performance degradation.

Conclusion MXene effectively endows keratin/PA6 fibers with superior photothermal conversion while enhancing mechanical properties and structural uniformity through physical compounding, addressing key limitations of regenerated keratin materials highlighted in literatures. This study provides a feasible technical approach for high-value waste wool utilization, leveraging MXene's photothermal advantages and keratin/PA6 blend biocompatibility. The composite fibers hold broad applications in functional textiles (e.g., thermal management fabrics), biomass materials, and medical thermotherapy patches. The optimized process offers strong industrial potential, contributing to resource conservation and the textile industry's green transition.

Key words: functional regenerated keratin material, wool keratin, polyamide 6, MXene, wet spinning, composite fiber, photothermal conversion performance

CLC Number:

  • TS199

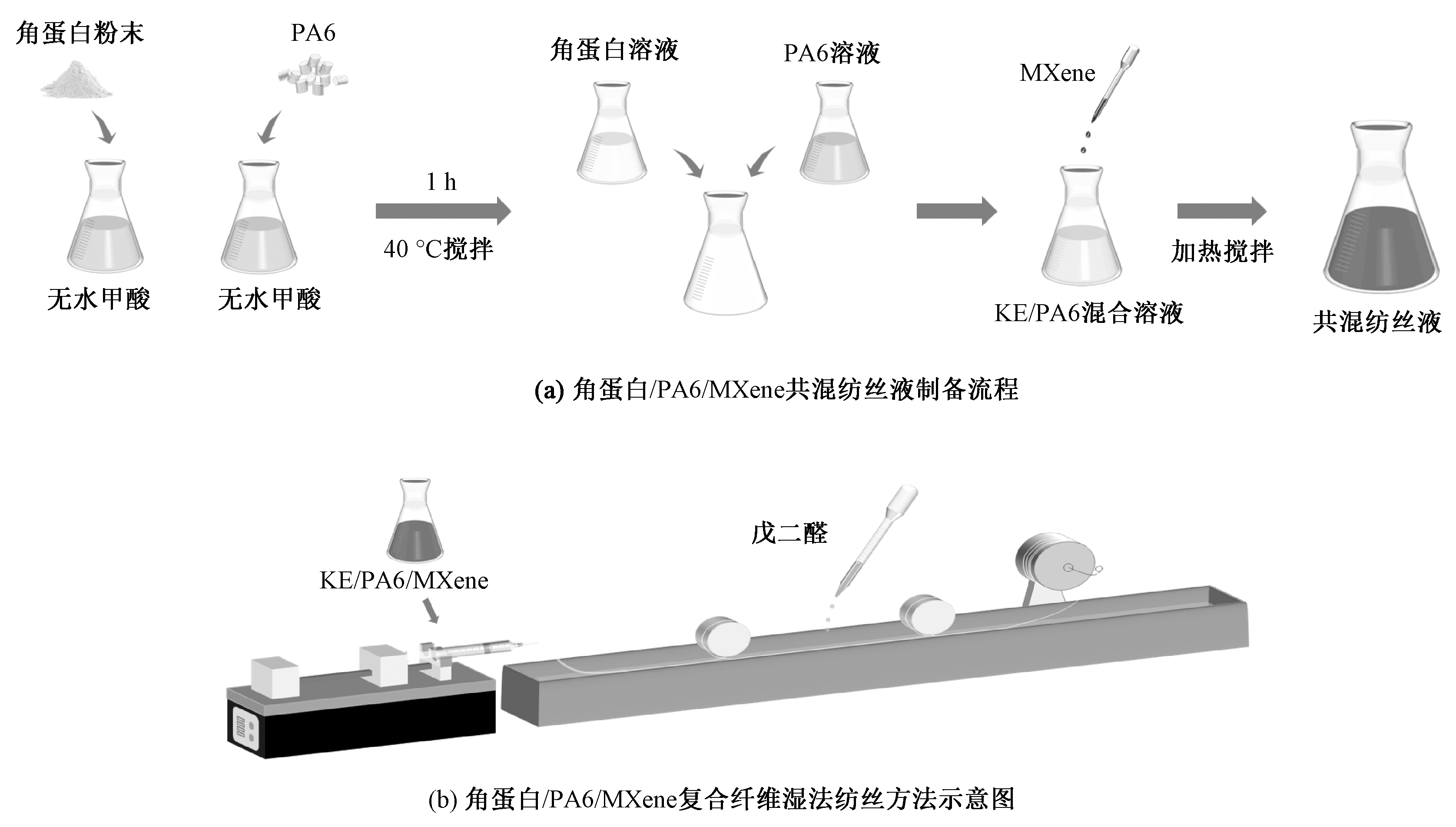

Fig.1

Preparation process of regenerated keratin/PA6/MXene fiber. (a) Preparation process of keratin/PA6/MXene blend spinning solution; (b) Schematic diagram of wet spinning method of keratin/PA6/MXene composite fibers"

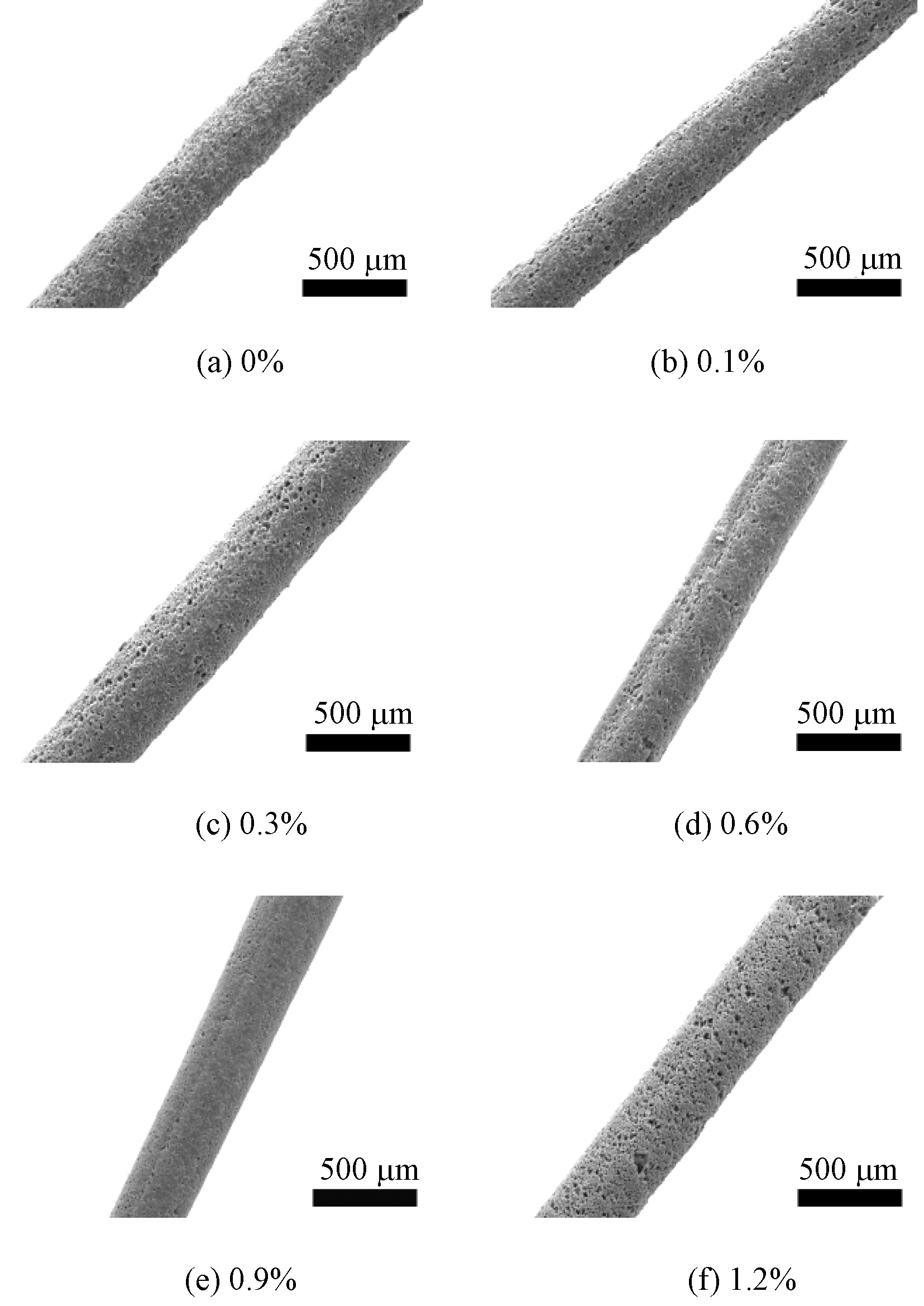

Fig.2

SEM images of regenerated fibers with different MXene mass fractions"

Tab.1

Mechanical properties test results of keratin based regenerated fibers with different MXene mass fractions"

MXene
添加量/%
断裂强
力/cN
断裂伸长
率/%
0 15.36±6.22 21.18±9.39
0.1 40.41±20.03 10.39±6.40
0.3 20.30±9.60 13.38±8.20
0.6 21.47±10.87 7.64±5.20
0.9 27.46±14.65 8.51±5.01
1.2 43.30±22.88 7.90±5.90

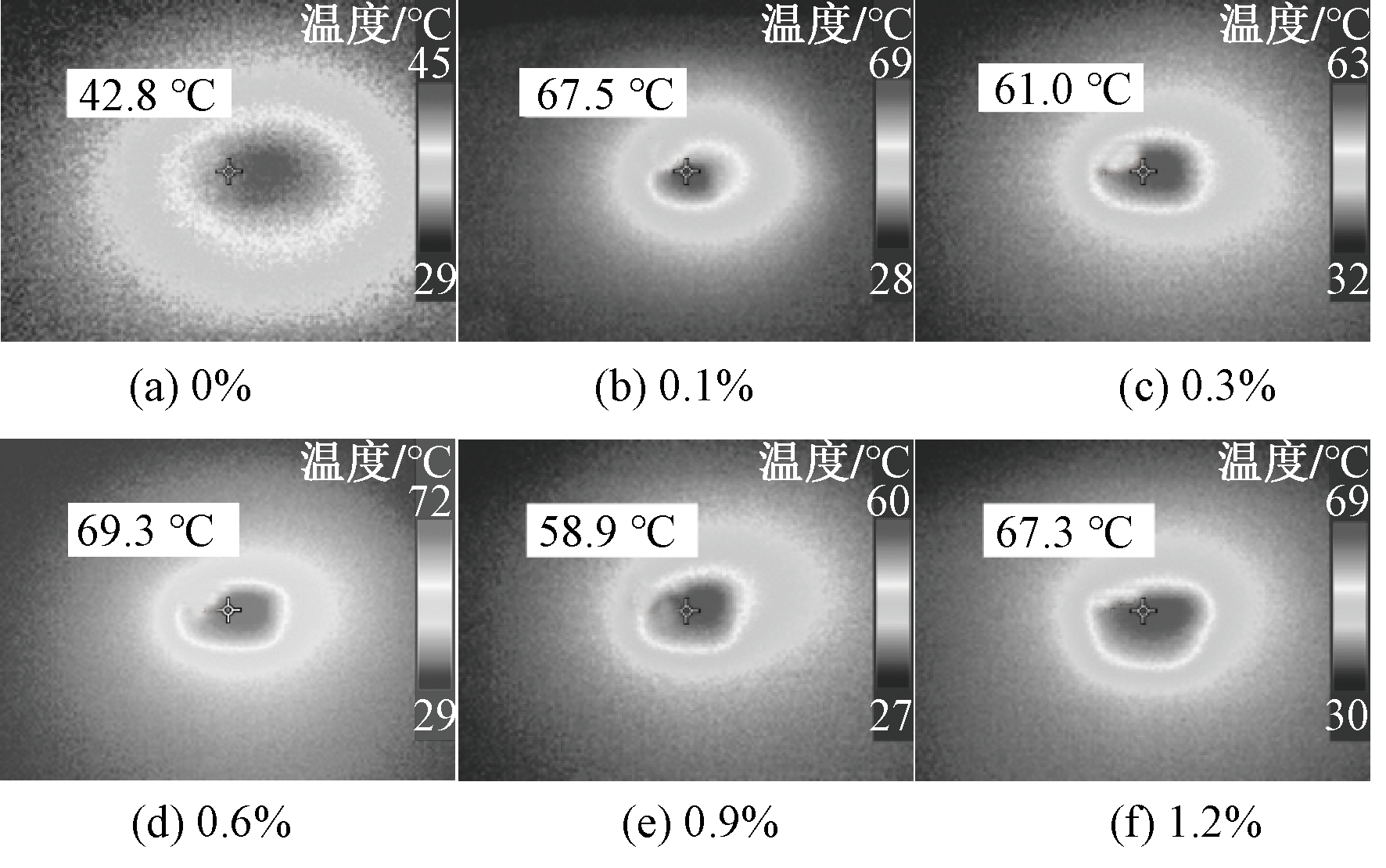

Fig.3

Test results of photothermal conversion of fibers with different MXene mass fractions"

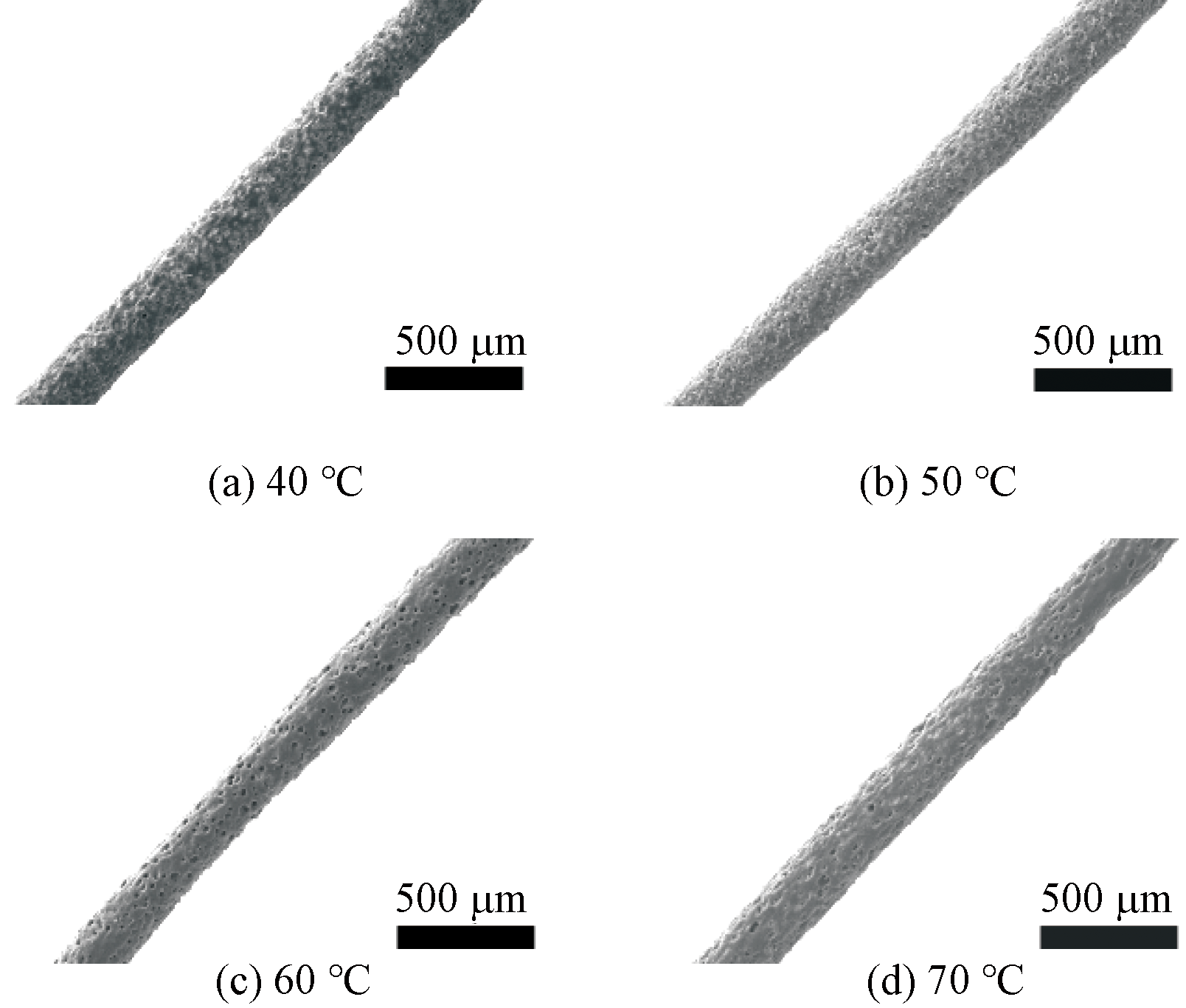

Fig.4

SEM images of regenerated fibers under different composite temperature conditions"

Tab.2

Tensile fracture strength of regenerated fibers under different composite temperature"

复合温度/℃ 断裂强力/cN 断裂伸长率/%
40 28.40±17.90 49.21±19.60
50 20.30±9.80 13.38±8.30
60 35.56±7.22 34.11±16.70
70 30.96±10.80 31.90±15.52

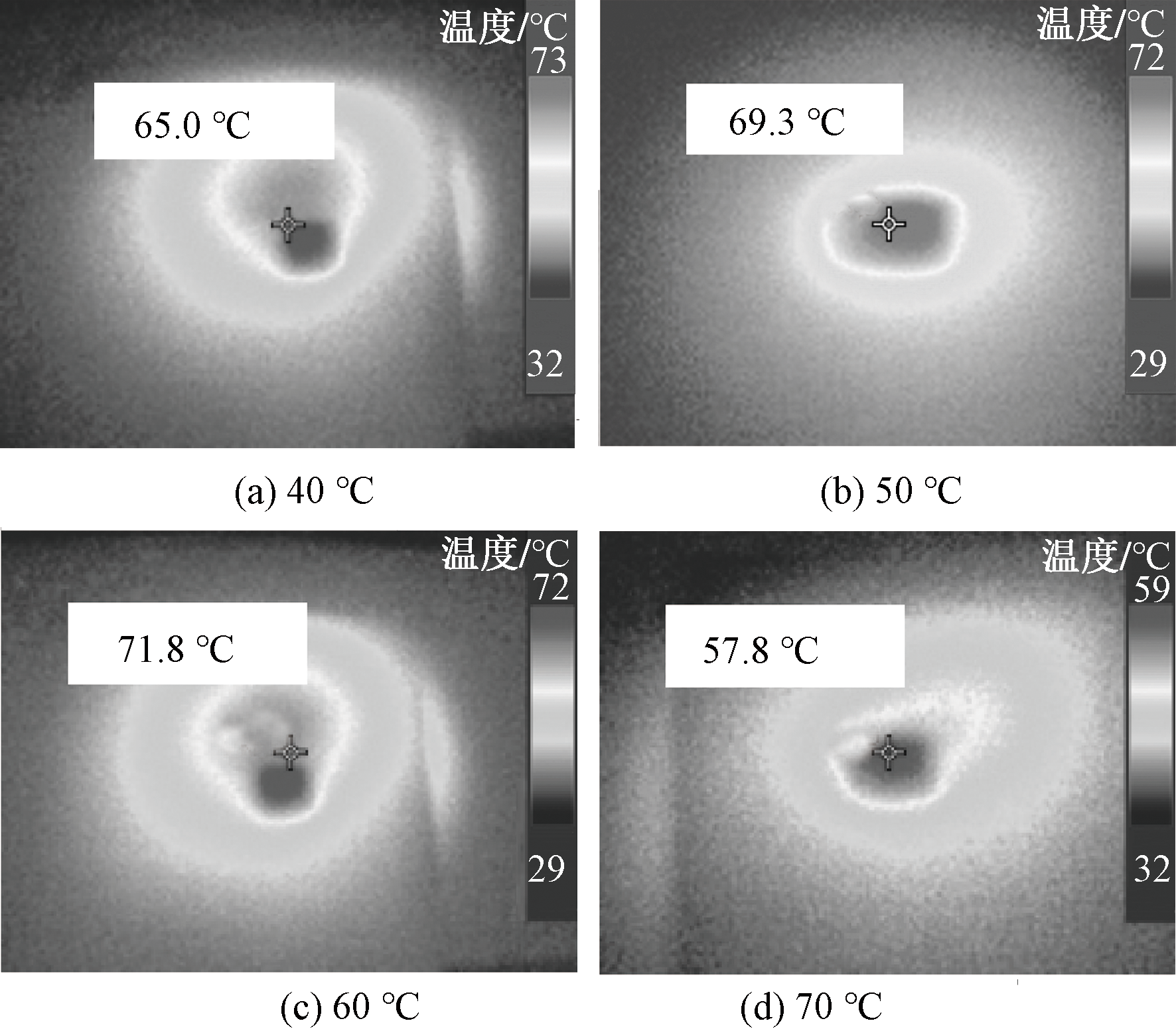

Fig.5

Test results of photothermal conversion of different composite temperature fibers"

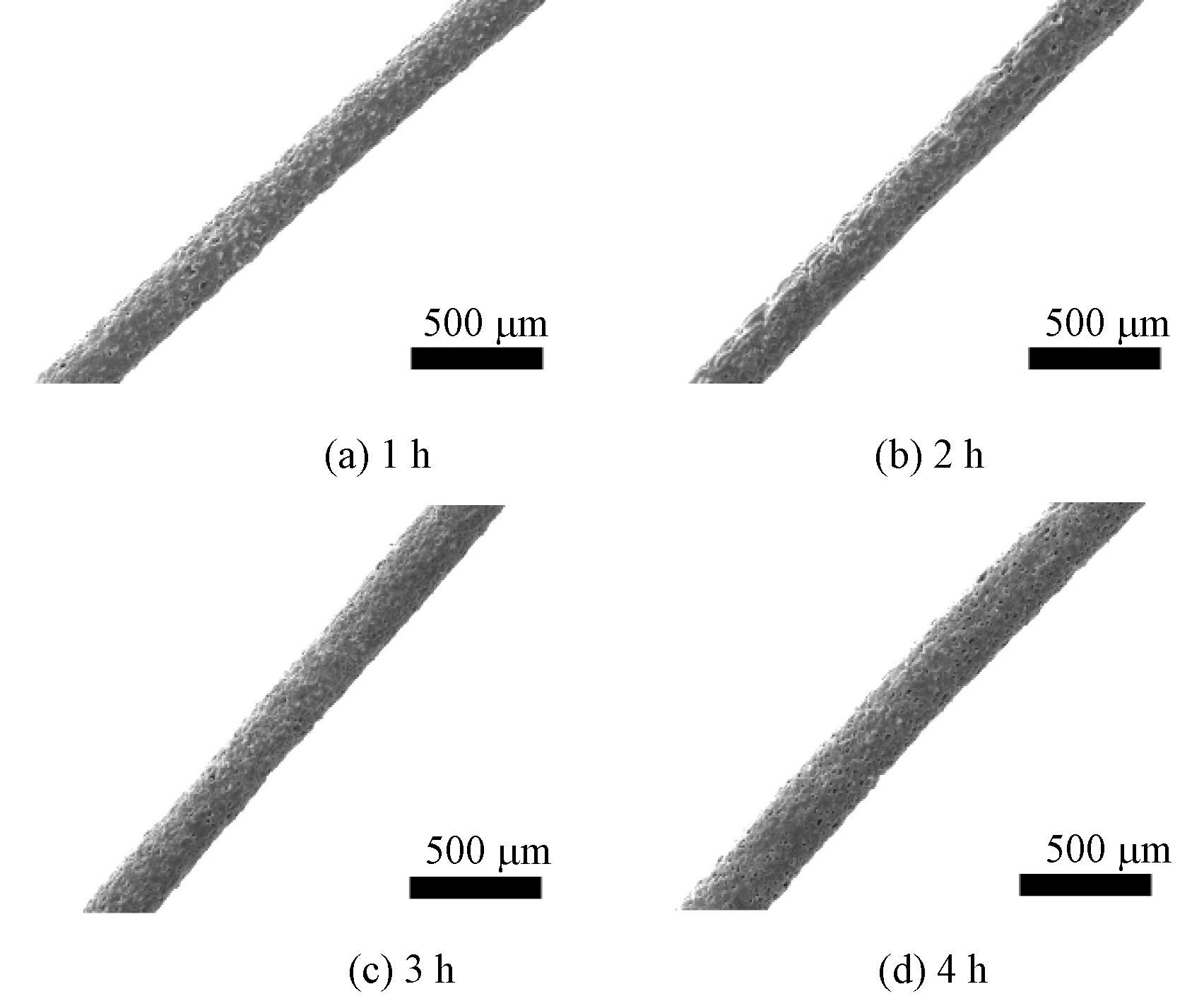

Fig.6

SEM images of composite fibers with different composite times"

Tab.3

Tensile fracture strength of regenerated fibers at different blending times"

复合时间/h 断裂强力/cN 断裂伸长率/%
1 33.95±15.71 11.78±6.25
2 38.52±18.61 10.21±6.21
3 40.44±10.14 12.65±7.65
4 31.95±11.80 10.09±6.09

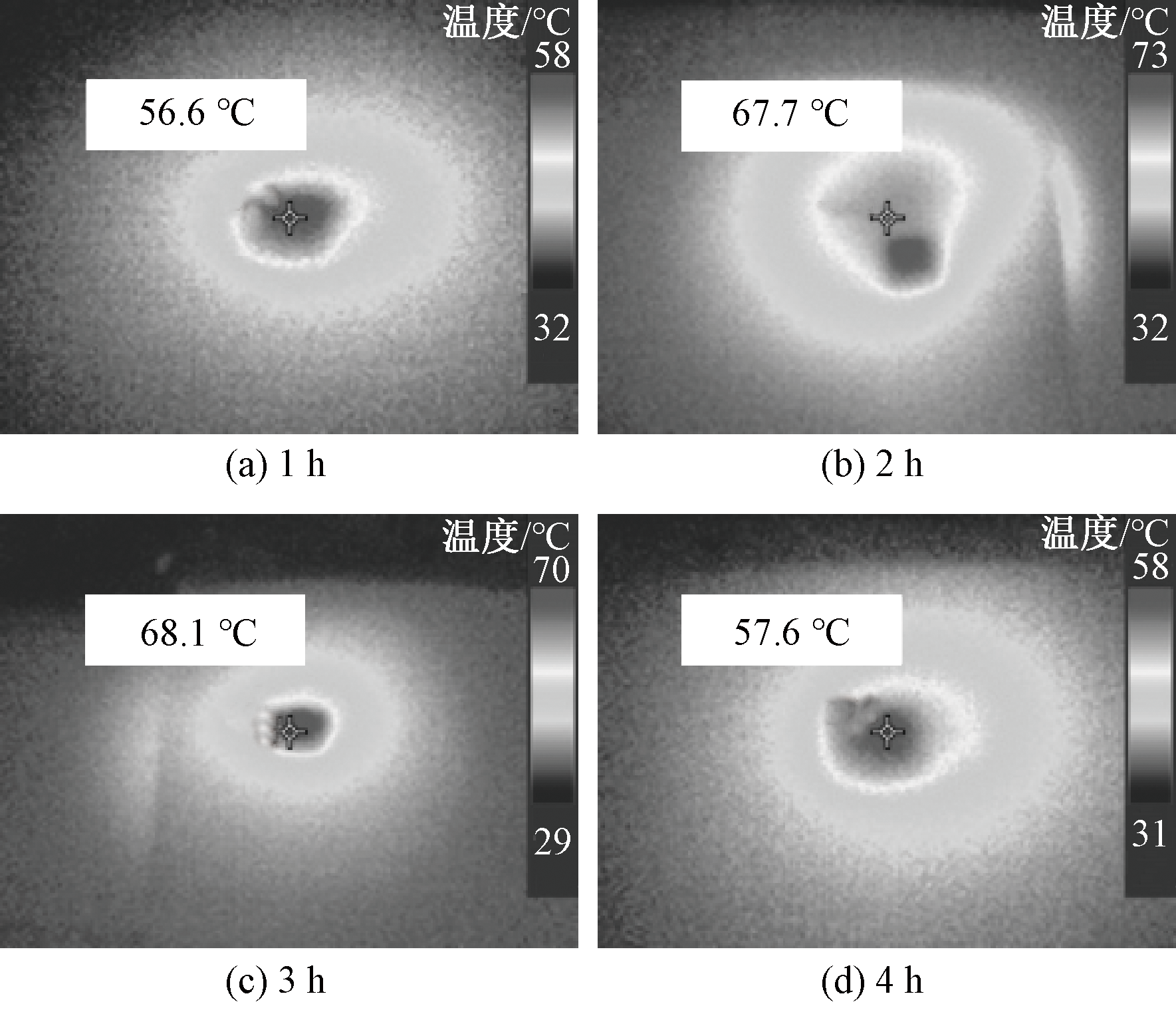

Fig.7

Test results of fiber photothermal conversion at different composite times"

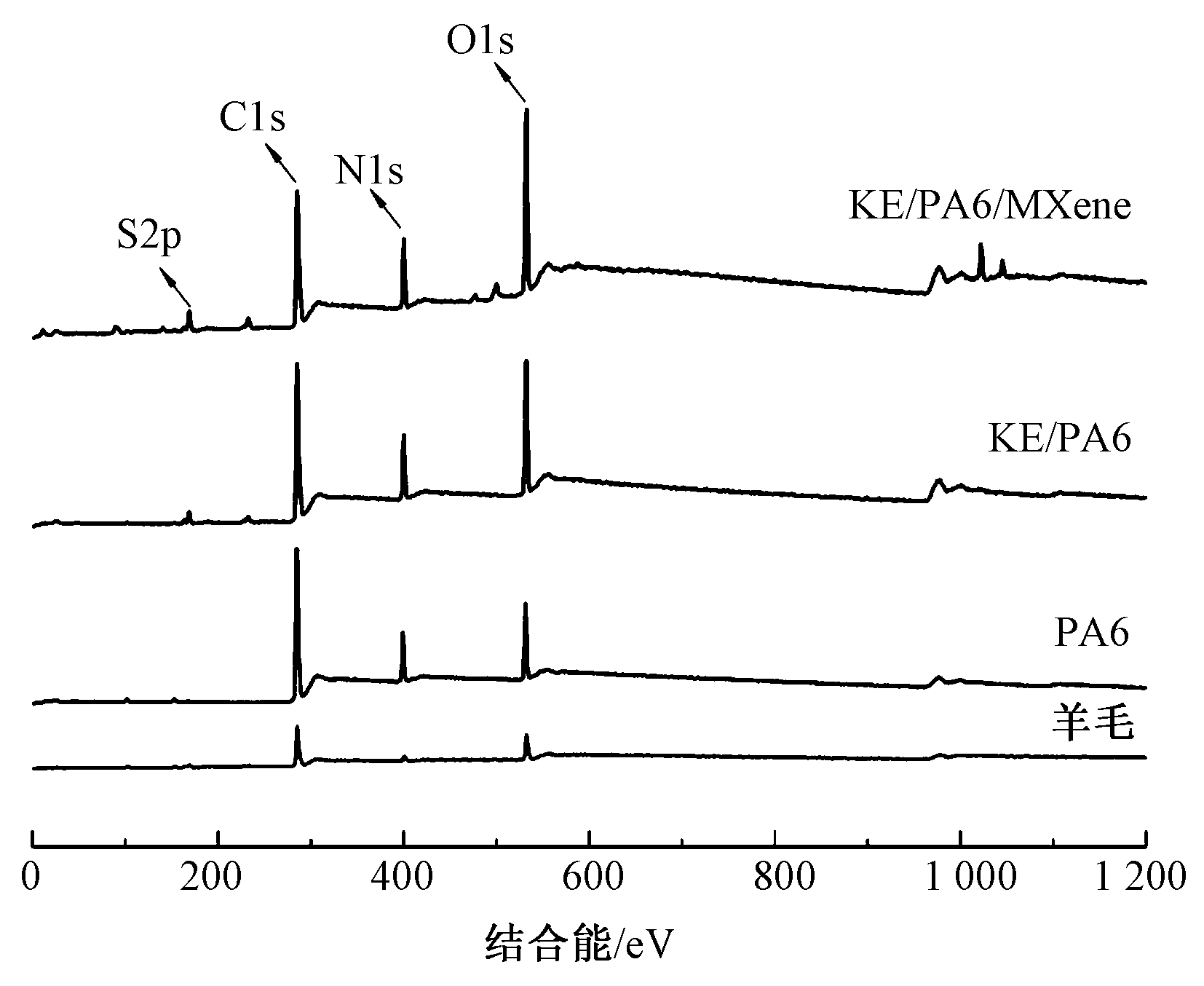

Fig.8

XPS spectra of different fiber samples"

Tab.4

Percentage content of elements in each sample"

样品名称 元素质量分数/%
C N O S Ti
羊毛 66.93 11.51 15.90 4.34 0
PA6 65.76 9.47 20.65 3.54 0
KE/PA6 56.47 14.46 24.76 3.70 0
KE/PA6/MXene 62.19 13.55 21.01 2.69 0.12

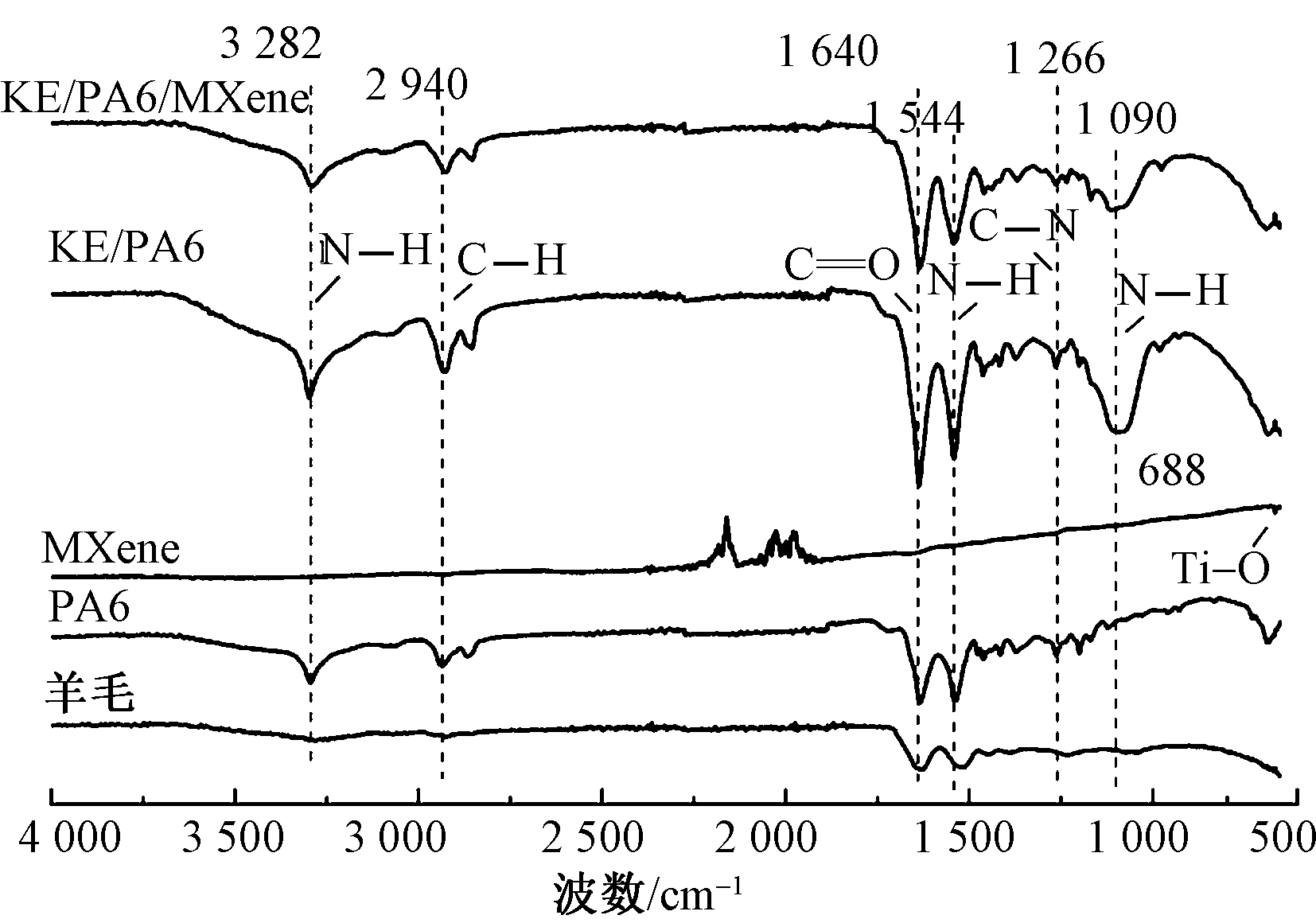

Fig.9

Infrared spectra of wool fiber and keratin regenerated fiber"

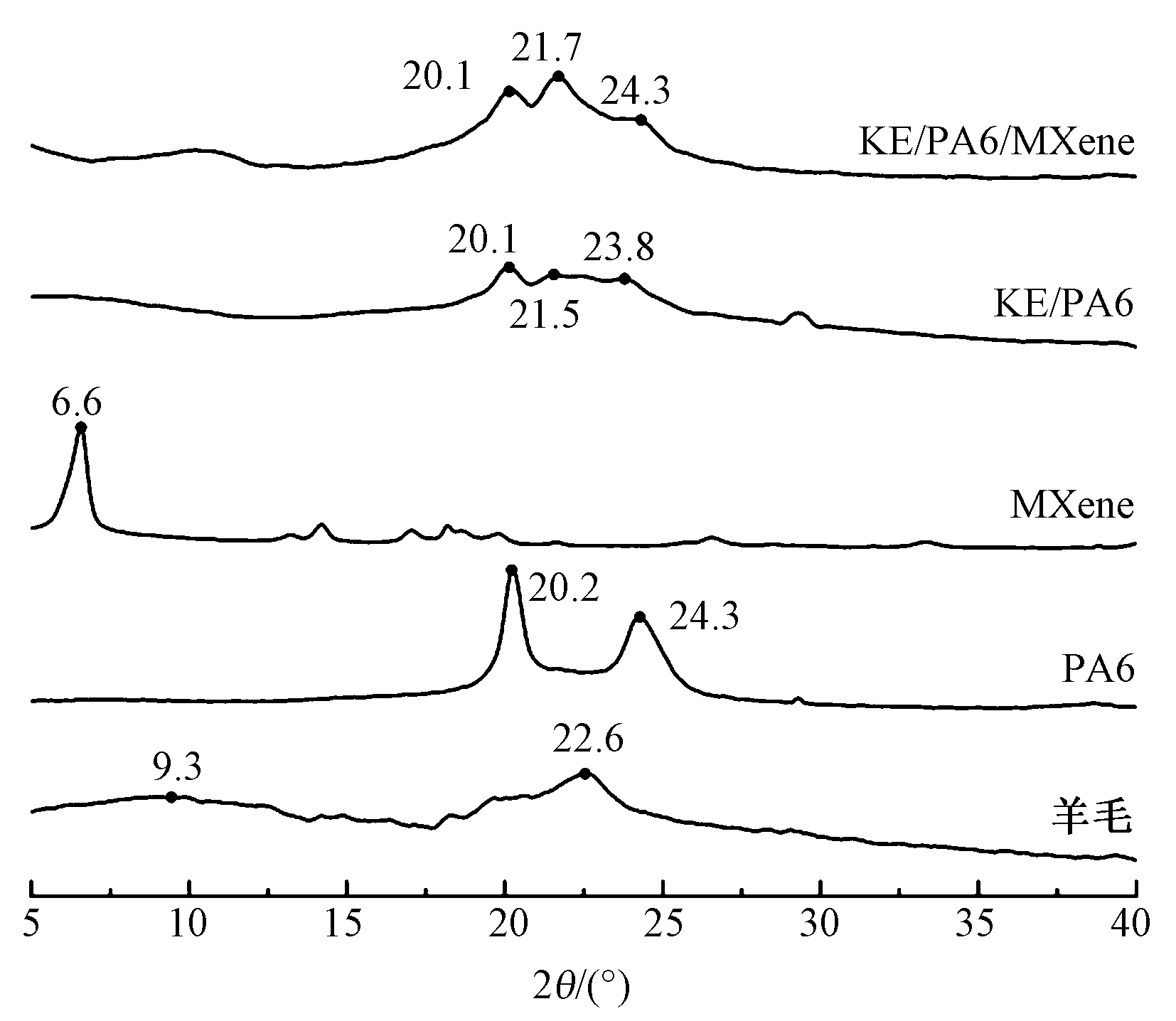

Fig.10

XRD spectra of samples"

[1] 叶晋浦, 叶戬春, 丁文胜. 我国废旧纺织品循环利用发展现状与趋势[J]. 棉纺织技术, 2025, 53(11): 27-31.
YE Jinpu, YE Jianchun, DING Wensheng. Development status and trend of waste textiles recycling and utilization in China[J]. Cotton Textile Technology, 2025, 53(11): 27-31.
[2] 董亚琳, 王黎明, 覃小红. 废弃羊毛角蛋白再生工艺及其高值化应用的研究进展[J]. 纺织学报, 2024, 45(7): 213-222.
DONG Yalin, WANG Liming, QIN Xiaohong. Research progress in regeneration process and high-value applications of waste wool keratin[J]. Journal of Textile Research, 2024, 45(7): 213-222.
[3] 杨美慧, 李博, 沈艳琴, 等. 再生角蛋白凝胶对纺织退浆废水中浆料分子的吸附性能[J]. 纺织学报, 2024, 45(2): 142-152.
YANG Meihui, LI Bo, SHEN Yanqin, et al. Sorption properties of regenerated keratin gels to size macromolecules in textile desizing wastewater[J]. Journal of Textile Research, 2024, 45(2): 142-152.
[4] DENG L L, YUE W, ZHANG L H, et al. Biobased protic ionic liquids as sustainable solvents for wool keratin/cellulose simultaneous dissolution: solution properties and composited membrane preparation[J]. ACS Sustainable Chemistry & Engineering, 2022, 10(6): 2158-2168.
[5] BAYANMUNKH O, BAATAR B, TSERENDULAM N, et al. Fabrication of wet-spun wool keratin/poly(vinyl alcohol) hybrid fibers: effects of keratin concentration and flow rate[J]. ACS Omega, 2023, 8(13): 12327-12333.
doi: 10.1021/acsomega.3c00028 pmid: 37033852
[6] ZHU J, MA N, LI S, et al. Reinforced wool keratin fibers via dithiol chain re-bonding[J]. Advanced Functional Materials, 2023, 33(14): 2213644.
doi: 10.1002/adfm.v33.14
[7] 宋佳薇, 洪雨婷, 李威, 等. 废弃羽毛再生角蛋白纤维的制备及其性能研究[J]. 闽江学院学报, 2024, 45(2): 101-109.
SONG Jiawei, HONG Yuting, LI Wei, et al. Preparation and properties of regenerated keratin fibers from waste feathers[J]. Journal of Minjiang University, 2024, 45(2): 101-109.
[8] 周苏秦, 贾潞, 石传晋, 等. 基于MXene的功能纺织复合材料[J]. 化学进展, 2024, 36(8): 1157-1173.
doi: 10.7536/PC240102
ZHOU Suqin, JIA Lu, SHI Chuanjin, et al. MXene-based functional textile composites[J]. Progress in Chemistry, 2024, 36(8): 1157-1173.
doi: 10.7536/PC240102
[9] 田博阳, 王向泽, 杨湙雯, 等. 非对称结构纤维膜的制备及其热调控性能[J]. 纺织学报, 2024, 45(2): 11-20.
TIAN Boyang, WANG Xiangze, YANG Yiwen, et al. Preparation and thermal management properties of asymmetric structured fibrous membranes[J]. Journal of Textile Research, 2024, 45(2): 11-20.
[10] DAI H H, CHANG J, YANG J, et al. Bio-inspired interfacial engineering of MXene fibers toward synergistic improvement in mechanical strength and electrochemical performance[J]. Advanced Functional Materials, 2024, 34(11): 2312654.
doi: 10.1002/adfm.v34.11
[11] 修慧娟, 张天聪, 王芝, 等. MXene/CNF/SA双层光热转化材料的制备及其应用性能研究[J]. 陕西科技大学学报, 2023, 41(1): 14-20.
XIU Huijuan, ZHANG Tiancong, WANG Zhi, et al. Study on preparation and application properties of MXene/CNF/SA bilayer photothermal conversion materials[J]. Journal of Shaanxi University of Science & Technology, 2023, 41(1): 14-20.
[12] 李博, 姚金波, 牛家嵘, 等. 采用还原剂-甲酸法溶解制备羊毛角蛋白质溶液[J]. 纺织学报, 2019, 40(3): 1-7.
LI Bo, YAO Jinbo, NIU Jiarong, et al. Preparation of wool keratin solution by reducing agent-formic acid process[J]. Journal of Textile Research, 2019, 40(3): 1-7.
doi: 10.1177/004051757004000101
[13] LI B, SUN Y L, YAO J B, et al. Characterization of the keratin/polyamide 6 composite fiber's structure and performance prepared by the optimized spinning process based on the rheological analysis[J]. International Journal of Biological Macromolecules, 2022, 222: 938-949.
doi: 10.1016/j.ijbiomac.2022.09.229 pmid: 36183757
[14] 崔杰, 廖若涵, 张成栋, 等. 具有光热效应复合水凝胶的制备及抗菌性能[J]. 中国组织工程研究, 2026, 30(20): 5229-5242.
CUI Jie, LIAO Ruohan, ZHANG Chengdong, et al. Preparation and antibacterial properties of composite hydrogels with photothermal effects[J]. Chinese Journal of Tissue Engineering Research, 2026, 30(20): 5229-5242.
[15] HAN T C, YIN Y J. Synergistic integration of MXene photothermal conversion and TiO2 radiative cooling in bifunctional PLA fabrics for adaptive personal thermal management[J]. Solids, 2025, 6(3): 37.
doi: 10.3390/solids6030037
[16] 庄群, 陈政, 陈崇城. 废弃羊毛角蛋白改性聚丙烯腈电纺纤维膜的热湿性能研究[J]. 西部皮革, 2024, 46(21): 47-50, 76.
ZHUANG Qun, CHEN Zheng, CHEN Chongcheng. Thermal and hygroscopic properties of polyacrylonitrile electrospun fiber membranes modified with keratin extracted from waste wool[J]. West Leather, 2024, 46(21): 47-50, 76.
[17] 杨洋, 张智淇, 曹洲, 等. 磷化MXene/聚吡咯水凝胶制备及其在微生物燃料电池中的应用[J]. 环境工程技术学报, 2025, 15(3): 1055-1064.
YANG Yang, ZHANG Zhiqi, CAO Zhou, et al. Preparation of phosphorized MXene/polypyrrole hydrogel and its application in microbial fuel cells[J]. Journal of Environmental Engineering Technology, 2025, 15(3): 1055-1064.
[18] SHAVANDI A, CARNE A, BEKHIT A A, et al. An improved method for solubilisation of wool keratin using peracetic acid[J]. Journal of Environmental Chemical Engineering, 2017, 5(2): 1977-1984.
doi: 10.1016/j.jece.2017.03.043
[19] WANG L J, NIE Y, ZHANG X P, et al. Synergistic effects of cosolvents on the dissolution of wool keratin using ionic liquids[J]. Chemical Engineering & Technology, 2016, 39(5): 979-986.
doi: 10.1002/ceat.v39.5
