Journal of Textile Research ›› 2026, Vol. 47 ›› Issue (03): 18-25.doi: 10.13475/j.fzxb.20250902701

• Biomedical Materials • Previous Articles     Next Articles

Preparation and properties of formaldehyde-free modified keratin/sodium alginate aerogel composite material

MENG Siyu1, HAN Yujin1, TAN Wenli2, MA Bomou1, YUAN Jiugang1()

  1. 1 College of Textile Science and Engineering, Jiangnan University, Wuxi, Jiangsu 214122, China
    2 Jiangsu Textile Testing Technical Service Co., Ltd., Suzhou, Jiangsu 215228, China
  • Received:2025-09-08 Revised:2026-01-17 Online:2026-03-15 Published:2026-03-15
  • Contact: YUAN Jiugang E-mail:jiugangyuan@jiangnan.edu.cn

RichHTML

6

PDF (PC)

19

Abstract:

Objective In order to overcome the inherent brittleness and instability of pure keratin aerogels, this study aims to prepare a high-performance composite by crosslinking wool keratin with a mild crosslinker, ethylene glycol diglycidyl ether (EGDE), and then blending it with sodium alginate (SA). This approach expands its application potential in tissue engineering scaffolds and wound dressings.

Method Wool keratin was extracted using a reducing solution containing urea and dithiothreitol (DTT). The soluble keratin was crosslinked with EGDE under alkaline conditions (pH=10, 60 ℃) at optimized concentration (20%). The modified keratin was combined with sodium alginate (SA) at a ratio of 2∶1, and the mixture was freeze-dried to form porous aerogels. Fourier transform infrared spectroscopy, rotational rheometry, mechanical compression testing, and fluid uptake assays were employed to evaluate the material's properties.

Results The infrared spectra analysis confirmed covalent crosslinking through the disappearance of the epoxy peak at 908.7 cm-1 and formation of ether bonds. Free thiol content decreased from 12.42 to 4.62 μmol/g with 50% EGDE, indicating efficient reaction. Gelation time reduced dramatically from 48 h to 15 min at high pH values. Rheological behavior showed shear-thinning and enhanced elastic modulus with increased crosslinking. The composite aerogel exhibited significantly improved water absorption and retention capabilities compared to pure keratin, with the optimal performance achieved at 20% EGDE. Most notably, it demonstrated a high simulated plasma absorption capacity of (9.13±0.42) g/g within 10 s while maintaining structural integrity. Crosslinked samples also demonstrated tunable degradation profiles, with improved stability in both phosphate-buffered saline (PBS) and reducing environments.

Conclusion Crosslinking keratin with EGDE significantly enhances aerogel performance, providing mechanical resilience, high fluid absorption, and controlled degradability. The material, particularly its rapid and high-capacity uptake of plasma simulant, shows promise for use in hemostatic and wound care products. This approach also offers an efficient pathway to valorize wool waste into high-value biomedical materials.

Key words: wool keratin, ethylene glycol diglycidyl ether, aerogel, cross-linking modification, sodium alginate, biomedical material

CLC Number:

  • TS 131

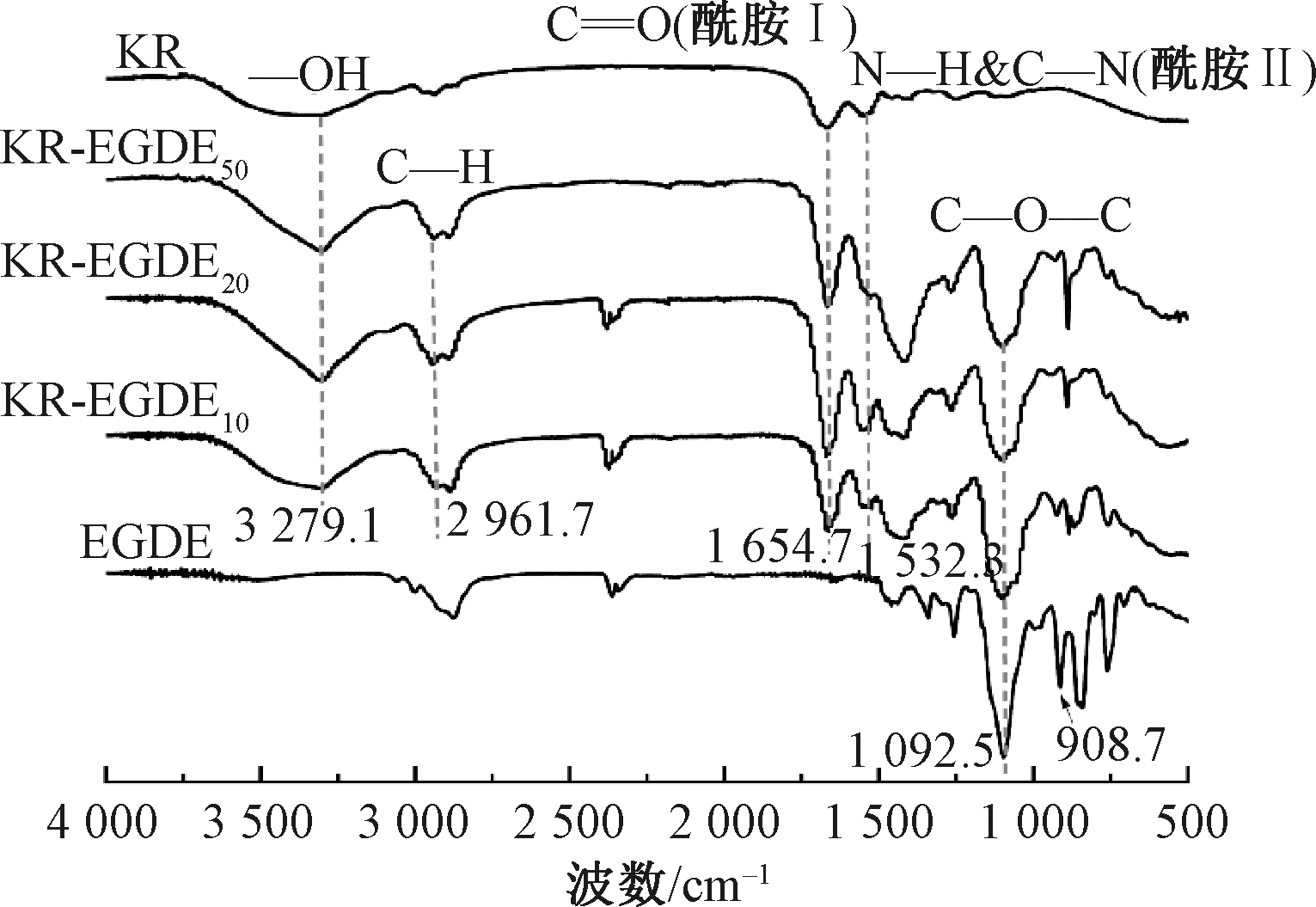

Fig.1

FT-IR spectra of EGDE and keratin materials before and after modification"

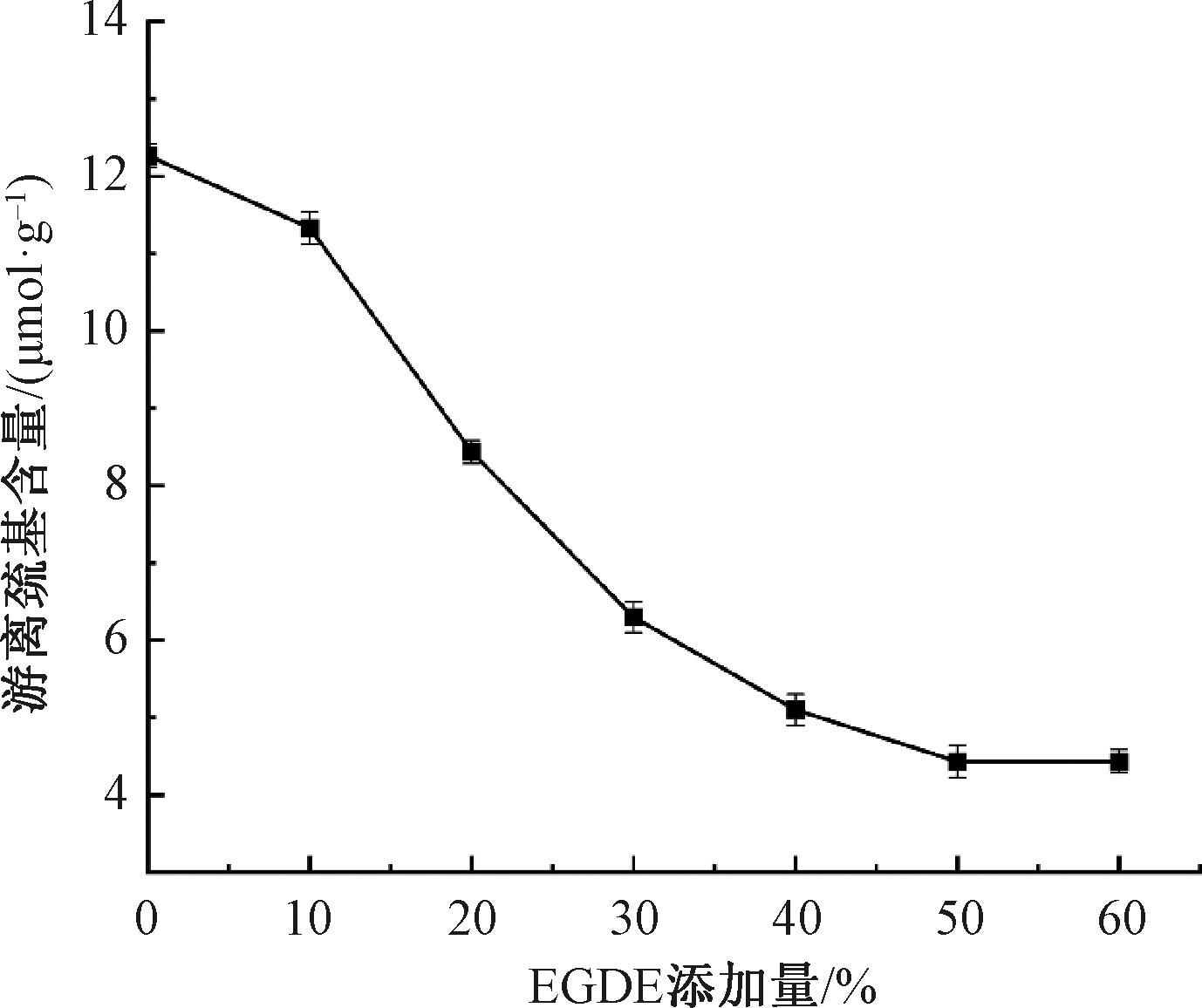

Fig.2

Influence of EGDE modification on free thio content of keratin"

Fig.3

Gelation time of keratin solutions modified with EGDE of different contents"

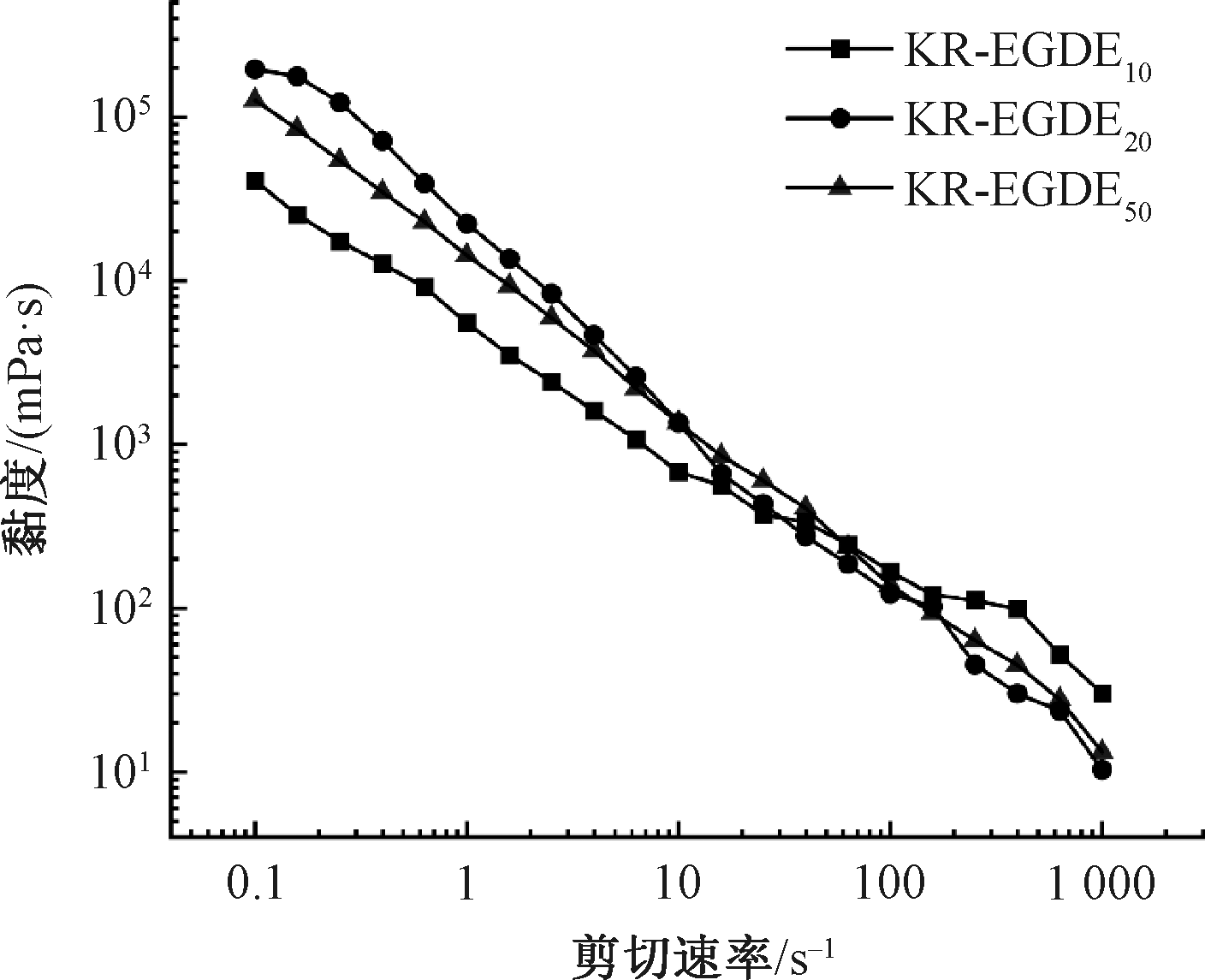

Fig.4

Influence of EGDE modification on rheological properties of keratin solution"

Fig.5

SEM images of composite aerogels"

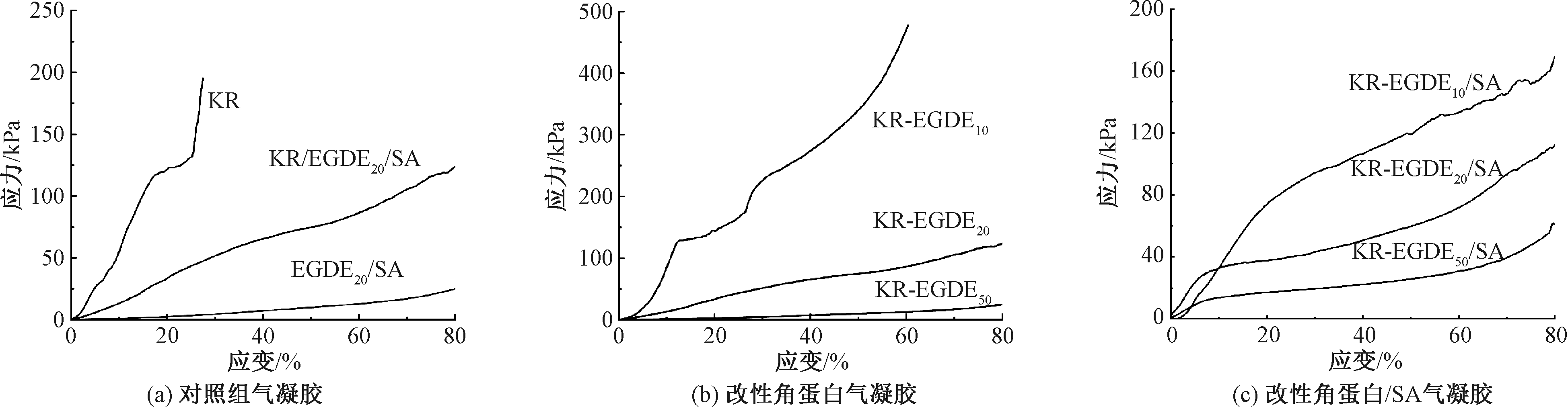

Fig.6

Compression stress-strain curves of aerogels prepared by different methods. (a) Control group aerogel; (b) Modified keratin aerogel; (c) Modified keratin/SA aerogel"

Tab.1

Water absorption and water retention properties of composite aerogels"

试样 吸水倍率 保水倍率
KR-EGDE10/SA 4.71 ± 0.20 3.30 ± 0.15
KR-EGDE20/SA 5.08 ± 0.23 3.86 ± 0.22
KR-EGDE50/SA 5.41 ± 0.34 4.62 ± 0.25

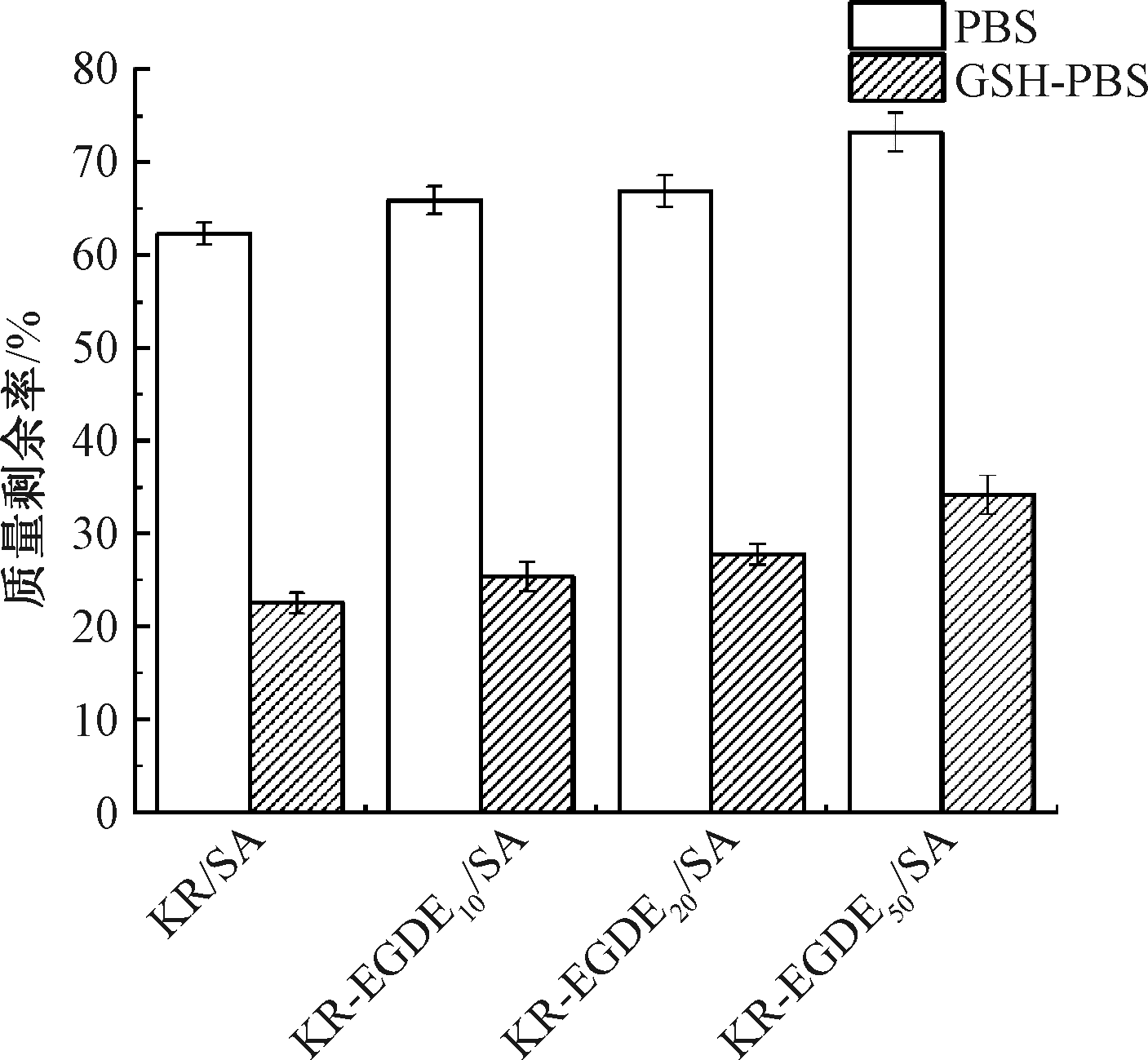

Fig.7

Degradation behaviors of composite aerogels"

Fig.8

Morphological changes of KR, KR-EGDE10/SA, KR-EGDE20/SA before and after absorption simulated blood"

[1] 周宇航, 魏凯, 谢瑞娟, 等. 半月板支架材料的研究进展[J]. 国际纺织导报, 2022, 50(3): 29-34, 42.
ZHOU Yuhang, WEI Kai, XIE Ruijuan, et al. Research progress of meniscus scaffold[J]. Melliand China, 2022, 50(3): 29-34, 42.
[2] 谭羽涵, 邓通, 黄鑫鑫. 废弃羊毛纺织品的物理回收再利用技术现状[J]. 毛纺科技, 2023, 51(7): 119-125.
TAN Yuhan, DENG Tong, HUANG Xinxin. Current status of physical recycling technology for waste wool textiles[J]. Wool Textile Journal, 2023, 51(7): 119-125.
[3] 董亚琳, 王黎明, 覃小红. 废弃羊毛角蛋白再生工艺及其高值化应用的研究进展[J]. 纺织学报, 2024, 45(7): 213-222.
DONG Yalin, WANG Liming, QIN Xiaohong. Research progress in regeneration process and high-value applications of waste wool keratin[J]. Journal of Textile Research, 2024, 45(7): 213-222.
[4] 梁凡超, 支超, 余灵婕, 等. 间隔织物-羊毛角蛋白气凝胶复合材料研究[J]. 针织工业, 2024(10): 39-44.
LIANG Fanchao, ZHI Chao, YU Lingjie, et al. Study of warp-knitted spacer fabric reinforced waste wool keratin aerogel composite[J]. Knitting Industries, 2024(10): 39-44.
[5] WANG B, YANG W, MCKITTRICK J, et al. Keratin: structure, mechanical properties, occurrence in biological organisms, and efforts at bioinspiration[J]. Progress in Materials Science, 2016, 76: 229-318.
doi: 10.1016/j.pmatsci.2015.06.001
[6] LIU Y, LI S C, HUANG J J, et al. Photo-crosslinking modified gelatin-silk fibroin hydrogel for accelerating wound repair of open abdomen[J]. Chemical Engineering Journal, 2024, 496: 154161.
doi: 10.1016/j.cej.2024.154161
[7] 任思宇. 角蛋白/羟丙基纤维素共混膜的制备及其结构性能研究[D]. 苏州: 苏州大学,2023: 9-13.
REN Siyu. Preparation and structural properties of keratin/hydroxypropyl cellulose blended membrane[D]. Suzhou: Soochow University, 2023: 9-13.
[8] ZHU L Q, OUYANG F F, FU X, et al. Tannic acid modified keratin/sodium alginate/carboxymethyl chitosan biocomposite hydrogels with good mechanical properties and swelling behavior[J]. Scientific Reports, 2024, 14: 12864.
doi: 10.1038/s41598-024-63186-6 pmid: 38834664
[9] XING X W, ZHANG X, FENG Y, et al. Adsorption of methylene blue dye on feather keratin/silk fibroin porous aerogels[J]. Journal of the Taiwan Institute of Chemical Engineers, 2025, 166: 105298.
doi: 10.1016/j.jtice.2023.105298
[10] 季吉, 陈光, 李丽丽, 等. 仿生矿化角蛋白多孔材料的制备及性能研究[J]. 生物学杂志, 2022, 39(1): 57-61.
JI Ji, CHEN Guang, LI Lili, et al. Preparation and properties of keratin porous materials with biomimetic mineralization[J]. Journal of Biology, 2022, 39(1): 57-61.
[11] 付学忠. 纤维素/角蛋白复合材料的制备及其性能研究[D]. 杭州: 浙江理工大学,2012:26-30.
FU Xuezhong. Preparation and properties of cellulose/keratin composite materials[D]. Hangzhou: Zhejiang Sci-Tech University, 2012: 26-30.
[12] 马跃, 郭静, 赵秒, 等. 乙二醇二缩水甘油醚原位交联纤维素-磷虾蛋白复合纤维的结构与性能[J]. 复合材料学报, 2020, 37(5):1156-1166.
MA Yue, GUO Jing, ZHAO Miao, et al. Structure and properties of cellulose-krill protein composite fibers in situ crosslinked with ethylene glycol diglycidyl ether[J]. Acta Materiae Compositae Sinica, 2020, 37(5): 1156-1166.
[13] 陈光, 袁久刚, 向宇, 等. 羊毛角蛋白中巯基含量的测定及其应用[J]. 材料导报, 2021, 35(14):14176-14179.
CHEN Guang, YUAN Jiugang, XIANG Yu, et al. Determination of sulfhydryl content in wool keratin and its application[J]. Materials Review, 2021, 35(14): 14176-14179.
[14] JI J, CHEN G, LIU Z T, et al. Preparation of PEG-modified wool keratin/sodium alginate porous scaffolds with elasticity recovery and good biocompatibility[J]. Journal of Biomedical Materials Research Part B: Applied Biomaterials, 2021, 109(9): 1303-1312.
doi: 10.1002/jbm.v109.9
[15] WU X M, LIU A J, WANG W H, et al. Improved mechanical properties and thermal-stability of collagen fiber based film by crosslinking with casein, keratin or SPI: effect of crosslinking process and concentrations of proteins[J]. International Journal of Biological Macromolecules, 2018, 109: 1319-1328.
doi: S0141-8130(17)32843-X pmid: 29175523
[16] 王俊, 曲广娜, 刘向斌, 等. 高分子量聚乙二醇缩水甘油醚的合成与表征[J]. 石油化工, 2020, 49(7): 651-656.
doi: 10.3969/j.issn.1000-8144.2020.07.005
WANG Jun, QU Guangna, LIU Xiangbin, et al. Synthesis and characterization of high molecular weight polyethylene glycol glycidyl ether[J]. Petrochemical Technology, 2020, 49(7): 651-656.
doi: 10.3969/j.issn.1000-8144.2020.07.005
[17] 雍宬, 徐跃定, 杜珂珂, 等. 角蛋白/聚乙二醇二缩水甘油醚协同改性脲醛树脂的性能[J]. 林业工程学报, 2022, 7(3):93-99.
YONG Cheng, XU Yueding, DU Keke, et al. Property of keratin/polyethylene glycol diglycidyl ether synergistic-modified urea-formaldehyde resin[J]. Journal of Forestry Engineering, 2022, 7(3): 93-99.
[18] GHAFFARI R, ESLAHI N, TAMJID E, et al. Dual-sensitive hydrogel nanoparticles based on conjugated thermoresponsive copolymers and protein filaments for triggerable drug delivery[J]. ACS Applied Materials & Interfaces, 2018, 10(23): 19336-19346.
[19] CAO Y, YAO Y Q, LI Y, et al. Tunable keratin hydrogel based on disulfide shuffling strategy for drug delivery and tissue engineering[J]. Journal of Colloid and Interface Science, 2019, 544: 121-129.
doi: S0021-9797(19)30223-1 pmid: 30826530
[20] FU S W, REMPSON C M, PUCHE V, et al. Construction of disulfide containing redox-responsive polymeric nanomedicine[J]. Methods, 2022, 199: 67-79.
doi: 10.1016/j.ymeth.2021.12.011
