Journal of Textile Research ›› 2026, Vol. 47 ›› Issue (06): 223-232.doi: 10.13475/j.fzxb.20250706501

• Machinery & Equipment • Previous Articles     Next Articles

Effect of tufting needle tip morphological characteristics on stitching quality of carbon fiber preforms

LI Xiangyu1,2, DONG Jiuzhi1,2(), CHEN Xiaoxia1,2, CHEN Yunjun3, LI Rui1,2

  1. 1 School of Mechanical Engineering， Tiangong University， Tianjin 300387， China
    2 Tianjin Key Laboratory of Advanced Mechatronics Equipment Technology， Tiangong University， Tianjin 300387， China
    3 School of Control Science and Engineering， Tiangong University， Tianjin 300387， China
  • Received:2025-07-29 Revised:2025-12-30 Online:2026-06-15 Published:2026-08-19
  • Contact: DONG Jiuzhi E-mail:dongjiuzhi@tiangong.edu.cn

RichHTML

1

PDF (PC)

1

Abstract:

Objective The morphological characteristics of tufting needle tips and the mechanical response of penetration force during tufting are two key factors affecting stitching quality. However， systematic studies on morphological characterization and penetration-force modeling for tufting needles remain limited， and the influence of needle-tip morphology on the stitching quality of carbon-fiber preforms is still unclear. This study introduces a characteristic-angle-based modeling and evaluation method and combines needle-tip force analysis to comprehensively assess the effect of tufting needle-tip morphology on the stitching quality of carbon-fiber preforms.

Method Rake and inclination angles were introduced as characteristic angles to quantify tufting needle-tip morphology， and the corresponding expressions were established. By varying the cone angle， characteristic-angle distribution maps were generated to clarify the mapping between tip parameters and morphology. A peak penetration-force model was then developed based on needle-fabric interaction during penetration. Penetration tests， with ten repetitions for each needle type， were conducted on ten stacked layers of T300-3K plain-woven carbon fabric using four needles with different cone angles. Force-displacement curves， peak forces， and fabric damage morphology were obtained to validate the model and evaluate stitching quality.

Results The established characteristic-angle expressions revealed a clear mapping relationship between tufting needle-tip morphological parameters and the rake and inclination angles. As the needle-tip cone angle increased from 30° to 45°， the rake and inclination angles generally decreased at the angular positions along the needle-tip leading edge， indicating a negative correlation between the cone angle and the characteristic angles. Needles with smaller cone angles exhibited larger rake and inclination angles and a higher leading-edge proportion， which contributed to the formation of a sharper cutting-edge morphology. Based on the force interaction between the needle and fabric fibers， the peak penetration-force model showed that， when the needle diameter and fabric properties remained constant， the peak force was mainly governed by needle-tip morphology and increased with the cone angle. This trend was further supported by the penetration tests. The force-displacement curves exhibited a typical single-peak feature. During the initial penetration stage， the force increased continuously with displacement as the needle pushed and separated the fabric fibers. After the needle tip penetrated the fabric structure， the penetration resistance was gradually released and the curve entered a descending stage. The peak penetration forces differed clearly among the needles with different cone angles and increased sequentially with the cone angle. The measured peak forces agreed well with the model predictions， with a maximum mean absolute error of 0.38 N， a maximum mean squared error of 0.15 N2， and a maximum mean relative error of 6.34%， confirming the validity of the model. This mechanical response was further reflected in the damage morphology. Hole-like damage appeared in the fabric after needle penetration， and the average damage area increased from 3.12 to 3.78 mm2 from N1 to N4. Overall， a smaller cone angle increased the characteristic angles， improved the cutting-edge morphology， reduced penetration resistance， and suppressed fabric damage， thereby improving the tufting stitching quality of carbon-fiber preforms.

Conclusion The results demonstrate that tufting needle-tip morphology is a key factor affecting the stitching quality of carbon-fiber preforms. The characteristic-angle analysis shows a clear negative correlation between the needle-tip cone angle and the rake and inclin

Key words: tufting stitching, needle tip morphology, characteristic angle, needle penetration force, stitching quality

CLC Number:

  • TS103

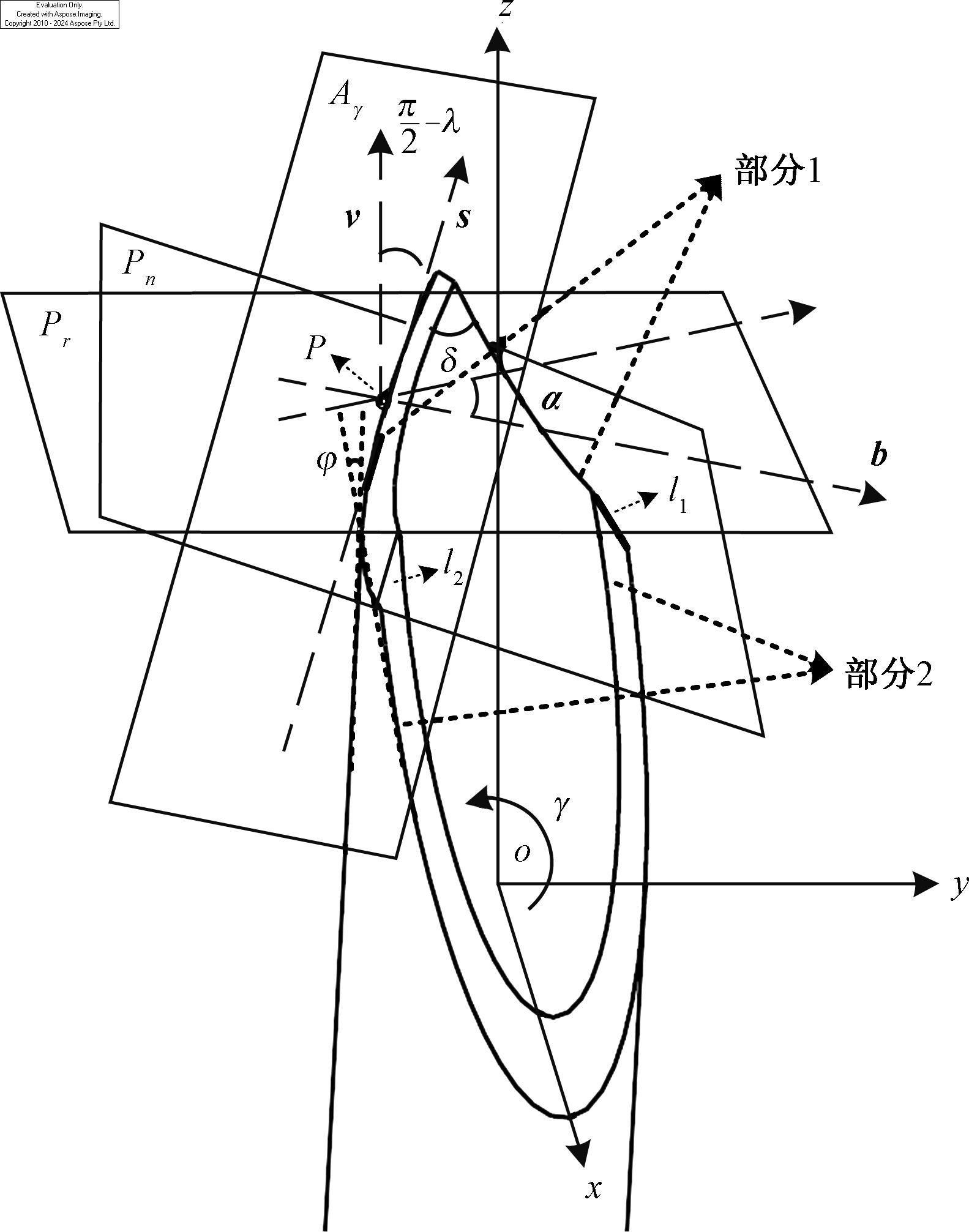

Fig.1

Geometric model of tufting needle"

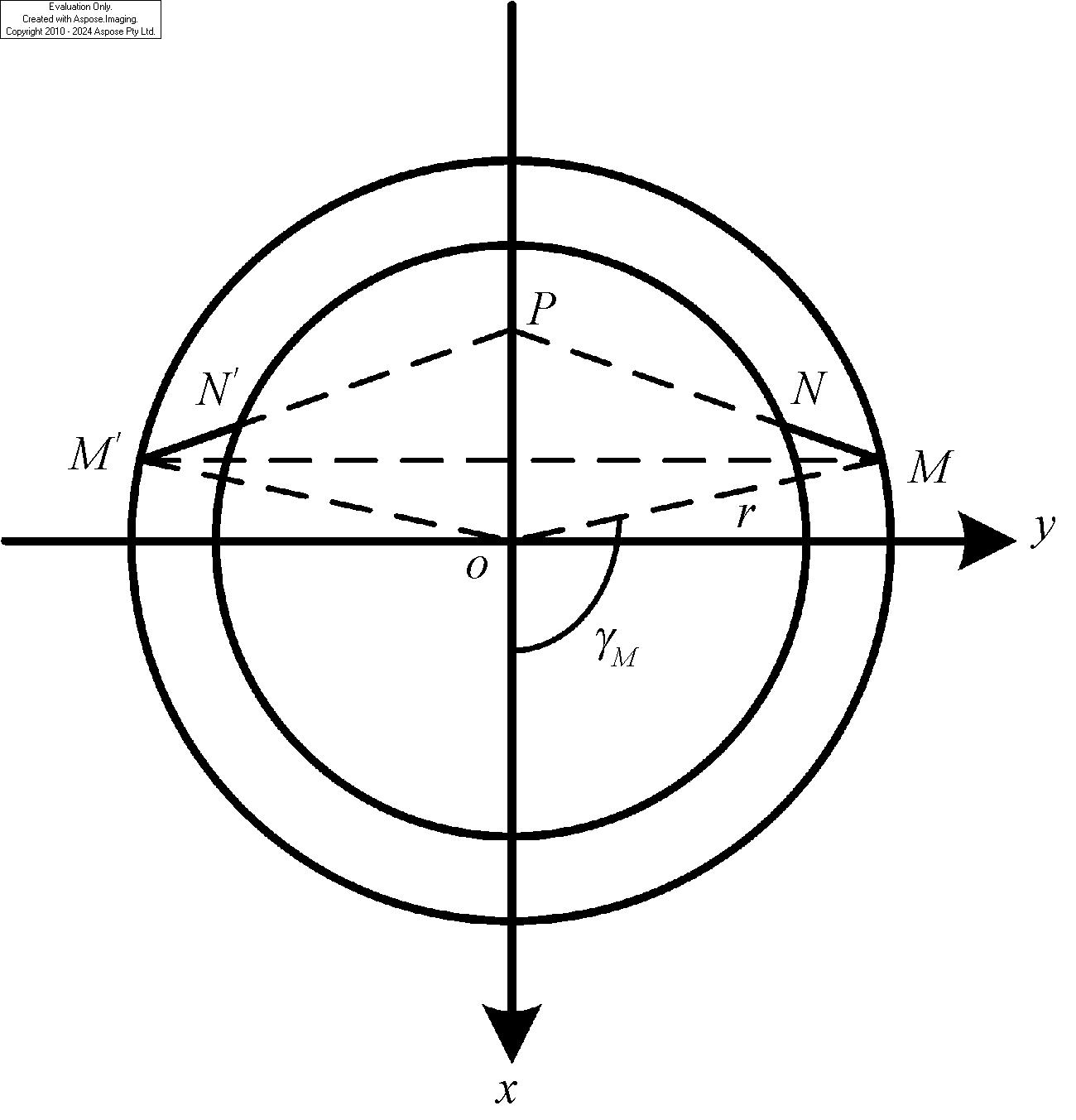

Fig.2

Projection of tufting needle on xoy plane"

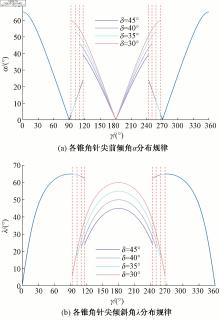

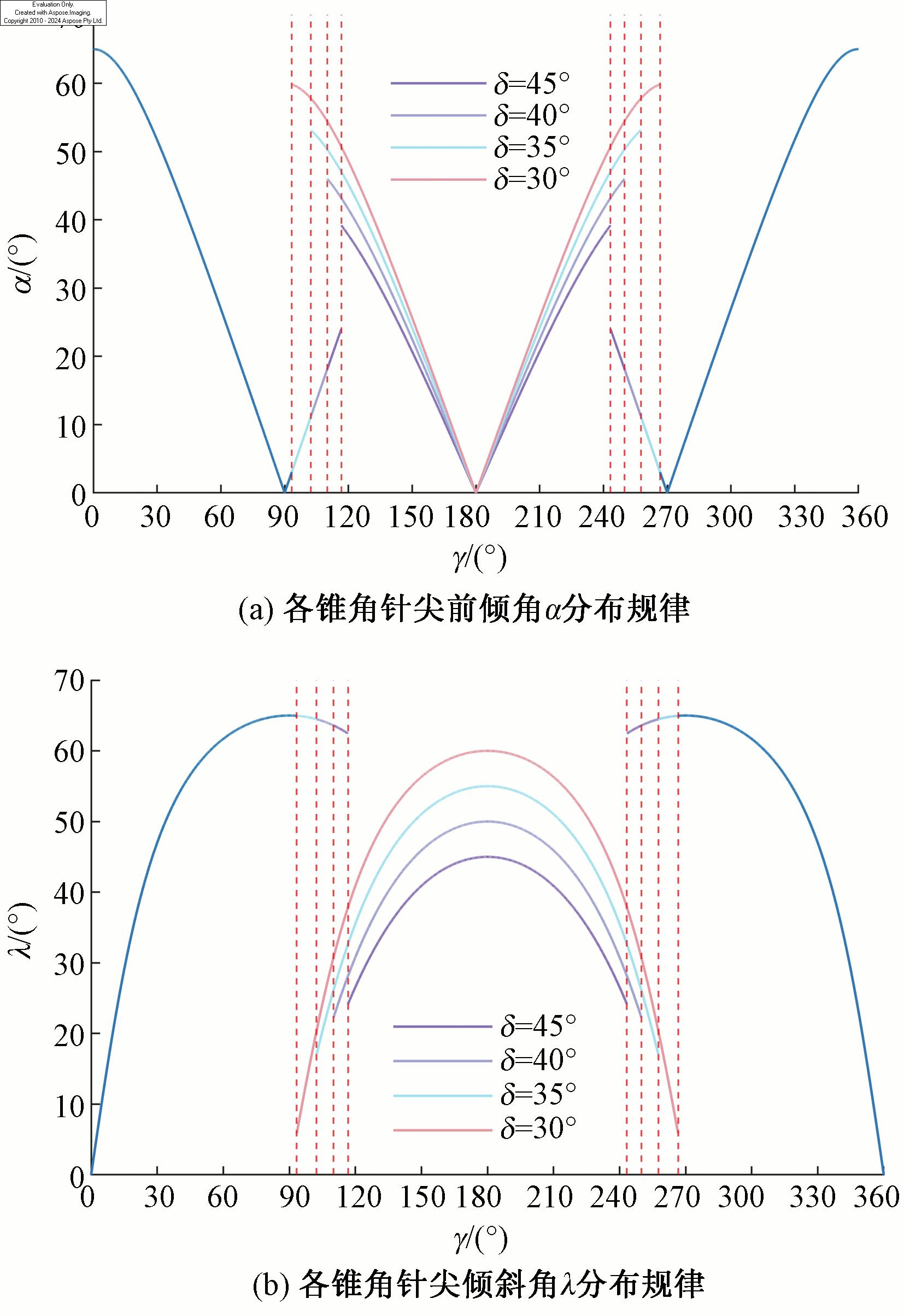

Fig.3

Distribution pattern of rake angle α（a） and inclination angle λ（b） under various cone angles of needle tip"

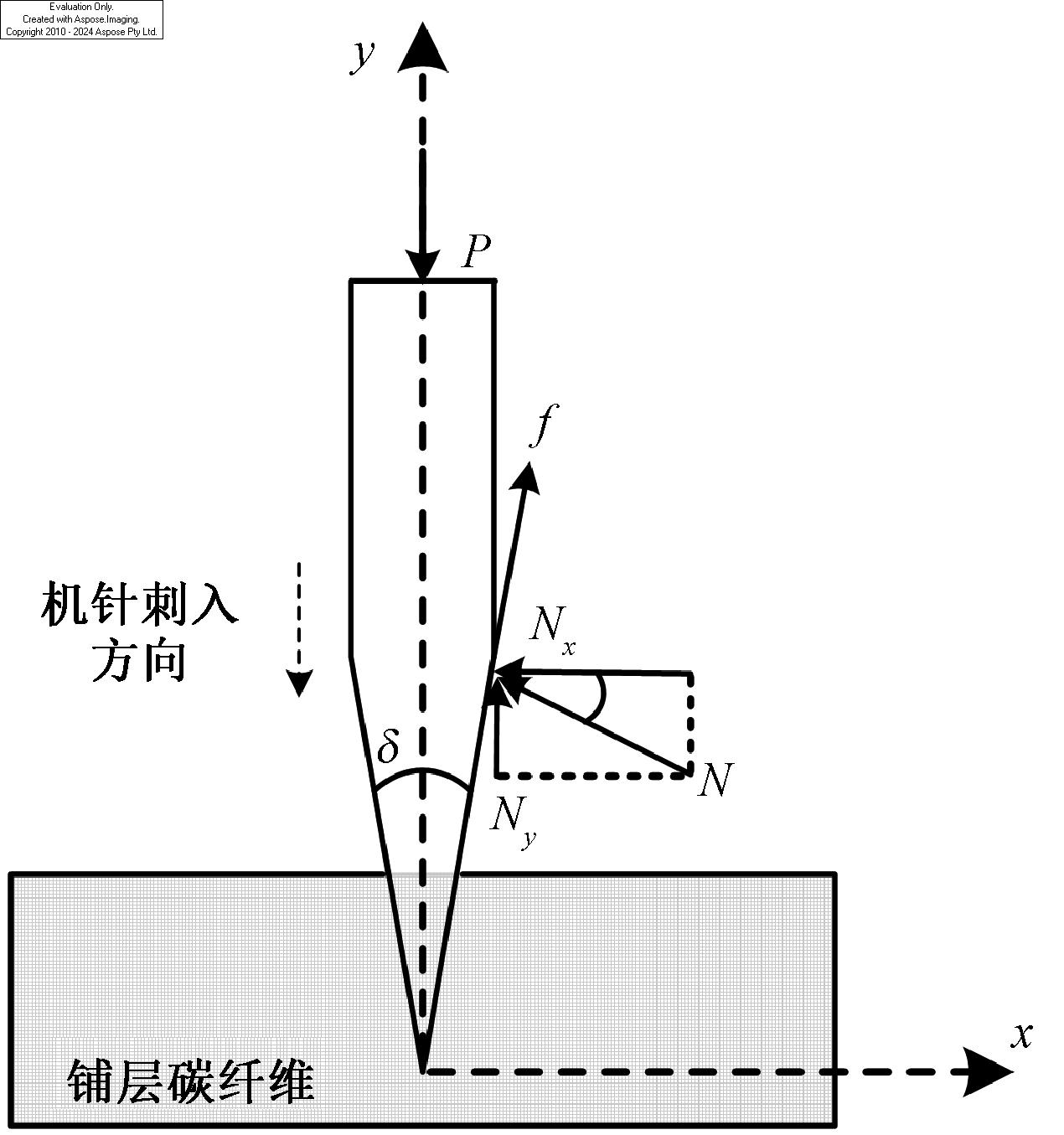

Fig.4

Force diagram at tufting needle tip"

Fig.5

Cross-sectional of plain weave carbon cloth"

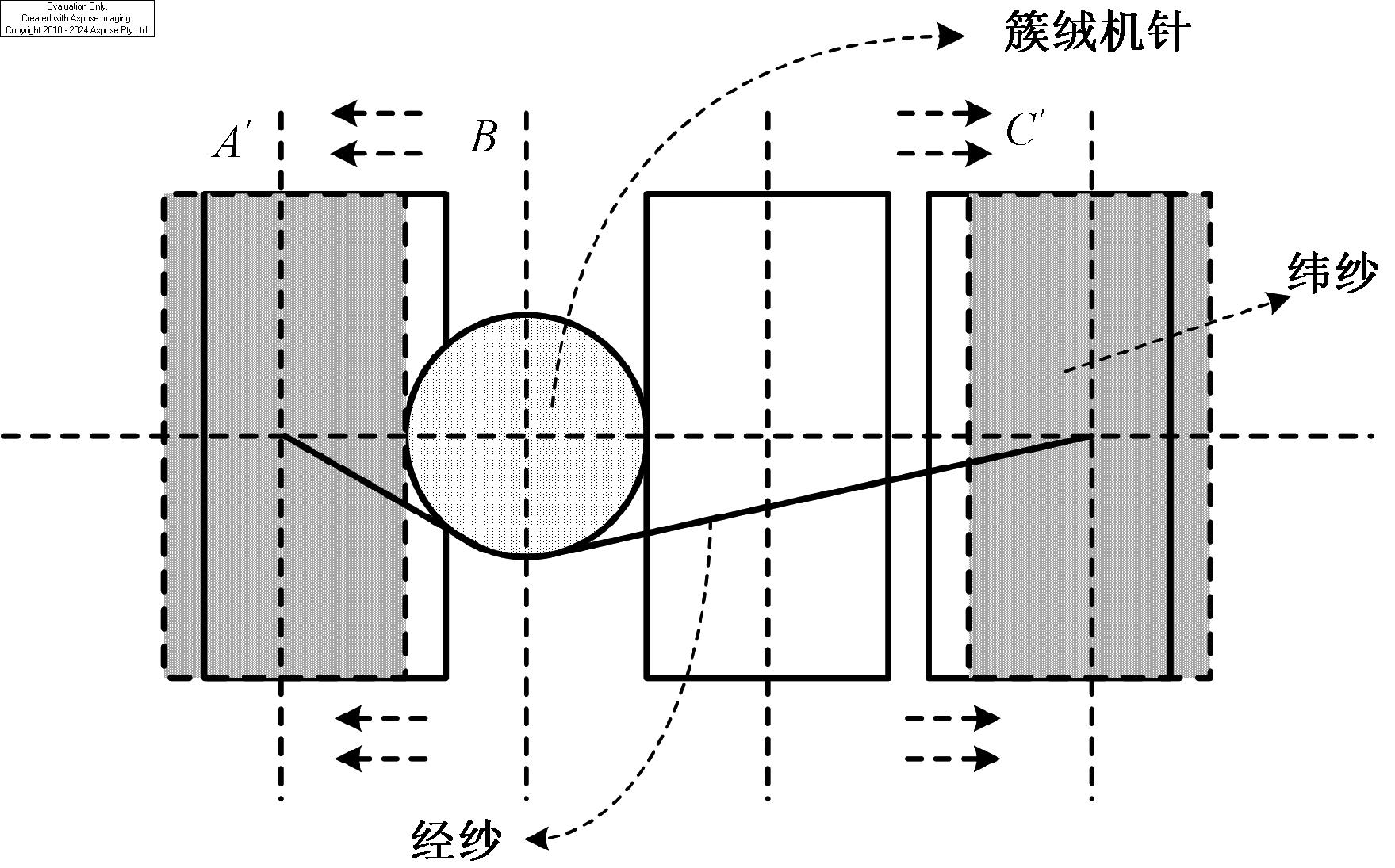

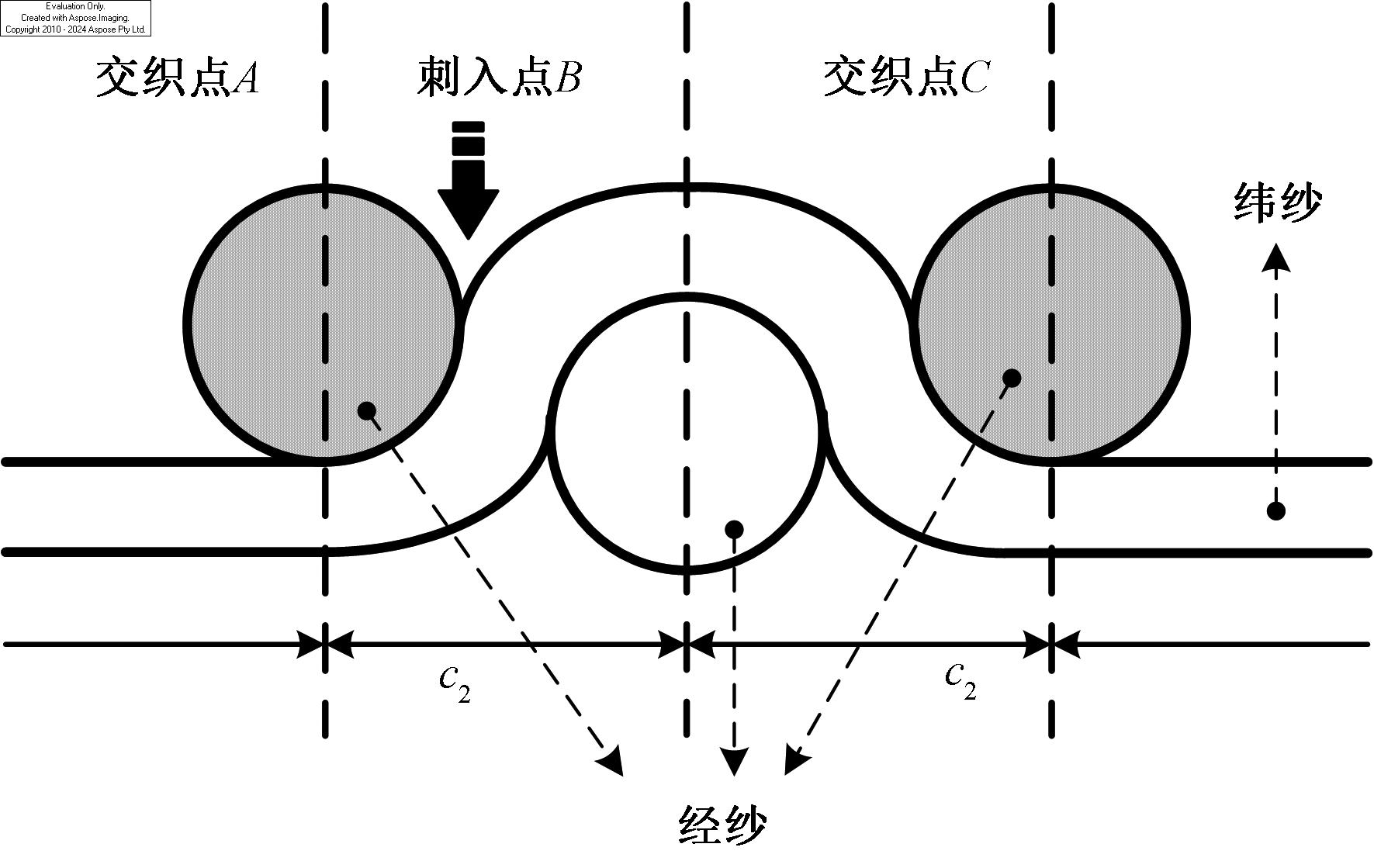

Fig.6

Yarn movement schematic diagram"

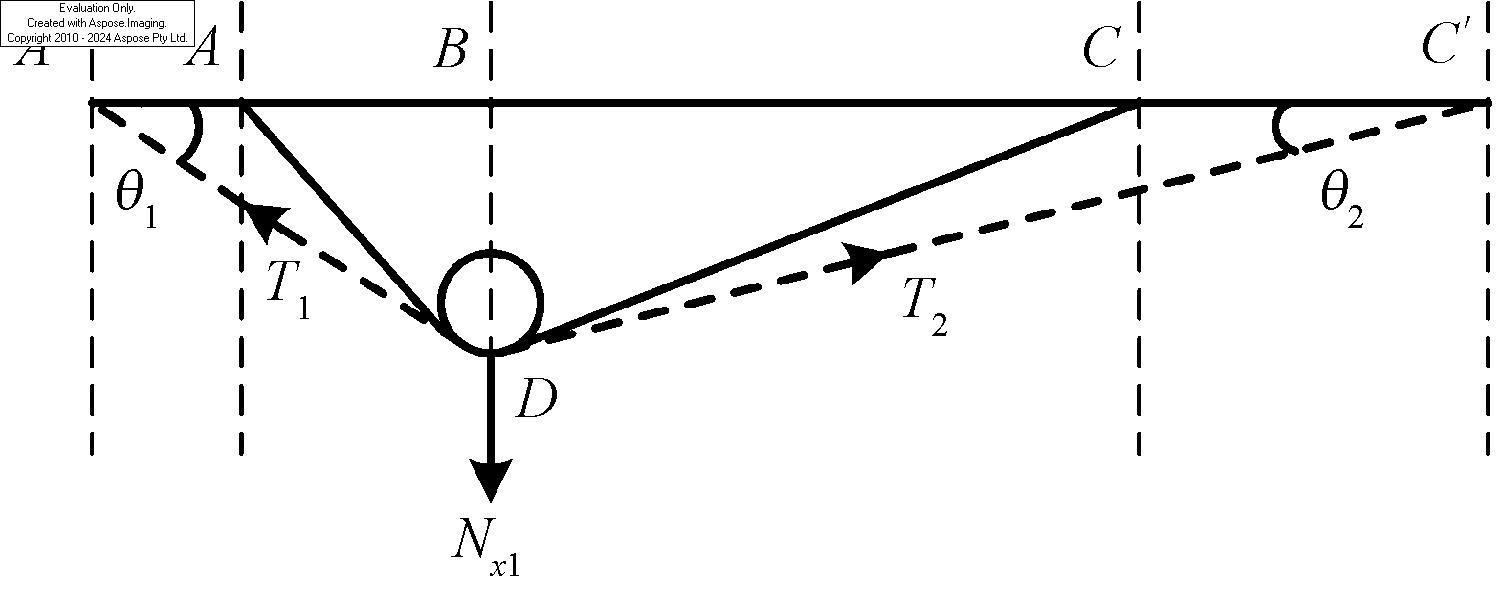

Fig.7

Yarn tension-radial pressure mechanical model"

Tab.1

Tufting needle tip geometric parameters"

机针编号 直径/mm 针尖长度/mm 针尖锥角/（°）
N1 2 4 30
N2 2 4 35
N3 2 4 40
N4 2 4 45

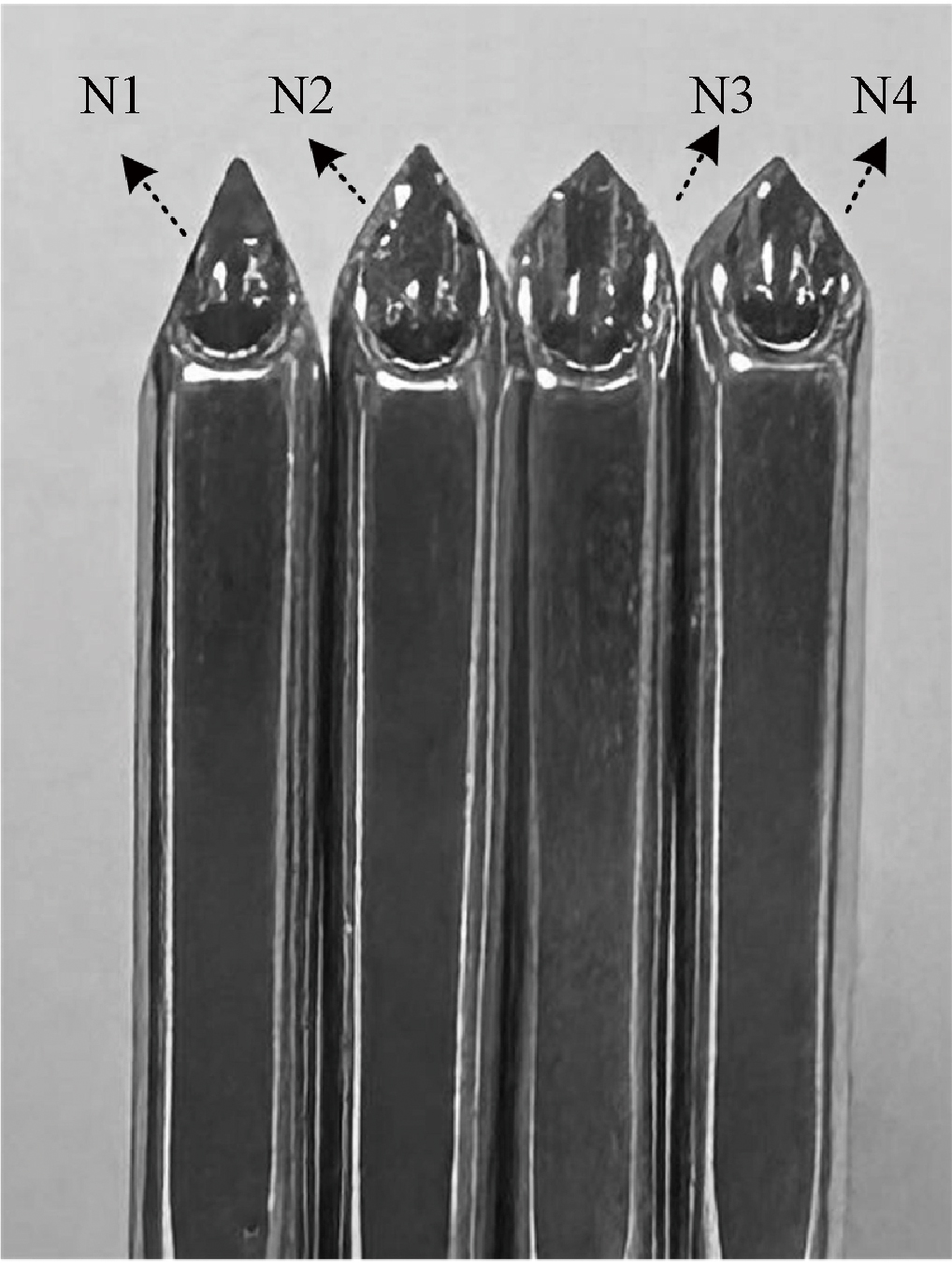

Fig.8

Experimental tufting machine needles"

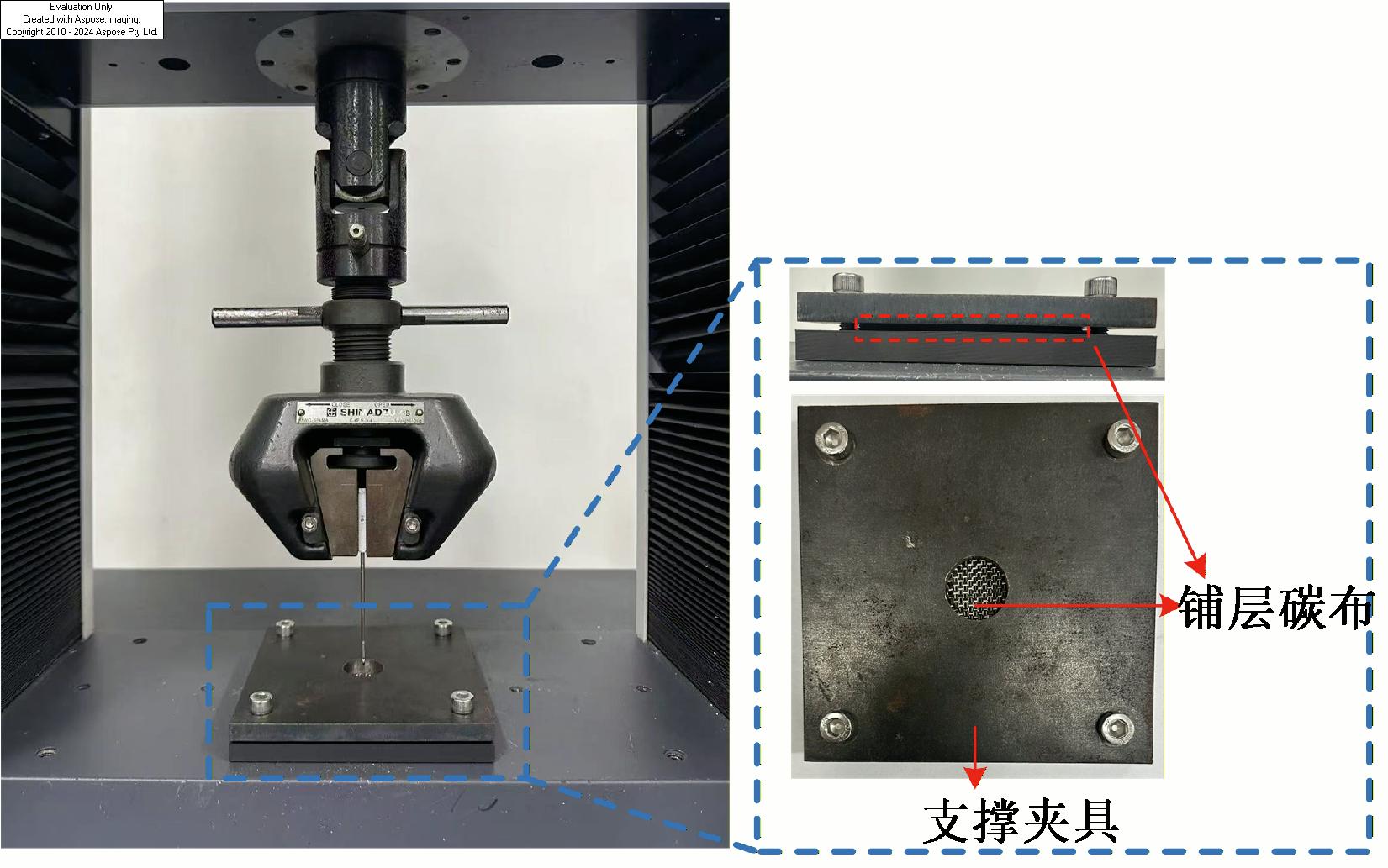

Fig.9

Schematic diagram of experimental setup"

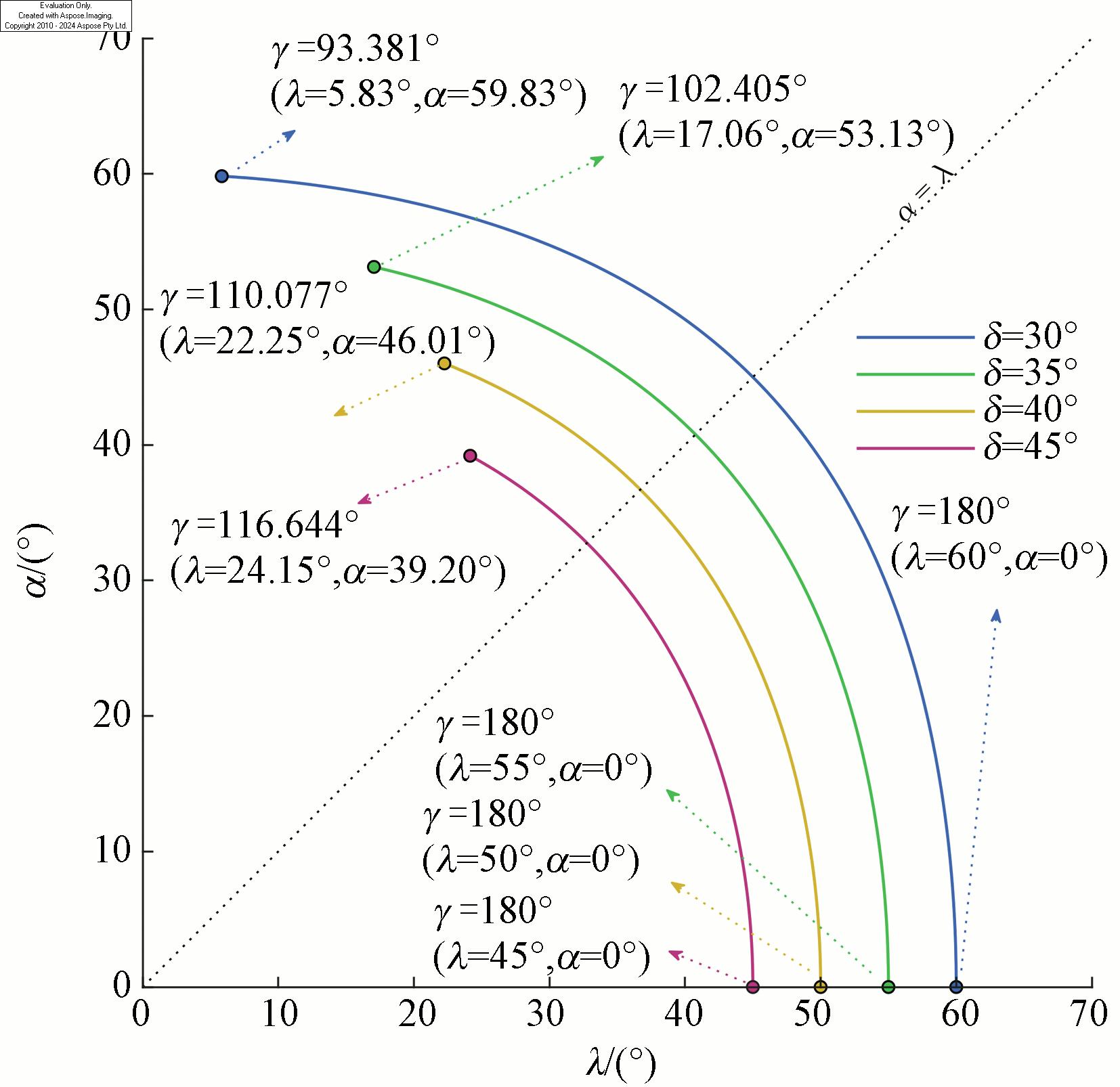

Fig.10

Characteristic angle coverage range of tufted needles for experiments"

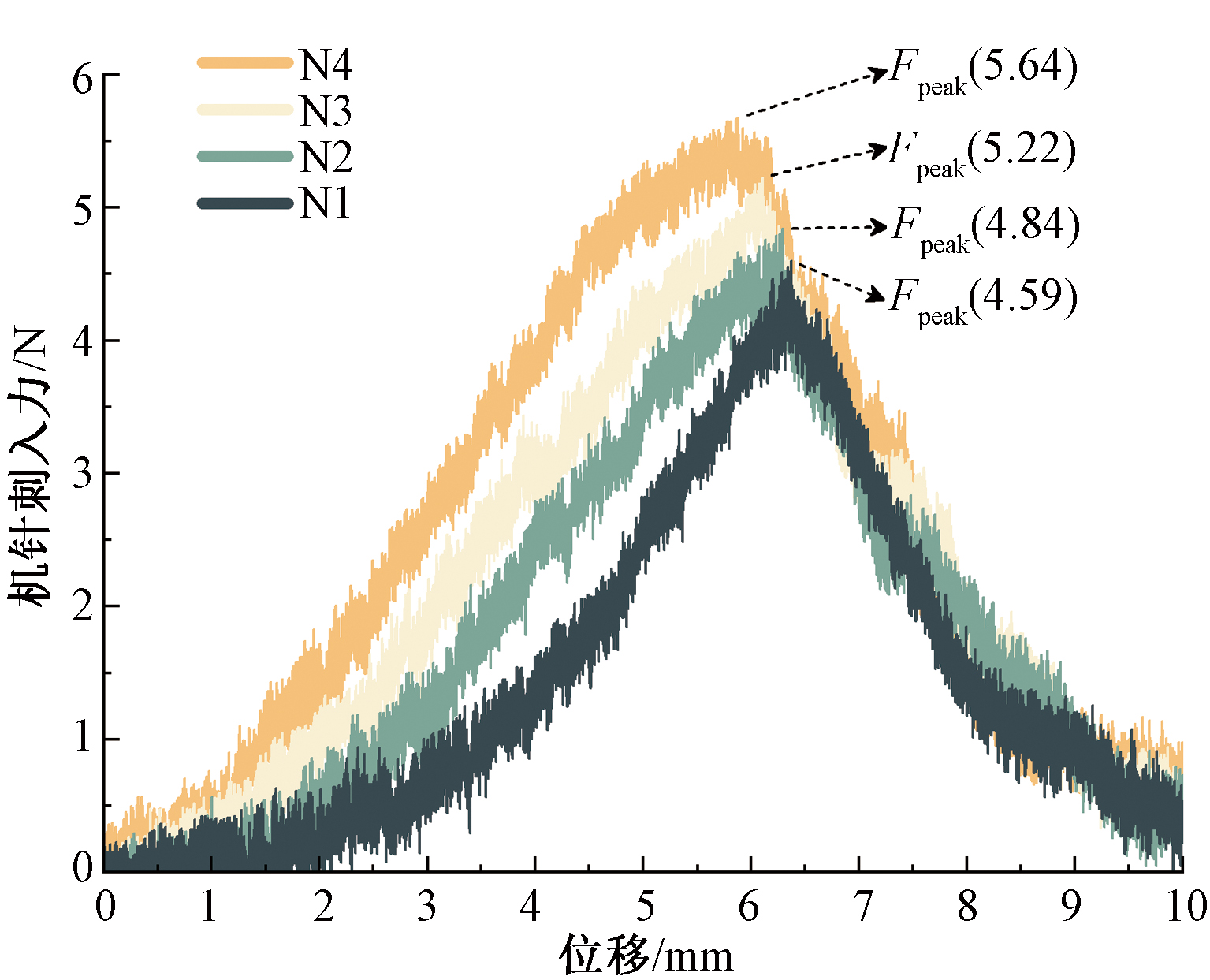

Fig.11

Tufting needle penetration force-displacement curve"

Tab.2

Comparison of measured values of peak penetration force in experiments with predicted values from model"

机针
编号		 重复实验峰值刺入力实测结果/N 实测标
准差/N		 模型预
测值/N		 平均绝对
误差/N		 均方误
差/N2		 平均相对
误差/%
1 2 3 4 5 6 7 8 9 10
N1 4.39 4.45 4.59 4.52 4.32 4.31 4.41 4.62 4.55 4.49 0.11 4.73 0.26 0.08 5.60
N2 4.76 4.72 4.84 4.87 4.68 4.75 4.79 4.92 4.98 4.87 0.09 5.13 0.31 0.11 6.08
N3 5.15 5.19 5.22 5.29 5.07 4.99 5.10 5.38 5.31 5.16 0.12 5.53 0.34 0.13 6.22
N4 5.69 5.51 5.64 5.72 5.45 5.38 5.51 5.66 5.59 5.58 0.11 5.95 0.38 0.15 6.34

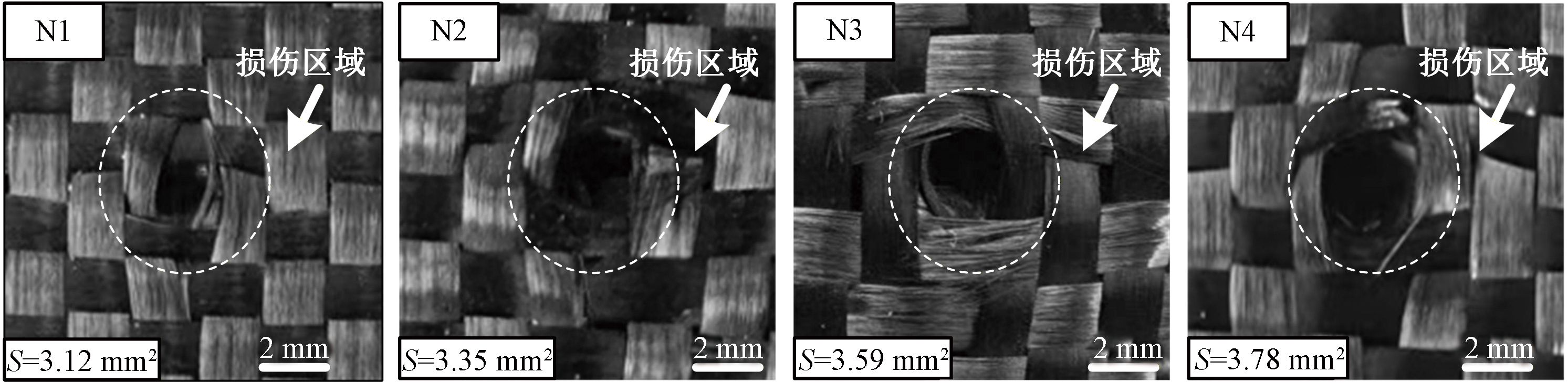

Fig.12

Hole damage morphology of laminated carbon cloth"

[1] HE Y J, MEI M, YU S Y, et al. Drop-weight impact behaviour of stitched composites: influence of stitching pattern and stitching space[J]. Composites Part A: Applied Science and Manufacturing, 2023, 172: 107612.
[2] 吕庆涛, 赵世波, 杜培健, 等. 树脂基纺织复合材料疲劳性能表征与分析方法研究现状[J]. 纺织学报, 2021, 42(1): 181-189.
LÜ Qingtao, ZHAO Shibo, DU Peijian, et al. Research status of fatigue properties characterization and analysis methods of resin matrix composites[J]. Journal of Textile Research, 2021, 42(1): 181-189.
[3] 申皓, 李志辉, 等. 玛日耶姆·阿卜力米提, Tufting复合材料预制体成形及数值仿真研究进展[J]. 复合材料学报, 2024, 41(9): 4701-4719.
SHEN Hao, ABULIMITI Mariyemu, LI Zhihui, et al. Advances in forming and numerical simulation research of tufted composite preforms[J]. Acta Materiae Compositae Sinica, 2024, 41(9): 4701-4719.
[4] YUDHANTO A, WATANABE N, IWAHORI Y, et al. Effect of stitch density on tensile properties and damage mechanisms of stitched carbon/epoxy composites[J]. Composites Part B: Engineering, 2013, 46: 151-165.
[5] VERMA K K, PADMAKARA G, GADDIKERI K M, et al. The key role of thread and needle selection towards 'through-thickness reinforcement' in tufted carbon fiber-epoxy laminates[J]. Composites Part B: Engineering, 2019, 174: 106970.
[6] 刘苏骅, 严钰轩, 嵇阿琳, 等. Tufting缝合C/C复合材料制备与力学性能[J]. 复合材料学报, 2025, 42(5): 2547-2556.
LIU Suhua, YAN Yuxuan, JI A'lin, et al. Preparation and mechanical properties of tufting C/C composites[J]. Acta Materiae Compositae Sinica, 2025, 42(5): 2547-2556.
[7] QIN Z W, SONG X F, LIAO C C, et al. In-plane compressive responses and failure behaviors of composite sandwich plates with resin reinforced foam core[J]. Heliyon, 2024, 10(5): e26679.
[8] LOI G, AYMERICH F. Effect of stitching on the static and fatigue properties of fibre-dominated and matrix-dominated composite laminates[J]. Composites Part A: Applied Science and Manufacturing, 2023, 173: 107648.
[9] 刘苏骅, 李崇俊, 嵇阿琳. Tufting缝合复合材料预制体的成型与研究进展[J]. 航空制造技术, 2017, 60(14): 88-92, 96.
LIU Suhua, LI Chongjun, JI A'lin. Manufacture and advances of tufting composite preform[J]. Aeronautical Manufacturing Technology, 2017, 60(14): 88-92, 96.
[10] WANG Y C, LI W S, HAN P D, et al. Contributions in medical needle technologies: geometry, mechanics, design, and manufacturing[J]. Machining Science and Technology, 2016, 20(1): 1-43.
[11] EHMANN K, MALUKHIN K. A generalized analytical model of the cutting angles of a biopsy needle tip[J]. Journal of Manufacturing Science and Engineering, 2012, 134(6): 061001.
[12] MOORE J Z, ZHANG Q H, MCGILL C S, et al. Modeling of the plane needle cutting edge rake and inclination angles for biopsy[J]. Journal of Manufacturing Science and Engineering, 2010, 132(5): 051005.
[13] MOORE J Z, ZHANG Q H, MCGILL C S, et al. Modeling cutting edge geometry for plane and curved needle tips[J]. Proceedings of the Institution of Mechanical Engineers, Part B: Journal of Engineering Manufacture, 2012, 226(5): 861-869.
[14] MOORE J Z, MCLAUGHLIN P W, SHIH A J. Novel needle cutting edge geometry for end-cut biopsy[J]. Medical Physics, 2012, 39(1): 99-108.
[15] XU Y, QIN X, LIU G, et al. A new method for evaluating the normal rake angle and inclination angle on medical needles[J]. Proceedings of the Institution of Mechanical Engineers, Part H: Journal of Engineering in Medicine, 2018, 232(1): 24-32.
[16] LIN C L, HUANG Y M, LUO Z Y, et al. A novel biopsy needle with double concave-curved cutting edges[J]. IRBM, 2023, 44(5): 100783.
[17] QI Y C, JIN J F, CHEN T K, et al. Modeling of geometry and insertion force of a new lancet medical needle[J]. Science Progress, 2020, 103(1): 1-19.
[18] HAN P D, CHE D M, PALLAV K, et al. Models of the cutting edge geometry of medical needles with applications to needle design[J]. International Journal of Mechanical Sciences, 2012, 65(1): 157-167.
[19] STYLIOS G, XU Y M. An investigation of the pen-etration force profile of the sewing machine needle point[J]. The Journal of Textile Institute, 1995, 86(1): 148-163.
[20] GOTLIH K. Sewing needle penetration force study[J]. International Journal of Clothing Science and Technology, 1997, 9(3): 241-248.
[21] HAGHIGHAT E, ETRATI S M, SHAIKHZADEH NAJAR S, et al. Theoretical prediction of the needle penetration force in denim fabric part 1: yarn tensile extension component[J]. International Journal of Clothing Science and Technology, 2015, 27(3): 397-416.
[22] 王龙龙, 戴惠良, 梁庆. 基于ANSYS LS-DYNA的簇绒针刺底布动态响应[J]. 东华大学学报(自然科学版), 2020, 46(6): 935-939, 951.
WANG Longlong, DAI Huiliang, LIANG Qing. Dynamic response of carpet backing during tufting needling process based on ANSYS LS-DYNA[J]. Journal of Donghua University (Natural Science), 2020, 46(6): 935-939, 951.
[23] HAGHIGHAT E, SHAIKHZADEH NAJAR S, ETRATI S M, et al. Theoretical predicting of the needle penetration force in denim fabric, part 2: the role of yarn bending energy variations[J]. International Journal of Clothing Science and Technology, 2015, 27(4): 477-494.
