高效无卤阻燃棉织物的制备及其结构与性能

doi:10.13475/j.fzxb.20200603408

纺织学报 ›› 2021, Vol. 42 ›› Issue (03): 122-129.doi: 10.13475/j.fzxb.20200603408

所属专题：阻燃纤维及纺织品

高效无卤阻燃棉织物的制备及其结构与性能

马亚男¹, 沈军炎¹, 骆晓蕾¹, 张聪¹, 尚小磊¹, 刘琳¹(), KRUCINSKA Izabella², 姚菊明¹^,³

1.浙江理工大学材料科学与工程学院, 浙江杭州 310018
2.罗兹技术大学材料技术与纺织设计学院, 波兰罗兹 90-924
3.宁波大学, 浙江宁波 315211

收稿日期:2020-06-12 修回日期:2020-12-04 出版日期:2021-03-15 发布日期:2021-03-17
通讯作者: 刘琳
作者简介:马亚男(1993—),女,硕士。主要研究方向为纤维素基功能阻燃材料。
基金资助:
浙江省“万人计划”创新领军人才专项(111131A4E19003);国家重点研发计划项目(2016YFE0131400);国家自然科学基金面上项目(51672251)

Preparation and properties of high efficiency halogen-free flame-retardant cotton fabrics

MA Ya'nan¹, SHEN Junyan¹, LUO Xiaolei¹, ZHANG Cong¹, SHANG Xiaolei¹, LIU Lin¹(), KRUCINSKA Izabella², YAO Juming¹^,³

1. School of Materials Science and Engineering, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
2. Faculty of Material Technologies and Textile Design, Lodz University of Technology, Lodz 90-924, Poland
3. Ningbo University, Ningbo, Zhejiang 315211, China

Received:2020-06-12 Revised:2020-12-04 Online:2021-03-15 Published:2021-03-17
Contact: LIU Lin

摘要/Abstract

摘要：

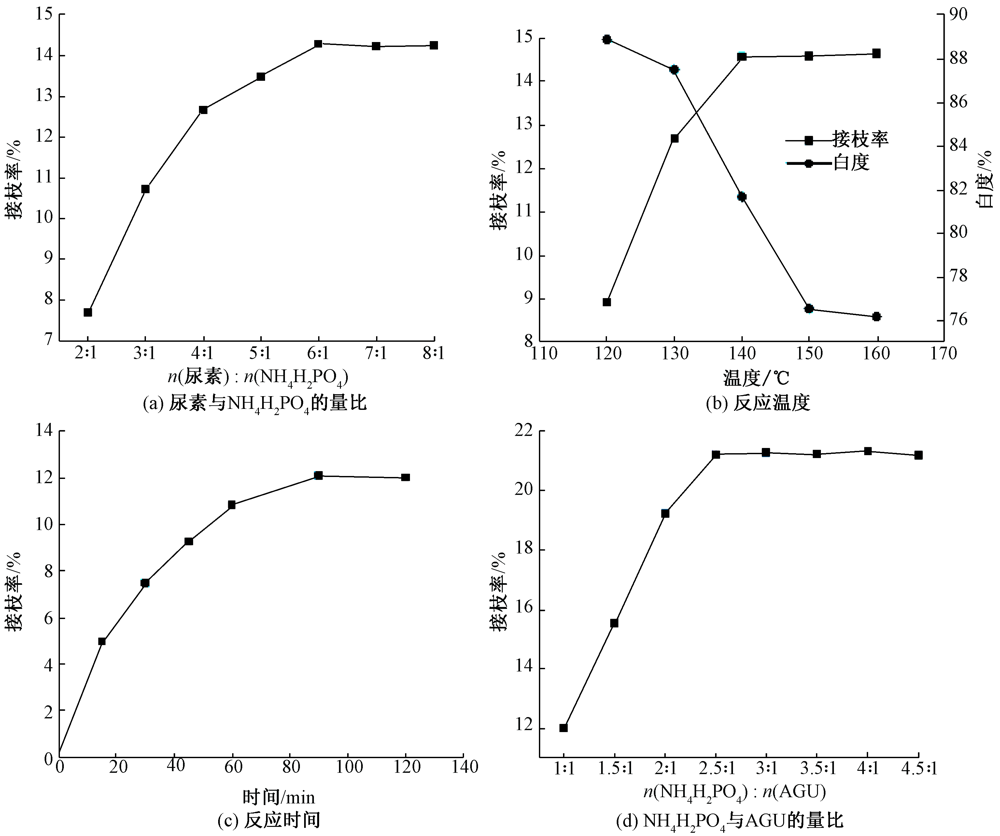

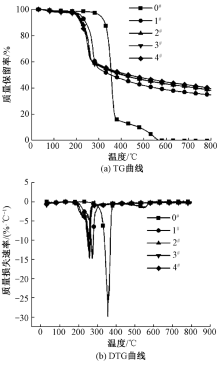

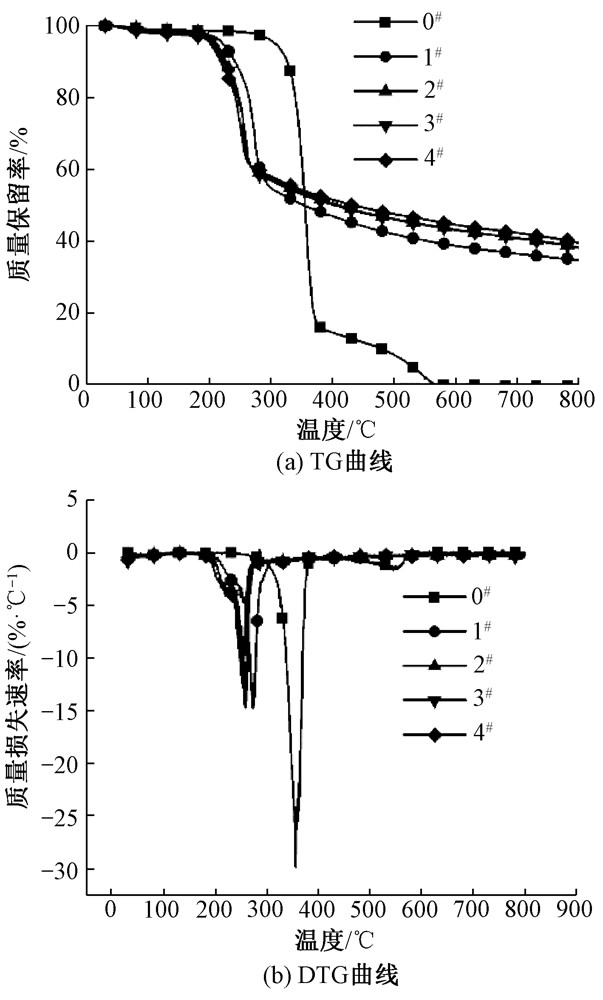

为了提高棉织物的阻燃效果与耐久性,以磷酸二氢铵(NH₄H₂PO₄)和尿素为原料,经磷酸化改性制备无卤耐久阻燃棉织物。通过研究原料物质的量比、反应时间、反应温度对阻燃棉织物接枝率与白度的影响,确定了最佳工艺条件:脱水葡萄糖单元(AGU)、NH₄H₂PO₄与尿素的量比为1∶2.5∶15,反应温度为130 ℃,反应时间为90 min。测试了阻燃棉织物的阻燃性能与耐水洗性能及力学性能等。结果表明:阻燃棉织物的极限氧指数(LOI)由原棉织物的18%提高到50.9%,达到不燃级别;经800 ℃热分解,残炭量上升到40.0%左右,具有优异的热稳定性;经30次标准洗涤测试后,LOI值仍可达到28.5%,表现出较好的耐洗涤性;该法实现了棉织物的高效耐久阻燃。

关键词: 磷酸二氢铵, 阻燃整理, 棉织物, 磷酸化, 无卤阻燃, 阻燃织物

Abstract:

In order to improve the flame retardancy and durability of cotton fabrics, halogen-free durable flame retardant cotton fabrics were prepared by applying phosphorylation modification with NH₄H₂PO₄ and urea as the raw materials. The effects of the molar ratio of the raw materials, reaction time and reaction temperature on the grafting rate and whiteness of flame-retardant cotton fabrics were studied. The optimum finishing process was identified to be 90 min reaction time, 130 ℃ reaction temperature, 1∶2.5∶15 raw material mole ratio among dehydrated glucose unit (AGU), NH₄H₂PO₄ and urea. The flame-retardancy, washing resistance and mechanical properties of fabrics were studied The limit oxygen index (LOI) of the flame retardant cotton fabric was increased from 18% to 50.9%, reaching the noncombustible level. After 800 ℃ thermal decomposition, the carbon residue increased to 40.0%, showing excellent thermal stability. At the same time, after 30 standard washing tests, the LOI value can still reach 28.5%, which shows good washing resistance. This method can be used to achieve efficient and durable flame-retardancy of cotton fabrics.

Key words: ammonium dihydrogen phosphate, flame-retardant finishing, cotton fabric, phosphorylation, halogen-free flame retardant, flame-retardant fabric

中图分类号:

TS195.5

马亚男, 沈军炎, 骆晓蕾, 张聪, 尚小磊, 刘琳, KRUCINSKA Izabella, 姚菊明. 高效无卤阻燃棉织物的制备及其结构与性能[J]. 纺织学报, 2021, 42(03): 122-129.

MA Ya'nan, SHEN Junyan, LUO Xiaolei, ZHANG Cong, SHANG Xiaolei, LIU Lin, KRUCINSKA Izabella, YAO Juming. Preparation and properties of high efficiency halogen-free flame-retardant cotton fabrics[J]. Journal of Textile Research, 2021, 42(03): 122-129.

图/表 10

图1

图2

图3

图4

图5

图6

表1

图7

图8

图9

参考文献 22

[1]	LI Yuchin, SCHULZ Jessica, MANNEN Sarah, et al. Flame retardant behavior of polyelectrolyte-clay thin film assemblies on cotton fabric[J]. ACS Nano, 2010,4(6):3325-3337. doi: 10.1021/nn100467e pmid: 20496883
[2]	李强林, 黄方千, 肖秀婵, 等. 新型无卤聚合物阻燃剂的研究进展[J]. 纺织学报, 2019,40(4):177-184.
	LI Qianglin, HUANG Fangqian, XIAO Xiuchan, et al. Review on novel halogen-free polymer flame retardants[J]. Journal of Textile Research, 2019,40(4):177-184.
[3]	张健, 李和国, 白书培, 等. 棉织物的常压等离子体拒水改性处理[J]. 纺织学报, 2011,32(4):85-90.
	ZHANG Jian, LI Heguo, BAI Shupei, et al. Water repellent treatment of cotton fabrics by atmospheric plasma[J]. Journal of Textile Research, 2011,32(4):85-90.
[4]	SHI Xiaohui, XU Yingjun, LONG Jiawei, et al. Layer-by-layer assembled flame-retardant architecture toward high-performance carbon fiber composite[J]. Chemical Engineering Journal, 2018,353:550-558.
[5]	陈威, 关晋平, 陈国强, 等. 静电层层自组装法整理多巴胺改性涤/棉混纺织物的阻燃性能[J]. 纺织学报, 2017,38(9):94-100.
	CHEN Wei, GUAN Jinping, CHEN Guoqiang, et al. Flame retardant properties of dopamine modified polyester/cotton blended fabric treated by electrostatic layer-by-layer self-assembly[J]. Journal of Textile Research, 2017,38(9):94-100.
[6]	LI Yingzhan, GRISHKEWICH Nathan, LIU Lingli, et al. Construction of functional cellulose aerogels via atmospheric drying chemically cross-linked and solvent exchanged cellulose nanofibrils[J]. Chemical Engineering Journal, 2019,366(15):531-538.
[7]	周青青, 陈嘉毅, 祁珍明, 等. 阻燃抗菌棉织物的制备及其性能表征[J]. 纺织学报, 2020,41(5):112-120.
	ZHOU Qingqing, CHEN Jiayi, QI Zhenming, et al. Preparation and characterization of flame retardant and antibacterial cotton fabric[J]. Journal of Textile Research, 2020,41(5):112-120.
[8]	CHENG Xianwei, TANG Rencheng, GUAN Jinping, et al. An eco-friendly and effective flame retardant coating for cotton fabric based on phytic acid doped silica sol approach[J]. Progress in Organic Coatings, 2020,141:105539.
[9]	SHEN Zhenqi, CHEN Li, LIN Lin, et al. Synergistic effect of layered nanofillers in intumescent flame-retardant EPDM: montmorillonite versus layered double hydroxides[J]. Industrial & Engineering Chemistry Research, 2013,52(25):8454-8463.
[10]	CHENG Luyao, WU Weihong, MENG Weihua, et al. Application of metallic phytates to poly(vinyl chloride) as efficient biobased phosphorous flame retardants[J]. Journal of Applied Polymer Science, 2018,135(33):46601.
[11]	XU Lijin, WANG Wei, YU Dan. Preparation of a reactive flame retardant and its finishing on cotton fabrics based on click chemistry[J]. RSC Advances, 2017,7(4):2044-2050.
[12]	王欣欣, 何文涛, 徐国敏, 等. 氨基碳纳米管/DOPO衍生物的协效阻燃及其对尼龙6性能的影响[J]. 高分子学报, 2019,50(4):419-428.
	WANG Xinxin, HE Wentao, XU Guomin, et al. Synergistic flame retardancy of amine-based multi-walled carbon nanotubes/DOPO derivatives and its effect on the properties of nylon 6[J]. Acta Polymerica Sinica, 2019,50(4):419-428.
[13]	GHANADPOUR Maryam, CAROSIO Federico, LARSSON Pertomas, et al. Phosphorylated cellulose nanofibrils: a renewable nanomaterial for the preparation of intrinsically flame-retardant materials[J]. Biomacromolecules, 2015,16(10):3399-3410. doi: 10.1021/acs.biomac.5b01117 pmid: 26402379
[14]	DASH Rajalaxmi, ELDER Thomas, RAGAUSKAS Arthurj. Grafting of model primary amine compounds to cellulose nanowhiskers through periodate oxidation[J]. Cellulose, 2012,19(6):2069-2079. doi: 10.1007/s10570-012-9769-2
[15]	ZHANG Lianwei, WANG Ruijia, LIU Rui, et al. Rapid capture and visual detection of copper ions in aqueous solutions and biofluids using a novel cellulose-Schiff base[J]. Cellulose, 2018,25(12):6947-6961.
[16]	孙玉发, 周向东. 棉用新型含磷氮阻燃剂的合成及其应用[J]. 纺织学报, 2019,40(12):79-85.
	SUN Yufa, ZHOU Xiangdong. Synjournal and application of a novel phosphorous nitrogen flame retardant for cotton[J]. Journal of Textile Research, 2019,40(12):79-85.
[17]	ZHANG Lianwei, WANG Ruijia, LIU Rui, et al. Rapid capture and visual detection of copper ions in aqueous solutions and biofluids using a novel cellulose-Schiff base[J]. Cellulose, 2018,25(12):6947-6961.
[18]	SUFLET Danamihaela, CHITANU Gabriellecharlotte, POPA Valentini. Phosphorylation of polysaccharides: new results on synjournal and characterisation of phosphorylated cellulose[J]. Reactive and Functional Polymers, 2006,66(11):1240-1249.
[19]	曾倩, 任元林. 纤维织物阻燃研究进展[J]. 纺织科学与工程学报, 2018,35(1):159-163.
	ZENG Qian, REN Yuanlin. Research progress of fiber fabric flame retardant[J]. Journal of Textile Science & Engineering, 2018,35(1):159-163.
[20]	FENG Yajuan, ZHOU Yang, LI Daikun, et al. A plant-based reactive ammonium phytate for use as a flame-retardant for cotton fabric[J]. Carbohydrate Polymers, 2017,175:636-644. pmid: 28917912
[21]	XU Fang, ZHONG Ling, ZHANG Cheng, et al. Novel high-efficiency casein-based P-N-containing flame retardants with multiple reactive groups for cotton fabrics[J]. ACS Sustainable Chemistry & Engineering, 2019,7(16):13999-14008.
[22]	XU Fang, ZHONG Ling, XU Yuan, et al. Highly efficient flame-retardant kraft paper[J]. Journal of Materials Science, 2019,54(2):1884-1897.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

水洗次数	接枝率/%	LOI值/%
0	21.01	50.9
10	19.51	31.8
20	18.02	29.1
30	17.36	28.5
40	16.46	24.7
50	15.82	20.8
