低损耗纬编成形女士背心的结构设计与建模

doi:10.13475/j.fzxb.20210701606

摘要/Abstract

摘要：

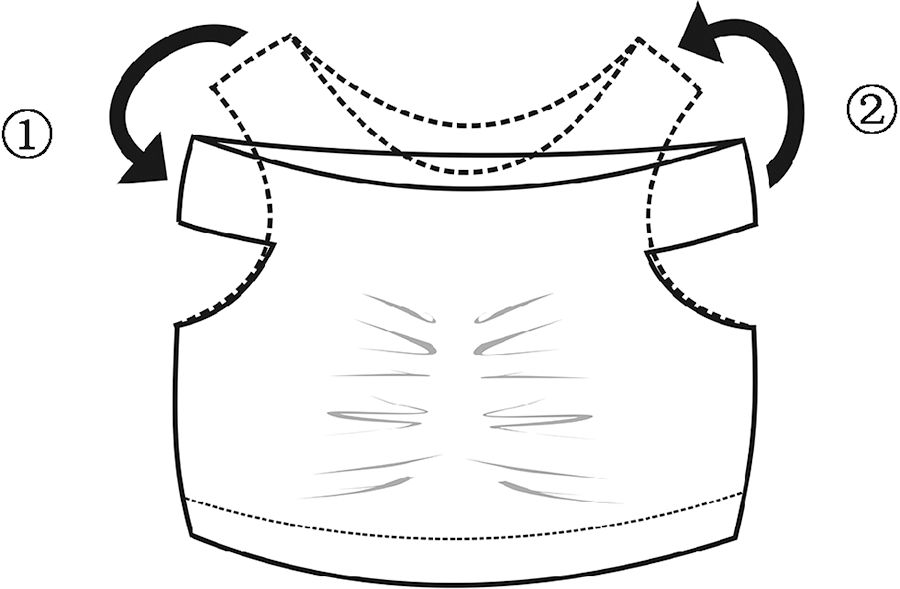

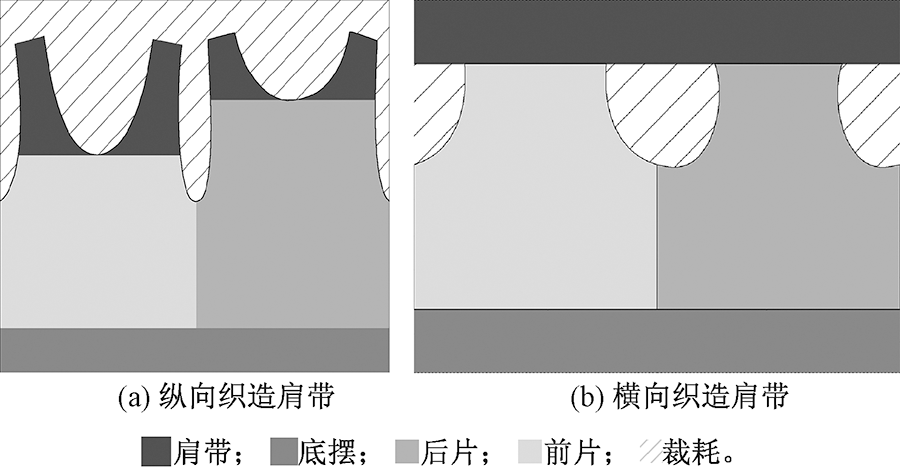

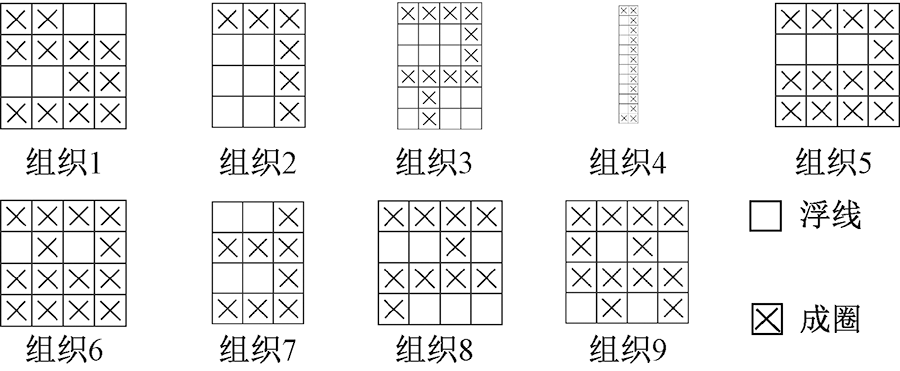

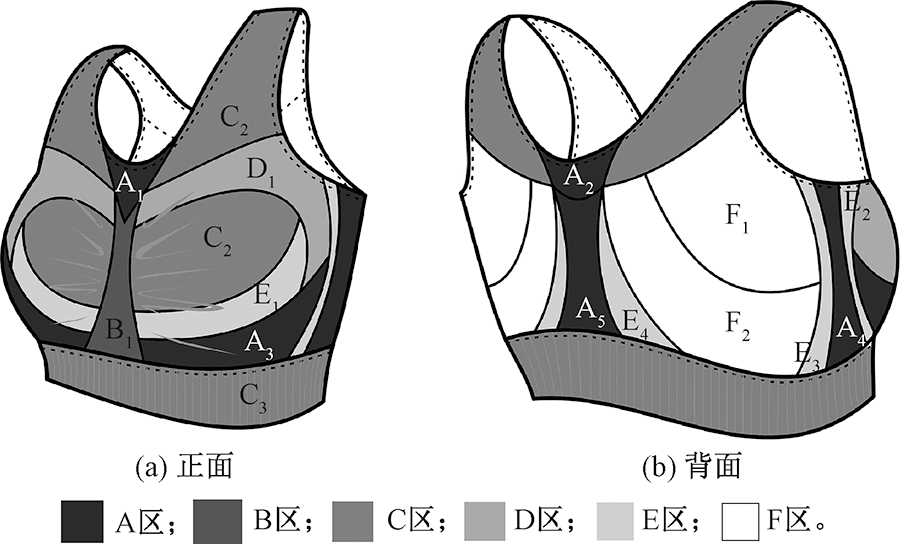

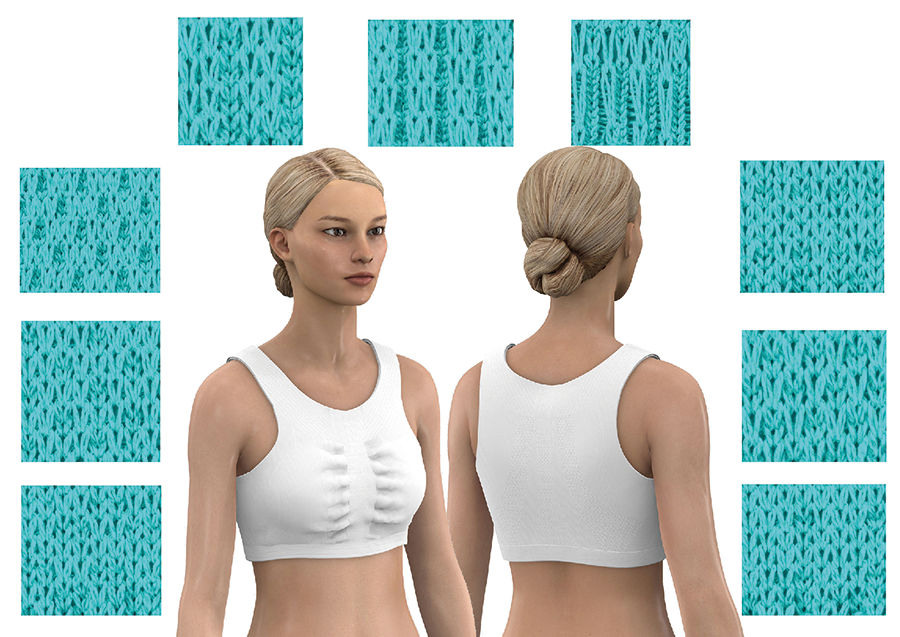

为降低纬编成形背心织造工序的原料损耗和生产能耗,以女士紧身短背心为开发对象,进行结构建模与工艺实践。首先将传统纬编成形背心纵向织造的宽肩带转化为横向织造的矩形肩带,其次对背心进行功能分区,设计不同性能的无缝组织。然后通过虚拟仿真,参数可视化建模调整分区结构与数值,实际织造后对比结构转化前后的损耗。结果表明:通过对纬编成形背心的结构转化并进行功能分区、可视化建模,进行工艺参数的调节,实现了低损耗与高效率兼顾的纬编成形女士紧身短背心的生产,为纬编成形服装结构转化与节能产品开发提供参考。

关键词: 低损耗工艺, 纬编成形服装, 结构设计, 虚拟仿真, 功能分区, 背心

Abstract:

In order to reduce the waste of raw materials and production energy consumption in producing weft-knit vests, the female tight-fitting short vest was taken as the object for research and development, involving structural modeling and processing experiment. The traditional weft knitting fully fashioned vest was produced longitudinally with shoulder width transformed into transverse rectangular shoulder width, whilst the vest was divided into regions according to function specifications which were fabricated with different seamless structures to achieve the desired properties. Through virtual simulation and parameter visualization, the values for the partition structures were able to be readjusted. Material waste comparison was carried out between the new and conventional methods. The results show that by transforming the structure of the weft knitting fully fashioned vest and performing functional partitioning, visual modeling and adjusting the process parameters, the production of weft knitting fully fashioned female vests with low material waste and high efficiency are achieved, which offers reference ideas for transformation and energy-saving product development of similar products.

Key words: low waste process, weft knitting fully fashioned garment, structural design, virtual simulation, functional partition, vests

中图分类号:

TS941.19

董智佳, 孙菲, 丛洪莲, 俞旭良. 低损耗纬编成形女士背心的结构设计与建模[J]. 纺织学报, 2022, 43(07): 129-134.

DONG Zhijia, SUN Fei, CONG Honglian, YU Xuliang. Structural design and modeling of low-waste weft knitting fully fashioned female vests[J]. Journal of Textile Research, 2022, 43(07): 129-134.

图/表 13

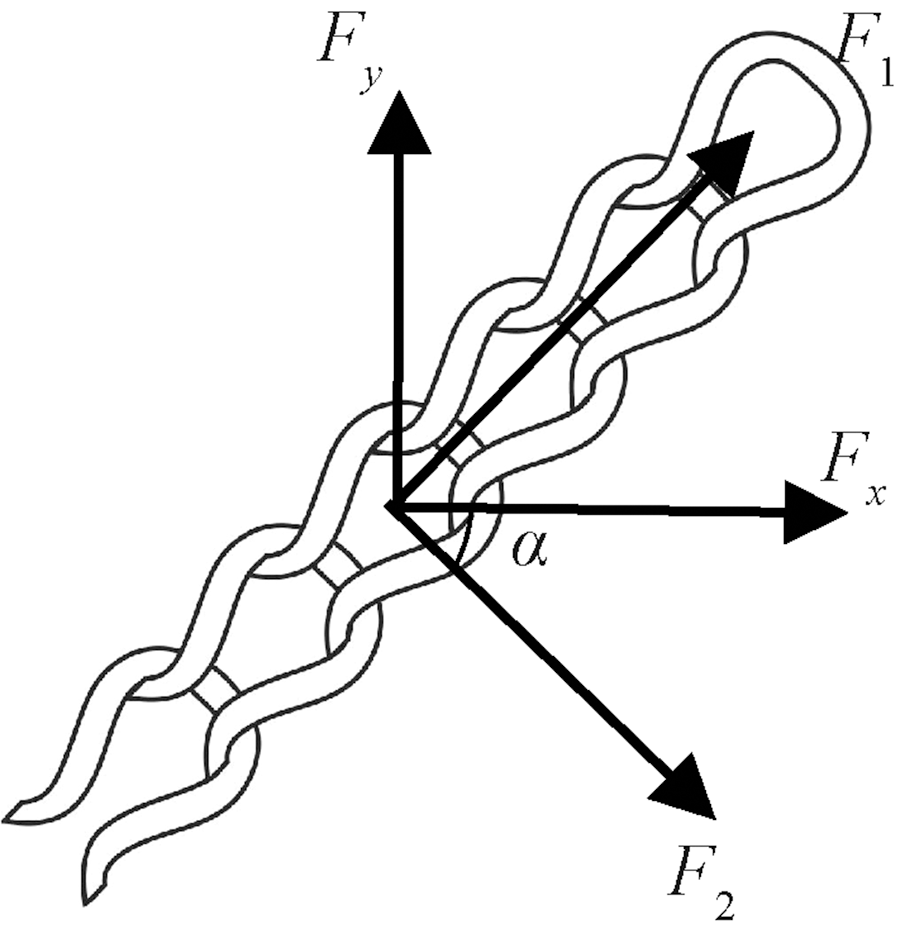

图1

图2

图3

图4

图5

表1

图6

图7

图8

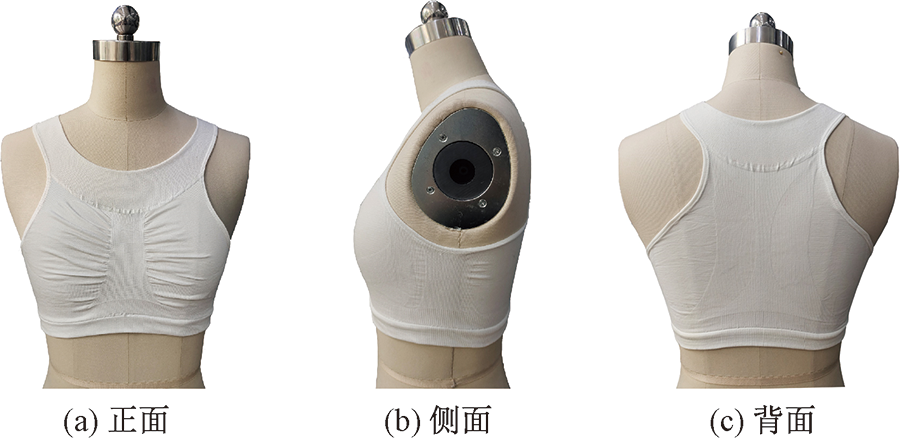

图9

表2

表3

表4

参考文献 10

[1]	王金凤, 钟斌悦, 陈慰来. 基于柔性传感器的无缝内衣任意围度压力研究[J]. 针织工业, 2018(12):55-56.
	WANG Jinfeng, ZHONG Binyue, CHEN Weilai. Research on the pressure of arbitrary girth of seamless underwear based on flexible sensor[J]. Knitting Industries, 2018(12):55-56.
[2]	董智佳. 经编无缝服装的计算机辅助设计[D]. 无锡: 江南大学, 2015:12-13.
	DONG Zhijia. Computer aided design of warp-knitted seamless clothing[D]. Wuxi: Jiangnan University, 2015: 12-13.
[3]	刘海桑, 董智佳, 张琦, 等. 经编全成形运动套装的尺寸预测与建模[J]. 纺织学报, 2019, 40(2): 76-77.
	LIU Haisang, DONG Zhijia, ZHANG Qi, et al. Size prediction and modeling of warp-knitted full-form sports suit[J]. Journal of Textile Research, 2019, 40(2): 76-77.
[4]	王伟荣, 丛洪莲. 基于下肢运动特征的纬编无缝瑜伽裤结构设计[J]. 纺织学报, 2021, 46(2):140-141.
	WANG Weirong, CONG Honglian. Structural design of weft-knitted seamless yoga pants based on lower limb movement characteristics[J]. Journal of Textile Research, 2021, 46(2):140-141.
[5]	沈颖乐, 丛洪莲. 无缝成形产品工艺设计模型建立及其系统实现[J]. 纺织学报, 2021, 42(7):89-90.
	SHEN Yingle, CONG Honglian. Technological model establishment and system realization of weft-knitted products[J]. Journal of Textile Research, 2021, 42(7):89-90. doi: 10.1177/004051757204200204
[6]	陈雁. 服装设计与工程学科发展趋势与关键议题[J]. 纺织学报, 2019, 40(1):184-185.
	CHEN Yan. Development trends and key issues of fashion design and engineering[J]. Journal of Textile Research, 2019, 40(1):184-185.
[7]	洪维亚. 纬编针织物双向拉伸性能测试与研究[D]. 上海: 东华大学, 2010:22-23.
	HONG Weiya. Test and research on the bidirectional tensile properties of weft knitted fabrics[D]. Shanghai: Donghua University, 2010:22-23.
[8]	李小辉, 张思严, 赵楚瞳, 等. 衣身肩斜角与人体体型特征的关系[J]. 纺织学报, 2018, 39(11):113-114.
	LI Xiaohui, ZHANG Siyan, ZHAN Chutong, et al. The relationship between the oblique angle of the body and the body shape[J]. Journal of Textile Research, 2018, 39(11):113-114.
[9]	陈慧娴, 鲁虹, 李书洋, 等. 运动文胸结构设计要素对穿着舒适性的影响[J]. 纺织学报, 2019, 40(9):160-161.
	CHEN Huixian, LU Hong, LI Shuyang, et al. The influence of structural design elements of sports bra on wearing comfort[J]. Journal of Textile Research, 2019, 40(9): 160-161.
[10]	刘佟. 基于人体曲面变化的服装几何空间设计[J]. 纺织学报, 2019, 40(11):155-156.
	LIU Tong. Garment geometric space design based on the change of human body surface[J]. Journal of Textile Research, 2019, 40(11):155-156.

相关文章 15

[1]	雷鸽, 李小辉. 数字化服装结构设计技术的研究进展[J]. 纺织学报, 2022, 43(04): 203-209.
[2]	陆爽怿, 周赳. 单经双纬组合全显色提花织物的结构交织平衡特征[J]. 纺织学报, 2021, 42(09): 59-65.
[3]	柯莹, 张海棠, 朱晓涵, 王宏付, 王敏. 电加热高空清洁作业服研制与性能评价[J]. 纺织学报, 2021, 42(08): 149-155.
[4]	王伟荣, 丛洪莲. 基于下肢运动特征的纬编无缝瑜伽裤结构设计[J]. 纺织学报, 2021, 42(06): 140-145.
[5]	苏梦茹, 邹婷, 陈颀超, 李超婧, 王富军, 王璐. 医用倒刺缝合线的研究进展[J]. 纺织学报, 2021, 42(05): 178-184.
[6]	方佳璐, 陈明艳, 黄紫荆. 漂浮自救泳衣设计开发[J]. 纺织学报, 2020, 41(12): 118-123.
[7]	金鹏, 薛哲彬, 戈垚. 具有实时瓦斯监测功能的新型智能矿工服设计[J]. 纺织学报, 2020, 41(11): 143-149.
[8]	闵小豹, 潘志娟. 国内外医用防护服结构与功能的比较与分析[J]. 纺织学报, 2020, 41(08): 172-178.
[9]	刘咏梅, 韩天琪, 张向辉, 吕芳澜. 无省旗袍的结构设计方法[J]. 纺织学报, 2020, 41(06): 99-104.
[10]	张海棠, 王宏付, 柯莹. 应急救援类防护服装发展现状与趋势[J]. 纺织学报, 2019, 40(01): 175-181.
[11]	刘杰王府梅. 单向导湿机织物结构设计[J]. 纺织学报, 2018, 39(03): 50-55.
[12]	万爱兰缪旭红蒋高明马丕波陈晴. 两面效应经编牛仔面料结构设计及其风格评价[J]. 纺织学报, 2017, 38(09): 45-50.
[13]	周赳张萌金诗怡. 组合半遮盖提花结构设计原理与方法[J]. 纺织学报, 2017, 38(06): 40-45.
[14]	万爱兰缪旭红张灵婕王委委. 外衣用棉经编织物结构设计与生产工艺[J]. 纺织学报, 2017, 38(05): 53-57.
[15]	刘笑莹方斌朱守艾程隆棣张瑞云俞建勇. 棉/大麻纤维混纺低损耗工艺优化[J]. 纺织学报, 2017, 38(01): 35-39.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

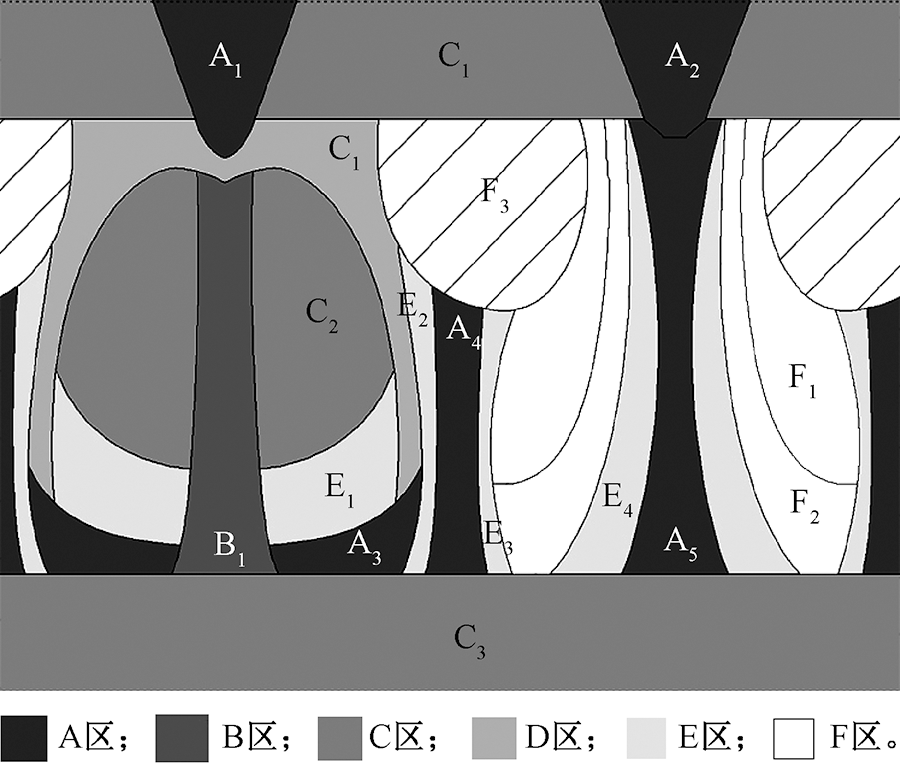

区域编号	横向意匠格数/个	纵向意匠格数/个	实际横向长度/cm	实际纵向长度/cm
A₁	216	233	9.6	5.2
A₂	216	204	9.6	4.6
A₃	228	161	10.2	3.6
A₄	97	429	4.3	9.6
A₅	164	679	7.3	15.2
B₁	160	604	7.1	13.5
C₁	583	175	26.0	3.9
C₂	215	453	9.6	10.1
C₃	1 344	175	60.0	3.9
D₁	295	573	13.2	12.8
E₁	208	265	9.3	5.9
E₂	59	489	2.6	10.9
E₃	56	401	2.5	9.0
E₄	162	679	7.2	15.2
F₁	180	549	8.0	12.3
F₂	210	679	9.4	15.2
F₃	315	290	14.0	6.5

结构要素	结构参数	下机尺寸	成品尺寸	穿着尺寸
下围织带	围度	65	60	73
	织带层数	2	2	2
	织带宽度	2.8	2.2	2.5
罩杯	围度	67	61	84
肩带	肩带宽度	4.7	3.5	4
肩带	肩带层数	2	2	2
侧比	侧比高度	12.3	10	11
夹弯	夹弯前弧纵	7.5	6.8	7.6
	夹弯前弧横	8.4	7.5	8.7
	夹弯后弧纵	8.6	7.4	7.8
	夹弯后弧横	11.5	10.3	11.4
背部结构	后中心高度	21.6	19.3	23
鸡心	前中心高度	17.4	15.2	17

类别	各区域像素点/dpi
类别	横向	纵向	裁耗区	裁剪线	缝合线
转化前	1 344	1 500	481 803	25 939	2 399
转化后	1 344	1 380	146 455	10 931	0
减少率/%	0	8	69.6	57.9	100

类别	原料质量/g	织造时间/min	裁剪时间/min	缝合时间/min	包边时间/min	裁耗区质量/g
转化前	63.98	3.13	0.6	0.2	3	17.4
转化后	58.86	2.89	0.3	0	2	5.76
减少率/%	8	7.7	50	100	33.5	69.6
