C.I.分散棕19在超临界CO2及水中溶解性的分子动力学模拟

doi:10.13475/j.fzxb.20191003007

纺织学报 ›› 2020, Vol. 41 ›› Issue (09): 95-101.doi: 10.13475/j.fzxb.20191003007

C.I.分散棕19在超临界CO₂及水中溶解性的分子动力学模拟

王纯怡¹^,², 吴伟¹^,², 王健³, 徐红¹^,²^,⁴, 毛志平¹^,²^,⁴^,⁵()

1.东华大学生态纺织教育部重点实验室, 上海 201620
2.东华大学化学化工与生物工程学院, 上海 201620
3.青岛即发集团股份有限公司, 山东青岛 266000
4.东华大学纺织科技创新中心, 上海 201620
5.上海安诺其集团股份有限公司, 上海 201703

收稿日期:2019-10-15 修回日期:2020-04-30 出版日期:2020-09-15 发布日期:2020-09-25
通讯作者: 毛志平
作者简介:王纯怡(1995—),女,硕士生。主要研究方向为分子动力学模拟研究染色理论。
基金资助:
山东省重点研发技术项目(2019JZZY010406)

Molecular dynamics simulation of solubility of C.I. Disperse Brown 19 in supercritical CO₂ and water

WANG Chunyi¹^,², WU Wei¹^,², WANG Jian³, XU Hong¹^,²^,⁴, MAO Zhiping¹^,²^,⁴^,⁵()

1. Key Laboratory of Science and Technology of Eco-Textile, Ministry of Education, Donghua University, Shanghai 201620, China
2. College of Chemistry, Chemical Engineering and Biotechnology, Donghua University, Shanghai 201620, China
3. Jifa Group Co., Ltd., Qingdao, Shandong 266000, China
4. Innovation Center for Textile Science and Technology, Donghua University, Shanghai 201620, China
5. Anoky Group Co., Ltd., Shanghai 201703, China

Received:2019-10-15 Revised:2020-04-30 Online:2020-09-15 Published:2020-09-25
Contact: MAO Zhiping

摘要/Abstract

摘要：

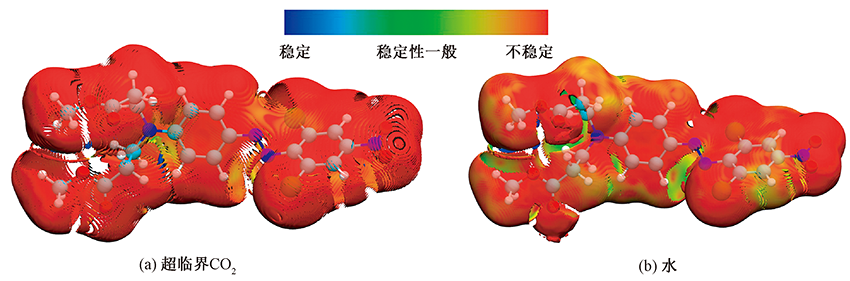

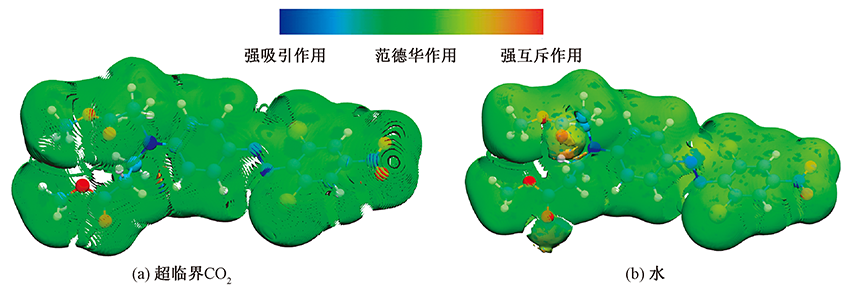

为探究分散染料在超临界CO₂和水中各自染色条件下的溶解性,基于分子动力学模拟,采用热力学积分方法分别计算了C.I.分散棕19在2种溶剂中的溶解自由能和结合自由能,并采用平均非键相互作用方法分析了C.I.分散棕19染料分子与2种溶剂分子间的弱相互作用类型及稳定性。模拟结果表明:C.I.分散棕19染料分子在超临界CO₂(24 MPa,130 ℃)和水(0.25 MPa,130 ℃)中的自由能绝对值均较小且相差不大,但其在超临界CO₂中的溶解自由能绝对值稍小,结合自由能绝对值稍大;C.I.分散棕19染料分子与2种溶剂分子间均只存在较弱且不稳定的范德华色散作用,但其与超临界CO₂分子间的弱相互作用相对于水更不稳定。

关键词: 分散染料, 超临界CO₂, 自由能, 溶解性, 分子动力学模拟

Abstract:

In order to explore the solubility differences of disperse dyes in supercritical CO₂ and water under their dyeing conditions, the solvation free energy and the binding free energy of C.I. Disperse Brown 19 in these two solvents were syudied, based on the molecular dynamics simulation, using thermodynamic integration method respectively, and the weak interaction between dye molecules and solvent molecules was examined by average noncovalent interaction method. The results showed that the absolute values of free energy of C.I. Disperse Brown 19 dye molecules in supercritical CO₂ (24 MPa, 130 ℃) and water (0.25 MPa, 130 ℃) were small, whereas the absolute value of solvation free energy in supercritical CO₂ was slightly less than that in water, and the absolute value of binding free energy was slightly greater than in water. The interactions (van der Waals force) between C.I. Disperse Brown 19 dye molecules and supercritical CO₂ molecules and water molecules were both weak and unstable, and,the interactions between the dye molecule and the supercritical CO₂ molecules were more unstable than that with water molecules.

Key words: disperse dyes, supercritical CO₂, free energy, solubility, molecular dynamics simulation

中图分类号:

O647.9

王纯怡, 吴伟, 王健, 徐红, 毛志平. C.I.分散棕19在超临界CO₂及水中溶解性的分子动力学模拟[J]. 纺织学报, 2020, 41(09): 95-101.

WANG Chunyi, WU Wei, WANG Jian, XU Hong, MAO Zhiping. Molecular dynamics simulation of solubility of C.I. Disperse Brown 19 in supercritical CO₂ and water[J]. Journal of Textile Research, 2020, 41(09): 95-101.

图/表 9

图1

表1

图2

表2

图3

表3

图4

图5

表4

参考文献 29

[1]	侯爱芹, 戴瑾瑾. 分散染料在超临界CO₂中上染涤纶的研究[J]. 纺织学报, 2004,25(5):17-19.
	HOU Aiqin, DAI Jinjin. Study on dyeing properties of polyester with disperse dyes in supercritical carbon dioxide[J]. Journal of Textile Research, 2004,25(5):17-19
[2]	鲁雪燕. 新型环保三原色分散染料在超临界CO₂中溶解度的测定与关联研究[D]. 杭州:浙江工业大学, 2009: 14-15.
	LU Xueyan. Measurement and correlation of solubilities of the new environment-friendly trichromatic disperse dyes in supercritical carbon dioxide[D]. Hangzhou: Zhejiang University of Technology, 2009: 14-15.
[3]	郑金花. 分散红54在超临界CO₂/共溶剂中溶解度的测定与关联[D]. 杭州:浙江工业大学, 2010: 10-12.
	ZHENG Jinhua. Measurement correlation of solubilities of Disperse Red 54 in supercritical carbon dioxide with cosolvent[D]. Hangzhou: Zhejiang University of Technology, 2010: 10-12.
[4]	林春绵, 宋赛赛, 刘建峰. 分散染料在超临界CO₂中的溶解性研究进展[J]. 印染, 2005(16):46-50.
	LIN Chunmian, SONG Saisai, LIU Jianfeng. Progress in solubility of disperse dyes in supercritical carbon dioxide[J]. China Dyeing & Finishing, 2005(16):46-50.
[5]	余志成, 林鹤鸣. 分散蓝79在超临界CO₂中的溶解特性及染色行为[J]. 纺织学报, 2006,27(6):51-54.
	YU Zhicheng, LIN Heming. Solubility and dyeing performance of Disperse Blue 79 in supercritical carbon dioxide[J]. Journal of Textile Research, 2006,27(6):51-54.
[6]	KONG X, HUANG T, CUI H, et al. Multicomponent system of trichromatic disperse dye solubility in supercritical carbon dioxide[J]. Journal of CO₂ Utilization, 2019,33:1-11.
[7]	SHINODA T, TAMURA K. Solubilities of CI Disperse Orange 25 and CI Disperse Blue 354 in supercritical carbon dioxide[J]. Journal of Chemical and Engineering Data, 2003,48(4):869-873.
[8]	DONG P, XU M, LU X, et al. Measurement and correlation of solubilities of CI Disperse Red 73, CI Disperse Yellow 119 and their mixture in supercritical carbon dioxide[J]. Fluid Phase Equilibria, 2010,297(1):46-51.
[9]	宋赛赛. 分散染料在超临界CO₂染色中的溶解性及分配性研究[D]. 杭州:浙江工业大学, 2006: 22-46.
	SONG Saisai. Solubility and partition of disperse dyes in supercritical carbon dioxide dyeing[D]. Hangzhou: Zhejiang University of Technology, 2006: 22-46.
[10]	FERUS-COMELO M. A new method to measure the solubility of disperse dyes in water at high tempera-ture[J]. Coloration Technology, 2015,131(4):269-271.
[11]	DATYNER A. The solubilization of disperse dyes by dispersing agents at 127 ℃[J]. Journal of the Society of Dyers and Colourists, 1978,94(6):256-260. doi: 10.1111/(ISSN)1478-4408b
[12]	PRIKRYL J, RUZICKA J, BURGERT L. A new method of determining the solubility of disperse dyes[J]. Journal of the Society of Dyers and Colourists, 1979,95(10):349-351. doi: 10.1111/(ISSN)1478-4408b
[13]	何玉宏. 高温分散剂的合成及其对分散染料的染色应用[D]. 上海:东华大学, 2018: 1-10.
	HE Yuhong. Synthesis of high temperature dispersants and their application to dyes[D]. Shanghai: Donghua University, 2018: 1-10.
[14]	CHAMI F, WILSON M R. Molecular order in a chromonic liquid crystal: a molecular simulation study of the anionic azo dye sunset yellow[J]. Journal of The American Chemical Society, 2010,132(22):7794-7802. doi: 10.1021/ja102468g pmid: 20469909
[15]	PETRENKO V E, ANTIPOVA M L, GURINA D L. Solvation of salicylic acid in pure, methanol-modified and water-modified supercritical carbon dioxide: molecular dynamics simulation[J]. The Journal of Supercritical Fluids, 2015,104:227-233. doi: 10.1016/j.supflu.2015.06.016
[16]	JORGENSEN W L, MAXWELL D S, TIRADO-RIVES J. Development and testing of the OPLS all-atom force field on conformational energetics and properties of organic liquids[J]. Journal of The American Chemical Society, 1996,118(45):11225-11236. doi: 10.1021/ja9621760
[17]	HARRIS J G, YUNG K H. Carbon dioxide's liquid-vapor coexistence curve and critical properties as predicted by a simple molecular model[J]. The Journal of Physical Chemistry C, 1995,99(31):12021-12024.
[18]	WANG J, ZHONG H, FENG H, et al. Molecular dynamics simulation of diffusion coefficients and structural properties of some alkylbenzenes in supercritical carbon dioxide at infinite dilution[J]. Journal of Chemical Physics, 2014,140(10):104501.
[19]	PIPOLO S, BENASSI E, BRANCOLINI G, et al. First-principle-based MD description of azobenzene molecular rods[J]. Theoretical Chemistry Accounts, 2012,131(10):1274. doi: 10.1007/s00214-012-1274-z
[20]	DODDA L S, VILSECK J Z, CUTRONA K J, et al. Evaluation of CM5 charges for nonaqueous condensed-phase modeling[J]. Journal of Chemical Theory and Computation, 2015,11(9):4273-4282. doi: 10.1021/acs.jctc.5b00414 pmid: 26575922
[21]	MOBLEY D L, CHODERA J D, DILL K A. On the use of orientational restraints and symmetry corrections in alchemical free energy calcula-tions[J]. The Journal of Chemical Physics, 2006,125(8):084902. doi: 10.1063/1.2221683 pmid: 16965052
[22]	POHORLLE A, JARZYNSKI C, CHIPOT C. Good practices in free-energy calculations[J]. The Journal of Physical Chemistry B, 2010,114(32):10235-10253. doi: 10.1021/jp102971x pmid: 20701361
[23]	BORESCH S, TETTINGER F, LEITGEB M, et al. Absolute binding free energies: a quantitative approach for their calculation[J]. The Journal of Physical Chemistry B, 2003,107(35):9535-9551. doi: 10.1021/jp0217839
[24]	KLIMOVICH P V, SHIRTS M R, MOBLEY D L. Guidelines for the analysis of free energy calcula-tions[J]. Journal of Computer-Aided Molecular Design, 2015,29(5):397-411. doi: 10.1007/s10822-015-9840-9 pmid: 25808134
[25]	JOHNSON E R, KEINAN S, MORI-SANCHEZ P, et al. Revealing noncovalent interactions[J]. Journal of The American Chemical Society, 2010,132(18):6498-506. doi: 10.1021/ja100936w pmid: 20394428
[26]	胡金花, 闫俊, 李红, 等. 分散红11在超临界二氧化碳中的溶解度及其模型拟合[J]. 纺织学报, 2019,40(8):80-84.
	HU Jinhua, YAN Jun, LI Hong, et al. Measurement and model fitting for solubility of Disperse Red 11 in supercritical CO₂[J]. Journal of Textile Research, 2019,40(8):80-84.
[27]	ALWI R S, TAMURA K. Measurement and correlation of derivatized anthraquinone solubility in supercritical carbon dioxide[J]. Journal of Chemical and Engineering Data, 2015,60(10):3046-3052. doi: 10.1021/acs.jced.5b00480
[28]	SUNG H D, SHIM J J. Solubility of C.I. Disperse Red 60 and C.I. Disperse Blue 60 in supercritical carbon dioxide[J]. Journal of Chemical and Engineering Data, 1999,44(5):985-989. doi: 10.1021/je990018t
[29]	PATTERSON D, SHELDON R P. The solubilities and heats of solution of disperse dyes in water[J]. Journal of the Society of Dyers and Colourists, 1960,76(3):178-181.

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

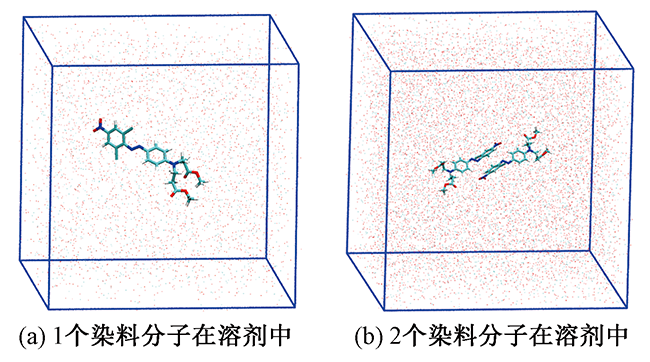

体系	溶剂	染料分子个数	溶剂分子个数	盒子边长/nm	压力/ MPa	温度/ ℃
Ⅰ	超临界CO₂	1	1 356	3.5	24.00	130
Ⅱ	H₂O	1	1 356	3.5	0.25	130
Ⅲ	超临界CO₂	2	4 016	5.0	24.00	130
Ⅳ	H₂O	2	4 016	5.0	0.25	130

体系	溶剂	盒子边长/nm	压力/MPa	温度/℃
Ⅰ	超临界CO₂	3.5	24.00	130
Ⅱ	H₂O	3.5	0.25	130

体系	溶剂	压力/ MPa	温度/ ℃	ΔG_sol/ (kJ·mol^-1)	ΔG_bind/ (kJ·mol^-1)
Ⅰ-1	超临界 CO₂	24.00	130	-45.12±0.20	-9.76±0.42
Ⅰ-2				-47.43±0.17	-9.37±0.32
Ⅰ-3				-47.03±0.11	-9.13±1.57
Ⅱ-1	H₂O	0.25	130	-55.99±0.54	-8.73±1.50
Ⅱ-2				-55.69±0.86	-8.80±1.57
Ⅱ-3				-55.77±0.78	-9.12±1.78

溶剂	染料	压力/ MPa	温度/ ℃	溶解度/ (mol·mol^-1)	参考文献
超临界 CO₂	分散橙30	12~24	60~120	1.2×10^-8~ 6.8×10^-6	[6]
	分散蓝79	12~24	60~120	0.7×10^-8~ 3.7×10^-6	[6]
	分散红167	12~24	60~120	0.9×10^-8~ 2.1×10^-6	[6]
	分散橙25	10~30	50~110	1.9×10^-9~ 1.7×10^-5	[7]
	分散蓝354	10~30	50~110	0.6×10^-8~ 4.4×10^-5	[7]
	分散红73	15~30	70~110	3.0×10^-6~ 3.0×10^-5	[8]
	分散黄119	15~30	80~120	1.6×10^-8~ 1.9×10^-7	[9]
	分散红343	15~30	80~120	3.8×10^-9~ 3.5×10^-6	[9]
	分散紫28	12~25	50~110	0.5×10^-7~ 5.2×10^-6	[27]
	分散红60	15~34	40~150	1.0×10^-6~ 3.9×10^-5	[28]
水	分散橙3	0.1	60~90	2.2×10^-7~ 1.1×10^-6	[29]
	分散红19	0.1	60~90	2.1×10^-7~ 1.7×10^-6	[29]
	分散蓝14	0.1	60~90	1.4×10^-7~ 3.2×10^-7	[29]
	分散蓝26	0.1	60~90	2.4×10^-8~ 1.1×10^-6	[29]
	分散红11	0.1	60~90	4.4×10^-7~ 1.0×10^-6	[29]
	分散黄54		120	0.4×10^-6	[10]
	分散黄82		130	3.8×10^-7	[10]
	分散橙30		130	1.6×10^-6	[10]
	分散红82		130	3.9×10^-6	[10]
	分散黄114		130	0.8×10^-6	[10]
