Construction of air-liquid-solid tri-phase system from bilayer micro/nanofiber membrane and its photocatalytic performance

FEI Jianwu1, LÜ Mingze1, LIU Liwei2, WANG Chunhong1, HAN Zhenbang1()

  1. 1. School of Textile Science and Engineering, Tiangong University, Tianjin 300387, China
    2. Tianjin Yuanda Industry and Trade Co., Ltd., Tianjin 301600, China
  • Received:2021-05-19 Revised:2021-12-28 Online:2022-06-15 Published:2022-07-15
  • Contact: HAN Zhenbang E-mail:hanzhenbang@tiangong.edu.cn

RichHTML

13

PDF (PC)

38

Abstract:

To enhance the photocatalytic degradation performance of the graphitic carbon nitride (g-C3N4), a bilayer micro/nanofiber membrane with opposing wettability has been developed via the electrospinning method, where the polystyrene membrane was used as the hydrophobic layer, and the g-C3N4/iron (II) phthalocyanine (FePc) heterojunction was taken for the hydrophilic layer on a polyacrylonitrile/polyvinylpyrrolidone membrane substrate. The morphology, chemical construction and optical absorption of the prepared bilayer membrane were investigated, and the photocatalytic performance for dye degradation was studied. The results indicate that the hydrophobic layer and the hydrophilic catalyst layer, with the water contact angle of 140° and 12°, respectively, can be tightly combined with each other. The distribution of g-C3N4/FePc on the catalyst layer is uniform, and the sensitization of FePc extends the optical absorption up to 800 nm. During the photocatalytic dye degradation, the hydrophobic layer can serve as gas passage to quickly deliver O2 from air to the catalytic interface. This greatly boosts the capture of photoelectrons in conduction band of g-C3N4 by O2 via constructing an air-liquid-solid triphase contact interface, resulting in 3.1 times fold higher reaction kinetics versus a normal diphase system.

Key words: micro-nanofiber membrane, carbon nitride, tri-phase system, photocatalytic performance, dye degradation

CLC Number:

  • TQ619.2

Fig.1

SEM images and EDAX mappings of CN/FePc-PP/PS. (a) Hydrophobic PS layer; (b) Hydrophilic catalyst layer;(c) Cross section; (d) C distribution; (e) N distribution;(f) Fe distribution"

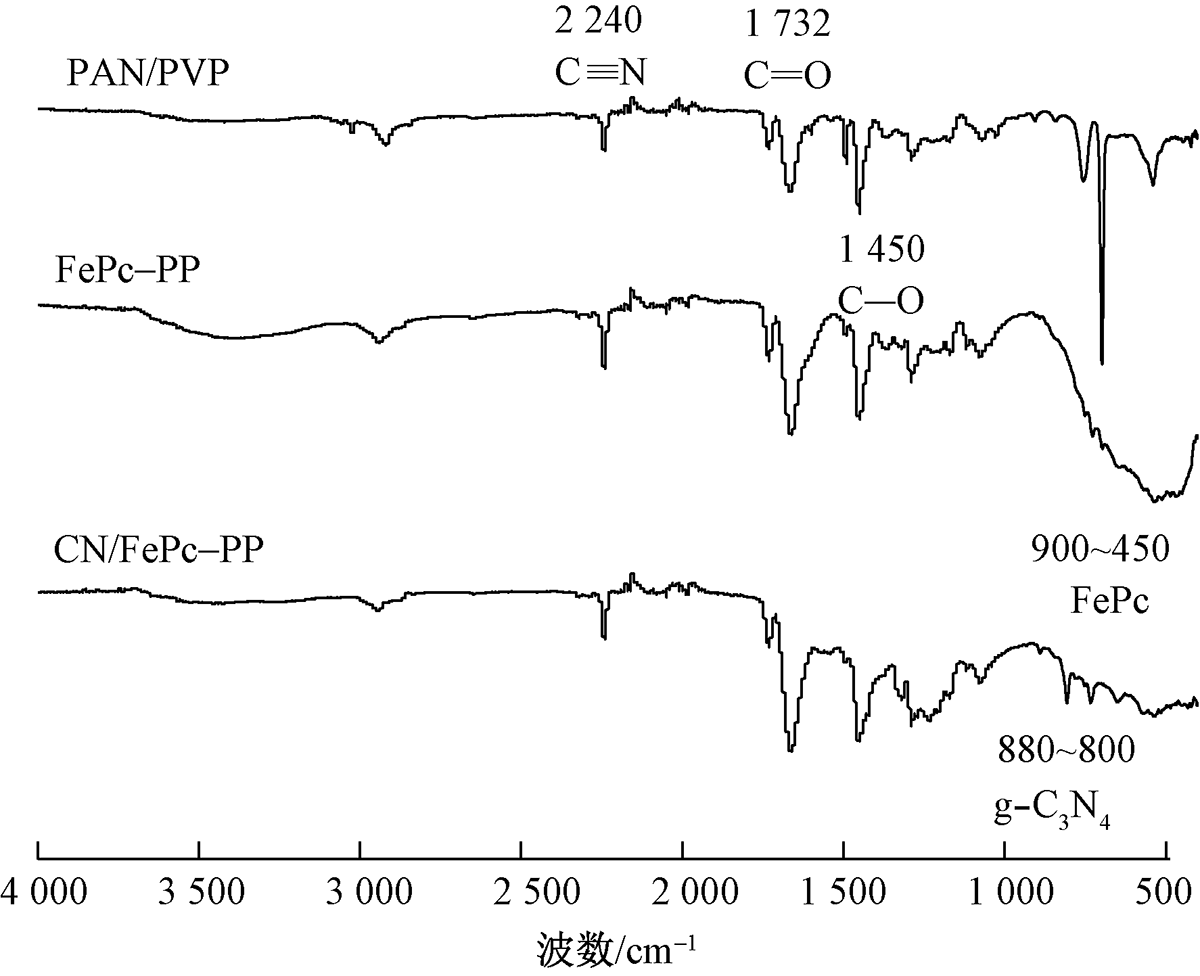

Fig.2

FT-IR spectra of fiber membrane samples"

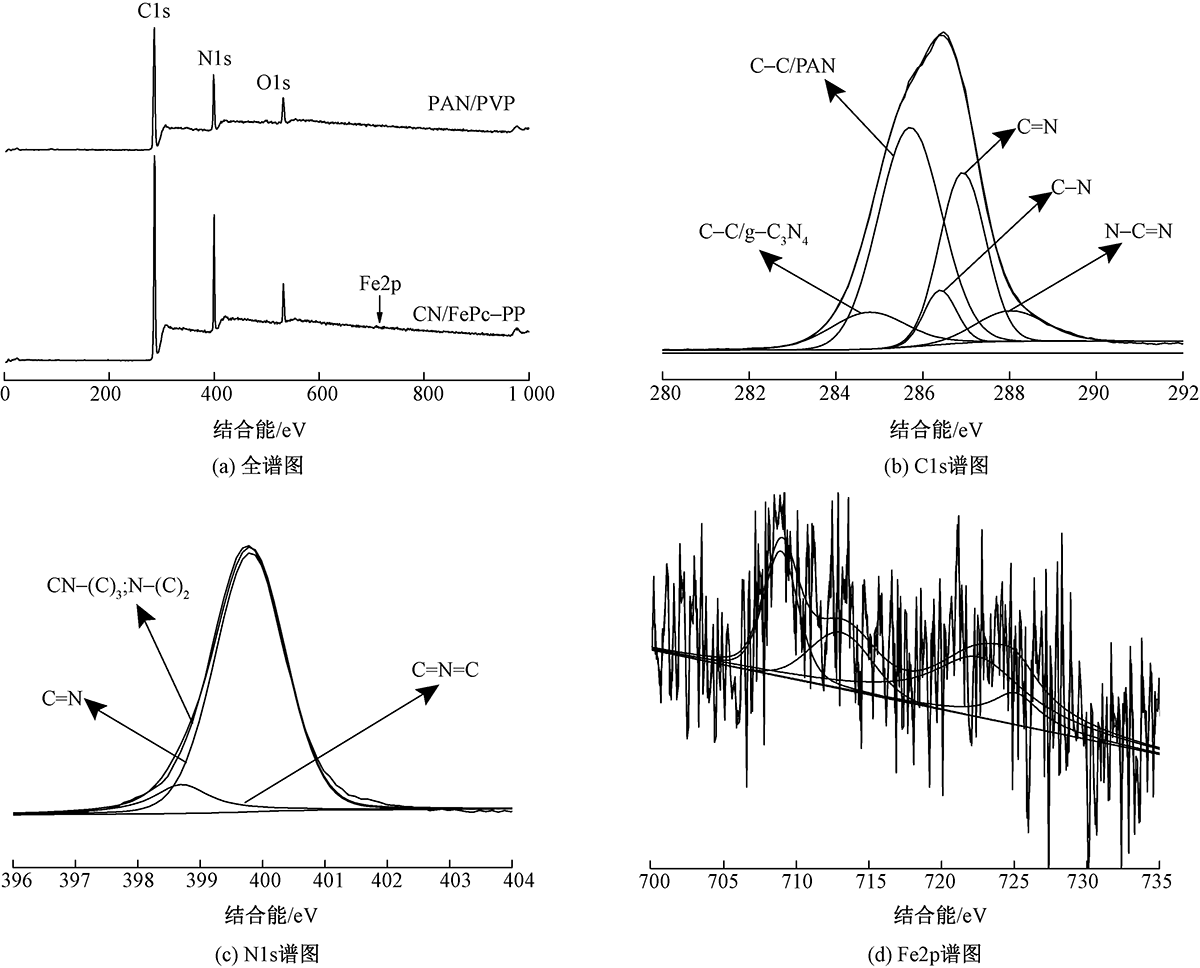

Fig.3

XPS spectra of fiber membrane samples. (a) Wide-scan spectra; (b) C1s spectra; (c) N1s spectra; (d) Fe2p spectra"

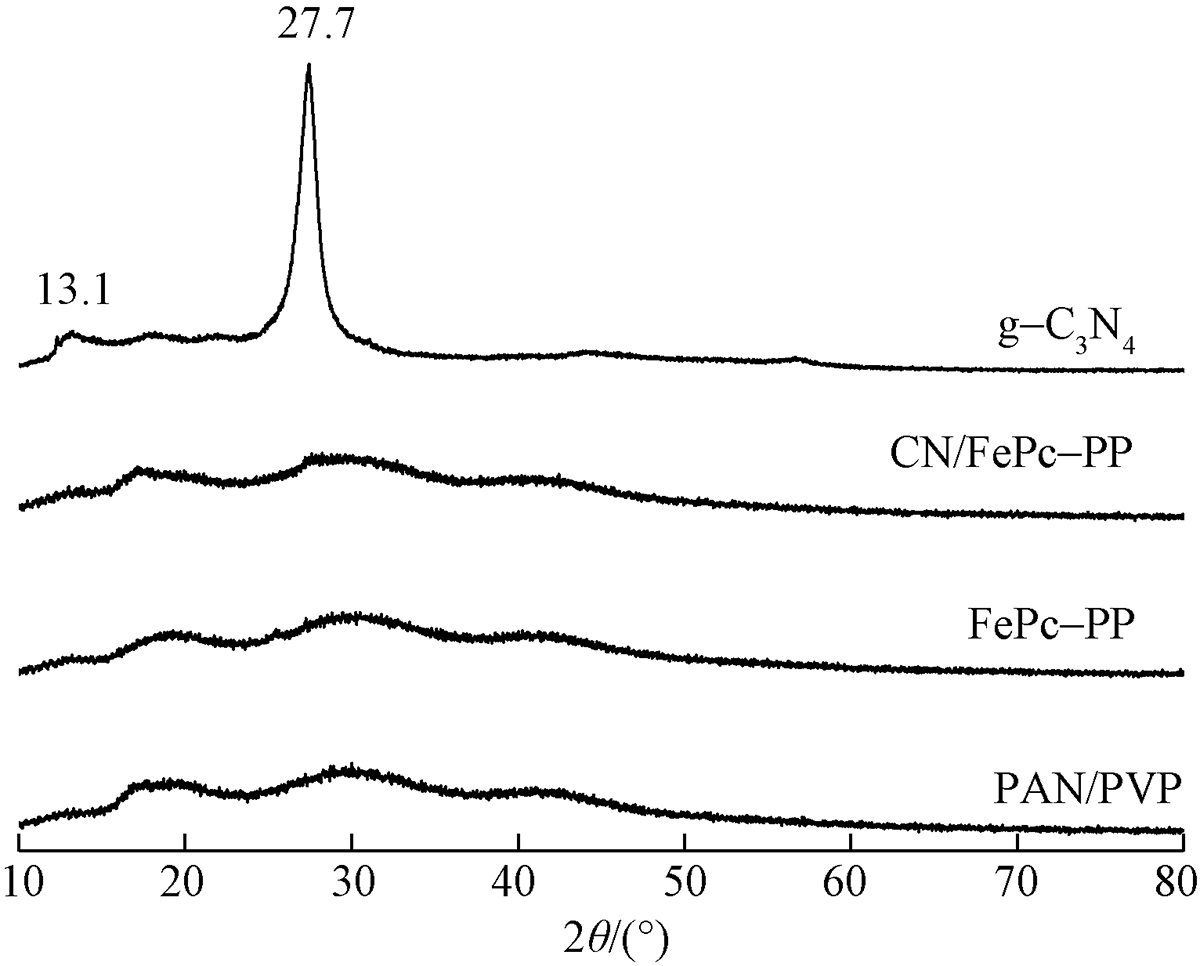

Fig.4

XRD patterns of fiber membrane samples"

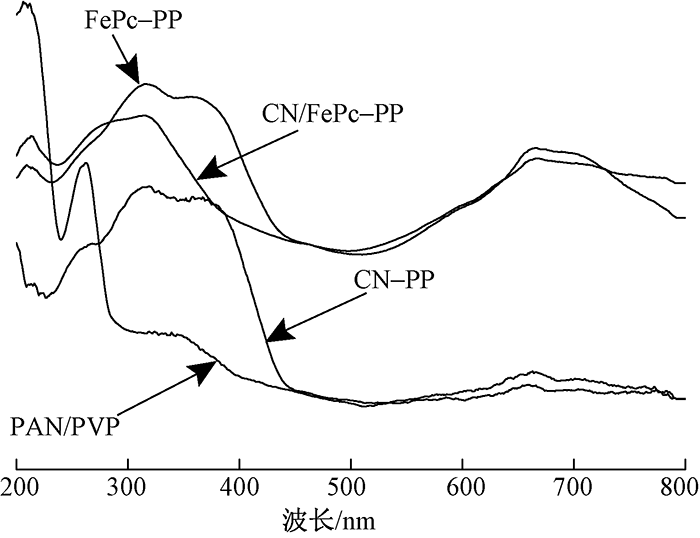

Fig.5

UV-Vis diffuse reflectance absorption spectra of fiber membrane samples"

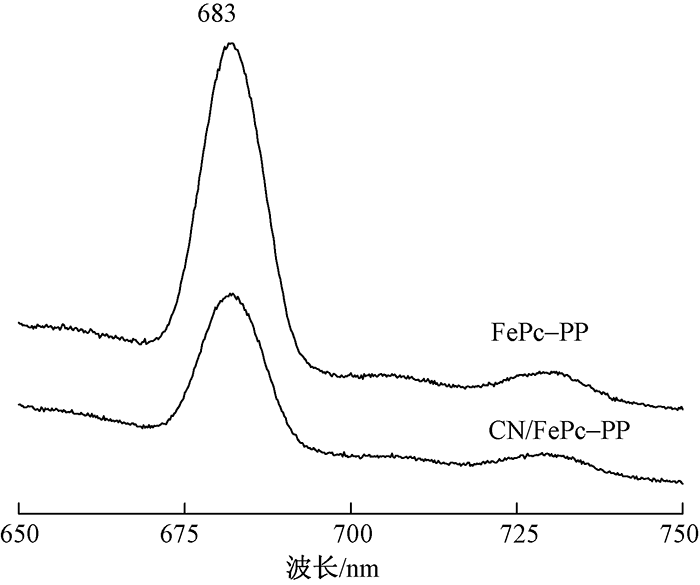

Fig.6

PL spectra of fiber membrane samples"

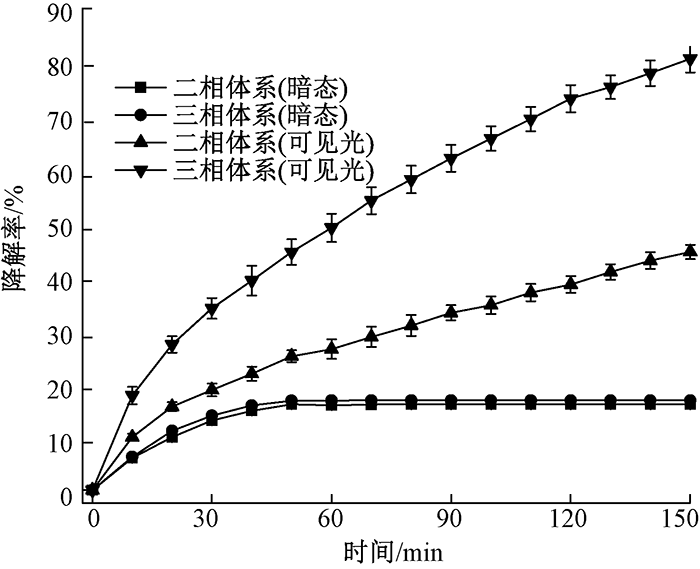

Fig.7

Degradation curves of RhB over CN/FePc-PP/PS under different conditions"

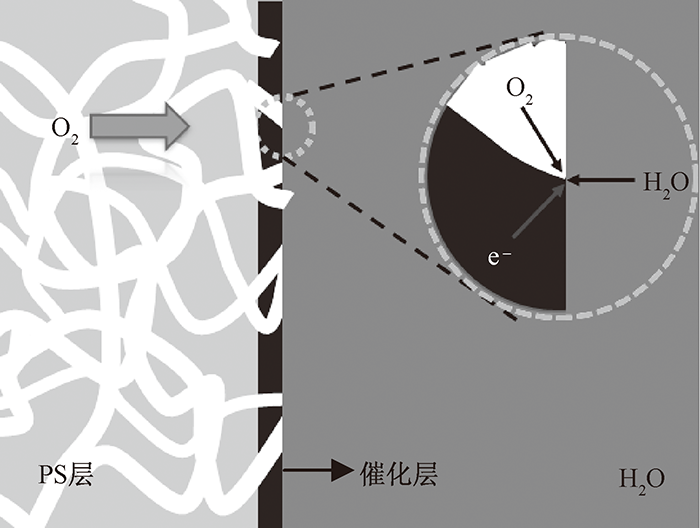

Fig.8

Mechanism of air-liquid-solid tri-phase system"

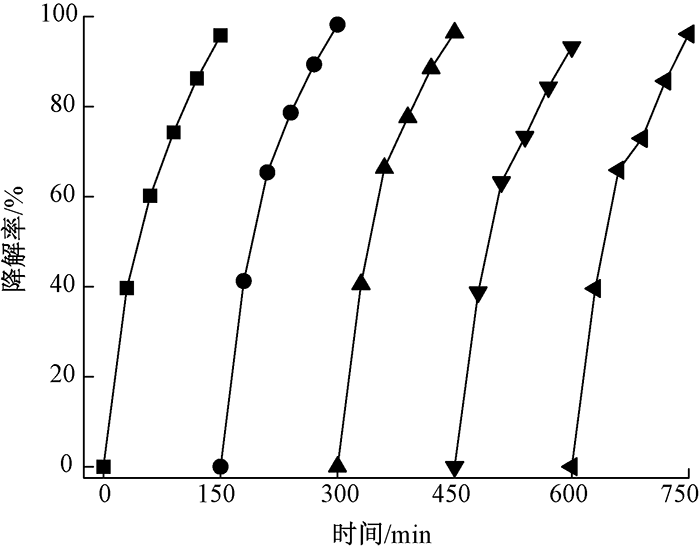

Fig.9

Recyclability of CN/FePc-PP/PS for RhB degradation under visible light irradiation"

[1] 蒋文雯, 莫慧琳, 樊婷玥, 等. Ag6Si2O7/TiO2复合光催化剂的制备及其对亚甲基蓝的降解性能[J]. 纺织学报, 2021, 42(4): 107-113.
JIANG Wenwen, MO Huilin, FAN Tingyue, et al. Preparation of Ag6Si2O7/TiO2 photocatalyst and its photocatalytic degradation of methylene blue[J]. Journal of Textile Research, 2021, 42(4): 107-113.
[2] WANG X, MAEDA K, THOMAS A, et al. A metal-free polymeric photocatalyst for hydrogen production from water under visible light[J]. Nature Materials, 2009, 8(1): 76-80.
doi: 10.1038/nmat2317
[3] ZHANG N, WEN L, YAN J, et al. Dye-sensitized graphitic carbon nitride (g-C3N4) for photocatalysis: a brief review[J]. Chemical Papers, 2019, 74(2): 389-406.
doi: 10.1007/s11696-019-00929-0
[4] LI J, ZHU Y, CHEN W, et al. Breathing-mimicking electrocatalysis for oxygen evolution and reduction[J]. Joule, 2019, 3(2): 1-13.
doi: 10.1016/j.joule.2018.12.022
[5] WU Y, FENG J, GAO H, et al. Superwettability-based interfacial chemical reactions[J]. Advanced Materials, 2019, 31(8): 1800718.
doi: 10.1002/adma.201800718
[6] LI A, CAO Q, ZHOU G, et al. Three-phase photocatalysis for the enhanced selectivity and activity of CO2 reduction on hydrophobic surface[J]. Angewandte Chemie-Internatioanl Edition, 2019, 58(41): 14549-14555.
[7] SHENG X, LIU Z, ZENG R, et al. Enhanced photocatalytic reaction at air-liquid-solid joint inter-faces[J]. Journal of the American Society, 2017, 139(36): 12402-12405.
doi: 10.1021/jacs.7b07187
[8] XIONG X Y, WANG Z P, ZHANG Y, et al. Wettability controlled photocatalytic reactive oxygen generation and klebsiella pneumonia inactivation over triphase systems[J]. Applied Catalysis B: Environmental, 2020, 264: 118518.
doi: 10.1016/j.apcatb.2019.118518
[9] KUMAR P S, SUNDARAMURTHY J, SUNDARRAJAN S, et al. Hierarchical electrospun nanofibers for energy harvesting, production and environmental remedia-tion[J]. Energy & Environmental Science, 2014, 7(10): 3192-3222.
[10] NURAJE N, KHAN W, LEI Y, et al. Superhydrophobic electrospun nanofibers[J]. Journal of Materials Chemistry A, 2013, 1(6): 1929-1946.
doi: 10.1039/C2TA00189F
[11] 丁彬. 功能微纳米聚合物纤维材料[J]. 高分子学报, 2019, 50(8): 764-774.
DING Bin. Functional polymeric micro/nano-fibrous materials[J]. Acta Polymerica Sinica, 2019, 50(8): 764-774.
[12] 张梦媛, 黄庆林, 黄岩, 等. 静电纺聚四氟乙烯/二氧化钛光催化纳米纤维膜的制备及其应用[J]. 纺织学报, 2019, 40(9): 1-7.
ZHANG Mengyuan, HUANG Qinglin, HUANG Yan, et al. Electrospun poly(tetrafluoroethylene)/TiO2 photocatalytic nanofiber membrane and its applica-tion[J]. Journal of Textile Research, 2019, 40(9): 1-7.
doi: 10.1177/004051757004000101
[13] MOHAMED A, NASSER W S, OSMAN T A, et al. Removal of chromium (VI) from aqueous solutions using surface modified composite nanofibers[J]. Journal of Colloid and Interface Science, 2017, 505: 682-691.
doi: 10.1016/j.jcis.2017.06.066
[14] 郝宁. g-C3N4基复合光催化剂的制备及性能研究[D]. 西安: 西安工业大学, 2020:1-30.
HAO Ning. Preparation and performance of g-C3N4 based composite photocatalyst[D]. Xi'an: Xi'an Technological University, 2020:1-30.
[15] SHI T, LI H, DING L, et al. Facile preparation of unsubstitured iron(II) phthalocyanine/carbon nitride nanocomposites: a multipurpose catalyst with reciprocally enhanced photo/electrocatalytic activity[J]. ACS Sustainable Chemistry & Engineering, 2019, 7(3): 3319-3328.
[16] HAN Z, FEI J, LI J, et al. Enhanced dye-sensitized photocatalysis for water purification by an alveoli-like bilayer Janus membrane[J]. Chemical Engineering Journal, 2021, 407: 127214.
doi: 10.1016/j.cej.2020.127214
