Journal of Textile Research ›› 2023, Vol. 44 ›› Issue (06): 21-27.doi: 10.13475/j.fzxb.20230100402

• Academic Salon Column for New Insight of Textile Science and Technology: Key Technologies of High Quality Aramid and Its Product Application • Previous Articles     Next Articles

Advances in design and fabrication of aramid fiber's surface and interface structure based on direct fluorination

LÜ Junwei1,2, LUO Longbo1,2, LIU Xiangyang1,2()

  1. 1. College of Polymer Science and Engineering, Sichuan University, Chengdu, Sichuan 610065, China
    2. State Key Laboratory of Polymer Materials Engineering, Sichuan University, Chengdu, Sichuan 610065, China
  • Received:2023-01-03 Revised:2023-03-20 Online:2023-06-15 Published:2023-07-20
  • Contact: LIU Xiangyang E-mail:lxy@scu.edu.cn

RichHTML

0

PDF (PC)

73

Abstract:

Significance Due to the advantages of low density, high strength, excellent environmental stability and wave-transparent of aramid fiber, it is gradually becoming the most important representative fiber in the high-performance organic fiber family. Among the wide range of applications of aramid fiber, the use as reinforcements in advanced composites might be the most important. However, poor interfacial interaction between aramid fiber and composite matrix has been a key issue to limit further mechanical improvements in composite design. Herein, direct fluorination using elemental fluorine or F2/N2 mixture to direct treat aramid fiber surface is efficient strategy to enhance composite interface. Utilizing the ultra-strong oxidation of F2, direct fluorination could easily dope fluorine content groups with high polarity in a large scale to improve wettability between fiber and matrix, while post-purification is needed due to the characteristic of vapor-solid reaction. Besides, direct fluorination induced C—F bonds also have significant designability in derived grafting reactions for further well-performed composite interface. Therefore, direct fluorination exhibits huge potential in the future composite design and manufacturing.
Progress Advances of direct fluorination in enhancing composite interface could be divided into three stages: ① Direct fluorination induced high-polar fluorine-contained groups and extra oxygen species significantly improves the interfacial wettability between fiber and polymer matrix, where the optimized interfacial wettability would enhance the interfacial combination of the composite; ② C—F bonds not only have high polarity, but also exhibit flexible feasibility in deriving reactions like nucleophilic substitution and atom transfer radical polymerization, thus further grafting reaction could be realized on fluorinated aramid fiber surface to obtain better composite interfacial properties; ③ Direct fluorination with typical radical characteristic induces significant radical species in fluorinated aramid fiber, then the relevant polymerization with high grafting density could be restricted on fluorinated aramid surface and got much better composite interface. Therefore, direct fluorination exhibited flexible ability in designing numerous high-performance interfacial structures of composite product servicing in different environments.
Conclusion and Prospect In previous research work, it has been demonstrated that direct fluorination is a low-cost and industrially applicable fiber surface treatment technique that can significantly improve the surface properties of fibers and their interfacial bonding with the polymer matrix while maintaining the intrinsic excellent mechanical properties of the fibers, thus improving the mechanical properties of the interfacial phase in the composite. In fact, further development and application of direct fluorination technology in the design and construction of interfacial structures for fiber surface modification and its reinforced composites is still needed, which is expected to better solve potential scientific and technical problems in the development of the mechanics of fiber-reinforced composites and provide new methods for the modulation of fiber surface modification and its interfacial properties of composites. Three problems and trends in the research of direct fluorinated aramid surface modification and its composite interface are listed as follows: ① Due to the high chemical reaction activity of fluorine gas, the current principles and methods of its regulation are insufficient, how to more effectively regulate the fluorination reaction rate and the selectivity of fluorination reaction sites, as well as how to more effectively avoid the chain-breaking behavior of macromolecular chains are the focus of further research and development of direct fluorination technology; ② It is necessary to construct continuous gradient changing polar structures and their interfacial properties on the fiber surface through direct fluorination reactions and their derivative grafting reactions, so as to more accurately describe and establish the quantitative constitutive relationship between the physicochemical structure of the fiber surface and the fine mechanics of the composite interface; ③ More efficient methods and corresponding engineering equipment are in high demand for regulating the homogeneity of direct fluorinated fibers.

Key words: aramid fiber, surface treatment, interface structure design, direct fluorination, fiber composite material

CLC Number:

  • TS195.6

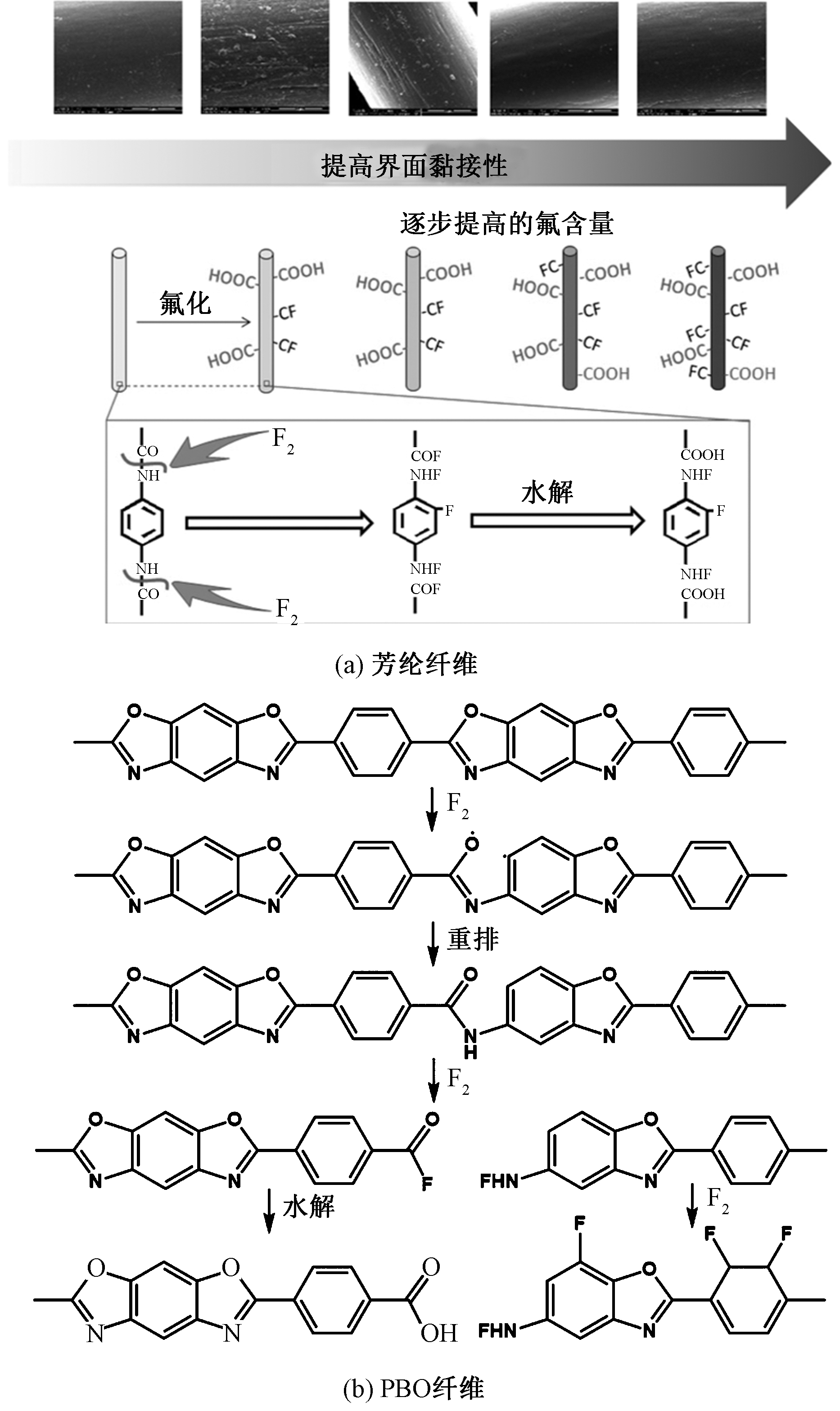

Fig. 1

Mechanism of direct fluorination in aramid(a) and PBO(b) fiber"

Fig. 2

Mechanism of metal-ion catalyst selective direct fluorination"

Fig. 3

Mechanism in fluorinated aramid fiber initiating polymerization of hydroxyethyl methacrylate and its surface topography. (a)Surface morphology of grafted fibers;(b)Surface roughness of grafted fibers;(c)Mechanism in fluorinated aramid fiber initiating polymerization of hydroxyethyl methacrylate"

Fig. 4

Reaction process(a)and mechanism(b)of surface radical polymerization of aramid fibers initiated by direct fluorination"

[1] EUN J H, KIM D H, LEE J S. Effect of low melting temperature polyamide fiber-interlaced carbon fiber braid fabric on the mechanical performance and fracture toughness of CFRP laminates[J]. Composites Part A:Applied Science and Manufacturing, 2020. DOI:10.1016/j.compositesa.2020.105987.
doi: 10.1016/j.compositesa.2020.105987
[2] FORINTOS N, CZIGANY T. Reinforcing carbon fibers as sensors: the effect of temperature and humidity[J]. Composites Part A:Applied Science and Manufacturing, 2020. DOI:10.1016/j.compositesa.2020.105819.
doi: 10.1016/j.compositesa.2020.105819
[3] KATAGIRI K, HONDA S, NAKAYA S, et al. Tensile strength of CFRP with curvilinearly arranged carbon fiber along the principal stress direction fabricated by the electrodeposition resin molding[J]. Composites Part A:Applied Science and Manufacturing, 2021. DOI:10.1016/j.compositesa.2021.106271.
doi: 10.1016/j.compositesa.2021.106271
[4] LAMORINIERE S, JONES M P, HO K, et al. Carbon nanotube enhanced carbon fiber-poly(ether ether ketone) interfaces in model hierarchical composites[J]. Composites Science and Technology, 2022. DOI:10.1016/j.compscitech.2022.109327.
doi: 10.1016/j.compscitech.2022.109327
[5] BAZAN P, NOSAL P, WIERZBICKA-MIERNIK A, et al. A novel hybrid composites based on biopolyamide 10.10 with basalt/aramid fibers: mechanical and thermal investigation[J]. Composites Part B: Engineering, 2021. DOI:10.1016/j.compositesb.2021.109125.
doi: 10.1016/j.compositesb.2021.109125
[6] LERTWASSANA W, PARNKLANG T, MORA P, et al. High performance aramid pulp/carbon fiber-reinforced polybenzoxazine composites as friction materials[J]. Composites Part B:Engineering, 2019. DOI:10.1016/j.compositesb.2019.107280.
doi: 10.1016/j.compositesb.2019.107280
[7] CHHETRI S, BOUGHERARA H. A comprehensive review on surface modification of UHMWPE fiber and interfacial properties[J]. Composites Part A:Applied Science and Manufacturing, 2021. DOI:10.1016/j.compositesa.2020.106146.
doi: 10.1016/j.compositesa.2020.106146
[8] FU Y, LI H, CAO W. Enhancing the interfacial properties of high-modulus carbon fiber reinforced polymer matrix composites via electrochemical surface oxidation and grafting[J]. Composites Part A:Applied Science and Manufacturing, 2020. DOI:10.1016/j.compositesa.2019.105719.
doi: 10.1016/j.compositesa.2019.105719
[9] JIA C, ZHANG R, YUAN C, et al. Surface modification of aramid fibers by amino functionalized silane grafting to improve interfacial property of aramid fibers reinforced composite[J]. Polymer Composites, 2020, 41(5): 2046-2053.
doi: 10.1002/pc.v41.5
[10] KHANDELWAL S, RHEE K Y. Recent advances in basalt-fiber-reinforced composites: tailoring the fiber-matrix interface[J]. Composites Part B:Engineering, 2020. DOI:10.1016/j.compositesb.2020.108011.
doi: 10.1016/j.compositesb.2020.108011
[11] PU Y, MA Z, LIU L, et al. Improvement on strength and toughness for CFRPs by construction of novel "soft-rigid" interface layer[J]. Composites Part B:Engineering, 2022. DOI:10.1016/j.compositesb.2022.109846.
doi: 10.1016/j.compositesb.2022.109846
[12] RANDALL J D, STOJCECSKI F, DJORDJEVIC N, et al. Carbon fiber polypropylene interphase modification as a route to improved toughness[J]. Composites Part A:Applied Science and Manufacturing, 2022. DOI:10.1016/j.compositesa.2022.107001.
doi: 10.1016/j.compositesa.2022.107001
[13] ZENG L, LIU X, CHEN X, et al. π-π interaction between carbon fiber and epoxy resin for interface improvement in composites[J]. Composites Part B: Engineering, 2021. DOI:10.1016/j.compositesb.2021.108983.
doi: 10.1016/j.compositesb.2021.108983
[14] ZHENG H, ZHANG W, LI B, et al. Recent advances of interphases in carbon fiber-reinforced polymer composites: a review[J]. Composites Part B:Engineering, 2022. DOI:10.1016/j.compositesb.2022.109639.
doi: 10.1016/j.compositesb.2022.109639
[15] BIGELOW L A. The action of elementary fluorine upon organic compounds[J]. Chemical Reviews, 1947, 40(1): 51-115.
pmid: 20287884
[16] 杜勇, 姚京松, 吴向东, 等. 表面氟化的环氧/玻璃纤维复合绝缘的表面性能与耐放电性能[J]. 高电压技术, 2018, 44(12): 3791-3797.
DU Yong, YAO Jingsong, WU Xiangdong, et al. Surface properties and discharge resistance of surface fluorinated epoxy/fiberglass composite insulators[J]. High Voltage Engineering, 2018, 44(12): 3791-3797.
[17] 相中华, 牛勃, 马飞越, 等. GIS绝缘子的直接氟化与直流闪络性能[J]. 高电压技术, 2022, 48(11): 4306-4315.
XIANG Zhonghua, NIU Bo, MA Feiyue, et al. Direct fluorination and DC flashover performance of GIS spacers[J]. High Voltage Engineering, 2022, 48(11): 4306-4315.
[18] LEROUX J D, PAUL D R, KAMPA J, et al. Modification of asymmetric polysulfone membranes by mild surface fluorination. part 1: transport proper-ties[J]. Journal of Membrane Science, 1994, 94: 121-141.
doi: 10.1016/0376-7388(93)E0153-B
[19] FAN K, CHEN X, WANG X, et al. Toward excellent tribological performance as oil-based lubricant additive: particular tribological behavior of fluorinated graphene[J]. ACS Applied Materials & Interfaces, 2018, 10(34): 28828-28838.
[20] GAO J, XU X, FAN C, et al. Surface modification of fluoroelastomer by direct fluorination with fluorine gas[J]. Materials Letters, 2014, 121: 219-222.
doi: 10.1016/j.matlet.2014.01.149
[21] CHENG Z, WU P, GAO J, et al. Structural evolution of fluorinated aramid fibers with fluorination degree and dominant factor for its adhesion property[J]. Journal of Fluorine Chemistry, 2016, 188: 139-146.
doi: 10.1016/j.jfluchem.2016.06.018
[22] LUO L, HONG D, ZHANG L, et al. Surface modification of PBO fibers by direct fluorination and corresponding chemical reaction mechanism[J]. Composites Science and Technology, 2018, 165: 106-114.
doi: 10.1016/j.compscitech.2018.06.014
[23] LUO L, WU P, CHENG Z, et al. Direct fluorination of para-aramid fibers 1: fluorination reaction process of PPTA fiber[J]. Journal of Fluorine Chemistry, 2016, 186: 12-18.
doi: 10.1016/j.jfluchem.2016.04.002
[24] CHENG Z, JIANG C, DAI Y, et al. Fe3+ coordination induced selective fluorination of aramid fiber to suppress surface chain scission behavior and improve surface polarity[J]. Applied Surface Science, 2018, 456: 221-229.
doi: 10.1016/j.apsusc.2018.06.110
[25] CHENG Z, LI B, HUANG J, et al. Covalent modification of aramid fibers' surface via direct fluorination to enhance composite interfacial properties[J]. Materials & Design, 2016, 106: 216-225.
[26] HE T, XING Z, WANG Y, et al. Direct fluorination as a one-step ATRP initiator immobilization for convenient surface grafting of phenyl ring-containing substrates[J]. Polymer Chemistry, 2020, 11(35): 5693-5700.
doi: 10.1039/D0PY00860E
[27] LAI W, WANG X, FU J, et al. Radical chain reaction mechanism of graphene fluorination[J]. Carbon, 2018, 137: 451-457.
doi: 10.1016/j.carbon.2018.05.005
[28] LIU J, LI X, ZHANG L, et al. Direct fluorination of nanographene molecules with fluorine gas[J]. Carbon, 2022, 188: 453-460.
doi: 10.1016/j.carbon.2021.12.043
[29] FAN K, LIU X, LIU Y, et al. Covalent functionalization of fluorinated graphene through activation of dormant radicals for water-based lubricants[J]. Carbon, 2020, 167:826-834.
doi: 10.1016/j.carbon.2020.06.033
[30] LAI W, WANG C, CHEN Y, et al. In situ radical polymerization and grafting reaction simultaneously initiated by fluorinated graphene[J]. Langmuir, 2019, 35(20): 6610-6619.
doi: 10.1021/acs.langmuir.9b00131 pmid: 31038966
[31] LV J, CHENG Z, WU H, et al. In-situ polymerization and covalent modification on aramid fiber surface via direct fluorination for interfacial enhancement[J]. Composites Part B:Engineering, 2020. DOI:10.1016/j.compositesb.2019.107608.
doi: 10.1016/j.compositesb.2019.107608
