Melt-blown process and structural characterization of bio-typha polylactic acid medical protective materials

ZHAO Ke1, ZHANG Heng1(), CHENG Wensheng2, ZHEN Qi3, BU Qingyun1, CUI Jingqiang2

  1. 1. College of Intelligent Textile and Fabric Electronics, Zhongyuan University of Technology, Zhengzhou, Henan 451191, China
    2. Henan Tuoren Medical Device Research Institute Co., Ltd., Xinxiang, Henan 453400, China
    3. College of Fashion Technology, Zhongyuan University of Technology, Zhengzhou, Henan 451191, China
  • Received:2024-08-19 Revised:2024-10-18 Online:2025-02-15 Published:2025-03-04
  • Contact: ZHANG Heng E-mail:m-esp@163.com

RichHTML

20

PDF (PC)

31

Abstract:

Objective Medical protective materials serve as the last defense line for the safety of medical and healthcare personnel. A densely packed micro-porous structure with high directional alignment plays a significant role in preventing the penetration of liquids. This paper reports a study on the structural design of the melt-blown microfibrous material inspired by the typha, and experimentally analyzes the lophotrichous structure parameters and medical protective performance of this material. The aim is to achieve a green and efficient medical protective material.

Method In this study, we utilized polylactic acid (PLA) modified by paraffin wax (PW) blending as the primary material, and fabricated lophotrichous structural PLA microfibrous membranes via the in-situ drawing melt-blown process. Simultaneously, the sample structures were characterized using scanning electron microscopy. Additionally, we conducted experimental analyses on the medical protective performance using liquid contact angle measuring instrument, fully automatic hydrostatic pressure tester, and W3-type cup method water vapor permeability tester.

Results In terms of micro-morphology, the PLA microfibrous fabrics exhibited a lophotrichous high-orientation structure along the direction of the stretching force. This structure provided orientation for liquid rolling on its surface. Moreover, an increase in the drafting ratios and the PW mass caused reduction in fiber diameter distribution and orientation angle distribution of the samples, providing a dense, porous structural foundation for easy liquid rolling on the surface. Concurrently, the characteristic parameters of the lophotrichous structure, such as the microfibers ratio, the oriented distribution, and feature spacing, were characterized by the features of PLA microfibrous fabrics with a fiber diameter less than 3 μm and an orientation angle less than 30°. A quadratic regression equation was established to describe the variation of these lophotrichous structural parameters with process parameters which had a confidence level of 0.97. The results indicated that when the drafting ratios was 3.0, the microfibers ratio increased to 18.88%, and the longitudinal static contact angle and static water pressure increased to 147° and 2 721 Pa, respectively. Compared to samples with the PW mass of 1%, the inclination angle and water vapor permeability of the PW-5% sample decreased by 48.36% and 10.35%, respectively. As the drafting ratios increased from 1.8 to 3.0, the oriented distribution in the samples increased from 35.01% to 63.24%, while the horizontal static contact angle and static water pressure increased from 140° and 2 083 Pa to 155° and 2 597 Pa, representing increases of 10.71% and 24.68%, respectively.

Conclusion The PLA microfibrous membranes with a lophotrichous highly oriented structure, prepared using the in-situ drawing melt-blown process, have tremendous application potential in the medical protective field. Among these, the PLA microfibrous fabrics, due to their dense pore structure, exhibit superior liquid barrier properties and outstanding biodegradability, meeting the requirements as green and efficient medical protective materials. This offers reference for the structural design of medical protective materials.

Key words: typha, biomimetic structure, polylactic acid, melt-blown, in-situ drafting, medical protection, nonwoven

CLC Number:

  • TS174

Fig.1

Schematic diagram of preparation of PLA microfibrous fabrics via in-situ drawing melt-blown process"

Tab.1

Main parameters of in-situ drawing melt-blown process"

设备 特征参数 温度/℃
螺杆挤出机 一区温度 185
二区温度 215
三区温度 225
计量泵 转速为4 r/min 225
熔喷模头 喷丝孔直径0.25 mm,长径比10∶1 225
罗茨风机 热风压力为40 kPa 225
其它 接收距离为18 cm —
牵伸比例为1.8、2.4、2.6、2.8和3.0 —

Fig.2

Surface SEM images of typha(a) and PLA microfibrous fabrics(b)"

Fig.3

Microfibers ratio structural characteristics of PLA microfibrous fabric samples. (a) Surface SEM image of PW-1%; (b) Surface SEM image of PW-5%; (c) Diameter distribution curves of samples with different PW mass; (d) Microfibers ratio curves of samples with different PW mass; (e)Microfibers ratio curves of samples with different drafting ratios"

Fig.4

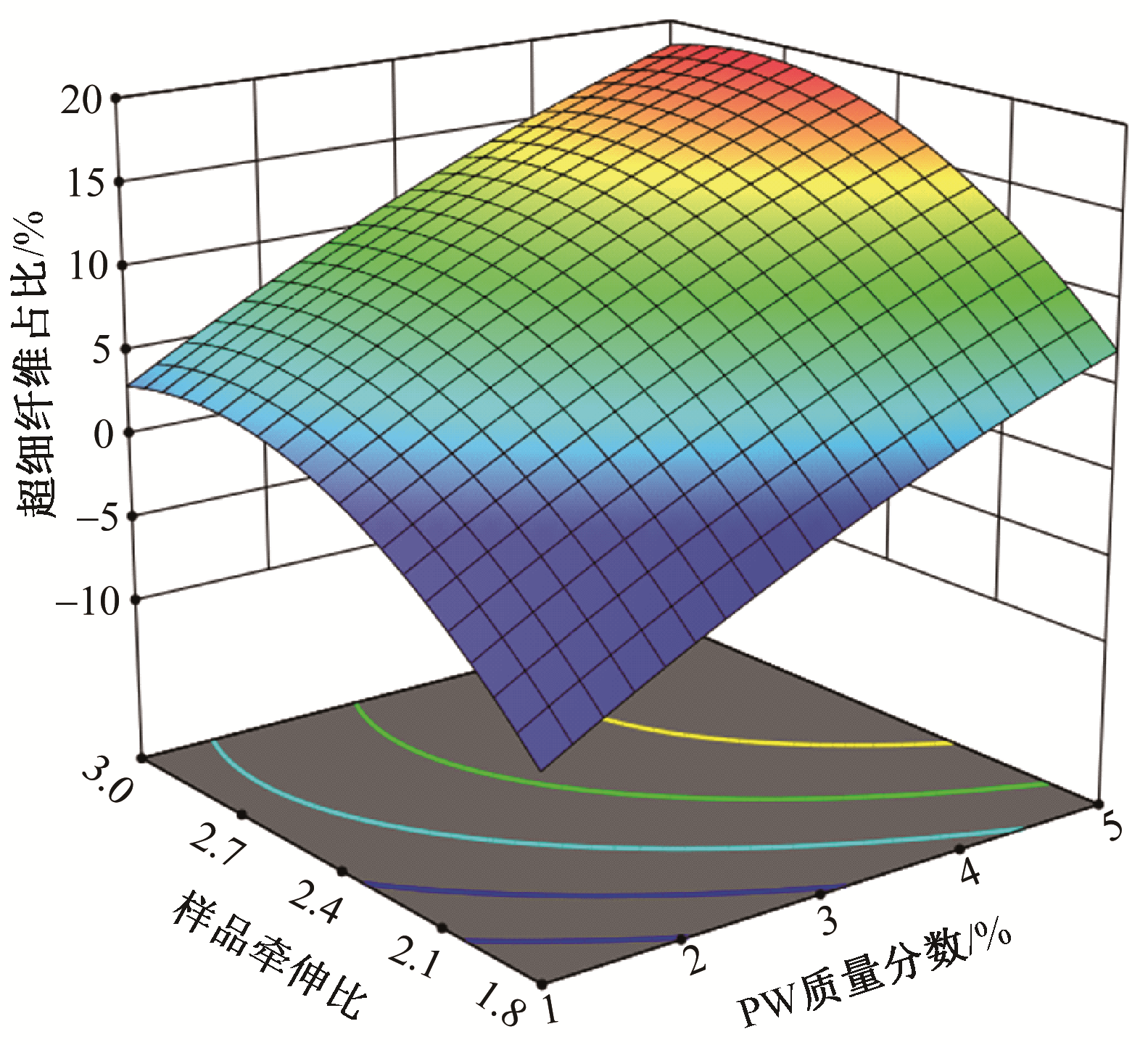

Three-dimensional spatial surface response of microfibers ratio"

Fig.5

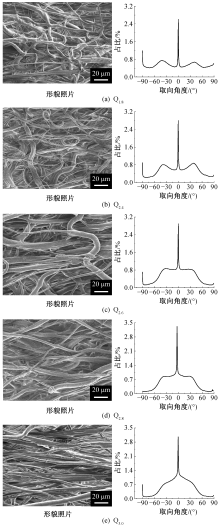

Surface SEM images and orientation angle distribution curves of samples prepared at different drafting ratios"

Fig.6

Oriented distribution curves of samples with different drafting ratios"

Fig.7

Three-dimensional spatial surface response of oriented distribution"

Tab.2

Feature spacing of PLA microfibrous fabric samples"

样品编号 特征间距/μm 样品编号 特征间距/μm
PW-1% 6.67 Q1.8 7.25
PW-2% 5.53 Q2.4 5.17
PW-3% 4.43 Q2.6 4.12
PW-4% 3.85 Q2.8 3.67
PW-5% 2.39 Q3.0 2.22

Fig.8

Three-dimensional spatial surface response"

Fig.9

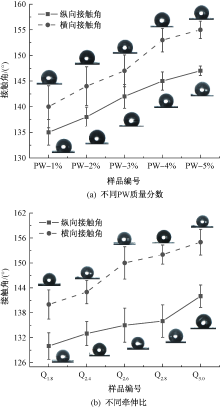

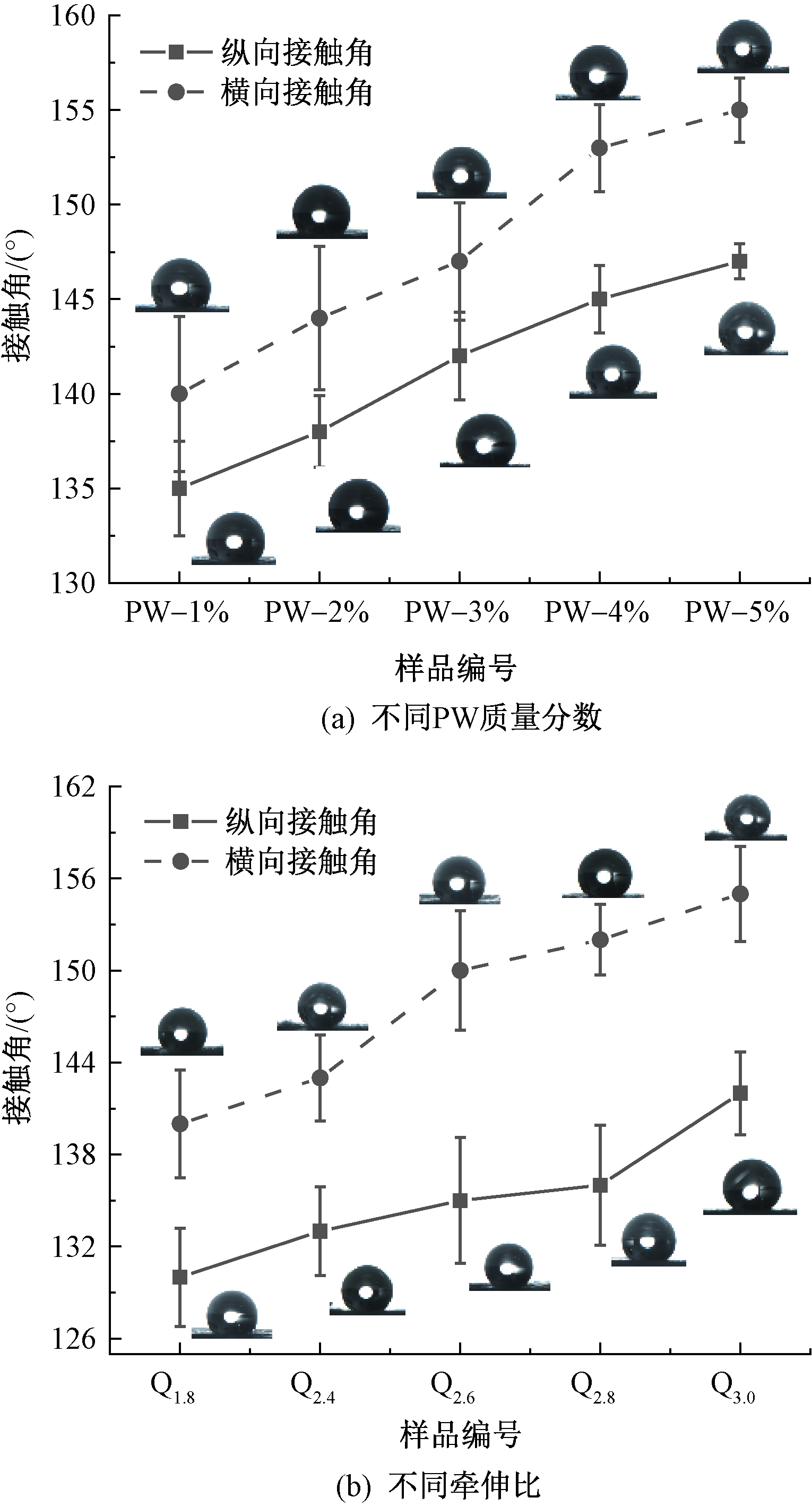

Water contact angle curves of PLA microfibrous fabrics with different PW mass(a) and drafting ratios(b)"

Fig.10

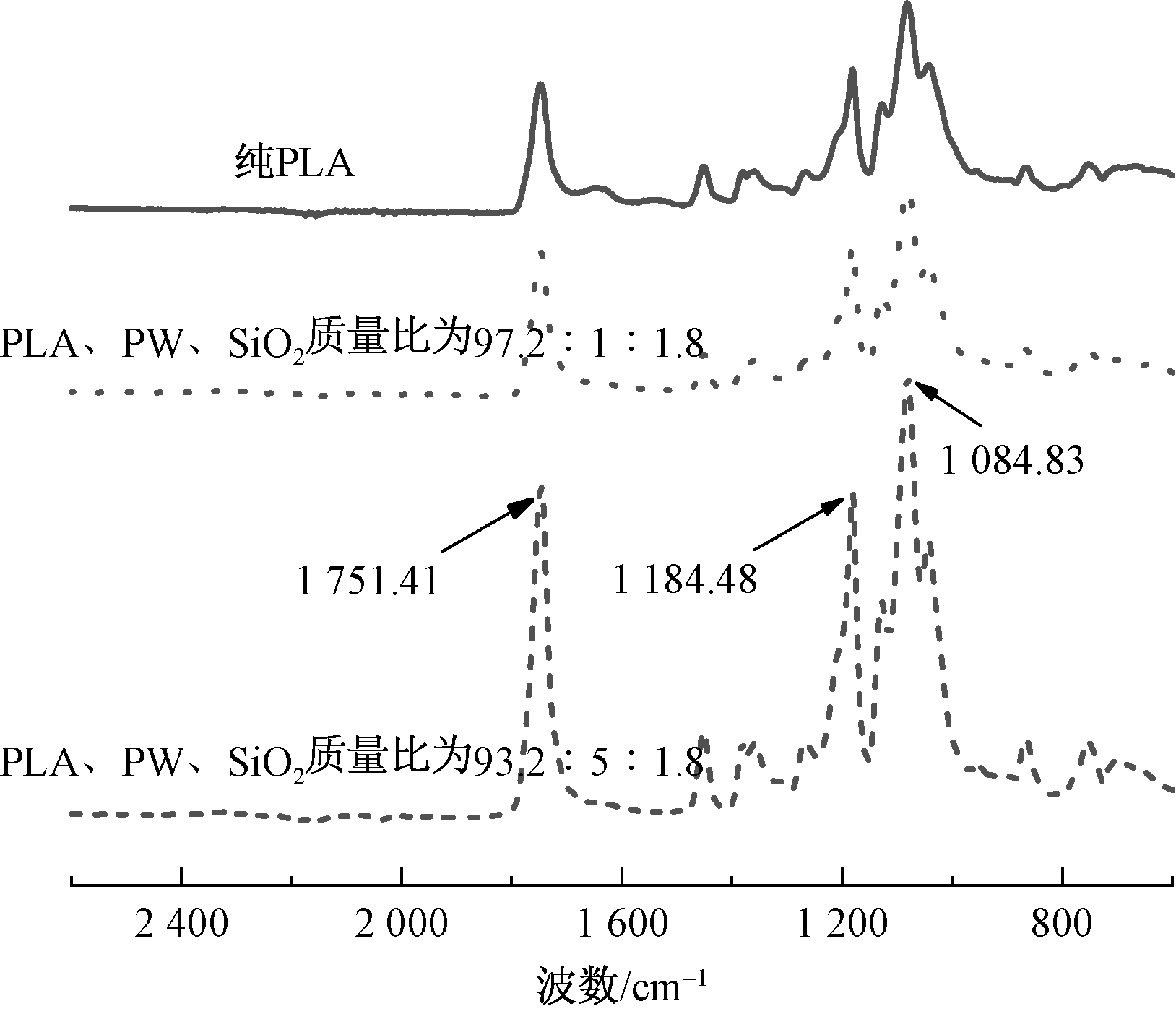

FT-IR spectra of PLA microfibrous fabrics"

Fig.11

Liquid rolling behavior of PLA microfibrous fabrics. (a) Schematic diagram of droplet rolling; (b) Practical image of droplet rolling; (c) Optical photographs of various types liquid; (d) Rolling curves of PW-5% sample; (e) Inclination angle curves of samples with different PW mass; (f) Inclination angle curves of sample with different drafting ratios"

Tab.3

Waterproof and breathable property of PLA microfibrous fabrics"

样品编号 耐静水压/
Pa		 透湿率/
(g·m-2·(24 h)-1)
PW-1% 2 075 2 114
PW-2% 2 322 2 105
PW-3% 2 574 2 090
PW-4% 2 635 2 040
PW-5% 2 721 1 895
Q1.8 2 083 2 193
Q2.4 2 112 2 121
Q2.6 2 311 2 082
Q2.8 2 358 2 012
Q3.0 2 597 1 983
