纺织学报 ›› 2019, Vol. 40 ›› Issue (11): 113-118.doi: 10.13475/j.fzxb.20181003206

• 染整与化学品 • 上一篇    下一篇

用高长径比银纳米线制备功能性复合涤纶织物及其性能

朱金铭, 钱建华(), 孙丽颖, 李正平, 彭慧敏

  1. 浙江理工大学 纺织科学与工程学院, 浙江 杭州 310018
  • 收稿日期:2018-10-17 修回日期:2019-08-15 出版日期:2019-11-15 发布日期:2019-11-26
  • 通讯作者: 钱建华
  • 作者简介:朱金铭(1993—),女,硕士生。主要研究方向为新型纤维材料。
  • 基金资助:
    浙江理工大学纺织科学与工程优秀青年人才基金项目(2013YXQN09)

Properties of functionalized composite polyester fabric prepared from silver nanowires of high aspect ratio

ZHU Jinming, QIAN Jianhua(), SUN Liying, LI Zhengping, PENG Huimin

  1. College of Textile Science and Engineering, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
  • Received:2018-10-17 Revised:2019-08-15 Online:2019-11-15 Published:2019-11-26
  • Contact: QIAN Jianhua

摘要:

为制备一种功能性的复合涤纶织物,首先利用氧等离子体技术改性处理增加涤纶纤维的润湿性,然后采用溶液法制备银纳米线(AgNWs)并分散到无水乙醇中,通过浸渍-烘干工艺整理到涤纶(PET)织物表面,并采用热压工艺处理AgNWs/PET织物以提高AgNWs的吸附牢度。探讨不同银纳米线溶液质量浓度对AgNWs/PET性能的影响。结果表明:随着银纳米线质量浓度由1 mg/mL增加到4 mg/mL,AgNWs/PET织物的方块电阻由25.38 Ω/?减小至2.51 Ω/?,但耐洗性能较差;经等离子体改性处理后,AgNWs/PET织物的导电性能明显优于未处理织物;先经过氧等离子体处理再采用热压工艺处理,不仅能提高织物的导电性,且经过50次洗涤后,AgNWs/PET织物的方块电阻由0.67 Ω/?增加至0.83 Ω/?,仅增加了24.89%,耐洗性有较大改善。

关键词: 银纳米线, 涤纶织物, 等离子体处理技术, 热压处理, 导电性能, 耐洗性

Abstract:

In order to prepare a functional composite polyester fabric, oxygen plasma-modified treatment and hot pressing processing were firstly adopted to increase the wettability of the polyester(PET), then the silver nanowires(AgNWs) were dispersed into anhydrous ethanol and the PET fabric was treated with the AgNWs ethanol colloid by a dip-drying process. The AgNWs/PET fabrics were treated by hot pressing process to improve the adsorption fastness of AgNWs. The influence of different concentrations of the colloid on the properties of AgNWs/PET was investigated. With the concentration of the colloid increases from 1 mg/mL to 4 mg/mL, the square resistance of the AgNWs/PET reduces from 25.38 Ω/? to 2.51 Ω/?, but the washing resistance is poor. The electrical conductivity of the AgNWs/ PET which was modified by oxygen plasma is improved after hot-pressing. In addition, after 50 times of washing, the square resistance is increased only by 24.89% , from 0.67 Ω/? to 0.83Ω/?, but the washing resistance is greatly improved.

Key words: silver nanowires, polyester fabric, plasma treatment technology, hot pressing process, electrical conductivity, washing resistance

中图分类号:

  • TS156

图1

不同倍数下AgNWs扫描电镜照片"

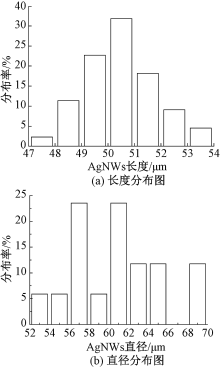

图2

AgNWs长度及直径分布图"

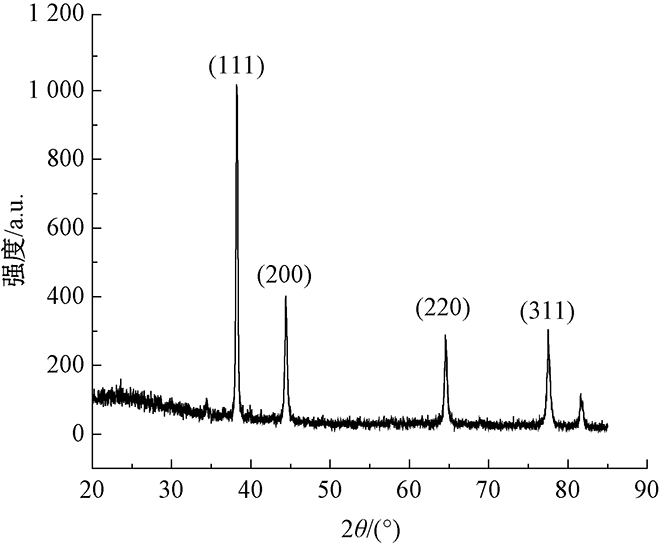

图3

银纳米线的XRD图谱"

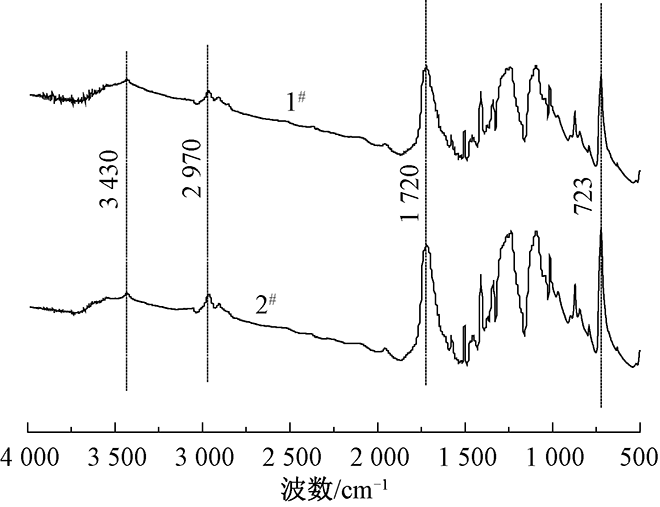

图4

等离子处理前后涤纶织物的红外光谱"

图5

等离子体改性处理前后涤纶织物的接触角示意图"

图6

涤纶织物的扫描电镜照片"

图7

不同银纳米线溶液质量浓度的AgNWs/涤纶织物方块电阻"

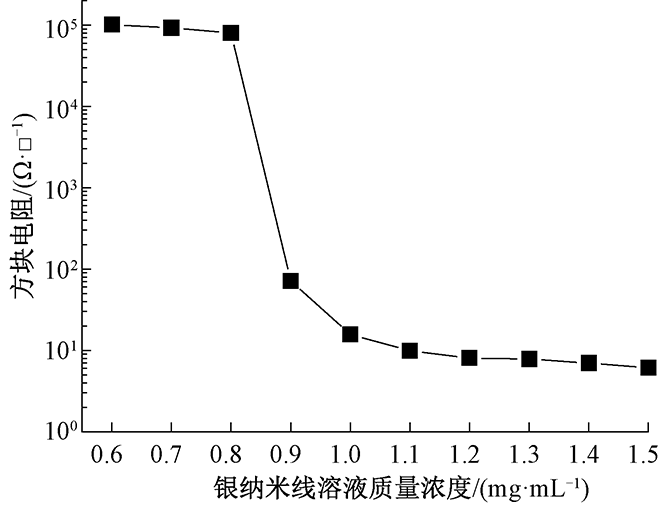

图8

不同银纳米线溶液质量浓度的4#织物的方块电阻"

表1

AgNWs/涤纶织物的UPF值"

银纳米线溶液
质量浓度/
(mg·mL-1)
3# 4#
未洗涤 洗涤5次 未洗涤 洗涤5次
1 15.61 9.40 24.44 11.20
2 22.21 12.64 54.66 13.52
3 37.38 12.33 63.60 14.94
4 87.47 15.45 158.85 16.84

图9

经热压工艺处理后5#织物的扫描电镜照片"

图10

不同洗涤次数的5#织物的方块电阻"

图11

织物5#点亮LED灯泡的照片"

[1] LEE P, LEE J H, LEE J H, et al. Highly stretchable and highly conductive metal electrode by very long metal nanowire percolation network[J]. Advanced Materials, 2012,24(25):3326-3332.
doi: 10.1002/adma.201200359 pmid: 22610599
[2] YANG T L, PAN C T, CHEN Y C, et al. Synjournal and fabrication of silver nanowires embedded in PVP fibers by near-field electrospinning process[J]. Optical Materials, 2015,39:118-124.
doi: 10.1016/j.optmat.2014.11.009
[3] YANG W L, LI J J, ZHONG Y J. Facile Cl-mediated hydrothermal synjournal of large-scale Ag nanowires from AgCl hydrosol[J]. Cryst Eng Comm, 2013,15:2598-2600.
doi: 10.1039/c3ce26925f
[4] POURAHMAD A, SOHRABNEZHAD S H. Preparation and characterization of Ag nanowires in mesoporous MCM-41 nanoparticles template by chemical reduction method[J]. Journal of Alloys and Compounds, 2009,484(1/2):314-316.
doi: 10.1016/j.jallcom.2009.04.089
[5] HSU Po-chun, LIU Xiaoge, LIU Chong, et al. Personal thermal management by metallic nanowire-coated textile[J]. Nano Letters, 2015,15(1):365-371.
pmid: 25434959
[6] 修阿男. 两亲性超支化聚缩水甘油醚银纳米线的制备及棉织物整理初探[D]. 苏州:苏州大学, 2015:39-46.
XIU An'an. Preparation of amphiphilic hyperbranched polyether, silver nanowires and its first application in cotton fabrics[D]. Suzhou: Soochow University, 2015:39-46.
[7] NATEGHI M R, SHATERI-KHALILABAD M. Silver nanowire-functionalized cotton fabric[J]. Carbohyd Polym, 2015,117(5):160-168.
doi: 10.1016/j.carbpol.2014.09.057
[8] SUN Y G, YIN Y D, MAYERS B T, et al. Uniform silver nanowires synjournal by reducing AgNO3 with ethylene glycol in the presence of seeds and poly(viny pyrrolidone)[J]. Chemistry of Matericals, 2002,14(11):4736-4745.
[9] WANG Z L, MOHAMED M B, LINK S, et al. Crystallog-raphic facets and shapes of gold nanorods of different aspect ratios[J]. Surface Science, 1999,440(1):809-814.
[10] KANG Jiyun. Plasma treatment of textiles-synthetic polymer-based textiles[J]. AATCC Review, 2004,4(11):29-32.
[11] 李平, 王煜, 郑春弟, 等. 抗紫外织物测试结果的统计分析[J]. 印染, 2001(5):44-46.
LI Ping, WANG Yu, ZHENG Chundi, et al. Statistieal analysis of measuring results of UV protective fabric[J]. China Dyeimg & Finishing, 2001(5):44-46.
