Journal of Textile Research ›› 2022, Vol. 43 ›› Issue (05): 12-17.doi: 10.13475/j.fzxb.20211206506

• Invited Column: Expert Opinion of the 11th China Textile Academic Conferenc • Previous Articles     Next Articles

Dyeing properties of polylactic acid/polyketone fibers with disperse dye

CHEN Peng1(), LIAO Shihao1,2,3, SHEN Lanping2, WANG Xuan3, WANG Peng1

  1. 1. Ningbo Institute of Materials Technology and Engineering, Chinese Academy of Sciences, Ningbo, Zhejiang 315201,China
    2. School of Textile Science and Engineering, Xi'an Polytechnic University, Xi'an, Shanxi 710048, China
    3. School of Textiles, Zhejiang Fashion Institute of Technology, Ningbo, Zhejiang 315211, China
  • Received:2021-12-30 Revised:2022-02-21 Online:2022-05-15 Published:2022-05-30

RichHTML

34

PDF (PC)

138

Abstract:

To improve dyeing performance of polylactic acid (PLA) fibers, Disperse Blue 79 was used to dye polylactic acid/polyketone (PLA/PK) blend fibers. The influence of dyeing temperature, time, pH value and other factors were investigated, with the dyeing kinetics and thermodynamic behavior analyzed. The optimal processing parameters were identified, which are dyeing temperature of 110 ℃, holding time of 40 min, and pH value of 5. With increased PK content, the K/S value of the blend fibers increases significantly and the color fastness to rubbing and soaping remains over level 3,the equilibrium adsorption amount of Disperse Blue 79 dye on the blend fiber increases, the half dyeing time decreases, and the diffusion coefficient increases, further confirming the improved dyeing properties of the blend fiber. The adsorption isotherms of Disperse Blue 79 dye to PLA fiber and blended fibers are calculated by fitting, showing a composite curve of Nernst and Langmuir.

Key words: polylactic acid fiber, polylactic acid/polyketone blend fiber, disperse dye, kinetics, dyeing, thermodynamics

CLC Number:

  • TS190.6

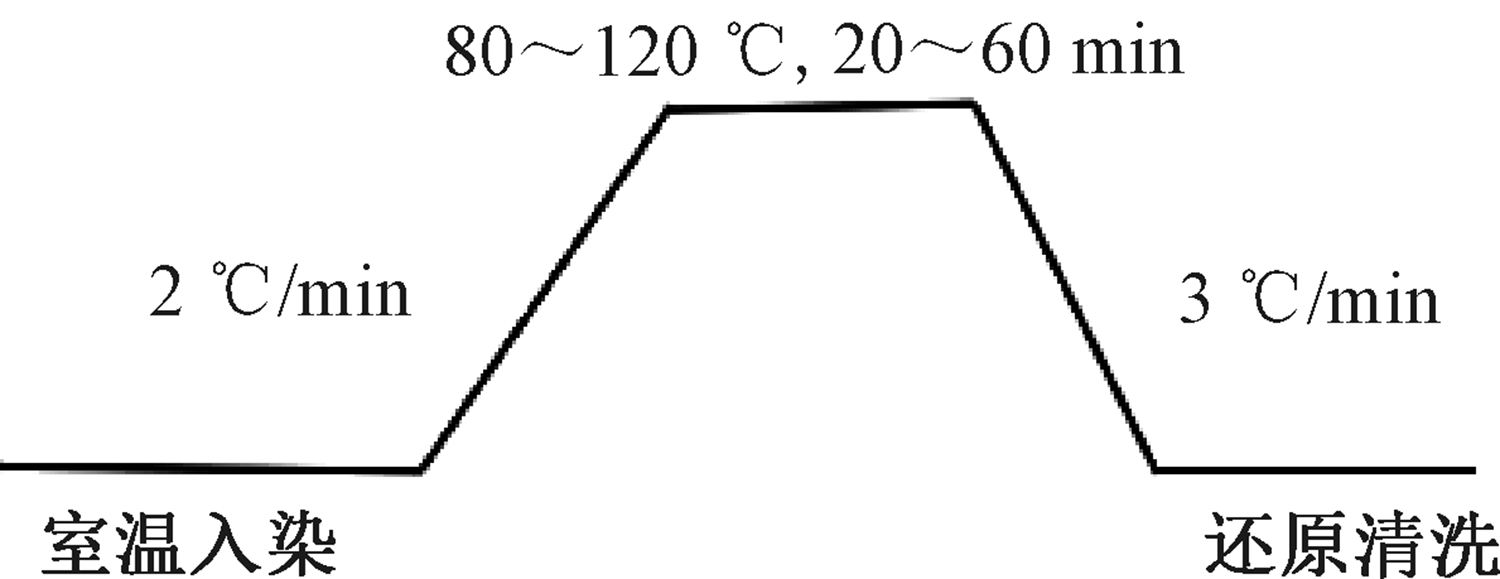

Fig.1

Fiber dyeing process curve"

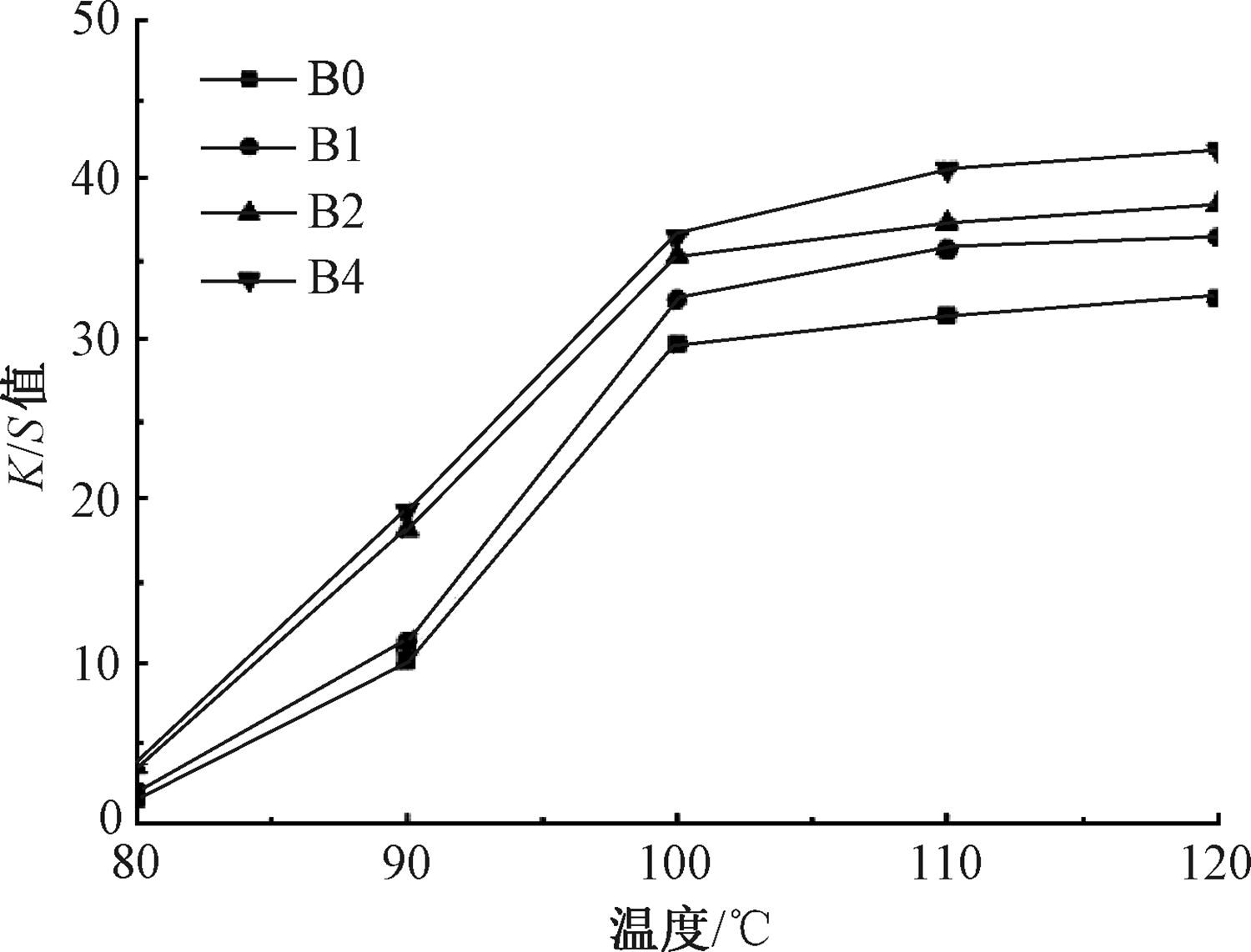

Fig.2

Effect of dyeing temperature on K/S value of PLA/PK blend fibers"

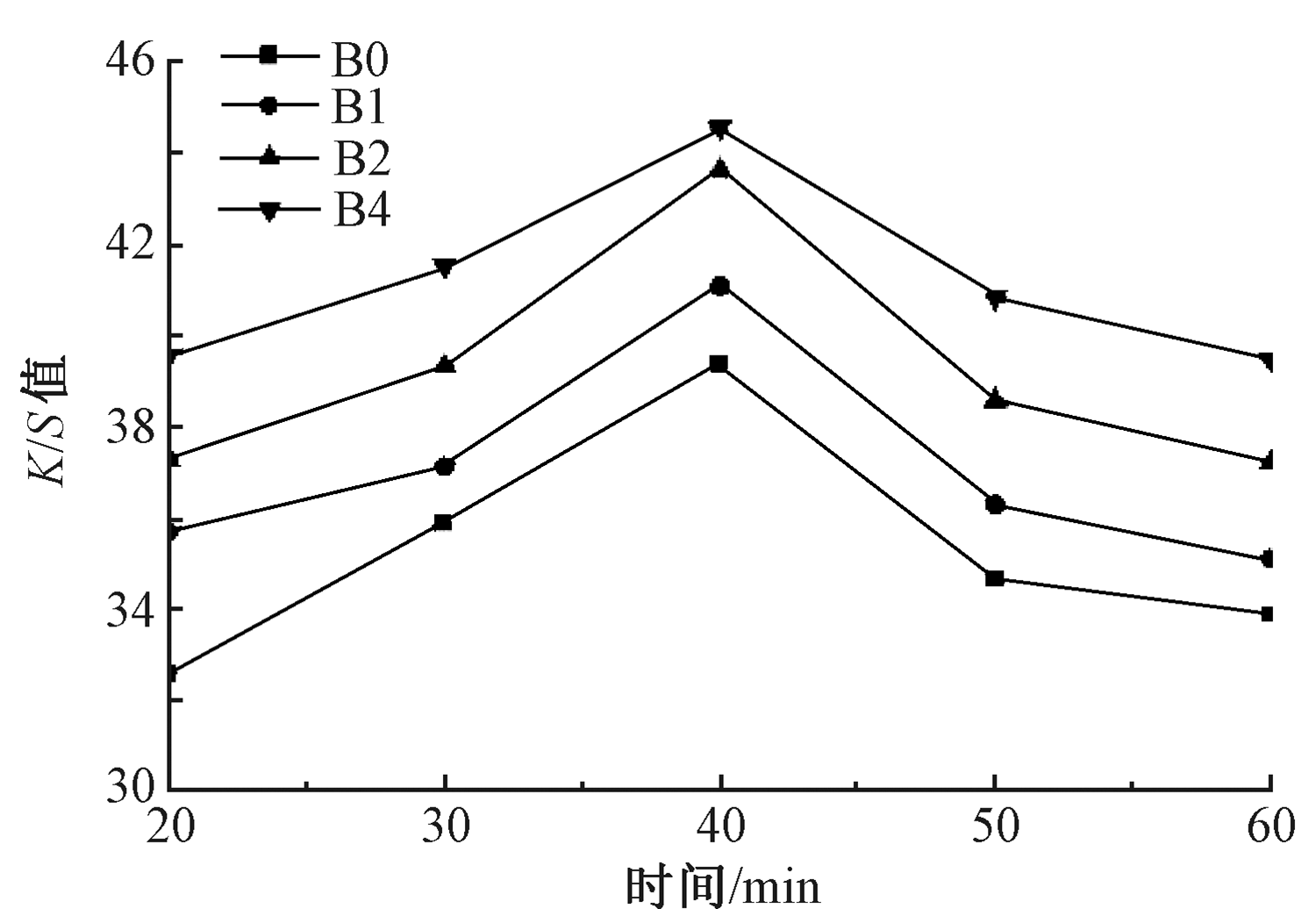

Fig.3

Effect of time on K/S value of PLA/PK blend fibers"

Fig.4

Effect of pH value on the K/S value of PLA/PK blend fibers"

Tab.1

"

纤维
编号		 耐摩擦色牢度 耐皂洗色牢度
干 湿 变色 沾色
B0 4~5 4~5 4~5 4
B1 4~5 4~5 3 4
B2 4~5 4~5 3 4~5
B4 5 4~5 3~4 4~5

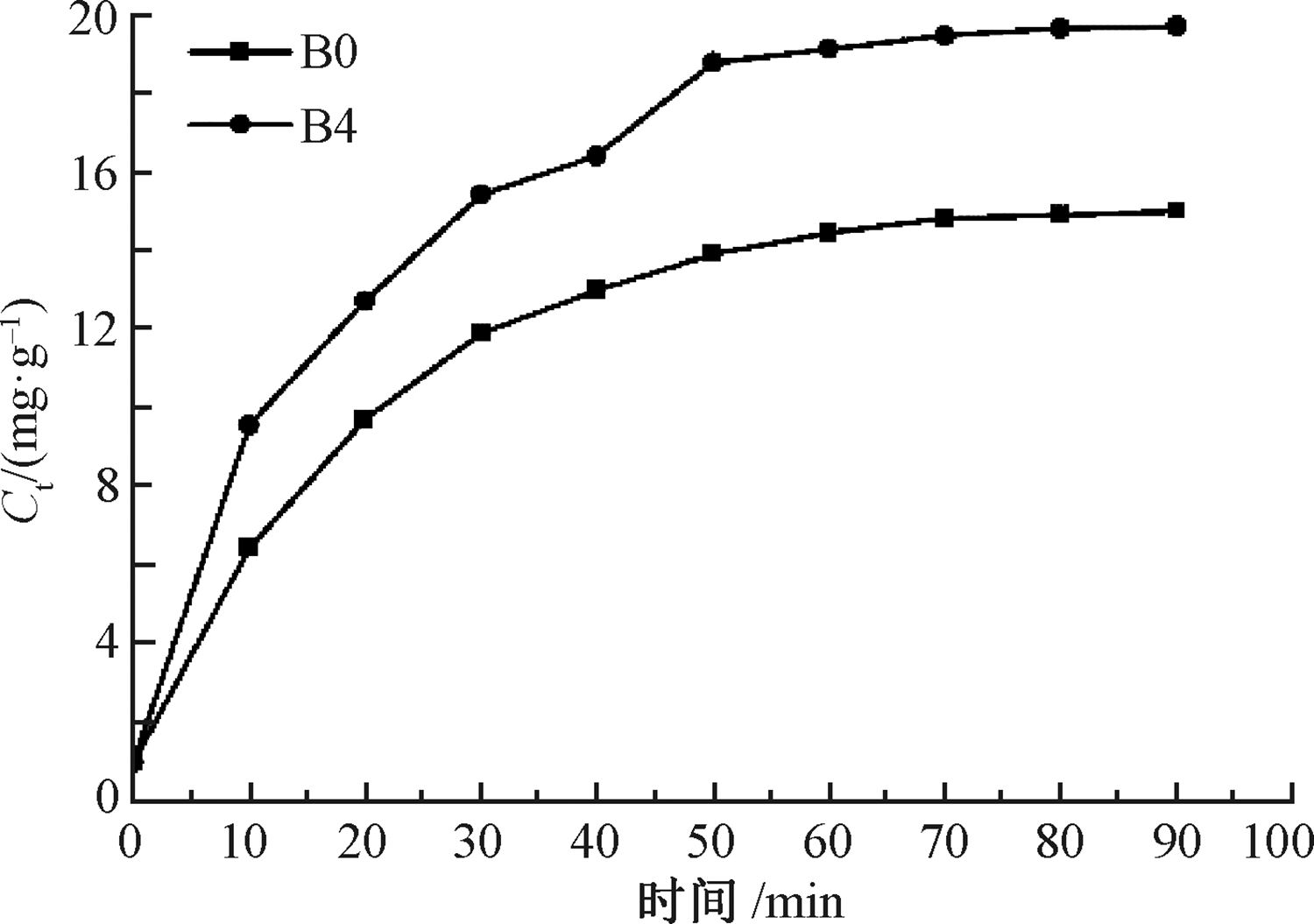

Fig.5

Dyeing curve of Disperse Blue 79 on PLA/PK blend fibers"

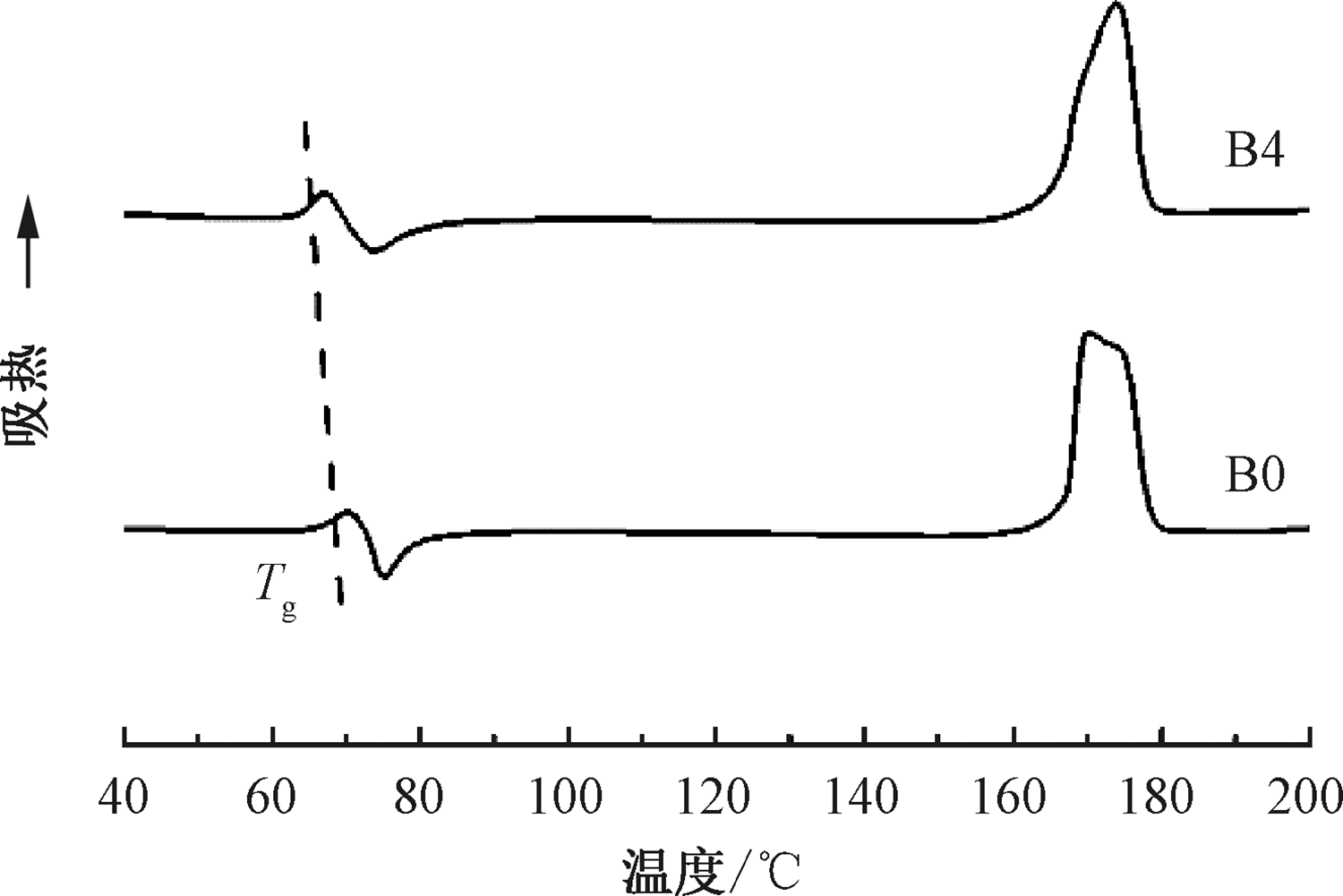

Fig.6

DSC curves of PLA/PK blend fibers"

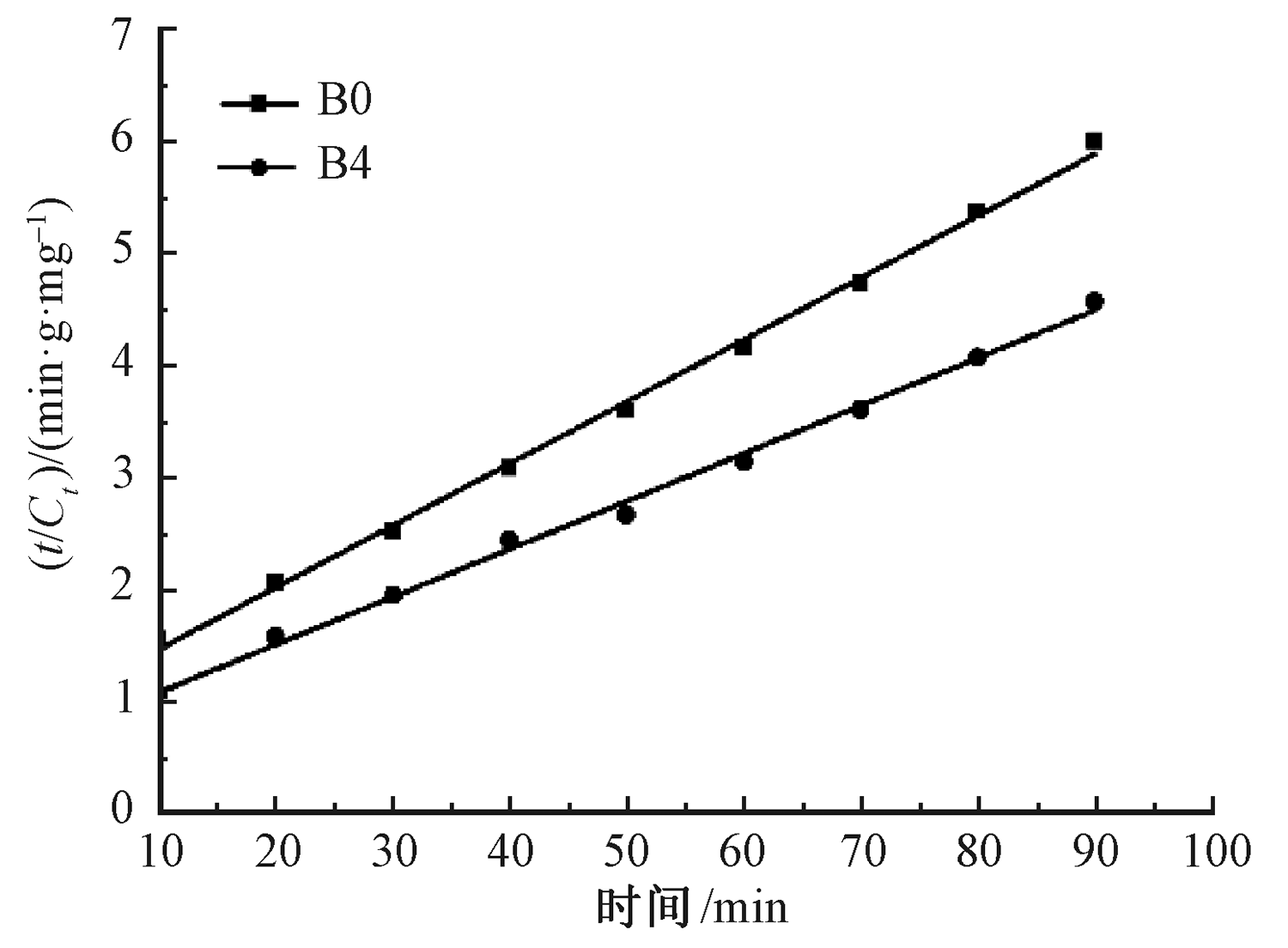

Fig.7

Quasi-second-order kinetic linear fitting curve of PLA/PK blend fibers dyed with Disperse Blue 79"

Tab.2

Dyeing kinetic parameters of PLA/PK blend fibers with Disperse Blue 79"

纤维编号 拟合方程 线性拟合度R2 平衡吸附量/(mg·g-1) 染色速率常数/(min·g·mg-1) 半染时间/min
B0 y=0.055 3x+0.906 4 0.994 6 18.083 0.003 4 16.265
B4 y=0.042 7x+0.648 4 0.991 2 23.43 0.002 8 15.247

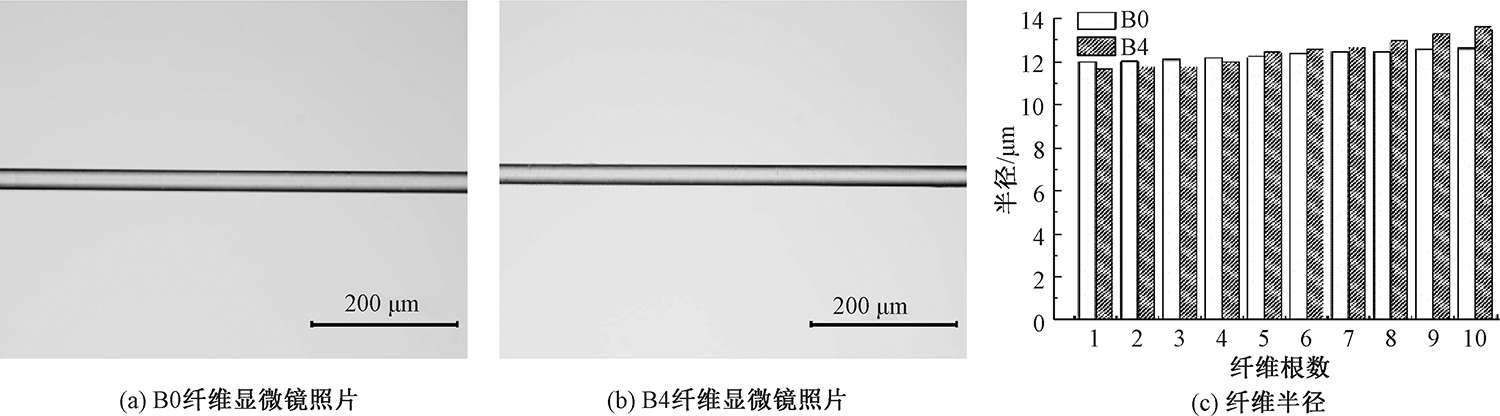

Fig.8

Micrograph of B0(a), B4(b) and radius of fiber(c)"

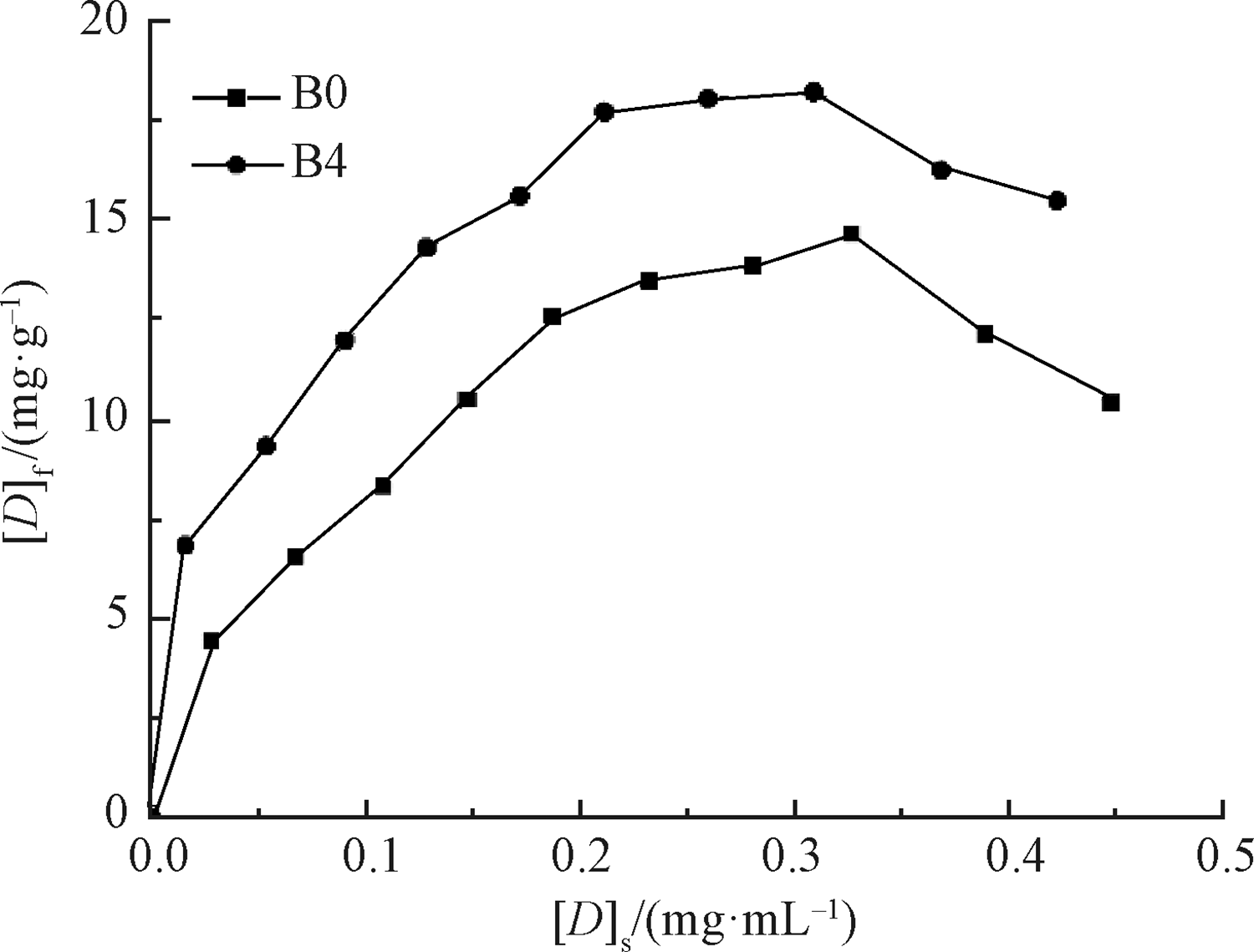

Fig.9

Adsorption isotherm of Disperse Blue 79 on fibers at 110 ℃"

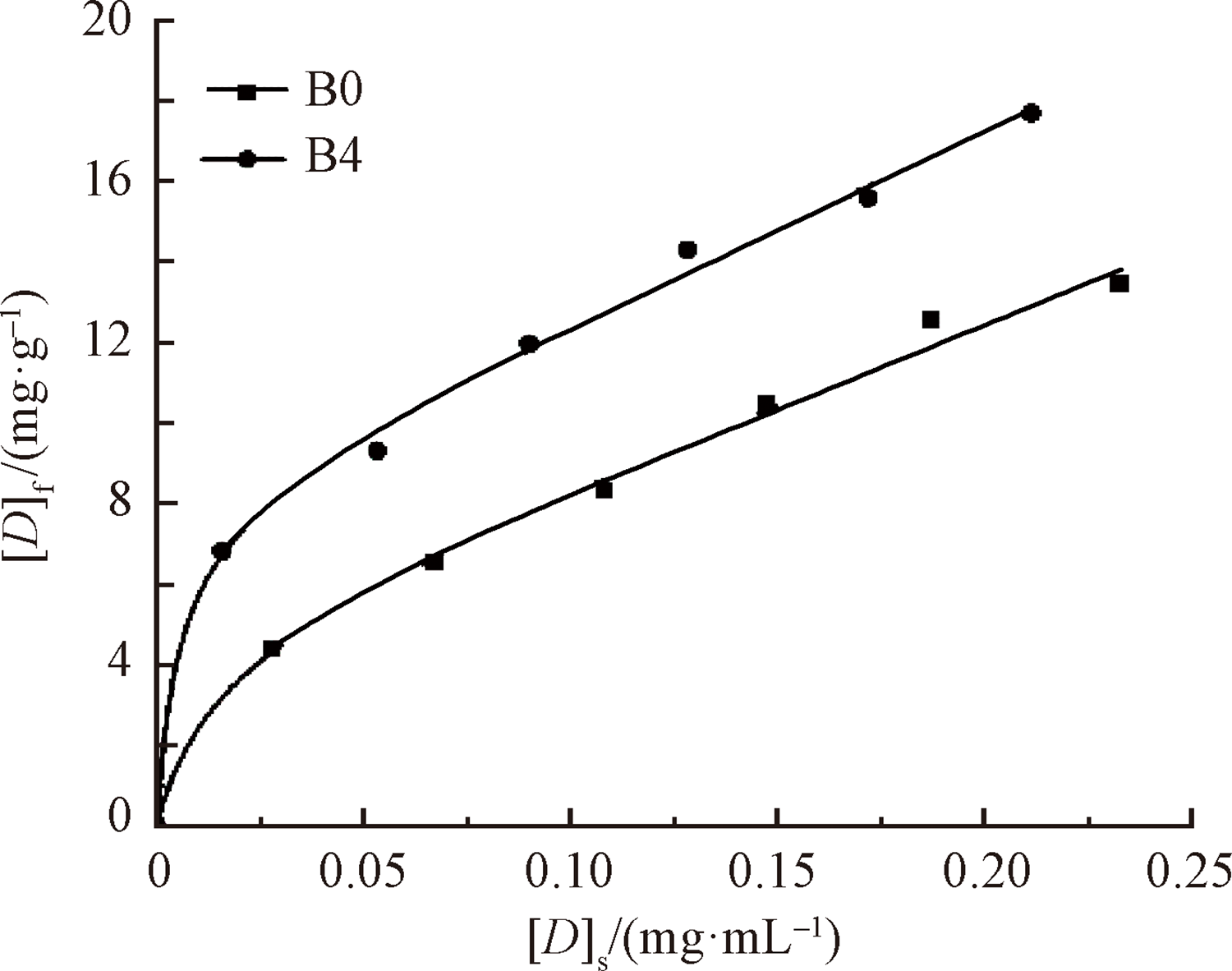

Fig.10

Adsorption model of Disperse Blue 79 on fibers"

[1] 齐悦, 杨博, 马慧玲, 等. 生物可降解聚乳酸纤维的发展现状及其改性研究[J]. 北京服装学院学报(自然科学版), 2019, 39(1):85-93.
QI Yue, YANG Bo, MA Huiling, et al. Development and modification of polylactic acid fibers[J]. Journal of Beijing Institute of Fashion Technology(Natural Science Edition), 2019, 39(1):85-93.
[2] JIN F L, HU R R, PARK S J. Improvement of thermal behaviors of biodegradable poly(lactic acid) polymer: a review[J]. Composites Part B: Engineering, 2019, 164: 287-296.
doi: 10.1016/j.compositesb.2018.10.078
[3] HE L, ZHANG S F, TANG B T. Dyes with high affinity for polylactide[J]. Chinese Chemical Letters, 2007, 18(9):1151-1153.
doi: 10.1016/j.cclet.2007.07.031
[4] LI L, HUANG W, WANG B, et al. Properties and structure of polylactide/poly (3-hydroxybutyrate-co-3-hydroxyvalerate) (PLA/PHBV) blend fibers[J]. Polymer, 2015, 68:183-94.
doi: 10.1016/j.polymer.2015.05.024
[5] 武奇奇, 李敏, 刘怡宁, 等. 聚乳酸织物载体染色性能[J]. 纺织学报, 2019, 40(1):79-83,90.
WU Qiqi, LI Min, LIU Yining, et al. Dyeing properties of polylactic acid fabric by carrier dyeing method[J]. Journal of Textile Research, 2019, 40(1):79-83,90.
[6] 吴婧轩, 李亦然. 预处理工艺对聚乳酸纤维染色性能的影响[J]. 印染助剂, 2018, 35(9):57-59.
WU Jingxuan, LI Yiran. Effect of pretreatmentprocess on dyeing properties of polylactic acid fiber[J]. Textile Auxiliaries, 2018, 35(9):57-59.
[7] REDDY N, NAMA D, YANG Y. Polylacticacid/polyproplopylene polyblend fibers for better resistance to degradation[J]. Polymer Degradation and Stability, 2008, 93(1):233-241.
doi: 10.1016/j.polymdegradstab.2007.09.005
[8] BAYKUŞ O, DOGANŞ D, TAYFUN U, et al. Improving the dyeability of poly(lactic acid)fiber using octa(aminophenyl)POSS nanoparticle during melt spinning[J]. The Journal of The Textile Institute, 2016, 108(4): 569-578.
doi: 10.1080/00405000.2016.1175536
[9] ZHANG Z H, XU Z Q, HUANG X X, et al. Dyeing processes of 100% biobased and degradable polylactide/poly(hydroxybutyrate-co-hydroxyvalerate)textiles[J]. Textile Research Journal, 2016, 87(17): 2066-2075.
doi: 10.1177/0040517516663158
[10] YANG Y, LI S Y, BAO R Y, et al. Progress in polyketone materials: blends and composites[J]. Polymer International, 2018, 67(11): 1478-1487.
doi: 10.1002/pi.5624
[11] 郭晶, 沈兰萍, 王瑄, 等. 生物质呋喃二甲酸共聚酯纤维的染色工艺[J]. 纺织高校基础科学学报, 2019, 32(2):155-1.
GUO Jing, SHEN Lanping, WANG Xuan, et al. Dyeing process of biomass furan dicarboxylic acid copolyester fiber[J]. Basic Sciences Journal of Textile Universities, 2019, 32(2):155-160.
[12] 张巍峰. 聚乳酸纤维染色性能的研究[J]. 染整技术, 2019, 41(3):20-23.
ZHANG Weifeng. Study on the dyeing properties of PLA fiber[J]. Textile Dyeing and Finishing Journal, 2019, 41(3):20-23.
[13] 张鑫, 王祥荣. 分散染料对PHA纤维的染色动力学和热力学研究[J]. 印染助剂, 2016, 33(9):19-22.
ZHANG Xin, WANG Xiangrong. Kinetics and thermodynamics of disperse dyed PHA fibers[J]. Textile Auxiliaries, 2016, 33(9):19-22.
[14] 李亮, 杨劲草, 胡泽栋, 等. 水解条件对聚乳酸纤维强伸性能的影响[J]. 棉纺织技术, 2019, 47(2):36-39.
LI Liang, YANG Jincao, HU Zedong, et al. Influence of hydrolysis condition strength & elongation of polylactic acid fiber[J]. Cotton Textile Technology, 2019, 47(2):36-39.
[15] 赵晓婷, 邱志成, 金剑, 等. 吸湿速干聚酯纤维的性能及染色工艺研究[J]. 合成纤维工业, 2018, 41(3):33-36.
ZHAO Xiaoting, QIU Zhicheng, JIN Jian, et al. Properties and dyeing process of moisture-absorbing and quick-drying polyester fiber[J]. Synthetic Fiber Industry, 2018, 41(3):33-36.
[16] 王晓春, 闫金龙, 张丽平, 等. 超高分子质量聚乙烯纤维分散染料染色性能[J]. 纺织学报, 2017, 38(11):84-90.
WANG Xiaochun, YAN Jinlong, ZHANG Liping, et al. Dyeing properties of ultrahigh molecular weight polyethylene fibers with disperse dye[J]. Journal of Textile Research, 2017, 38(11):84-90.
[17] 李亮, 杨劲草, 胡泽栋, 等. pH值对聚乳酸纤维结构及力学性能的影响[J]. 毛纺科技, 2019, 47(7):32-35.
LI Liang, YANG Jincao, HU Zedong, et al. Effect of pH value on structural and mechanical properties of PLA fiber[J]. Wool Textile Journal, 2019, 47(7):32-35.
[18] 柴丽琴, 邵建中, 周岚, 等. 栀子黄在棉织物上的染色动力学研究[J]. 纺织学报, 2010, 31(9): 56-61.
CHAI Liqin, SHAO Jianzhong, ZHOU Lan, et al. Dyeing kinetics of Gardenia Yellow on cotton[J]. Journal of Textile Research, 2010, 31(9): 56-61.
[19] 丁飞飞, 汪澜, 林俊雄. 低熔点皮芯复合纤维分散染料染色机制[J]. 纺织学报, 2011, 32(1):67-72.
DING Feifei, WANG Lan, LIN Junxiong. Dyeing mechanism of disperse dye on bi-component sheath-core fiber with low melting point[J]. Journal of Textile Research, 2011, 32(1):67-72.
doi: 10.1177/004051756203200109
[20] 许建华, 关艳锋, 郑今欢. PLA纤维的染色动力学和热力学研究[J]. 浙江理工大学学报, 2008(6):644-648,666.
XU Jianhua, GUAN Yanfeng, ZHENG Jinhuan. The kinetics and thermodynamics studies of disperse dye dyeing on PLA fibers[J]. Journal of Zhejiang Sci-Tech University, 2008(6):644-648,666.
