Journal of Textile Research ›› 2022, Vol. 43 ›› Issue (04): 84-89.doi: 10.13475/j.fzxb.20210307907

• Dyeing and Finishing & Chemicals • Previous Articles     Next Articles

Preparation and reduction-oxidation process of indigo dispersant

HE Yingting1,2, LI Min1,2, FU Shaohai1,2,3()

  1. 1. Jiangsu Engineering Research Center for Digital Textile Inkjet Printing, Wuxi, Jiangsu 214122, China
    2. Key Laboratory of Eco-Textiles (Jiangnan University), Ministry of Education, Wuxi, Jiangsu 214122, China
    3. National Engineering Research Center for Dyeing and Finishing of Textiles, Taian, Shandong 271000, China
  • Received:2021-03-22 Revised:2021-12-03 Online:2022-04-15 Published:2022-04-20
  • Contact: FU Shaohai E-mail:shaohaifu@hotmail.com

RichHTML

19

PDF (PC)

65

Abstract:

In view of the low color yield of indigo dyeings, the preparation process of indigo dispersant was improred. The effects of the type and dosage of dispersant on the dispersion stability and dyeing properties of indigo dispersant were investigated. The effects of dye particle size, reductant dosage, temperature and pH value on the indigo reduction rate were analyzed, and the effect of oxidation methods on color fastness of dyed fabrics was discussed. The experimental results show that the dyeing of indigo dispersion with 1.5% dispersant DM-1501 achieves K/S value of 11.92. Under the condition of 1 g/L sodium hydrosulfite, 80 ℃ of reduction temperature, pH value is 11, the absorbance of leuco indigo in the reduction solution reaches the maximum and the half-reduction time of indigo dispersant with particle size of about 280 nm is reduced to 0.2 min. The cotton fabric oxidized by air reach the dry rubbing color fastness of grade 4, wet rubbing color fastness of grade 3, which are better than the fabric oxidized by H2O2.

Key words: indigo dispersant, dispersing, reduction-oxidation process, color fastness, dyeing property, cotton fabric

CLC Number:

  • TS193.5

Fig.1

SEM images of indigo before and after grinding. (a) Original indigo; (b) Indigo dispersion"

Tab.1

Effects of dispersant type on dispersion stability and dyeing properties of indigo dispersion"

分散剂 粒径/nm 结晶度/% 粒径变化率/% K/S值
种类 质量分数/% 储存 热稳定 离心
无 0 62.97 染料发生团聚沉淀 10.33
NNO 1.5 314.1 73.99 2.42 17.16 -5.53 11.56
DM-1501 1.5 282.1 75.11 8.36 7.90 -6.19 11.92
AD-4600/DM-1501 1.5 (1∶1) 283.2 66.26 48.52 48.41 -7.87 10.82
平平加O/DM-1501 1.5 (1∶1) 237.6 69.91 3.37 65.99 -38.07 11.20

Tab.2

Effect of dispersant dosage on dispersion stability and dyeing properties parameters of indigo dispersion"

DM-1501质量
分数/%		 粒径/nm Zeta电位/mV 结晶度/% 粒径变化率/% 黏度/(mPa·s) K/S值
储存 热稳定 离心
0.5 292.4 -44.9 68.89 10.20 2.99 -22.98 2.16 11.13
1.0 235.2 -43.9 66.48 7.33 8.67 -13.93 2.67 11.30
1.5 205.0 -43.9 69.76 5.30 7.87 -5.71 3.27 11.41
2.0 188.2 -43.6 67.62 5.16 8.52 -1.20 8.01 11.07
3.0 186.4 -44.3 64.39 3.28 4.53 -0.11 14.81 11.14

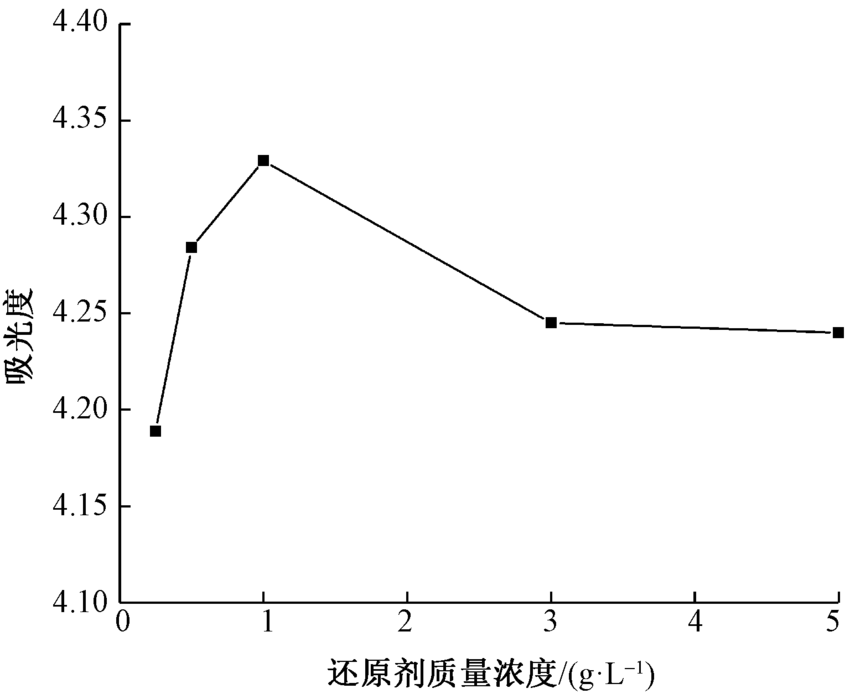

Fig.2

Effect of reductant dosage on absorbance of leuco indigo"

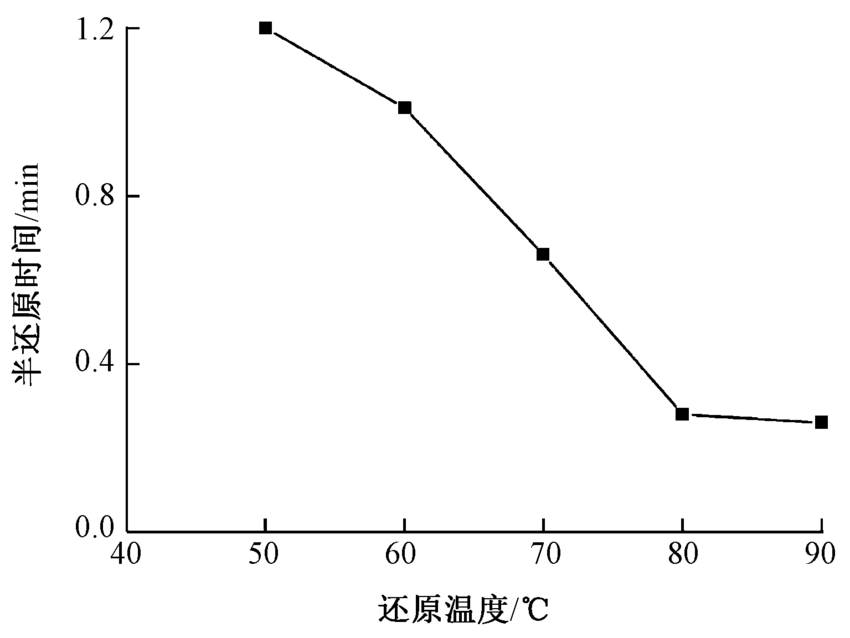

Fig.3

Effect of temperature on indigo half-reduction time"

Fig.4

Effect of pH value on indigo reduction. (a) Absorbance curve; (b) Indigo reducing solution"

Fig.5

Effect of particle size on indigo half-reduction time"

Tab.3

Effect of oxidation method on oxidation time, dyeing properties and color fastness of dyed cotton fabrics"

H2O2质量
分数/%		 氧化时
间/min		 a* b* C* K/S值 耐摩擦色牢度/级 耐皂洗色牢度/级 皂洗残液
吸光度
干 湿 棉沾色 变色
空气氧化 22.0 -1.75 -19.95 20.03 11.92 4 3 4~5 4~5 0.464
5 2.0 -0.09 -20.63 20.63 9.93 3~4 2~3 4~5 4~5 0.636
8 1.5 0.07 -20.04 20.05 10.78 3~4 2~3 4~5 4~5 0.643
10 <1.0 0.18 -20.34 20.34 11.08 3~4 2~3 4~5 4~5 0.662
15 <1.0 0.58 -19.93 19.94 11.13 3~4 2~3 4 4 0.689
20 <1.0 0.84 -19.78 19.80 11.43 3 2 4 4 0.690

Fig.6

Effects of oxidation method on apparent morphology of dyes on surface of dyed fabrics. (a) Undyed;(b) Air oxidation;(c) 5%H2O2 oxidation"

[1] KÜHNEL G, WOLFF J, RUPPERT G, et al. Textile dyeing:dyeing of cellulose fibers[M]. Berlin: Ullmann's Encyclopedia of Industrial Chemistry, 2016: 1-27.
[2] 吴远明. 液体分散靛蓝的制备及其染色性能研究[D]. 石家庄:河北科技大学, 2013: 19-22.
WU Yuanming. Preparation of liquid dispersed indigo and dyeing performance study[D]. Shijiazhuang: Hebei University of Science and Technology, 2013: 19-22.
[3] HAKEIM O A, NASSAR S H, RAGHAB A A, et al. An approach to the impact of nanoscale vat coloration of cotton on reducing agent account[J]. Carbohydrate Polymers, 2013, 92(2): 1677-1684.
doi: 10.1016/j.carbpol.2012.11.035
[4] 闫丽君. 靛蓝染料染色影响因素分析[D]. 石家庄:河北科技大学, 2010: 57-58.
YAN Lijun. Analysis of indigo dyeing factors[D]. Shijiazhuang: Hebei University of Science and Technology, 2010: 57-58.
[5] 冉旭东, 姚继明. 尿素在溴靛蓝染色中的应用[J]. 印染助剂, 2017, 34(8): 41-43.
RAN Xudong, YAO Jiming. Application of urea in bromine indigo dyeing[J]. Textile Auxiliaries, 2017, 34(8): 41-43.
[6] BURKINSHAW S M, SALIHU G. The role of auxiliaries in the immersion dyeing of textile fibres: part 2: analysis of conventional models that describe the manner by which inorganic electrolytes promote direct dye uptake on cellulosic fibres[J]. Dyes and Pigments, 2019, 161: 531-545.
doi: 10.1016/j.dyepig.2017.08.034
[7] QIN Y, YUAN M, HU Y, et al. Preparation and interaction mechanism of nano disperse dye using hydroxypropyl sulfonated lignin[J]. Int J Biol Macromol, 2020, 152: 280-287.
doi: 10.1016/j.ijbiomac.2020.02.261
[8] 董霞, 阮迪, 郑兆和, 等. 非离子分散剂的结构对C.I.分散黄64稳定性的影响[J]. 印染助剂, 2010, 27(3): 11-15.
DONG Xia, RUAN Di, ZHENG Zhaohe, et al. The influence of nonionic dispersant structure on the dispersion stability of C.I. Disperse Yellow 64[J]. Textile Auxiliaries, 2010, 27(3): 11-15.
[9] 张合杰, 张东江. 有机颜料的晶型特性: 塑胶应用[J]. 上海染料, 2012, 40(4): 31-38.
ZHANG Hejie, ZHANG Dongjiang. Crystal properties of organic pigments[J]. Shanghai Dyestuffs, 2012, 40(4): 31-38.
[10] 邱靖斯, 刘越. 分散染料的细化分散及其对粒径影响研究进展[J]. 纺织学报, 2021, 42(8): 194-201.
QIU Jingsi, LIU Yue. Research progress in superfine dispersion of disperse dyes and its effect on particle-size[J]. Journal of Textile Research, 2021, 42(8): 194-201.
[11] 余丹, 李翔, 刘小成. 二氧化硫脲对有机化合物的还原研究进展[J]. 精细化工中间体, 2014, 44(3): 8-12.
YU Dan, LI Xiang, LIU Xiaocheng. Review on the properties ofthiourea dioxide and reduction of organic compounds with it[J]. Fine Chemical Intermediates, 2014, 44(3):8-12.
[12] MEKSI N, KECHIDA M, MHENNI F. Cotton dyeing by indigo with the borohydride process: effect of some experimental conditions on indigo reduction and dyeing quality[J]. Chemical Engineering Journal, 2007, 131(1-3): 187-193.
doi: 10.1016/j.cej.2007.01.001
[13] ZHOU X J. Studies on indigo dyeing and diffusion by the film roll method[J]. Coloration Technology, 2001, 117(2): 68-75.
doi: 10.1111/j.1478-4408.2001.tb00337.x
[14] 郭梦涵, 王丹阳, 宋瑛, 等. 雌马酚的吸收光谱和荧光光谱研究[J]. 化学研究与应用, 2020, 32(2): 36-41.
GUO Menghan, WANG Danyang, SONG Ying, et al. Study on the aborption and fluorescence spectra of equol[J]. Chemical Research and Application, 2020, 32(2): 36-41.
[15] ROCHA W R, MARTINS V M, COUTINHO K, et al. Solvent effects on the electronic absorption spectrum of formamide studied by a sequential Monte Carlo/quantum mechanical approach[J]. Theoretical Chemistry Accounts, 2002, 108(1): 31-37.
doi: 10.1007/s00214-002-0353-y
[16] BLACKBURN R S, BECHTOLD T, JOHN P. The development of indigo reduction methods and pre-reduced indigo products[J]. Coloration Technology, 2009, 125(4): 193-207.
doi: 10.1111/j.1478-4408.2009.00197.x
[17] 陈戬, 姜会钰, 周莉, 等. 天然靛蓝染色棉针织物的光氧化褪色研究[J]. 针织工业, 2019(9): 32-37.
CHEN Ji, JIANG Huiyu, ZHOU Li, et al. Photo-oxidation and fading of cotton knitted fabric dyed with natural indigo dyes[J]. Knitting Industries, 2019(9): 32-37.
[18] 万旭升, 赖远明. 降温速率对硫酸钠溶液晶体析出影响的试验研究[J]. 冰川冻土, 2016, 38(2): 431-437.
WAN Xusheng, LAI Yuanming. Experimental study on the influence of cooling rate on salt crystallizing in sodium sulfate solution[J]. Journal of Glaciology and Geocryology, 2016, 38(2):431-437.
