Journal of Textile Research ›› 2023, Vol. 44 ›› Issue (01): 87-92.doi: 10.13475/j.fzxb.20211006006

• Fiber Materials • Previous Articles     Next Articles

Preparation and performance of high efficiency and low resistance polypropylene melt-blown fiber based on supercritical carbon dioxide

TAN Linli1,2(), QIN Liu1,2,3, LI Yingru1,2, DENG Lingli1,2, XIE Zhiyin1,2, LI Shidong1,2

  1. 1. College of Intelligent Systems Science and Technology, Hubei Minzu University, Enshi, Hubei 445000, China
    2. Key Laboratory of Green Manufacturing of Super-Light Elastomer Materials of State Ethnic Affairs Commission, Enshi, Hubei 445000,China
    3. Ningbo GMF New Material Technology Co., Ltd., Ningbo, Zhejiang 315300, China
  • Received:2021-10-26 Revised:2022-05-26 Online:2023-01-15 Published:2023-02-16

RichHTML

6

PDF (PC)

85

Abstract:

Objective This work was carried out to reduce the diameter of melt-blown polypropylene (PP) fabric and to solve the contradiction between filtration efficiency and filtration resistance of the melt-blown fabric during air filtration.
Method Two types of novel PP superfine melt-blown fiber were prepared. One was prepared by melt-blowing assisted by electrostatic field, and the other was prepared by firstly treating PP with supercritical carbon dioxide and then melt-blowing assisted by electrostatic field.
Results PP melt-blown fiber was prepared by melt-blowing assisted by electrostatic field. The fiber was thinned, the average diameter of the fiber was decreased from 3.22 μm to 2.44 μm by about 24.2%, and the filtration efficiency was increased from 98.78% to 99.01%. After supercritical CO2 treatment, the viscosity of PP melt decreased, and the average diameter of the fiber was further decreased to 1.73 μm with the minimum diameter of 780 nm under the synergistic effect between electrostatic field and airflow field. With the decrease of the fiber diameter, the fiber diameter distribution became narrower, the bond point between fibers was decreased, the porosity and specific surface area were increased, and the fiber was more likely to capture the charge generated by corona discharge in the electret process, significantly improving the barrier capability and air permeability of micro-nano fiber. In other words, the contradiction between filtration efficiency and filtration resistance was effectively overcome. The filtration efficiency of the prepared melt-blown fiber was 99.25% for 0.3 μm particles, the filtration resistance was only 23 Pa, with a satisfactory quality factor of 0.213 Pa-1. Compared with ordinary PP melt-blowing fiber, the breaking strength of melt-blown fiber prepared assisted by only electrostatic field or the combination of supercritical CO2 treatment and electrostatic field decreased from 2.12 MPa of conventional melt-blown fiber to 1.17 and 1.26 MPa, representing decrease rates of about 44.8% and 40.0%, respectively. The elongation at break was significantly improved, and the decrease of the breaking strength was mainly attributed to the decrease of fiber diameter. In addition, the effective bonding points between fibers became fewer, leading to further reduction in fiber strength.
Conclusion Two types of novel PP superfine melt-blown fiber were prepared, by melt-blowing assisted by electrostatic field and by melt-blowing assisted by electrostatic field following the fiber treatment by supercritical carbon dioxide. Thanks to the synergistic effect of supercritical carbon dioxide pre-treatment and the assistance of electrostatic field, the prepared melt-blowing fiber shows good barrier capability as well as good air permeability. The contradiction between filtration efficiency and filtration resistance of melt-blown fiber in the process of air filtration is effectively solved.

Key words: polypropylene, electrostatic field, supercritical carbon dioxide, micro-nano fiber, melt-blown fiber, filtration performance

CLC Number:

  • TS176

Fig.1

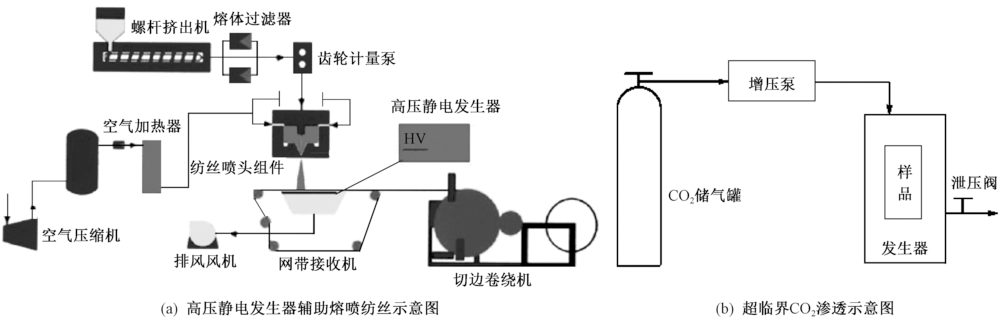

Diagram of experimental device. (a) Diagram of high voltage electrostatic generator assisted melt-blown spinning;(b) Diagram of supercritical CO2 osmosis"

Fig.2

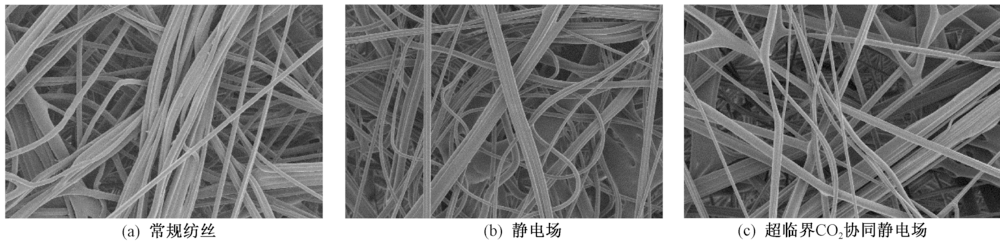

Surface microstructure of fibers prepared by different processes (×1 000). (a) Conventional melt-blown; (b) Electrostatic field;(c) Supercritical CO2 and electrostatic field"

Fig.3

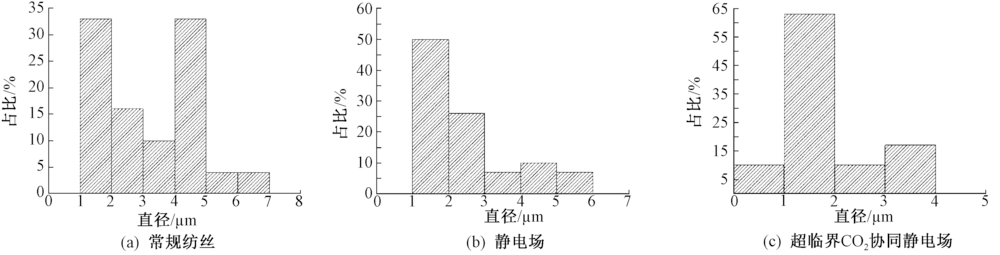

Diameter distribution of fibers prepared by different processes. (a) Conventional melt-blowing; (b) Electrostatic field;(c) Supercritical CO2 and electrostatic field"

Tab.1

Filtration efficiency of fiber to particles with different sizes"

制备条件 不同粒径颗粒物的过滤效率/%
0.3 μm 0.5 μm 1.0 μm 2.5 μm
常规纺丝 98.78 99.00 100.00 100.00
静电场 99.01 99.23 100.00 100.00
超临界CO2协同静电场 99.25 99.54 100.00 100.00

Tab.2

Test result of fiber properties"

制备条件 孔隙
率/%		 平均孔
径/μm		 过滤阻力/Pa 品质因
子/Pa-1
32 L/min 85 L/min
常规纺丝 68.10 14.86 55 148 0.080
静电场 70.05 13.79 51 134 0.091
超临界CO2
协同静电场		 72.00 12.95 23 84 0.213

Tab.3

Comparison of filtration performance of representative air filtration fiber"

原料 制备方法 过滤效
率/%		 过滤阻
力/Pa		 品质因
子/Pa-1		 参考
文献
PP 熔体静电纺 99.23 8.60 0.566 [4]
PP/ATBC 熔体静电纺 99.95 195.20 0.039 [17]
PP/PS 熔喷 99.87 37.73 0.176 [5]
PP/PEG 熔喷 85.33 55.53 0.035 [11]
PP 熔喷协同
静电场		 99.25 23.00 0.213 本文

Tab.4

Mechanical property of fibers"

制备条件 断裂伸长率/% 断裂强度/MPa
常规纺丝 18.38 2.12
静电场 22.50 1.17
超临界CO2协同静电场 44.81 1.26
[1] LIU Hui, ZHANG Shichao, LIU Lifang, et al. High-performance PM0.3 air filters using self polarized electret nanofiber/nets[J]. Advanced Functional Materials, 2020. DOI: 10.1002/adfm.201909554.
doi: 10.1002/adfm.201909554
[2] LIU Chong, HSU Pochun, LEE Hyunwook, et al. Transparent air filter for high-efficiency PM2.5 capture[J]. Nature Communications, 2015, 6 : 1-9.
[3] XUE Jiajia, WU TONG, DAI Yunqian, et al. Electrospinning and electrospun nanofibers: methods, materials, and applications[J]. Chemical Reviews, 2019, 119(8) : 5298-5415.
doi: 10.1021/acs.chemrev.8b00593 pmid: 30916938
[4] 杜琳, 张有忱, 杨卫民, 等. 熔体微分静电纺聚丙烯空气驻极体滤膜的制备及其性能[J]. 纺织学报, 2018, 39(10) : 12-17.
DU Lin, ZHANG Youchen, YANG Weimin, et al. Preparation and properties of polypropylene air filter membrane by melt differential electrospinning[J]. Journal of Textile Research, 2018, 39(10) : 12-17.
[5] DENG Nanping, HE Hongsheng, YAN Jing, et al. One-step melt-blowing of multi-scale micro/nano fabric membrane for advanced air-filtration[J]. Polymer, 2019, 165: 174-179.
doi: 10.1016/j.polymer.2019.01.035
[6] 周惠林, 杨卫民, 李好义. 医用口罩过滤材料的研究进展[J]. 纺织学报, 2020, 41(8) : 158-165.
ZHOU Huilin, YANG Weimin, LI Haoyi. Research progress of filtering material for medical mask[J]. Journal of Textile Research, 2020, 41(8) : 158-165.
doi: 10.1177/004051757104100212
[7] ZHANG Kai, LI Zongjie, KANG Weimin, et al. Preparation and characterization of tree-like cellulose nanofiber membranes via the electrospinning method[J]. Carbohydrate Polymers, 2018, 183: 62-69.
doi: S0144-8617(17)31308-5 pmid: 29352893
[8] LI Zongjie, KANG Weimin, ZHAO Huihui, et al. A novel polyvinylidene fluoride tree-like nanofiber membrane for microfiltration[J]. Nanomaterials, 2016, 6 : 1-11.
doi: 10.3390/nano6010001
[9] LI Zongjie, KANG Weimin, ZHAO Huihui, et al. Fabrication of polyvinylidene fluoride tree-like nanofiber web for ultra high performance air filtration[J]. RSC Advances, 2016(6):1-7.
[10] 甄琪, 张恒, 朱斐超, 等. 聚丙烯/聚酯双组分微纳米纤维熔喷非织造材料制备及其性能[J]. 纺织学报, 2020, 41(2) : 26-32.
ZHEN Qi, ZHANG Heng, ZHU Feichao, et al. Fabrication and properties of polypropylene/polyester bicomponent micro-nanofiber webs via melt blowing process[J]. Journal of Textile Research, 2020, 41(2): 26-32.
[11] 张恒, 甄琪, 刘雍, 等. 仿生水平分支结构聚乙二醇/聚丙烯超细纤维制备及其液体水平扩散性能[J]. 纺织学报, 2018, 39(12) : 18-23.
ZHANG Heng, ZHEN Qi, LIU Yong, et al. Preparation and liquid horizontal diffusion properties of polyethylene glycol /polypropylene microfibers with bionic horizontal branched structure[J]. Journal of Textile Research, 2018, 39(12) : 18-23.
[12] ZHANG Heng, ZHEN Qi, LIU Yong, et al. One-step melt blowing process for PP/PEG micro-nanofiber filters with branch networks[J]. Results in Physics, 2019, 12 : 1421-1428.
doi: 10.1016/j.rinp.2019.01.012
[13] ZHOU Yanfen, JIANG Liang, JIA Huiying, et al. Study on spinnability of PP/PU blends and preparation of PP/PU bi-component melt blown nonwovens[J]. Fibers and Polymers, 2019, 20 : 1200-1207.
doi: 10.1007/s12221-019-8111-0
[14] DHARMARAJ Selvakumar, ASHOKKUMAR Veeram-uthu, HARIHARAN Sneha, et al. The COVID-19 pandemic face mask waste: a blooming threat to the marine environment[J]. Chemosphere, 2021, 272:1-20.
[15] 陈明钟, 杨卫民, 李好义, 等. 基于超临界CO2制备熔体微分静电纺聚丙烯纤维[J]. 中国塑料, 2016, 30(6) : 70-73.
CHEN Mingzhong, YANG Weimin, LI Haoyi, et al. Properties of PP fibers prepared by melt differential electrospinning with supercritical CO2[J]. China Plastics, 2016, 30(6) : 70-73.
[16] ZHANG Shichao, LIU Hui, TANG Ning, et al. Spider web-inspired PM0.3 filters based on self-sustained electrostatic nanostructured networks[J]. Advanced Materials, 2020, 32:1-8.
[17] 杜琳, 李好义, 王紫行, 等. 熔体微分电纺PLA/ATBC空气滤膜的制备及性能[J]. 化工新型材料, 2019, 47(12): 82-86.
DU Lin, LI Haoyi, WANG Zhihang, et al. Preparation and air filting performance of PLA/ATBC nanofiber film by melt differential electrospinning[J]. New Chemical Materials, 2019, 47(12) :82-86.
